English Vacuum Cleaner user manual ✻ Please read the User Manual thoroughly before operating the vacuum.✻ For indoor use only.Thank you for purchasing a Samsung product.To receive a more complete service,please register your product at www.samsung.com/register

08 Assemble the handle and pipe 09 Attaching the accessories 10 Using the accessories

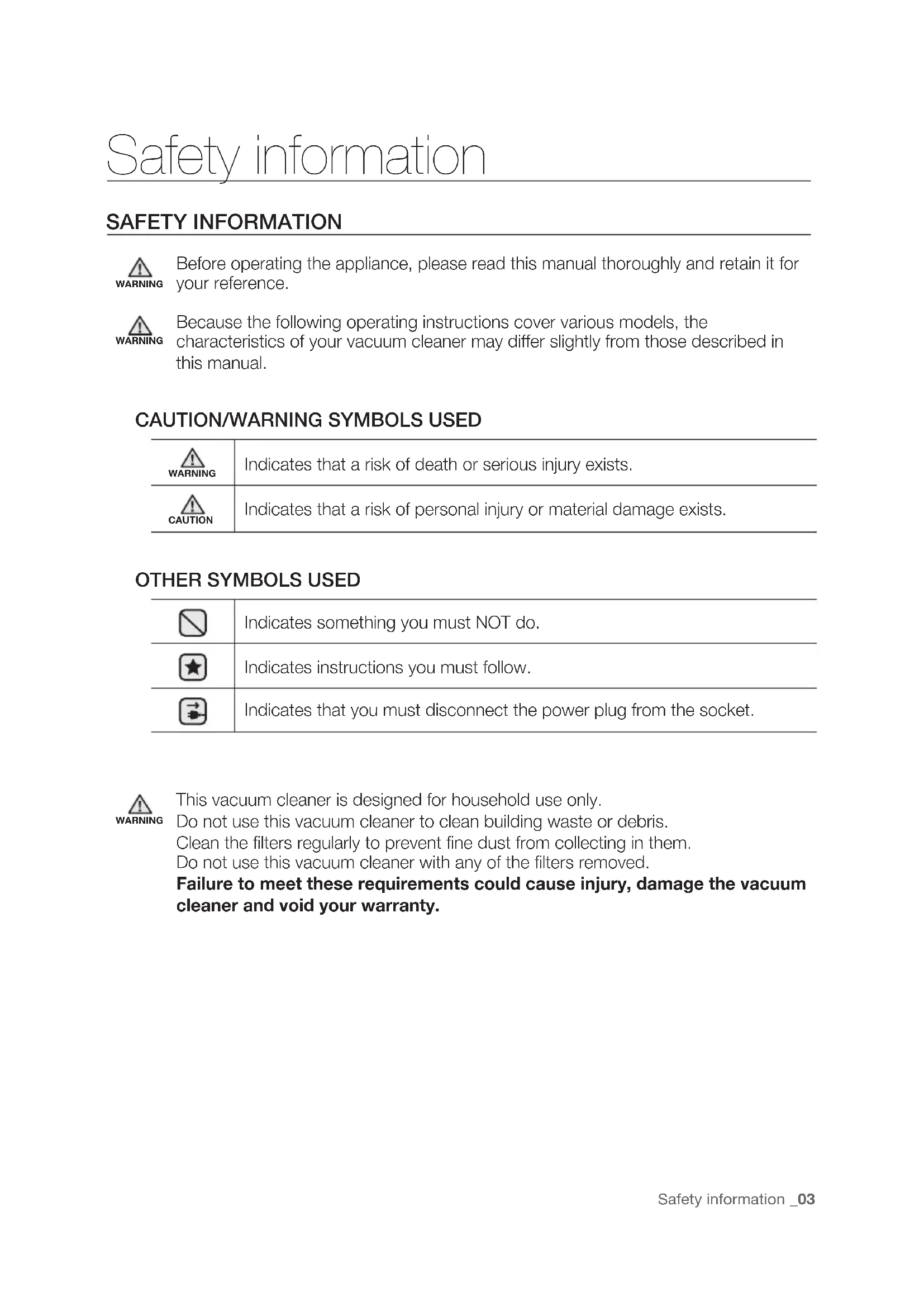

16 Emptying the dust bin 17 Cleaning the grille 18 Cleaning the premotor filter 20 Cleaning the hepa filter 22 Checking Brush 23 Checking for clogs 24 Mini turbo brush (optional) 25 Cleaning the diverter cover TROUBLESHOOTING 26Safety information _03 Safety information SAFETY INFORMATION WARNING Before operating the appliance, please read this manual thoroughly and retain it for your reference. WARNING Because the following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED

WARNING Indicates that a risk of death or serious injury exists. CAUTION Indicates that a risk of personal injury or material damage exists.

Indicates something you must NOT do. Indicates instructions you must follow. Indicates that you must disconnect the power plug from the socket. WARNING This vacuum cleaner is designed for household use only. Do not use this vacuum cleaner to clean building waste or debris. Clean the filters regularly to prevent fine dust from collecting in them. Do not use this vacuum cleaner with any of the filters removed. Failure to meet these requirements could cause injury, damage the vacuum cleaner and void your warranty.04_ Safety information

1. Do not leave the vacuum cleaner unattended when it is plugged in.

Unplug it from the outlet when your are not using it and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow the vacuum to be used as a toy.

Pay close attention when the vacuum is used by or near children.

4. Use only as described in this manual. Use only the manufacturer’s recommended

5. Do not use with a damaged cord or plug.

If the vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, bring it to a service center.

6. Do not pull or carry the vacuum by the cord, use the cord as a handle, close a door on

the cord, or pull the cord around sharp edges or corners. Do not run the vacuum over the cord. Keep the cord away from heated surfaces.

7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

8. Do not handle the plug or vacuum with wet hands.

9. Do not put any object into openings or vents. Do not use with any opening blocked.

Keep free of dust, lint, hair, and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers, and all parts of your body away from openings and

11. Turn off all controls before unplugging.

12. Use extra care when cleaning on stairs.

13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in

areas where they may be present.

14. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or

15. Do not use without the dirt cup and/or filters in place.

16. Do not use the vacuum cleaner in an enclosed space filled with vapors given off by oil

base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic materials.

17. Store your vacuum cleaner indoors, in a cool and dry area.

safety informationSafety information _05

18. Use only on dry, indoor surfaces.

19. Do not modify the polarized plug to fit a non-polarized outlet or extension cord.

20. Do not touch the brush drum when it is rotating.

21. Keep suction away from your face when using nozzles and pipe.

22. Do not pull the power cord around sharp corners and do not allow it to become

23. This vacuum is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning its use by a person responsible for their safety.

24. Children should be supervised to ensure that they do not play with the vacuum.

25. You must remove the plug from the socket-outlet before cleaning or performing

maintenence on the vacuum.

26. If the power cord is damaged, it must be replaced by the manufacturer or its service

agent or a similarly qualified person.

27. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

28. Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.

29. Always turn off the vacuum before connecting or disconnecting the handy vacuum

SAVE THESE INSTRUCTIONS

POLARIZED PLUG INSTRUCTIONS

- To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not modify the plug in any way. State of California Proposition 65 Warning (US only) WARNING This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.06_ Your vacuum cleaner PRODUCT VIEW Brush bar On/Off Button Power On/Off Button Dust Bin Brush bar Pipe POWER CORD Handle Dust Bin Release Button Carrying Handle (Dust Bin Handle) CAUTION Do not plug in your vacuum cleaner until you are familiar with all instructions and operating procedures. WARNING Plastic film can be dangerous. To avoid the danger of suffocation, keep the film away from babies and children. Your vacuum cleanerYour vacuum cleaner _07

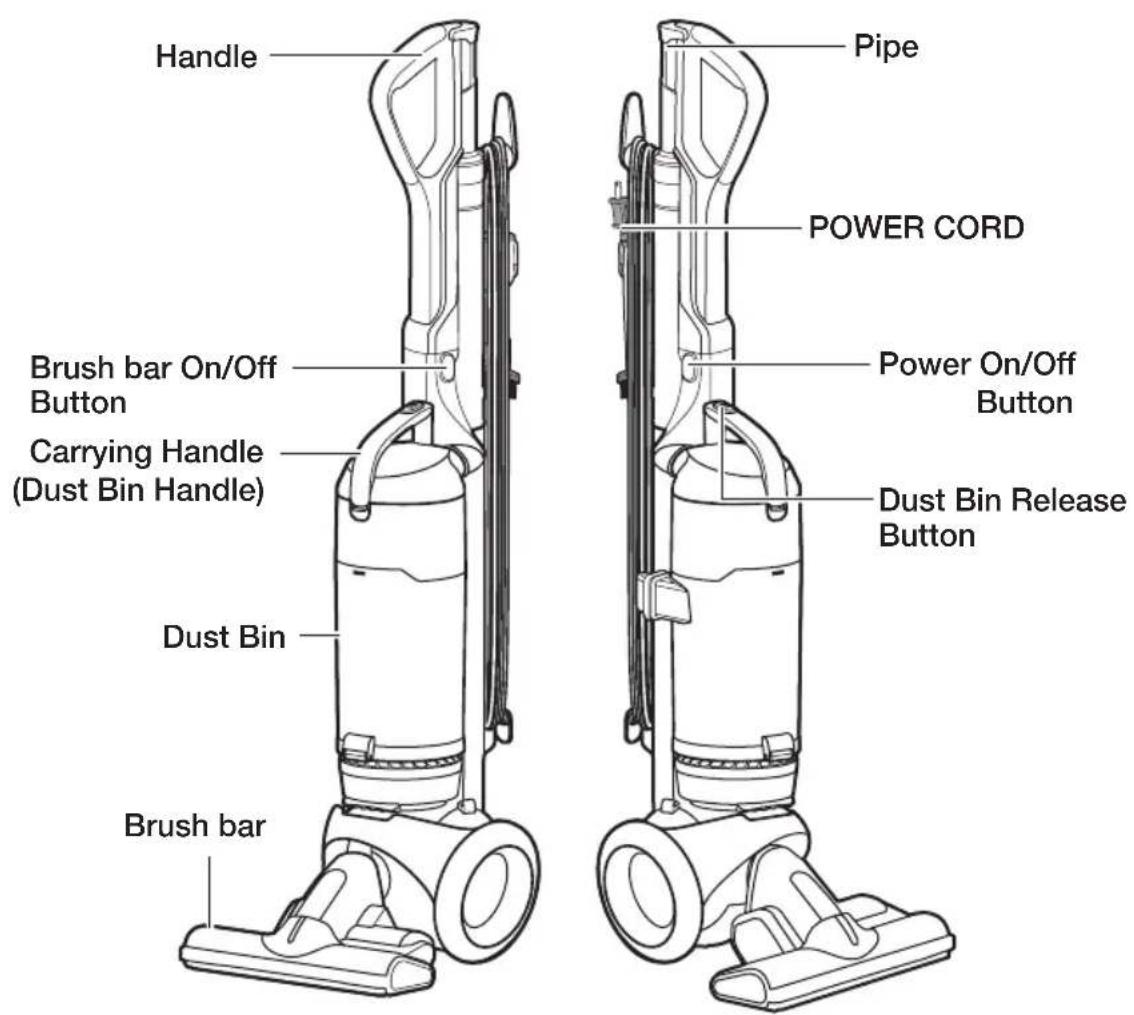

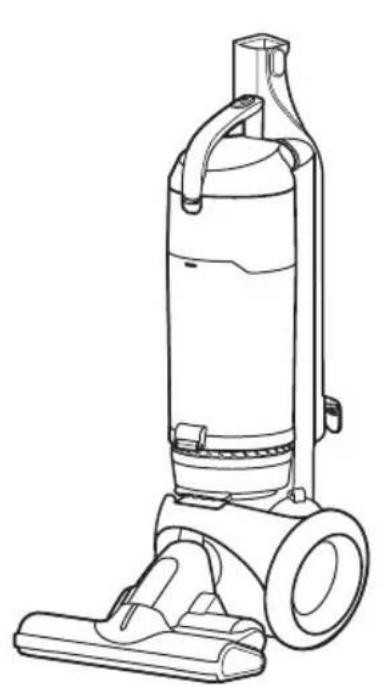

1. Vacuum cleaner body

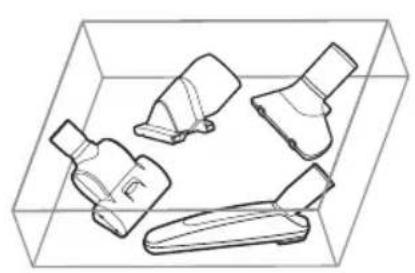

5. Accessory Kit (Optional depending on the model)

6. Users Manual08_ Before using the vacuum cleaner

ASSEMBLE THE HANDLE AND PIPE

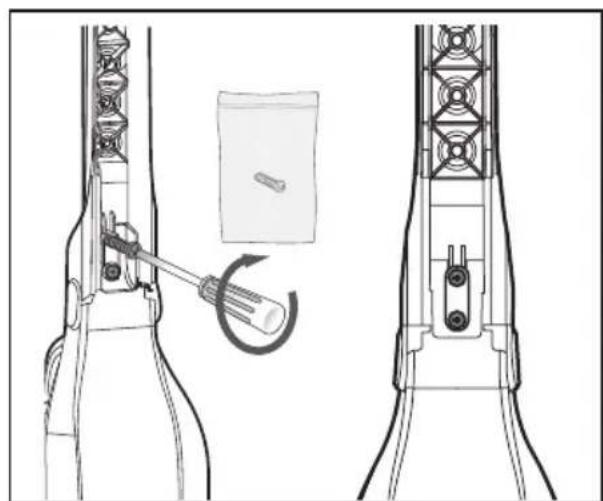

• Connect the Handle and Body. • Unpack the wrapped screw and then fasten the screw using a Phillips head (+) screwdriver as shown.

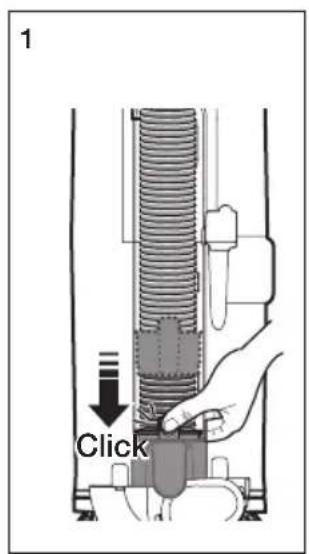

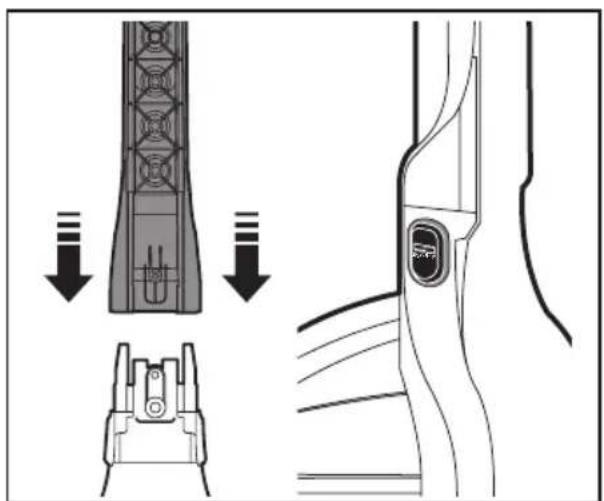

1. Stand the vaccum upright, and then insert the bottom of the pipe into the body hole

until you hear a click.

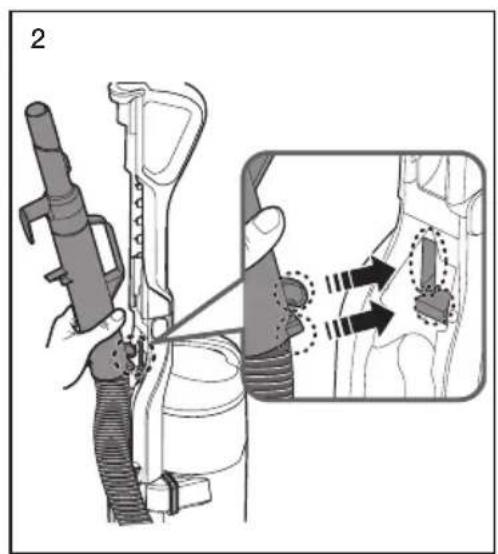

2. Insert the hook on the top portion of the pipe into the hole in the handle as shown. The

hook should push the sky-blue button in the handle back.

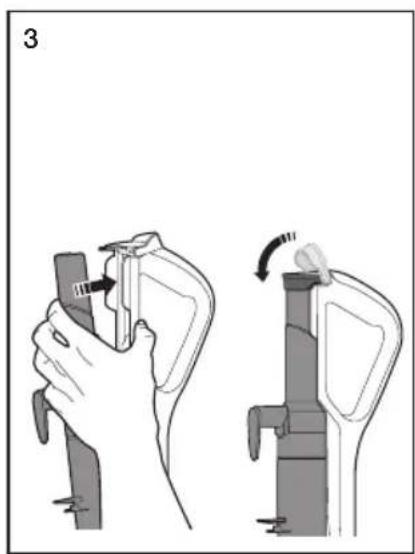

3. Attach the top of the pipe to the handle, and then cover with the cap.

Before using the vacuum cleanerBefore using the vacuum cleaner _09

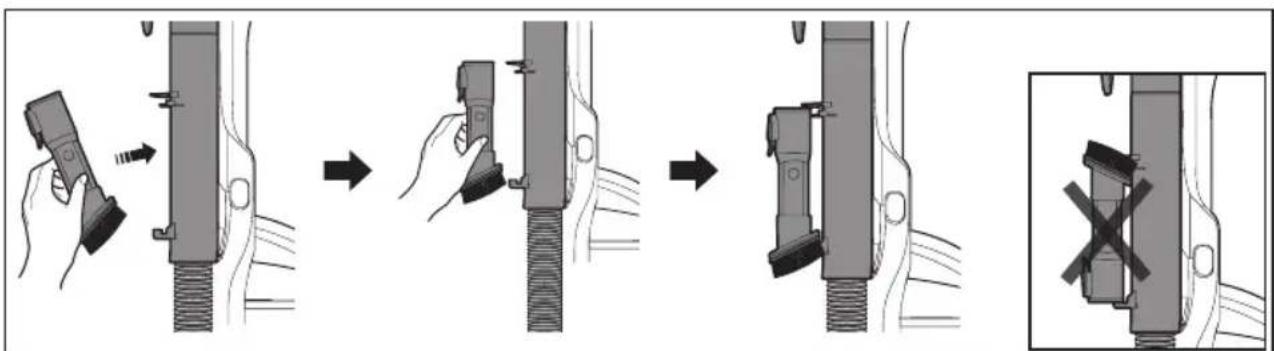

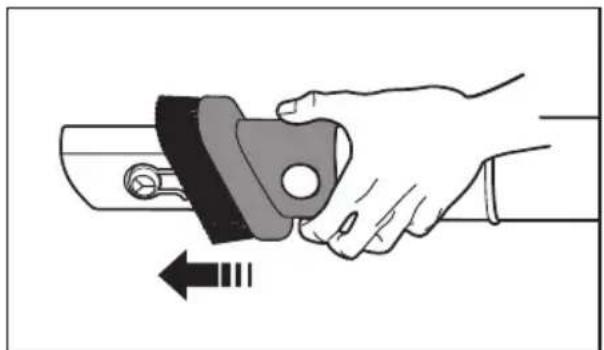

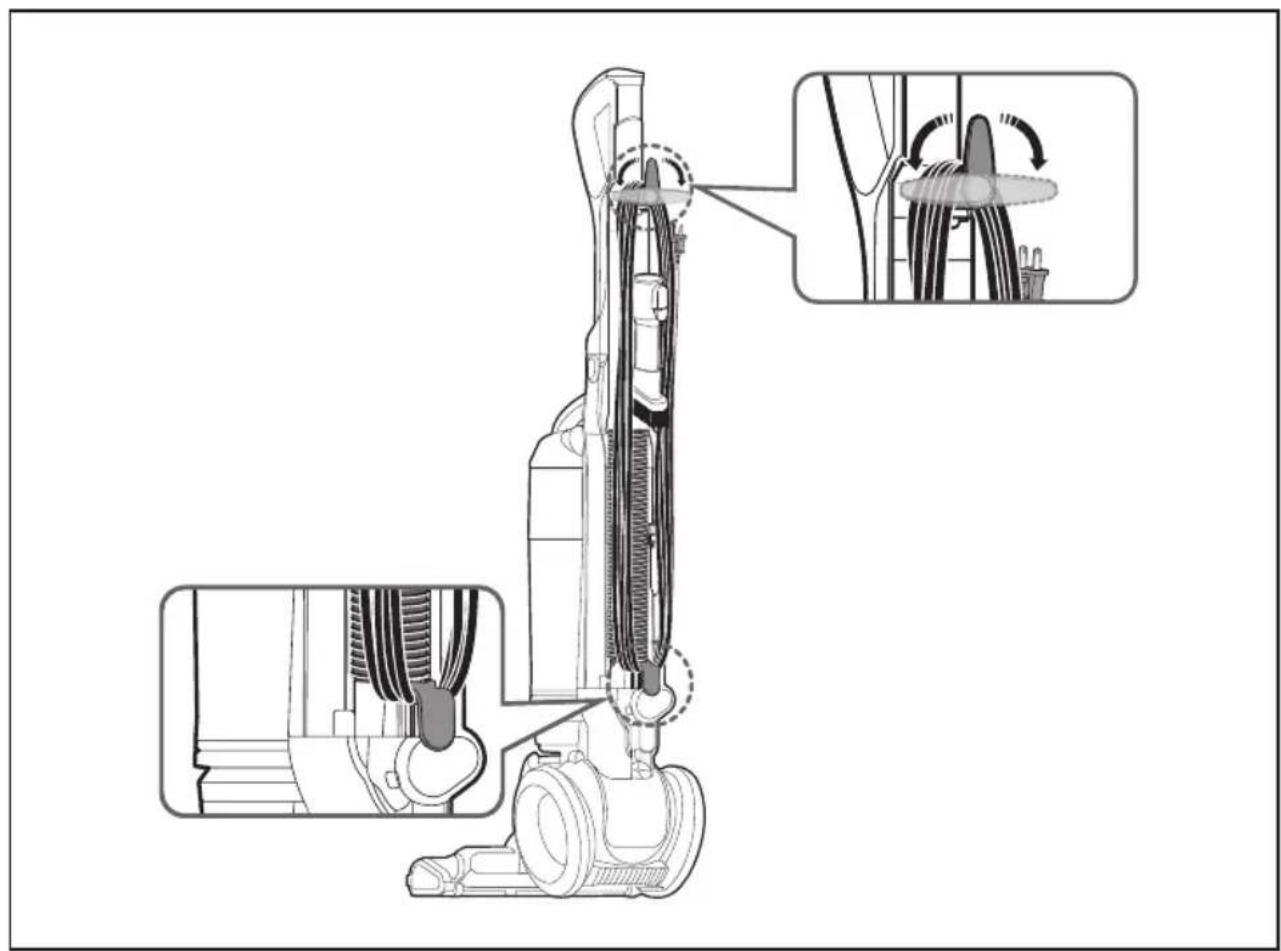

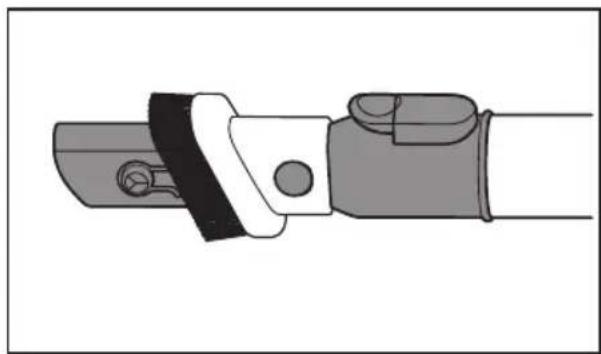

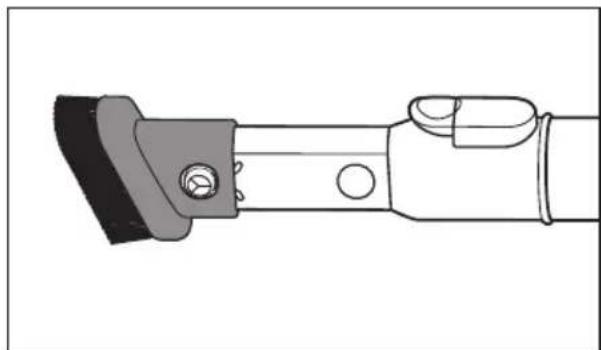

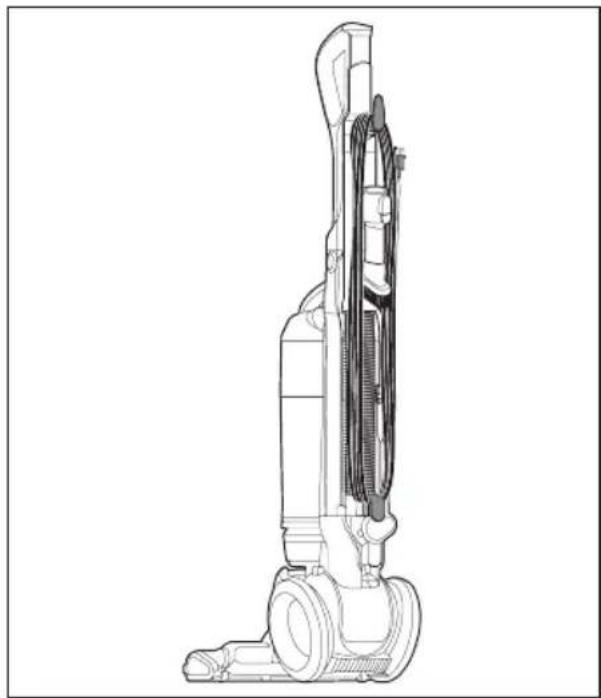

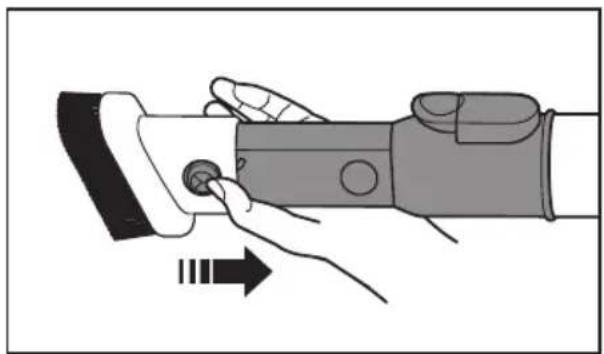

• Wind cord around the cord hangers and secure with clip. ATTACHING THE ACCESSORIES10_ Before using the vacuum cleaner

CAUTION When removing the plug from an electrical outlet, grasp the plug, not the cord. Operating the vacuum12_ Operating the vacuum

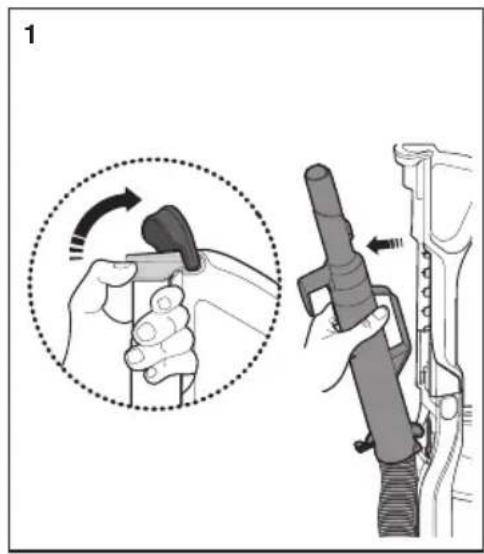

• Push up the handle cap, and then separate the pipe from the body.

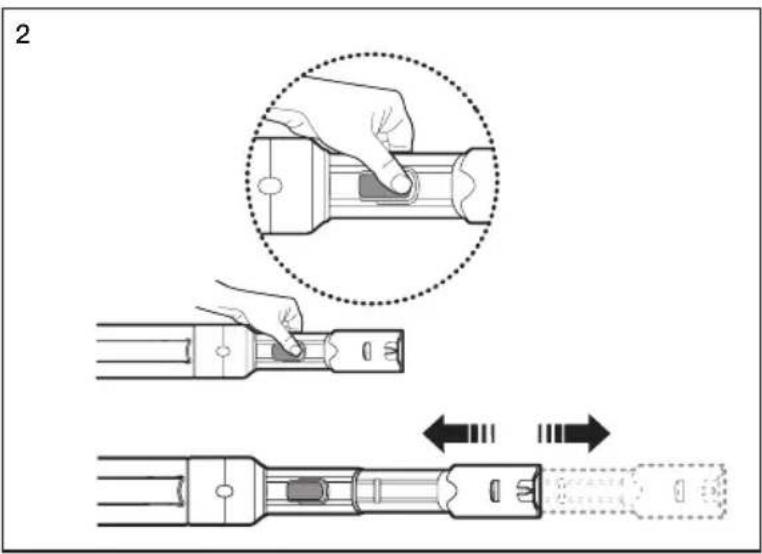

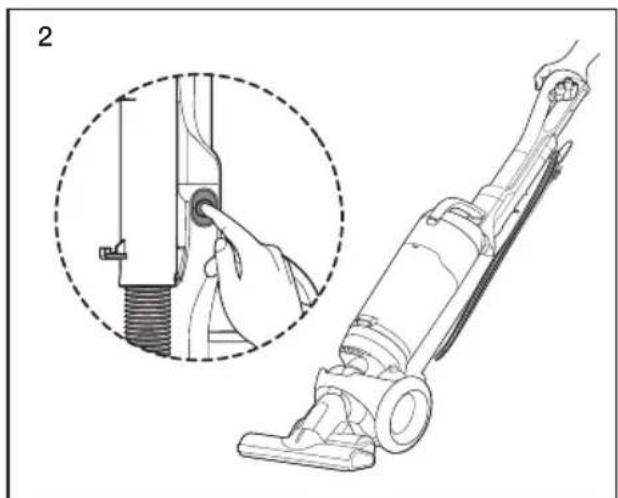

• Push the button on the pipe to make the pipe longer.

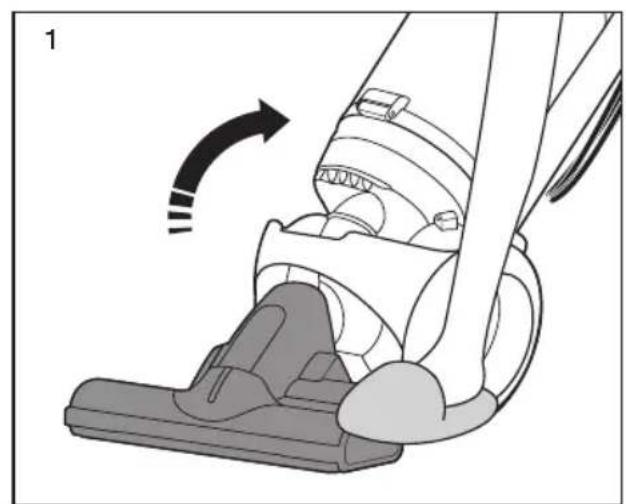

• Place a foot on the brush, and then tilt the handle back gently to release the lock.

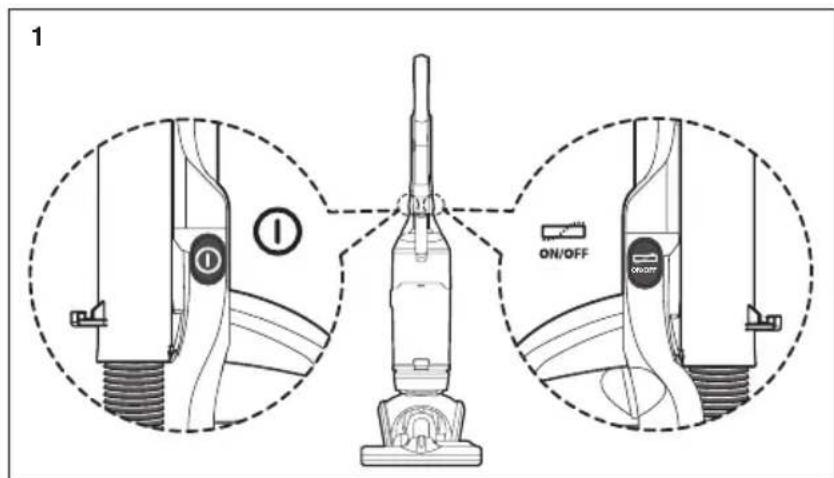

• Push the power On/Off switch.Operating the vacuum _13

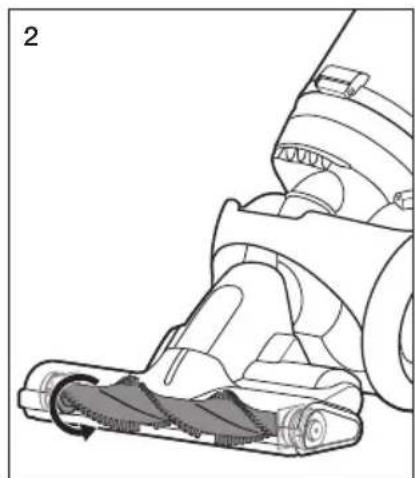

• Push the power On/Off switch, and then push the brush bar On/Off switch. CAUTION In the upright position, the Brush bar does not work.

RESETTING THE OVERLOAD PROTECTOR

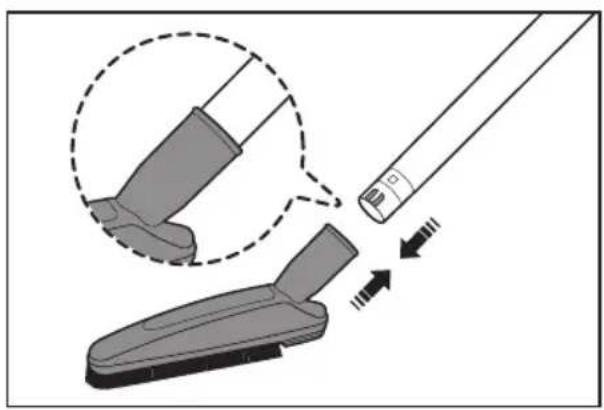

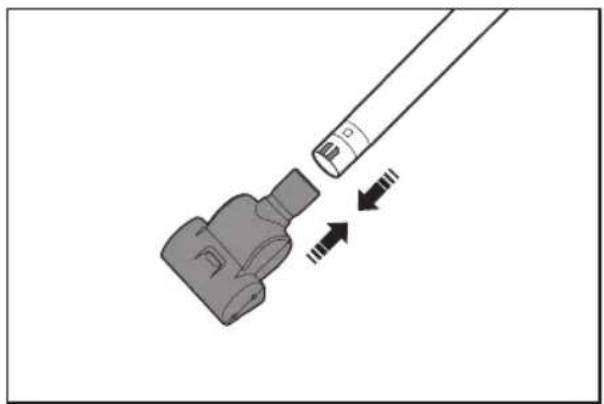

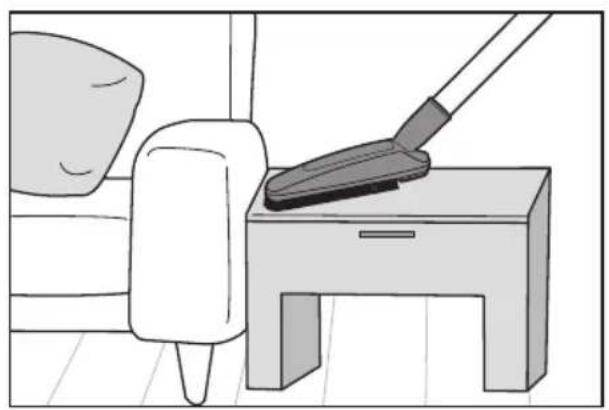

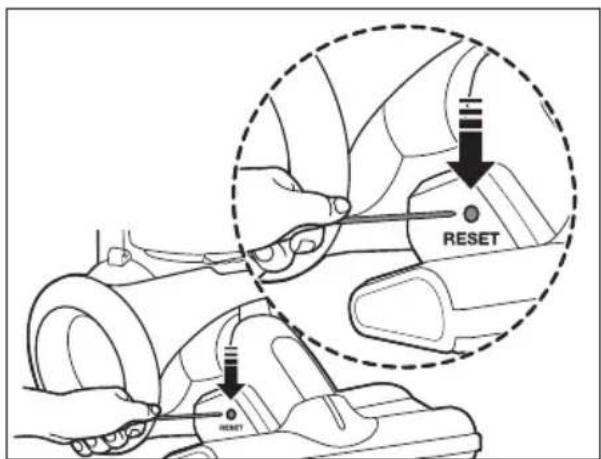

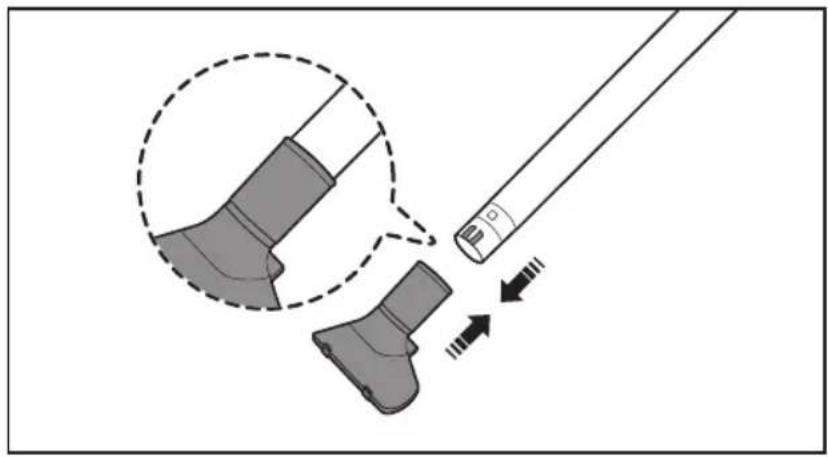

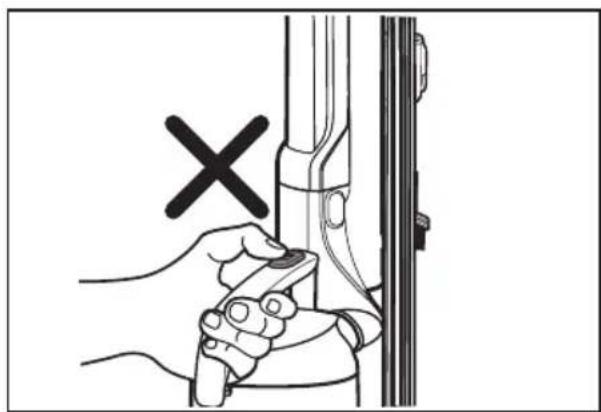

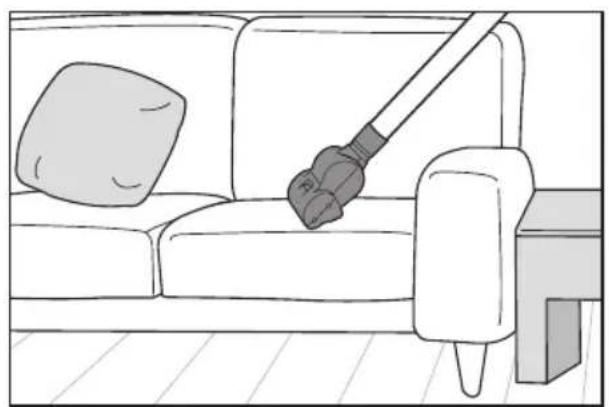

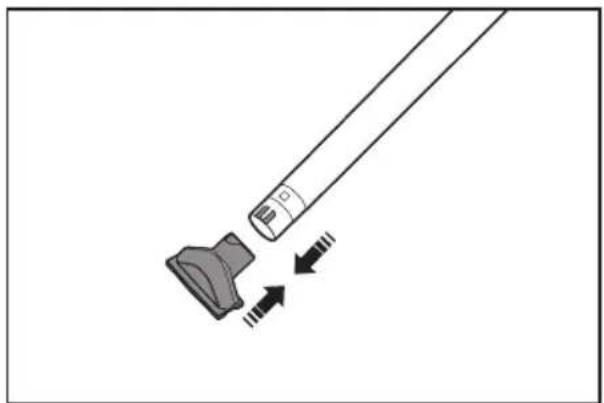

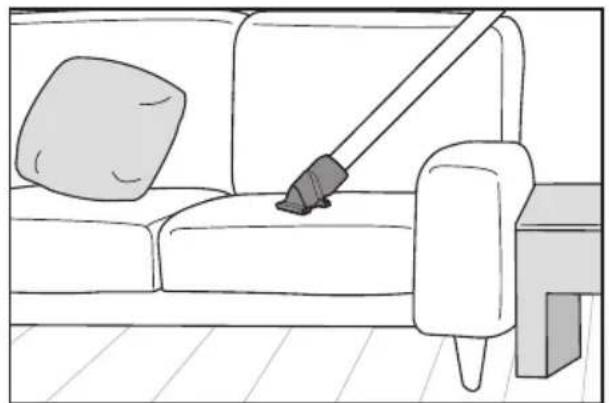

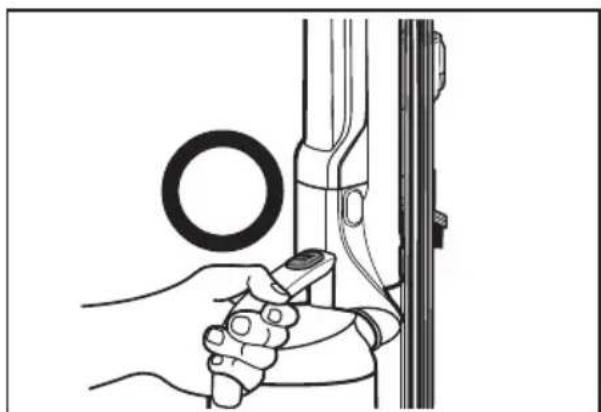

• The overload protector shuts off the brush motor if the brush bar becomes obstructed. To reset the overload protector, use a pen tip to press the reset switch. USING THE VACUUM'S HANDLE (THE DUST BIN HANDLE) CAUTION When you carry the vacuum cleaner by the handle, do not push the dust bin release button.14_ Operating the vacuum USING THE ACCESSORY KIT (OPTIONAL) Funiture tool Upholstery Mini turbo brushOperating the vacuum _15

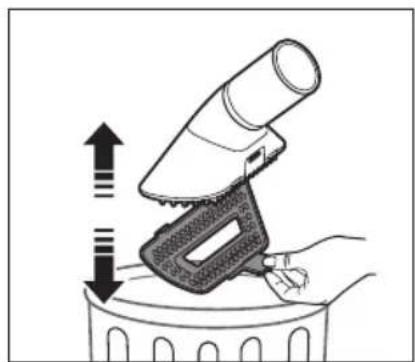

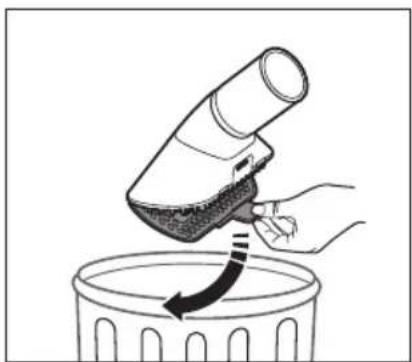

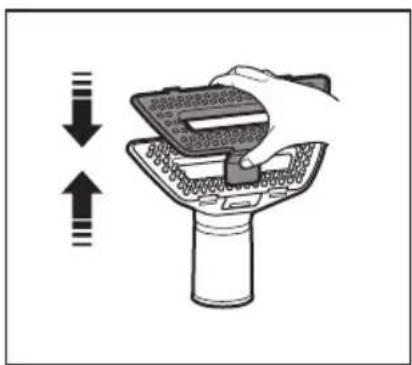

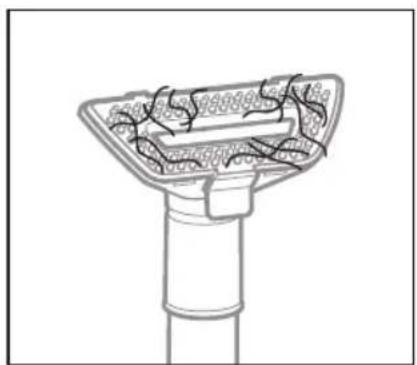

• Seperate the cover from the pet tool, and then throw the hair away.

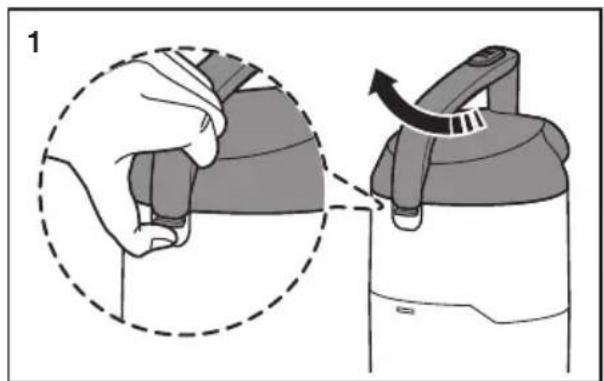

• Take the dust bin out by pushing the button on the handle.

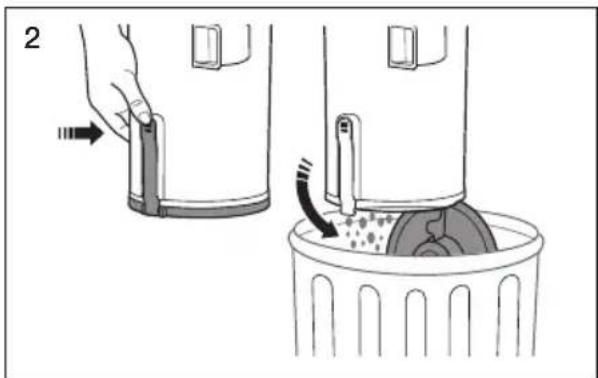

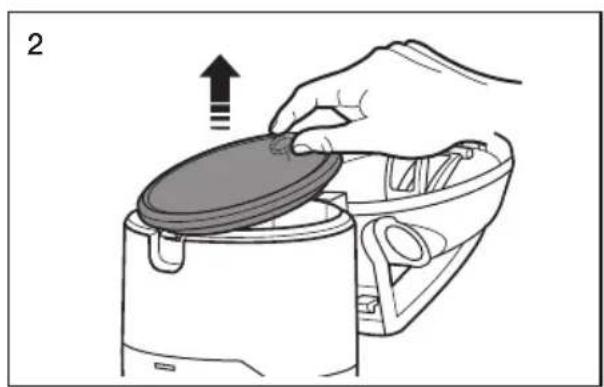

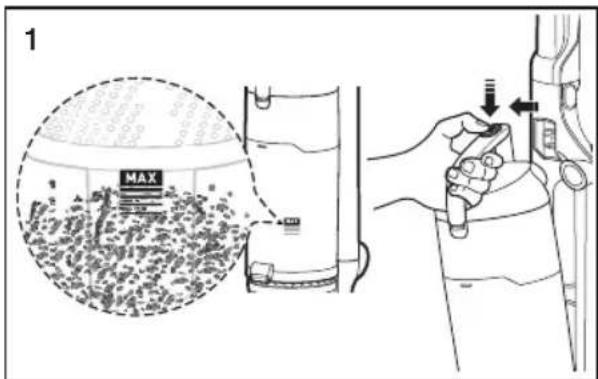

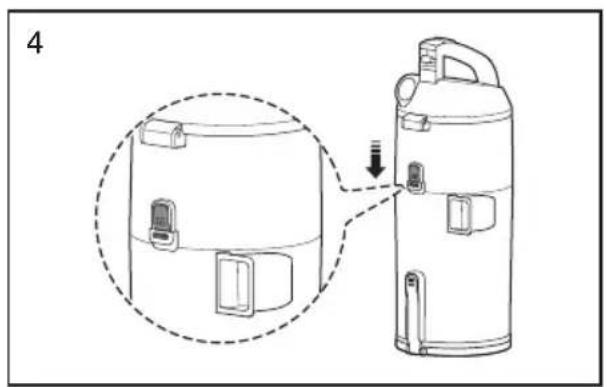

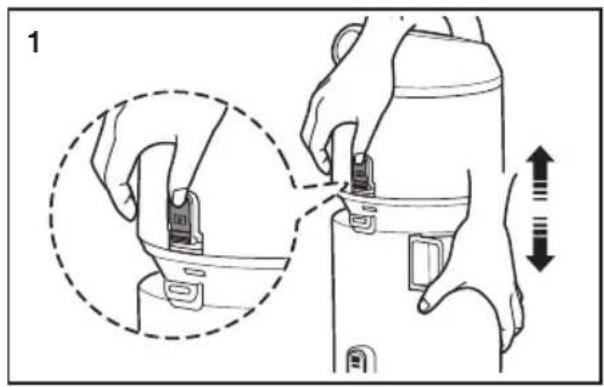

• To empty the dust bin, hold the dust bin over a garbage can, and then push the button near the bottom of the bin.

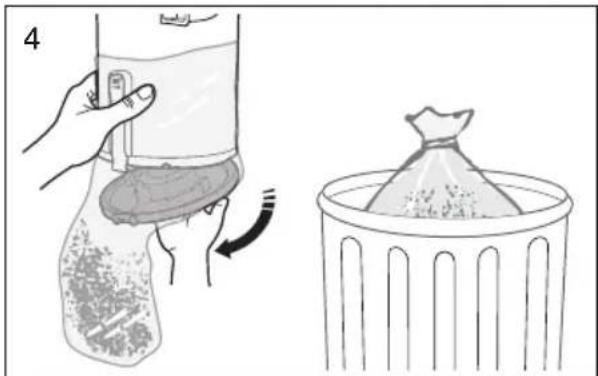

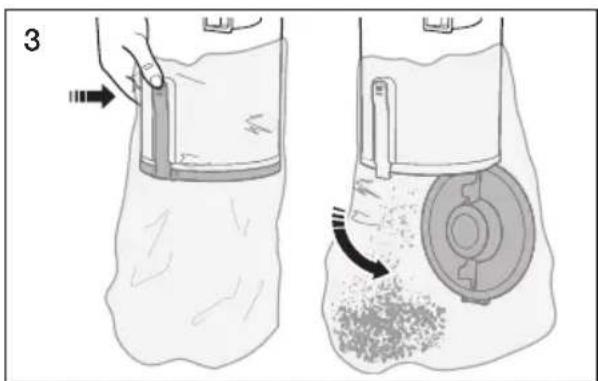

• To empty the dust bin, hold the dust bin into a plastic bag, and then push the button near the bottom of the bin. (Recommended for asthma/allergy sufferers.)

• Close the bottom of the bin, and then drop the plastic bag in the trash can. (Recommended for asthma/allergy sufferers.) 4Maintenance _17 04 MAINTENANCE

• Separate the dust bin from the vacuum's body.

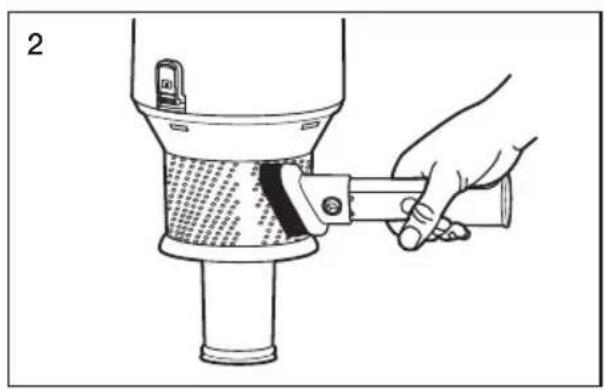

• Clean the grille with the dusting brush to remove lint.

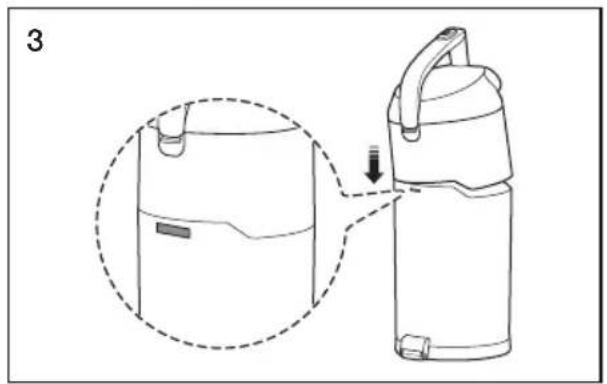

• To re-attach the dust bin to the vacuum's body, follow steps 3 and 4.

• Pull the dust bin cover to open.

• Remove the filter from the dust bin.

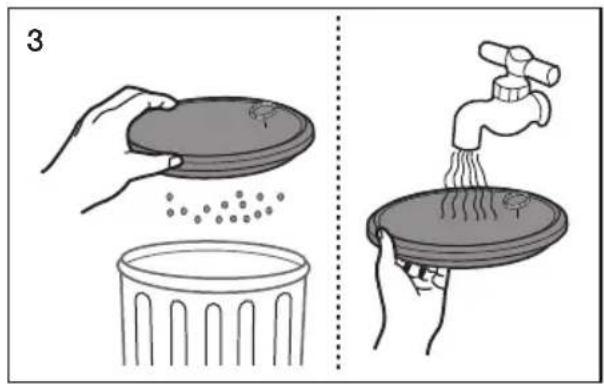

• Shake the filter to remove dust, and then wash the filter.

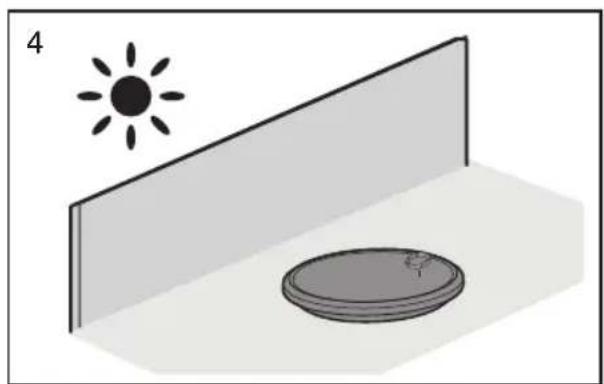

• Leave the filter in the shade until completely dry. 4Maintenance _19 04 MAINTENANCE

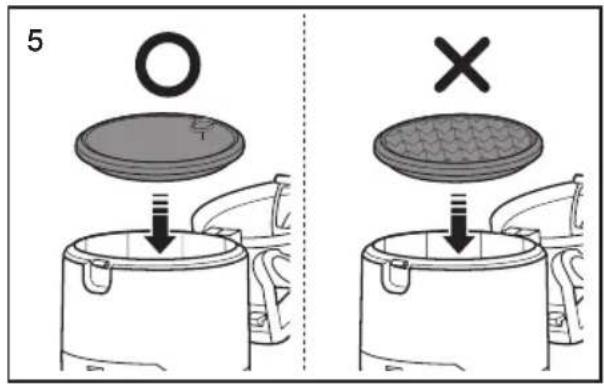

• Put the filter into the dust bin.

Check the filter regularly and wash every 1~2 months. Make sure the filter is completely dry before putting it back into the vacuum cleaner. Allow it to dry for 12 hours. Do not use a wet filter Replace the dust filter if it becomes damaged or deformed. The dust bin cover will not close if the filter is not installed correctly.20_ Maintenance

CLEANING THE HEPA FILTER

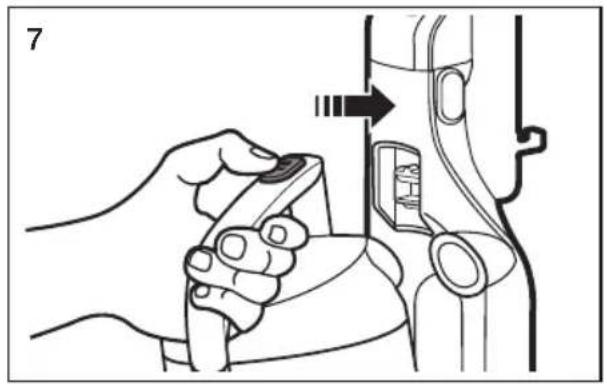

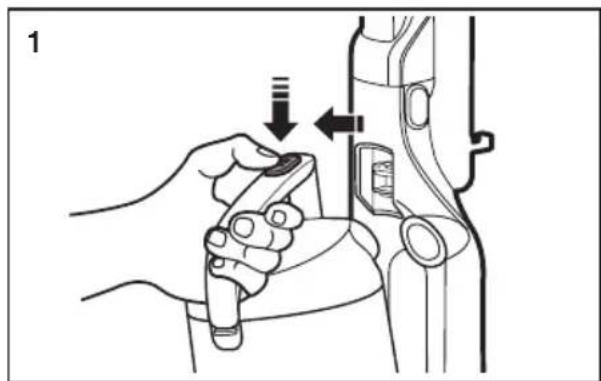

• Take the dust bin out by pushing the button on the handle.

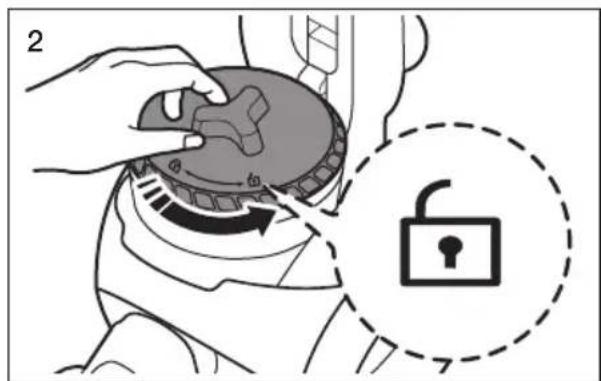

• Remove the filter cover.

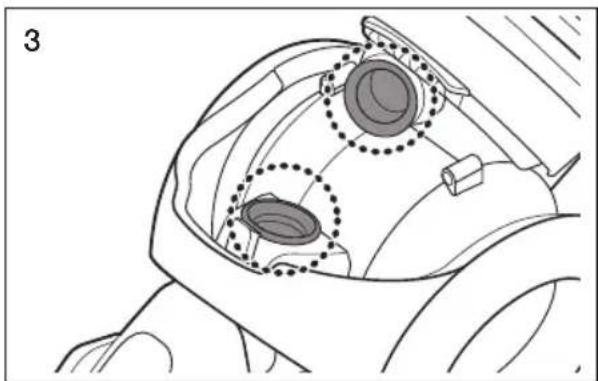

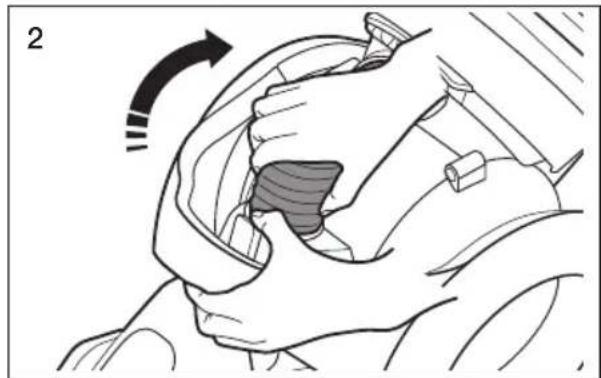

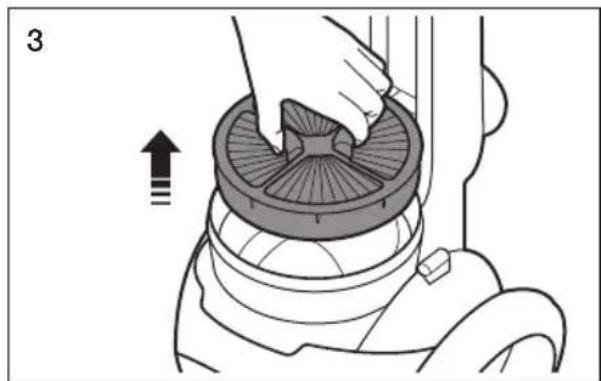

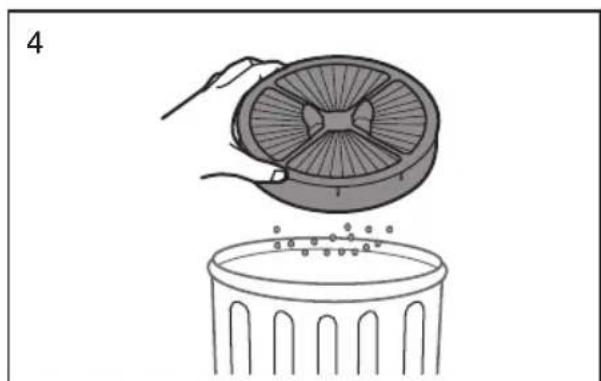

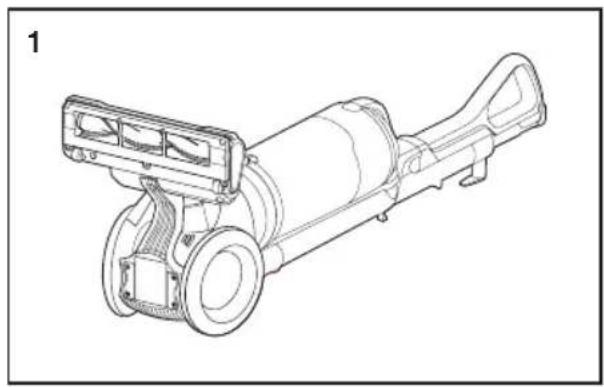

• Separate the Hepa filter from the vacuum's body.

Clean the HEPA filter when suction is noticeably and continuously reduced or the vacuum cleaner overheats abnormally. Note: HEPA Filters are not washable. Replace the filter if cleaning does not resolve the problem.Maintenance _21 04 MAINTENANCE

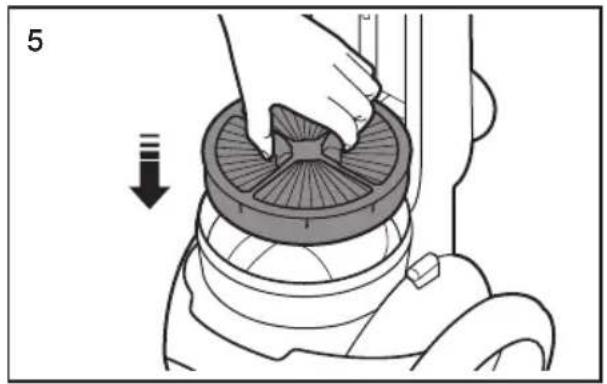

• Re-insert the filter into the vacuum's body.

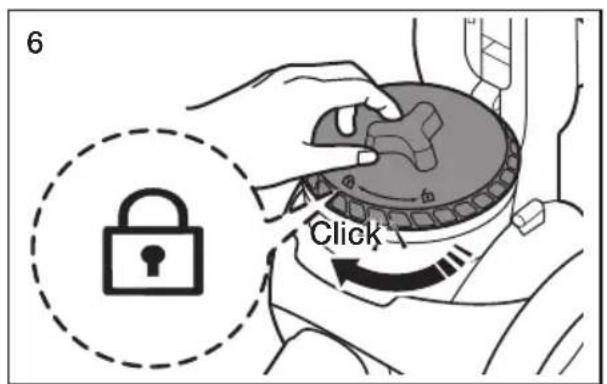

• Re-assemble the filter and filter cover.

• Re-attach the dust bin to the vacuum.

The dust bin will not re-attach to the vacuum if the filter cover is not installed correctly.22_ Maintenance CHECKING BRUSH

• Turn off and unplug the vaccum. Lie the vaccum down so its bottom is accessible as shown.

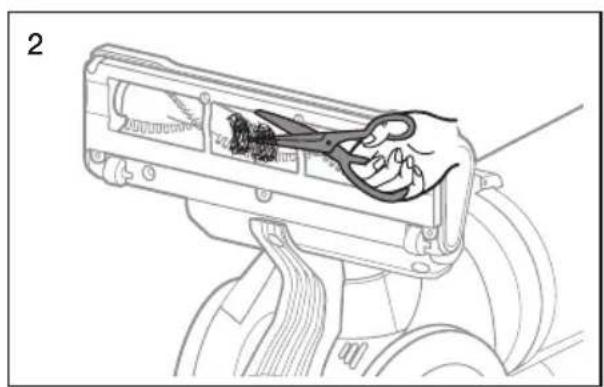

• Carefully cut off any hair or string caught in the brush.

CAUTION Before inspecting the brush bar, turn off the brush bar and unplug the vacuum.Maintenance _23 04 MAINTENANCE

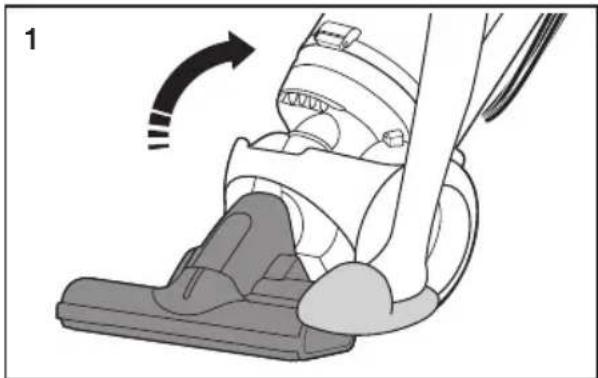

• Place a foot on the brush, and then tilt the handle back gently to release the lock.

• Push the release button on the brush housing, and then pull the hose out.

• Check for clogs in the opening of the brush housing and in the hose.

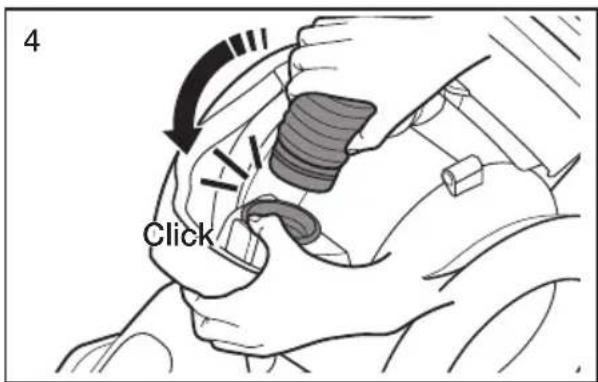

• When done, re-attach the hose to the brush housing.

Click CAUTION Before checking for clogs, turn off the brush bar and unplug the vacuum.24_ Maintenance MINI TURBO BRUSH (OPTIONAL)

INSPECTING THE BRUSH ROLL

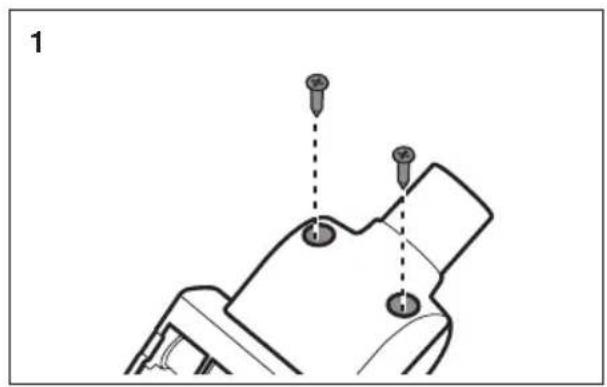

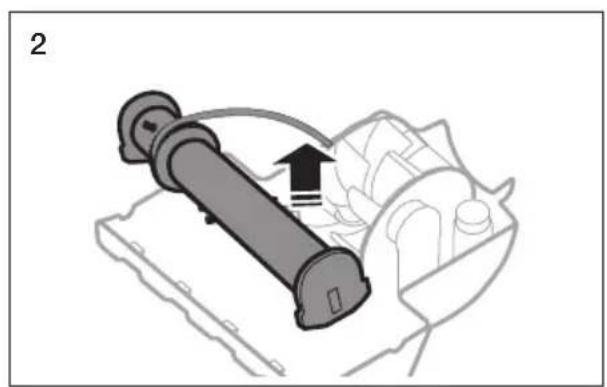

• If a clog is present or debris is visible, inspect the brush roll.

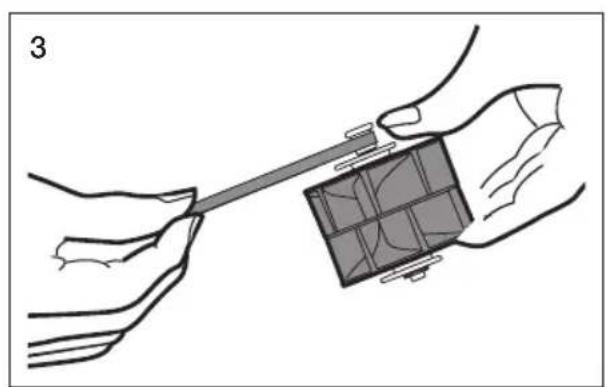

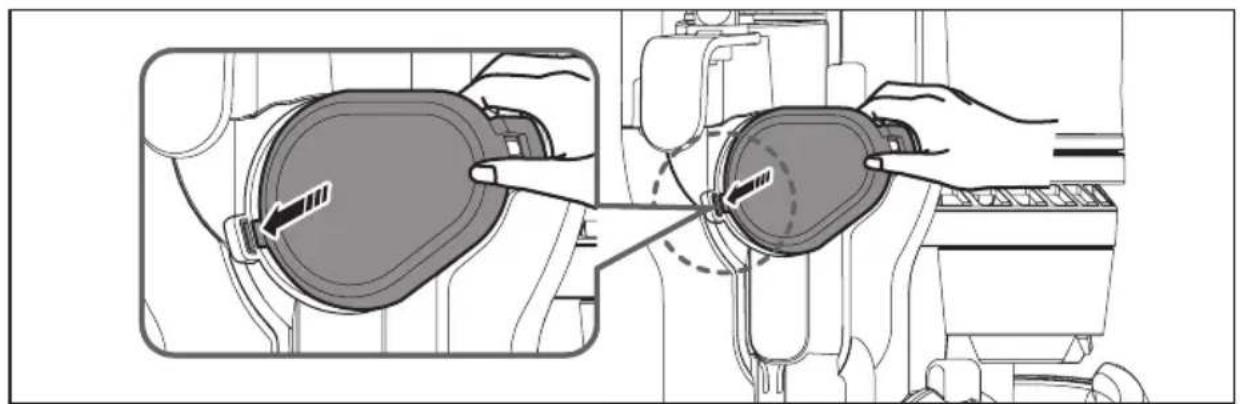

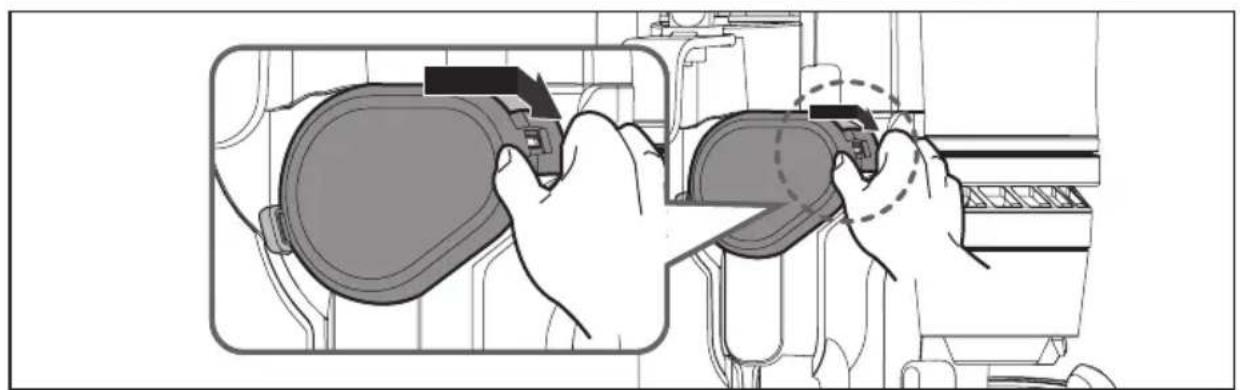

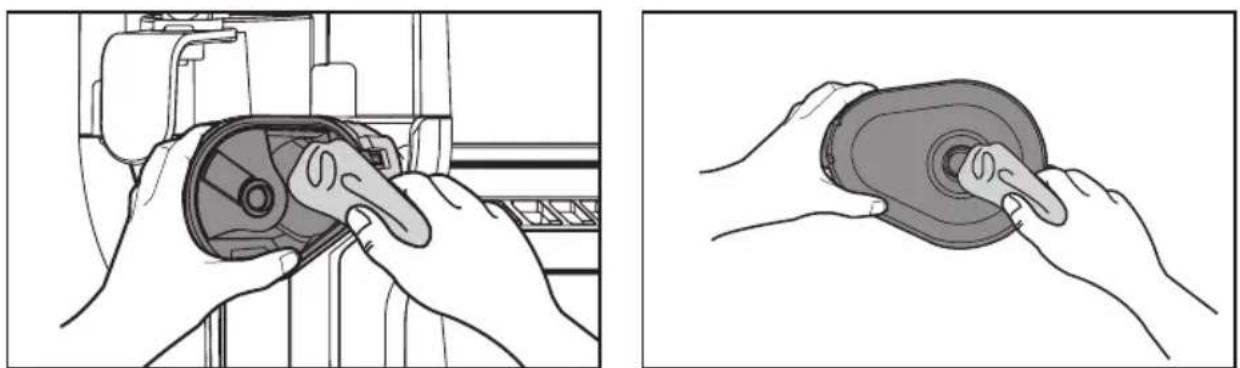

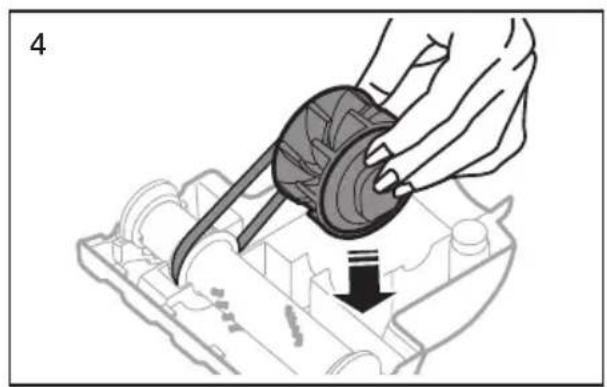

• If the belt is broken or cracked, replace it with a new belt following the instructions on the right.

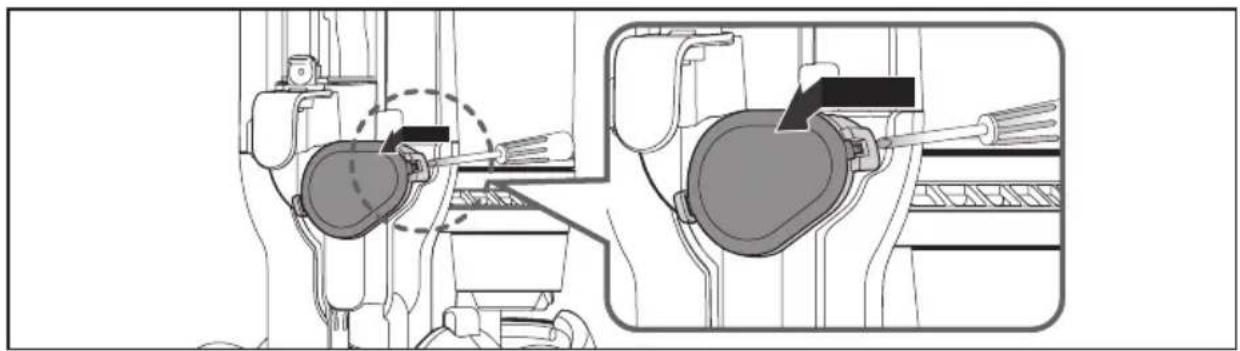

• Open the Diverter cover using a flat head (-) screwdriver.

• Clean the inside of the cover with a dry cloth.

• Re-attach the cover after cleaning.26_ Troubleshooting Troubleshooting Check this list of problems and possible solutions before bringing your vacuum to a service center. PROBLEM SOLUTION Vacuum won’t run.

• Check the electrical plug. Make sure it is fully plugged in.

• Press the Power on/off button.

• Reset overload protector. Suction Motor does not start. Thermal protector activated.

• Allow the vacuum to cool. Brush Motor does not start.

• Check the brush ON/OFF button.

• Cut hair or string off the brush.

• Reset the overload protector. Vacuum won’t pick up or low suction.

• Clean the filter and confirm that the filter assembly is positioned properly.

• Check the hose connection or flow path. Dust escaping from the vacuum.

• Clean the pre-motor filters.

• Clean or replace the exhaust filter. (HEPA filter)

• Confirm that the filter assembly is positioned properly. Cleaner tools won’t pick-up.

• Check inlets, pipe, and dust bin for obstructions. Remove obstruction.

• Remove and clean the filters.

• Confirm that the dust bin is locked properly. The sky blue button won't return to position after being pushed.
