Product Type	Canister Vacuum Cleaner
Brand	Samsung
Model	SC07M21A0VN
Color	White / Silver
Dimensions (L x W x H)	44 x 30 x 28 cm
Weight	5.2 kg
Motor Power	1600 W
Suction Power	380 AW
Dust Capacity	1.5 L
Filtration System	HEPA H13 Filter
Noise Level	80 dB
Cord Length	6 m
Operating Radius	9 m
Power Cord Rewind	Yes, Auto Rewind
Pedal On/Off	Yes
Suction Control	Mechanical Slider
Floor Nozzle	Combination Brush
Accessories Included	Crevice Tool, Dusting Brush, Upholstery Nozzle
Bag Type	Dust Bag (Disposable)
Bag Replacement Indicator	Yes
Filter Cleaning	Washable Pre-Filter
Thermal Protection	Yes
Safety Certifications	CE, RoHS
Spare Parts Availability	Filters, Bags, Belts, Brushes
Repair Service	Authorized Samsung Service Centers

Frequently Asked Questions - SC07M21A0VN SAMSUNG

How do I replace the dust bag?

Open the front cover, remove the full bag, and insert a new Samsung dust bag (type SC07). Ensure the bag is properly seated before closing.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3 months by tapping it gently or rinsing it with water. Let it dry completely for 24 hours before reinstalling.

What should I do if the vacuum loses suction?

Check if the dust bag is full, the filter is clogged, or there is a blockage in the hose. Also ensure the suction control is not set too low.

Can I use the vacuum for wet spills?

No, this model is designed for dry vacuuming only. Using it on wet surfaces can damage the motor and void the warranty.

How do I rewind the power cord?

Press the cord rewind pedal located on the top of the canister. Hold the plug until the cord is fully retracted to avoid whip.

What type of floor nozzle is best for hardwood floors?

Use the combination brush with the bristles extended for gentle cleaning on hardwood. Retract bristles for carpets.

How do I clear a blockage in the hose?

Detach the hose from the canister and use a long object (like a broom handle) to push out the blockage. Inspect the inlet as well.

Is the vacuum suitable for pet hair?

Yes, the upholstery nozzle and combination brush are effective for pet hair. Regular filter cleaning is recommended to maintain performance.

Where can I buy replacement bags and filters?

Spare parts are available at Samsung authorized dealers and online retailers. Look for genuine Samsung SC07 series bags and HEPA filters.

What does the bag replacement indicator mean?

When the indicator turns red, the dust bag is full and needs to be replaced. Continue using may reduce suction and motor life.

USER MANUAL SC07M21A0VN SAMSUNG

• Before operating this unit, please read the instructions carefully.
• For indoor use only.

SAMSUNG

PREPARATION

Safety information 3

Important safety instructions 4

INSTALLATION

Name of the parts 10

Accessories 11

OPERATIONS

Using the vacuum cleaner 12

Using the body 12

Using the handle 12

Using the brushes 13

MAINTENANCE

Cleaning and maintaining 14

When to empty the dustbin 14

Cleaning the dustbin 14

Cleaning the dust filter 15

Cleaning the outlet filter 15

Cleaning the brush 16

Cleaning the pipe 16

Cleaning the hose 16

Storing the vacuum cleaner 16

APPENDICES

Notes and cautions 17

In use 17

Cleaning and maintenance 17

Troubleshooting 18

Product information 19

Safety information

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

Caution/Warning symbols used

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

Other symbols used

NOTE

Indicates that the following text contains additional important information.

- For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH (WEEE, Batteries) visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

Important safety instructions

When using an electrical appliance, basic precautions should be observed, including the following:

WARNING

This vacuum cleaner is designed for household use only.

Use the vacuum cleaner only for its intended use as described in these instructions.

Always install the filters in the correct position as shown in this manual.

Failure to meet these requirements could cause damage to the internal parts and void your warranty.

Please contact the manufacturer or service agent for a replacement.

General

• Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance. Do not allow the vacuum cleaner to run unattended at any time.

Power related

• Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before emptying the dustbin. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
• The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.

- Please prevent any risk of electric shock or fire.

• Do not damage the power cord.
• Do not pull the power cord too hard or touch the power plug with wet hands.
• Do not use a power source other than the national rated voltage, and do not use a multi-outlet to supply power to multiple devices at the same time.

- Do not leave the power cord carelessly on the floor.

- Do not use a damaged power plug, power cord, or loose power outlet.

- Turn off the power before connecting or disconnecting the power plug to the power outlet, and make sure your fingers don't come in contact with the pins of the power plug.

- Do not disassemble or modify the vacuum cleaner. When the power cord is damaged, contact the manufacturer or service agent to get it replaced by a certified repairman.

- Clean dust or any foreign matters on the pin and contact part of the power plug.

- Unplug the cleaner when not in use. Turn off the power switch before unplugging.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

In use

• Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set for lifting or carrying the vacuum cleaner.
• Unplug the cleaner when not in use. Turn off the power switch before unplugging.
• Do not use outdoors, or on wet rugs or surfaces.
• Do not use this product outdoors since it's designed for household use only.

- There is a risk of malfunction or damage.

* Outdoor cleaning: Stone, Cement * A billiard room: Powder of a chalk * An aseptic room of a hospital

- Do not use the vacuum cleaner to suction up liquids (such as water), blades, pins, or embers.

- There is a risk of malfunction or damage.

• Be sure children do not touch the vacuum cleaner when you use it.
• The children may get burned if the body is overheated.

- Do not mount or make any physical impacts on the body.

- It may result in injury or damage.

- Do not use the vacuum cleaner to pick up matches, live ashes, or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.

• Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts.
• Do not block the suction or the exhaust port.
• Do not use the vacuum cleaner without a dustbin and filters in place.
• Do not use worn, deformed, or damaged filters. Insert filter properly.
• It can be a reason of penetration of dust and debris into motor.
• If there's any gas leak or when using combustible sprays such as a dust remover, do not touch the power outlet and open the windows to ventilate the room.

- There is a risk of explosion or fire.

• Do not use this vacuum cleaner to clean building waste and debris, or toner from a laser printer. Regularly keep the filters clean to prevent fine dust from accumulating in them.
• Dry carpet cleaners or fresheners, powders, and fine dust such as flour should only be vacuumed in very small amounts.
• Use extra care when cleaning on stairs.
• Do not use to suction up water.
• Do not immerse in water for cleaning.
• The hose should be checked regularly and must not be used if damaged.
• Hold the plug when rewinding onto the cord reel. Do not allow the plug to whip when rewinding.

Cleaning and maintenance

• Do not lift or carry the vacuum cleaner by putting a brush in the groove for storage.
• Never twist the dust filter after washing.

- It can cause deformation or damage to the filter.

- Use a dry cloth or towel to clean the body, and make sure to unplug the vacuum cleaner before cleaning. Do not spray water directly or use volatile materials (such as benzene, thinner, or alcohol) or combustible sprays (such as a dust remover) for cleaning.

- If water or other liquid gets into the product and causes malfunction, turn off the vacuum cleaner, unplug the power plug, and then consult a service agent.

- Do not use alkaline or industrial detergents, air fresheners, or (acetic) acids to clean the washable parts of the vacuum cleaner. (Refer to the following table.)

- It may cause damage, deformation, or discoloration of the plastic parts.

The washable parts Dustbin of the body, Dust filter
Available detergent Neutral detergent Kitchen cleaner
Unavailable detergent Alkaline detergent Bleach, Mold cleaner, etc.
		Acid detergent Paraffin oil, Emulsifier, etc.
		Industrial detergent NV-I, PB-I, Opti, Alcohol, Acetone, Benzene, Thinner, etc.
		Air freshener Air freshener(Spray)
		Oil Animal or vegetable oil
		Etc. Edible acetic acid, Vinegar, Glacial acetic acid, etc.

- Do not stand on the hose assembly. Do not put weight on the hose.

CAUTION

In use

• Do not use the pipe for anything other than its intended purpose.
• It may result in injury or damage.
• Do not pull the power cord fully and hold the power cord with one hand when rewinding it.
• If you try to pull it fully, power cord can be damaged and if you don't hold the power cord while rewinding, it may lose control and cause injury or damage to people or objects around it.
• If any abnormal sounds, smells or smoke come from the vacuum cleaner, immediately unplug the power plug and contact a service agent.
• There is a risk of fire or electric shock.
• Do not use the vacuum cleaner in any places near heating appliances (such as stove), combustible spray or flammable materials.
• It may cause fire or deformation of the product.
• Empty the dustbin before it is full in order to maintain the best efficiency.

Cleaning and maintenance

- Unplug the vacuum cleaner if you do not use it for a long time.

- It may cause electric shock or fire.

Name of the parts

Product design may differ depending on the models.

01 Pipe 02 Handle control 03 Hose 04 Dustbin 05 Power button

06 Cord rewind button / Carry handle 07 Power cord 08 Outlet filter 09 Anti-Tangle Turbine (Cyclone Force)

Accessories

Accessories may differ depending on the models.

Hose Pipe 2-step brush

Eco Hard Floor 2-in-1 accessory User manual Anit-Tangle tool/Mini Pet Care Tool

Using the vacuum cleaner

Suction control may differ depending on the models.

Using the body

Power cord

On/Off

Suction control

01 Low suction power 02 High suction power

Using the handle

NOTE

• To vacuum fabrics, push the cover downward to reduce suction. - The handle does not control the power of the product.

Using the brushes

Where to use the brushes

① 2-step brush

* Floor

Carpet

② Eco Hard Floor

③ Dusting brush

④ Crevice tool

⑤ Anit-Tangle tool/Mini Pet Care Tool

Cleaning and maintaining

You must unplug the vacuum cleaner before cleaning it.

When to empty the dustbin

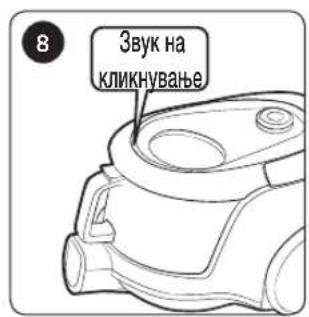

Cleaning the dustbin

Clean the dustbin if there is a lot of dust in the bin.

* Anti-Tangle Turbine (Cyclone Force) - Based on internal testing. Tested at the turbine fan using a mix of hair and pet hair on Floor.

CAUTION

- If a tool is required for cleaning, please be careful not to damage the mesh.

How to empty the dustbin easily

Cleaning the dust filter

Cleaning the outlet filter

CAUTION

- Make sure the dust filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.

Cleaning the brush

2-step brush

* The cleaning method for the [2-step brush], [Anti-Tangle tool/Mini Pet Care Tool] and [Eco Hard Floor] is the same.

Cleaning the pipe

Cleaning the hose

Storing the vacuum cleaner

In use

NOTE

• Product features may vary according to model.
• When you use the dusting brush or crevice tool, you may feel vibration from the vacuum cleaner.

CAUTION

• When removing the power plug from the electrical outlet, grasp the plug, not the cord.
• Please do not press the button of dustbin handle when carrying the vacuum cleaner.
• For storage of the product, park the floor nozzle in the small groove on the bottom of the body.

Cleaning and maintenance

NOTE

• To clean the dust filter, add neutral detergent into lukewarm water and soak the filter for 30 minutes before washing it.
• Do not wash the outlet filter with water.
• To maintain the best performance of the outlet filter, replace it once a year.
• To prevent floors from scratches, inspect condition of the brush and replace it if it is worn down.
• Replacement filters are available at your local Samsung service agent.
• Hold the power cord and then press the Cord rewind button since you can get injured if the power cord may lose control while rewinding it.
• If the power cord is not rewinding well, press the Cord rewind button again after pulling the power cord about 2 \~ 3 m.
• To empty and clean the dustbin, you may rinse the dustbin with cold water.
• When suction power is noticeably reduced continuously, please clean the dust filter by referring to the "Cleaning the dust filter" section.

CAUTION

• Make sure the dust filter is completely dry before putting it back into the vacuum cleaner.
• Allow 12 hours for it to dry.

- Dry the dust filter in the shade, not under sunlight, to prevent transformation or discoloration.

- When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats, please clean the outlet filter.

- Suction may reduce noticeably due to wrong reassembling of the dust filter.

- Please contact a nearest service agent if you cannot remove foreign matters from the hose.

- Store the vacuum cleaner in the shade to prevent deformation or discoloration.

Symptom Checklist
Motor does not start. • Check the cable, the power plug and outlet.
Suction force is gradually decreasing.	• Check if there is any blockage, and remove it if required.• Please check the filters, and if required, clean as illustrated in this manual.- If filters are out of condition, replace them with new ones.
Cord does not rewind fully.	• Pull the power cord out 2 - 3 m and press the Cord rewind button.
Noise from the vacuum cleaner increases and the suction power is weak.	• Disassemble the anti-tangle turbine inside the dustbin and remove dust in it.• After cleaning the anti-tangle turbine, reassemble it correctly in the dustbin.
Body overheating	• Check the filters, and clean as illustrated in this manual if required.
Static electricity discharge.	• Reduce suction.• This may also occur when air in the room is very dry. Ventilate the room so that air humidity becomes normal.
During using, stop the unit	• This vacuum cleaner has a special thermostat that protects the motor in case of its overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dustbin, a blocked hose, pipe, or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner.

• This vacuum cleaner is approved for the following.
• Electromagnetic Compatibility Directive: 2004/108/EEC
• Low Voltage Directive: 2006/95/EC

[English]

According to Commission Regulation (EU) No 666/2013

A	Supplier Samsung Electronics Co., Ltd.
B	Model	SC07M211*S*	SC07M21A*V*	SC07M21N*V*	SC05M211*S* SC05M21A*V*
C	Annual Energy Consumption (kWh/yr)	28.0 28.0	28.0 22.0	22.0
D	Sound Power Level (dBA)	80 80	80 79 79
E	Rated Input Power (W)	650 650 650	500 500
F	Type General purpose vacuum cleaner

1 Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used. 2 Measurements for power consumption and performance are based on methods in EN 60312 - 1 and EN 60704.

Notes

• Declared energy efficiency and cleaning performance class on carpet can be met with the enclosed 2-Step Brush.
• When the hard floor has joints and gaps, please use the enclosed "Eco Hard Floor" brush which is designed to meet the energy efficiency and cleaning performance class on hard floor with joints and gaps.
• The values have been determined according to the prescribed measuring process (in accordance with EN60312 - 1).

Vacuum cleaner

01 Hose 02 Regulator on handle 03 Hose 04 Dust container 05 Power button

06 Cord rewind button/carrying handle 07 Power cord 08 Exhaust filter 09 Hair turbine (cyclonic force)

Accessories

Accessories may vary depending on the model.

Crevo Cev Dvonamenska papučica

Kontrola snage usisavanja

01 Mala snaga usisavanja 02 Velika snaga usisavanja

NAPOMENA

• Prilikom usisavanja tekstila, gurnite poklopac nadole da biste smanjili snagu usisavanja.
• Pomoću drške se ne može uključivati i isključivati napajanje uredaja.

Korišćenje papučica

①Dvonamenska papučica

② Eko za tvrde podove

③ Nastavak za prašinu

5 Papučica za dlake / alat za uklanjanje dlaka malih kućnih ljubimaca

* Turbina za dlake (ciklonska sila)

- Zasnovano na internom testiranju.

Testirano na turbinskom ventilatoru sa mešavinom kose i životinjske dlake na čvrstoj podnoj oblozi.

OPREZ

- If it is necessary to use an accessory during cleaning, be careful not to damage the mesh.

How to easily empty the dust container

Cleaning the dust filter

CAUTION

- Make sure the dust filter is completely dry before putting it back into the vacuum cleaner. Leave it to dry for 12 hours.

Cleaning the pedal

Dual-purpose pedal

Cleaning the hose

Storing the vacuum cleaner

During use

NOTE

01 Tube 02 Handle control 03 Hose 04 Dust container 05 Power button

06 Cable rewind button / carrying handle 07 Power cable 08 Exhaust filter 09 Anti-tangle turbine (Cyclone Force)

Accessories

Accessories may vary depending on the model.

Suction control

01 Low suction power 02 High suction power

Using the handle

NOTE

③ Dust brush ④ Crevice nozzle

⑤ Anti-tangle tool / pet hair tool

* Anti-tangle turbine (Cyclone Force)

- Based on internal testing. Tested on the turbine fan using hair and pet fur on the floor.

CAUTION

- If a tool is needed for cleaning, be careful not to damage the mesh.

How to easily empty the dust container

Cleaning the dust filter

Cleaning the exhaust filter

CAUTION

- Before returning to the vacuum, the dust filter must be completely dry. Allow it to dry for 12 hours.

Cleaning the brush

Cleaning the hose

Storing the vacuum cleaner

In use

NOTE

SAMSUNG

PREPARATION

NOTE

④ Crevice tool

2-position brush

Cleaning the hose

In use

NOTE

SAMSUNG

PREPARATION

Safety information 3

01 Tube 02 Handle 03 Hose 04 Dust cup 05 Power button

Hose Tube 2-step brush

On/off

Suction control

NOTE

① 2-step brush * Floor Carpet

③ Dust brush

④ Crevice tool

! CAUTION

2-step brush

Cleaning the hose

During use

NOTE

Vacuum cleaner

User manual

Series SC07M21****, SC05M21****

Hose Arm 2-step brush

On/Off

Suction control

NOTE

① 2-step brush * Floor

Carpet

③ Dust brush

⚠️ CAUTION

2-step brush

SAMSUNG

PREPARATION

Safety information 3

NOTE

③ Dust brush

WARNING

Use

NOTE

SAMSUNG

PREPARATION

NOTE

① 2-step brush

* Floor

⚠️ CAUTION

During use

NOTE

On/off

Suction control

NOTE

③ Crevice tool

4 Upholstery nozzle

⚠ WARNING

Two-position brush

Cleaning the hose

Storing the vacuum cleaner

During use

NOTE

SAMSUNG

PREPARATION

Hose Tube Two-position brush

On/Off

NOTE

3 Upholstery brush

④ Crevice nozzle

⚠️ WARNING

2-position brush

Cleaning the hose

Storing the vacuum cleaner

When using

NOTE

SAMSUNG

PREPARATION

01 Tube 02 Handle control 03 Hose 04 Dust container 05 Power button

06 Cord rewind button/carrying handle 07 Power cord 08 Outlet filter 09 Anti-tangle turbine (cyclone force)

Accessories

Hose Tube 2-step brush

On/Off

Suction control

01 Low suction power

NOTE

① 2-step brush

* Floor

Carpet

② Eco brush for hard floors

③ Dust brush

⑤ Anti-tangle nozzle / Mini Pet Care

Cleaning and maintenance

Cleaning the dust filter

⚠ WARNING

2-step brush

* The cleaning method for [2-step brush], [anti-tangle nozzle/Mini Pet Care] and [Eco hard floor brush] is the same.

Cleaning the tube

Cleaning the hose

During use

NOTE

WARNING

③ Dusting brush

4 Crevice nozzle

⚠️ CAUTION

Cleaning the hose

Operation

WARNING

Flexible hose Hose Two-stage brush

On/off

Suction control

NOTE

① Two-stage brush * Floor Carpet

② Eco hard floor

③ Dusting brush

4 Ozki nastavek

⑤Turbokrtača/Krtača Mini Pet Care

POZOR

- Prepričajte se, da je protiprašni filter popolnoma suh, preden ga vstavite nazaj v sesalnik. Pustite, da se suši 12 ur.

Čiščenje krtače

Dvostopenjska krtača

* Način čiščenja [dvostopenjska krtača], [turbokrtače/krtače Mini Pet Care] in [eko trdna tla] je enak.

Čiščenje cevi

Čiščenje gibke cevi

Med uporabo

OPOMBA
