HG02267 - Showerhead Livarno Lux - Free user manual and instructions

Brand	Livarno Lux
Model	HG02267
Product type	Shower head with LED lighting and digital temperature display
Dimensions (L x W)	Approx. 26 x 11.5 cm
Configuration	3-way (3 spray modes)
Minimum operating pressure	1.5 bar
Water temperature range and LED color	< 30 °C: blue; 30-39 °C: green; 39-50 °C: red; > 50 °C: flashing red
Digital temperature display	Yes
Usage	Private, indoor
Compatibility	Pressurized hot water systems (central heating, instantaneous water heater, etc.)
Not compatible	Unpressurized water heaters (storage water heaters, unpressurized tanks, etc.)
Power supply	Battery (not included)
Cleaning	Soft damp cloth, mild cleaning agent
Descaling	Common descaling product
Safety	Risk of burns: check water temperature before use
Warranty	3 years from date of purchase
After-sales service France	Tel. [phone], Email: [e-mail]
After-sales service Belgium / Luxembourg	Tel. [phone] (BE) / 80023970 (LU), Email: [e-mail]
Spare parts	Available during the warranty period

Frequently Asked Questions - HG02267 Livarno Lux

How to change the battery of the Livarno Lux HG02267 shower head?

Unscrew the shower head to access the battery compartment. Insert a button cell (e.g., CR2032) respecting polarity. Close carefully to avoid water leaks.

Why is the LED lighting of my shower head not working?

First check that the battery is inserted correctly and not discharged. If the light remains off, the water flow may be insufficient (minimum pressure 1.5 bar). Also ensure that the electrical contact between the turbine and electronics is clean.

What do the LED colors mean?

The colors indicate the water temperature: blue below 30 °C, green between 30 and 39 °C, red between 39 and 50 °C, and flashing red above 50 °C. The digital display confirms the temperature.

How to clean the shower head?

Clean it with a soft damp cloth and optionally a mild cleaning agent. For descaling, use a common descaling product following its instructions. Avoid abrasive cleaners.

Can I use this shower head with a low-pressure water heater?

No, this shower head is designed for pressurized hot water systems (minimum 1.5 bar). It is not suitable for unpressurized water heaters such as open storage tanks or wood-fired water heaters.

How to descale the shower head?

Use a common descaling product. Apply it according to the product instructions. You can also soak the shower head in a diluted white vinegar solution. Rinse thoroughly with clean water.

What to do if the digital display does not light up?

Check the battery. If the battery is good, the problem may be due to a defective contact or electronic defect. Contact after-sales service (0800904879 in France, 080071011 in Belgium).

Can I use this shower head with a thermostatic tap?

Yes, the shower head is compatible with any pressurized water system, including thermostatic taps. Just make sure the minimum water pressure of 1.5 bar is maintained.

What is the warranty period for the Livarno Lux shower head?

The warranty is 3 years from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear and tear or batteries.

How to make use of the warranty?

In case of a defect, contact after-sales service by phone or email. Send the defective product postage paid with the receipt and a description of the problem. The warranty does not cover damages due to improper use.

USER MANUAL HG02267 Livarno Lux

PDF ONLINE www.lidl-service.com

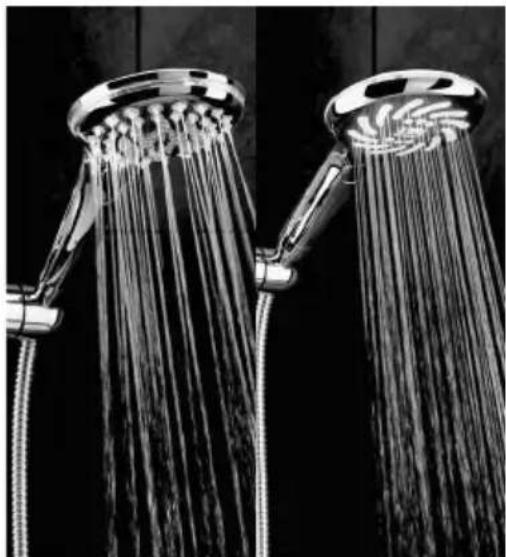

Close-up of two chrome shower heads with water spraying through the showerhead (no text or symbols visible)

LED-HANDBRAUSE MIT TEMPERATURANZEIGE / SHOWER HEAD WITH LED TEMPERATURE INDICATOR / POMMEAU DE DOUCHE LED AVEC AFFICHAGE DE LA TEMPÉRATURE

DE AT CH

LED-HANDBRAUSE MIT TEMPERATURANZEIGE

SHOWER HEAD WITH LED TEMPERATURE INDICATOR

Assembly and safety advice

FR BE

POMMEAU DE DOUCHE LED AVEC AFFICHAGE DE LA TEMPÉRATURE

Icon showing an information symbol and a folded document with arrows indicating rotation or change.

GB/IE Assembly and safety advice Page 8

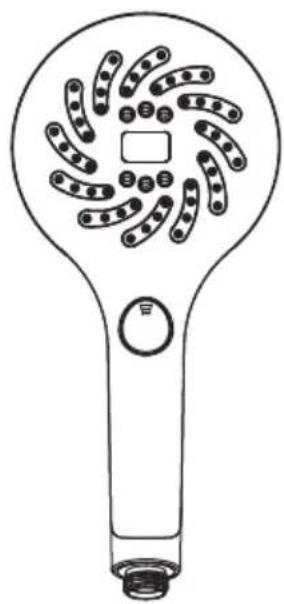

Line drawing of a showerhead with circular button pattern (no text or symbols)

Diagram showing a bowl with a lid and a pig icon, indicating a process or inspection step.

Diagram showing a screw with a cross symbol and a downward arrow, likely illustrating a mechanical or electrical process.

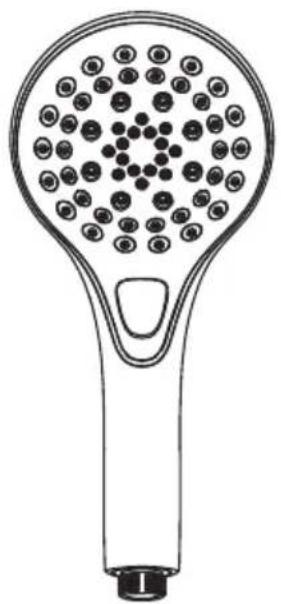

Line drawing of a showerhead with circular perforations and a handle (no text or symbols)

Illustration of a screw with a flat head and threaded shaft, plus a separate circular component labeled '1x' (no text or symbols on the main diagram)

Simple line drawing of a container with vertical lines and a curved top (no text or symbols)

Model HG07605

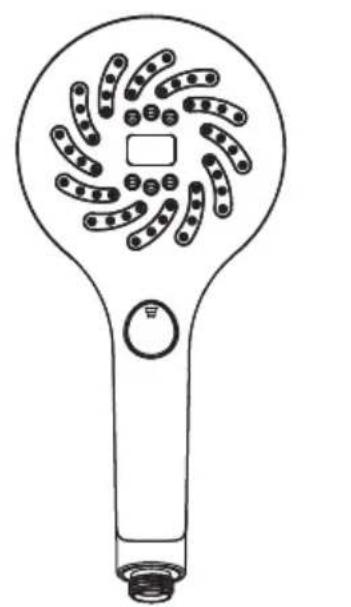

Line drawing of a handheld showerhead with spiral pattern and handle (no text or symbols)

Diagram illustrating a process with a piggy bank, a lid, and a screw being inserted into a container, with a checkmark indicating completion.

Diagram showing a mechanical component with a cross symbol and a downward arrow, likely illustrating a process or assembly.

Line drawing of a showerhead with multiple circular slots and a square button (no text or symbols)

1 x

LED-HANDBRAUSE MIT TEMPERATURANZEIGE

Einleitung

SHOWER HEAD WITH LED TEMPERATURE INDICATOR

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

Suitable for use with all pressure-resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler etc. It is not suitable for non-pressurised water heaters such as wood-fired or coal-fired hot-water heaters, oil-fired or gas-fired heaters, open electrical storage heaters. The product is intended for personal use only and not for medical or commercial use.

● Technical data

Hand shower: 3-way setting

Dimensions

shower head: HG02267:

$$ \text { approx. } 2 6 \times 1 1. 5 \mathrm{cm} (\mathrm{L} \times \mathrm{W}) $$

HG07605:

$$ \text { approx. } 2 7. 4 \times 1 2. 5 \mathrm{cm} (\mathrm{L} \times \mathrm{W}) $$

Minimum

working pressure: 1.5 bar

(without water saving insert)

Safety instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

⚠ TO AVOID THE RISK OF INJURY!

■ Never leave children unsupervised with the packaging materials. It is not a toy.

⚠️ CAUTION! DANGER OF INJURY!

Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly or fitting may lead to injury. Damaged parts can adversely affect safety and proper function.

⚠️ CAUTION! RISK OF SCALDING!

Adjusting the hand shower may change the temperature of the water coming out. Check the water temperature before stepping into the shower.

WARNING! Suitable for use with all pressure resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler, etc. Not suitable for use with non-pressurised water heaters such as boilers, nonpressurised reservoirs, etc. In case of doubt, consult a professional plumber or technical consultant.

■ Make sure that the product is only installed by capable persons.

- Please check the product regularly for leakage.

Operation

The hand shower is fitted with LEDs which will change colour automatically according to below water temperature:

Water temperature (approx.)	LED colour
< 30 °C blue
30-39 °C green
39-50 °C red
>50 °C red (flashing)

The digital display of the shower will also show the water temperature simultaneously.

● Cleaning and care

• Clean the product, damp cloth and use a mild cleaning agent if necessary.
  Use an ordinary lime scale cleaner to remove lime scale deposits from the product. Observe the instructions for use of your cleaner.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 378498_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.: [phone]

E-Mail:[e-mail]

Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

POMMEAU DE DOUCHE LED AVEC AFFICHAGE DE LA TEMPÉRATURE

Introduction
