IAN 391020 - Electric train toy Playtive - Free user manual and instructions

Product type	Electric train toy
Brand	Playtive
Model	IAN 391020
Power supply	2 batteries 1.5 V LR03 (AAA) – non-rechargeable
Recommended age	From 3 years
Package contents	15 tracks, 1 station (8 pieces), 1 level crossing (5 pieces), 1 bridge railing (2 pieces), 1 electric vehicle, 2 batteries, 1 overview of assembly variants, 1 instruction manual
Functions	Forward, stop, reverse
Assembly variants	Yes, multiple possibilities (see manual)
Safety	Contains small magnets; not suitable for children under 36 months; adult supervision recommended
Care and cleaning	Clean with a damp cloth; clean tracks before first use; do not use harsh chemicals
Warranty	3 years (excluding batteries and normal wear)
Customer service	Phone [phone] (France) or 0800 12089 (Belgium) – Email: [e-mail] / [e-mail]
Disposal	Do not dispose of with household waste; recycle batteries according to directive 2006/66/EC
Date of manufacture	06/2022
Directives	2009/48/EC (Toy safety); 2014/30/EU (EMC)

Frequently Asked Questions - IAN 391020 Playtive

How to insert batteries into the train?

Remove the battery compartment cover (see fig. A of the manual). Insert two LR03 (AAA) batteries observing polarity (+/-). Use a suitable screwdriver (not included). Close the cover.

How to activate the train?

Press the front button (1a) for forward, the middle button (1b) for stop, and the rear button (1c) for reverse. Caution: reverse is not designed for bridges or slopes.

Can I use rechargeable batteries?

No. The manual clearly states: Do not use rechargeable batteries. Only use non-rechargeable LR03 (AAA) batteries.

What to do if the train derails?

Check that the tracks are clean and properly assembled. Avoid assembly variants with too many successive curves. Clean the tracks with a damp cloth before first use.

From what age is this toy recommended?

It is suitable for children from 3 years. Caution: not suitable for children under 36 months due to small parts that can cause choking.

How to clean the train and tracks?

Use a damp cloth to clean everything. Never use harsh cleaning agents. Always clean the tracks before first use.

What does the packaging contain?

The packaging contains: 15 tracks, 1 station (8 pieces), 1 level crossing (5 pieces), 1 bridge railing (2 pieces), 1 electric vehicle, 2 batteries (LR03 AAA), 1 overview of assembly variants and 1 instruction manual.

What to do if a magnet is swallowed by a child?

Swallowed magnets can cause serious injury. Consult a doctor immediately. Keep magnets out of reach of children.

What to do in case of battery leakage?

Wear gloves to handle the damaged battery. Wash the affected area with water and soap. In case of eye contact, rinse thoroughly and consult a doctor. Dispose of the battery according to regulations.

How to replace used batteries?

Remove used batteries observing polarity. Replace both batteries with new ones of the same type (LR03 AAA). Do not mix old and new batteries. Dispose of used batteries at an appropriate collection point.

USER MANUAL IAN 391020 Playtive

Isometric illustration of a road with vehicles and a small vehicle, no text or symbols present

EISENBAHN-SET PASSAGIERZUG PASSENGER TRAIN SET

SET CHEMIN DE FER - TRAIN DE PASSAGERS

PDF ONLINE www.lidl-service.com

DE AT CH

EISENBAHN-SET PASSAGIERZUG

Gebrauchsanweisung

FR BE

SET CHEMIN DE FER - TRAIN DE PASSAGERS

Instructions for use

NL BE

SPOORBAAN-SET PASSAGIERSTREIN

Gebruiksaanwijzing

CZ

ŽELEZNIČNÍ SOUPRAVA OSOBNÍHO VLAKU

Návod k použití

ES

SET DE TREN «TREN DE PASAJEROS»

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows indicating motion or flow.

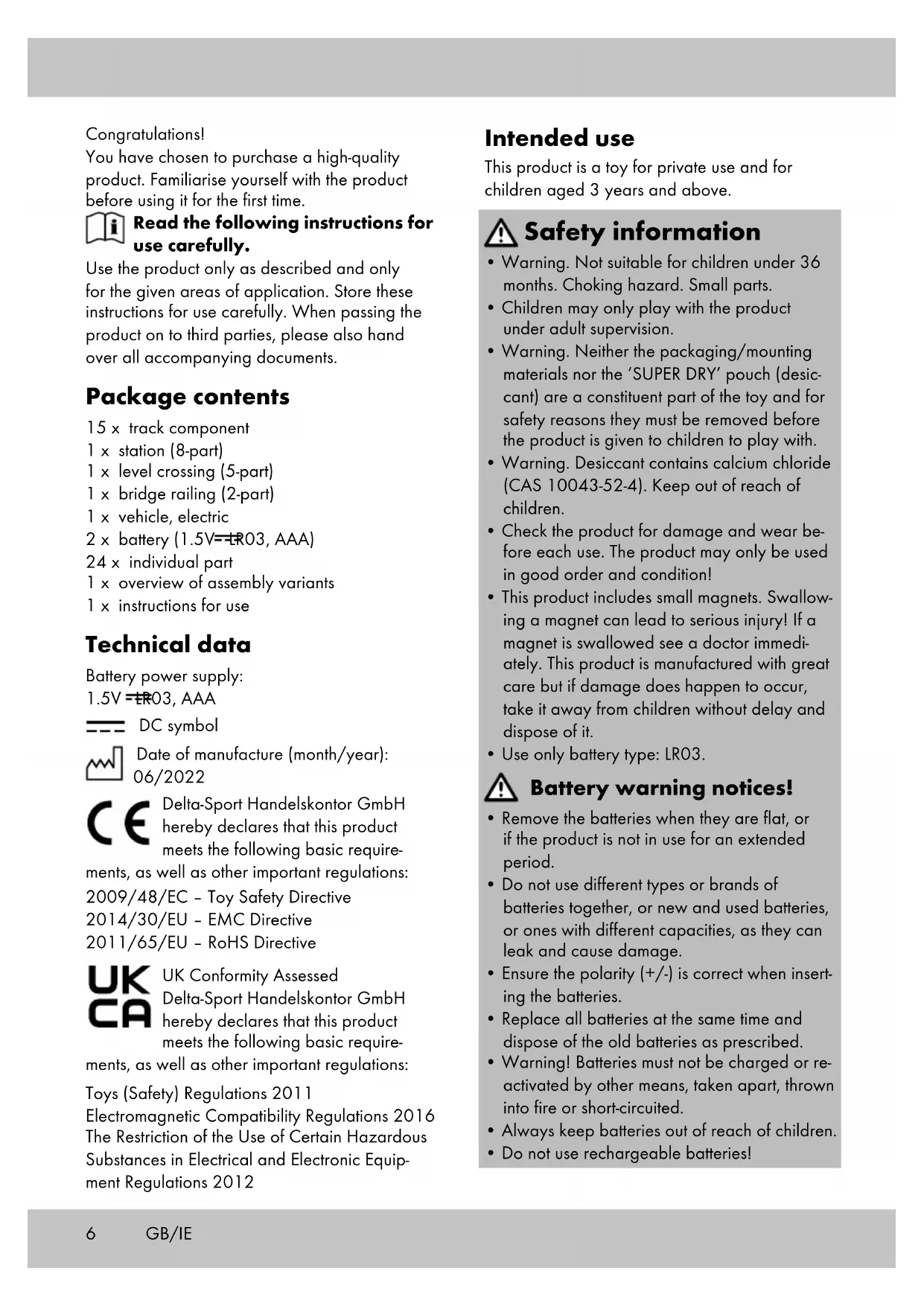

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

15 x track component
1 x station (8-part)
1 x level crossing (5-part)
1 x bridge railing (2-part)
1 x vehicle, electric
2 x battery (1.5V=LR03, AAA)
24 x individual part
1 x overview of assembly variants
1 x instructions for use

Technical data

Battery power supply:

1.5V=ER03, AAA

DC symbol

Date of manufacture (month/year): 06/2022

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic require-

ments, as well as other important regulations:

2009/48/EC - Toy Safety Directive

2014/30/EU - EMC Directive

2011/65/EU - RoHS Directive

UK Conformity Assessed Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic require-

ments, as well as other important regulations:

Toys (Safety) Regulations 2011

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment Regulations 2012

Intended use

This product is a toy for private use and for children aged 3 years and above.

Safety information

• Warning. Not suitable for children under 36 months. Choking hazard. Small parts.
  • Children may only play with the product under adult supervision.
• Warning. Neither the packaging/mounting materials nor the 'SUPER DRY' pouch (desiccant) are a constituent part of the toy and for safety reasons they must be removed before the product is given to children to play with.
• Warning. Desiccant contains calcium chloride (CAS 10043-52-4). Keep out of reach of children.
• Check the product for damage and wear before each use. The product may only be used in good order and condition!
• This product includes small magnets. Swallowing a magnet can lead to serious injury! If a magnet is swallowed see a doctor immediately. This product is manufactured with great care but if damage does happen to occur, take it away from children without delay and dispose of it.
• Use only battery type: LRO3.

Battery warning notices!

• Remove the batteries when they are flat, or if the product is not in use for an extended period.
• Do not use different types or brands of batteries together, or new and used batteries, or ones with different capacities, as they can leak and cause damage.
• Ensure the polarity (+/-) is correct when inserting the batteries.
• Replace all batteries at the same time and dispose of the old batteries as prescribed.
• Warning! Batteries must not be charged or re-activated by other means, taken apart, thrown into fire or short-circuited.
  • Always keep batteries out of reach of children.

• Do not use rechargeable batteries!

• Cleaning and maintenance must not be carried out by children without supervision.

• Clean the battery and device contacts as needed and before inserting.
• Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leakage.
• Warning. Used batteries must be immediately disposed of. Keep new and used batteries out of reach of children. If there is cause to suspect that batteries have been swallowed or have entered the body, seek medical help immediately.

Danger!

• Handle damaged or leaking batteries with extreme caution and dispose of them properly as soon as possible. Wear gloves when doing so.
• If you come into contact with battery acid, wash the affected area with soap and water. If battery acid gets in your eye, rinse it with water and seek medical attention immediately!
• The connection terminals must not be short-circuited.

Inserting/replacing batteries (Fig. A)

WARNING! Observe the following instructions to avoid mechanical and electrical damage.

To insert and replace the batteries (2), proceed as shown in Fig. A.

Note: you will need a suitable screwdriver (not included in the package contents).

Note: check the plus/minus poles of the batteries and insert them correctly. The batteries must be completely inside the battery holder.

Assembly

When assembling the product, pay attention to the individual steps as shown in Fig. C.

Assembly variants

Assembly variants can be found in the enclosed overview.

Note: assembly variants with multiple, consecutive curved parts can potentially derail the vehicles! Clean the tracks with a damp cloth before using them for the first time!

Activating the train (Fig. B)

1. Press the front button (1a) to drive forwards.
2. Press the middle button (1b) to stop the train.
3. Press the back button (1c) to drive backwards.

Warning! The vehicle is not intended for driving backwards on bridges or inclines.

Storage, cleaning

When not in use, always store the product dry, clean, without batteries, and at room temperature. Only clean the product with a damp cloth and wipe dry afterwards.

Attention: the rails should be cleaned before using them for the first time!

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished with it, but rather take it to a specialty disposal facility. Find out about collection sites and their hours of operation from your local authority.

Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided. Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Environmental damage caused by improper disposal of batteries! Batteries may not be disposed of with household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Dispose of used batteries at a municipal collection site.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a) and numbers (b) with the following meaning: 1-7: plastics/20-22: paper and cardboard/80-98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 391020_2201

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]
