USER MANUAL LRTNC0915V LG

TOP MOUNT REFRIGERATOR Please read this owner’s manual thoroughly before operating and keep it handy for reference at all times. ENGLISH ESPAÑOLModel NameFRANÇAIS www.lg.com Copyright All Rights Reserved.P/No.: MFL62423833-8AFN73165213 LTNC11131V

LRTNC0915V3 PRODUCT FEATURES

10 - Measuring the Clearances

13 - Food Preservation Location

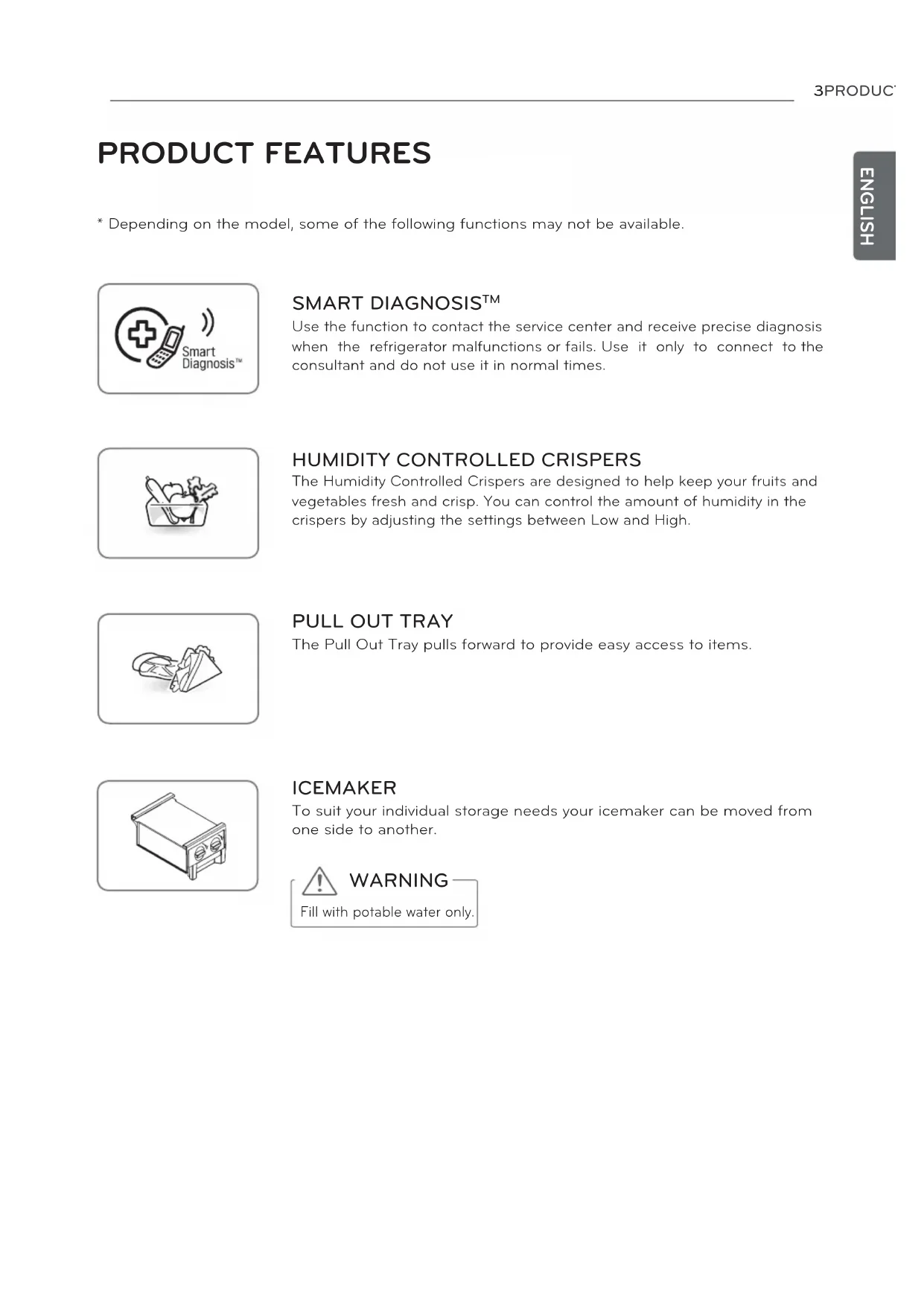

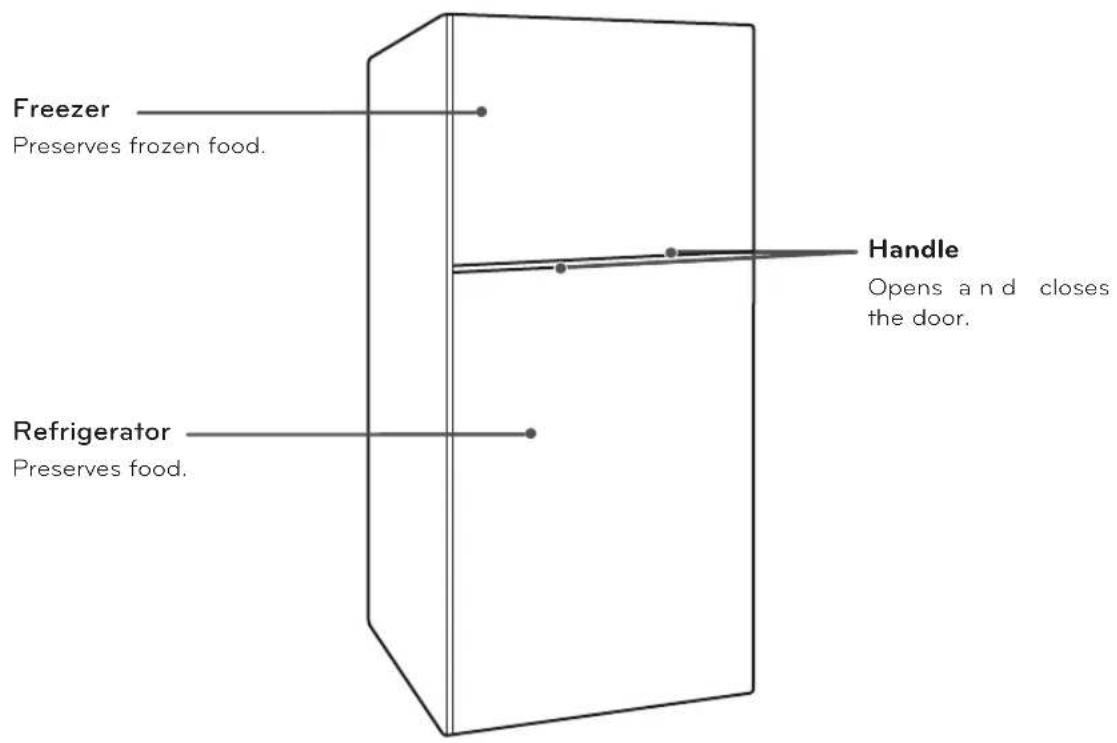

ENGLISHPRODUCT FEATURES

• Depending on the model, some of the following functions may not be available. SMART DIAGNOSIS

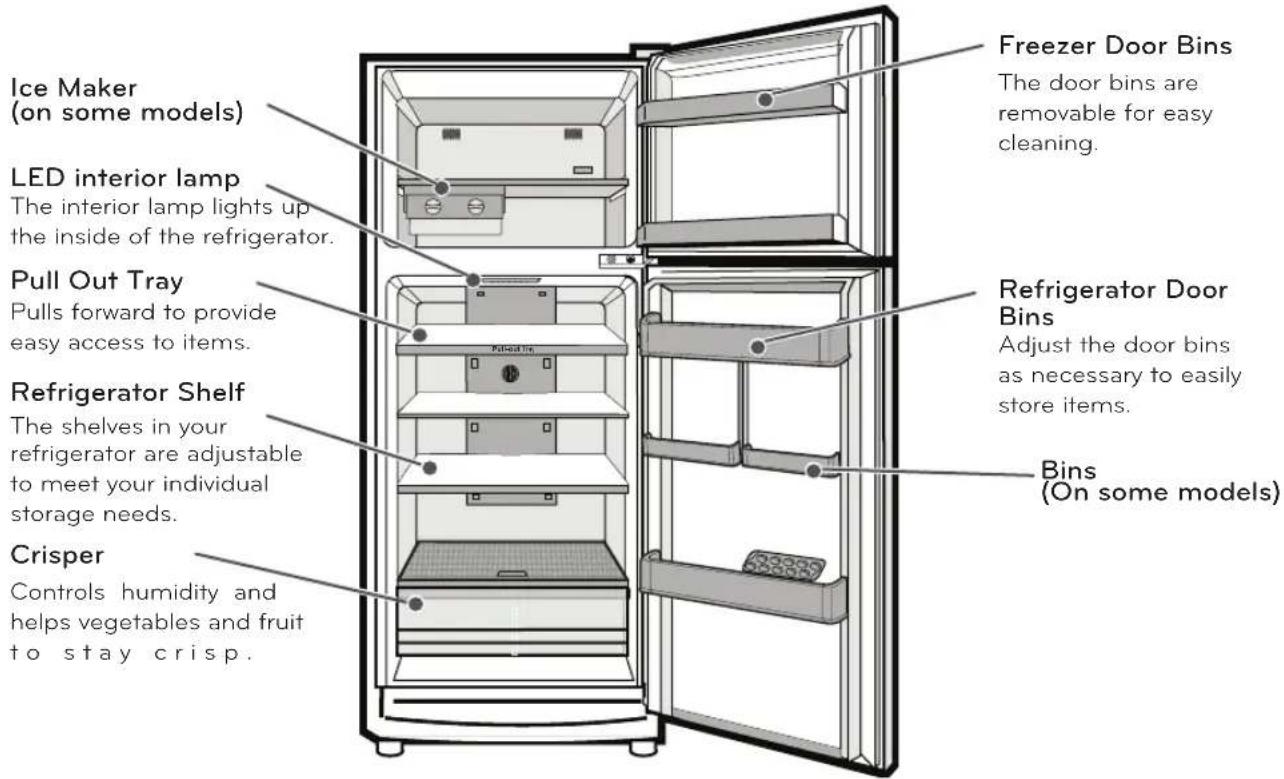

The Pull Out Tray pulls forward to provide easy access to items. ENGLISH ICEMAKER To suit your individual storage needs your icemaker can be moved from one side to another. WARNING Fill with potable water only.

Use the function to contact the service center and receive precise diagnosis when the refrigerator malfunctions or fails. Use it only to connect to the consultant and do not use it in normal times. The Humidity Controlled Crispers are designed to help keep your fruits and vegetables fresh and crisp. You can control the amount of humidity in the crispers by adjusting the settings between Low and High. 3PRODUCT FEATURES

ENGLISHIMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. This guide contains many important safety messages. Always read and obey all safety messages.

DANGER When violate indication item, serious injury or death is happened urgently. CAUTION ni tluser yam ,dediova ton fi ,hcihw noitautis suodrazah yltnenimmi na setacidnI minor or moderate injury, or product damage. WARNING WARNING To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following:Power

NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.

Unplug the power plug immediately in the event of a blackout or thunderstorm.

Plug in the power plug with the power cord facing downward.

Do not use extension cords or ungrounded (two prong) adapters.Installation

Contact an authorized service center when you install or relocate the refrigerator.

When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.

Prior to use, ensure that you are connecting this product to a dedicated grounded electrical outler rated for use with this product (115V~ 60Hz, AC only). It is the user’s responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.

Do not install the refrigerator where there may be a danger of the unit falling. Use

DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

Do not hang on to or place heavy objects on the refrigerator’s dispenser.

Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.

Do not put live animals inside the refrigerator.

Do not allow children to climb into the product when it is in use.

In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized service center before resuming use. Do not touch or disassemble the electrical outlet of the refrigerator.

In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure adequate ventilation and contact an authorized service center.

Do not use or place flammable substances (chemicals, medicine, cosmetics, aerosol, etc) near the refrigerator or store them inside the refrigerator. Do not place the refrigerator in the vicinity of flammable gas. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.All safety messages will be preceded by the safety alert symbol and the hazard signal word WARNING or CAUTION. These words mean: If the supply cord is damaged, it must be replaced by the manufacturer or its service agent ora similar qualified person in order to avoid a safety hazard. Do not use a cord that shows cracksor abrasion damage along its length or at either the plug or connector end.4 IMPORTANT SAFETY INSTRUCTIONSENGLISHMisuses of the product will cause you physical damage or personal wounds. Storing Food Food Preservation Location Each compartment inside the refrigerator is designed to store di Store your food in the optimal space to enj

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following:

5IMPORTANT SAFETY INSTRUCTIONS

ENGLISH WARNING This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible.Never start up an appliance showing any signs of damage. If in doubt, consult your service center. This product is not to be used for special purposes such as the storage of medicine or tes tmatri- als or for use on ships, etc. Unplug the power plug before cleaning or repairing the refrigerator. Do not modify or extend the power cord. Do not use a dryer to dry the interior. Do not light a candle to remove interior odors. For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit checked by a qualified electrician to make sure the outlet is properly grounded. Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the user’s responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Do not use an adapter plug and plug the power plug into a multi-outlet extension cord. Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke coming from the appliance. Turn the power off if water or dust penetrates into the refrigerator. Call a service agent. Do not disassemble or modify the refrigerator. Do not put hands, feet, or metal objects below or behind the refrigerator. Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your refrigerator is in operation. Do not put glass containers, glass bottles or soda in the freezer. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to assure that they do not play with the appliance. Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health issue. If you are throwing away your old refrigerator , make sure the CFC or HCFC coolant is removed for proper disposal by a qualified servicer. If you release CFC/HCFC coolant, you may be fined or imprisoned in accordance with the relevant environmental law. Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When disposing of the refrigerator, remove the packing materials from the door or take off the doors but leave the shelves in place so that children may not easily climb inside. If the refrigerator is connected to a circuit protected by fuses, use time delay fuses. If the use of this unit is no longer needed, please contact local authorities to dispose of this product in a safe way due contains Cyclopentane or pentane as gas for insulation and R600a as refrigerant. Insulation gases and refrigerant require a special elimination process. This product contains flam-mable insulation and refrigerant. Do not damage the refrigerant circuit. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. When transporting and installing the appliance, care should be taken to ensure that any part of the refrigerating circuit is damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is placed for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be placed depends on the amount of refrigerant used. The room must be 1m² in size for every 8 grams of R600a refrigerant inside the appliance.The amount of refrigerant in your particular appliance is shown on the identification label inside the appliance. 14HOW TO USEh compartment inside the refrigerator is designed to store different types of food. ood in the optimal space to enjoy the freshest taste.Maintenance CAUTION Installation

The refrigerator must be properly installed in accordance with the Installer Instructions that were taped to the front of the refrigerator.

Be careful when you unpack and install the refrigerator. Immediately dispose of plastic and other packing materials out of the reach of children.

The appliance must be positioned for easy access to a power source. Use

Close the door carefully when children are around. Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be careful closing doors when children are nearby. If you store food improperly, be aware that it may fall and cause injury. Do not use aerosols near the refrigerator. Do not store articles on the top of the appliance.

Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.

Wipe foreign objects (such as dust and water) off the prongs of the power plug and contact areas regularly. Do not store, disassemble or repair the refrigerator by yourself.

Remove any dust or foreign matter from the power plug pins.

Do not use a wet or damp cloth when cleaning the plug.

If the refrigerator is disconnected from the power supply, wait for at least five minutes beforeplugging it back in.

If you notice a chemical or burning plastic smell or see smoke, unplug the refrigerator immedia-tely and contact your LG Electronics Service Center.

SAVE THESE INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followe, including the following:DO NOT USE MECHANICAL DEVICES WARNING

DO NOT STORE ELECTRICAL APPLIANCES

WARNING Do not use mechanical devices or other means to acelerate the defrosting process, only those recommended by themanufacturer.Do not use electrical appliances inside the food storage compartment, unless they arerecommended by the manufacturer.

6 IMPORTANT SAFETY INSTRUCTIONS

ENGLISH Keep in mind next caution points when you move or install your refrigerator, gas used in your appliance is inflammable:

• Avoid use any flame or heat sources to access to the sealing system when the appliance is being fulled with refrigerant.• In case of refrigerant leak the area must be completely ventilated before start working.• Be careful, DO NOT damage refrigeration circuit.The refrigerator only must be repaired by qualified personal. Do not drill refrigeration circuit. Read instructions in your Owner’s Manual before use this product, all safety messages must befollowed.Risk of FireRisk of Fire or Explosion (Inflammable Refrigerant)Do not connect this appliance to a GFCI (Ground Fault Circuit Interrupter) outlet. If the appliance is connected to a GFCI outlet, the outlet's circuit breaker could be tripped. If this problem occurs, reset the GFCI outlet's circuit breaker. If the problem continues, contact a qualified electrician and replace the GFCI outlet with a non-GFCI outlet.COMPONENTS Use this page to become more familiar with the parts and features of your refrigerator. Refrigerator Exterior Handle Opens a n d closes the door. Refrigerator Preserves food. Freezer Preserves frozen food. 7COMPONENTS ENGLISH LED interior lamp Ice Maker The interior lamp lights up the inside of the refrigerator. Refrigerator Shelf The shelves in your refrigerator are adjustable to meet your individual storage needs. The door bins are removable for easy cleaning. Freezer Door Bins Pull Out Tray Pulls forward to provide easy access to items. Crisper Controls humidity and helps vegetables and fruit t o s t a y c r i s p . Pull-out Tray Adjust the door bins as necessary to easily store items. Refrigerator Door Bins Bins Refrigerator Interior (on some models) (On some models)INSTALLATION Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. 1 Unpacking your refrigerator2 Choosing the proper location This appliance is intended to be used in household and similar applications such as: hotels, motels and others residential type environments. -Bed and breakfast type environments; catering and similar non-retail applications. Specifications The appearance and specifications listed in this manual may vary due to constant product improvements.Dimensions LTNC08121V 56,2 kg (124 lb.)Width24 in(600 mm)Net WeightDepth26 in(661 mm)Heigth66 1/2 in(1690 mm)Dimensions49 kg (108.03 lb.)Width21.9 in(555 mm)Net WeightDepth24.6 in(625 mm)Heigth61.6 in(1565 mm) LRTNC0905V Dimensions50,8 kg (112 lb.)Width21.9 in(555 mm)Net WeightDepth24.8 in(630 mm)Heigth65.6 in(1667 mm) INSTALLATION3 Leveling and DoorAlignment ENGLISH LTNC11131V LRTNC0915V Dimensions51,8 kg (114.2 lb.)Width21.9 in(555 mm)Net WeightDepth24.8 in(630 mm)Heigth65.6 in(1667 mm)Unpacking Your Refrigerator Choosing the Proper Location Flooring NOTE WARNING To reduce the risk of electric shock, do not install the refrigerator in a wet or damp area. WARNING

back or other injury. Use two or more people to move and install the refrigerator. Failure to do so can result in Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, Keep flammable materials and vapors, such as gasoline, away from the refrigerator. Failure to do so can result in fire, explosion, as floor damage could occur. or death. Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning-type labels, the model and serial number To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the Refrigerator shelves are installed in the shipping position. Please reinstall shelves according to your labels. individual storage needs. surface of your refrigerator. The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115V

60 Hz, AC only, This provides the best performance and also prevent s overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be Installing on carpeting, soft tile surfaces, a platform or weakly supported structure is provided. and fused at 15 A.

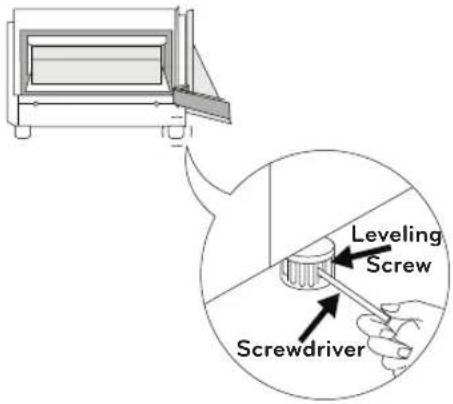

To avoid noise and vibration, the unit must be leveled and installed on a solidly constructed floor. If required, adjust the leveling legs to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling legs can be turned easily by tipping the cabinet slightly. Turn the leveling legs to the left to raise the unit or to the right to lower it (See Leveling section). not recommended. Ambient Temperature Install this appliance in an area where the temperature is between 55°F (13°C) and 110°F (43°C). If the temperature around the appliance is too low or high, cooling ability may be adversely affected.

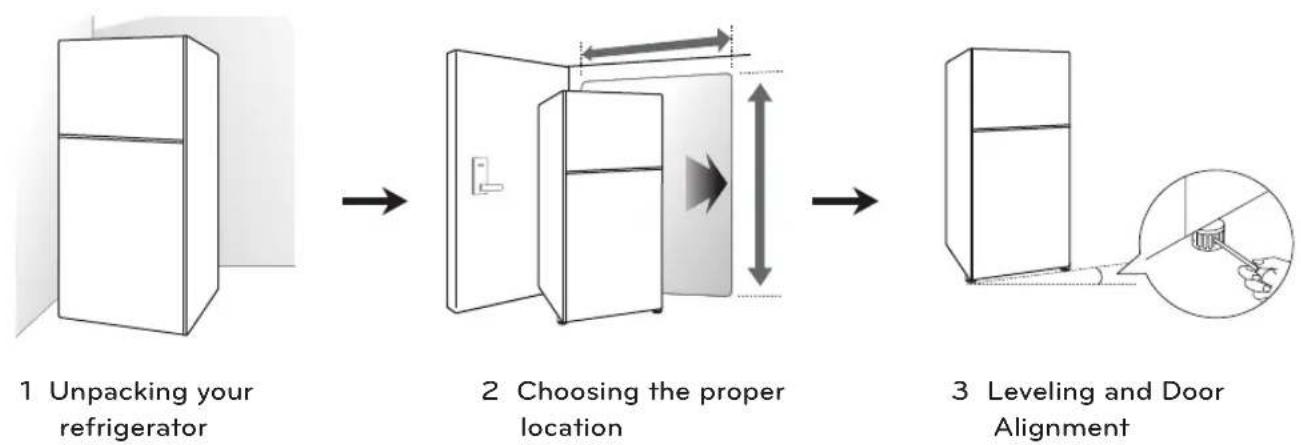

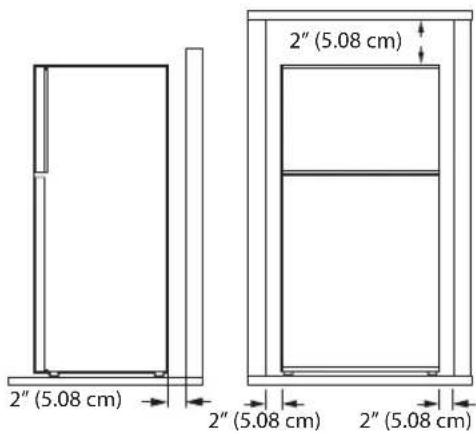

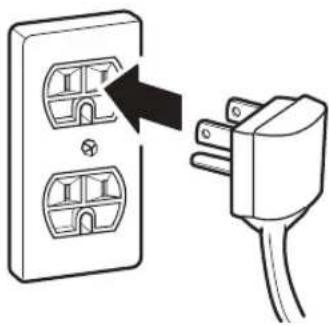

INSTALLATION ENGLISHMeasuring the Clearances Turning On The Power Plug in the refrigerator. CAUTION

Too small of a distance from adjacent items may result in lowered freezing capability and increased electricity consumption charges. Allow at least 24 inches (61 cm) in front of the refrigerator to open the doors, and at least 2 inches (5.08 cm) between the refrig- erator and the wall. Connect to a rated power outlet. Have a certified electrician check the wall outlet and wiring for proper grounding. Do not damage or cut off the ground terminal of the power plug. After installing, plug the refrigerator’s power cord into a 3-prong grounded outlet and push the refrigerator into the final position. Your refrigerator has two front leveling legs (one on the right side and one on the left). Adjust the legs to alter the tilt from front-to-front or side-to -side. If the refrige rator seems unsteady, or you want the doors to close more easily, adjust the refrigerator’s tilt using the instructions below: Turn the leveling legs by inserting a flat blade screwdriver in the holes located in the leveling screws. Turn the leg clockwise ( ) to raise that side of the refrigerator or counterclock- wise ( )to lower it. It may take several turns of the leveling leg to adjust the tilt of the refrigerator. Having someone push backward against the top of the refrigerator takes some weight off the leveling legs. This makes it easier to adjust the legs. Open both doors again and check to make sure that they close easily. If the doors do not close easily, tilt the refrigerator slightly more to the rear by turning both leveling legs counter- clockwise. It may take several more turns, and you should turn both leveling legs the same amount. 10 INSTALLATION ENGLISH 2” (5.08 cm)2” (5.08 cm)2” (5.08 cm) 2” (5.08 cm)Pull-out Tray

Before use Clean the refrigerator. Connect the power supply. Check if the power supply is connected before use. Read the “Turning On The Power” section. Wait for the refrigerator to cool. Allow your refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling. The refrigerator makes a loud noise after initial operation. This is normal. The volume will decrease as the temperature lowers. Open refrigerator doors to ventilat the interior. CAUTION Putting food in the refrigerator before it has cooled could cause the food to spoil, or a bad odor could remain inside the refrigerator. CAUTION

NOTE Remove adhesive residue by wiping it off with your thumb or dish detergent. Clean your refrigerator thoroughly and wipe off all dust that accumulated during shipping. Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any Do not peel off the model or serial number label or the technical tape or adhesive from the refrigerator. information on the rear surface of the refrigerator. The inside of the refrigerator may smell like plastic at first. Remove any adhesive tape from inside the refrigerator and open the refrigerator doors for ventilation.

• Do not touch the refrigerator or the outlet and ventilate the room immediately.

• The explosion by spark may cause fire or burn.

• Because this refrigerator uses natural gas (isobutene, R600a) even a small amount (80~90 g) is

• When the gas is leaked by the severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.

IN CASE OF REFRIGERANT LEAK

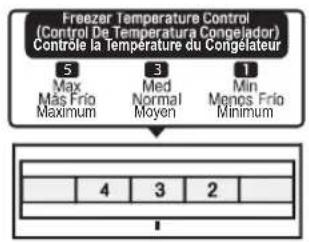

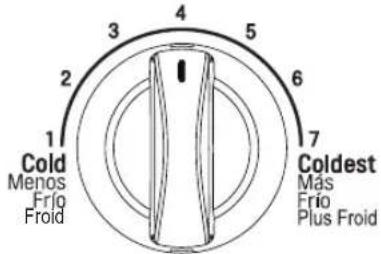

combustible.Control Pad Features Control Pad Controls the temperature of the refrigerator compartment.Turn the knob to the desired setting (from 1 to 7).Controls the flow of cold air from freezer into the refrigerator.Change the control by gently sliding it. The arrow indicates thesetting selected (from 1 to 5).Adjust the temperature controls depending on the amount of stored food, using the suggested settings below: NOTE Keep the temperature controls clear of food packages, which might knock into them and Controls appearance may vary according to your model. change the temperature settings.

ENGLISH SUMMER(Hot, more of 28 °C)SPRING(Warm, 17-28 °C)AUTUMN(Fresh, 12-17 °C)WINTER(Cold, 5-12 °C)Recommended Temperature SettingsFreezerRefrigeratorControl of:EXPRESS COOL *on some models

Contrôle la Température du Congélateur Maximum Moyen MinimumStoring Food Food Preservation Location Each compartment inside the refrigerator is designed to store different types of food. Store your food in the optimal space to enjoy the freshest taste. Pull-out TrayVegetable storage(Crispers)Preserve vegetablesand fruit. Ice binStores ice. (on some models)(on some models)Store drinks such as juice and soda, as well as c o n d i m e n t s , salad dressing and other food items. Door binsShelvesAdjustable shelves to meet your individual storage needs. CAUTION

Do not store food with high moisture content towards the top of the refrigerator. The moisture Wash food before storing it in the refrigerator. If necessary, rinse and thoroughly pat dry vegetables and fruit to remove obvious soil, juice, or blemished areas, and wipe down food pack-If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with If the refrigerator door or freezer door is opened too often, warm air may penetrate the refrigera- tor and raise its temperature. This can increase the running costs of the unit. could come in direct contact with the cold air and freeze.aging to prevent adjacent foods from being contaminated.a clean cloth or a paper towel.If you are leaving home for a short period of time, like a short vacation, the refrigerator should be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in theIf you are leaving the refrigerator turned off for an extended period of time, remove all food and unplug the power cord. Clean the interior, and leave the door open to prevent fungi from growingfreezer.in the refrigerator.

Food How To Butter or MargarineCheese Milk Eggs Fruit Leafy Vegetables Vegetables with skins (carrots, peppers) Fish

Leftovers Storing Frozen Food Freezing NOTE Check a freezer guide or a reliable cookbook for further information about preparing food for freezing or food storage times. NOTE Allow hot foods to cool at room temperaturefor 30 minutes, then package and freeze.Cooling hot foods before freezing saves energy. Packaging

Packaging recommendations:

Wrap or store food in the refrigerator in airtightand moisture-proof material unless otherwisenoted. This prevents food odor and taste transferthroughout the refrigerator. For dated products,The following tips may not be applicabledepending on the model.check date code to ensure freshness.Keep opened butter in a covereddish or closed compartment. When storing an extra supply, wrap in a freezer packaging and freeze.Store in the original wrappinguntil you are ready to use it.Once opened, rewrap tightly inplastic wrap or aluminum foil. Wipe milk cartons. For coldest milk, place containers on an interior shelf. Store in original carton on interior shelf, not on door shelf. Do not wash or hull the fruituntil it is ready to be used. Sort and keep fruit in its original container, in a crisper, or store ina completely closed paper bagon a refrigerator shelf.Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in crisper. Place in plastic bags or plastic container and store in crisper.Store fresh fish and shellfish in the freezer section if they are not being consumed the same day of purchase. It is recommended to consume fresh fish and shellfishthe same day purchased. Cover leftovers with plastic wrap or aluminum foil, or store in plasticcontainers with tight lids.Storage times will vary according to the qualityand type of food, the type of packaging or wrapused (how airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.Successful freezing depends on correct packag-ing. When you close and seal the package, it must not allow air or moisture in or out. If it does, you could have food odor and taste transfer through-out the refrigerator and could also dry out frozenfood.Rigid plastic containers with tight-fitting lids.Straight-sided canning/freezing jars.Heavy-duty aluminum foil.Plastic-coated paper.Non-permeable plastic wraps.Specified freezer-grade self-sealing plastic bags.Follow package or container instructions for proper freezing methodsBread wrappers.Non-polyethylene plastic containers.Containers without tight lids.Wax paper or wax-coated freezer wrap.Thin, semi-permeable wrap. Do not use: Your freezer will not quick-freeze a large quantity of food. Do not put more unfrozen food into the freezer than will freeze within 24 hours [no more than 2 lbs (0,9 kg) to 3 lbs (1,3 kg) of food per cubic foot or freezer space]. Leave enough space in the freezer for air to circulate around packages. Be careful to leave enough room at the front sothe door can close tightly.14 HOW TO USE ENGLISHHumidity Controlled Crisper High lets moist air out of the crisper for best storage of fruit. Low keeps moist air in the crisper for best storage of fresh, leafy vegetables. To remove the crisper, follow these instructions:

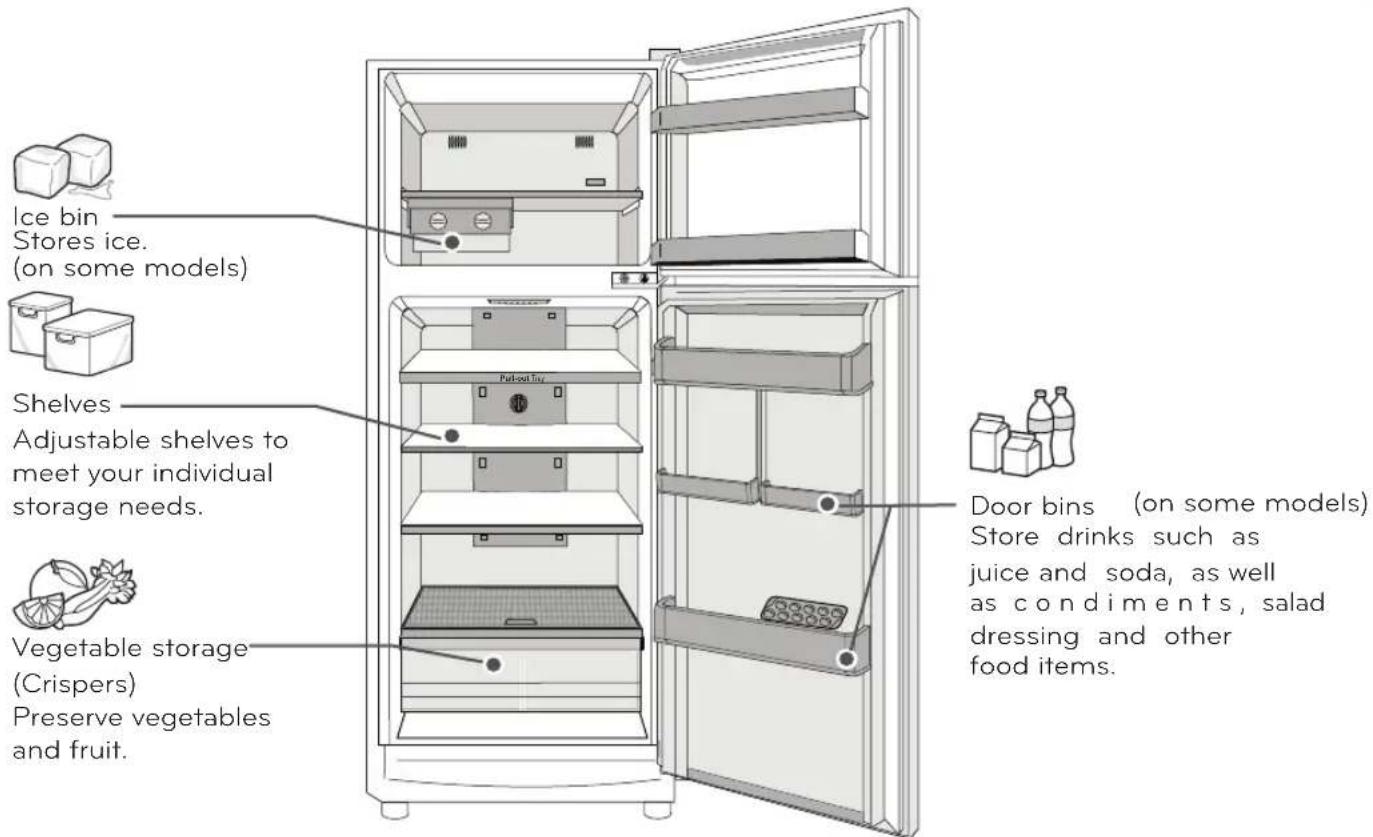

Door Bins The door bins are removable for easy cleaning and adjustment.To remove the bin, simply lift the bin up and pull straight out.To replace the bin, slide it in above the desired support and push down until it snaps into place.

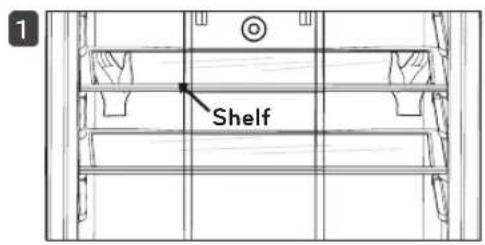

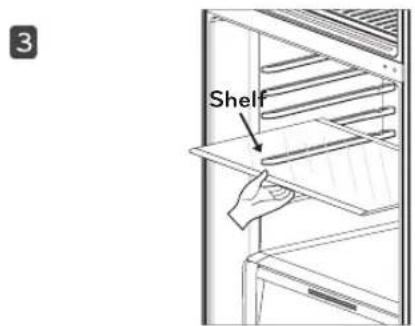

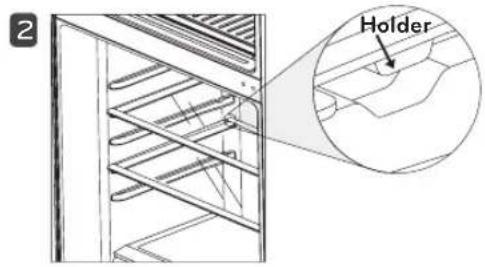

Adjusting the Refrigerator Shelves Detaching the Shelf In order to remove the refrigerator shelves follow these instructions:Lift the back of the shelf from below.Use enough force to lift the shelf and release it from the holders.Slide the shelf forward to remove it completely.

The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity You can control the amount of humidity in the moisture-sealed crispers by adjusting the control inside the drawer. to any setting between High and Low. Pull out the crisper to full extension, lift the To install the crisper, slightly tilt up the front, insert the drawer into the frame and push it back into place. front up, and pull straight out. Do not apply excessive force while detaching Do not use the dishwasher to clean the Regularly detach and wash the storage bins and shelves, they can become easily contami- or assembling the storage bins. storage bins and shelves. nated by the food. The shelves in your refrigerator are adjustable to Adjusting the shelves to fit items of different heights will make finding the exact item you want easier. Doing so will also reduce the amount of time the refrigerator door is open which will save energy. meet your individual storage needs. Do not clean glass shelves with warm water while they are cold. Shelves may break if they’re exposed to sudden temperature Glass shelves are heavy. Use special care when removing them. changes or impact.

2General Cleaning Tips

Exterior Inside Walls (allow freezer to warm up so the cloth will not stick) Door Liners and Gaskets Plastic Parts (covers and panels) CAUTION

Both the refrigerator and freezer sections defrost automatically; however clean both sections about once a month to prevent odors.

Wipe up spills immediately.

Always unplug the refrigeration before cleaning. WARNING Use non-flammable cleaner. Failure to do so can result in fire, explosion, or death. Light (LED) replacement WARNING In case of replacement, the new lamp should be same specification as the original.Unplug refrigerator or disconnect power.Remove all removable parts, such as shelves, Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive Hand wash, rinse and dry all surfaces crispers, etc.or harsh cleaners.thoroughly.For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasiveor harsh cleaners. Dry thoroughly with a softcloth.Do not use a rough cloth or spongewhen cleaning the interior and exterior of the Do not place your hand on the bottomsurface of the refrigerator when opening and refrigerator.closing.To help remove odors, you can wash the insideof the refrigerator with a mixture of baking sodaand warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water). Be sure the baking soda is completely dissolved so it does not scratch the surfaces ofthe refrigerator.Use a clean sponge or soft cloth and a milddetergent in warm water. Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plasticrefrigerator parts.Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use window sprays, abrasive cleansers, or flammable fluids. These can scratch or damage the material.removed by a qualified technician. Note: Do not remove the LED, it is only to be 16 MAINTENANCE ENGLISH17 SMART FUNCTIONSENGLISH SMART FUNCTIONS Smart Diagnosis LG ThinQ Application LG ThinQ Application Features Installing the LG ThinQ Application Using Audible Diagnosis to Diagnose Issues NOTE NOTE

Keep the phone in place until the tone transmission has finish. Once the countdown is over and the tones have stopped, the diagnosis will be displayed in the application.Open the freezer door.Open the refrigerator door and then close and open it 5 times for a period of 8 seconds . Use this feature to help you diagnose and solve problems with your appliance.• For reasons not attributable to LGE’s negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local appstore policy, or app unavailability.• The feature may be subject to change without prior notice and may have a different formde-pending on where you are located. NOTE

• For best results, do not move the phone while the tones are being transmitted.• The application is subject to change for appliance improvement purposes without notice to users.• Functions may vary by model Smart Diagnosis•If you experience a problem while using the Communicate with the appliance from asmartphone using the convenient smart features.appliance, this smart diagnosis feature will help you diagnose the problem.The LG ThinQ application allows you tocommunicate with the appliance using a smartphone.Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone.• Follow instructions to download and install the application.• Run the LG ThinQ application and follow the instructions in the application to register the apliance.Follow the instructions below to use the audible diagnosis method.• Launch the LG ThinQ application and select theSmart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application. Hold the mouthpiece of your phone in frontof the speaker that is located on the righthinge of the refrigerator door.TROUBLESHOOTING Review the Troubleshooting section before calling for service; doing so will save you both time and money. snoituloSsesuaC elbissoPmelborP Refrigerator is not cooling or has no power. The refrigerator control is set to OFF (some models). Refrigerator is in the defrost cycle. Refrigerator was recently installed. Refrigerator was recently relocated. Cooling System runs too much. Refrigerator is replacing an older model. Refrigerator was recently plugged in or power restored. The door is opened often or a large amount of food / hot food was added. Doors are not closed completely. Refrigerator is installed in a hot location. Turn the control ON. Refer to the Setting the Controls section for proper temperature settings. During the defrost cycle, the temperature of each compartment may rise slightly. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed. It may take up to 24 hours for each compartment If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before Modern refrigerators require more operating time but use less energy due to mor e efficient The refrigerator will take up to 24 hours to cool Adding food and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed (Refer to the Firmly push the doors shut. If they will not shut all the way, see the Doors will not close completely or pop open section in Troubleshooting. The compressor will run longer under warm conditions. At normal room temperatures 70°F (21 °C) expect your compressor to run about 40%

o 80% of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 110°F (43 °C). to reach the desired temperature. connecting it to power. completely. Food Storage Guide). technology.

TROUBLESHOOTING ENGLISH A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is connected to a GFCI (Ground Fault Circuit Inter- rupter) outlet, and the outlet's circuit breaker has tripped.

• Check the main electrical box and replace the fuse or reset the circuit breaker. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.

• Reset the circuit breaker on the GFCI. If the problem persists, contact an electrician.snoituloSsesuaC elbissoPmelborP Refrigerator or Freezer section is too warm. Refrigerator was recently installed. Doors are opened often or for long periods of time. Unit is installed in a hot location. A large amount of food or hot food was added to either compartment. Doors not closed correctly. Temperature control is not set correctly. Defrost cycle has recently completed. Interior moisture buildup. Doors are opened often or for long periods of time. Doors not closed correctly. Weather is humid. It may take up to 24 hours for each compartment Locate air vents by using your hand to sense airflow and move all packages that block vents and restrict airflow. Rearrange items to allow air to flow throughout the compartment. When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of The refrigerator should not be operated in Adding food warms the compartment requiring the cooling system to run. Allowing hot food to cool to room temperature before putting it in the See the Doors will not close correctly or pop open section in Troubleshooting. If the temperature is too warm, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Pad During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed. When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of See the Doors will not close correctly section in Humid weather allows additional moistu re to enter the compartments when the doors are opened leading to condensation or frost. Main- taining a reasonable level of humidity in the home will help to control the amount of moisture that to reach the desired temperature. door openings. temperatures above 110°F (43 °C). refrigerator will reduce this effect. door openings. the Troubleshooting section. can enter the compartments. section for more information. The air vents are blocked. Cold air circulates from the freezer to the fresh food section and back again through air vents in the wall dividing the two sections.

TROUBLESHOOTING ENGLISHsnoituloSsesuaC elbissoPmelborP Interior moisture buildup. Defrost cycle recently completed. Food is not packaged correctly. Food is freezing in the refrigerator compartment. Food with high water content was placed near an air vent. Refrigerator temperature control is set incorrectly. Refrigerator is installed in a cold location. Frost or ice crystals form on frozen food (outside of package). Door is opened frequently or for long periods of time. Refrigerator or Freezer section is too cold. Incorrect temperature control settings. Frost or ice crystals on frozen food (inside of sealed package). Condensation from food with a high water content has frozen inside of the food package. Food has been left in the freezer for a long period of time. Ice has bad taste or odor. The food has not been stored stored properly in either compartment. The interior of the refrigerator needs to be cleaned. During the defrost cycle, the temperature of each compartment may raise slightly and condensa- tion may form on the back wall. Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has com- Food stored uncovered or unwrapped, and damp containers can lead to moisture accumulation within each compartment. Wipe all containers dry and store food in sealed packaging to prevent Rearrange items with high water content away If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Pad When the refrigerator is operated in temperatures below 41°F (5°C), food can freeze in the refrigera- tor compartment. The refrigerator should not be operated in temperatures below 55°F (13°C). When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and Refer to the Doors will not close correctly or pop open section in the Troubleshooting section. If the temperature is too cold, adjust the control one increment at a time and wait for the tempera- ture to stabilize. Refer to the Control Pad section This is normal for food items with a high water Do not store food items with high water content in the freezer for a long period of time. Rewrap the food. Odors may migrate to the ice if See the Cleaning section for more pleted. condensation and frost. from air vents. section for more information. duration of door openings. for more information. content. food is not wrapped properly. information. Door is not closing properly.

TROUBLESHOOTING ENGLISHsnoituloSsesuaC elbissoPmelborP Ice has bad taste or odor. The ice storage bin needs to be cleaned. Clicking Normal Operation. Rattling Normal Operation. Floor is weak or uneven or leveling legs need to be adjusted. See the Leveling section. Normal Operation. Whooshing Normal Operation. Normal Operation. Gurgling Refrigerant flowing through the cooling system. Normal Operation. Popping Normal Operation. Sizzling Normal Operation. Vibrating Dripping Normal Operation Pulsating or High-Pitched Sound

Normal Operation Empty and wash the bin (discard old cubes). Make sure that the bin is completely dry before reinstalling it. The defrost control will click when the automatic defrost cycle begins and ends. The (thermostat control or refrigerator control on some models) will also click when cycling on and off. Rattling noises may come from the flow of refrigerant, or items stored on top of or around the refrigerator. Refrigerator is not resting solidly on the floor. Air is being forced over the condenser by the condenser changes in temperature. Refrigerator with linear com- pressor was jarred while running. fan. Evaporator fan motor is circulating air through the refrigerator and freezer compartments. Contraction and expansion of the inside walls due to Water dripping on the defrost heater during a defrost cycle. If the side or back of the refrigerator is touching a cabinet or wall, some of the normal vibrations may make an audible sound. Water running into the drain pan during the defrost cycle. Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy efficient than previous models. While the refrigerator is running, it is normal to hear a pulsating or high-pitched ru- nning, it is normal to hear a sound. To eliminate the noise, make sure that the sides and back cannot vibrate against any wall or cabinet.

TROUBLESHOOTING ENGLISHsnoituloSsesuaC elbissoPmelborP Doors will not close correctly or pop open. Food packages are blocking the door open. Rearrange food containers to clear the door and door shelves. Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position. Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the How to Use section for more information. Refrigerator is not leveled properly. Doors are difficult to open. The gaskets are dirty or sticky. Door was recently closed. Refrigerator wobbles or seems unstable. Leveling legs are not adjusted properly. Refer to the Leveling section. Floor is not level. Lights do not work. LED interior lighting failure. The interior of the refrigerator is covered with dust or soot. See Leveling in the Refrigeration Installation Clean the gaskets and the surfaces that they touch. Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning. When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then It may be necessary to add shims under the level- The refrigerator compartment lamp is LED interior lighting, and service should be performed by a Make sure that the refrigerator is not located near a fire source, such as a fireplace, chimney or section to level refrigerator. see if it opens more easily. ing legs or rollers to c omplete installation. qualified technician. candle. The refrigerator is located near a fire source, such as fireplace, chimney, or candle. 22 TROUBLESHOOTING ENGLISH23 LIMITED WARRANTY ENGLISH LG ELECTRONICS U.S.A., INC. LG REFRIGERAT OR LIMITED WARRANTY - U.S. A. WARRANTY PERIODRefrigerator/FreezerSealed System(Condenser, Dryer, Connecting Tube and Evaporator)CompressorOne (1) year from the date of original retail purchase Parts and Labor (internal/ functional parts only)Five (5) years from the date of original retail purchaseFive (5) years from the date of original retail purchaseLinear / Inverter Compressor Only : Parts Only for years 6-10 from the date of original retail purchase (Consumer will be charged for labor)Parts and LaborParts and Labor ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Refrigerator ("Product") fail due to a defect in materi- als or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics (“LG”) will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product and applies only when purchased and used within the United States including U.S. Territories.

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.

• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty. EXCEPT TO THE EXTENT PROHIBTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL LG OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITH- OUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. LG’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This limited warranty gives you specific legal rights and you may also have other rights that vary from state to state. THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.

• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.

• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.

• Damage resulting from operating the product in a corrosive atmosphere or contrary to the product owner’s manual.

• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LG.

• Damage or failure caused by unauthorized modification or alteration, or if used for other the intended purpose.

• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not authorized by LG. Improper installation or maintenance includes installation or maintenance contrary to the Product owner’s manual.

• Damage or failure caused by incorrect electrical current, voltage, or plumbing codes.

• Damage or failure caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product, unless such damage is reported within one (1) week of delivery.

• Damage or missing items to any display, open box, or discounted Product.

• Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or similar disclaimer.

• Products with original serial numbers that have been removed, altered, or cannot be readily determined.

• Increases in utility costs and additional utility expenses.

• Any noises associated with normal operation.

• Use of accesories (e.g., water filters, etc.), components, or consumable cleaning products that are not authorized by LG.

• Replacement or light bulbs, filters, or any consumable parts.

• When Product is used for other than normal and proper household use (e.g. commercial or industrial use, offices, and recreational facilities or vehicles)or contrary to the instructions outlined in the Product’s owner’s manual.

• Costs associated with removal and reinstallation of your Product for repairs.

• Shelves, door bins, drawers, handle and accessories, except for internal/functional parts covered under this limited warranty. The cost of repair or replacement under these excluded circumstances shall be borne by the consumer. TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION Call 1-800-243-0000 and select the appropriate option from the menu. Or visit our website at http://www.lg.com. Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC24 LIMITED WARRANTY ENGLISH PROCEDURE FOR RESOLVING DISPUTES: ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION. Definitions. For the purposes of this section, references to “LG” mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty. Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or entity’s product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or represen- tative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis. Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association (“AAA”) and will be conducted before a single arbitrator under the AAA’s Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the “AAA Rules”) and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision. Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law. Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for AAA unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration. Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds $25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either: (i) sending an e-mail to [e-mail], with the subject line: “Arbitration Opt Out” or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on “Find My Model & Serial Number”). You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above. Notice of Dispute. In the event you intend to commerce an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Depart- faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration. there is aENGLISH

LIMITED WARRANTY LG ELECTRONICS CANADA, INC.LG REFRIGERATOR LIMITED WARRANTY - Canada ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PRO- CEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. (“LGECI”) will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of LGECI.

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.

• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty. LGECI’S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LGECI MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESEN- TATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE

ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT. This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where ot conflicts with such provincial law without affecting the remainder of this warranty’s terms. THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;

• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;

• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air;

• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product’s owner’s manual;

• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;

• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product’s owner’s manual;.

• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;

• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;

• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or indus- trial use, including use in commercial offices or recreational facilities, or as otherwise outlined in thev Product’s owner’s manual;

• Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water filters, that are not approved/authorized by LGECI;

• Replacement of the water filter cartridge due to water pressure that is outside the specified operating range or due to exces- sive sediment in the water supply;

• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products;

• Damage or missing items to any display, open box, refurbished or discounted Product;

• Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or any similar disclaimer;

• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI;

• Increases in utility costs and additional utility expenses in any way associated with the Product; (60) days from the date of manufacture) WARRANTY PERIOD (Note: If the original date of purchase cannot be verified, the warranty will begin sixty Refrigerator Sealed System (Condenser, Dryer, Connecting Tube and Evaporator) Linear / Inverter Compressor One (1) year from the date of original retail purchase One (1) year from the date of original retail purchase Seven (7) years from the date of original retail purchase Ten (10) years from the date of original retail purchase Parts and Labor (internal/ functional parts only) Parts and Labor Parts only (Consumer will be charged for labor) Part only (Consumer will be charged for labor)26 LIMITED WARRANTY ENGLISH PROCEDURE FOR RESOLVING DISPUTES: EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION. Definitions. For the purposes of this section, references to “LG” mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty. Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitra- tion provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision. Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, adminis- tration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration. Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established

• Any noises associated with normal operation of the Product;

• Replacement of light bulbs, filters, fuses or any other consumable parts;

• Replacement of any part that was not originally included with the Product;

• Costs associated with removal and/or reinstallation of the Product for repairs; and

• Shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.

• Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair. All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer. TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE:Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropri- ate option from the menu, or. Visit our website at http://www.lg.com Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG’s receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or entity’s product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG. Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the “Notice of Dispute”). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accor- dance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute. Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.27LIMITED WARRANTY ENGLISH by the applicable arbitration rules. If your claim exceeds $25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration. Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: “Arbitration Opt Out;” or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/support/repair-service/schedule-repair and clicking on “Find My Model & Serial Number”). In the event that you “Opt Out”, the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above. Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement (“EULA”) in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.28 NOTES ENGLISHESPAÑOL
