RB38T606DB1 - Freezer SAMSUNG - Free user manual and instructions

Product type	Freezer
Brand	Samsung
Model	RB38T606DB1
Net capacity	304 L
Dimensions (H x W x D)	1860 x 595 x 675 mm
Net weight	65 kg
Climate class	SN-T
Energy class	E
Annual consumption	240 kWh
Noise level	37 dB(A)
Defrost type	Automatic (No Frost)
Display screen	No
Power supply	220-240 V, 50 Hz
Power consumption	150 W
Rated current	1,2 A
Main features	No Frost, rapid freezing, open door alarm
Maintenance and cleaning	Clean the interior regularly with a soft cloth and soapy water. Automatic defrost.
Spare parts and repairability	Handles, seals, drawers and hinges are user-replaceable. See the manual.
Safety	Unplug before any intervention. Use safety gloves during repairs. Do not use non-compliant parts.
General information	Warranty: consult the manufacturer. Support: Samsung website.

Frequently Asked Questions - RB38T606DB1 SAMSUNG

What is the freezing capacity of this freezer?

The freezing capacity is approximately 14 kg per 24 hours.

How to reverse the door opening direction?

Follow the steps in the manual: remove the top cover, disconnect the cables, unscrew the hinges and reverse the doors. Important: requires at least 2 people and tools such as a Phillips screwdriver and wrenches.

How to replace the door handle?

Remove the screw covers, unscrew the screws with a Phillips screwdriver, then attach the new handle by tightening the screws. Caution: be careful not to scratch the door.

How to replace the door seal?

Open the door, remove the old seal, then attach the new one ensuring there is no gap. A poorly fixed seal can cause cold air leaks.

How to remove and reinstall a drawer?

Gently lift the front of the drawer and slide it out to remove it. To put it back, follow the reverse steps. Make sure it is properly inserted into the rails.

What to do in case of frost buildup?

This model is equipped with No Frost technology which prevents frost formation. If frost appears, check that the door is properly closed and the seal is in good condition.

How to adjust the temperature?

Use the adjustment button (usually rotary) inside the freezer. The recommended temperature is -18°C.

Can I repair the hinges myself?

Yes, the hinges are user-replaceable, but caution: the doors are heavy, it is advisable to be two people. Wear gloves and follow the manual.

Where to find the barcode label?

The label is located at the bottom left of the product. It contains the model code needed to order parts.

How to clean the inside of the freezer?

Unplug the appliance, empty it, clean with a soft cloth and soapy water, then dry. Avoid abrasive cleaners.

USER MANUAL RB38T606DB1 SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

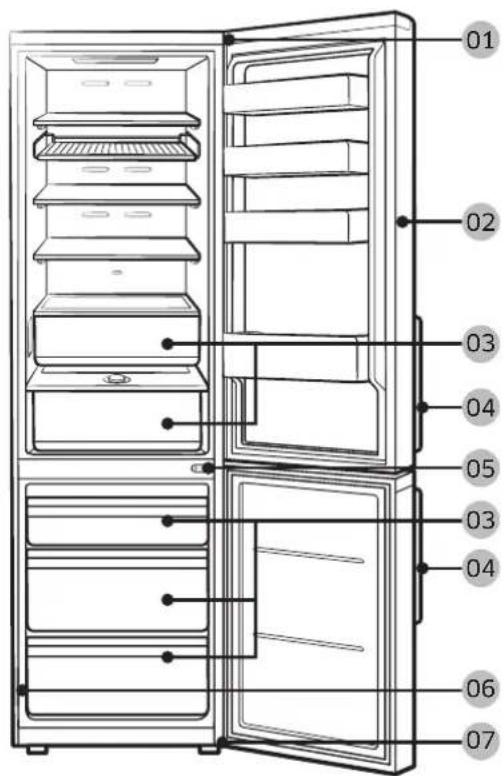

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

01 Top hinge 02 Gasket
03 Drawer 04 Handles (Applicable models only)
05 Middle hinge 06 Barcode label
07 Bottom hinge

English

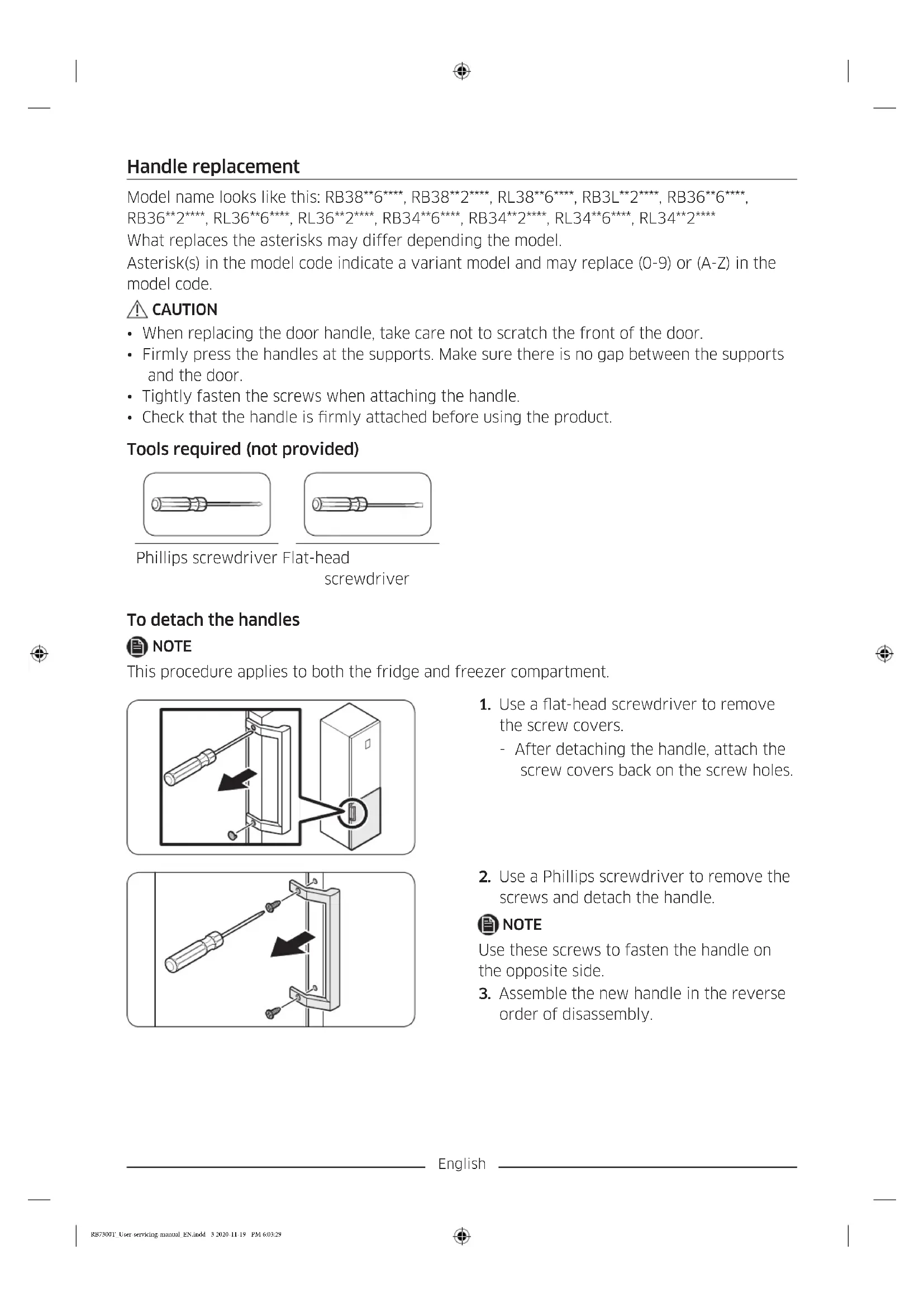

Handle replacement

Model name looks like this: RB38**6****, RB38**2****, RL38**6****, RB3L**2****, RB36**6****, RB36**2****, RL36**6****, RL36**2****, RB34**6****, RB34**2****, RL34**6****, RL34**2****

What replaces the asterisks may differ depending the model.

Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in the model code.

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.
• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.
• Tightly fasten the screws when attaching the handle.
• Check that the handle is firmly attached before using the product.

Tools required (not provided)

Two identical illustrations of a screwdriver with a flat blade, shown in two different angles (no text or symbols)

Phillips screwdriver Flat-head
screwdriver

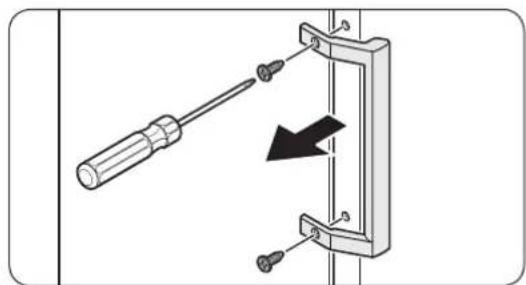

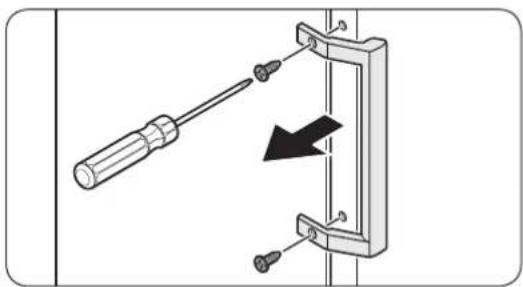

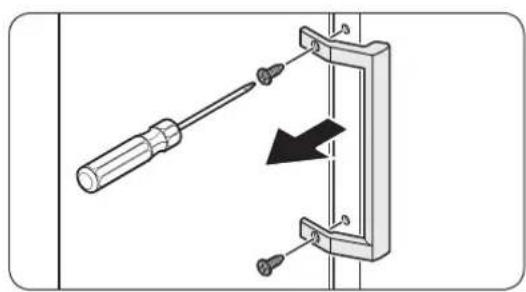

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

Diagram of a screwdriver inserted into a mechanical bracket with a black arrow indicating direction (no text or symbols)

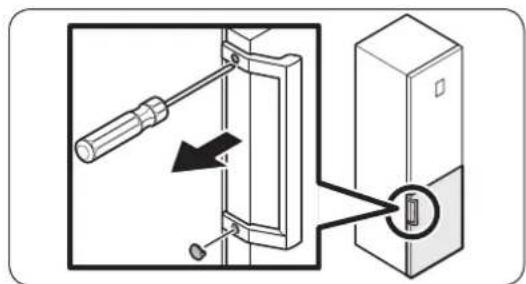

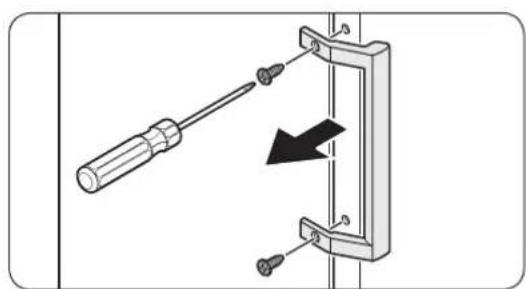

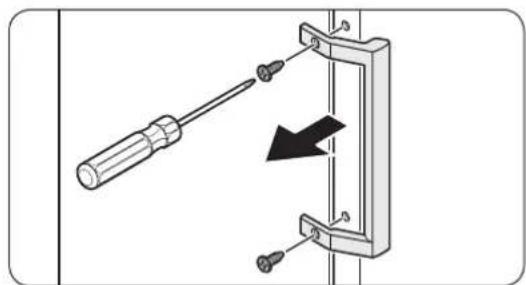

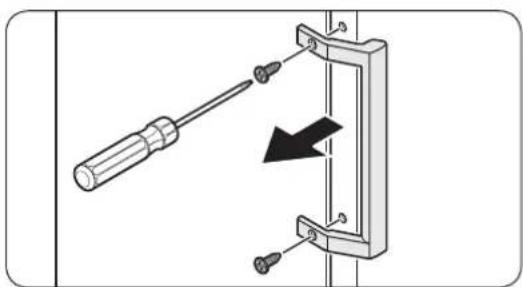

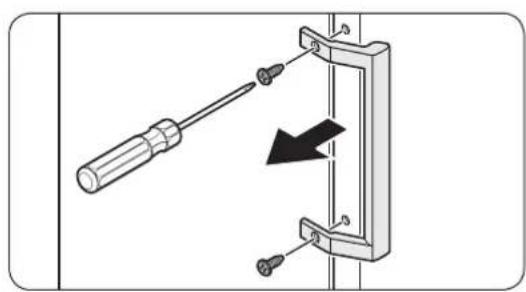

1. Use a flat-head screwdriver to remove the screw covers.
2. After detaching the handle, attach the screw covers back on the screw holes.

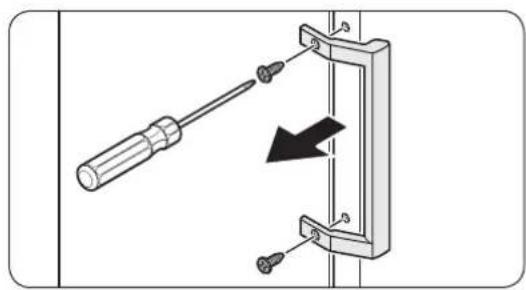

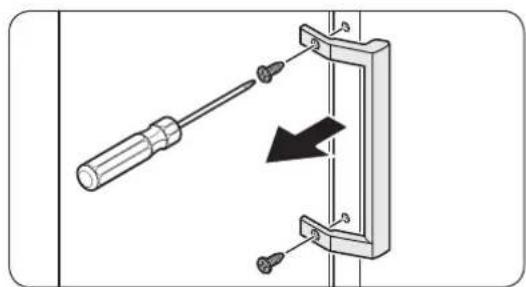

3. Use a Phillips screwdriver to remove the screws and detach the handle.

NOTE

Use these screws to fasten the handle on the opposite side.

1. Assemble the new handle in the reverse order of disassembly.

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

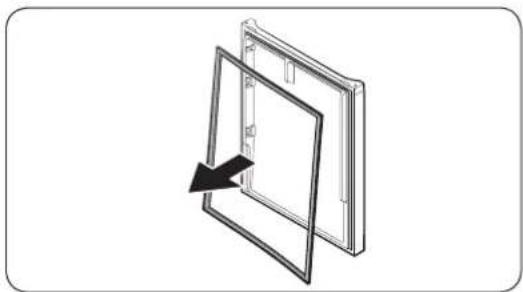

To remove the gasket

Diagram of a door frame with an arrow indicating direction (no text or symbols)

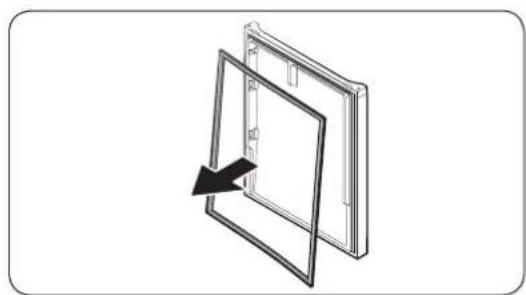

Open the door and remove the gasket from the door.

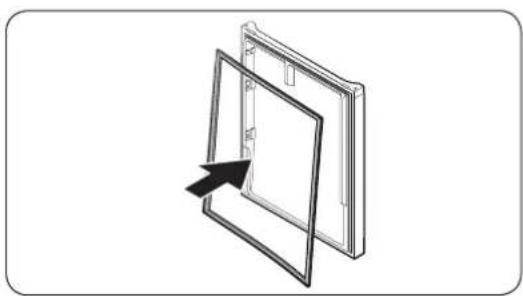

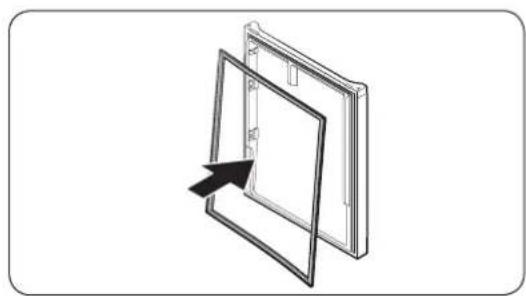

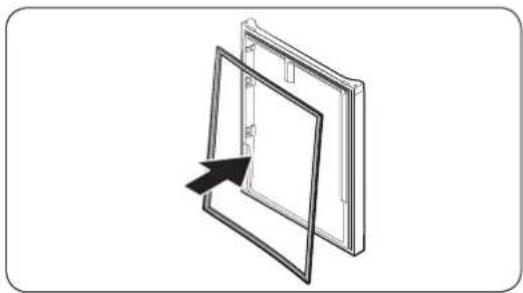

To replace the gasket

Diagram of a door frame with an arrow pointing to the front panel (no text or symbols)

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door.

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

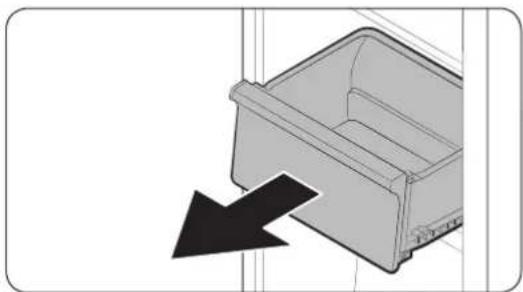

To remove the drawer

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Gently lift up the front of the drawer and slide it out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

- When removing the doors, take extreme caution because the doors are heavy. - Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down. - As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

- If you remove the hinge without holding the door, the door may fall and cause injury. - Ensure that the shaft is firmly tightened on the hinge. - Check that the hinge is firmly attached to the cabinet. - Make sure the wire connectors are connected properly. - Be careful not to damage the wires when fastening the top cover.

WARNING

- Tilting/laying the refrigerator requires a minimum of 2 people. - Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench 8 mm socket wrench 10 mm spanner

English

Reversing the door

NOTE

For the models with handles, reverse the handles first. (For detailed information, see the "Handle replacement (For models with bar handles)" section.)

Diagram of a battery pack with screw holes and an upward arrow indicating motion (no text or symbols)

Technical diagram of an electronic device showing internal components and wiring (no text or labels)

Technical diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols)

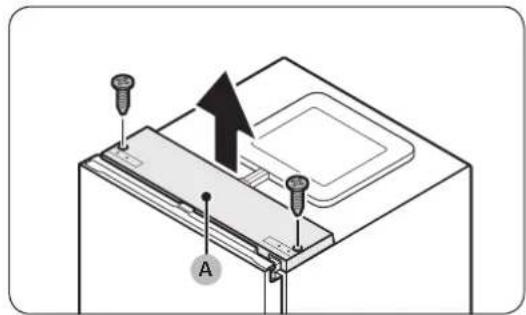

1. With the fridge door closed, use a Phillips screwdriver to remove the screws fastening the top cover (A).

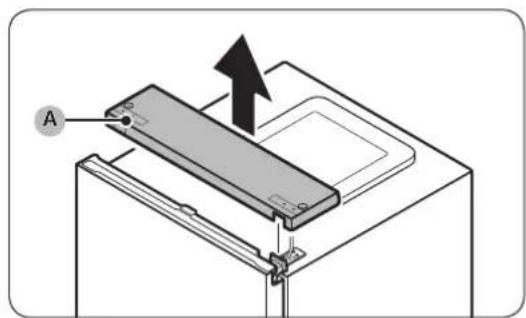

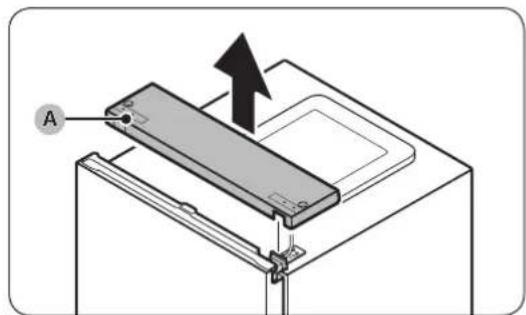

2. Gently lift the top cover (A) and place it on top of the refrigerator.

- Be careful when you lift the top cover (A). There is a wire connected underneath it.

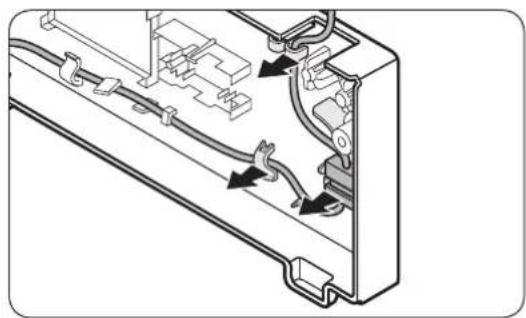

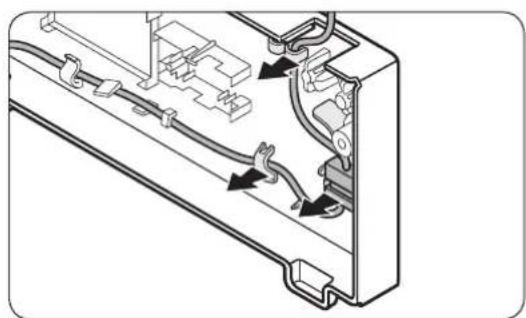

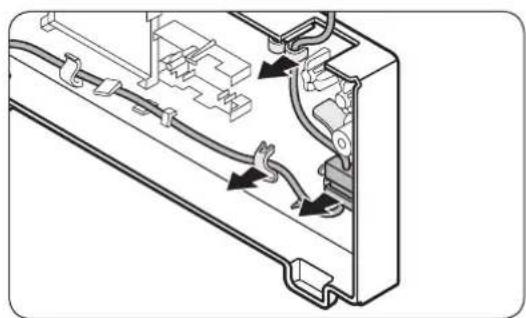

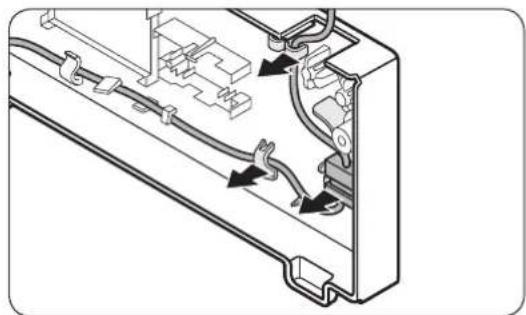

1. Remove the wire and the wire connector placed on the holder underneath the top cover.

- This step may not apply to some models.

CAUTION

Do not pull the connectors too hard.

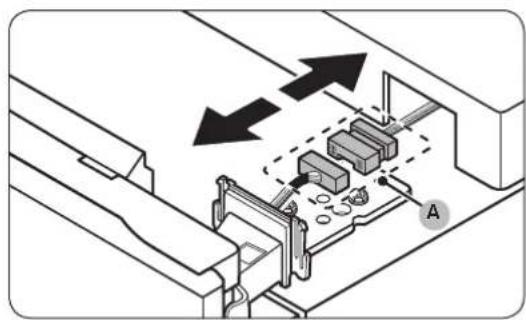

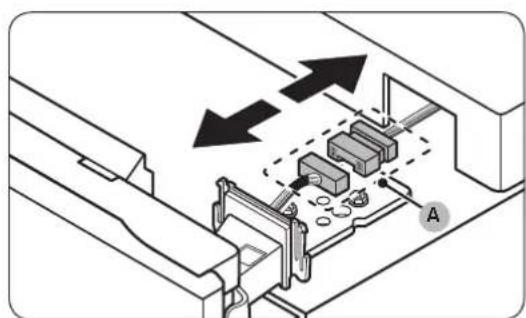

1. Disconnect the wire connector (A).
2. This step may not apply to some models.

English

Diagram of a refrigerator interior showing the door and shelf, with an arrow indicating upward movement (no text or symbols present)

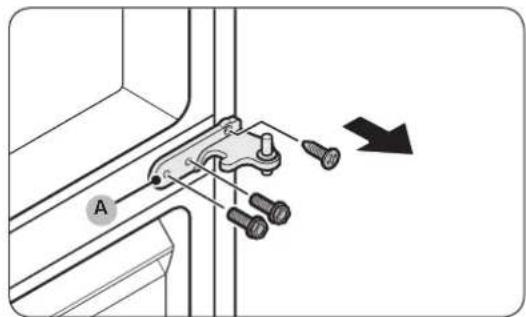

1. Use a socket wrench (8 mm) to remove the screws fastening the top hinge (A).

CAUTION

To prevent the fridge door from falling, make sure to hold it tight while removing the screws.

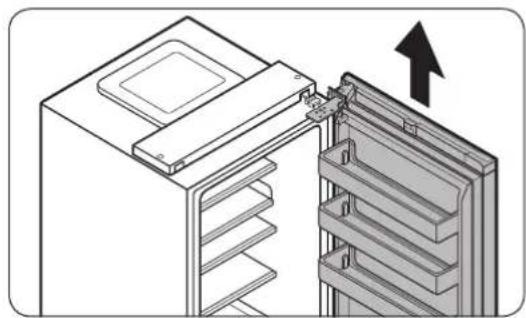

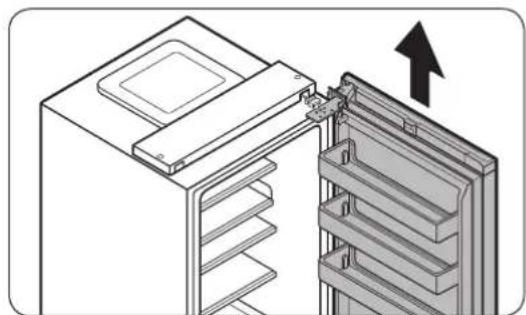

1. Open the fridge door, and then lift the door to remove it from the middle hinge. Keep the door in a safe place.

CAUTION

The door is heavy. To prevent damage or injury, use caution while removing the door.

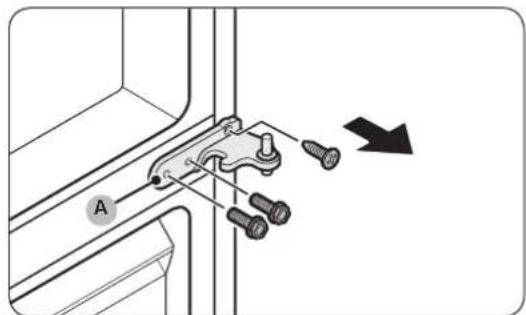

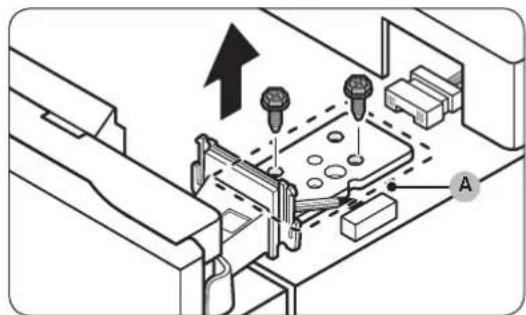

1. Open the freezer door, and then use a socket wrench (8 mm) to remove the screws fastening the bottom hinge (A).

English

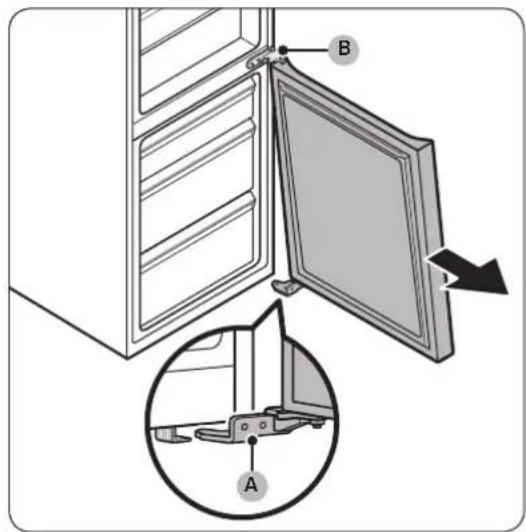

1. With the freezer door sitting on the bottom hinge (A), slowly pull the bottom hinge (A) to remove it from the holder on the bottom of the refrigerator. Once the bottom hinge (A) is removed from the holder, remove it from the freezer door, and then pull the freezer door down to remove it from the middle hinge (B).

CAUTION

To prevent the freezer door from falling, make sure to hold the freezer door tight until it is safely removed from the middle hinge (B).

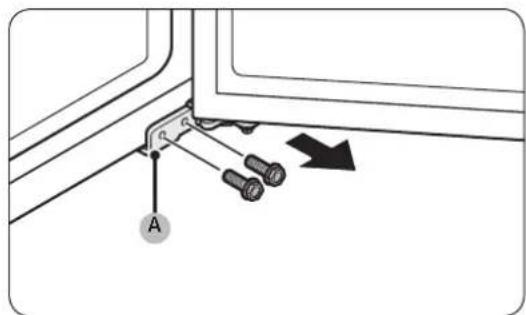

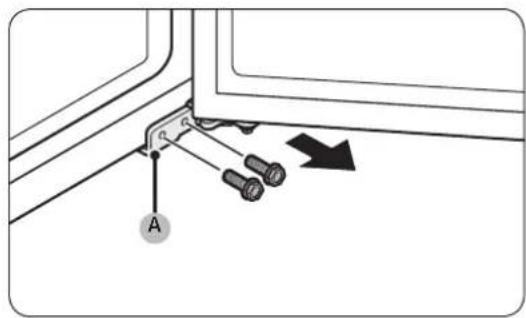

1. Use a Phillips screwdriver and socket wrench (10 mm) to remove the screws fastening the middle hinge (A).

2. Reassemble in the opposite order of disassembly after replacing the top, middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are connected properly.

- Be careful not to damage the wires when fastening the top cover

English
