Product Type	High-Velocity Centrifugal Air Blower
Brand	B-Air
Model	Vent VP20
Color	Blue
Power Supply	115 V, 60 Hz
Power Consumption (Amperage)	1.7 A (high speed), max 2.1 A
Motor	1/5 HP
Speeds	3 speeds: L 1090 rpm, M 1320 rpm, H 1570 rpm
Operating Positions	Horizontal (0°), inclined (45°), vertical (90°)
Max Static Pressure	160 Pa
Dimensions (L × W × H)	33 × 28 × 29 cm
Net Weight	4.90 kg
Packed Weight	5.58 kg
Cord Length	3 m, 14 AWG gauge
Built-in Outlet	Yes, max 9.5 A (total connected devices must not exceed 12 A)
Stackable	Yes, up to 5 units
Certification	C-ETL-US
Warranty	2 years parts and labor, 5 years for the housing
Primary Use	Drying floors, rugs, carpets, ventilation of hard-to-reach spaces
Maintenance and Cleaning	Unplug before cleaning; check air inlets and exhaust; inspect for excessive vibrations
Safety	Do not use in standing water; grounded plug; do not obstruct air inlets
Spare Parts Available	Grilles, motor, capacitor, switch, cord, plug, feet, etc. (see list in the manual)

Frequently Asked Questions - Vent VP20 B-Air

How to use the VP-20 to dry a carpet?

Place the unit on the carpet to dry, plug it into a grounded outlet, select the desired speed and position (horizontal for floors). Use high speed for quick drying.

Can I use the VP-20 in a bathroom?

Yes, but avoid any contact with standing water. Do not use it in a puddle of water to prevent electric shocks. Make sure the unit stays dry.

How to clean the blower?

Always unplug the unit before cleaning. Use a dry cloth to clean the exterior. Check and remove any dust or debris accumulation from the intake and exhaust grilles.

What to do if the motor does not start?

First check that the switch is in the ON position and that the electrical outlet works. If the problem persists, the cord or switch may be defective. Contact customer service.

Can I plug other devices into the built-in outlet?

Yes, the built-in outlet can support up to 9.5 A. However, the total amperage of all connected devices (including the VP-20) must not exceed 12 A to avoid overloads.

What is the warranty of the VP-20?

The warranty covers defects in materials and workmanship for 2 years for parts and labor, and 5 years for the housing, from the date of purchase for the original buyer.

Is the VP-20 stackable?

Yes, it can be stacked up to 5 units high thanks to its balanced handle that also serves as a cord wrap, allowing stable and secure storage.

How to adjust the airflow angle?

The unit can be positioned horizontally (0°), tilted at 45° for walls, or vertical (90°) for ceilings and ventilation. Simply adjust the orientation manually.

What to do if I hear a scraping noise?

A scraping noise may indicate that the fan wheel is misaligned. Immediately turn off the unit and contact customer service for inspection and possible replacement.

Can I use an extension cord with the VP-20?

Yes, but use a UL and CE certified 3-prong extension cord with a ground fault circuit interrupter (GFCI). Make sure the extension cord is not damaged and supports the required amperage.

USER MANUAL Vent VP20 B-Air

Blue portable air conditioner fan with control panel and ventilation slots (no visible text or symbols)

1/5HP

POWERFUL 10 FOOT CORD

STACKABLE 5 UNITS

3 SPEEDS 3 ANGLES

LOW AMPS

LIGHT & COMPACT

IDEAL FOR

DRYING KITCHEN & BATHROOM FLOORS

DRYING WET SURFACES

DRYING HARD-TO-REACH CRAWL SPACES

HOME PLUMBING PROJECTS

CIRCULATING AIR

COOLING WORK SPACES

SAFETY

CERTIFIED

Intertek

DAISY

CHAINABLE

YEAR

WARRANTY

B-AiR®

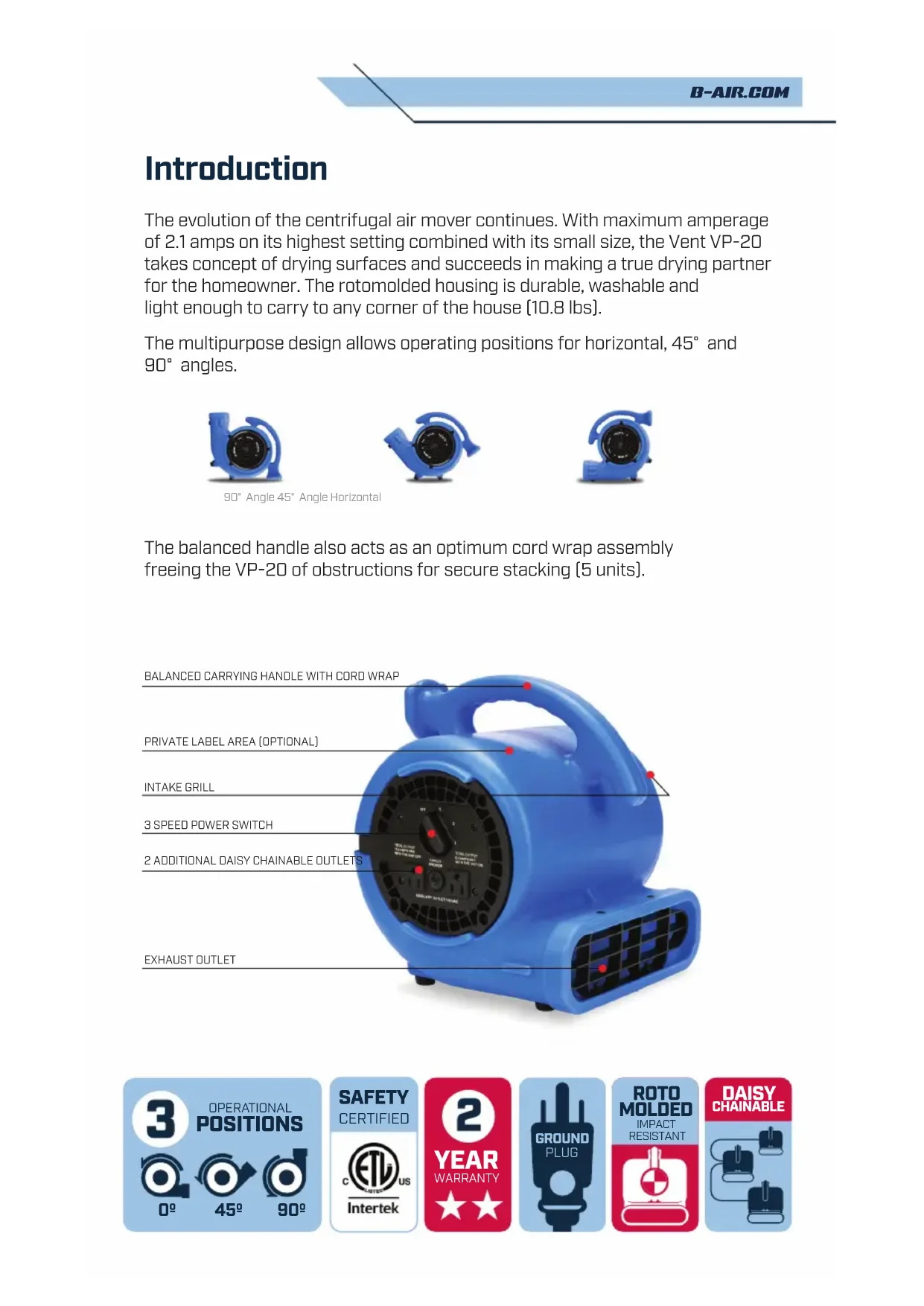

Introduction

The evolution of the centrifugal air mover continues. With maximum amperage of 2.1 amps on its highest setting combined with its small size, the Vent VP-20 takes concept of drying surfaces and succeeds in making a true drying partner for the homeowner. The rotomolded housing is durable, washable and light enough to carry to any corner of the house (10.8 lbs).

The multipurpose design allows operating positions for horizontal, 45° and 90° angles.

90° Angle 45° Angle Horizontal

The balanced handle also acts as an optimum cord wrap assembly freeing the VP-20 of obstructions for secure stacking (5 units).

BALANCED CARRYING HANDLE WITH CORD WRAP

PRIVATE LABEL AREA [OPTIONAL]

INTAKE GRILL

3 SPEED POWER SWITCH

2 ADDITIONAL DAISY CHAINABLE OUTLET

EXHAUST OUTLET

RO WRAP STS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPS HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAPC HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP S HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP C HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A HOLD CAP A

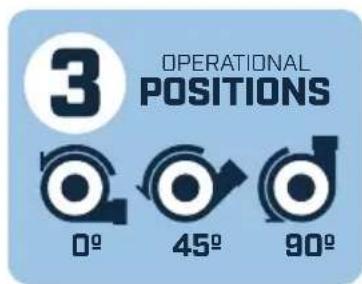

3 OPERATIONAL POSITIONS 0° 45° 90°

SAFETY CERTIFIED C US Intertek

2 YEAR WARRANTY ★★★

GROUND PLUG

ROTO MOLDED IMPACT RESISTANT

DAISY CHAINABLE

Operating Instructions

The B-Air Vent VP-20 Centrifugal Air Mover is packaged and ready to be put to work. The VP-20 requires no assembly.

The VP-20 is intended to be used for drying carpet spills, drying surfaces such as bathroom, garage or room floors, ventilating as well as circulating air, and drying hard-to-reach areas such as under a leaky sink or inside damp cabinets. Just place the unit on the surface that needs to be dried, plug the unit into a grounded outlet and select the desired speed and position [0°, 45° or 90°].

Maintenance

WARNING: As with all electrical equipment, the unit must be disconnected from power before servicing or cleaning.

Before each use, inspect the unit for damage, blocked inlets and exhaust and for foreign material buildup.

When the Vent VP-20 is turned on, inspect the unit for excessive vibration. In the event of excessive vibration or if the fan wheel rubs against the rotomolded housing, immediately turn off the unit and have a certified technician inspect the unit.

Servicing

In order to receive service or replacement parts under warranty, you must: a. Call for an RMA (Return Merchandise Authorization Number) at B-Air. b. Have proof of purchase.

Upon inspection, we will advise you of the repairs needed and the cost (if Applicable). B-Air will issue repair or replacement parts depending on warranty.

Limited Warranty

Warranty covers against defects in material and craftsmanship used under normal intended use to original purchaser for a term of (2) two year from the original date of purchase including parts, labor and 1-way shipping. Housing is covered for a term of (5) five years from the date of the original purchase.

IMPORTANT!

Warranty does not cover signs of misuse including, but not limited to rough handling, abuse, tampering, improper voltage use and unauthorized maintenance and repairs.

Safety Information

When using this equipment basic precautions must be followed, not limited to the following:

- All units must be supervised while in use.

- Do not put fingers or other objects in the unit while in operation and/or plugged in.

• To avoid electric shock, do not operate the unit in pooled water.

- The motor must be kept dry at all times. If the unit becomes wet, thoroughly dry it before the next operation.

- Use only a grounded plug for extension cord to avoid risk of electric shock or fire.

- Never use a cord showing any kind of damage or wear.

- Make sure the power source is sufficient to meet the requirements of the air mover.

• To prevent the unit from overheating, keep all air intake vents clear at all times.

- Clogging or blocking the air intake vents could result in a fire or electrical hazard.

- Do not remove any screens or safety guards from the unit.

- Do not operate the unit close to any dangerous areas, such as explosive gas, flammables, heaters and unventilated environments.

- Do not use after-market speed control devices.

- Do not use unit if showing damage.

- Before cleaning or servicing, unplug the unit.

- Unplug unit when not in use.

- Do not allow children to play with or near the unit.

- Do not sit or stand on the unit.

- Do not operate unit in stacked position.

- Make sure that hands are dry before handling the unit or power cord.

- Only a qualified electrician should attempt to repair/replace any electrical components.

- Do not operate any fan with damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.

Do not route cord under furniture or appliances. Arrange cord away from traffic area where it will not be tripped over.

- Unplug or disconnect the unit from the power supply before servicing.

WARNING! To reduce the risk of fire or electric shock, do not use this fan with a solid-state speed control device.

Power Requirements - CORDS

- Use 3 pronged adapters that are UL and CE approved and with Ground Fault Circuit Interrupter (G.F.C.I.).

- Do not use cords that show any kind of wear or damage.

- Cords are not covered by warranty.

WARNING! The Total amperage of the Vent VP-20 Air Mover plus all other devices plugged into the receptacle must not exceed 12 amps.

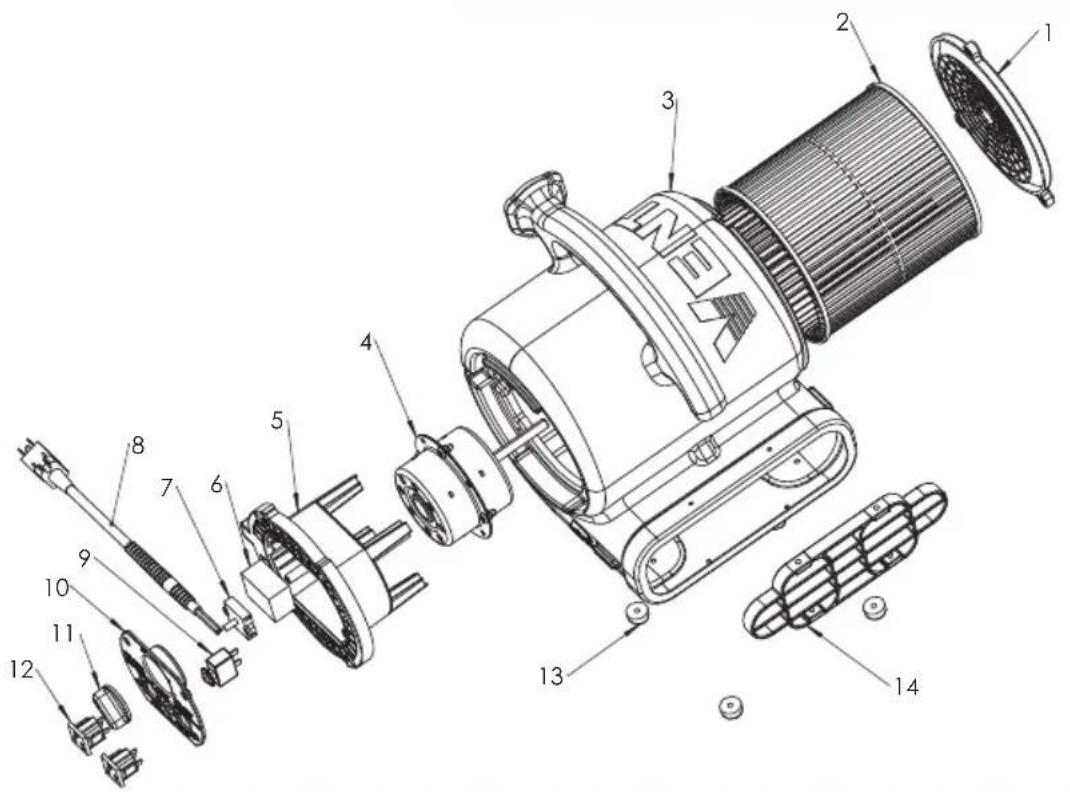

Parts List

1. Air Intake Grill [Fan Side] VP1-18

2. Fan VP1-03

3. Housing VP1-15

4. Motor VP1-01

5. Air Intake Grill (Motor Side) VP1-17

6. Capacitor VP1-09

7. Switch VP1-07

8. Power Cord VP1-22

9. Circuit Breaker VP1-13

10. Switch Plate VP1-06

11. Switch Knob VP1-05

12. Plug Socket VP1-14

13. Rubber Feet VP1-24

14. Air Exhaust Grill VP1-19

Line drawing of a mechanical device with rollers and a handle (no text or symbols)

Exploded view diagram of an electric motor with numbered components for identification

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Motor Not Running a) Switch is OFFb) Bad Outletc) Faulty Switch/Cord

a) Turn Switch ONb) Check Outlet / Change to Another Outletc) Faulty Switch/Cord

Motor Not Running a) Fan Blade Loose a) Call Factory for

Replacement Advice

SPECIFICATIONS

Motor 1/5 HP

Amps H 1.7 AMPS

Built in Power Outlet 9.5 AMPS

Speeds 3 / Positions 3: 0°, 45°, 90°

Certification C-ETL-US

Voltage 115 V

Cycle 60 HZ

Max Static Pressure 160 PA

Daisy Chain Yes / Stackable 5 units

Product Weight 10.8 Lbs

Boxed Weight 12.3 Lbs

Product Size [HxWxD] 13" x 11" x 11.4" / Boxed Size [HxWxD] 13.4" x 11.4" x 11.8"

Wheel Speed (RPM) L1090 / M1320 / H1570

Attached Cord 10' [FT] 14 AWG

Available Colors Blue

Three circular images showing blue electric fans in different indoor settings: a clean room with a ladder, a cabinet with a bucket, and a second installation with a hair dryer (no visible text or symbols)

Thank you for your purchase.

Warranty Registration

ONLINE

Please fill out and submit your warranty form at:

www.b-air.com/register

BY MAIL

Please complete, mail or fax your product registration card.

For multiple units, please list serial numbers on a separate sheet.

This warranty card and your bill of sale must be presented for warranty service.

Company name

Contact	name	Title
Street address
City		State	Zip
Phone		Fax
Email
Product serial number	Date of purchase
Purchase from

B-AiR®

550 South Ayon Ave. Azusa, CA 91702

1-877-800-BAIR (2247)

Fax: [626] 385-3307

Email: [e-mail]

Website: www.b-air.com

SENDER

ADDRESS

HERE

AFFIX

STAMP

HERE

MAIL TO

B-Air

Warranty Registration

550 South Ayon Ave

Azusa, CA 91702
