Product type	Universal slicer
Brand	Ritter
Model	Orbis 1
Dimensions (approx.)	320 x 220 x 250 mm
Weight (approx.)	2.8 kg
Power supply	Mains, voltage and power according to rating plate
Cutting thickness	0 to 14 mm
Operating modes	Short duration (maintained operation) and continuous (latch) - max 5 min continuous
Speed variator	No (Orbis 1 model); available on markant ^05 / orbis ^5 models
Blade material	Stainless steel
Accessories included	Carriage, food pusher, thumb guard, sliding base
Safety	Blade guard, automatic stop at position 0, very sharp blade - do not touch while operating
Cleaning	Unplug, disassemble blade and carriage, clean with hot water (not dishwasher), wipe housing with damp cloth
Maintenance	Lubricate gear wheel and carriage guide with Ritter maintenance grease or petroleum jelly
Spare parts	Smooth blade for meat available; maintenance grease
Repairability	Local after-sales service; 2-year manufacturer warranty
Domestic use	Yes, domestic use only
Prohibited foods	Frozen products, bones, foods with large pits, boneless roasts, packaged

Frequently Asked Questions - Orbis 1 Ritter

Can I cut frozen foods with the Ritter Orbis 1 slicer?

No, it is strictly forbidden to cut frozen products. This could damage the blade and the appliance, and poses a risk of injury.

What is the maximum cutting thickness?

The cutting thickness is adjustable from 0 to approximately 14 mm using the adjustment knob.

How long can I use the appliance continuously?

Continuous mode must not exceed 5 minutes at a time. Afterwards, let the appliance cool down before using it again.

How do I clean the blade and carriage?

Unplug the appliance, set the thickness knob to 0, then disassemble the blade and carriage. Clean all removable parts with hot water (not dishwasher). Wipe the housing with a damp cloth.

Can I put the blade in the dishwasher?

No, the blade and other parts should not be washed in the dishwasher. Use hot water and a soft cloth.

How do I lubricate the slicer?

Occasionally lubricate the blade gear wheel and the carriage guide with Ritter maintenance grease or petroleum jelly.

Can I use the slicer without the carriage or food pusher?

No, unless the size of the product allows it. Always use the carriage and food pusher to protect your hands.

What should I do if the power cord is damaged?

Stop using the appliance immediately and have the cord replaced by the manufacturer, its service agent, or a qualified person.

Where can I find spare parts such as a smooth blade?

Special accessories (smooth blade for meat, maintenance grease) are available from Ritter after-sales service. Check the website www.ritterwerk.de.

What is the warranty period?

The manufacturer's warranty is 2 years from the date of purchase, in accordance with European directives. If needed, contact the after-sales service in your country.

USER MANUAL Orbis 1 Ritter

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Diagram showing a mechanical component with a downward arrow indicating force or movement, no text or symbols present

Line drawing of a device casing with a plug, no text or symbols present

Illustration of a hand holding a circular device with a rotating arrow, no text or symbols present

Technical line drawing of a mechanical component with a hand holding a tool (no text or symbols)

Illustration of a hand using a computer to press or install a disc, showing mechanical components and a left-hand rule (no text or symbols)

Line drawing of a hand inserting a circular component into a mechanical device (no text or symbols)

Illustration of hands operating a mechanical device with a circular component (no text or symbols visible)

Illustration of a medical scan tool in progress, showing hands operating the scanner (no text or symbols visible)

Line drawing of a hand operating a mechanical device with a circular component and a tool, no text or symbols present.

Line drawing of a hand operating a mechanical device with a circular component and a tool, no text or symbols present.

Illustration of a hand pressing a circular button on a device (no text or symbols)

Line drawing of a hand operating a circular device mounted on a baseplate, with no visible text or symbols.

de Gebrauchsanleitung......2
en Operating instructions....7
fr Mode d'emploi .....11
bg Ръководство за употреба......15
CS Návod k obsluze....19
da Brugsanvisning 23
es Instrucciones de uso....27
fi Käyttöohje....31
hr Upute za uporabu 35
hu Használati utasítás....39
it Istruzioni d'uso....43
nl Gebruiksaanwijzing......47
no Bruksanvisning....51
pl Instrukcja obsługi....55
ro Instructiuni de utilizare ....59
ru Руководство по использованию.....63
sk Návod na použitie....67
sl Navodilo za uporabo ....71
SV Bruksanvisning....75
tr Kullanım kılavuzu 79

ALLGEMEINE

SICHERHEITSHINWEISE

GENERAL SAFETY INSTRUCTIONS

To avoid personal injury or damage to the appliance, please observe the following safety instructions:

• The food slicer is to be used for domestic purposes only and must not be used commercially.
  – Never set the appliance down on hot surfaces or close to a naked flame.
• Use the accessories included in the delivery specification only.
• Use suitable extension cables only.
• Do not bend the power cord. Never wrap the cable around the appliance.
• Route the power cord so that it does not come into contact with hot or sharp-edged objects.
• Only start to use the appliance after it has been securely set up.
• Persons with reduced physical, sensory or intellectual capabilities or lacking in relevant experience and/or knowledge may only use this appliance if they do so under

supervision or have been instructed in the safe use of the appliance and understand the potential risks associated with its use.

• Do not allow children to play with the appliance.
• Always disconnect the appliance from the mains whenever it is to be left unsupervised, and also prior to assembly, dismantling and cleaning.
• This appliance must not be used by children. Keep the appliance and its connection cable out of reach of children.
• Only connect the appliance to a suitable AC power source that complies with the specifications on the type label.
• Never leave the appliance unattended while it is operating.
• Do not use it to cut frozen foods, bones, food containing large stones, roast meats that are encased in netting or packaged foods!
  – Never allow the appliance to run for more than 5 minutes at a time.

Risk of electric shock

- Always remove the power plug from the socket in the event of a malfunction, before cleaning and when the appliance is not in use. When doing so, pull on the plug and not on the cable.

- Never immerse the appliance in water. Never expose the appliance to rain or any other form of moisture. If the appliance falls into water, unplug the cable from the mains socket before removing the appliance from the water. Have the appliance inspected at an authorized service location before using it again.

- Always ensure that your hands are completely dry before using the appliance. Do not use the appliance if it is wet or damp or while you are standing on a damp surface. Do not use the appliance outdoors.

- Stop using the appliance immediately if any parts are damaged and contact the ritter after-sales service.

- If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's after-sales service or a similarly qualified person to eliminate risk of personal injury.

Risk of injury

- This appliance must not be used without a slice carriage or a left-over holder, unless the size and shape of the food to be sliced means that these parts cannot be used.

- Before replacing accessories or add-on parts that move when operated, the appliance must be switched off and disconnected from the mains.

– The rotary blade is extremely sharp.

- Never touch the rotating blade when operating the appliance!

- Switch the appliance off before cleaning it; pull the power plug out of the socket and turn the slice thickness adjustment knob to the "0" position.

- The rotary blade will continue to run for a short time after being switched off.

Unfold the illustrations at the front and back of this manual.

Please read these instructions thoroughly before you start to use the appliance. Keep these operating instructions in a safe place and ensure that they are included with the appliance if passing it on to a third party.

Alternatively, the current operating instructions are available at www.ritterwerk.de.

INTENDED USE

The food slicer is used to slice household foods.

The food slicer is suitable for contact with foodstuffs.

If the appliance is used for a purpose other than this, or if it is operated incorrectly, severe injuries may occur or the appliance may be damaged. All warranty and liability claims will be rendered null and void in this case.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Preparation

Remove the appliance carefully from the packaging. Remove all packaging parts and keep these together with the packaging in a safe place. Clean the appliance before allowing it to come into contact with any food (see CLEANING).

Setting up the appliance

- Set the appliance down on a flat, non-skid surface close to a mains socket.

A On the positioning plate (6) remove the left-over holder (8), the finger protection (7a) and the slide unit (7b) one after the other by pulling them out and up.

B Mounting the slice carriage (7): Insert the finger protection into the slot in the base of the carriage and fasten it in place by sliding it in the direction of the arrow.

C Unwind the power cord (11) to the length required from the cable compartment (4) under the appliance. In doing so, fasten the power cord in the slot provided for it on the base of the appliance.

D Swivel the positioning plate fully downwards into the working position.

E Place the slice carriage's guide runner onto the positioning plate's lateral guide groove at an incline. Swivel the slice carriage downwards in the direction of the positioning plate. The slice carriage's guide runner must be fully mounted onto the positioning plate's guide groove.

F Slide the left-over holder (8) onto the finger protection (7a). Plug the cable into the socket.

SLICING

G Use the slice thickness adjustment knob (2) to set the required thickness.

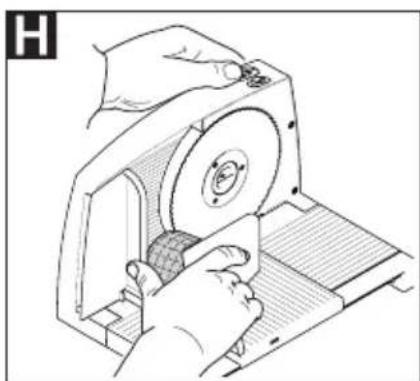

H Place the food to be sliced onto the slice carriage (7). Use the left-over holder (8) to press it up against the stop plate (3).

Protect your hands, by always using the slice carriage and, where applicable, the left-over holder. Exception: Excessively large foods to be sliced.

K Turn the appliance on using the power switch (1). Two operating modes are available:

Temporary operation: Press the power switch and slide it towards the arrow until you feel some resistance. The rotary blade (10) runs as long as the power switch is pressed and held down in this position.

Continuous operation: Press the power switch and slide it towards the arrow beyond the resistance point until it latches into place. The rotary blade runs without the power switch having to be pressed and held down, until you push the power switch back into the "0" position.

Note:

Never use the appliance for more than a maximum of 5 minutes in continuous operation.

L For markant ^05 / orbis ^5 model :

Adapt the slicing speed using the electronic rpm adjustment (12) to suit the food to be sliced. When slicing soft food, set a low slicing speed. Set a higher speed for hard food.

• With the appliance running, gently feed the food to be sliced into the path of the rotary blade.
• When finished slicing, wait until the rotary blade has come to a complete stop.
• After each use, turn the slice thickness adjustment knob to the "0" position, in order to cover up the sharp rotating blade and to avoid any injuries.

CLEANING

Caution:

Switch the appliance off before cleaning it; pull the power plug out of the socket and turn the slice thickness adjustment knob (2) to the "0" position.

Clean the food slicer regularly to prevent the accumulation of food residue. The rotary blade must also be cleaned regularly as described below to prevent its surface from rusting.

Note:

Over time, an accumulation of food residue may cause damage to the surface of the rotary blade, causing it to rust.

Preparation

- Remove the left-over holder (8) and the slice carriage (7).

Removing the rotary blade:

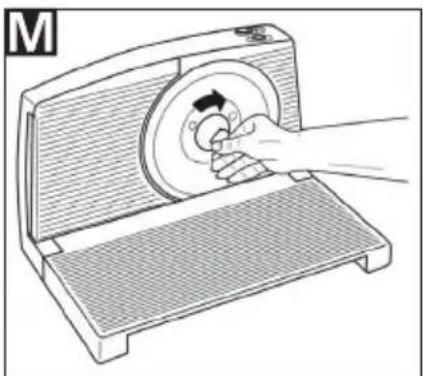

M Open the blade catch (9), by turning it in a clockwise direction.

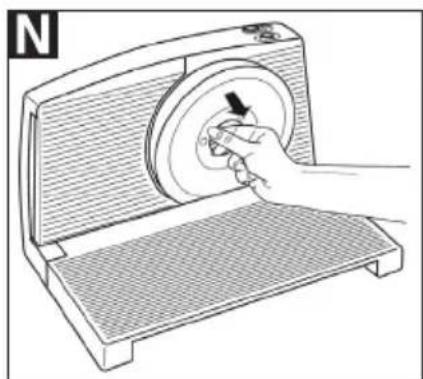

N Take hold of the rotary blade at its rotational centre and remove it.

Cleaning after each use

- Wipe down the housing and all removed parts, including the rotary blade, with a damp cloth.

Occasional cleaning

• Give all removed parts, including the rotary blade, a thorough wash in warm soapy water (not in the dishwasher!).
• Clean the housing behind the blade using a dry cloth/brush.

Note:

Do not use any abrasive cleansers, sponges with rough surfaces or hard brushes.

• Dry all parts that you have washed.
• Grease the rotary blade's gear wheel with a little ritter maintenance grease (alternatively with a little Vaseline).

Assembling the appliance

• Carefully insert the rotary blade.
• Insert the blade catch.
• Close the blade catch by turning it in an anticlockwise direction.
• Mount the slice carriage (7).

MAINTENANCE

Your food slicer is maintenance-free. However, we recommend that you occasionally apply a little extra ritter maintenance grease or Vaseline to the rails of the slice carriage to keep them lubricated and ensure that the carriage continues to move easily.

STORAGE

Keep the appliance out of the reach of children.

To store the cable, always use the cable compartment integrated into the appliance.

DISPOSAL

At the end of its service life this product may not be disposed of as part of normal domestic waste.

It must be taken to a dedicated collection point for recycling electrical and electronic devices. This is referred to by the symbol on the product, the operating instructions or the packaging.

The materials can be used again in accordance with their identification. The reuse, material-sensitive recycling or other forms of recycling of old appliances enables you to make a vital contribution to protecting our environment.

Please consult with the disposal office at your local authority.

REACH DIRECTIVE

A non-toothed rotary blade is also available specifically for sliced meat, sausage and ham.

The original ritter maintenance grease is available for delivery for maintaining (regreasing) the food slicer.

SERVICE, REPAIRS AND SPARE PARTS

Please contact your local after-sales service for all service, repairs and spare parts matters! See www.ritterwerk.de

TECHNICAL DATA

The appliance complies with the CE specifications.

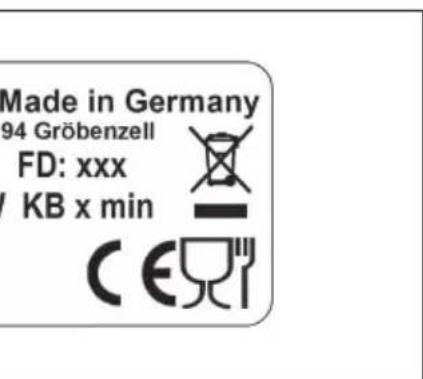

Mains voltage/power consumption: Refer to the type label on the underside of the appliance.

Slice thickness:

0 mm to approx. 14 mm

WARRANTY

This ritter appliance comes with a two-year manufacturer's warranty, starting with the date of purchase and in accordance with the EU warranty directives. Your legal warranty claims according to § 437 ff. BGB (German Civil Code) remain unaffected by this regulation. The manufacturer warranty applies to all devices sold within the European Union. For details of the warranty conditions, see www.ritterwerk.de/warranty. In the event of a warranty claim or for servicing, the appliance must always be sent to the appropriate national customer service centre.
