Product type	Heating cabinet
Brand	Bartscher
Model	WBS1600 I3HR
Supply voltage	220-240 V, 50-60 Hz
Maximum power consumption	800 W (depending on version: 400 W / 600 W / 800 W)
Maximum current consumption	3.5 A
Power cable	H05RN-F 3x1.5 mm²
Maximum voltage variation	±10%
Maximum frequency variation	±1% continuous, ±2% short period
Main functions	Keeping food warm, lighting by heating lamps
Controls	On/off button (I/O) and standby handle (P)
Application	Professional use (catering)
Electrical installation	Connection to earthed socket, category III circuit breaker
Maintenance	Exterior cleaning with hot water and neutral detergent, after disconnection
Safety	Risk of burns; do not handle without protection; electrical interventions by qualified electrician
Rating plate	Located inside the appliance, top right part of the heating panel
Disposal	Dismantle according to local regulations; recycling
Compliance	Safety and fire prevention standards of the country of use

Frequently Asked Questions - WBS1600 I3HR BARTSCHER

How to turn on the heating cabinet?

Plug in the appliance using the upstream switch, then press the A button to position I. Power on is indicated by a light.

How to clean the heating cabinet?

Always unplug the appliance before cleaning. Use hot water and a neutral detergent with a soft brush or sponge. Rinse with a damp cloth.

Can I use the heating cabinet to cook food?

No, this appliance is designed only to keep food warm. Any other use is considered improper and dangerous.

What is the required supply voltage?

The appliance operates at a voltage of 220-240 V with a frequency of 50-60 Hz. Check compatibility before connection.

What to do in case of malfunction?

Immediately unplug the appliance and contact a qualified technician. Do not attempt any repairs yourself.

Do I need to unplug the appliance before cleaning?

Yes, absolutely. Always unplug the appliance before any cleaning or maintenance.

Where is the rating plate located?

The rating plate is located inside the appliance, in the top right part of the heating panel.

What are the essential safety precautions?

Avoid contact with hot parts (risk of burns). Only a qualified electrician should work on the electrical connections. The appliance must be connected to an earthed socket.

Can I leave the appliance on continuously?

Yes, the appliance is designed for continuous operation, but it is recommended to unplug it when not in use for an extended period.

How to dispose of the appliance at the end of its life?

Dismantle the appliance according to the standards in force in your country and recycle the materials through appropriate channels.

USER MANUAL WBS1600 I3HR BARTSCHER

This section shows the symbols and provides information about the model of the appliance, the various responsibilities and the copyright. It concerns heated middle shelf.

For further information refer to paragraph "Technical data" (2).

DATA2PLATE2

Power supply frequency 7ax. power input

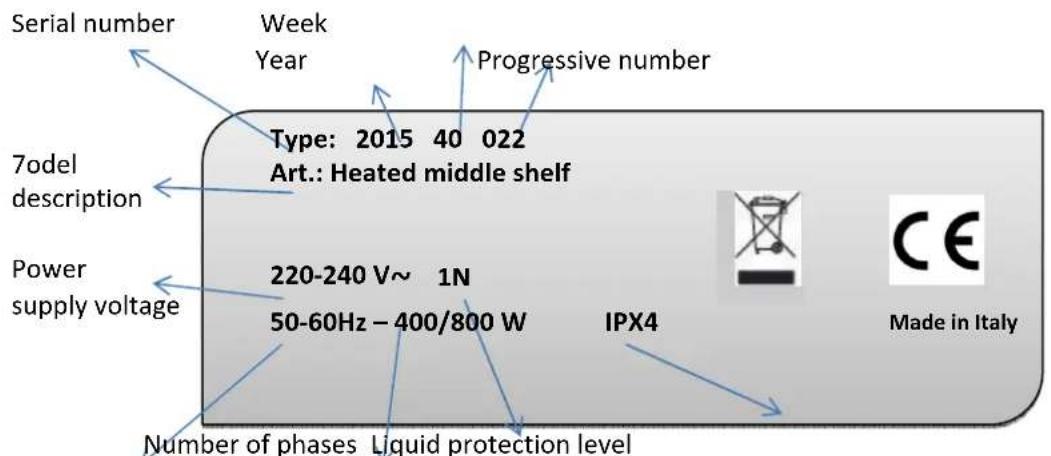

The data plate shows the identification and technical data of the product.
The data plate is inside the appliance on the right upper part of the heating panel.

WARNING!

%o not remove, tamper with or erase the " + E" mark of the appliance.
Refer to the data on the "+" plate of the appliance in all communication with the 7anufacturer (for example: when asking for spare parts, etc.).
The ^ 一 + E ^ 一 plate has to be destroyed while scraping the appliance..

The present handbook is intended solely for consultation by the operator. Its content could be modified without notice. The 7anfacturer reserves the right to stop the manufacturing of any model and/or introducing product changes but is not obliged to change products delivered before the modification and declines all responsibilities for any inaccuracy may appear on this handbook related to printing or translation mistakes.

The company cannot assume liability for damage and faulty operation due to:

• Failure to obey the instructions of this handbook;
  7odification or appliance alteration;
  7maintenance by unspecialized technicians;
  Insufficient maintenance;

• Improper use of the appliance;

• Exceptional and unforeseeable events;
  Unrespect to domestic legislation on health, hygiene and safety at the workplace;
  The employer is responsible for the periodic training of the operators about the correct use, safety rules and fire prevention.

2. TECHNICAL DATA

RANGE OF HEATED MIDDLE SHELVES

Supply voltage	V 220-240 220-240 220-240
Frequency	Hz 50-60 50-60 50-60
Max. power input	W 400	600	800
Max. current requirement	A 1,8	2,6	3,5
Power cord	Mmq-H05RN-F	3x1,5	3x1,5	3x1,5
Max. supply Voltage variation		+/- 10%	+/- 10%	+/- 10%
Max. Frequency variation	continuous	+/-1%	+/-1%	+/-1%
Max. Frequency variation	Short period	+/- 2%	+/- 2%	+/- 2%

WARNING!

The electric power system and the rooms where the appliance is placed have to respect domestic legislation on safety, accident prevention and fire regulations. On the contrary the Manufacturer won't assume liability for direct and indirect damages to people or things.

3. INSTALLATION AND COMMISSIONING

WARNING!

Intervention on the electric power system must be solely performed by specialized electricians.

Proceed according to the following instruction before connecting the appliance:

Remove the packaging and then the protective film taking care not to scratch the surface;
Make sure the power supply of the appliance shown on the data plate is compatible with the grid voltage;
Check the power supply of the system is set up and able to take the current load, and meets the legal requirements and domestic standards;
The appliance must be earthed;
Plug the appliance. In case of direct connection to the electricity grid (without plug), it's necessary providing for a wall switch, which grants the complete disconnection according to overvoltage III rate and accordingly to installation rules;
Have the system tested by a qualified electrician, if operation of the equipotential earth connection or the safety of the electrical system is in doubt, the symbol below identifies the equipotential connection:

The Manufacturer declines all responsibilities in case of connection made by the user or unspecialized staff

WARNING!

After installation dispose of the packaging according to current regulations.

This appliance is designed and optimized to ensure high performance and efficiency. The sole use of this appliance is keeping food heated.

WARNING!

+contact with hot tableware can cause burns.

Use always suitable safety equipment while handling objectsf

4. MAIN RULES

The Manufacturer does not assume responsibility for faults or damage due to tampering the appliance. This appliance must be used by skilled persons that must be periodically trained for its correct use and according to the safety regulations and prevention of accidents. +contact with hot tableware in the appliance can cause health risks. In order to prevent them use safety equipment and act with suitable caution.

f

WARNING!

Intervention on the electric power system must be solely performed by specialized electricians.

5. USE OF THE APPLIANCE

Press the main switch on the supply panel that powers the appliance.

Switch on the button "A" to position "I". When the button "A" is switched on, it is lighted up and the appliance is under power and starts operating.

To stop heating turn the switch to "9" position. The heating is so disconnected but the appliance is under power.

Avoid amassing plates and place them under the lights.

Switch off finally the main power supply line ahead of the appliance or plug the appliance off.

9nly when the appliance is disconnected, clean the stainless steel surfaces with warm water and a neutral soap, rinse thoroughly and dry carefully. In case of long period of inactivity, store the appliance in a dry place.

6. DISPOSAL AND RECYCLING

%ispose of the appliance responsibly and respect the environoment at the end of its useful life. Proced with its disposal in accordance with domestic regulation.
