Product type	Refrigerator with multiple assembly kit
Brand	Viking
Model	FFI7240WR
Dimensions (H x W x D)	84-85 3/16 in x 24 in x 25 in (213.4-216.3 cm x 61 cm x 63.5 cm)
Weight (estimated)	Approximately 150 kg
Power supply	120 V, 60 Hz (dedicated outlet)
Energy class	A (estimated)
Capacity (estimated)	Approximately 250 L
Main functions	Refrigeration, water dispenser (depending on model), multiple assembly possible
Multiple assembly kit	Included: connecting plate, center rod, brackets, connecting heater
Anti-tip system	Anti-tip bracket with 12 holes, requires at least 4 fasteners
Framing dimensions	Height 84-85 3/16 in (213.4-216.3 cm), depth 25 in (63.5 cm), width variable depending on combination
Installation	Requires 2 or more people, plug in power and water separately, use leveling feet
Maintenance	Clean exterior with soft cloth, check seals
Safety	Risk of tipping, keep doors closed during installation, use anti-tip system
Spare parts	Available: rods, plates, heater, fasteners (ref. CKVBI)
Repairability	Accessible parts, Viking technical support
General information	User and installation manual included, customer service 1-888-845-4641

Frequently Asked Questions - FFI7240WR VIKING

How to install multiple refrigerators side by side?

Use the provided assembly kit (ref. CKVBI). Remove the side rods from the appliances on the contacting sides, install the center rod brackets, then attach the connecting plates from the top and back. Insert the center rod between the two appliances. Follow the safety instructions, especially the anti-tip system.

What are the required framing dimensions?

The framing height must be between 84 in (213.4 cm) minimum and 85 3/16 in (216.3 cm) maximum. The depth is 25 in (63.5 cm). The width varies according to the combination of appliances (e.g., 24 in + 24 in = 48 in). Refer to the specifications table in the manual.

What is the anti-tip system?

It is a metal bracket with 12 holes that must be centered horizontally in the framing and fastened with at least 4 appropriate wall anchors (wood screws, nails, or masonry anchors). It prevents the appliances from tipping during and after installation. Do not use a drill to attach it.

How to attach the connecting plate from the top?

Place the connecting plate (provided) on top of the aligned appliances. Secure it to the threaded holes using 1/4 in-20 x 3/4 in fasteners. Use a manual Allen key, not a drill. Tighten by hand to avoid deformation.

How to connect the connecting heater?

Secure the heater (element #1) at the top of the right appliance using 8-18 x 1/2 in fasteners. Plug it into the outlet next to the power switch of the right appliance. After installation, activate the heater by pressing the VAC and UP buttons for 5 seconds.

What tools are needed for installation?

You will need a drill with 3 in drill bits, Phillips (PH2), Torx (T15 & T20) bits, 1/4 in and 5/16 in hex sockets, a rubber mallet, a 3/8 in wrench, and a 1/8 in Allen key.

How to activate the heater after installation?

On the control panel of the right appliance, press the arrow buttons VAC and UP simultaneously for 5 seconds. An alarm beep will confirm activation. The panel may vary by model.

Can I install a single appliance without the kit?

Yes, the assembly kit is intended to connect multiple appliances. For a single installation, refer to the installation guide provided with the refrigerator. The side rods and anti-tip system remain necessary.

How to level the appliances?

Use the leveling feet under each appliance. If the feet are damaged, lower the appliances onto their rollers. Do only 4 turns at a time with the hand ratchet to gradually raise the units together.

What to do in case of tipping?

The risk of tipping is present until the installation is complete. Keep the doors closed and never move the appliance alone. Always secure the anti-tip system before releasing the appliance. If in doubt, contact Viking customer service at 1-888-845-4641.

USER MANUAL FFI7240WR VIKING

Multi-Unit Refrigeration Connector Kit

CKVBI

Table of Contents

NOTE: These instructions include information on how to install multiple 7 Series refrigeration units. For information on dimensions, specifications, and installation of single units, please refer to the installation guide included with the appliances.

Parts Included 2

Tools Needed 2

Cutout dimensions 3

Specifications 4

Anti-tip location 7

Preparing Units for Installation 8

Installation 10

WARNING

TIP OVER HAZARD

Appliance is top heavy and tips easily when not completely installed. Keep doors closed until appliance is completely installed and secured per installation instructions.

Use two or more people to move and install appliance. Failure to do so can result in death or serious injury.

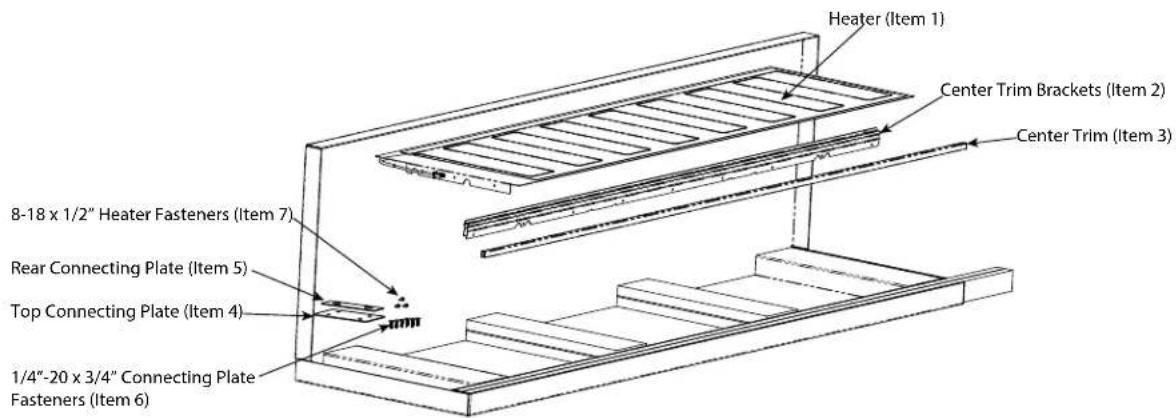

Parts included Tools Needed

Heater (1)

Center Trim Brackets (2)

Center Trim (1)

Top Connecting Plate (1)

Rear Connecting Plate (1)

1/4"-20 x 3/4" Connecting Plate Fasteners (6)

8-18 x 1/2" Heater Fasteners (3)

Drill (Not to be used on the leveling feet)

Drill Bits - 3" Phillips (PH2), Torx (T15 & T20)

1/4" & 5/16" Hex Drive

Rubber Mallet

3/8" Wrench

1/8" Allen Wrench

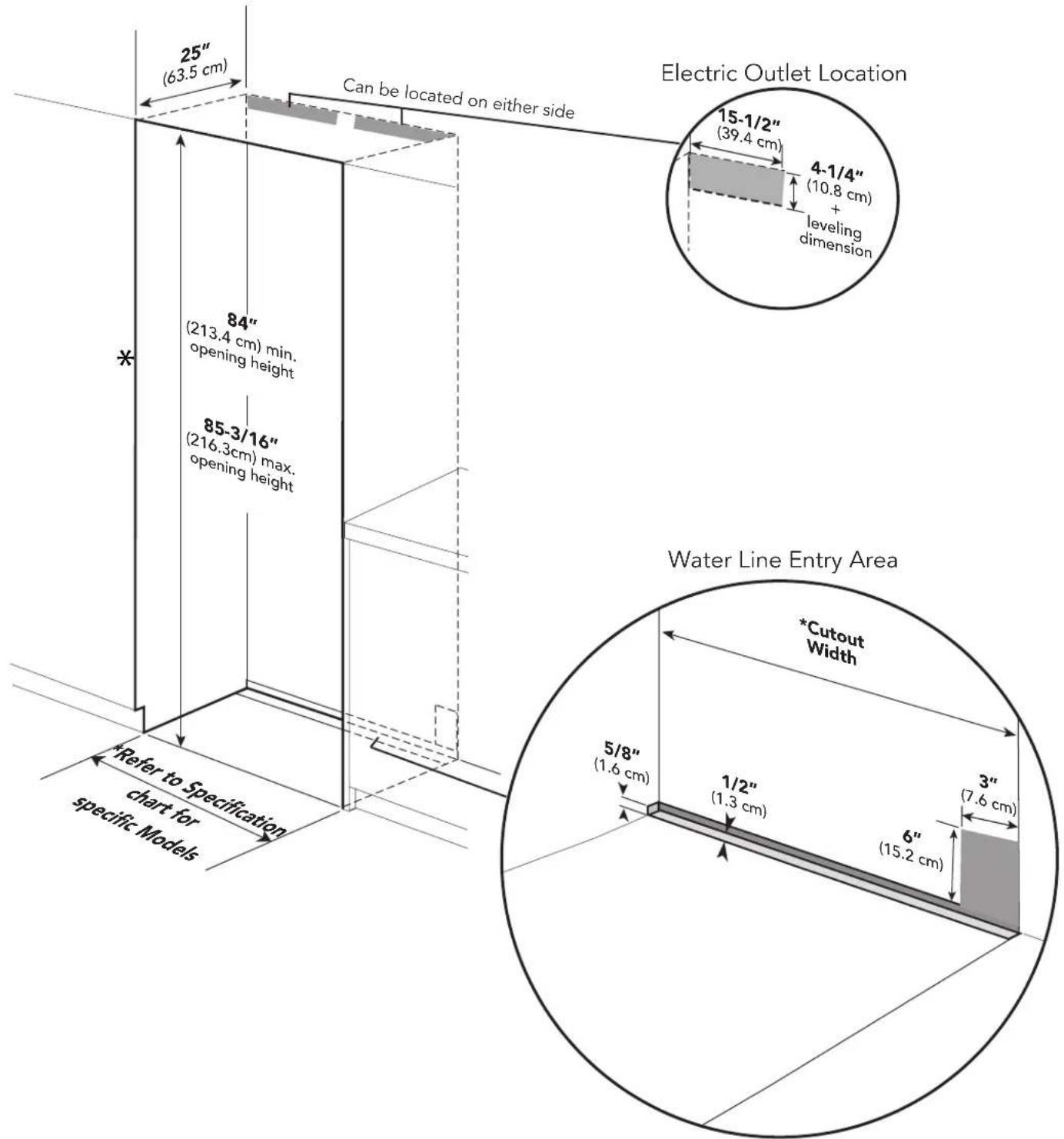

Cutout Dimensions

*Note: For all models, 3" back from the front of the cabinet on both sides needs to be finished like the outside of the cabinets

Specifications

Refer to Installation Guides included with unit for individual dimensions.

Below is a common install chart for reference.

Size Combination Cabinet Cutout Width		Cabinet Cutout Height (same for all)	Cabinet Cutout Depth (same for all)	Optional Kickplate
18" W / 24"W Models 42" (106.7 cm)		84" (213.4 cm) min 85-3/16" (216.3 cm) max	25" (63.5 cm)	TKK742SS
18" W / 30"W Models 48" (121.9 cm) TKK748SS
18" W / 36"W Models 54" (137.2 cm) TKK754SS
24" W / 24"W Models 48" (121.9 cm) TKK748SS
24" W / 30"W Models 54" (137.2 cm)" TKK754SS
24" W / 36"W Models 60" (152.4 cm) TKK760SS
30" W / 30"W Models 60" (152.4 cm) TKK760SS
30" W / 36"W Models 66" (167.6 cm) TKK766SS
36" W / 36"W Models 72" (182.9 cm) TKK772SS

For muti-unit installation, add the width of the units together for cabinet cutout width.
For example: 18'' + 24'' + 24'' = 66'' W.

Anti-tip Location

Anti-tip Bracket

Simple line drawing of a rectangular plate with a grid pattern and two corner supports (no text or symbols)

The anti-tip bracket has several holes set up on a grid in order to better locate a wall stud. At least 4 places must be used. Anti-tip Bracket must be centered in cutout - side to side.

NOTE: Number and type of fasteners must be suitable in order to prevent tipping. For example: use wood screws into wall studs or masonry anchors if attaching to stone, brick or concrete.

If a wall stud can not be found or when installing the 18" model, use the lower section of the bracket and mount to the base board

Simple line drawing of a rectangular plate with a dotted pattern and two side supports, no text or symbols present.

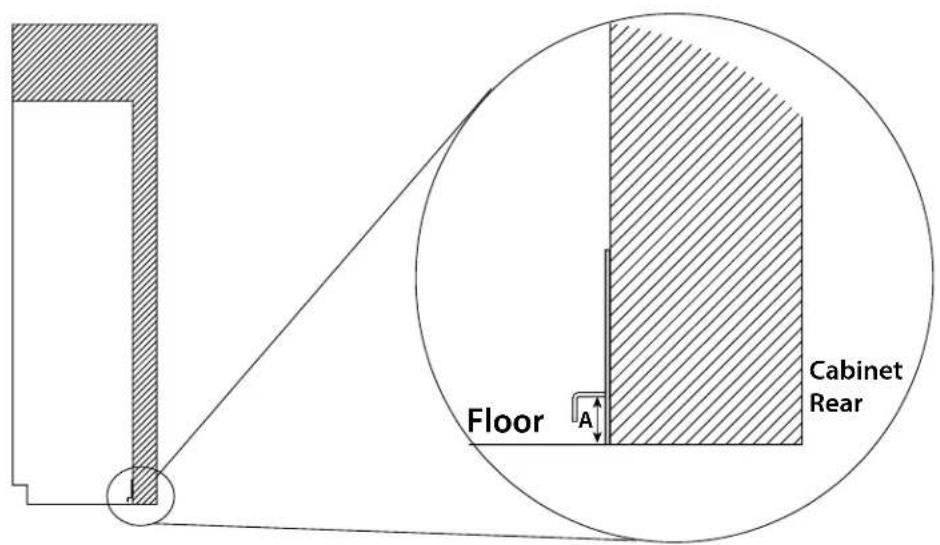

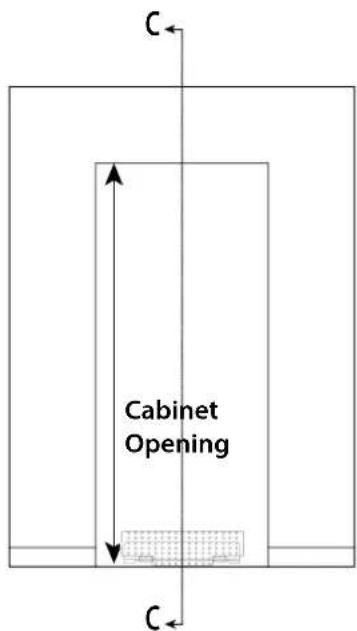

Dimension A = Cabinet opening minus the refrigerator height + 1-1/4" (3.2 cm)

Ex. - Cabinet opening height - 85"

Minimum refrigerator height (sitting on rollers) - 83 15/16"

$$ A = 8 5 ^ {\prime \prime} - 8 3 - 1 5 / 1 6 ^ {\prime \prime} + 1 - 1 / 4 ^ {\prime \prime} = 2 - 5 / 1 6 ^ {\prime \prime} $$

Preparing Units for Installation

Before removing units from pallet, remove the side trim from each unit, install center trim brackets and connection heater (steps 1 thru 4). Make sure units are unplugged and powered off.

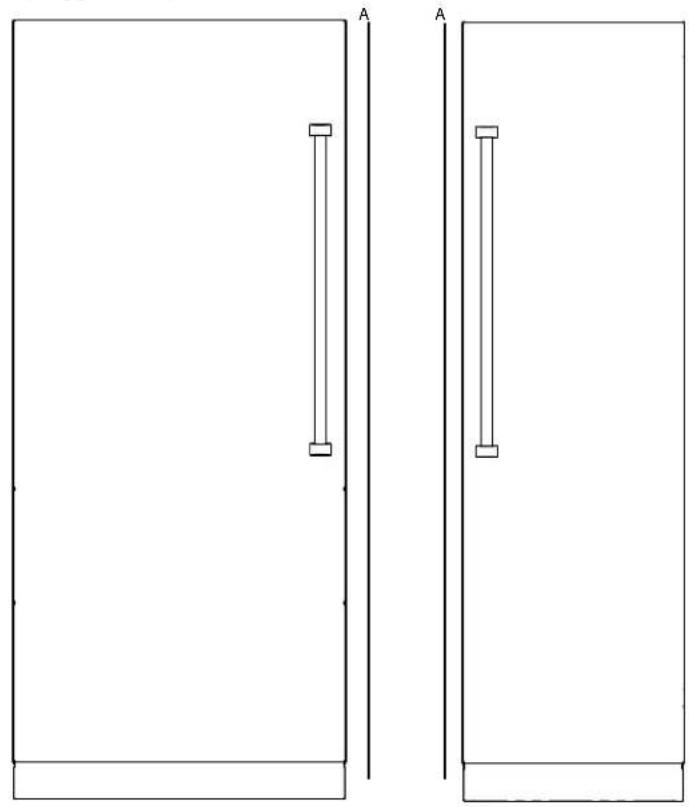

Two simple rectangular panels with vertical supports, labeled 'A', no text or symbols present.

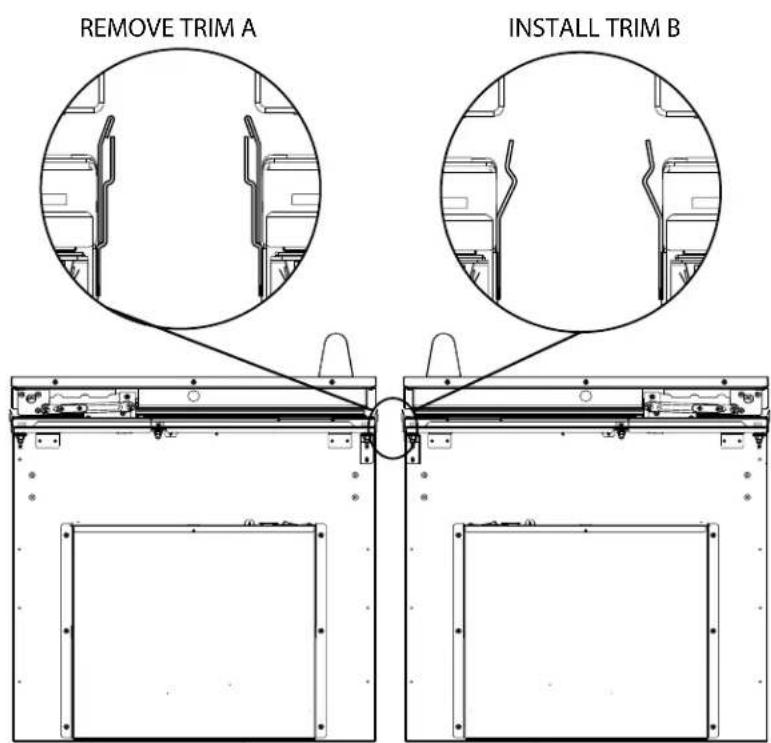

Look closely at the trim already installed on the unit. If the trim resembles that in Trim A, it will need to be removed and replaced with Trim B. If the trim already resembles Trim B, leave as is.

Preparing Units for Installation

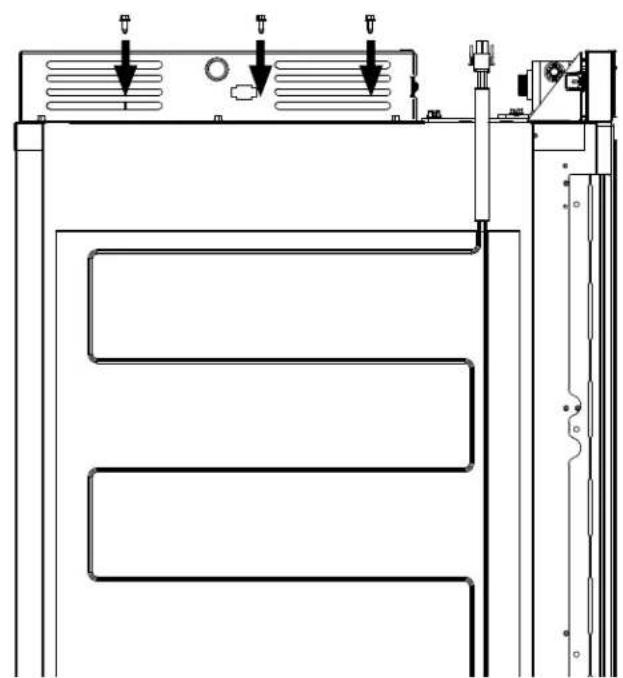

1. Fasten heater (Item #1) to the three mounting holes on top of the right hand unit using the #8-18 x 1/2" fasteners (Item #7) provided.

Pure diagram of a mechanical or electrical component with directional arrows, no text or symbols present

Technical line drawing of a mechanical or electrical component with three parallel channels and mounting brackets (no text or symbols)

1. Plug heater terminal into right hand unit using the plug located next to the unit on/off switch.

Diagram of an electrical outlet with a cable and switch, enclosed in a circular frame (no text or symbols)

WARNING

TIP OVER HAZARD

Appliance is top heavy and tips easily when not completely installed. Keep doors closed until appliance is completely installed and secured per installation instructions.

Use two or more people to move and install appliance. Failure to do so can result in death or serious injury.

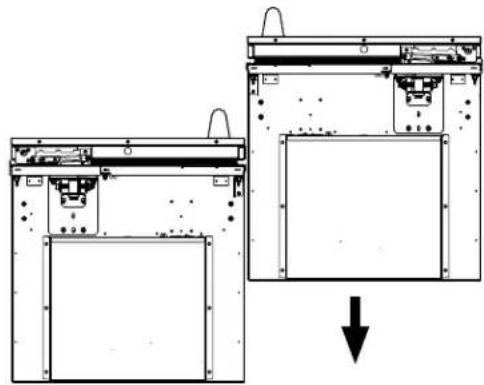

1. Remove units from pallets and position together outside of the cabinet so that top connecting plate (Item #4) can be installed. If installing on uneven surfaces, use unit leveling feet to adjust units to that they are at the same height.

Diagram showing two views of a device with internal components and a downward arrow indicating a process (no text or symbols present)

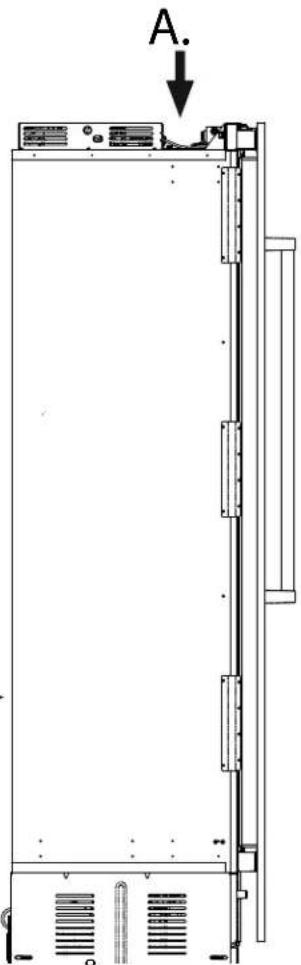

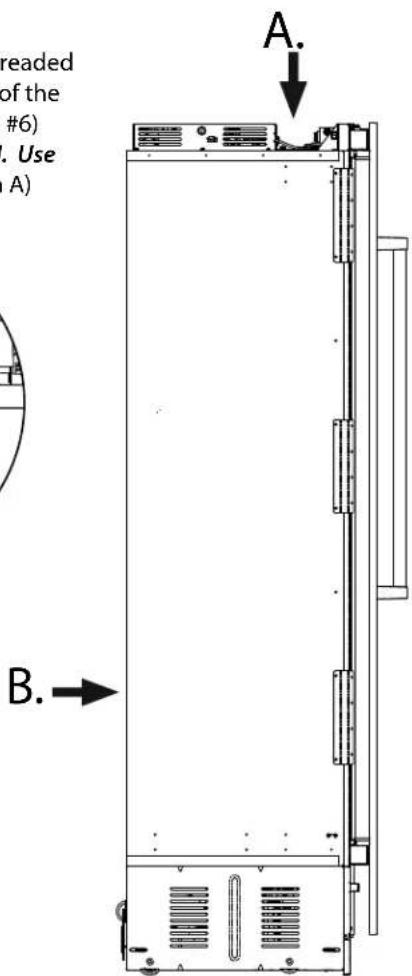

1. Install top connecting plate to the threaded mounting holes provided on the top of the cabinet using the 1/4"-20 x 3/4" (Item #6) fasteners. DO NOT install using a drill. Use manual allen wrench. (See Illustration A)

Technical diagram of a mechanical assembly with mounting holes and structural supports (no text or labels)

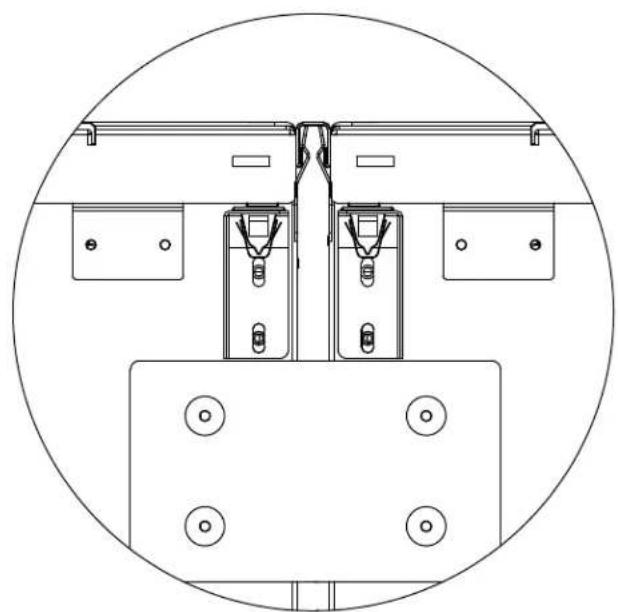

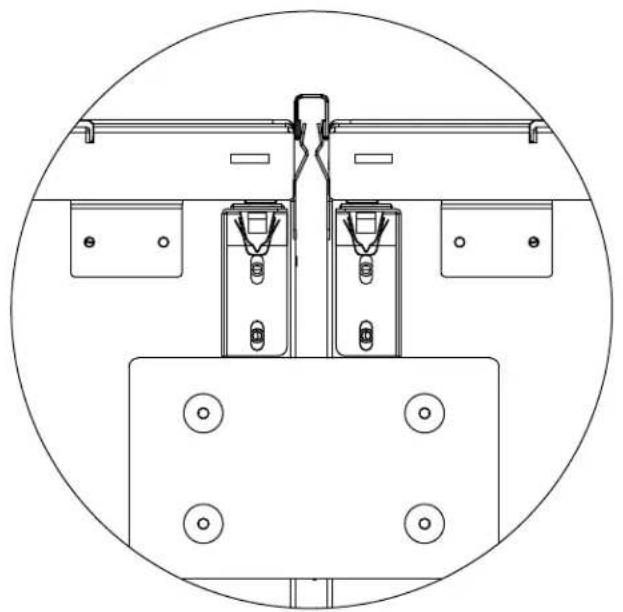

1. Fasten rear connecting plate (Item #5) to the threaded mounting holes provided on the rear of the unit using the 1/4"-20 x 3/4" (Item #6) fasteners. DO NOT install using a drill. Use manual allen wrench. (See Illustration B). Loosely attach the bracket allowing it to pivot. Tightening the screws will result in the bracket bending and causing misalignment of the rear of the units.

Note: *If one or both units have (4) screw holes, attach using the top two holes.

Simple diagram of a mechanical or electrical component inside a circular boundary, with no visible text, numbers, or symbols.

Installation

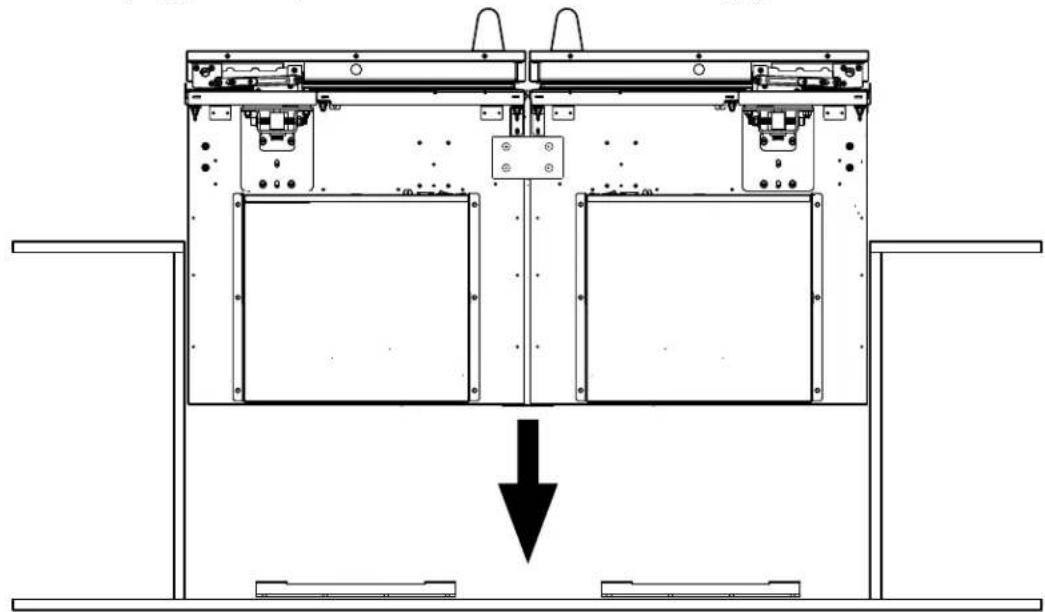

1. If unit leveling feet were used, lower units back onto rollers. Plug in electrical supply and roll connected units into cabinet cutout. Units must be plugged into separate electric outlets. Connect water supply to each unit.

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

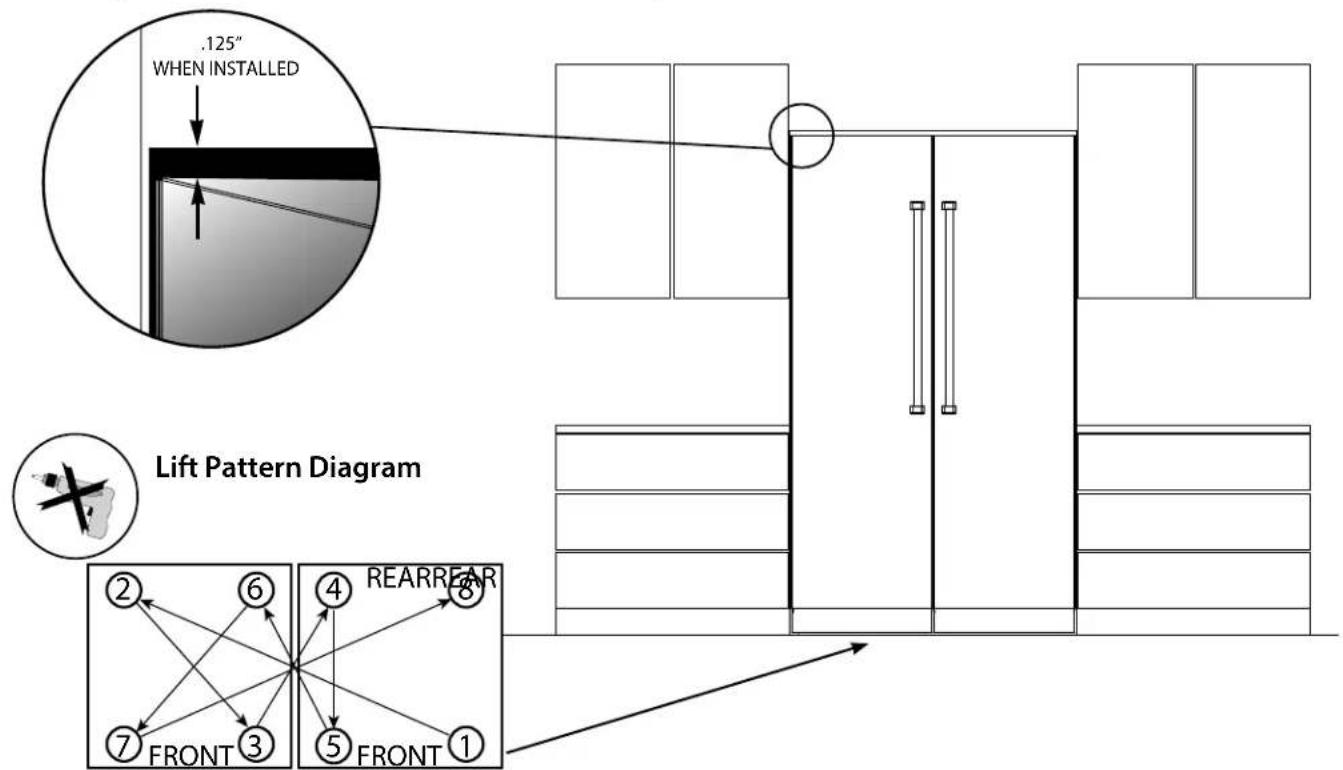

1. Lift units to desired height using 5/16" socket and hand ratchet. DO NOT USE A DRILL-(refer to lift pattern diagram below to ensure that units are gradually lifted together.) **IMPORTANT** - Only make 4 turns at a time with the hand ratchet**. Attach units to cabinet side trim and fasteners included with the units. Install stainless magnetic side trim once fastened. (Use installation guide included with individual units as a reference.)

Installation

1. Remove plastic film from center trim before installing. Install center connecting trim (Item #3) in between the two units by pressing it in. Trim should be even with the top of the units. If needed, tap connecting trim gently into place with rubber mallet.

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

NOTE: Open both doors to install the trim. When installed, the face of the trim should be flush with the breaker frame.

1. Once the connection to the heater and the unit installation is complete, you will need to enable the heater which was plugged into the right hand unit. (Step 4 on page 7).

To enable the heater, on the control panel* of the right hand unit, press the VAC and UP arrow key and hold for 5 seconds. You will hear an alarm beep once when it accepts the entry.

*NOTE: Control panel may vary depending on model being installed.

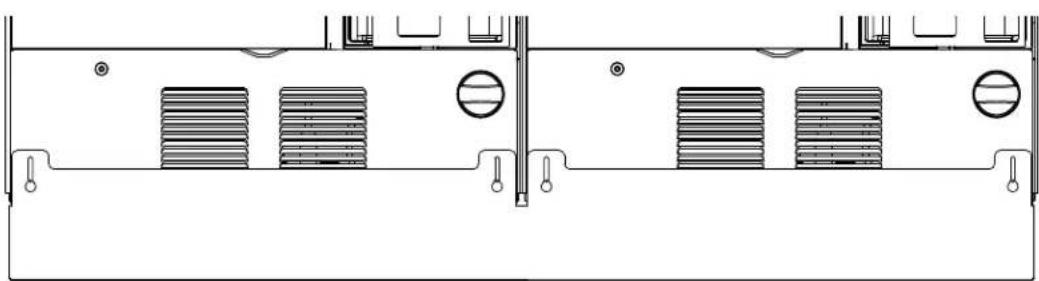

Optional Custom Kickplate Installation

Remove screws fastening individual kickplates on units. Save screws to be used when installing custom kickplate. Place custom kickplate across bottom of both units and fasten using the mounting holes for the individual kickplates.

Technical line drawing of a mechanical or electrical component with multiple rectangular blocks and mounting holes (no text or symbols)

Viking Range, LLC

111 Front Street

Greenwood, Mississippi 38930

[phone]

For product information, call 1-888-845-4641

or visit our web site at vikingrange.com
