USER MANUAL FCXNE828X WIFI CANDY

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the ovenreachesthe cooking temperature.
• Cook the vegetables in a container with a lid instead of an open tray.
• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
• WARNING: the appliance and accessible parts become hot during use. Be carefulnot to touch any hot parts.
• WARNING: the accessible parts can become hot when the grill is in use. Children should be kept at a safe distance.
• WARNING: ensure that the appliance is switched off before replacing the bulb, toavoid the possibility of electric shocks.
• WARNING: in order to avoid any danger caused by the accidental resetting of the thermal interruption device, the appliance should not be powered by an external switching device, such as a timer, or be connected to a circuit that is regularly switched on and off.
• Children under 8 should be kept at a safe distance from the appliance if not continuously supervised.
  Children should not play with the appliance.
• The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks.
• Cleaning and maintenance should not be carried out by unsupervised children.
• Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass toshatter.

• The oven must be switched off before removing the removable parts. Aftercleaning, reassemblethem accordingthe instructions.

• Only use the meatprobe recommended forthis oven.

• Do not use a steam cleaner forcleaning operations.
• Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules and with contact separation compliant to the requirements for overvoltage categoryIII.
• If the power cable is damaged, it should be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department. The type of power cable must be H05V2V2-F. This operation should be carried out by a suitably qualified professional. The earth conductor (yellow-green) must be approximately 10 mm longer than the other conductors. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.
• Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.
• Any excess of spilled materials should be removed before cleaning.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer

service.

• The appliance must not be installed behind a decorative door in order to avoid overheating.
• When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be inserted completely into the cavity.
• WARNING: Do notline the oven walls with aluminiumfoil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of theinsides.
• WARNING: Never remove the oven door seal.
• CAUTION: Do not refill the cavity bottom with water during cooking or when the ovenis hot.
• No additional operation/setting is required in order to operate the appliance at the rated frequencies.

General Instructions

1.1 Safety indications
1.2 Electrical safety
1.3 Recommendations
1.4 Installation
1.5 Waste management
1.6 Conformity declaration

Product Description

2.1 Overview
2.2 Accessories
2.3 First use

Use of the Oven

3.1 Display description
3.2 Cooking modes

Oven Cleaning and Maintenance

4.1 General notes on cleaning

4.2 Maintenance

• Removing and cleaning wire racks
• Removal of the oven window
• Removal and cleaning of the glass door
• Changing the bulb

Troubleshooting

5.1 F.A.Q.

1. General Instructions

We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can give it to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating

for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructions contained in this documentarenotobserved.

NOTE: The oven functions, properties and accessories cited in this manual will vary, depending on the model you have purchased.

1.1 Safety Indications

Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

The use of anyelectrical appliance implies the observance of some fundamental rules:

• Do not pull on the powercableto disconnecttheplugfrom the socket;
• Do not touchtheappliancewithwetordamphands or feet;
• In general the use of adaptors, multiple sockets and extension cables is not recommended;
• In case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

1.2 Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven.

CONNECTION

The oven is supplied with a power cable that should only be connected to an electrical supply with 220-240 Vac power between the phases or between the phase and neutral. Before the oven is connected to the electrical supply, it is important to check:

• Power voltage indicated on the gauge;
• The setting of the disconnector.

The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply.

WARNING

Before connecting the oven to the power supply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defective continuity.

NOTE: As the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

1.3 Recommendations

After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.

Do not line the oven walls with aluminium foil or single-use protectionavailable from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommendnot using the oven at very high temperature. It is betterto extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistant to very high temperatures.

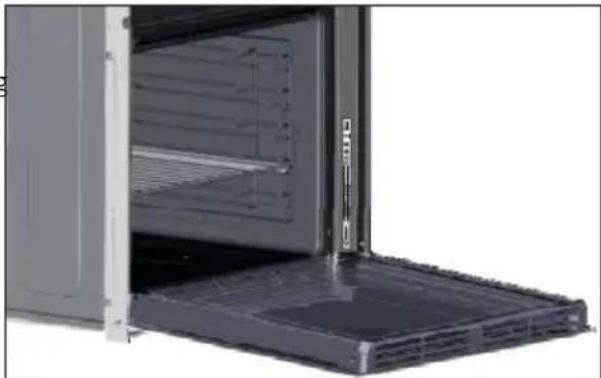

1.4 Installation

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Maketheopenings specified on last page according to the type of fitting.

1.5 Waste management and environmental protection

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmentalproblem; it is essentialtofollow a fewbasic rules:

• The WEEE should not be treated as domestic waste;

• The WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavitydispersedes every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energysavingmoresimple,movingthe cooking processtostart at the reduced tarifftime slot.

Packaging recovery(onlyforCyprus)

1.6 Declaration of compliance

• By placing the C E mark on the appliance, we are confirming compliance to all relevant European safety,health and environmental requirements which are applicable in legislationforth this product.
• Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.candy-group.com.

2. Product Description

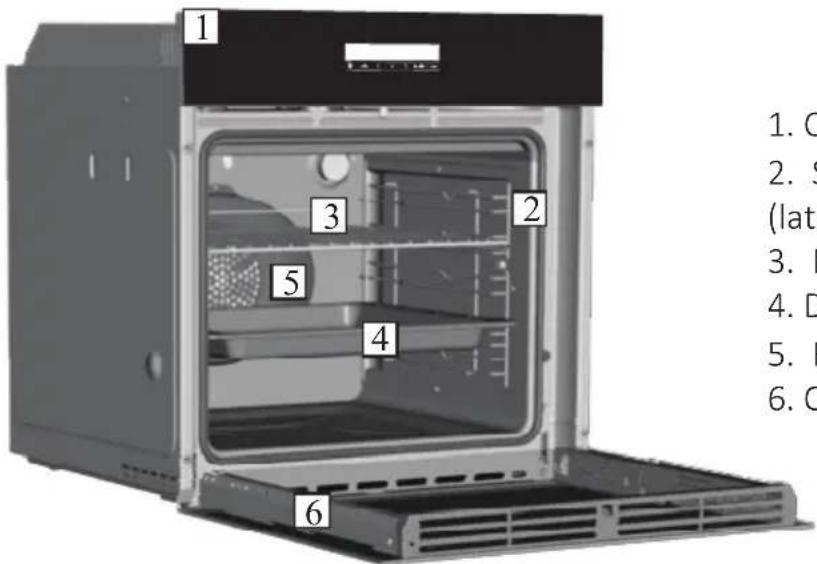

2.1 Overview

1. Control panel
2. Shelf positions

(lateral wire grid if included)

1. Metal grill
2. Drip pan
3. Fan (behind the steel plate)
4. Oven door

2.2 Accessories (According to model)

1 Drip pan

Collects the residues that drip during the cooking of foodsonthegrills.

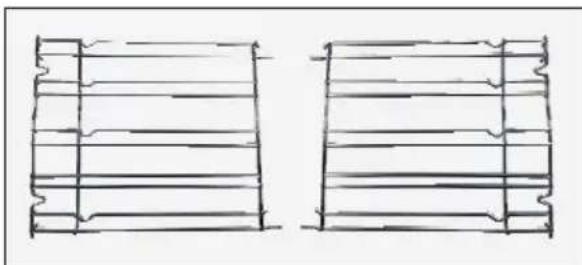

3 Lateral wire grids

It located at both sides of the oven cavity. It holds metalgrills sanddrippans.

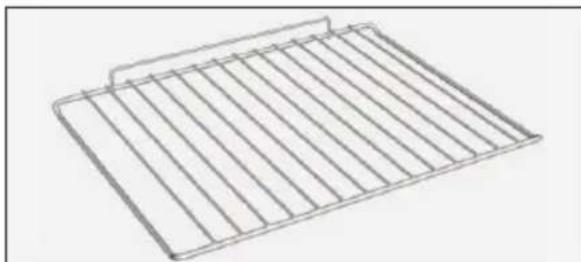

2 Metal grill

Holds baking trays and plates.

PRELIMINARYCLEANING

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

3. Use of the Oven

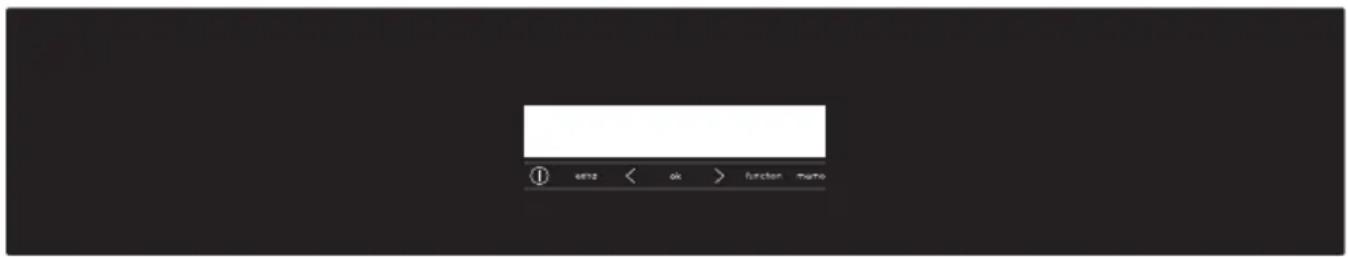

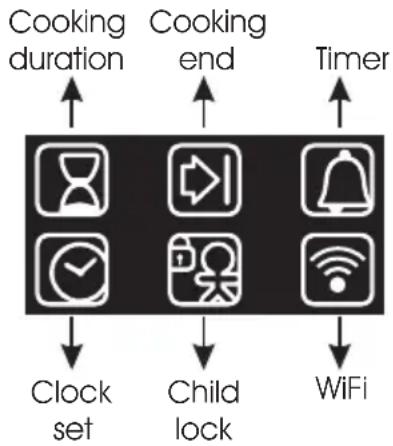

3.1 Display description

ON/OFF ① The oven is switched on and off with this button.

EXTRA [EXTRA]

If the oven is switched off, the display shows the clock. When the oven is inactive, all the functions are available except the cookingduration and end of cooking.

If the clock is not set, the oven does not work: the display flashes, showing "12:00" and the only functioning key is Extra.Fromthe Extra key,the followingfunctions can beset:

FUNCTION	HOW TO ACTIVATE	HOW TO DEACTIVATE	WHAT IT DOES WHY	IT IS NEEDED
COOKING DURATION	NB: can only be set with an active cooking programme. Press EXTRA twice and set the time using the "+" and "-" keys, confirming by pressing "SELECT". The display shows "00:00" if no cooking duration has been inserted, otherwise the display shows the time remaining.	•To modify cooking before the set time, press EXTRA twice and regulate the cooking time as required using the "<" and ">” keys, before pressing SELECT" once more.•To cancel the cooking duration, reset the display to "00:00".	When a cooking programme Terminates, the oven switches off while the display shows "END" (the cooking programme icon remains on) until the On/Off button, the only functioning key, is pressed. When a Cooking programme terminates, an alarm will sound.	When the cooking time has finished, the oven automatically switches off and the alarm sounds for a few seconds.
END OF COOKING	NB: can only be set with an active cooking programme. Press EXTRA enough times to illuminate the icon, set the end of cooking time using the "<" and ">” keys and confirm by pressing "SELECT". Press EXTRA enough times to illuminate the icon, set the end of cooking time using the "<" and ">” keys and confirm by pressing "SELECT". The cooking duration is automatically calculated.	To modify the end of cooking before the set time, press EXTRA enough times to illuminate the icon, regulate the end of cooking time as required using the "<" and ">” keys and confirm by pressing "SELECT". To cancel the end of cooking time, reset the display to "00:00".	When a cooking programme terminates, the oven switches off while the display shows "END" (the cooking programme icon remains on) until the On/Off button, the only functioning key, is pressed. When a cooking programme terminates, an alarm will sound.	•This function is also used for cooking that can be scheduled in advance.•If a cooking programme is set, it will be lost if the "F" key is pressed.•If delayed cooking is set, the oven switches off and the display shows the current time while the cooking programme, cooking duration and end of cooking icons are illuminated.•If a cooking programme is set, by pressing the "<" and ">” keys you can see and modify the temperature set: at the first touch, the operating temperature is shown while another touch will allow you to modify said temperature.
TIMER	•The display shows "00:00" if no time has been inserted or the time remaining if this has already been set. Press EXTRA enough times to illuminate the icon and use the "<" and ">” keys to set the time, confirming by pressing SELECT.	•To modify the timer, press EXTRA enough times to illuminate the icon, regulate the cooking time as required using the "<" and ">” keys and confirm by pressing "SELECT".	•This function activates an Alarm that sounds for a few seconds when the set time expires (this function does not switch the oven off). You can select a time between 00:00 and 23:59.	•The timer functions regardless of whether the oven is switched on.
SETTING THE CLOCK	•Switched on for the first time, the display illuminates and sh ows "12:00". •To modify the time, press EXTRA enough times to illuminate the icon and use the "<" and ">” keys to set the time, confirming it by pressing SELECT.		•It allows you to set the time that appears on the display.	•The alarm functions regardless of whether the oven is switched on.
CHILD SAFETY LOCK	•Press the EXTRA key enough times to illuminate the icon and then either the "<" or ">” key to activate this function: the display will show ON; to confirm press SELECT.	•Press the EXTRA key enough times to illuminate the icon and then either the "<" or ">” key to deactivate this function: the display will show OFF; to confirm press SELECT.	•If the function is active only the "Extra" button, to deactivate the function, and "On/Off" button can be used.	•This function is useful when there are children in the house.

WiFi (depends on the oven model) Pressing"Extra"on the timer display allows you toselect the Wi-Fi menu. In the Wi-Fi menu if you press the <<> buttons you canselect:

• Off: Wi-Fi is off; the oven is not controllable via the app.
• On: Wi-fi is on and the oven is only controllable via the app. It means that it is not possible to select cooking functions, recipes and temperature from the display. Only the Wi-Fi menu is available by pressing "Extra". You can switch the oven off using the On/Off button, but you cannot switch it back on again via the display, it can only be switchedon via the app.
• Reset: This setting should be used to enrol the oven the first time it connects to your Wi-Fi network and to reset the current Wi-Fi connection to allow a new enrolment. Once selected, the appliance gives you 5 minutes to complete the enrolment process. During this process the cooking functions, recipes and temperature setting are not accessible from the display. Only the Wi-Fi menu is available by pressing "Extra". You can switch the oven off using the On/Off button, but you cannot switch it back on again via the display, it can only be switched on via the app. To exit the enrolment-reset procedure via the display, press "Extra" and then use "<>" buttons to select "Off". After five minutes, the appliance will exit the enrolment-reset procedure automatically.
• Read: the oven sends its status to the app but it cannot be controlled remotely. The oven must be enrolled before this is possible.

If Wi-Fi is not configured it is only possible to choose betweenoffand reset.

When the oven is connected to Wi-Fi, the default cooking time duration is 5 hours, but this can be modified by the user.

Wi-Fi Enrolment:

To enroll the appliance for Wi-Fi, press "Extra" on the display until the Wi-Fi icon lights, then select "Reset" by pressing <<> . The procedure on the app should then be followed. Once selected, the appliance gives you 5 minutesto completethe enrolment process.

Wi-Fi icon

• Icon not lit: Wi-Fi is off.
• Icon blinks1 second on an 1 second off: the oven is accessible to your Wi-Fi network and ready to be enrolled. If the enrolment has not been successful, the Wi-Fi icon will switchoffafter5 minutes.
• Icon is permanently lit: the oven is connected to yourWi-Fi router.
• The iconblinks 3 seconds on and 1 second off: the ovenis trying to connect to your Wi-Fi router.
• The iconblinks 1 second and 3 seconds off: the oven is in read only mode.

CANDY SIMPLY-Fl:

For detailed information about HOW TO CONNECT your simply-Fi appliance and HOW TO USE it at its best, go to http://www.candysimplyfi.com or visit the dedicated simply-Fi Customer Service website http://simplyfiservice.candy-hoover.com

LANGUAGE SETTING The language can be set when the oven is switched off by pressing the Extra and Select button simultaneously and for3". The current language is shown on the display and can be changed by pressing the "<" or ">” keys, confirming it by pressing SELECT. Available languages are: Italian, English, French and German.

SELECT Any selection must be confirmed. If not confirmed within 15 seconds, the selection is cancelled. By changing menu, any unconfirmed selection is lost.

"HOT" ICON When a cooking programme finishes or when the oven switches off, if the oven is still hot, the display shows the currenttime alternatingwith the message "HOT" at 3 intervals.

Wi-Fi Parameters & Product Information for Networked Equipment

Technology	Wi-Fi
Standard	IEEE 802.11b/g/n
Frequency Band(s) [MHz]	2412÷2484
Maximum Power [mW]	41.4

Product information for networked equipment
Power consumption of the product in networked standby if all wired network ports are connected and all wirelessnetwork ports are activated:	2,0 W
How to activate wireless networkport:	If thewifiiconis on or blinks the wifi module ison If the oven is already enrolled : press “Extra” on the timer display and select the Wi-Fi menu then press the “<” buttons, select On and press the select button. If the oven is not enrolled : follow procedure for enrolling
How to deactivate wireless networkport:	If the wifi icon is off the wifi moduleis off To switch off the wifi press “Extra” on the timer display and select the Wi-Fi menu then press the “<>”buttons, select Off and pressthe select button.

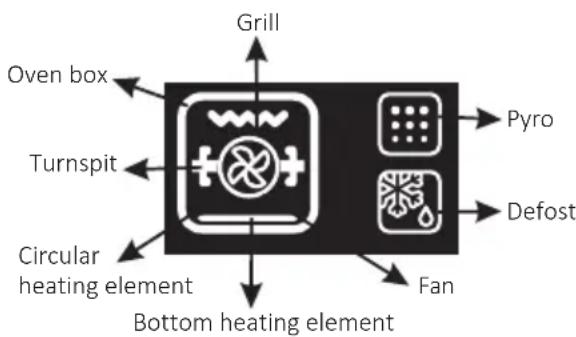

3.2 Cooking Modes

Function Dial	T°C default	T°C range	Function (Depends on the oven model)
			LAMP: Turns on the oven light.
	40	40 ÷ 40	DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts a few minutes without the proteincontent of the food being changed or altered.
	180	50 ÷ 240	MULTI-LEVEL: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells arenot mixed. Allow about ten minutes extra when cooking foods at the same time.
	210	50 ÷ 240
*	220	50 ÷ 280	CONVENTIONAL: Both top and bottomheating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing red meats, roast beef, leg of lamb, game, bread, foil wrapper food (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position.
	210	50 ÷ 230	BOTTOM HEATING + FAN: The bottom heating element is used with the fan circulating the air inside the oven. This method is ideal forjuicy fruit flans, tarts quiches and pâté. It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food. Place the shelf in the bottom position.
*	200 150 ÷ 220	The "COOK LIGHT" function allows you to cook in a healthier way, by reducing the amount of fat or oil required. Thanks to the use of the grill and fan combined with a pulsating cycle of air, it will retain the moisture content of the food, grilling the surface and using a shorter cooking time, without compromising on taste. It is particularly suitable for cooking meat, roasted vegetables and omelettes. The cycle of pulsed air keeps the humidity inside the oven and the moisture content of the food, preserving the nutritional values and ensuring a rapid uniform cooking process. Try all your recipes and reduce the amount of dressing you usually use and experiencechelightnessofthis new function!
	L3	L1 ÷ L5	GRILL: Use the grill with the door closed. The top heating element is used alone and you can adjustthe temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed for grills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneat. The oven has two grill positions: Grill: 2140 W Barbecue: 3340 W
	210	50 ÷ 230	BOTTOM HEATING: Using the lower element. Ideal for cooking all pastry based dishes. Use this for flans, quiches, tarts, pate and any cooking that needs more heatfrombelow.

*Tested in accordance with the EN 60350-1 for the purpose of energy consumption declaration and energy class.

4. Oven cleaning and maintenance

4.1 General notes on cleaning

The lifecycle of the appliance can be extended through regularcleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents (ammonia).

GLASS PARTS

It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water.

OVENWINDOW SEAL

If dirty, the seal can be cleaned with a slightlydampsponge.

ACCESSORIES

Clean accessories with a wet, soapy sponge before rinsing and drying them: avoid using abrasive detergents.

DRIP PAN

After using the grill, remove the pan from the oven. Pour the hot fatinto a container and wash the pan in hot water, using a sponge and washing-up liquid.

If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasheroruseacommercial ovendetergent.Neverputadirty pan back into the oven.

4.2 Maintenance

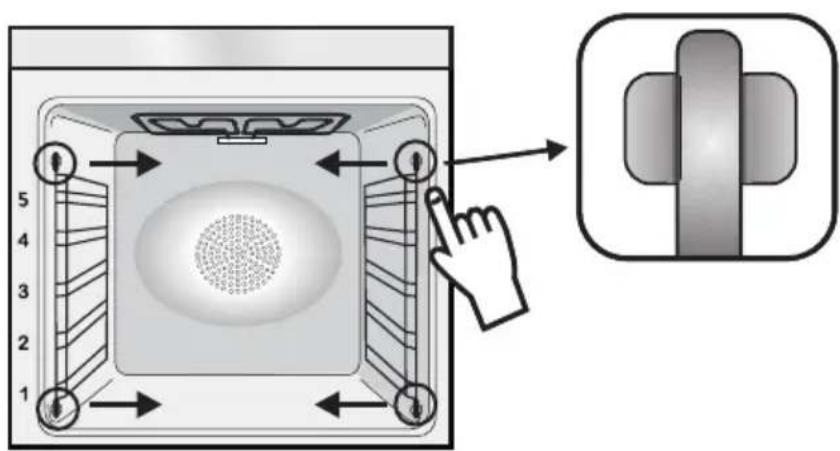

REMOVINGAND CLEANING WIRE RACKS

1. Remove the wire racksby pulling them in the direction of the arrows(see below)
2. To clean the wire racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the wire racksin reverse order.

REMOVALOF THE OVEN WINDOW

1. Open the front window.
2. Open the clamps of the hinge housing on the right and left side of the front window by pushing them downwards.
3. Replace the window by carrying out the procedure in reverse.

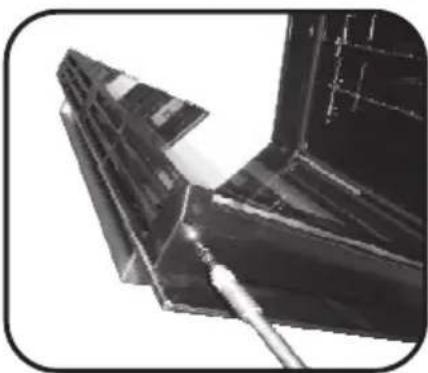

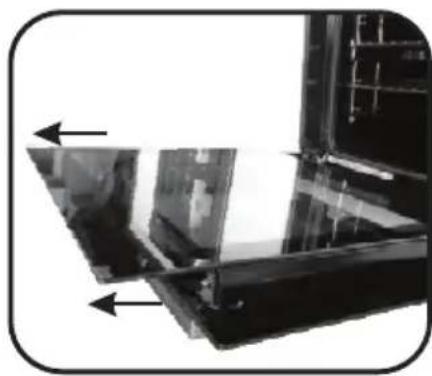

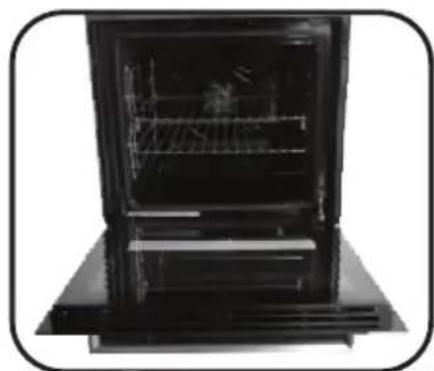

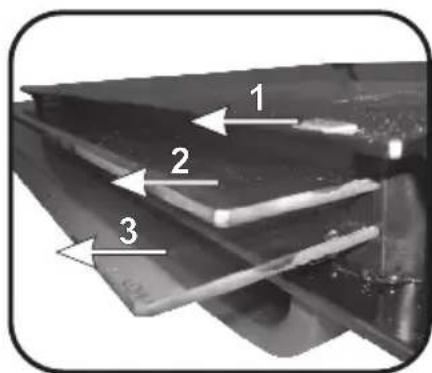

REMOVAL AND CLEANINGOFTHEGLASSDOOR

1. Open the overdoor.

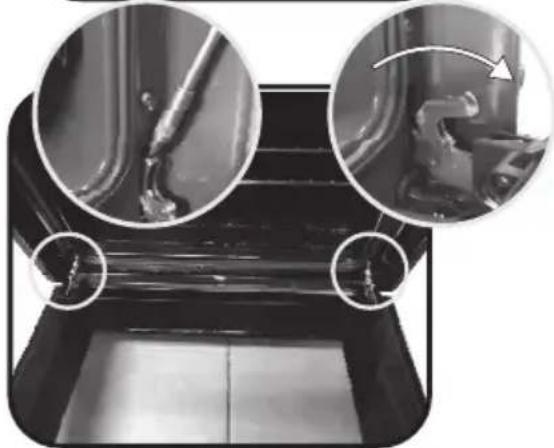

   2.3.4. Lock the hinges, remove the screws and remove the upper metalcoverbypullingitupwards.

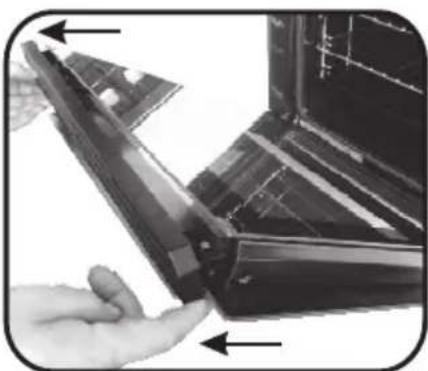

   5.6. Removethe glass, carefully extracting it from the oven door (NB: in pyrolyticovens, also remove the secondandthird glass (if present)).
2. Attheendofcleaningorsubstitution.reassemble the parts in reverse order.

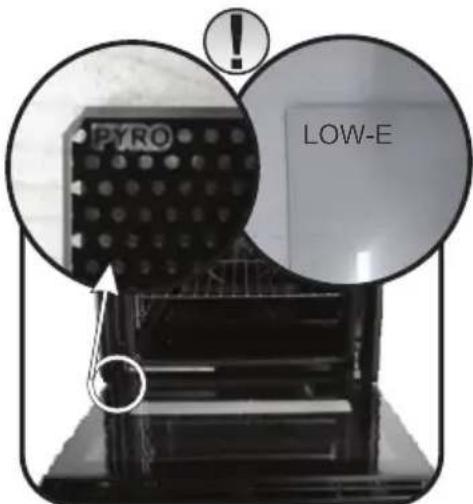

On all glass, the indication "Pyro" must be legible and positioned on the left side of the door, close to the left-handlateralhinge. In this way, the printed label of the first glass will be insidethedoor.

1.

5.

2.

6.

3.

7.

4.

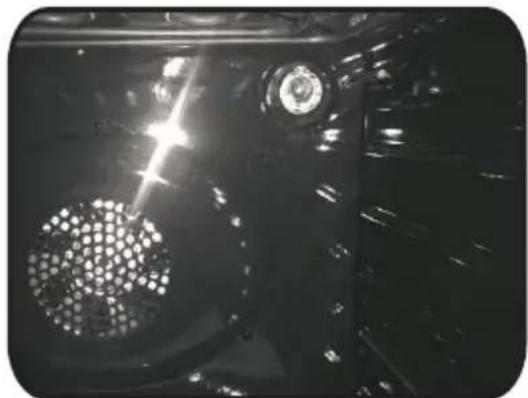

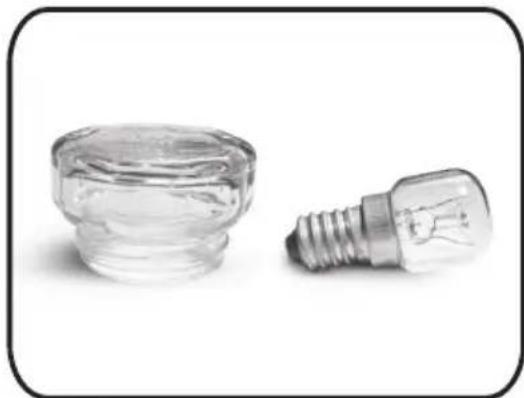

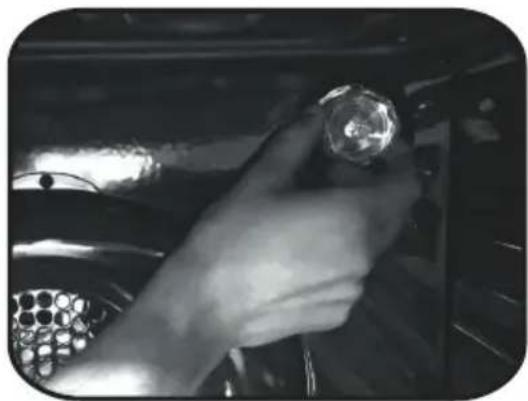

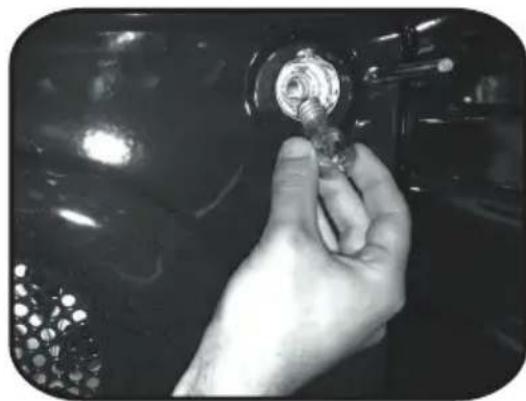

CHANGING THE BULB

1. Disconnecttheovenfromthemainssupply.
2. Undo the glass cover, unscrewthebulbandreplace it with a new bulb of the same type.
3. Once the defectivebulbisreplaced, replacetheglasscover.

5. Troubleshooting

5.1 FAQ

PROBLEM POSSIBLE CAUSE SOLUTION
The oven does not heat up	The clock is not set Set the	clock
The oven does not heat up	The child lock is on	Deactivate the child lock
The oven does not heat up	A cooking function and temperature has not been set	Ensure that the necessary settings are correct
No reaction of the touch user interface	Steam and condensation on the user interface panel	Clean with a microfiber cloth the user interface panel to remove the condensation layer

REEMPLACEMENTDE L'AMPOULE

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.
