Original Instructions

Wax Repair Set

Article No. 84 76 36

CE

Illustration of a person in camouflage gear using a tool to dig or walk through water, with a hat nearby (no text or symbols)

Dear Customers

Instruction manuals provide valuable hints for using your new device. They enable you using all functions, and they help you avoiding misunderstandings and preventing damage.

Please take the time to read this manual carefully and keep it for future reference.

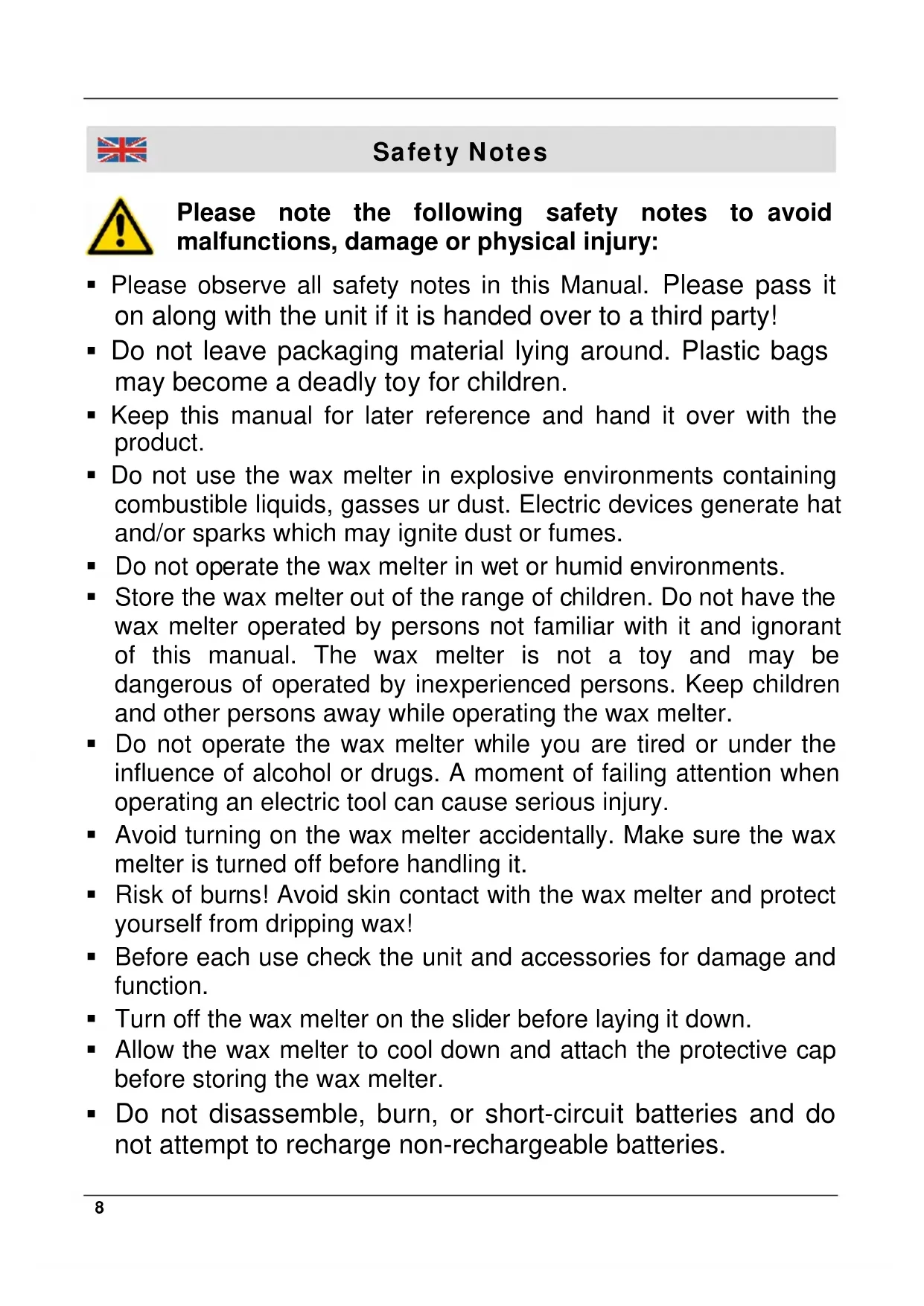

Please note the following safety notes to avoid malfunctions, damage or physical injury:

• Please observe all safety notes in this Manual. Please pass it on along with the unit if it is handed over to a third party!
• Do not leave packaging material lying around. Plastic bags may become a deadly toy for children.
• Keep this manual for later reference and hand it over with the product.
• Do not use the wax melter in explosive environments containing combustible liquids, gasses ur dust. Electric devices generate hat and/or sparks which may ignite dust or fumes.
• Do not operate the wax melter in wet or humid environments.
• Store the wax melter out of the range of children. Do not have the wax melter operated by persons not familiar with it and ignorant of this manual. The wax melter is not a toy and may be dangerous of operated by inexperienced persons. Keep children and other persons away while operating the wax melter.
• Do not operate the wax melter while you are tired or under the influence of alcohol or drugs. A moment of failing attention when operating an electric tool can cause serious injury.
• Avoid turning on the wax melter accidentally. Make sure the wax melter is turned off before handling it.
• Risk of burns! Avoid skin contact with the wax melter and protect yourself from dripping wax!
  ■ Before each use check the unit and accessories for damage and function.
• Turn off the wax melter on the slider before laying it down.
• Allow the wax melter to cool down and attach the protective cap before storing the wax melter.
• Do not disassemble, burn, or short-circuit batteries and do not attempt to recharge non-rechargeable batteries.

Safety Notes

• Do not use liquids, abrasives or solvents to clean the wax malter.
• Do not disassemble the unit or attempt to repair it yourself. It does not contain parts serviceable by you. In the case of questions or problems, turn to our customer support.

Operation

Intended Operation

The device is intended for repairing surfaces of laminate, cork, hardwood floors, wood, and plastic by melting a suitable wax.

Inserting the Batteries

Remove the battery compartment cover from the underside of the unit. Insert two batteries 1.5 V LR6 (AA) with correct polarity. Polarity symbols are on the unit.

If reaching the operating temperature requires more than 30 seconds the batteries should be replaced.

Included Items

1x Wax Melter with Protective Cap

2x Battery LR6/AA/1.5 V

1x Scraper

1x Flattening Tool

1x Abrasive Sponge for degreasing the Surface

1x Cleaning Cloth

11x Wax Sticks in different Colours

1x Manual

1x Hard Case

Preparations

Clean the damaged area with the scraper and remove all loose parts. If the edge of the damaged area is ragged, use the scraper to flatten it.

Colour Selection

Select the suitable colour wax sticks. Start with lighter colours and use the darker shades to adjust the colour. For genuine wood also use the opaque white wax to add depth to the mixture.

Operation

Melting

Remove the protective cap from the melting point. To switch on the wax melter push forward the entire switch assembly and then push the button on the slider. The tip will be heated while the button is pressed and held and the red LED lights up.

Always melt small amounts of wax from the sticks at a time.

Filling

Fill the damaged area in small steps until there is a slight excess of wax. Always work from lighter to darker colours.

For vertical surfaces it is advisable to mix the colour beforehand and apply it with the scraper.

Finishing

Allow the wax to solidify for 5 -7 seconds and carefully remove the excess with the flattening tool and the scraper. If necessary apply light pressure.

Use darker wax to imitate the grain of the wood. After that, again remove the excess with the flattening tool.

Finally, remove way residue with the abrasive sponge and adjust the shine to the rest of the work piece.

If necessary, repeat the procedure.

Cleaning, Maintenance and Service

The flattening tool can be cleaned with the serrated edge of the scraper. With the serrated edge, residual wax can be removed from the grooves.

Keep the wax melter dry and clean for safe and easy work.

Do not use liquids, abrasives or solvents for cleaning the wax melter. Either remove hot wax with the scraper and a paper towel or allow the wax to solidify and then carefully remove the cold wax.

Store the melter indoors in a place protected from dust, dirt and extreme temperatures out of the range of children.

Technical Data Wax Melter

Operating Voltage 3 V

Battery LR6 / AA / 1.5 V

Dimensions: approx. 15 x 3.7 x 2.5 cm

Weight 43 g (w/o Batteries)

declare by our own responsibility that the product

Wachs-Reparatur-Set

Wax-Repair-Set

Article No. 84 76 36

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

Symbol of a trash bin crossed with no text or labels

Werter Kunde,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled.

Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
