Wine Exclusive 180 Smart - Wine cellar CASO - Free user manual and instructions
Find the device manual for free Wine Exclusive 180 Smart CASO in PDF.
| Product type | Wine cellar |
| Brand | Caso |
| Model | Wine Exclusive 180 Smart |
| Capacity | 180 bottles |
| Dimensions (W x H x D) | 600 x 1900 x 740 mm |
| Weight | 97 kg |
| Power supply | 220-240 V ~ 50 Hz |
| Power | 75 W |
| Average daily consumption | 0.503 kWh/24h |
| Temperature range | 5 to 20 °C (adjustable) |
| Temperature zones | 2 independent zones |
| Integrated WiFi | Yes, IEEE 802.11 b/g/n, 2.4 GHz |
| Interior lighting | LED, automatic shut-off after 4 h |
| Number of shelves | 8 wooden shelves |
| Handle | Stainless steel, to be mounted |
| Adjustable feet | Yes (front) |
| Lockable door | Yes |
| Climate class | ST (ambient temperature 16-32 °C) |
| Defrosting | Manual (at least 2 times per year) |
| Refrigerant | Not specified (combustible) |
| Maintenance | Interior cleaning with warm water and mild detergent |
| Safety | Child lock, automatic light shut-off |
| Warranty | 24 months |
Frequently Asked Questions - Wine Exclusive 180 Smart CASO
User questions about Wine Exclusive 180 Smart CASO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wine cellar in PDF format for free! Find your manual Wine Exclusive 180 Smart - CASO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Wine Exclusive 180 Smart by CASO.
USER MANUAL Wine Exclusive 180 Smart CASO
Raiffeisenstraße 9
D-59757 Arnsberg
Service-Hotline International:
Tel.: +49 (0) 29 32 / 80 55 4 - 99
Fax: +49 (0) 29 32 / 80 55 4 - 77
eMail: kundenservice@caso-design.de
12.5.1 Wooden shelf with tipping equipment for presentation....32
12.6 Electrical connection 33
13 Design and Function....33
13.1 Complete overview....34
14 Operation and Handing....34
14.1 Operating elements and displays 34
14.2 WiFi control....35
14.3 Rating plate....35
15 Cleaning and Maintenance 35
15.1 Safety information....36
15.2 Cleaning 36
15.3 Moving the appliance....37
16 Troubleshooting....37
16.1 Safety notices....37
16.2 Fault indications and rectification of faults 37
17 Disposal of the Old Device 38
18 Guarantee....39
19 Technical Data....39


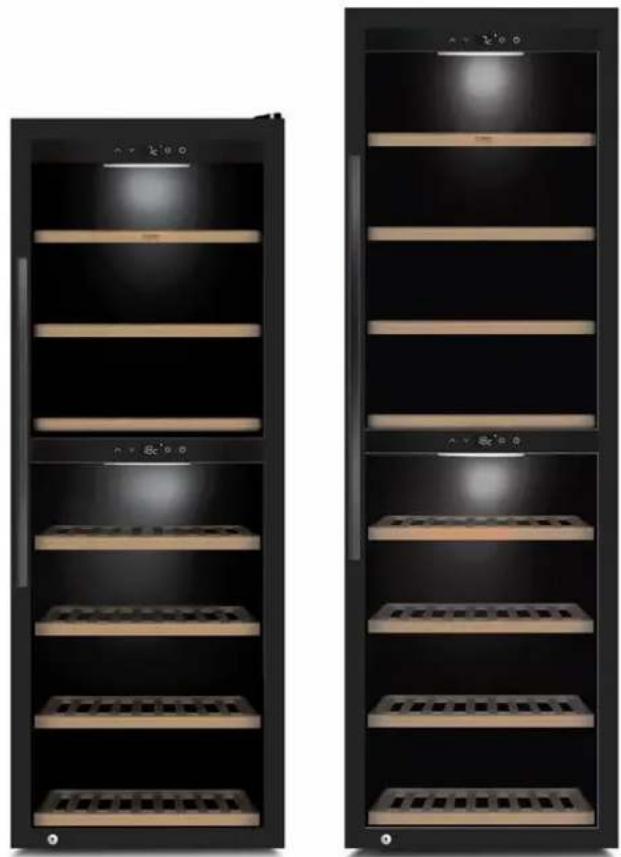

WineExclusive 126 Smart (729)
WineExclusive 180 Smart (731)


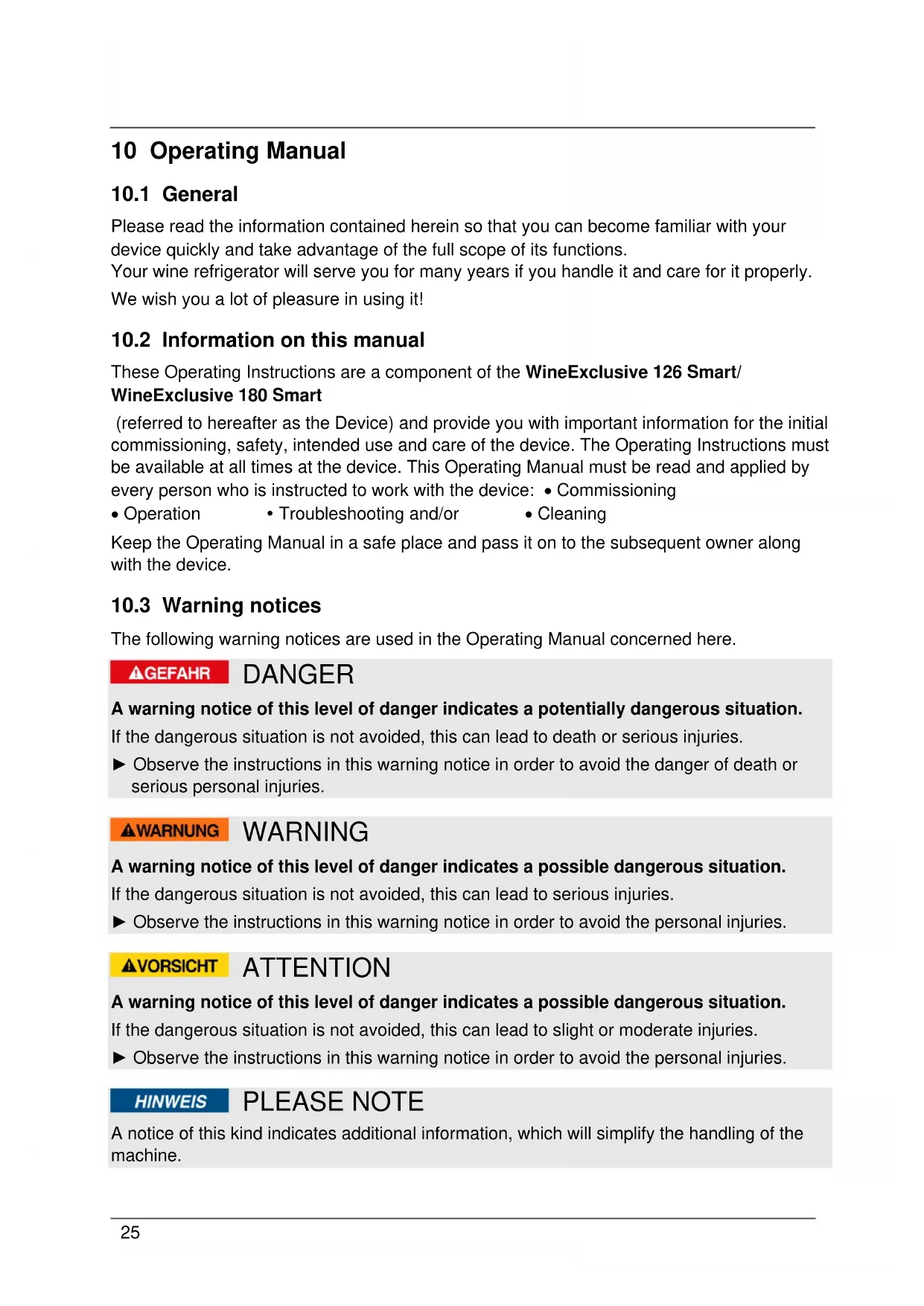

CE10 Operating Manual
10.1 General
Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your wine refrigerator will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!
10.2 Information on this manual
These Operating Instructions are a component of the WineExclusive 126 Smart/WineExclusive 180 Smart
(referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning
- Operation
- Troubleshooting and/or
- Cleaning
Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.
10.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
⚠GEFAHR
DANGER
A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
⚠️WARNUNG
WARNING
A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
▲VORSICHT
ATTENTION
A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
HINWEIS
PLEASE NOTE
A notice of this kind indicates additional information, which will simplify the handling of the machine.
10.4 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: • Non-observance of the manual • Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts
Modifications of the device are not recommended and are not covered by the guarantee.
All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
10.5 Copyright protection
This document is copyright protected.
Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.
10.6 EU declaration of conformity
Hereby, Braukmann GmbH, declares that the radio equipment type [729, 731] is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.caso-design.de/nc/service/dokumente-download/
11 Safety
This chapter provides you with important safety notices when handling the device.
The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
11.1 Intended use
This device is only intended for use in enclosed spaces for cooling wine and other beverages. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
▲WARNUNG WARNING
Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.
Claims of all kinds due to damages resulting from unintended uses are excluded.
The User bears the sole risk.
11.2 General Safety information
HINWEIS PLEASE NOTE
Please observe the following general safety notices with regard to the safe handling of the device.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
11.3 Sources of danger
11.3.1 Risk of fire / flammable materials used. Danger of burns or of explosion
⚠GEFAHR
DANGER
There is a danger of burns and explosion due to excess pressure that is created in the event the device is not used properly.
Observe the following safety notices to avoid dangers of burns or an an explosion:
Warning: Risk of fire / flammable materials used.
▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this device.
▶ Blowing gas inside the unit is flammable.
▶ Do not damage the cooling circuit of the device.
▶ Do not use electrical devices inside the device.
▶ Do not use mechanical devices or other means to accelerate the defrosting process.
▶ Never use the device to store or dry flammable materials.
▶ Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
▶ Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
11.3.2 Dangers due to electrical power
▲GEFAHR Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:
▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
12 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
12.1 Safety information
▲WARNUNG WARNING
▶ Packaging materials may not be used for playing. There is a danger of suffocation.
▶ Transport, unpack and use two persons to set down the device because of the heavy weight of the device.
12.2 Delivery scope and transport inspection
As a rule, the device is delivered with the following components:
- WineExclusive 126 Smart/ 180 Smart with WiFi equipment
- 7 wooden shelves (729) 8 wooden shelves (731)
- Operating Instructions with handle and screws
HINWEIS Please note
▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
12.3 Unpacking
To unpack the device, proceed as follows:
- Remove the device out of the carton and remove the packaging material.
- Your wine refrigerator should only be moved in an upright position.
- Clean the interior surface with lukewarm water using a soft cloth.
- After at least 24 hours, plugging the appliance into the wall outlet, than place wine bottles or beverages in the appliance.
HINWEIS
Please note
▶ Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations.
12.4 Disposal of the packaging
The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.
Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.
HINWEIS
Please note
▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.
12.5 Setup
12.5.1 Setup location requirements:
In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.
- Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
- This unit is not designed for use in a garage or any other outside installation.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
- The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 15 cm around the appliance.
- WARNING! Do not close the ventilation openings in the device housing.
-
The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
-
The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
- For energy saving reasons please ensure that the door is closed when the appliance is turned on.
12.5.2 Feet
There are different feet (3 bigger feet and 1 small foot).
To level your appliance, adjust the small foot at the bottom of the appliance.

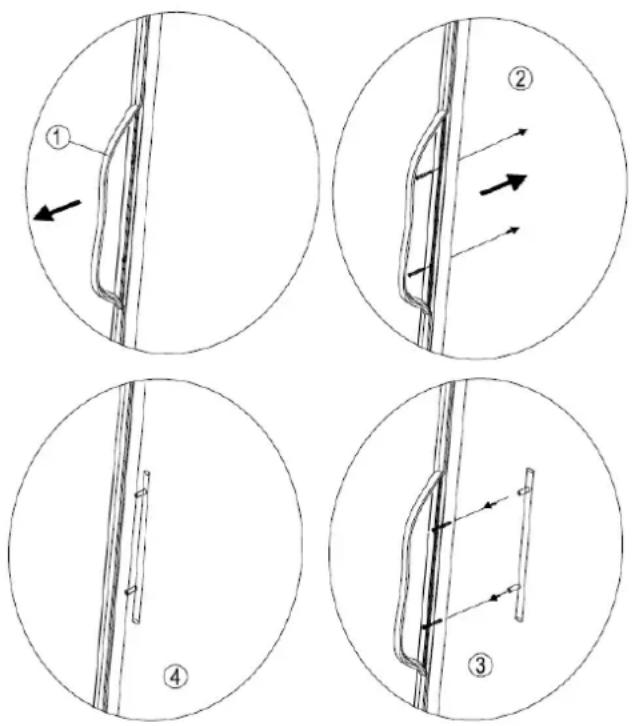

12.5.3 The handle installing
The wine cooler comes with one metal stainless steel handle. To install simply screw them to the door with the supplied screws.
To do this, slide the rubber seal on the back of the door to the side to lay open the predrilled holes. Use the included screws to install the handle on the door.
Then reinsert the rubber seal in the correct position.
12.5.4 Shelves
Storage depending on kind of bottle and size.
You can remove each shelf to store larger bottles.
Removal of shelves:
Remove all bottles from the shelves.
Removal of the fixed shelves:
Carefully pull out the shelf until this is no longer possible.
Look at the shelf rail from the side.
You see a lever. There are 2 positions
2 = up - release with pressure at point A down
Reach into the rail with one finger and change the position of the lever by pressing the lever. Hold this new position of the lever appropriately on both sides of the shelf and then pull out the shelf.
Installation of the shelves:
Put the shelf back into the rail and slowly push it in until it clicks into place.
HINWEIS
Please note
▶ Ensure that the shelves are firmly engaged in place before storing any bottles.
▶ Spread your bottles out as evenly as possible over the shelves.
12.5.1 Wooden shelf with tipping equipment for presentation

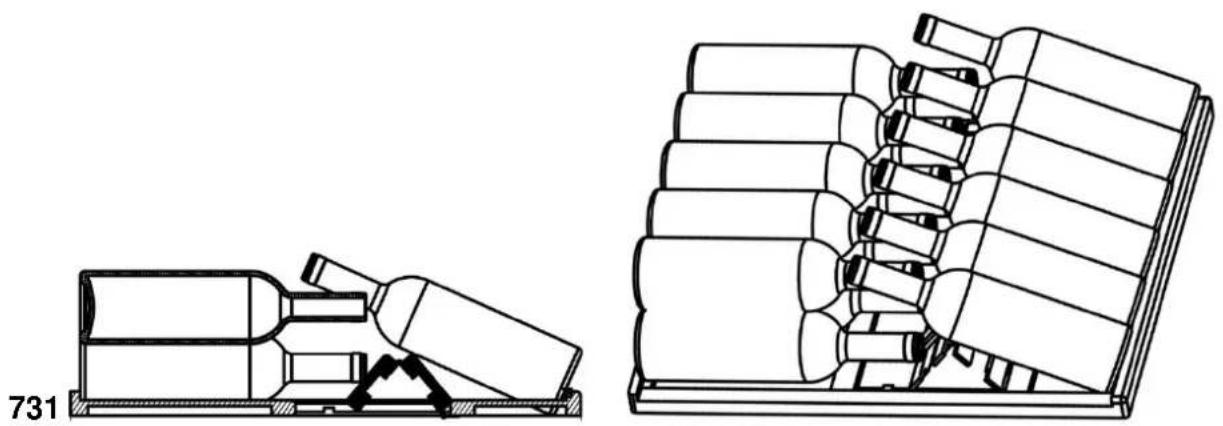

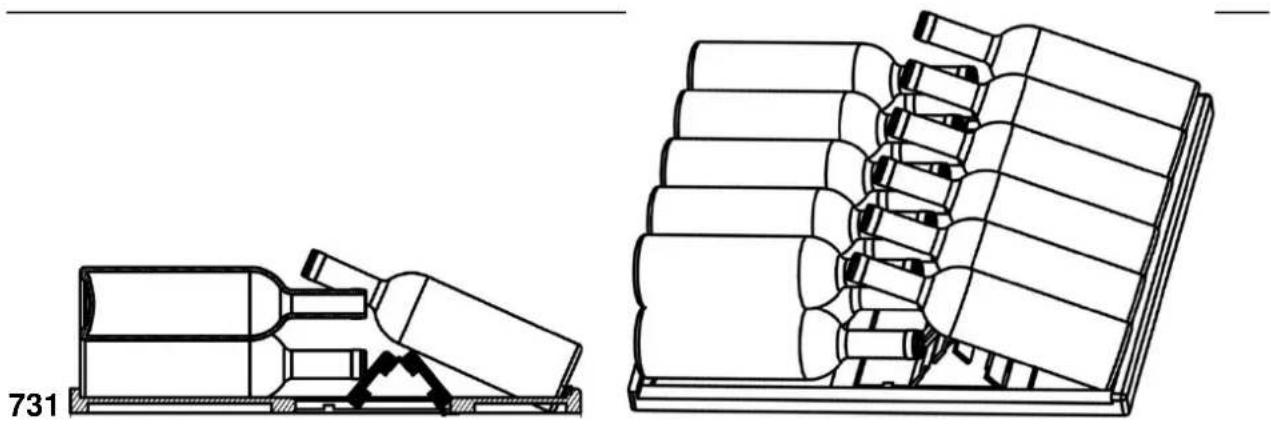

Example of storage: You can store or present Bordeaux bottles with a height of 30 cm and a diameter of 7.5 cm as follows:
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
- The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
- Make sure that the power cable is undamaged and has not been installed under or over hot or sharp surfaces.
- This unit is not designed to be installed in an RV or used with an inverter.
• The electrical outlet must be protected by a 16A safety cut-out switch. - The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.
The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
13 Design and Function
This chapter provides you with important safety notices on the design and function of the device.
13.1 Complete overview
WineExclusive 126 Smart
WineExclusive 180 Smart


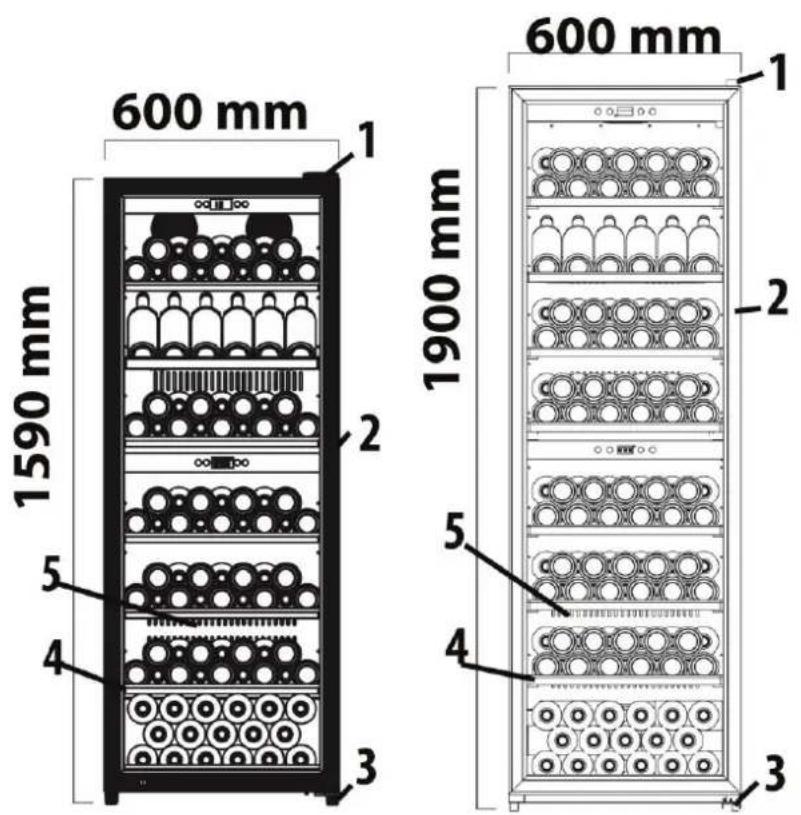

600 mm 1590 mm 1900 mm 600 mm 1 2 3 4 5 1 2 3 4 5(1) Up Hinge Cover
(2) Door Frame (lockable)
(3) Down Hinge (adjustable foot)
(4) Shelves 7 pcs (729) 8 pcs (731)
(5) Ventilation opening
14 Operation and Handing
This chapter provides you with important notices with regard to operating the device.
14.1 Operating elements and displays
HINWEIS
Please note
▶ Use the buttons 🚗 and ▼ to set the temperature for both zones in the range of 5-20°C.
▶ Temperature recommendations: Red wine: 12^ C – 16^ C and white wine 6^ C – 10^ C.
The device can achieve the best cooling and consumption results at a recommended ambient temperature of 16-20 °C.
HINWEIS
Please note
▶ When both - up and down zone - are working, the temperature of upper zone must be lower than or equal to the temperature of down zone.
▶ In case of high temperature difference between both zones the energy consumption of the device may be higher as indicated in the technical data.
If you press the power button of :
Upper zone -> the device is switched on
Down zone -> the down zone is switched on/off
When the LED lights the device is working.
With pushing both for and for and for and for and for and for and for and .
You can set the temperature as your desire: With you adjust the temperature by 1°C among 5-20°C.
You can tune the interior light on or off by pressing the "Light" button. The light will be off automatically after 4 hours to save energy.
The temperature in the device depends on the room temperature, the quantity of bottles and the chosen temperature. Please note that your device is intended to cool wine. The maximum temperature that can be reached inside the device cannot be significantly ABOVE the ambient temperature at the setup location.
14.2 WiFi control
The device can optionally also be controlled / programmed via app via WiFi. Download the CASO-App to your smartphone or tablet. Details about the app, the scope of operation and installation instructions can be found on our website www.casoapp.com/help
14.3 Rating plate
The rating plate with the connection and performance data can be founded on the back of the device.
15 Cleaning and Maintenance
This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.
15.1 Safety information
▲VORSICHT
Attention
Please observe the following safety notices, before you commence with cleaning the device:
▶ Prior to commissioning, clean the appliance thoroughly.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
▶ Switch the wine cabinet off prior to cleaning it and unplug the plug from the wall power outlet. Remove all content.
15.2 Cleaning
◆ Interior space
Wash the inside with a damp cloth soaked in lukewarm water and a bit of mild detergent.
Tip for neutralisation of odors: Wash the inside with a damp cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quarter of water. After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.
Door gasket
Be sure to keep the door gasket clean to keep the unit running efficiently.
Cabinet
The cabinet should be cleaned with a mild detergent and warm water.
Use a soft, damp cloth for drying.
◆ Vent opening
Dust or anything else may block the vent and hinder the cooling efficiency of the appliance. Vacuum the vent if necessary.
◆ Container for condensed water (K)
Remove regularly the condensed water with a sponge from the container for condensed water. The container is located on the back side of the device at the right bottom.
Please defrost the device at least every 6 months. When you open the door of the device frequently, you need to perform the defrosting more often. Turn off the power but do not unplug the power plug. Let the appliance then defrost manually. Pay attention to the container for condensed water(K) and remove the condensed water during the defrosting.
15.3 Moving the appliance
Turn off the appliance first and then unplug the unit from the wall outlet.
Remove all content. Shurely tape down all lose items inside your appliance.
Tape doors shut. Be sure the wine refrigerator stays in the upright position during transportation.
16 Troubleshooting
This chapter provides you with important notices with regard to operating the device.
Observe the following notices to avoid dangers and damages:
16.1 Safety notices
▲VORSICHT Attention
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.
16.2 Fault indications and rectification of faults
The following table assists in localizing and rectifying minor faults.
| Fault | Possible Cause |
| Your device is not cold enough or it does not reach the adjusted temperature: | Check the temperature control setting.External environment may require a higher setting.The door is open too often. The door is not closed completely.The door seal does not seal properly. Defrost the device. |
| The light does not work. | Contact customer service. |
| Vibrations & too much noise & door does not close properly | Check to assure that the wine refrigerator is level. Check the fan. Components are loose. Device touches the wall. The door is reversed and not properly installed.The seal is weak. The shelves are out of position. |
| LED could not display.LED display error – LoButtons are not functional | Contact customer service. |
| Compressor will not start | Room temperature is lower than desired temperature. |
| Dew on the surface of cabinet | The surface of wine cabinet especially the glass door appear some frost if item in a damp room. This is due to the moisture in the air coming into contact with the cabinet. Please wipe it away with dry cloth. |
| Liquid sound | (1) The sound of compressor when starts or stops working(2) The flowing sound of refrigerant in the refrigeration system(3) The evaporating sound of refrigerant in the evaporator |
| Condensation formed inside the cabinet | Under the environment with high level of humidity or the door of wine cabinet has been left open for a long period or opened frequently, wipe off the door and walls. Open the door as rarely as possible. |
| Error code E2 | Desired temperature is not reached.If necessary defrost the device (Please follow the hints for manual defrosting in chapter cleaning). |
| Error code CE1 | WiFi connection established, but no connection to the internet |
| Error code CE2 | DNS Error – Route to Cloud not found |
| Error code CE3 | CASO Cloud Server not reachable |
| Error code CE4 | WiFi not found, possible reason signal too weak |
| Error code CE5 | Update Server not reachable |
HINWEIS
Please note
▶ If you are unable to solve the problem with the steps shown above, please contact customer service.
17 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.
If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.
HINWEIS
Please note
▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Blowing gas inside the unit is flammable. The disposal of this flammable material should be in accordance with national regulations.
▶ Ensure that your old device is stored safely away from children until it is taken away: Before you throw away your old refrigerator take off the doors and leave the shelves in place, so that children may not easily climb inside.
18 Guarantee
We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in commercial situations and has the appropriate performance levels. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
19 Technical Data
| Name | WineExclusive 126 Smart | WineExclusive 180 Smart |
| Item No.: | 729 | 731 |
| Power | 75W | 75W |
| Average daily energy consumption | 0.493kW.h/24h | 0.503kW.h/24h |
| Daily energy consumption at 16 °C ambient temperature | 0.220kW.h/24h | 0.178kW.h/24h |
| Daily energy consumption at 32 °C ambient temperature | 0.766kW.h/24h | 0.828kW.h24h |
| Connection | 220V~240V/50Hz | 220V~240V/50Hz |
| External measurements (W x H x D): | 600 x 1590 x 685 mm | 600 x 1900 x 740 mm |
| Capacity | 126 bottles | 180 bottles |
| Weight: | 84,55 kg | 97 kg |
| WLAN / WIFI | IEEE 802.11 b/g/n | IEEE 802.11 b/g/n |
| Frequency band | 2.4 - 2.4835 GHz | 2.4 - 2.4835 GHz |
| Climate class | ST | ST |
20.1 Généralités
Two black double-chip refrigerator units with wooden shelves and ambient lighting, shown from different angles (no text or symbols visible)
Interior view of an appliance showing a black box with internal components and wiring, no visible text or symbols.natural_image
Black double-chip refrigerator with multiple shelves and a side panel, no visible text or symbols on the shelves themselves.
▲WARNUNG WAARSCHUWING

