BUILT-IN REFRIGERATOR FULL HEIGHT DOOR PANEL KIT

INTRODUCTION SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER"

or WARNING." These words mean:

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't immediately follow instructions.

INTRODUCTION TABLE OF CONTENTS

INTRODUCTION

Safety 3
Registering Your Product 4
Product Identification 4

SITE PREPARATION

Before Installation. 5
Tools and Parts Required 5
Tools and Parts Provided 5
Parts Supplied with Refrigerator 6
Installation Requirements. 7
Plan the Installation 7
Opening Requirements. 7
Cabinet and Panel Installation Options.....7
Cabinet Cutout Options 8
Airflow and Venting Recommendations 8
Panel Dimensions. 9
Secondary Anti-Tip Board. 10

INSTALLATION

Installing Grille Bracket Assembly. 1
Installing Air Divider. 12
Installing Grille Panel 13
Removing Film from Panels 1
Installing Freezer Panel 1
Installing Door Panel(s) 16
Moving Refrigerator to Final Position. 18
Adjusting Door Swing. 19
Adjusting Freezer Panel. 20
Adjusting Refrigerator Panel(s) 21
Attaching Panel(s). 23
Completing the Installation. 25

TABLE DES MATIÈRES. 27

INTRODUCTION | 3

INTRODUCTION REGISTRATION

REGISTERING YOUR PRODUCT

Gain access to our concierge-level Customer Support by registering your appliance. We make product registration simple and straightforward so that you can start using your exclusive JennAir benefits today.

Registering your appliance allows you to:

Streamline your warranty service

If we have your product information, we can help you faster.

Protect your purchase

In case of an insurance loss, such as fire, flood, or theft, your product registration could serve as a proof of purchase.

Keep your family safe

We'll notify you in the rare case of a safety notification.

Start taking advantage of these benefits today by going on-line to register your product at jennair.com/customer-care. In Canada, register your product at jennair.ca.

PRODUCT IDENTIFICATION

Your product identification, which includes the model and serial numbers, is listed on the product rating plate.

Recording this information below allows us to more easily assist you if your product should ever require service from one of our JennAir Authorized Service Providers.

Model Number:

Serial Number:

Date of Installation:

Authorized Dealer:

Authorized Dealer Phone #:

SITE PREPARATION BEFORE INSTALLATION

IMPORTANT:

These instructions are intended as a general guide only and do not supersede any national or local codes in any way. Compliance with all local, state, or national codes pertaining to this type of installation should be determined prior to installation.
These instructions are intended to supplement the Installation Instructions provided with your refrigerator, not replace them. Follow the instructions provided with the refrigerator to install it into the cabinet.

NOTE: The hardware bag contains all the parts and fasteners needed to install panels. Most of these components have been pre-installed on the panels included in this kit. A hardware bag is shipped with the refrigerator. You will find the hardware bag in either one of the crisper drawers or attached to the outside of one of the refrigerator doors.

CAUTION

Pinch Hazard

Installation of door panels with less than a 3 % (0.95 cm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching.

TOOLS AND PARTS REQUIRED

Assemble the required tools and parts before starting installation. Read and follow the instructions provided with any of the required tools listed here. Proper installation is your responsibility.

Tools Required:

Cordless drill and drill bits
3/8* and 1/2" Open-end wrenches or two adjustable wrenches
Phillips screwdriver
Small level
Appliance dolly

3/32", 5/32", and 3/16" Hex keys

1/4" and 5/16" Nut drivers
6 Extension nut drivers
Tape measure

TOOLS AND PARTS PROVIDED

Parts Supplied with Panel Kit:

Exterior door panels with handles and mounting hardware pre-installed.

Instructions

Grille Panel Grille bracket assembly

Foam air divider

Parts Supplied with Refrigerator (Needed to Install Panel Kit):

Phillips-head flat screw Black:8281252

Slotted hex-head screw W10141645

Door stop pin

W10234202

SITE PREPARATION | 5

SITE PREPARATION BEFORE INSTALLATION (CONTD.)

PARTS SUPPLIED WITH REFRIGERATOR

The following parts are either not needed to install the panels in this kit, or they are already installed on the panels. These parts can be discarded after the installation is completed:

Panel top bracket Black, W10667450

"L" brackets W10234199

Standard grille bracket W10182743 (left) W10172741 (right)

Integrated grille bracket W10260890 (left) W10260891 (right)

Hex-head pointed screw W10141189

Hex-head blunt screw W10142233

Round-head screw 1163283

Shoulder washer W10471946

Freezer panel brackets W10606815

SITE PREPARATION INSTALLATION REQUIREMENTS

PLAN THE INSTALLATION

IMPORTANT:

Plan your installation using these instructions in conjunction with the Installation Instructions provided with the refrigerator. Modifications must be made to the refrigerator to accommodate the full height door panels.

Required parts

One of the following built-in refrigerator models:
42 Side-by-Side: JS42NFXDE
48 Side-by-Side: JS48NFXDE
36 Bottom Mount: JB36NXFXLE, JB36NXFXRE
36 French Door Bottom Mount: JF36NXFXDE
42* French Door Bottom Mount: JF42NXFXDE

• Steel Panels with handles and Accessory Full Height Door Panel Kit (which includes Grillie Panel and Grille Bracket Assembly).

OPENING REQUIREMENTS

IMPORTANT:

The width of the opening, from side to side, must be as specified for your model, for at least 3'' (7.62 cm) back from the face of the cabinet. If your opening does not meet this requirement, you will need to make modifications.
The depth of the opening from the front of the cabinet to the back wall must be 25^ (63.5 cm) minimum to achieve a flush installation.

CABINET AND PANEL INSTALLATION OPTIONS

Cabinet Depth - 25" (63.5 cm)

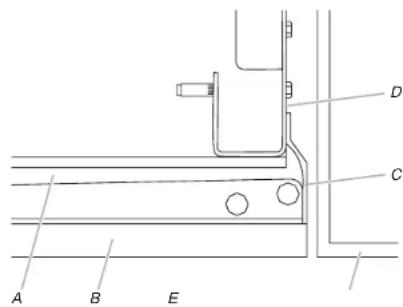

Grille Bracket - Top View

A. Refrigerator door
B. Full height door panel
C. Side trim

D. Grille bracket
E. Adjacent cabinet

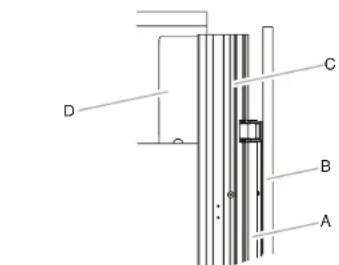

Grille Bracket - Side View

A. Refrigerator door
B. Full height door panel

C. Side trim
D. Grille bracket

SITE PREPARATION CABINET CUTOUT OPTIONS

AIRFLOW VENTING RECOMMENDATIONS

IMPORTANT:

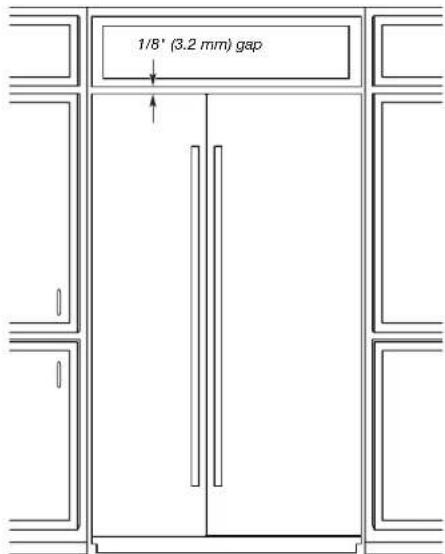

Full height door style installations recommends a minimum of 1 / 8" (3.2 mm) of open space above the refrigerator. It is recommended that this space not be blocked in any way, including soffits.
Models may be installed using either Option 1, Option 2 or option 3.

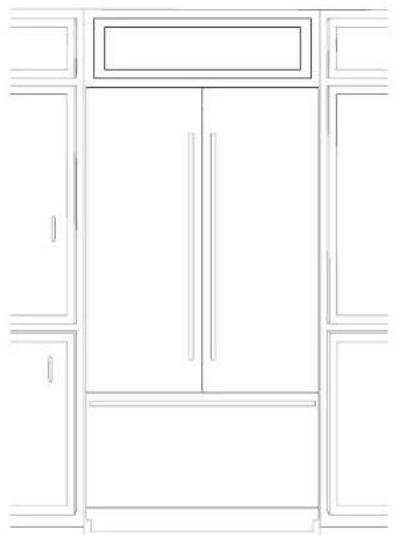

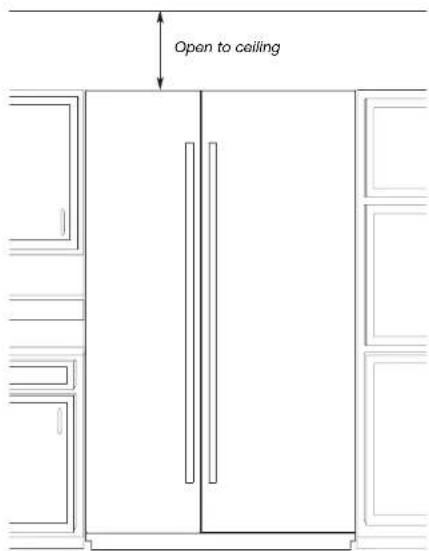

Option 1 - Open to Ceiling

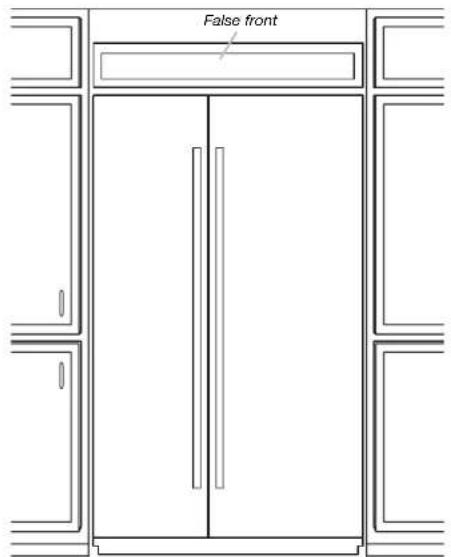

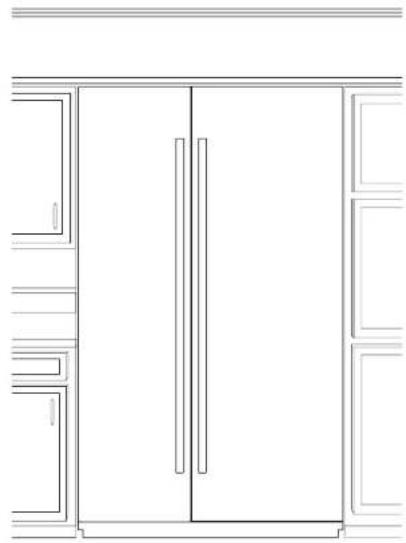

Option 2 - False Front (cabinet face only) Option 3 - Closed Soffit

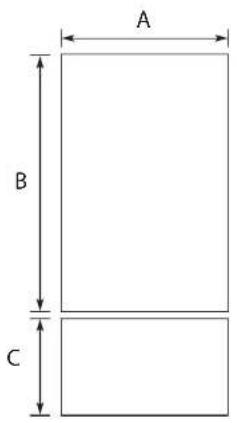

SITE PREPARATION PANEL DIMENSIONS

BOTTOM MOUNT MODEL

FRENCH DOOR BOTTOM MOUNT MODELS

SIDE BY SIDE MODELS

Maximum possible panel weight: 46 lbs (20.9 kg)

Maximum possible panel weight: 34 lbs (15.5 kg)

Maximum possible panel weight: 48 lbs (21.7 kg)

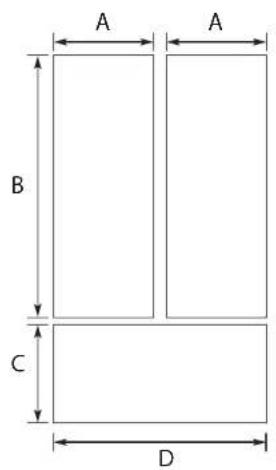

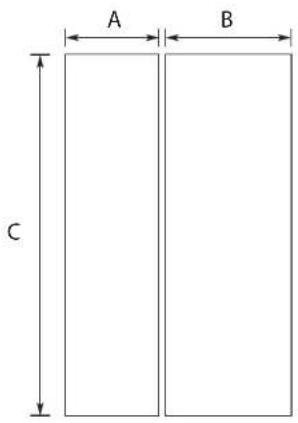

Legend Model Dimension
A 36*35	\( ^{3/4} \) " (90.61 cm)
B 36*59	\( ^{1/6} \) " (150.2 cm)
C 36*20	\( ^{1/2} \) " (52.07 cm)

Legend Model Dimension
A	36"	173/4" (45.09 cm)
B 59		1/8"(150.2 cm)
C 20		1/2" (52.07 cm)
D 35		3/4" (90.61 cm)
A	42"	203/4" (52.71 cm)
B 59		1/8" (150.2 cm)
C 20		1/2" (52.07 cm)
D 41		3/4" (105.85 cm)

Legend Model Dimension
A	42"	17°/4" (45.14 cm)
B 23		3/4" (60.38 cm)
C 81" (205.7 cm)
A	48"	20°/4" (51.49 cm)
B 27		1/4" (69.27 cm)
C 81" (205.7 cm)

SITE PREPARATION SECONDARY ANTI-TIP BOARD

AWARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Install secondary anti-tip board to ensure product stability.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

The main anti-tip boards for open to ceiling installation are secured at 84^ (213.36 cm) from the floor (rear side).
During panel installation, raise the refrigerator up until the top of the refrigerator is making contact with the bottom of the secondary anti-tip board.

INSTALLING THE SECONDARY ANTI-TIP BOARD

1. Mark the stud locations on right hand side cabinet wall.

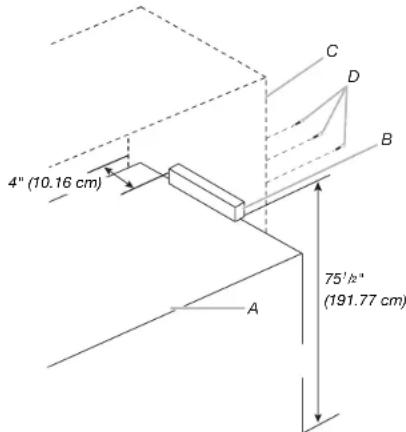

2. Securely attach one 2^ × 4^ × 12^ (5 cm x 10 cm x 30.4 cm) board to the cabinet on right hand side cabinet using wood screws. Use three #8 x 2" (5.08 cm) (or longer) wood screws.

NOTE:

It is recommended to drive the wood screws from cabinet wall into the secondary anti-tip board as shown in the illustration.
The board must have overlap of 1" (2.54) with the refrigerator top.
Leave 4^ (10.16 cm) free space at rear as shown in the illustration.

IMPORTANT:

For all full height door panel installations, the secondary anti-tip board is required to be installed prior to door panel installation.
This anti-tip board is to be secured on the right side of the cabinet enclosure as per the dimensions shown in illustration.

NOTE: Anti-tip board is required as an addition to the rear wall anti-tip board (for open to ceiling installation) described in the installation instructions provided with the refrigerator.

• Secure the secondary anti-tip board so that the bottom surface of the secondary anti-tip board is 75^ / 2^ (191.77 cm) from the floor (right hand side).

A. Refrigerator

B. Secondary anti-tip board

C. Kitchen cabinet
D.Wood screws

INSTALLATION

INSTALLING GRILLE BRACKET ASSEMBLY

APPLIES TO:

AWARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

NOTE: If refrigerator is not on rollers, it is recommended to lower the product to have more access at the top of product for panel installation. For ease of grille installation, it is recommended to have product outside of kitchen cabinet not more than 8^ (20.32 cm).

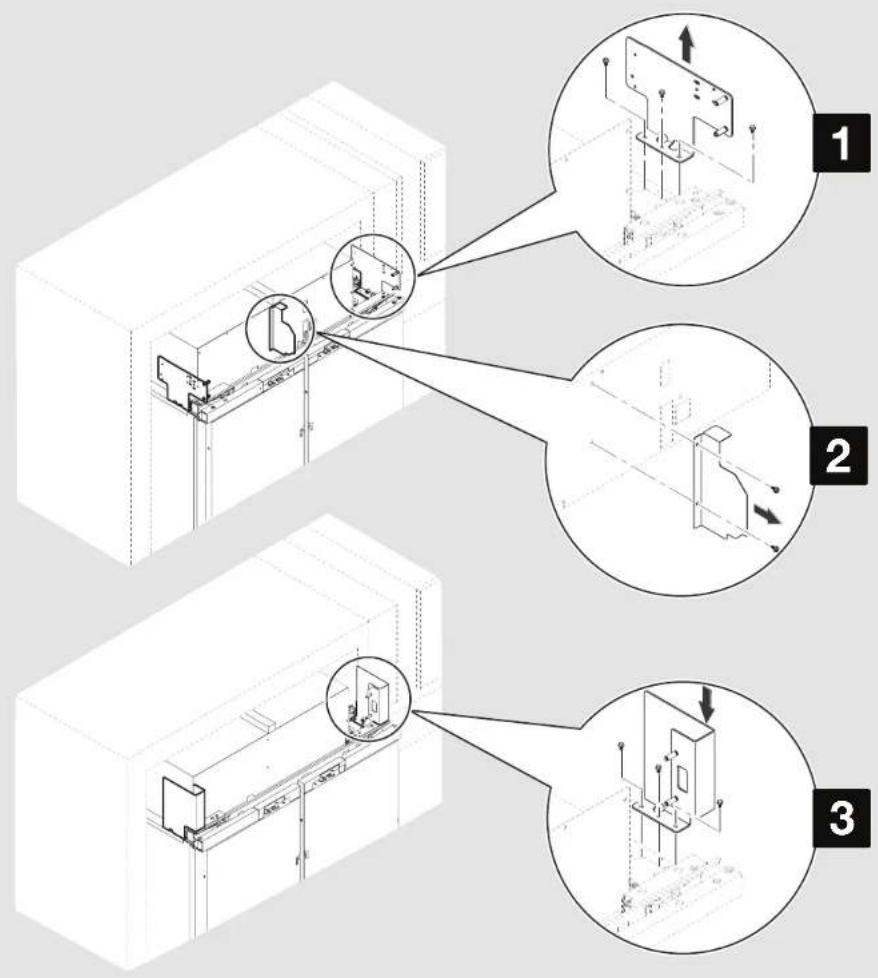

1. Remove the three screws fastening each mounting plate to the top of the refrigerator on each side. Discard the mounting plates but keep the screws for attaching the two grille bracket assemblies provided in this kit.
2. Remove the two screws fastening the air divider to the unit housing. Discard the air divider, and reinstall the screws into the holes from where they were removed.
3. Align the three holes in a grille bracket assembly with the three holes in a cabinet side, as shown. Using the screws removed in Step 1, attach the grille bracket assembly.
4. Repeat step 3 to install the other grille bracket assembly to the opposite side of the refrigerator.

IMPORTANT: Installing the full height door panels before removing both existing factory installed grille brackets can damage the panels.

Parts to be used:

X2 Grille bracket assembly

INSTALLATION | 11

INSTALLATION

INSTALLING AIR DIVIDER

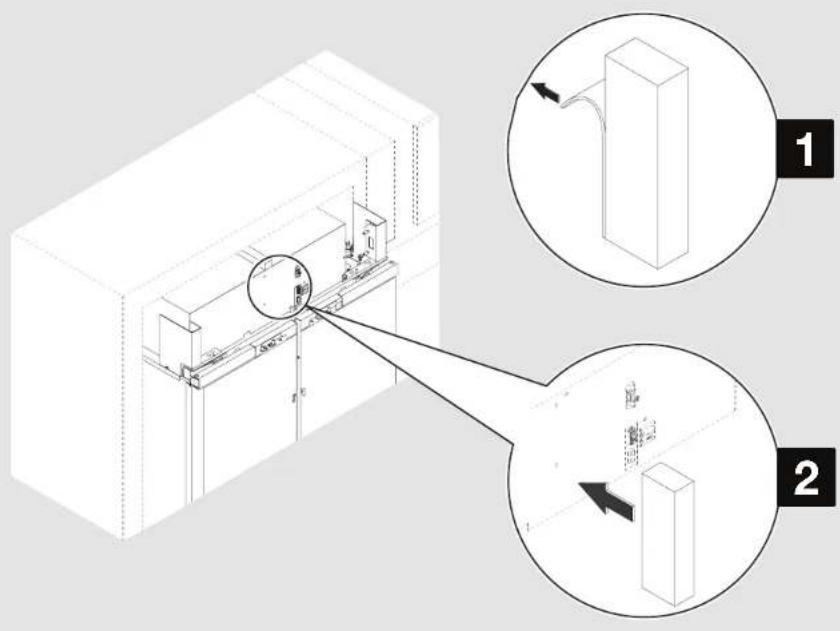

Align the base of foam air divider with base of unit housing!

APPLIES TO:

1. Peel away the paper layer from the foam air divider to reveal the adhesive side.
2. Stick the foam air divider to unit housing at the location where metallic air divider was installed earlier by applying even pressure.

Parts to be used:
	X1 Foam air divider

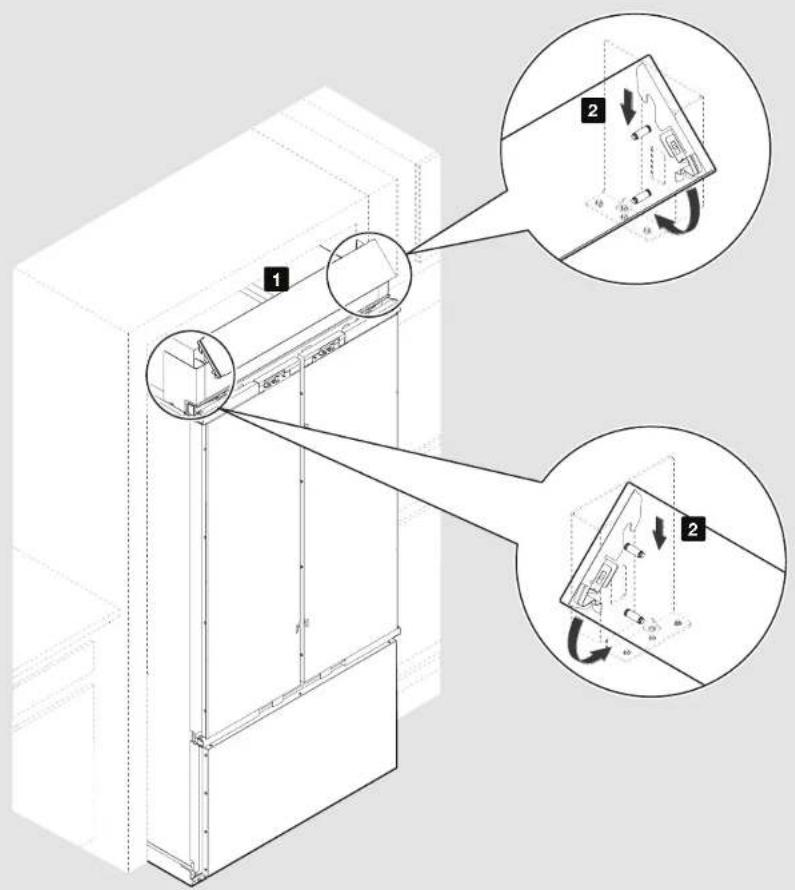

INSTALLATION INSTALLING GRILLE PANEL

1. Position the grille panel between the grille brackets on each side of the cabinet.
2. Hook the top of grille onto the upper rivet pins. Rotate downward and push the bottom of the grille panel in until the grille panel snaps into place.

NOTE: For grille panel removal, push the top of grille panel inward until the lower portion snaps out. Rotate and lift off the grille panel.

Parts to be used:
	X1 Grille panel

INSTALLATION REMOVING FILM FROM PANELS

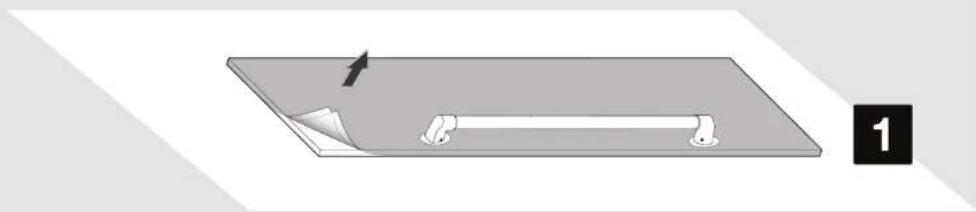

1. Peel off the film covering on all the door / drawer panels completely.

NOTE: Gently handle the panels after film is removed to avoid the panels from external damages such as scratches.

INSTALLATION INSTALLING FREEZER PANEL

FOR SIDE BY SIDE MODELS -SKIP THIS STEP!

APPLIES TO:

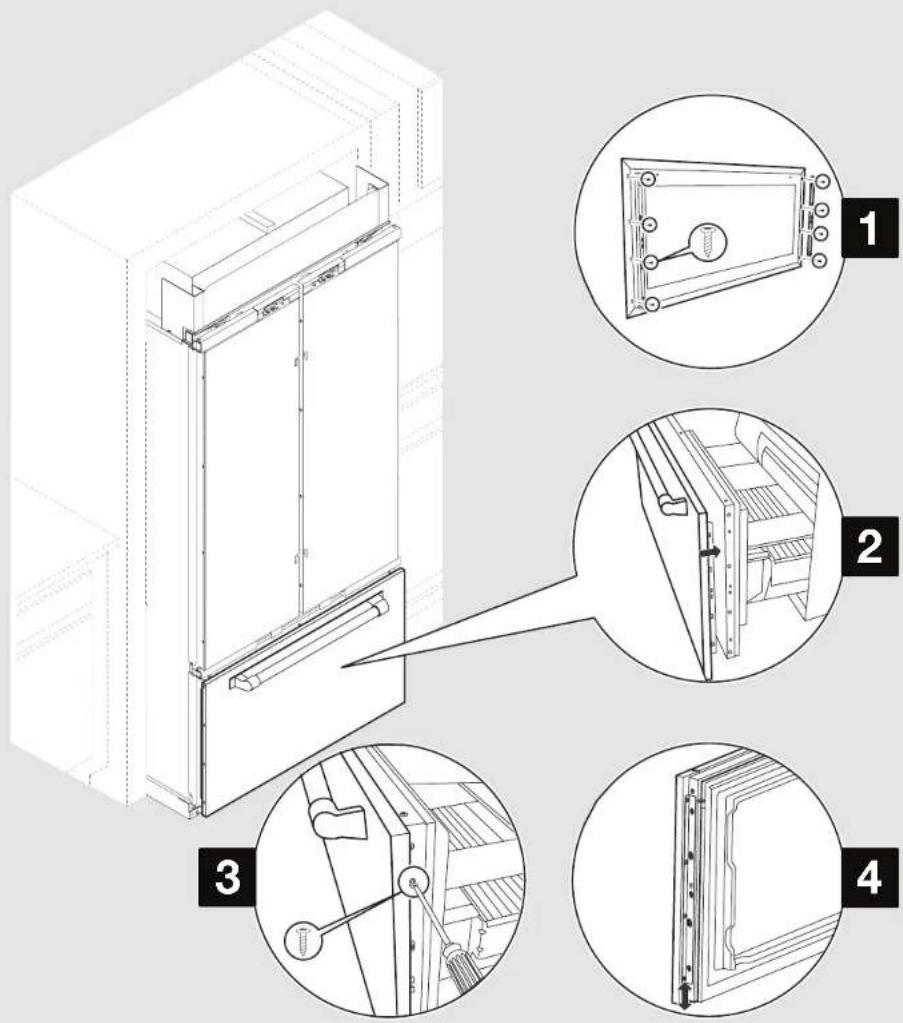

1. Slightly loosen the bracket screws present on freezer panel.
   NOTE: Be sure that the refrigerator door(s) are tightly closed.
2. Slide panel onto drawer. Retighten the four screws on each side attaching the bracket to the drawer panel.
3. Using the Phillips-head flat screws, fasten the panel brackets to the drawer.
4. To allow for later adjustment of the panel, do not fully tighten the screws attaching the bracket to the drawer.

IMPORTANT: When you have completed installing all the panels, check for alignment. The drawer panel will move up or down to align. Completely tighten the screws only when panels are fully aligned.

Parts to be used:

X6 Phillips-head screws

INSTALLATION

INSTALLING DOOR PANEL(S)

APPLIES TO:

AWARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Install secondary anti-tip board to ensure product stability.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

NOTE:

• Be sure that secondary anti-tip board is installed before opening the door. Refer "INSTALLING THE SECONDARY ANTI-TIP BOARD" section to install the secondary anti-tip board.
  For panel installation, it is recommended to have product outside of kitchen cabinet not more than 8^ (20.32 cm).

• Raise the refrigerator until the top of the refrigerator touches the bottom of secondary anti-tip board.
  Open only one door at a time.

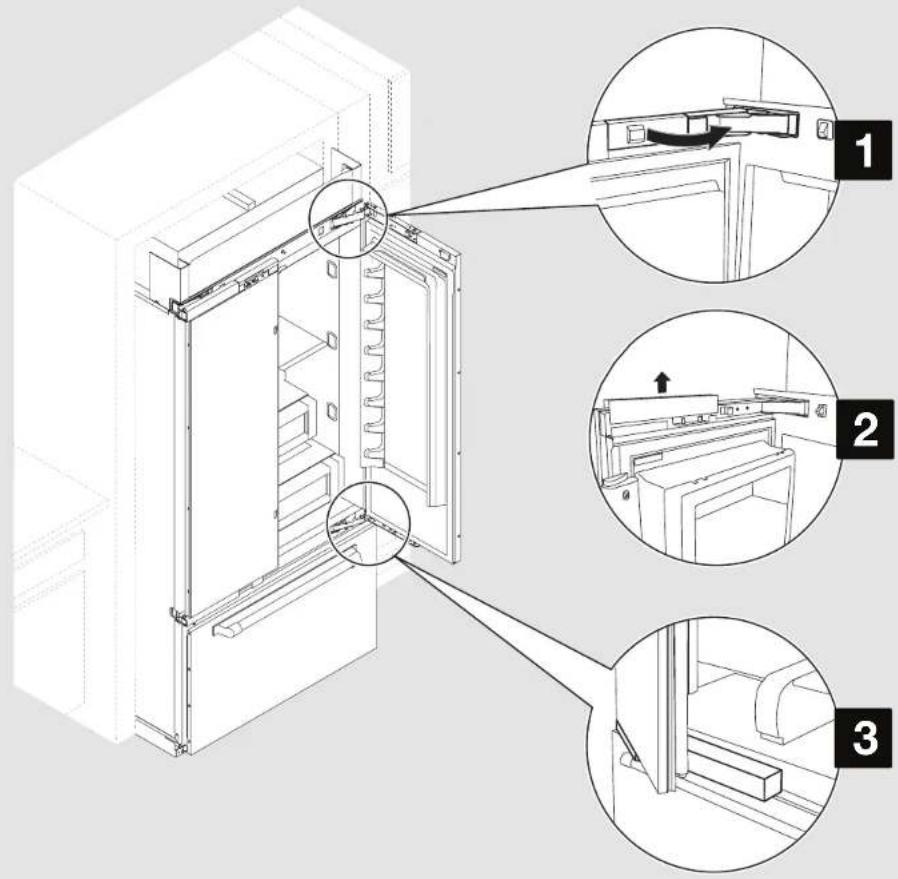

• Open the door(s) and remove the hinge cover(s). NOTE: French door and bottom mount models have bottom hinge cover(s) that also must be removed.

• Take out the door adjustment pin cover(s) to expose the adjustment pins.
• Use foam packaging to prop and hold the door open while installing a door panel.

INSTALLATION

INSTALLING DOOR PANEL(S) (CONTD.)

AWARNING

Excessive Weight Hazard

Use two or more people to move and install panels.

Failure to do so can result in back or other injury.

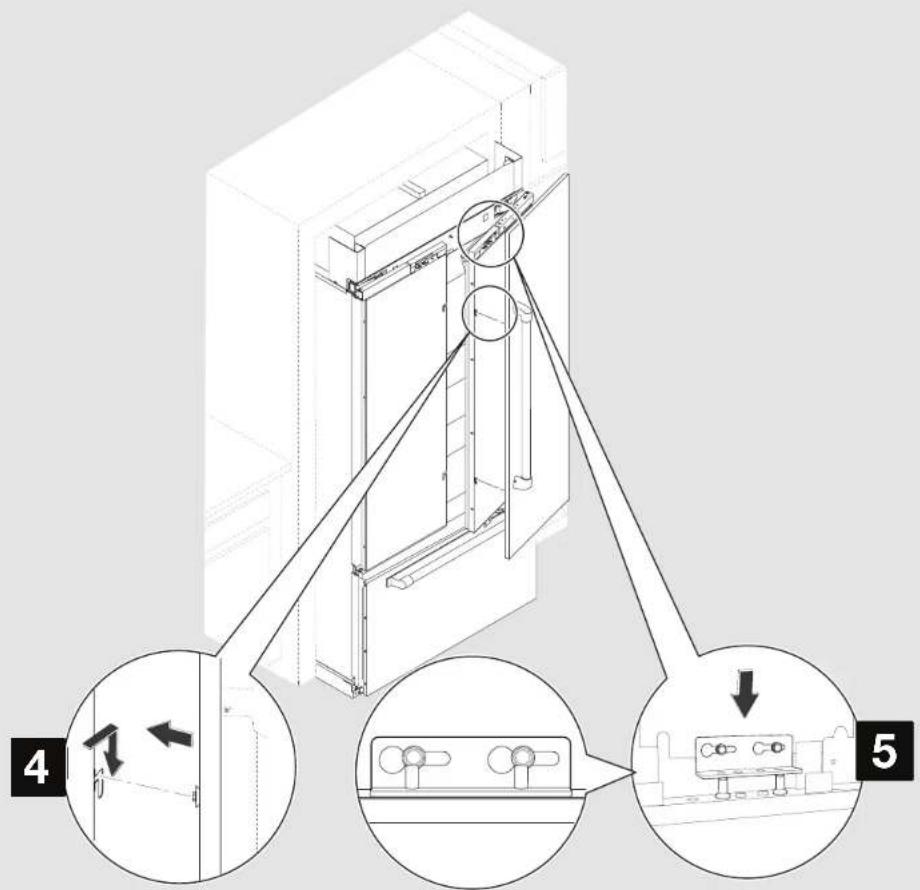

1. Align the two shoulder washers, on the back of the door panel, with the "J" slots on the side of the refrigerator door.
2. Simultaneously slide the panel onto the door, and lower the panel bracket down onto the adjustment pins at the top of the door.

NOTE:

• On French door and side by side models, repeat steps 2 through 5 to install the second door panel.
  After panel(s) are installed properly, lower the refrigerator onto the rollers.

INSTALLATION

MOVING REFRIGERATOR TO FINAL POSITION

18 INSTALLATION
A. Rear leveling bolt B. Front leveling bolt

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

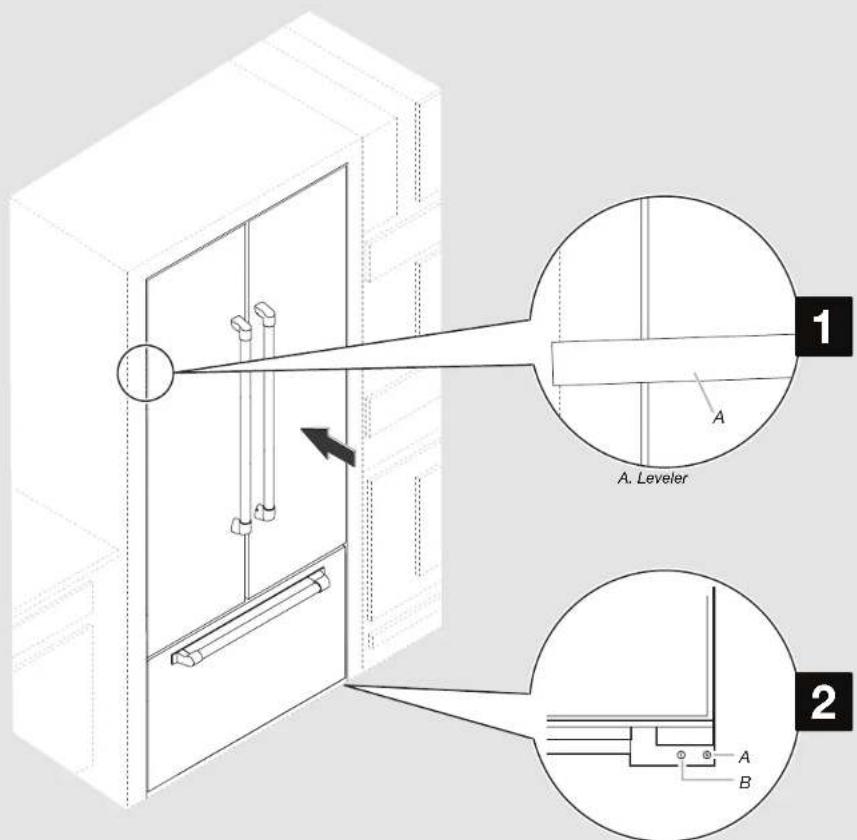

1. Gently push back the refrigerator into the cabinet so that all the panels flush with adjacent cabinets from all sides.
2. Use a 5/16" Nut driver to turn the leveling bolts clockwise to raise the refrigerator. Adjust the leveling bolts until the top of the refrigerator is making contact with the bottom of the secondary anti-tip board.

IMPORTANT: After height adjustment, ensure refrigerator is perfectly leveled horizontally. And ensure panels are flush with adjacent cabinets.

INSTALLATION

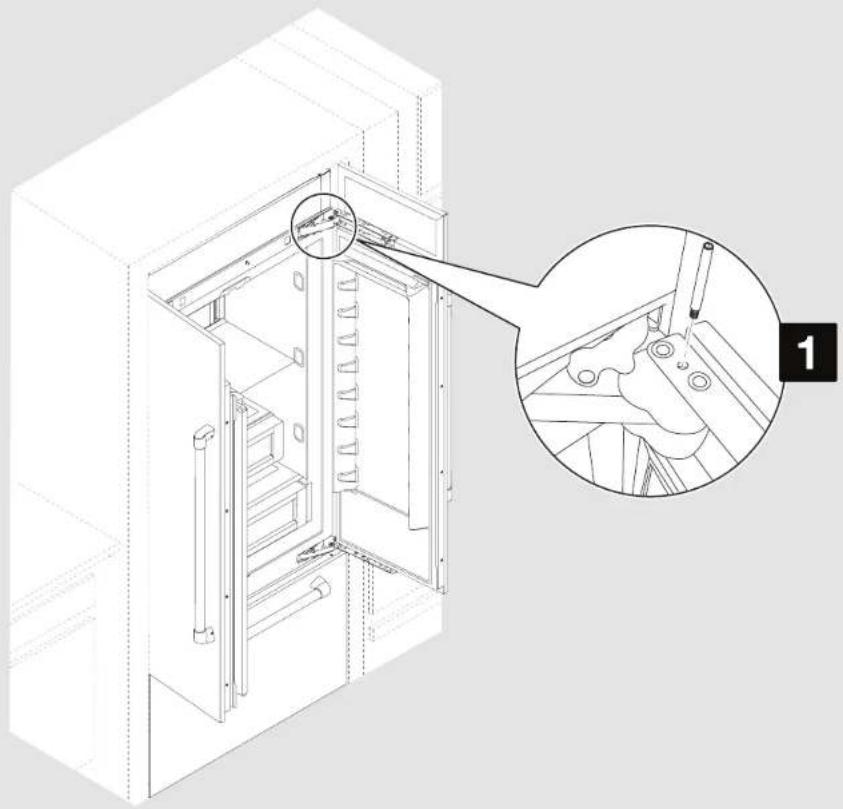

ADJUSTING DOOR SWING

APPLIES TO:

If the standard 110^ door swing is too wide, install the door stop pin to allow for a maximum 90^ door swing. Insert the door stop pin into the top hinge in the hole shown. Use a 5/32" hex key, to tighten door stop pin.

Parts to be used:

Door stop pin (as required)

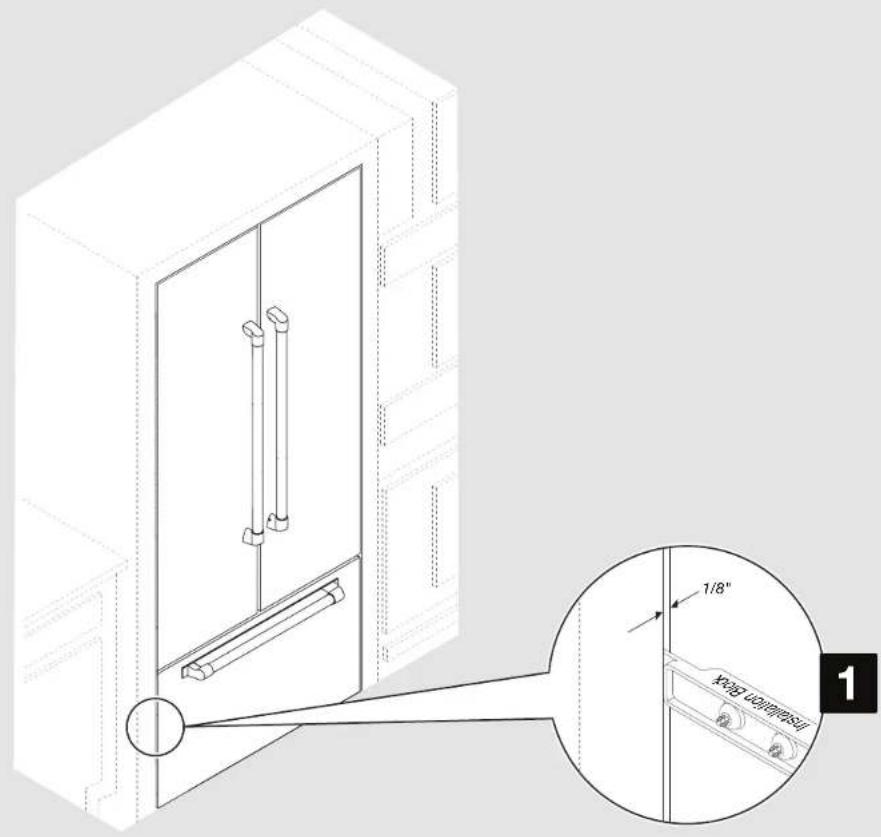

INSTALLATION ADJUSTING FREEZER PANEL

FOR SIDE BY SIDE MODELS -SKIP THIS STEP!

1. A 1/8" (3.2 mm) gap is required between the panel and adjacent cabinets. Use the installation block to measure the gaps.

INSTALLATION

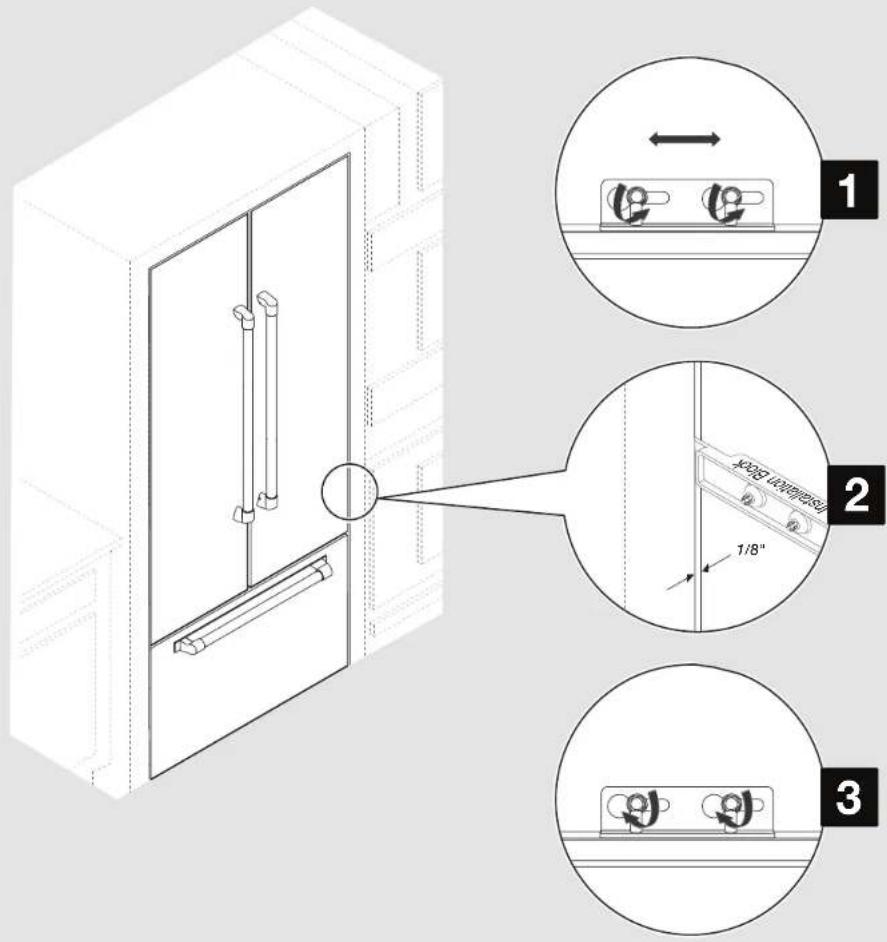

ADJUSTING REFRIGERATOR PANEL(S)

1. Slightly loosen the panel bracket screws to allow the panel to move to the left or right.
2. Adjust panels to achieve a 1/8" gap between panels and adjacent cabinets. For French door bottom mount and bottom mount models, align the outside edge of the refrigerator panel to the outside edge of the freezer panel on both the sides. For side by side models, align the refrigerator and freezer panels with adjacent cabinets.

NOTE: Adjust the panel not the door, if adjustments are needed to achieve alignment or required spacing.

1. Tighten the panel bracket screws.

INSTALLATION

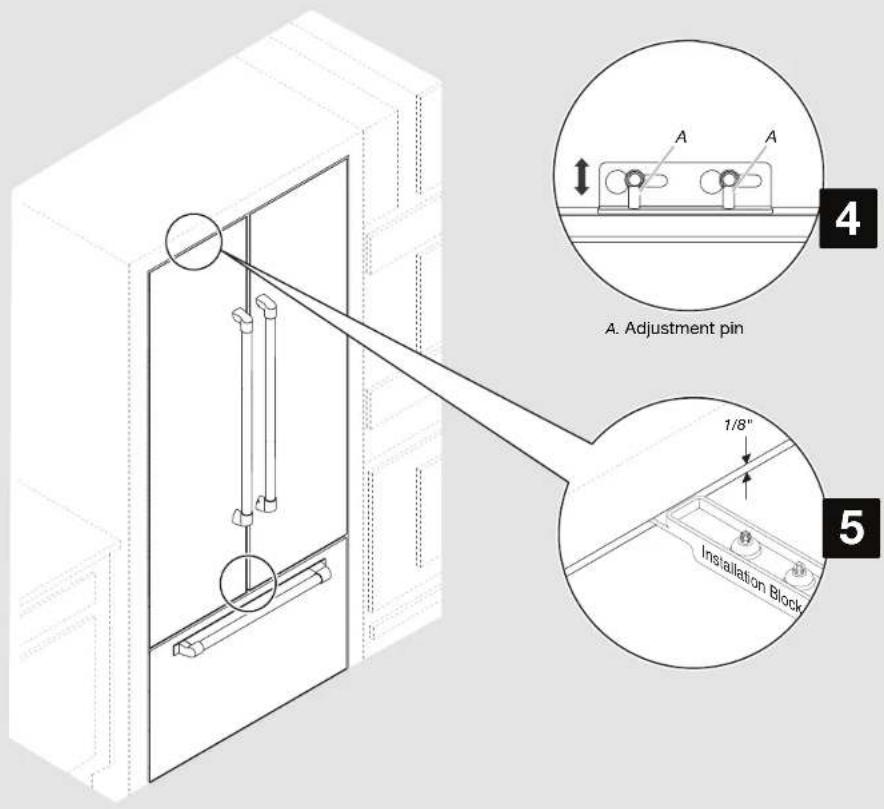

ADJUSTING REFRIGERATOR PANEL(S) (CONTD.)

1. Use a 5/32^ hex key to raise or lower the adjustment pins which allows the panel to move up or down.
2. A 1/8^n (3.2 mm) space is required between panel(s) and bottom of the soffit.

INSTALLATION

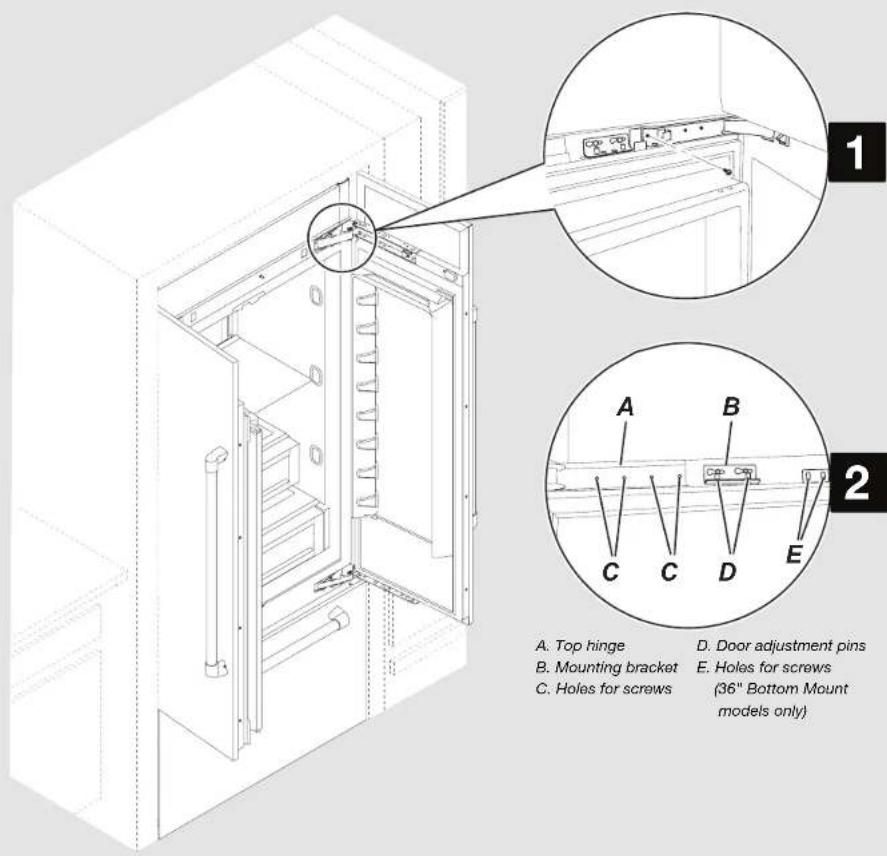

ATTACHING PANEL(S)

Using the slotted hex-head screws, fasten the top and bottom hinges to the door panels. Fully tighten all door panel screws.
NOTE: Do not overtighten the screws, it may strip the panel.
2. 36" Bottom Mount models only - Use the hex head screws to fasten the panel to the additional door bracket.

Parts to be used:

Slotted hex-head screws (As required)

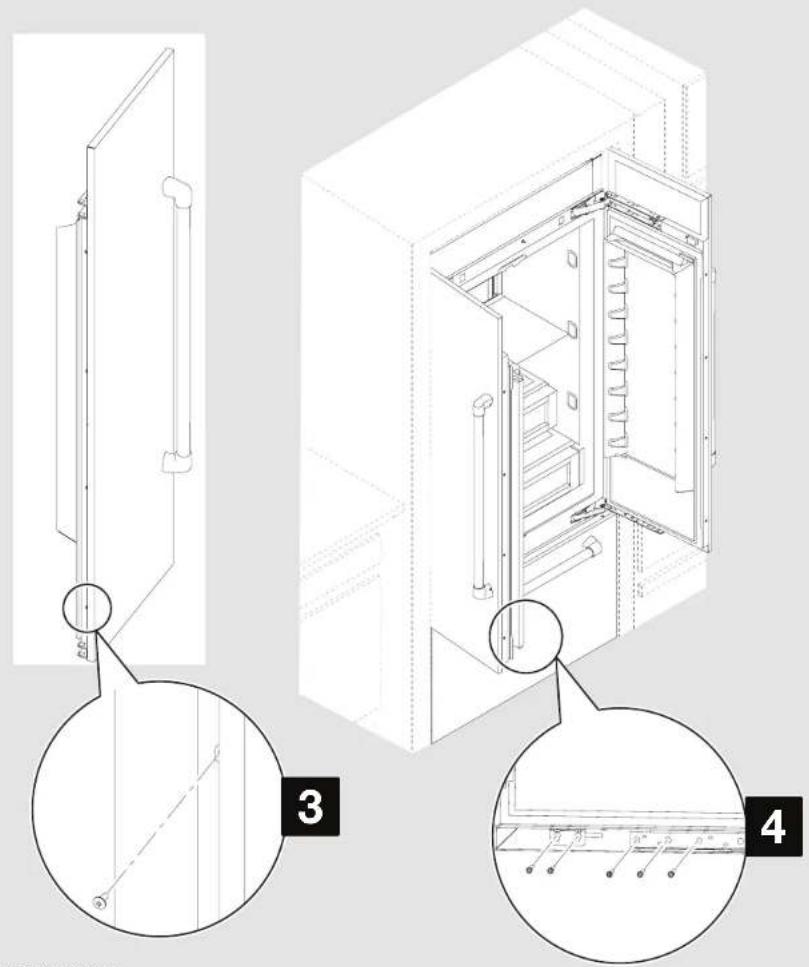

INSTALLATION ATTACHING PANEL(S) (CONTD.)

24 INSTALLATION

1. Use the Phillips-head screws to fasten the panel to the door on vertical hinge side.
2. Use slotted hex-head screws to attach the mounting bracket located at the bottom of the doors, to the door panels.

Parts to be used:
	Phillips-head screws (As required)
	Slotted hex-head screws (As required)

INSTALLATION

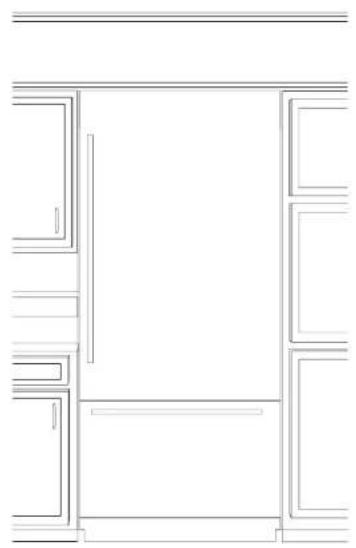

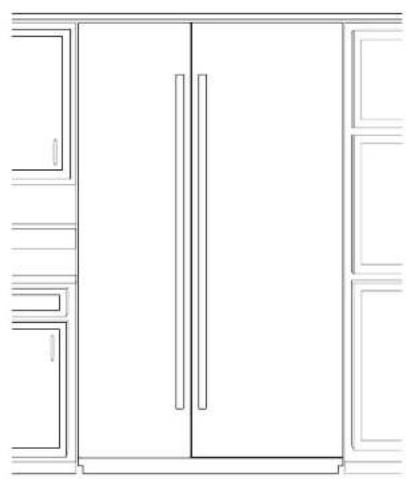

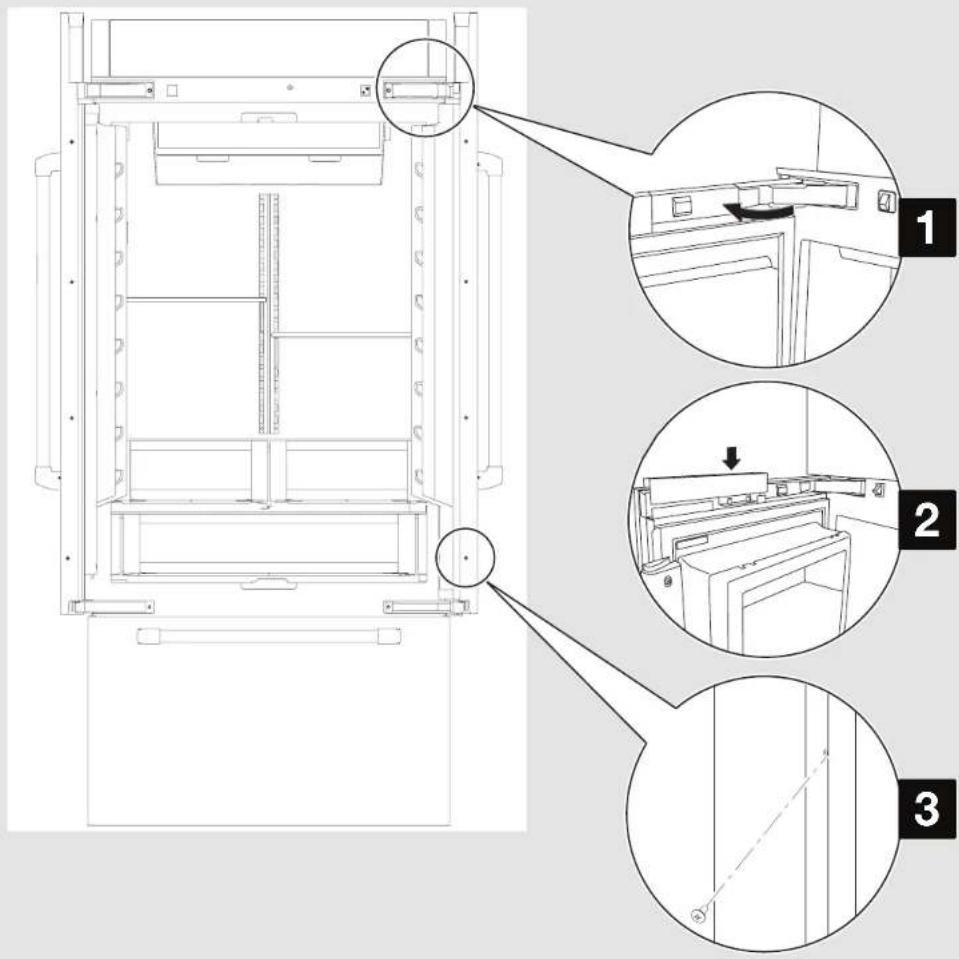

COMPLETING THE INSTALLATION

1. Reinstall hinge cover(s).
2. Snap the door adjustment pin cover(s) into place.
3. Using the Phillips-head screws, attach the handle side trim pieces (shipped with the refrigerator) to the doors.

Parts to be used:

Phillips-head screws (As required)

TROUSSE DE PORTE PLEINE GRANDEUR POUR RÉFRIGÉRATEUR ENCASTRÉ

INTRODUCTION SECURITE

agreement and approval

2018 JennAir. Used under license in Canada. All rights reserved.
