USER MANUAL JBBFL36NHS JENN-AIR

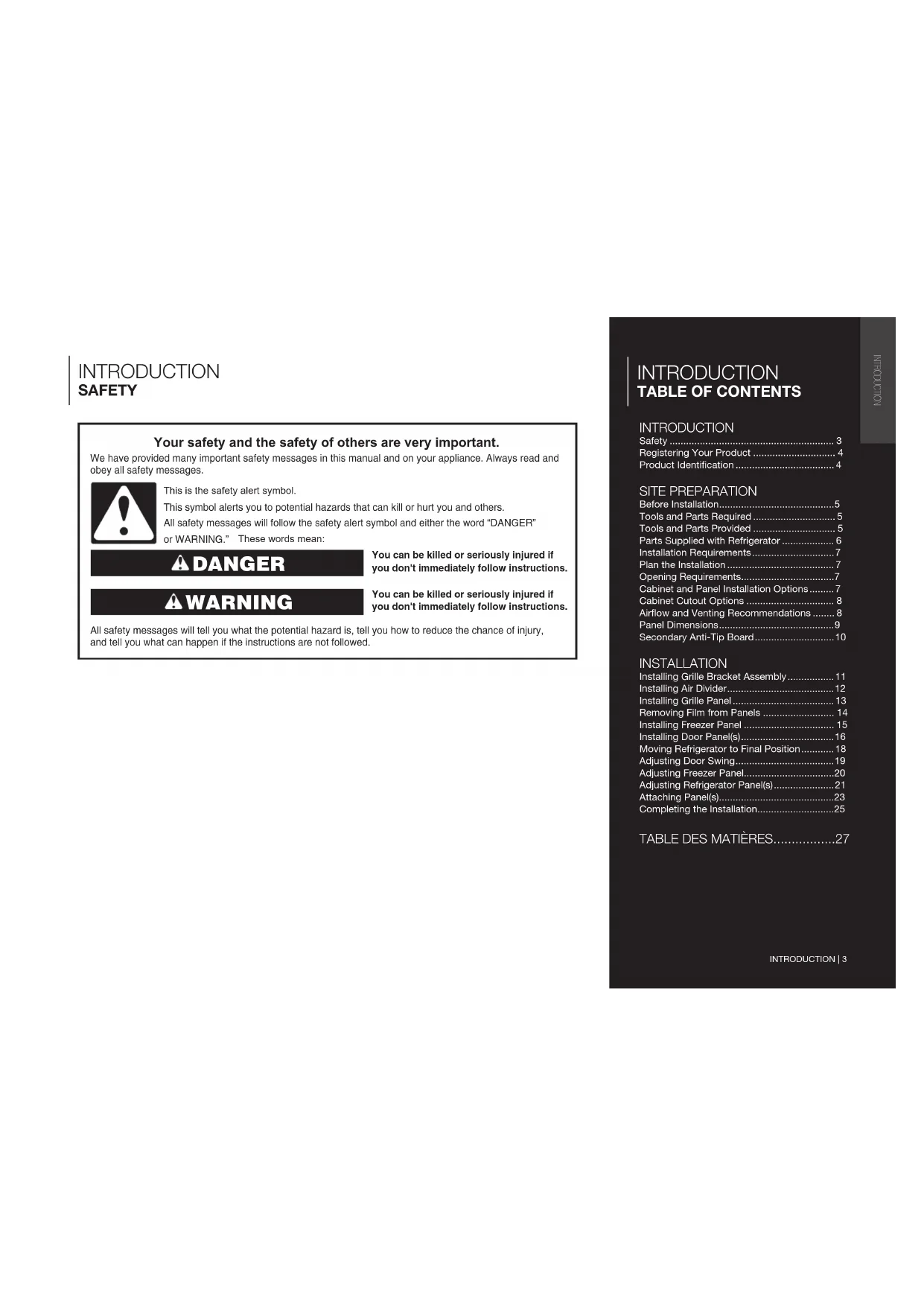

• INTRODUCTION INTRODUCTION SAFETY You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't immediately follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or WARNING.” These words mean: DANGER WARNING INTRODUCTION Safety p. 3
• Registering Your Product p. 4
• Product Identication p. 4
• SITE PREPARATION Before Installation p. 5
• Tools and Parts Required p. 5
• Tools and Parts Provided p. 5
• Parts Supplied with Refrigerator p. 6
• Installation Requirements p. 7
• Plan the Installation p. 7
• Opening Requirements p. 7
• Cabinet and Panel Installation Options p. 7
• Cabinet Cutout Options p. 8
• Airow and Venting Recommendations p. 8
• Panel Dimensions p. 9
• Secondary Anti-Tip Board p. 10
• INSTALLATION Installing Grille Bracket Assembly p. 11
• Installing Air Divider p. 12
• Installing Grille Panel p. 13
• Removing Film from Panels p. 14
• Installing Freezer Panel p. 15
• Installing Door Panel(s) p. 16
• Moving Refrigerator to Final Position p. 18
• Adjusting Door Swing p. 19
• Adjusting Freezer Panel p. 20
• Adjusting Refrigerator Panel(s) p. 21
• Attaching Panel(s) p. 23
• Completing the Installation p. 25

TABLE DES MATIÈRES.................27

INTRODUCTION | 34 | INTRODUCTION INTRODUCTION REGISTRATION REGISTERING YOUR PRODUCT Gain access to our concierge-level Customer Support by registering your appliance. We make product registration simple and straightforward so that you can start using your exclusive JennAir benets today. Registering your appliance allows you to: Streamline your warranty service If we have your product information, we can help you faster. Protect your purchase In case of an insurance loss, such as re, ood, or theft, your product registration could serve as a proof of purchase. Keep your family safe We’ll notify you in the rare case of a safety notication. Start taking advantage of these benets today by going on-line to register your product at jennair.com/customer-care. In Canada, register your product at jennair.ca. PRODUCT IDENTIFICATION Your product identication, which includes the model and serial numbers, is listed on the product rating plate. Recording this information below allows us to more easily assist you if your product should ever require service from one of our JennAir Authorized Service Providers. Model Number: ________________________________ Serial Number: ________________________________ Date of Installation: ___________________________ Authorized Dealer: ____________________________ Authorized Dealer Phone #: ____________________SITE PREPARATION | 5 SITE PREPARATION SITE PREPARATION BEFORE INSTALLATION IMPORTANT: These instructions are intended as a general guide only and do not supersede any national or local codes in any way. Compliance with all local, state, or national codes pertaining to this type of installation should be determined prior to installation. These instructions are intended to supplement the Installation Instructions provided with your refrigerator, not replace them. Follow the instructions provided with the refrigerator to install it into the cabinet. NOTE: The hardware bag contains all the parts and fasteners needed to install panels. Most of these components have been pre-installed on the panels included in this kit. A hardware bag is shipped with the refrigerator. You will nd the hardware bag in either one of the crisper drawers or attached to the outside of one of the refrigerator doors. Pinch Hazard Installation of door panels with less than a ³⁄₈" (0.95 cm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching. CAUTION

TOOLS AND PARTS REQUIRED

Assemble the required tools and parts before starting installation. Read and follow the instructions provided with any of the required tools listed here. Proper installation is your responsibility. Tools Required: Cordless drill and drill bits 3/8" and 1/2" Open-end wrenches or two adjustable wrenches Phillips screwdriver Small level Appliance dolly 3/32", 5/32", and 3/16" Hex keys 1/4" and 5/16" Nut drivers 6" Extension nut drivers Tape measure

TOOLS AND PARTS PROVIDED

Parts Supplied with Panel Kit: Exterior door panels with handles and mounting hardware pre-installed. Instructions Grille Panel Grille bracket assembly Foam air divider Parts Supplied with Refrigerator (Needed to Install Panel Kit): Phillips-head at screw Black: 8281252 Slotted hex-head screw W10141645 Door stop pin

REFRIGERATOR The following parts are either not needed to install the panels in this kit, or they are already installed on the panels. These parts can be discarded after the installation is completed: Panel top bracket Black: W10667450 “L” brackets W10234199 Standard grille bracket W10182743 (left) W10172741 (right) Integrated grille bracket W10260890 (left) W10260891 (right) Hex-head pointed screw W10141189 Hex-head blunt screw W10142233 Round-head screw

IMPORTANT: Plan your installation using these instructions in conjunction with the Installation Instructions provided with the refrigerator. Modications must be made to the refrigerator to accommodate the full height door panels. Required parts One of the following built-in refrigerator models: 42" Side-by-Side: JS42NXFXDE 48" Side-by-Side: JS48NXFXDE 36" Bottom Mount: JB36NXFXLE, JB36NXFXRE 36" French Door Bottom Mount: JF36NXFXDE 42" French Door Bottom Mount: JF42NXFXDE Steel Panels with handles and Accessory Full Height Door Panel Kit (which includes Grille Panel and Grille Bracket Assembly). OPENING REQUIREMENTS IMPORTANT: The width of the opening, from side to side, must be as specied for your model, for at least 3" (7.62 cm) back from the face of the cabinet. If your opening does not meet this requirement, you will need to make modications. The depth of the opening from the front of the cabinet to the back wall must be 25" (63.5 cm) minimum to achieve a ush installation.

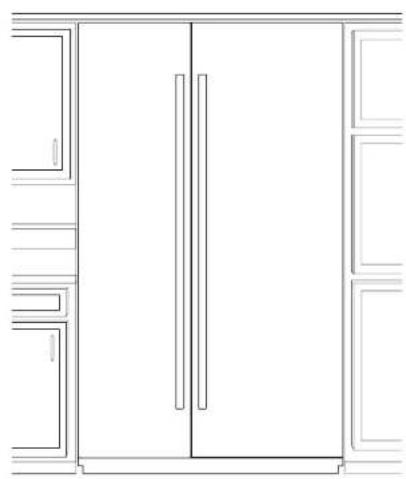

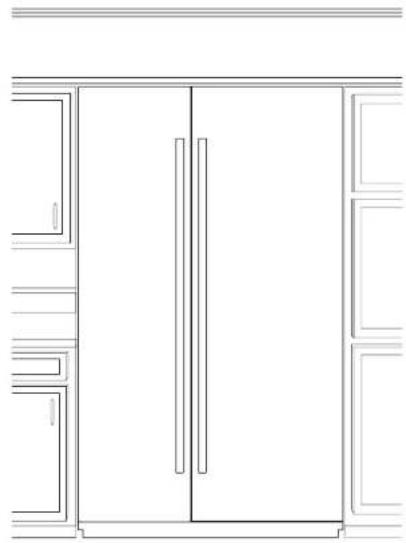

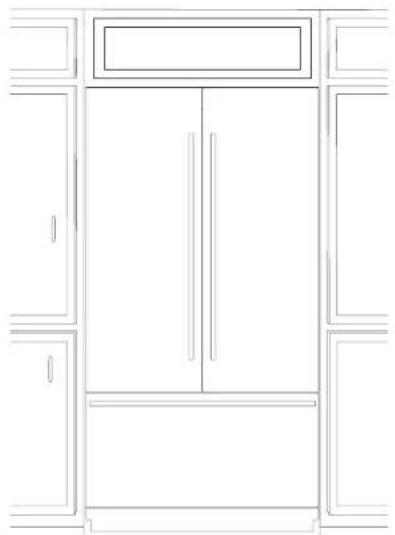

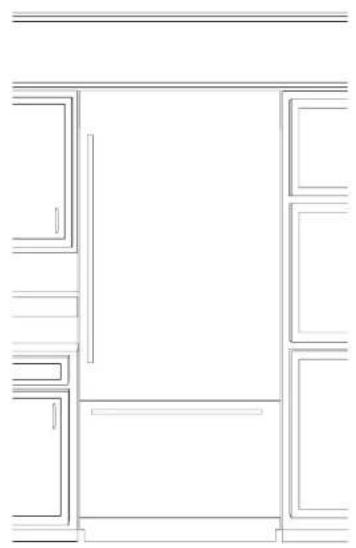

AIRFLOW VENTING RECOMMENDATIONS

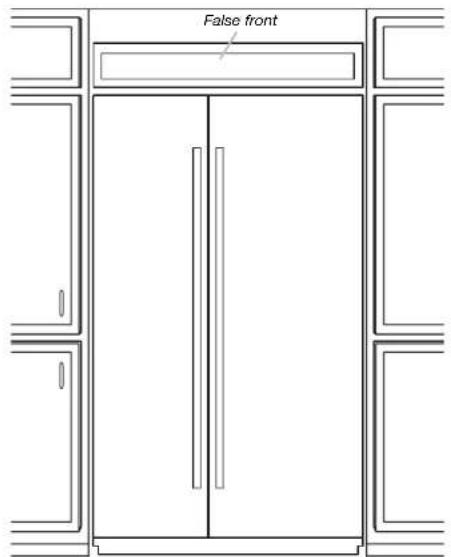

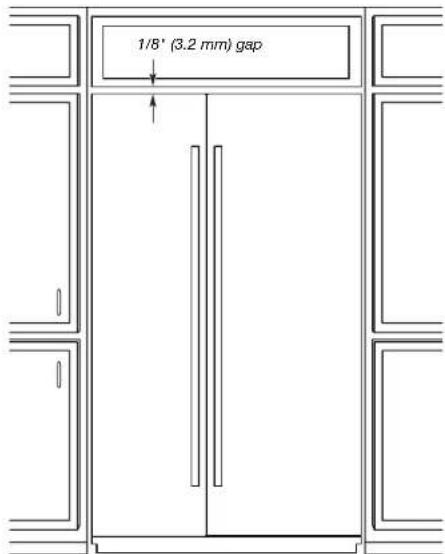

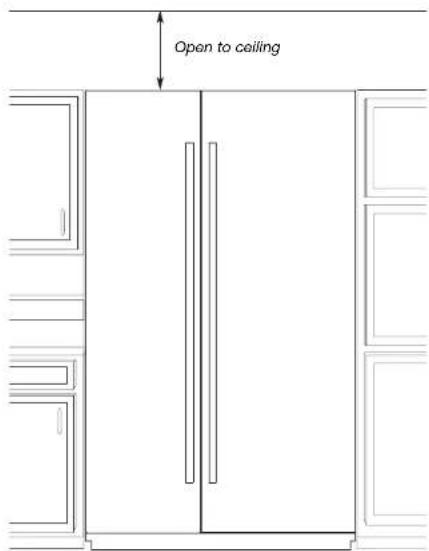

IMPORTANT: Full height door style installations recommends a minimum of 1/8" (3.2 mm) of open space above the refrigerator. It is recommended that this space not be blocked in any way, including softs. Models may be installed using either Option 1, Option 2 or option 3. Option 1 - Open to Ceiling Option 2 - False Front (cabinet face only) Option 3 - Closed Soft Open to ceiling False front 1/8" (3.2 mm) gapSITE PREPARATION | 9 SITE PREPARATION

" (150.2 cm) C 36" 20

" (60.38 cm) C 81" (205.7 cm)

" (69.27 cm) C 81" (205.7 cm) SITE PREPARATION PANEL DIMENSIONS Maximum possible panel weight: 46 lbs (20.9 kg)! Maximum possible panel weight: 34 lbs (15.5 kg)! Maximum possible panel weight: 48 lbs (21.7 kg)!10 | SITE PREPARATION IMPORTANT: For all full height door panel installations, the secondary anti-tip board is required to be installed prior to door panel installation. This anti-tip board is to be secured on the right side of the cabinet enclosure as per the dimensions shown in illustration. NOTE: Anti-tip board is required as an addition to the rear wall anti-tip board (for open to ceiling installation) described in the installation instructions provided with the refrigerator. Secure the secondary anti-tip board so that the bottom surface of the secondary anti-tip board is 75

" (191.77 cm) from the oor (right hand side). WARNING Tip Over Hazard Refrigerator is top heavy and tips easily when not completely installed. Install secondary anti-tip board to ensure product stability. Use two or more people to move and install refrigerator. Failure to do so can result in death or serious injury.

2. Securely attach one 2" x 4" x 12" (5 cm x 10 cm

x 30.4 cm) board to the cabinet on right hand side cabinet using wood screws. Use three #8 x 2" (5.08 cm) (or longer) wood screws. NOTE: It is recommended to drive the wood screws from cabinet wall into the secondary anti-tip board as shown in the illustration. The board must have overlap of 1" (2.54) with the refrigerator top. Leave 4" (10.16 cm) free space at rear as shown in the illustration.

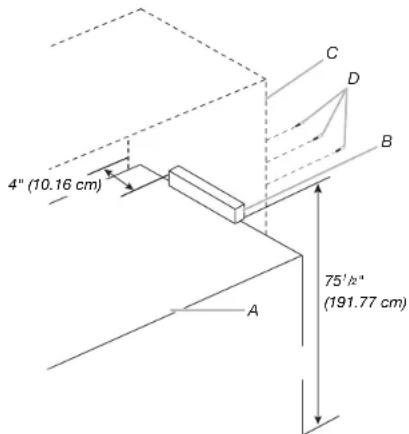

" (191.77 cm)A. RefrigeratorB. Secondary anti-tip boardC. Kitchen cabinetD. Wood screws4" (10.16 cm) SITE PREPARATION

SECONDARY ANTI-TIP BOARD

The main anti-tip boards for open to ceiling installation are secured at 84" (213.36 cm) from the oor (rear side). During panel installation, raise the refrigerator up until the top of the refrigerator is making contact with the bottom of the secondary anti-tip board.INSTALLATION | 11 INSTALLATION INSTALLATION

INSTALLING GRILLE BRACKET ASSEMBLY

APPLIES TO: NOTE: If refrigerator is not on rollers, it is recommended to lower the product to have more access at the top of product for panel installation. For ease of grille installation, it is recommended to have product outside of kitchen cabinet not more than 8" (20.32 cm).

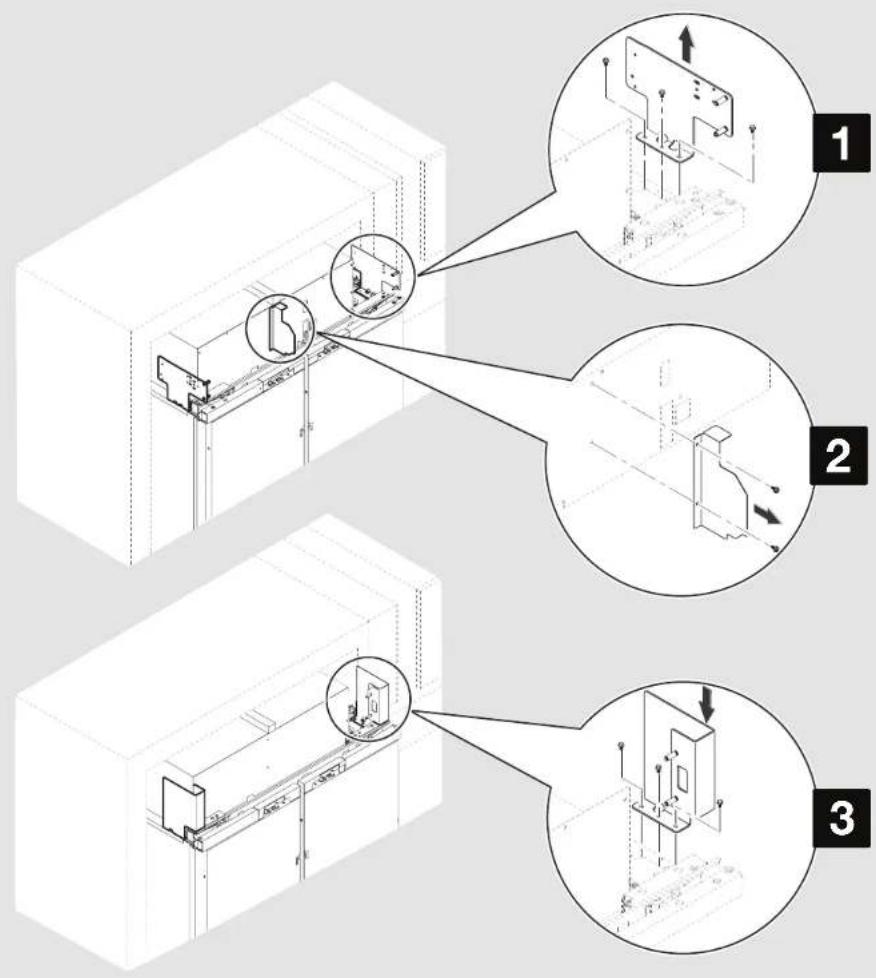

1. Remove the three screws fastening each

mounting plate to the top of the refrigerator on each side. Discard the mounting plates but keep the screws for attaching the two grille bracket assemblies provided in this kit.

2. Remove the two screws fastening the air divider

to the unit housing. Discard the air divider, and reinstall the screws into the holes from where they were removed.

3. Align the three holes in a grille bracket assembly

with the three holes in a cabinet side, as shown. Using the screws removed in Step 1, attach the grille bracket assembly.

4. Repeat step 3 to install the other grille bracket

assembly to the opposite side of the refrigerator. IMPORTANT: Installing the full height door panels before removing both existing factory installed grille brackets can damage the panels. WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury.

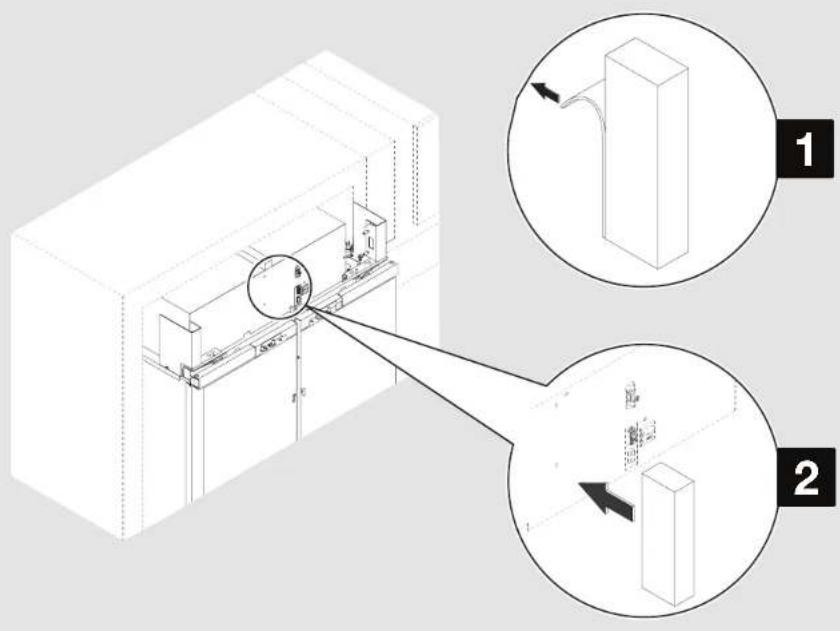

1. Peel away the paper layer from the foam air

divider to reveal the adhesive side.

2. Stick the foam air divider to unit housing at the

location where metallic air divider was installed earlier by applying even pressure.

Align the base of foam air divider with base of unit housing! Parts to be used: X1 Foam air dividerINSTALLATION | 13 INSTALLATION APPLIES TO:

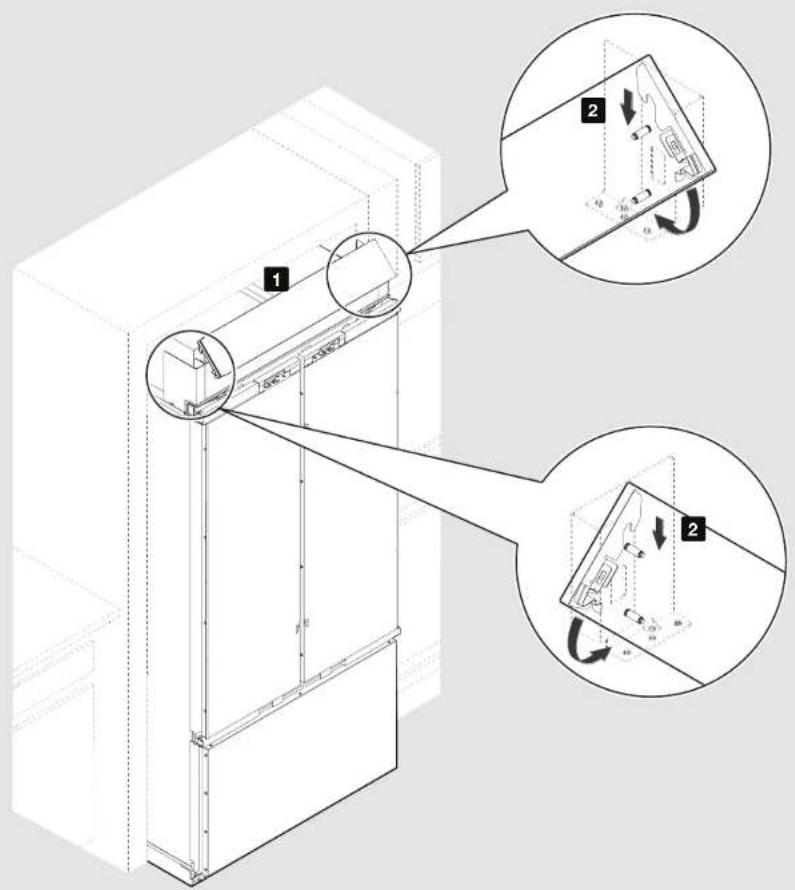

1. Position the grille panel between the grille

brackets on each side of the cabinet.

2. Hook the top of grille onto the upper rivet pins.

Rotate downward and push the bottom of the grille panel in until the grille panel snaps into place. NOTE: For grille panel removal, push the top of grille panel inward until the lower portion snaps out. Rotate and lift off the grille panel. INSTALLATION

1. Peel off the film covering on all the door / drawer

panels completely. NOTE: Gently handle the panels after film is removed to avoid the panels from external damages such as scratches. INSTALLATION

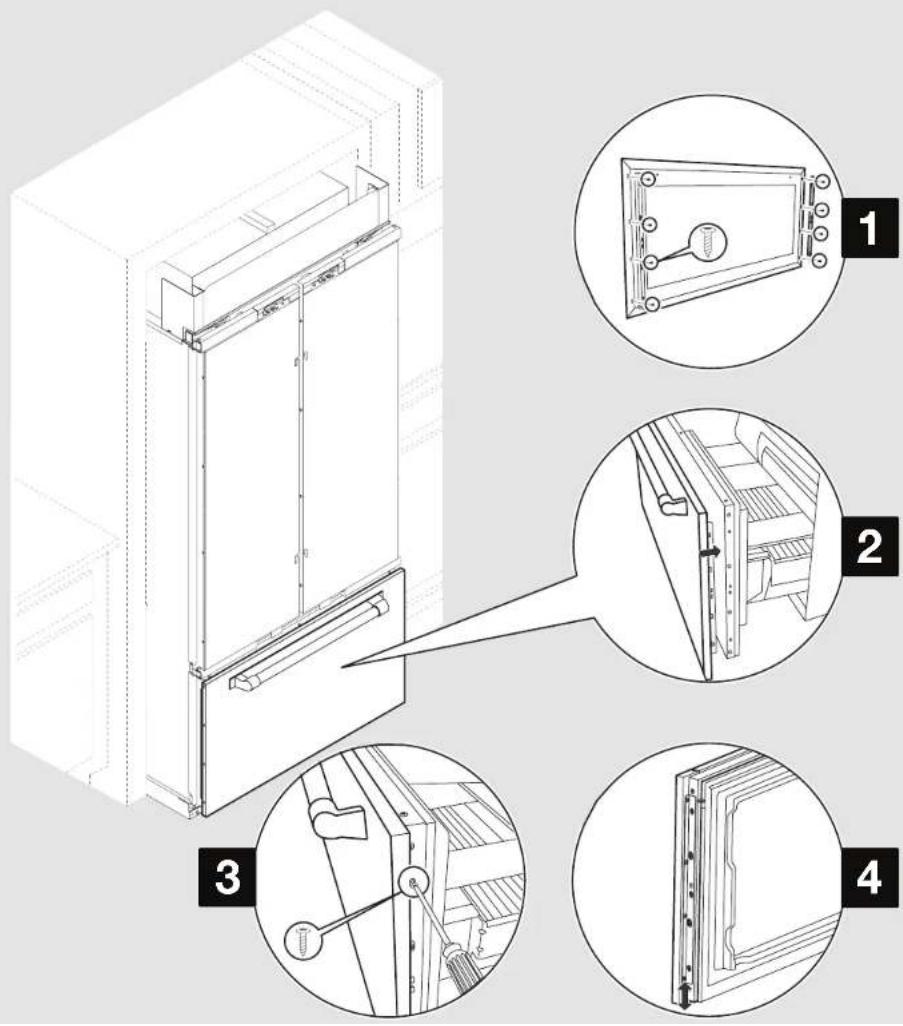

1. Slightly loosen the bracket screws present on

freezer panel. NOTE: Be sure that the refrigerator door(s) are tightly closed.

2. Slide panel onto drawer. Retighten the four

screws on each side attaching the bracket to the drawer panel.

3. Using the Phillips-head flat screws, fasten the

panel brackets to the drawer.

4. To allow for later adjustment of the panel, do not

fully tighten the screws attaching the bracket to the drawer.IMPORTANT: When you have completed installing all the panels, check for alignment. The drawer panel will move up or down to align. Completely tighten the screws only when panels are fully aligned.

Parts to be used:X6 Phillips-head screws16 | INSTALLATION APPLIES TO: NOTE: Be sure that secondary anti-tip board is installed before opening the door. Refer “INSTALLING THE SECONDARY ANTI-TIP BOARD” section to install the secondary anti-tip board. For panel installation, it is recommended to have product outside of kitchen cabinet not more than 8" (20.32 cm). Raise the refrigerator until the top of the refrigerator touches the bottom of secondary anti-tip board. Open only one door at a time.

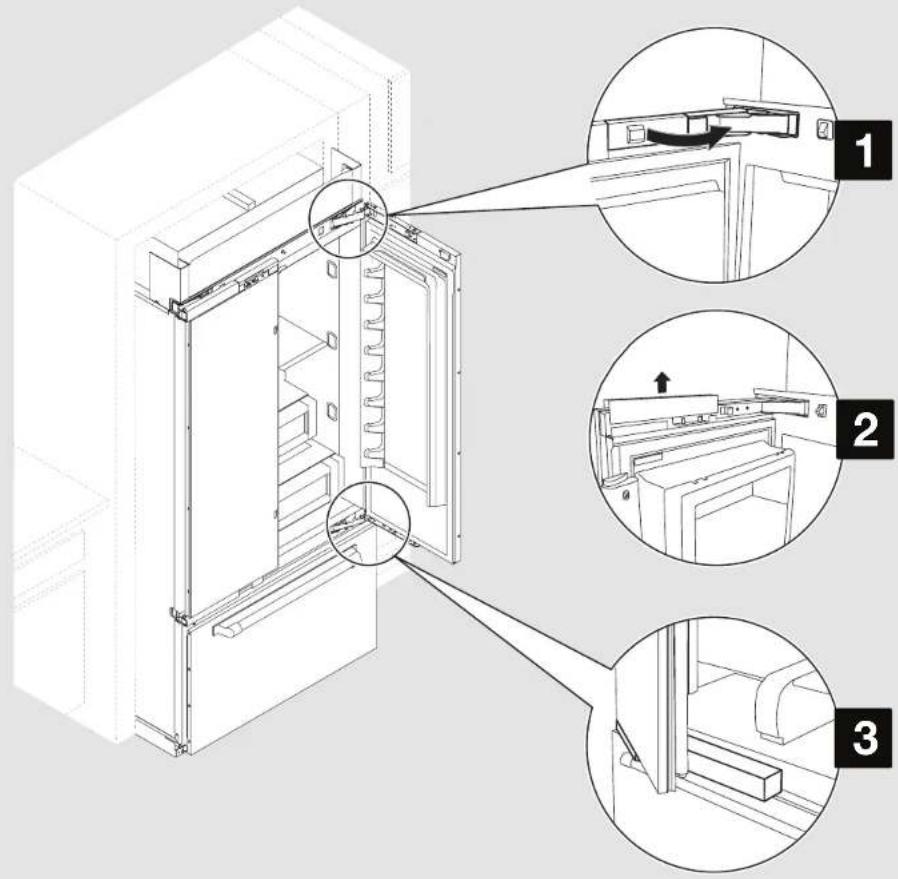

1. Open the door(s) and remove the hinge cover(s).

NOTE: French door and bottom mount models have bottom hinge cover(s) that also must be removed.

2. Take out the door adjustment pin cover(s) to

expose the adjustment pins.

3. Use foam packaging to prop and hold the door

open while installing a door panel. WARNING Tip Over Hazard Refrigerator is top heavy and tips easily when not completely installed. Install secondary anti-tip board to ensure product stability. Use two or more people to move and install refrigerator. Failure to do so can result in death or serious injury. INSTALLATION INSTALLING DOOR PANEL(S)

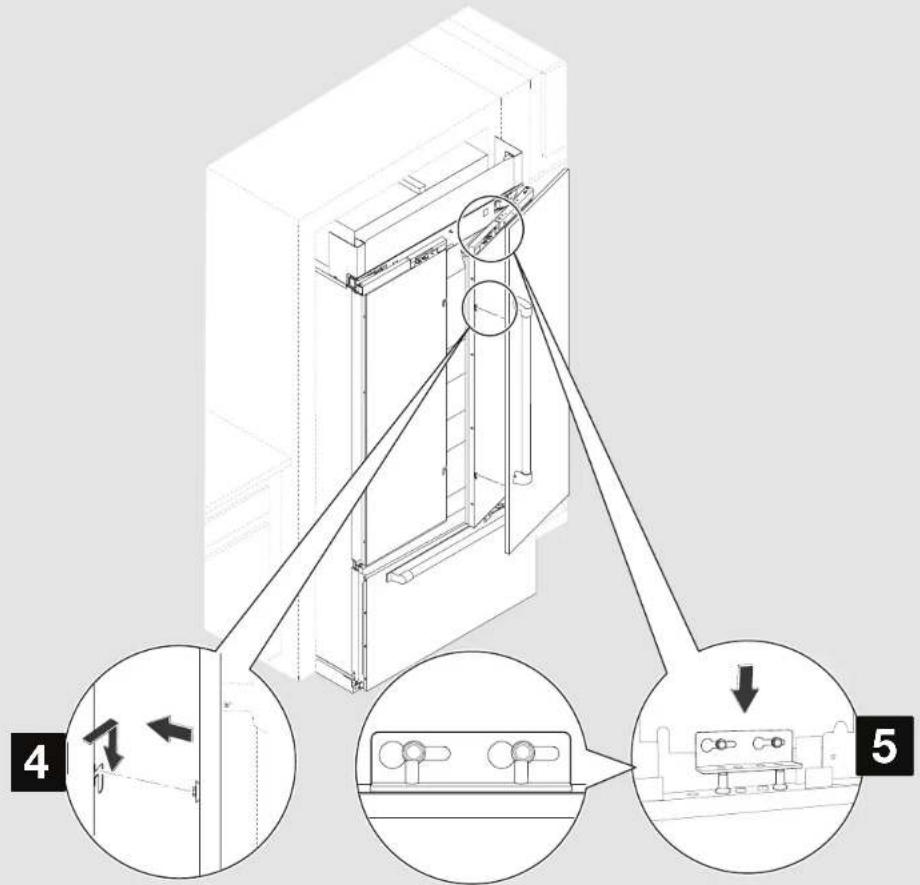

4. Align the two shoulder washers, on the back of

the door panel, with the “J” slots on the side of the refrigerator door.

5. Simultaneously slide the panel onto the door,

and lower the panel bracket down onto the adjustment pins at the top of the door. NOTE: On French door and side by side models, repeat steps 2 through 5 to install the second door panel. After panel(s) are installed properly, lower the refrigerator onto the rollers. WARNING Excessive Weight Hazard Use two or more people to move and install panels. Failure to do so can result in back or other injury.

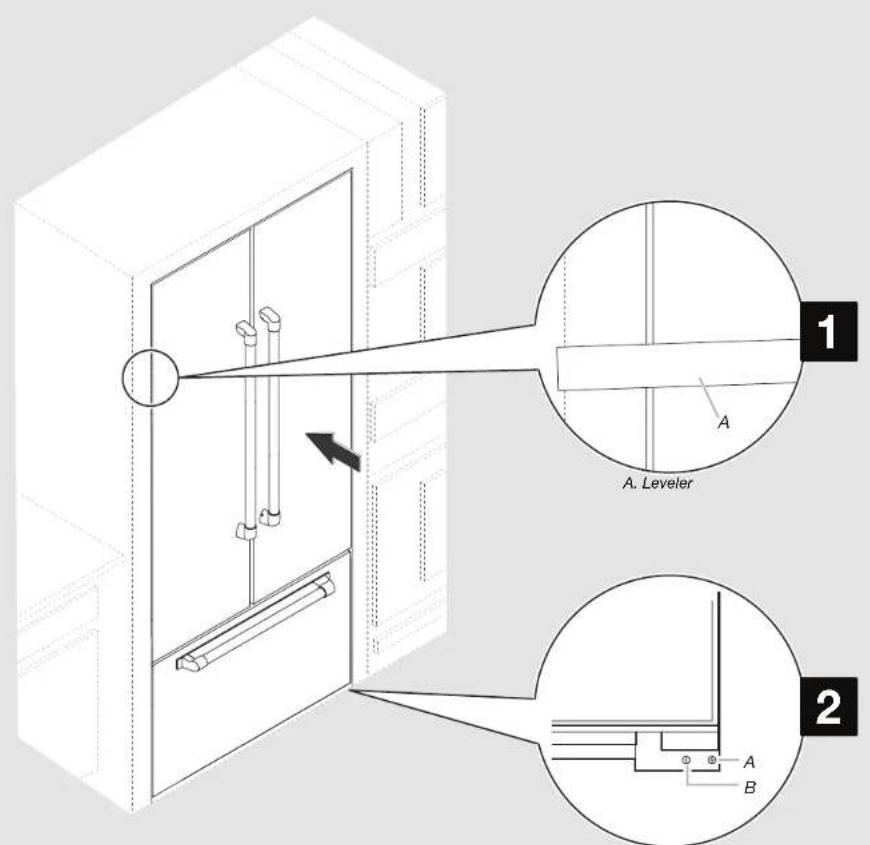

1. Gently push back the refrigerator into the cabinet

so that all the panels flush with adjacent cabinets from all sides.

2. Use a 5/16" Nut driver to turn the leveling bolts

clockwise to raise the refrigerator. Adjust the leveling bolts until the top of the refrigerator is making contact with the bottom of the secondary anti-tip board.IMPORTANT: After height adjustment, ensure refrigerator is perfectly leveled horizontally. And ensure panels are flush with adjacent cabinets. WARNING Excessive Weight HazardUse two or more people to move and install refrigerator.Failure to do so can result in back or other injury.

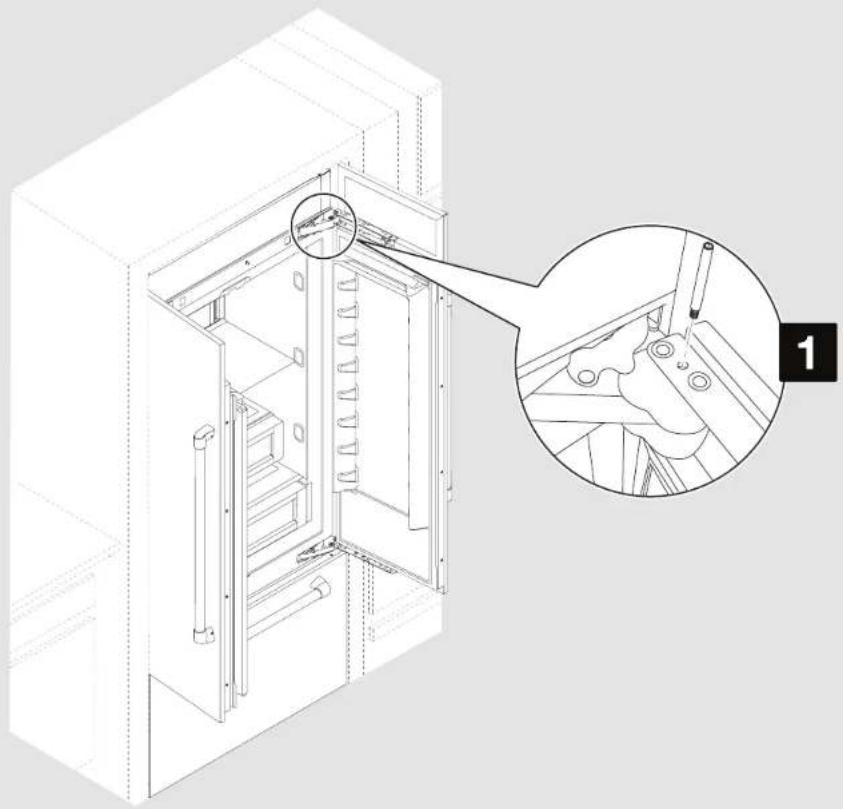

1. If the standard 110° door swing is too wide,

install the door stop pin to allow for a maximum 90° door swing. Insert the door stop pin into the top hinge in the hole shown. Use a 5/32" hex key, to tighten door stop pin. INSTALLATION

Parts to be used: Door stop pin (as required)20 | INSTALLATION APPLIES TO:

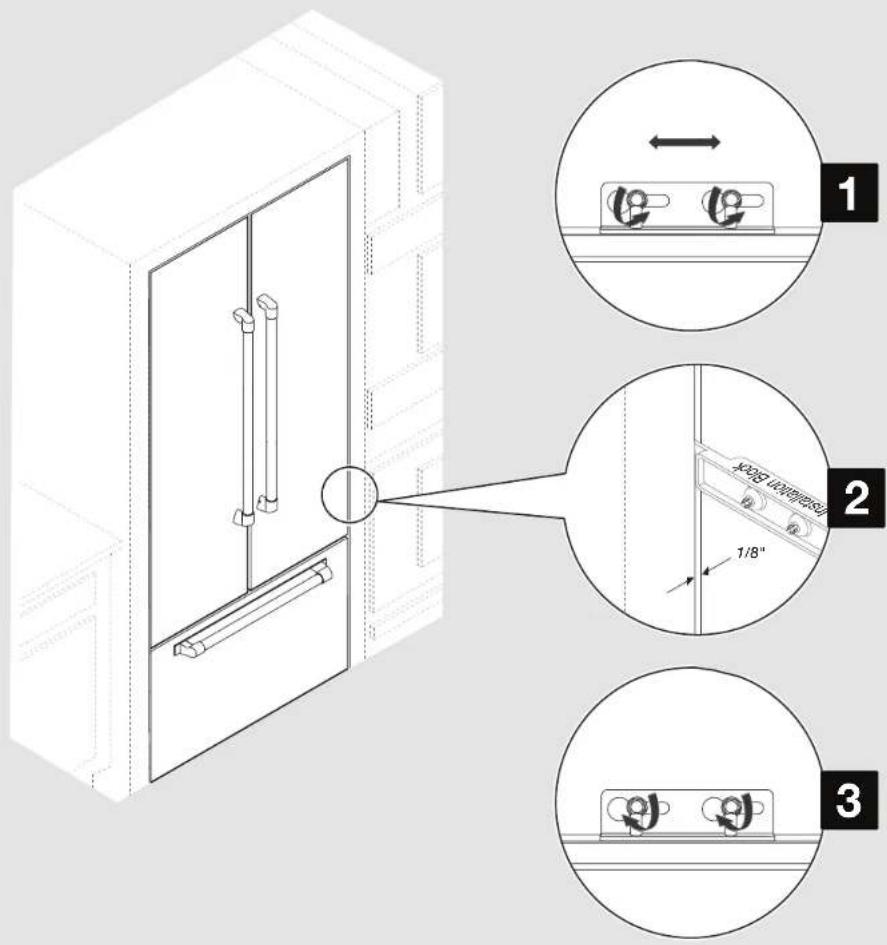

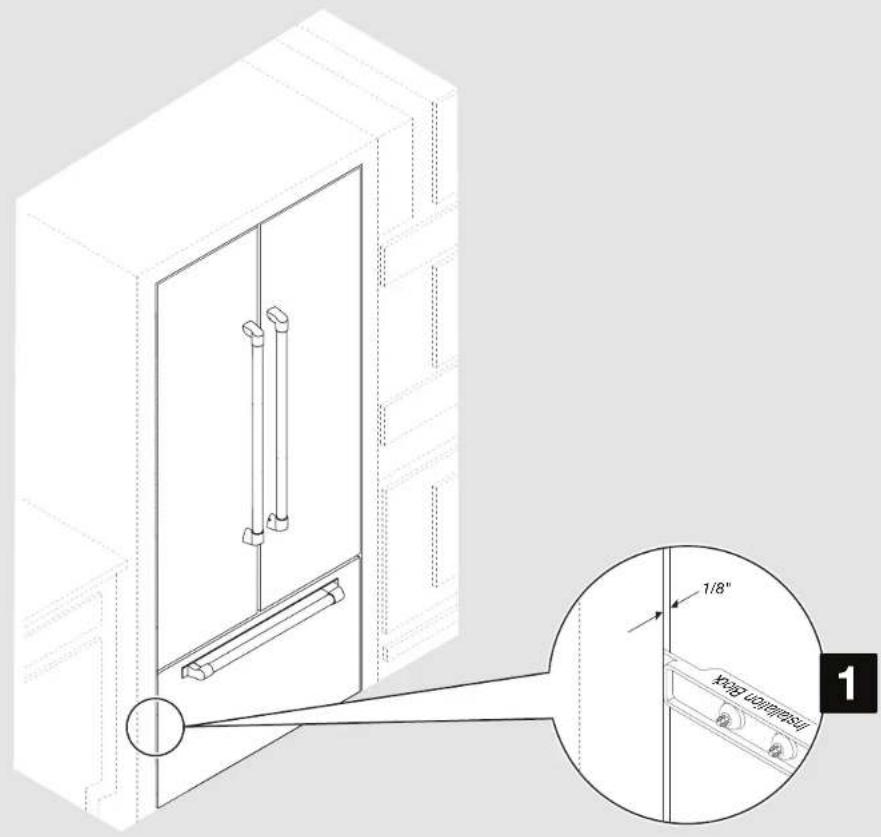

1. A 1/8" (3.2 mm) gap is required between the

panel and adjacent cabinets. Use the installation block to measure the gaps. INSTALLATION

1. Slightly loosen the panel bracket screws to allow

the panel to move to the left or right.

2. Adjust panels to achieve a 1/8" gap between

panels and adjacent cabinets. For French door bottom mount and bottom mount models, align the outside edge of the refrigerator panel to the outside edge of the freezer panel on both the sides. For side by side models, align the refrigerator and freezer panels with adjacent cabinets.NOTE: Adjust the panel not the door, if adjustments are needed to achieve alignment or required spacing.

3. Tighten the panel bracket screws.

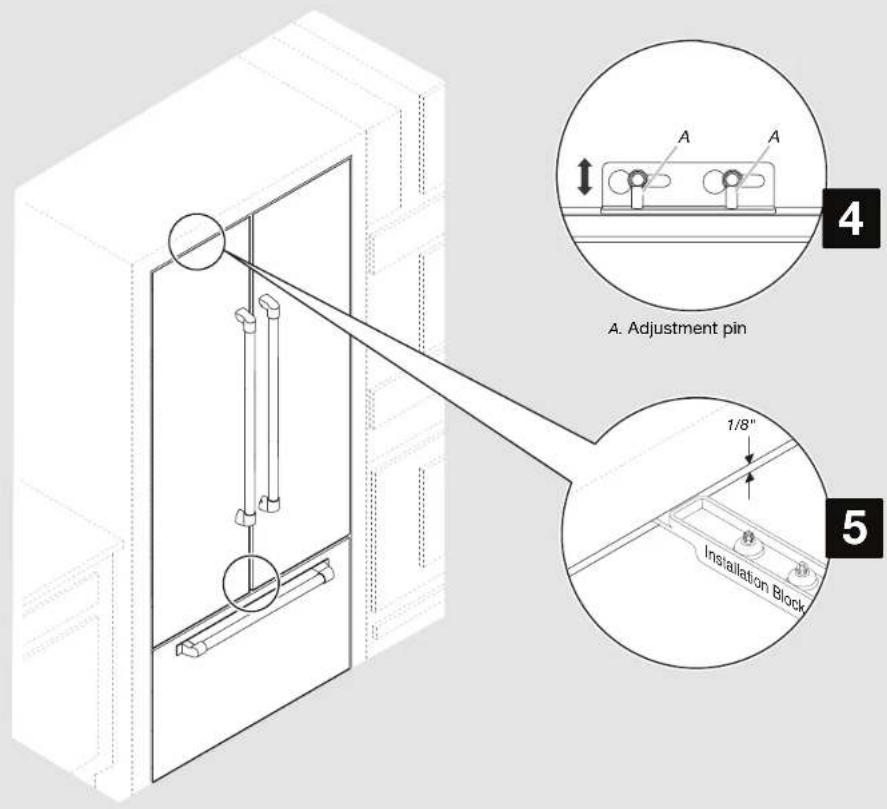

4. Use a 5/32" hex key to raise or lower the

adjustment pins which allows the panel to move up or down.

5. A 1/8" (3.2 mm) space is required between

panel(s) and bottom of the soffit.

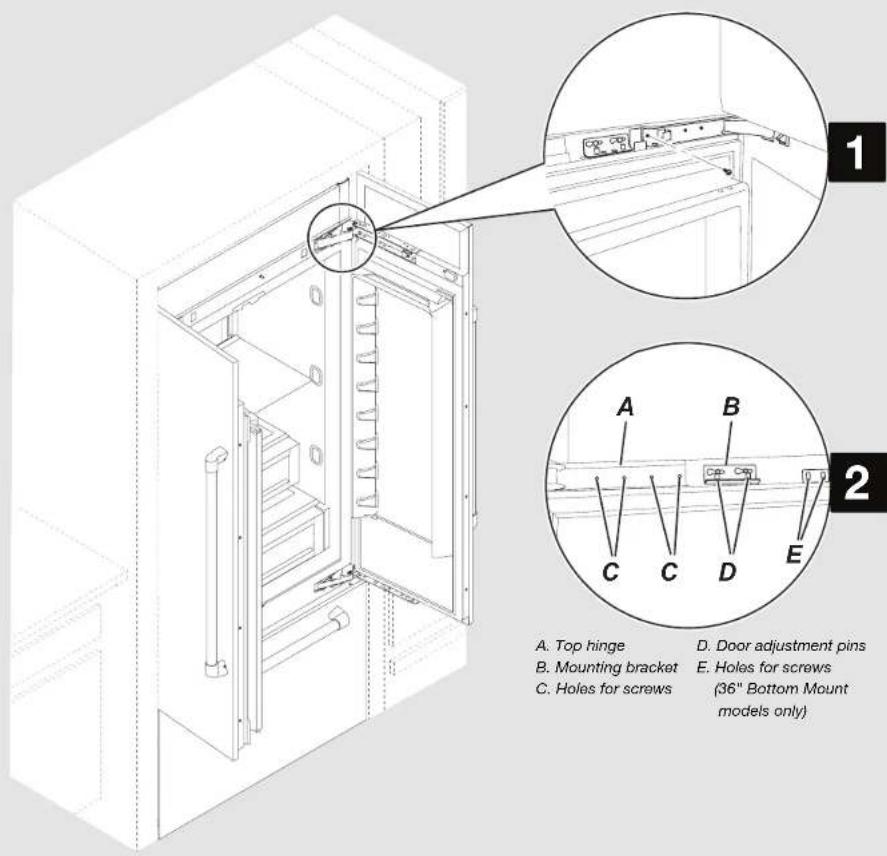

1. Using the slotted hex-head screws, fasten the

top and bottom hinges to the door panels. Fully tighten all door panel screws.NOTE: Do not overtighten the screws, it may strip the panel.

2. 36" Bottom Mount models only - Use the hex

head screws to fasten the panel to the additional door bracket. A B CCD

A. Top hingeB. Mounting bracketC. Holes for screwsD. Door adjustment pinsE. Holes for screws (36" Bottom Mount models only)

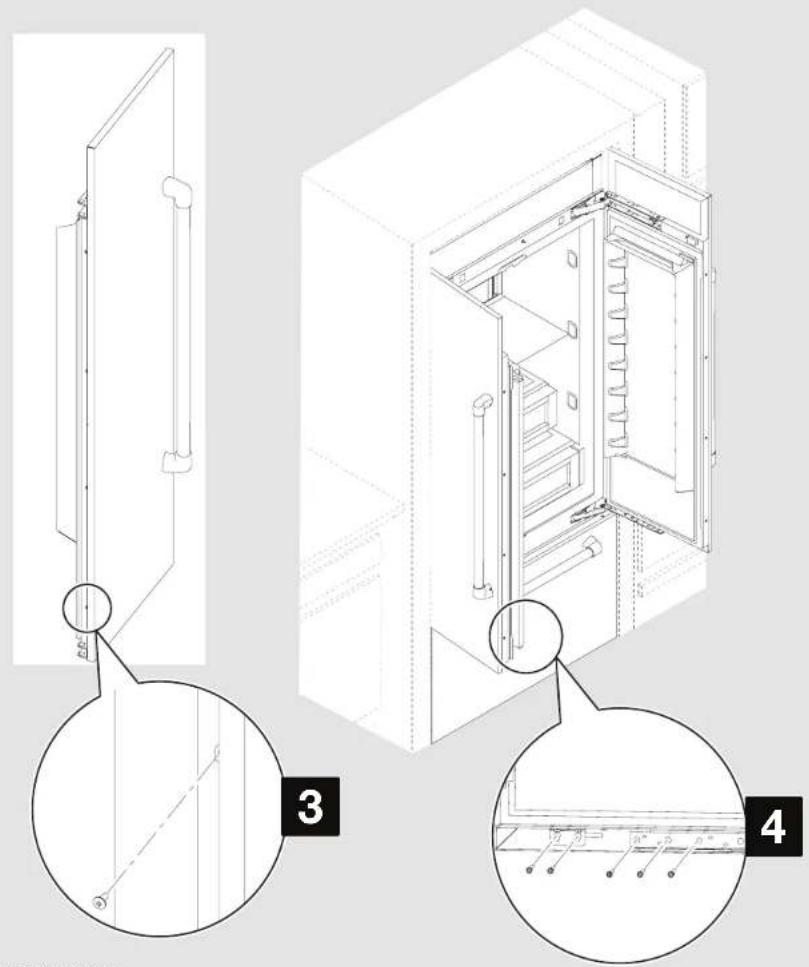

3. Use the Phillips-head screws to fasten the panel

to the door on vertical hinge side.

4. Use slotted hex-head screws to attach the

mounting bracket located at the bottom of the doors, to the door panels.

Parts to be used: Phillips-head screws (As required) Slotted hex-head screws (As required) 24 | INSTALLATIONINSTALLATION | 25 INSTALLATION INSTALLATION

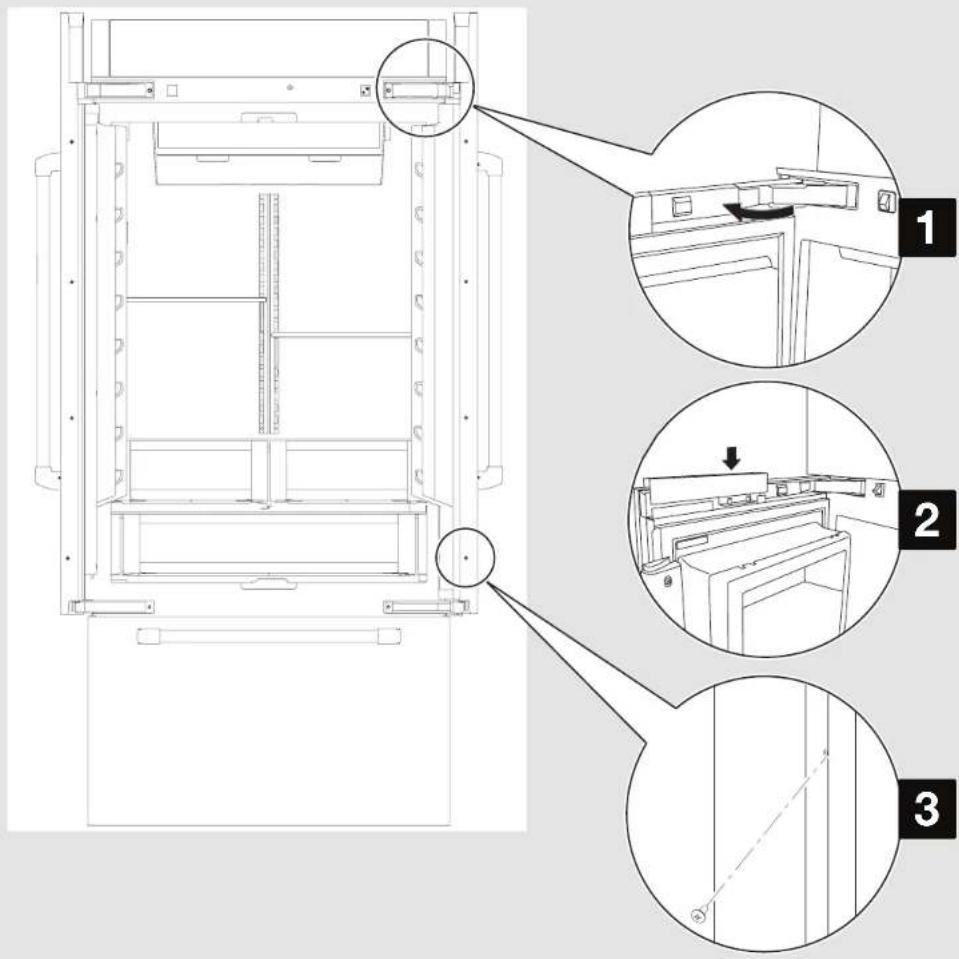

2. Snap the door adjustment pin cover(s) into place.

3. Using the Phillips-head screws, attach the

handle side trim pieces (shipped with the refrigerator) to the doors.

PIÈCES FOURNIES AVEC
