MKC2150AS - Microwaves JENN-AIR - Free user manual and instructions

Product Type	Built-in microwave with trim kit
Brand	JENN-AIR
Model	MKC2150AS
Power Supply	120 V, 60 Hz, AC, 15 or 20 A
Recommended Electrical Protection	Time-delay fuse or circuit breaker
Certification	UL listed for installation above electric or gas ovens up to 30"
Opening Height	17" (43.2 cm) min - 17.5" (43.5 cm) max
Opening Width	27" (68.6 cm) or 30" (76.2 cm) depending on kit
Minimum Opening Depth	20" (50.8 cm) with flush outlet
Clearance Below Opening	3" (7.6 cm) above a built-in oven
Clearance Above Opening	2" (5.1 cm)
Microwave Functions	Cook, reheat, defrost (not detailed)
Turntable	Yes (typical)
Child Lock	Yes (typical)
Cleaning	Wipe with damp cloth; avoid abrasives
Weight	Approximately 25-30 kg (estimate)

Frequently Asked Questions - MKC2150AS JENN-AIR

Can I install this microwave above a built-in oven?

Yes, the MKC2150AS is UL listed for installation above electric or gas ovens up to 30 inches wide. A minimum clearance of 3 inches (7.6 cm) is required between the top of the lower oven and the bottom of the microwave opening.

What are the exact dimensions of the cutout opening?

The height must be between 17 inches (43.2 cm) and 17.5 inches (43.5 cm). The width depends on the trim kit: 27 inches (68.6 cm) or 30 inches (76.2 cm). The minimum depth is 20 inches (50.8 cm) if the outlet is flush, or 22 inches (55.9 cm) otherwise.

What type of electrical outlet is required?

A 3-prong grounded outlet, 120 V, 60 Hz, 15 or 20 amps. A dedicated circuit with a time-delay fuse or circuit breaker is recommended. Extension cords are not allowed.

Is the trim kit included?

Yes, the MKC2150AS comes with a trim kit (frame) for built-in installation. The dimensions of the frame are provided in the installation manual.

How do I clean the microwave?

Use a damp cloth with mild detergent. Avoid abrasive cleaners or scouring pads that could scratch the surface. For the interior, a mixture of water and vinegar can be used.

Does this microwave have a turntable?

Yes, like most built-in microwaves, the MKC2150AS is equipped with a turntable for even cooking. If yours does not rotate, check that it is properly positioned.

Can I use this microwave without the trim kit?

No, the trim kit is essential for built-in installation. Without it, the microwave cannot be properly secured and may pose safety risks.

Is there a child lock?

Yes, most Jenn-Air models include a child lock feature. Consult the owner's manual to learn how to activate it (usually by holding the Stop or Lock button for a few seconds).

What is the power output of the microwave?

The power output is not specified in the installation manual. For a standard built-in model, it is typically between 1000 and 1200 watts. Check the label on the appliance.

Can I install this microwave in a cabinet without an oven below?

Yes, installation in a cabinet alone is possible. The minimum distance from the floor to the cutout is 36 inches (91.4 cm). Ensure the surrounding cabinets can open freely with at least 4 cm of clearance below the microwave.

USER MANUAL MKC2150AS JENN-AIR

MICROWAVE OVEN BUILT-IN TRIM KIT INSTALLATION INSTRUCTIONS

Built-In Trim Models MKC2157, MKC2150

UL listed for use over any electric or gas built-in oven, up to 30^ (76.2 cm) wide

INSTRUCTIONS D'INSTALLATION GARNITUDE ENCASTRÉE POUR FOUR À MICRO-ONDES

Location Requirements 2

Required Cutout Dimensions. 2

Trim Kit Frame Dimensions 2

Electrical Requirements 3

Prepare Microwave Oven 3

Prepare Cutout/Cabinet Opening 4

Install the Microwave Oven.. 5

Install Trim Kit Frame 6

SECURITE DU FOUR A MICRO-ONDES 7

INSTRUCTIONS D'INSTALLATION 7

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

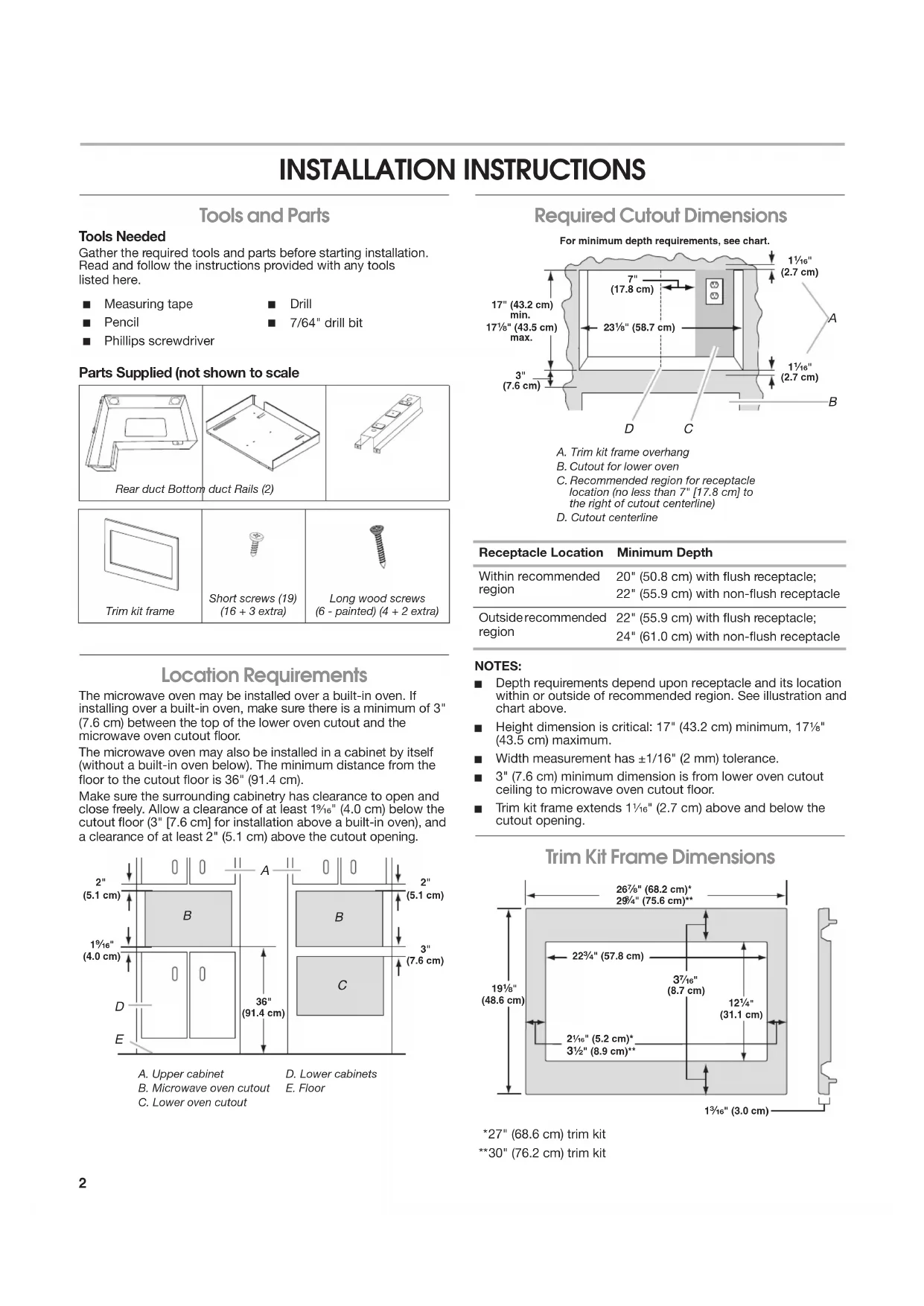

INSTALLATION INSTRUCTIONS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Measuring tape
■ Drill
Pencil
7/64" drill bit
Phillips screwdriver

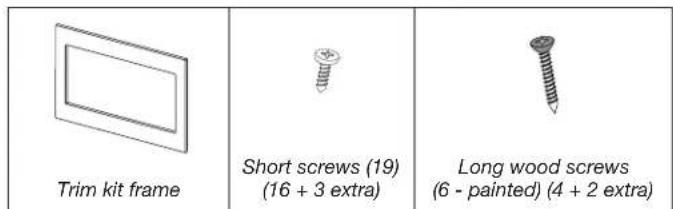

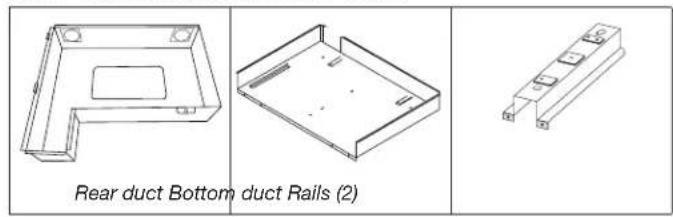

Parts Supplied (not shown to scale

Location Requirements

The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3'' (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.

The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). The minimum distance from the floor to the cutout floor is 36^ (91.4 cm).

Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1%^16 (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening.

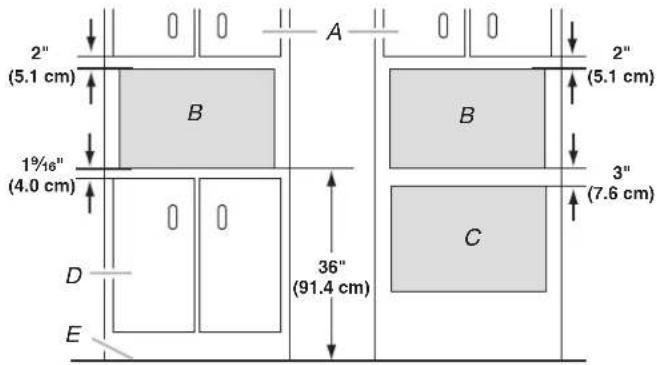

A. Upper cabinet

D. Lower cabinets

B. Microwave oven cutout

E. Floor

C. Lower oven cutout

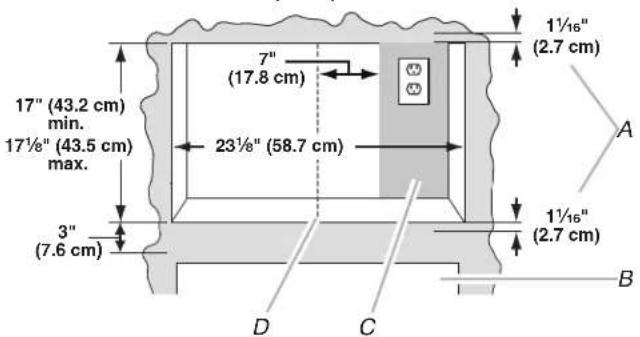

Required Cutout Dimensions

For minimum depth requirements, see chart.

A. Trim kit frame overhang
B. Cutout for lower oven
C. Recommended region for receptacle location (no less than 7^ [17.8 cm] to the right of cutout centerline)
D.Cutout centerline

Receptacle Location	Minimum Depth
Within recommended region	20" (50.8 cm) with flush receptacle; 22" (55.9 cm) with non-flush receptacle
Outside recommended region	22" (55.9 cm) with flush receptacle; 24" (61.0 cm) with non-flush receptacle

NOTES:

• Depth requirements depend upon receptacle and its location within or outside of recommended region. See illustration and chart above.
  Height dimension is critical: 17'' (43.2 cm) minimum, 17% (43.5 cm) maximum.
  Width measurement has ± 1 / 16 (2 mm) tolerance.
  3'' (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor.
• Trim kit frame extends 1 116 (2.7 cm) above and below the cutout opening.

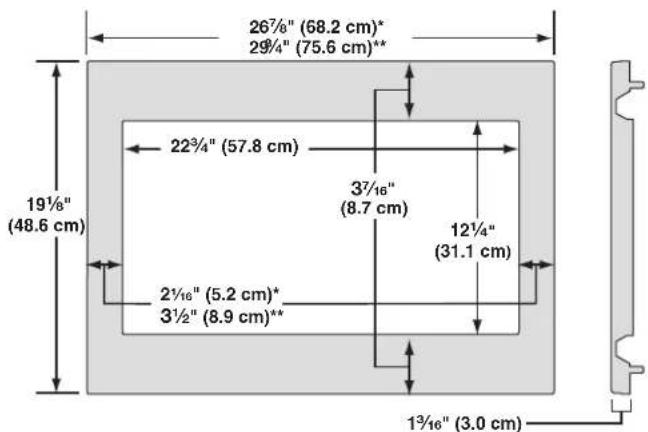

Trim Kit Frame Dimensions

*27" (68.6 cm) trim kit

× 30^n (76.2 cm) trim kit

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

A 120V 60 Hz, AC only, 15 A or 20 A electrical supply with a fuse or circuit breaker.

Recommended:

A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Prepare Microwave Oven

Attach Rails

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Gently turn microwave oven onto its top, with the door facing forward (toward installer).
4. Align the two rails on the microwave oven bottom, as shown, making sure the flanges are forward and pointing up.

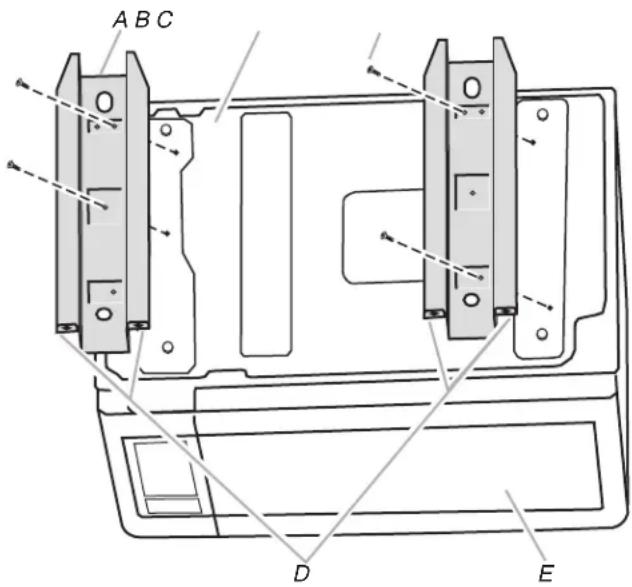

A.Rails (2)
B. Microwave oven bottom
C. Short screws (4)

D. Flanges
E. Door

1. Secure the rails to the microwave oven bottom using four short screws.

Attach Rear Duct

1. Gently return microwave oven to its upright position.

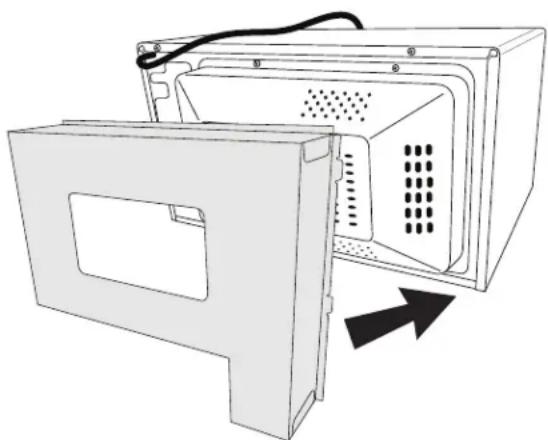

2. Align the rear duct with the back of microwave oven, as shown.

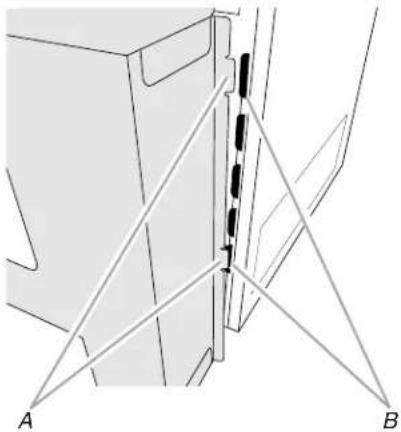

1. Slide two tabs into the slots on the right side of the back of microwave oven.

A. Rear duct tabs
B.Slots

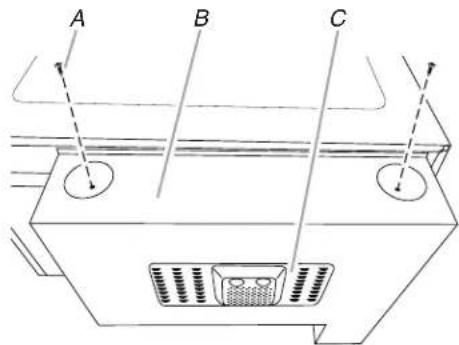

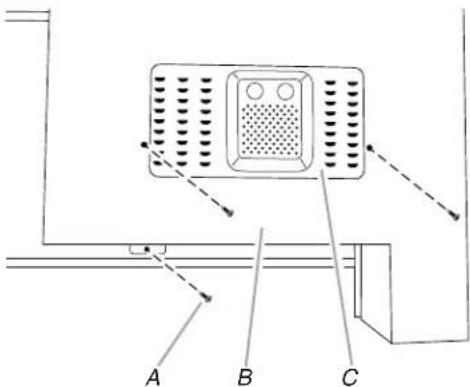

1. Use two short screws to secure top of rear duct to the back of microwave oven, as shown.

A. Short screws (2)
B. Rear duct
C. Back of microwave oven

1. Use three short screws to secure back of rear duct to the back of microwave oven, as shown.

A. Short screws (3)
B. Rear duct
C. Back of microwave oven

Prepare Cutout/Cabinet Opening

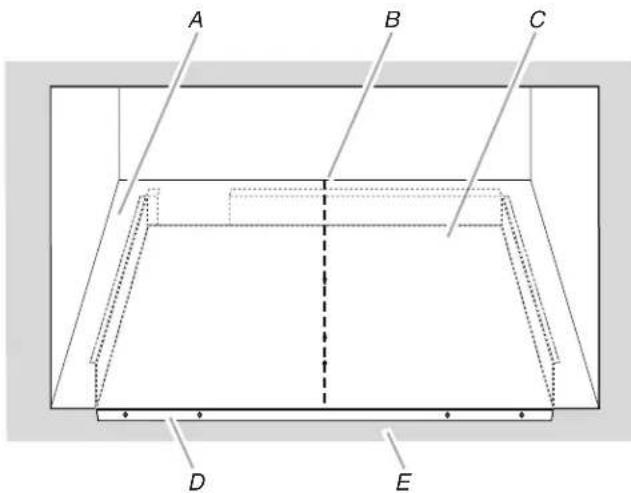

1. On the cutout floor, find and mark the centerline.
2. Place the bottom duct in the opening, with the flange resting against the bottom front facing of the opening.

A. Cutout floor
B. Centerline
C. Bottom duct

D. Bottom duct flange

E. Front facing

1. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.

A. Bottom duct
B. Center arrows, aligned with centerline

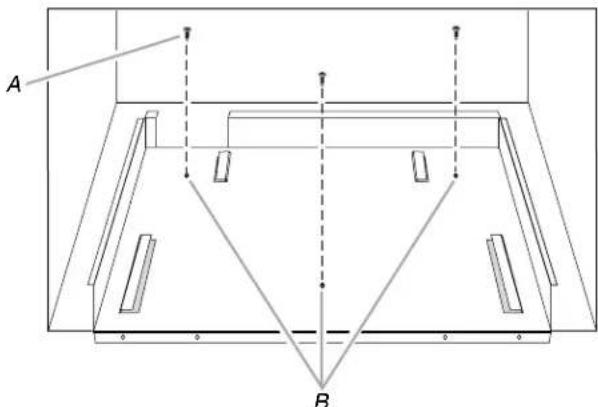

1. Mark the three mounting holes through the bottom duct onto the cutout floor.

A. Short screws (3)
B. Bottom duct mounting holes

1. Using 7/64" drill, drill pilot holes into the three holes marked in Step 4.
2. Realign and install the bottom duct with three short screws.
3. Using 7/64" drill, drill pilot holes through the four mounting holes of the bottom duct flange into the bottom front facing of the cutout/cabinet opening.

A. Bottom duct flange
B. Mounting holes

Install the Microwave Oven

1. Position microwave oven near cutout opening.

1. Plug in microwave oven.

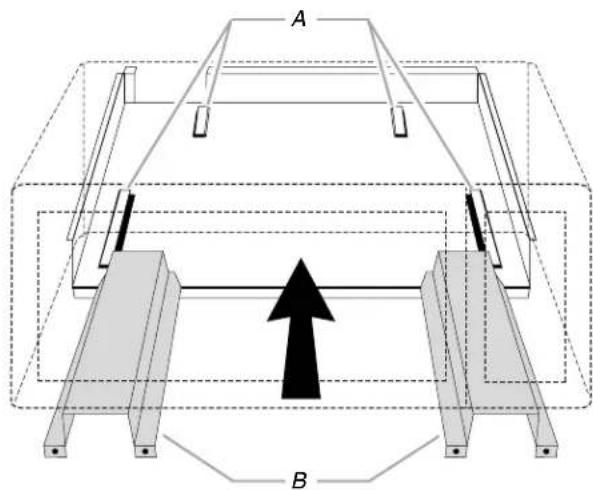

2. Align the rails with the rail guides on the bottom duct.

A. Rail guides
B.Rails

1. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.
2. Secure the microwave oven to the cutout/cabinet by installing four short screws into the mounting holes.

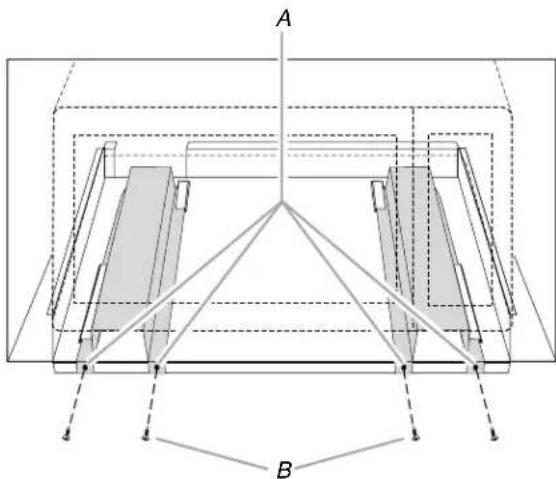

A. Mounting holes
B. Short screws (4)

Install Trim Kit Frame

1. Position trim kit frame over the opening so that the upper tabs fit inside the rails, as shown.

A. Front of trim kit frame
B. Upper tab
C.Rail
D. Lower tab

1. To vertically center the trim kit frame, slide it upward, against the opening, until the upper tabs catch against the top of the rails.
2. Holding the trim kit frame firmly in place, use 7/64" drill to drill four pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame.

NOTES:

To ensure vertical centering, drill the lower holes first.
The holes will be drilled upward from the bottom, and downward from the top at an angle of about 45^ .

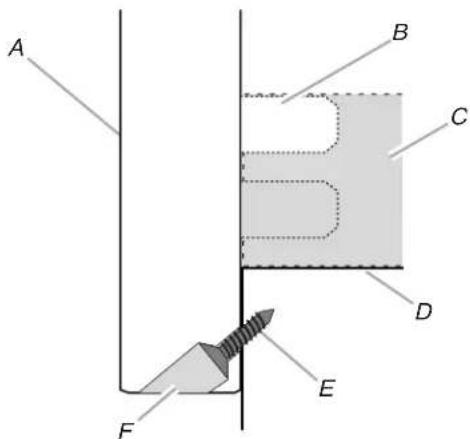

A. Trim kit frame
B. Upper tab
C.Rail

D. Cutout floor

E. Long wood screw (4 - painted)

F. Mounting hole guide

1. Secure trim kit frame to cutout/cabinet by installing four long wood screws (painted) into the pilot holes drilled in Step 3 above.

NOTES:

To ensure vertical centering, install the lower screws first.
To avoid damage to the trim kit frame, do not overtighten screws.

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save these Installation Instructions for future reference.

SECURITE DU FOUR À MICRO-ONDES
