MKC2157AV - Microwaves JENN-AIR - Free user manual and instructions

Brand	JENN-AIR
Model	MKC2157AV
Product Type	Built-in Microwave Oven
Use	Above a built-in oven or alone in a cabinet
Certification	UL for use above all built-in electric or gas ovens up to 30" (76.2 cm)
Opening Dimensions (H x W x D)	Height: 43.2 cm min - 43.5 cm max; Width: adjustable ±2 mm; Depth: 50.8 cm min (receptacle flush in recommended area)
Power Supply	120 V, 60 Hz, AC, 15 or 20 A, fuse or circuit breaker protected
Connection	3-prong grounded outlet
Installation	Framed with supplied trim kit; min. 7.6 cm clearance between ovens; min. floor height 91.4 cm without oven below
Supplied Parts	Slides, ducts, trim frame, screws
Safety	Grounding required; do not use adapter or extension cord; electric shock risk
Maintenance	Clean with a damp cloth; do not use abrasive cleaners
Repairability	Contact a qualified technician; parts available from manufacturer

Frequently Asked Questions - MKC2157AV JENN-AIR

Can I install this microwave above a gas oven?

Yes, the microwave is UL certified for installation above all built-in electric or gas ovens up to 30" (76.2 cm) wide.

What is the minimum installation height?

The minimum built-in opening height is 17 5/16" (43.2 cm) and maximum is 17 5/8" (43.5 cm).

What type of electrical outlet is required?

A 3-prong grounded outlet, 120 V, 60 Hz, 15 or 20 amps, protected by a fuse or circuit breaker. Do not use an adapter or extension cord.

Can I use an extension cord?

No, the use of an extension cord is prohibited. If the cord is too short, have a qualified electrician install an outlet nearby.

How to attach the trim frame?

Place the frame over the opening with the tabs into the slides, center it vertically, then drill four pilot holes at 45° with a 7/64" drill bit and secure with the supplied long wood screws.

Is the trim kit included?

Yes, the trim frame along with the slides, ducts, and necessary screws are supplied with the appliance.

Can I install this microwave alone without an oven below?

Yes, it can be installed alone in a cabinet. The minimum distance from floor to opening is then 36" (91.4 cm).

What are the exact opening dimensions?

Height: 43.2 to 43.5 cm; Width: adjustable ±2 mm; Depth: at least 50.8 cm if the outlet is in the recommended flush area, otherwise up to 61.0 cm.

Is it necessary to drill pilot holes?

Yes, to secure the bottom duct and trim frame, pilot holes must be drilled with a 7/64" drill bit at marked locations.

What to do in case of electrical problems?

Consult a qualified electrician. Do not attempt to modify the plug or cord. Follow local electrical codes.

USER MANUAL MKC2157AV JENN-AIR

MICROWAVE OVEN BUILT-IN TRIM KIT INSTALLATION INSTRUCTIONS

Built-In Trim Models MKC2157, MKC2150

UL listed for use over any electric or gas built-in oven, up to 30^ (76.2 cm) wide

INSTRUCTIONS D'INSTALLATION GARNITUDE ENCASTRÉE POUR FOUR À MICRO-ONDES

Location Requirements 2

Required Cutout Dimensions. 2

Trim Kit Frame Dimensions 2

Electrical Requirements 3

Prepare Microwave Oven 3

Prepare Cutout/Cabinet Opening 4

Install the Microwave Oven.. 5

Install Trim Kit Frame 6

SECURITE DU FOUR A MICRO-ONDES 7

INSTRUCTIONS D'INSTALLATION 7

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

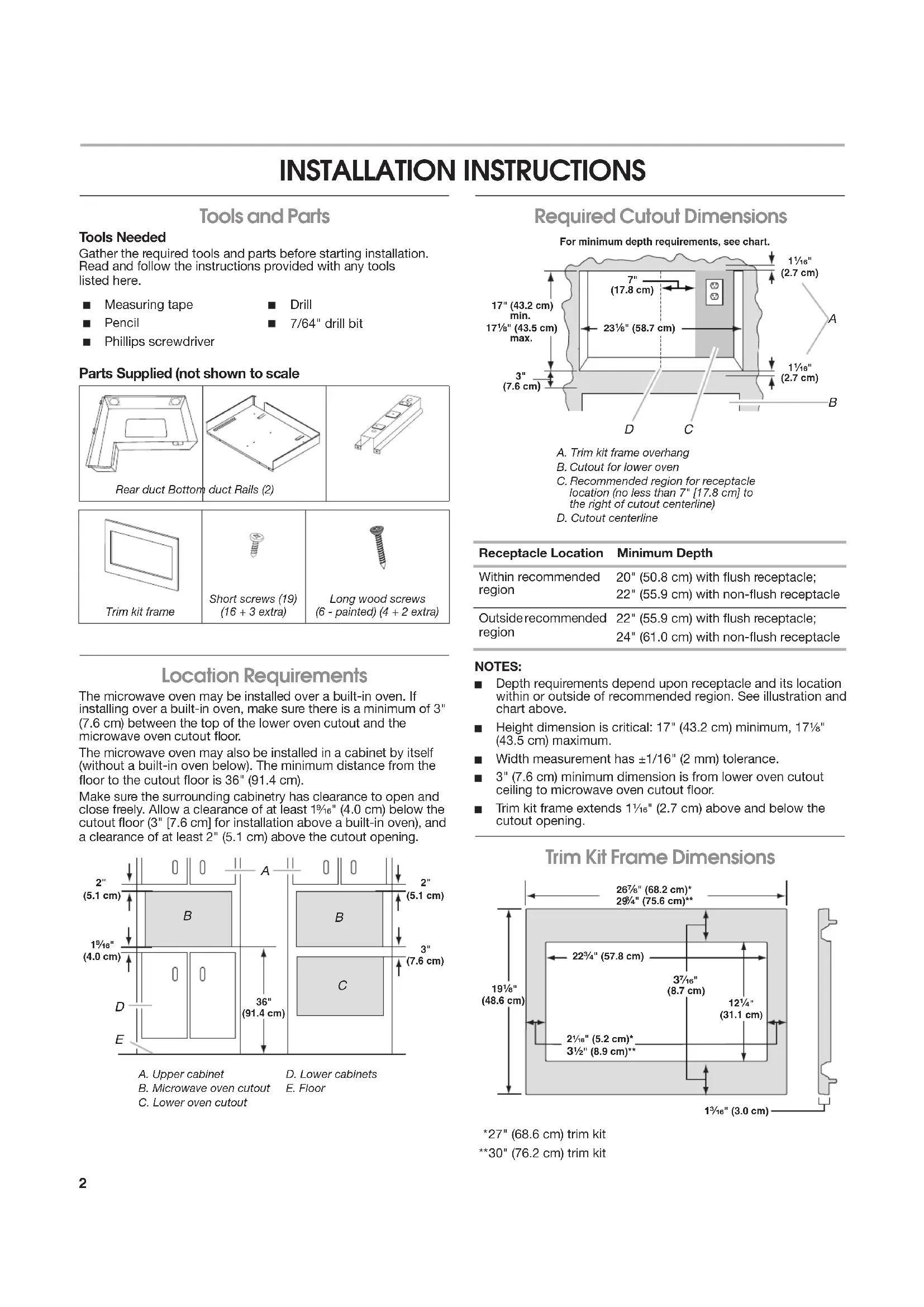

INSTALLATION INSTRUCTIONS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Measuring tape
■ Drill
Pencil
7/64" drill bit
Phillips screwdriver

Parts Supplied (not shown to scale

Location Requirements

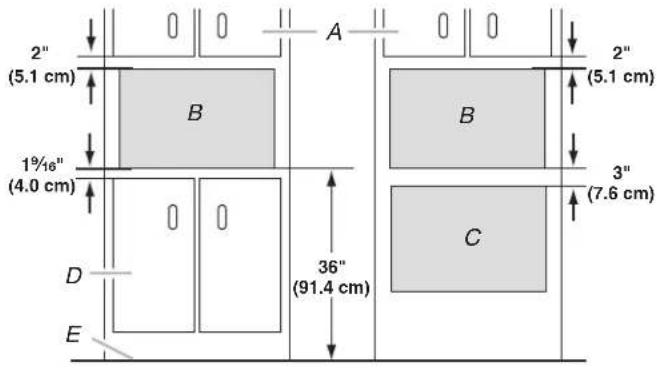

The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3'' (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.

The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). The minimum distance from the floor to the cutout floor is 36^ (91.4 cm).

Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1%^16 (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening.

A. Upper cabinet

D. Lower cabinets

B. Microwave oven cutout

E. Floor

C. Lower oven cutout

Required Cutout Dimensions

For minimum depth requirements, see chart.

A. Trim kit frame overhang
B. Cutout for lower oven
C. Recommended region for receptacle location (no less than 7^ [17.8 cm] to the right of cutout centerline)
D.Cutout centerline

Receptacle Location	Minimum Depth
Within recommended region	20" (50.8 cm) with flush receptacle; 22" (55.9 cm) with non-flush receptacle
Outside recommended region	22" (55.9 cm) with flush receptacle; 24" (61.0 cm) with non-flush receptacle

NOTES:

• Depth requirements depend upon receptacle and its location within or outside of recommended region. See illustration and chart above.
  Height dimension is critical: 17'' (43.2 cm) minimum, 17% (43.5 cm) maximum.
  Width measurement has ± 1 / 16 (2 mm) tolerance.
  3'' (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor.
• Trim kit frame extends 1 116 (2.7 cm) above and below the cutout opening.

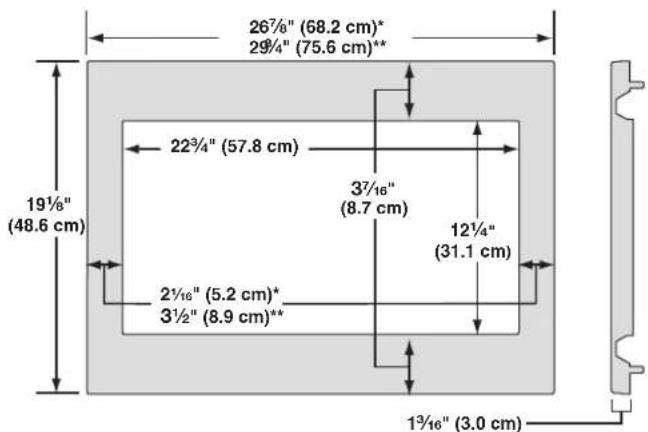

Trim Kit Frame Dimensions

*27" (68.6 cm) trim kit

× 30^n (76.2 cm) trim kit

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

A 120V 60 Hz, AC only, 15 A or 20 A electrical supply with a fuse or circuit breaker.

Recommended:

A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Prepare Microwave Oven

Attach Rails

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Gently turn microwave oven onto its top, with the door facing forward (toward installer).
4. Align the two rails on the microwave oven bottom, as shown, making sure the flanges are forward and pointing up.

A.Rails (2)
D. Flanges
B. Microwave oven bottom
E. Door

1. Secure the rails to the microwave oven bottom using four short screws.

Attach Rear Duct

1. Gently return microwave oven to its upright position.
2. Align the rear duct with the back of microwave oven, as shown.

1. Slide two tabs into the slots on the right side of the back of microwave oven.

A. Rear duct tabs
B.Slots

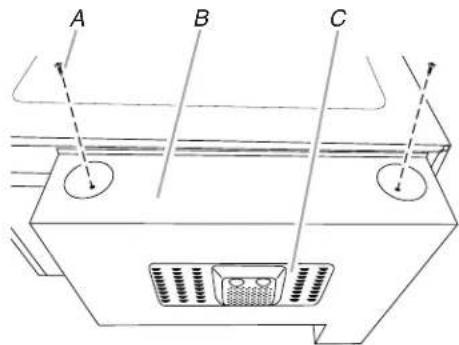

1. Use two short screws to secure top of rear duct to the back of microwave oven, as shown.

A. Short screws (2)
B. Rear duct
C. Back of microwave oven

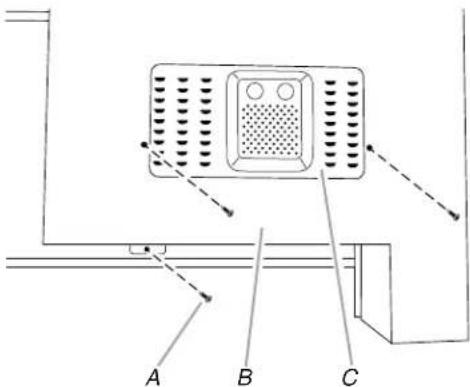

1. Use three short screws to secure back of rear duct to the back of microwave oven, as shown.

A. Short screws (3)
B. Rear duct
C. Back of microwave oven

Prepare Cutout/Cabinet Opening

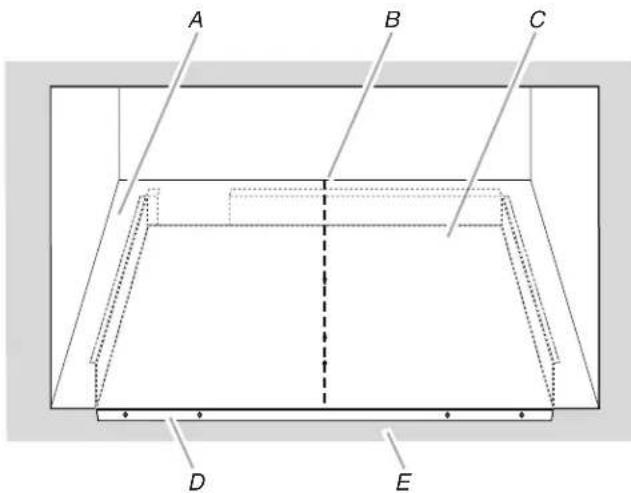

1. On the cutout floor, find and mark the centerline.
2. Place the bottom duct in the opening, with the flange resting against the bottom front facing of the opening.

A. Cutout floor
B. Centerline
C. Bottom duct

D. Bottom duct flange

E. Front facing

1. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.

A. Bottom duct
B. Center arrows, aligned with centerline

1. Mark the three mounting holes through the bottom duct onto the cutout floor.

A. Short screws (3)
B. Bottom duct mounting holes

1. Using 7/64" drill, drill pilot holes into the three holes marked in Step 4.
2. Realign and install the bottom duct with three short screws.
3. Using 7/64" drill, drill pilot holes through the four mounting holes of the bottom duct flange into the bottom front facing of the cutout/cabinet opening.

A. Bottom duct flange
B. Mounting holes

Install the Microwave Oven

1. Position microwave oven near cutout opening.

1. Plug in microwave oven.

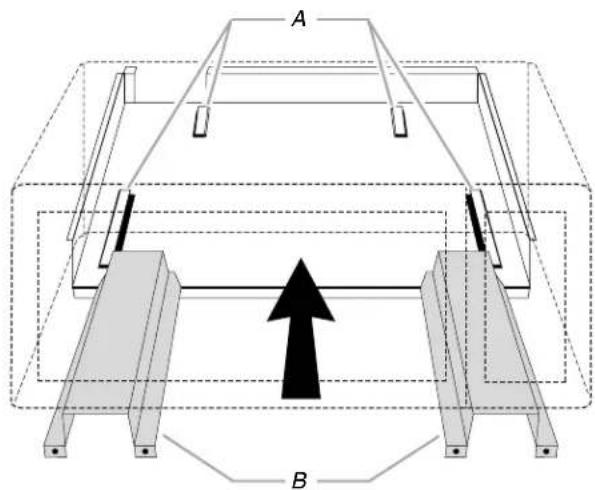

2. Align the rails with the rail guides on the bottom duct.

A. Rail guides
B.Rails

1. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.
2. Secure the microwave oven to the cutout/cabinet by installing four short screws into the mounting holes.

A. Mounting holes
B. Short screws (4)

Install Trim Kit Frame

1. Position trim kit frame over the opening so that the upper tabs fit inside the rails, as shown.

A. Front of trim kit frame
B. Upper tab
C.Rail
D. Lower tab

1. To vertically center the trim kit frame, slide it upward, against the opening, until the upper tabs catch against the top of the rails.
2. Holding the trim kit frame firmly in place, use 7/64" drill to drill four pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame.

NOTES:

To ensure vertical centering, drill the lower holes first.
The holes will be drilled upward from the bottom, and downward from the top at an angle of about 45^ .

A. Trim kit frame
B. Upper tab
C.Rail

D. Cutout floor

E. Long wood screw (4 - painted)

F. Mounting hole guide

1. Secure trim kit frame to cutout/cabinet by installing four long wood screws (painted) into the pilot holes drilled in Step 3 above.

NOTES:

To ensure vertical centering, install the lower screws first.
To avoid damage to the trim kit frame, do not overtighten screws.

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save these Installation Instructions for future reference.
