USER MANUAL H2OGO! 53304 BESTWAY

AIR-BLOWER SAFETY INFORMATION

• READ AND SAVE THESE INSTRUCTIONS

• To reduce the risk of re or electric shock, do not use this air blower with any solid-state speed control device.

• Prevent sharp and hard objects from dropping into and prevent liquid from owing into the air blower.

• Do not wash the air blower with liquid, you must rst unplug it from power source and then wipe it with wet cloth when you clear it.

• Do not draw and pull motor leads, and do not bump the air blower, you’d better use the air blower between negative ve and fty centigrade, If you let the air blower be baked in the high temperature, motor leads enamelled cables and heating bodies will aging and shorten it’s life. KEEP CHILDREN AWAY: Do not allow children to play with or around the unit, in any way, which could result in injury. PROTECT POWER CORD FROM DAMAGE: Never operate a unit with a damaged power cord, as this may lead to electrical or re hazards. If the power supply cord is damaged, it must be replaced by a cord of the same type and amperage rating. OPERATION Place the air blower on a steady net surface where children can be kept away. This air blower is for use on a nominal 120-volt circuit and has a grounding plug similar to the plug illustrated in sketch (A). Only connect the product to an outlet having the same conguration as the plug.Do not use an adapter with this product. Instructions for installation and operation Ages: 5-10 years

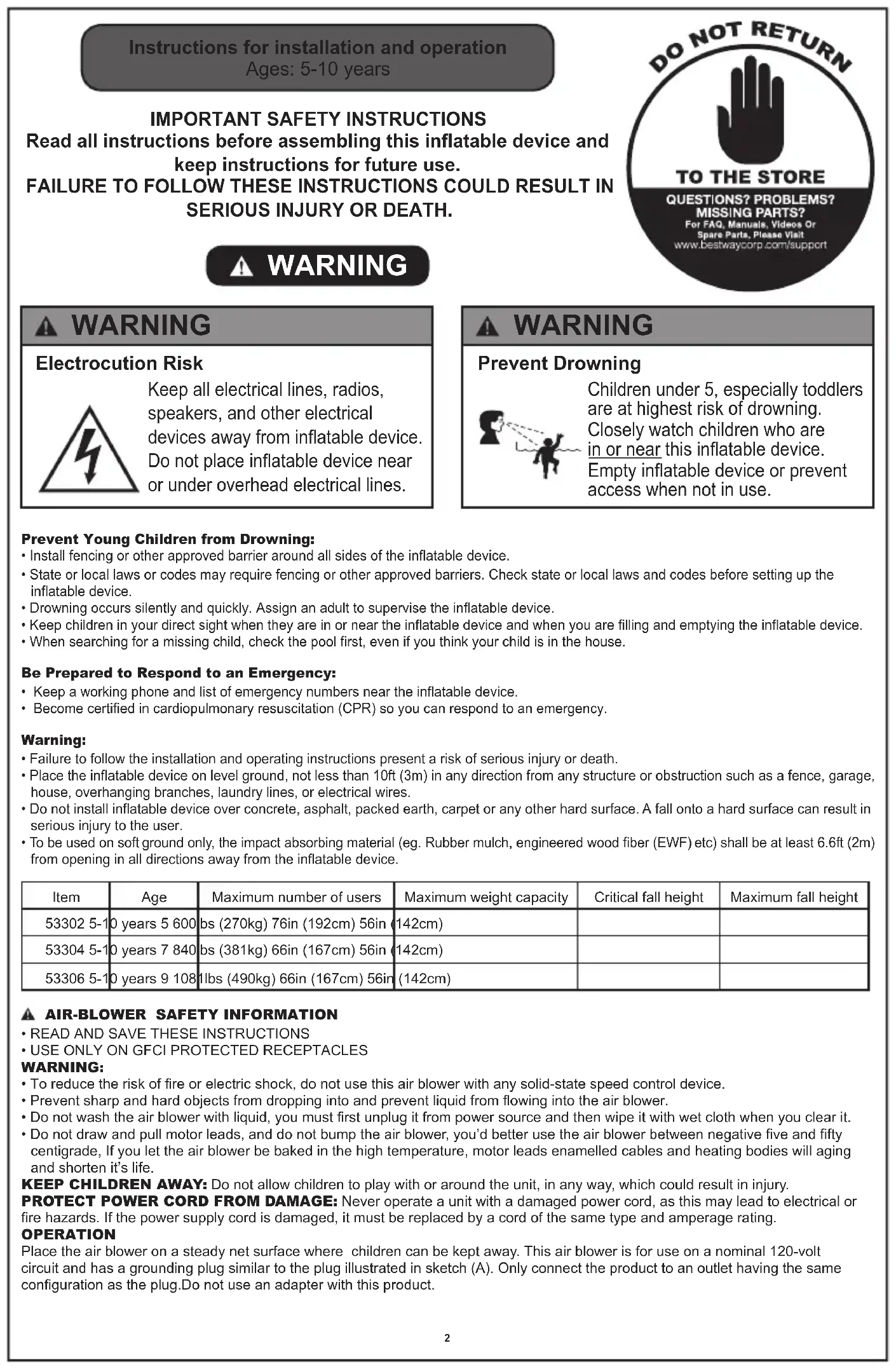

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before assembling this inatable device and keep instructions for future use. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING WARNING Electrocution Risk Keep all electrical lines, radios, speakers, and other electrical devices away from inatable device. Do not place inatable device near or under overhead electrical lines. WARNING Prevent Drowning Children under 5, especially toddlers are at highest risk of drowning. Closely watch children who are in or near this inatable device. Empty inatable device or prevent access when not in use. Prevent Young Children from Drowning:

• Install fencing or other approved barrier around all sides of the inatable device.

• State or local laws or codes may require fencing or other approved barriers. Check state or local laws and codes before setting up the inatable device.

• Drowning occurs silently and quickly. Assign an adult to supervise the inatable device.

• Keep children in your direct sight when they are in or near the inatable device and when you are lling and emptying the inatable device.

• When searching for a missing child, check the pool rst, even if you think your child is in the house. Be Prepared to Respond to an Emergency:

• Keep a working phone and list of emergency numbers near the inatable device.

• Become certied in cardiopulmonary resuscitation (CPR) so you can respond to an emergency.

• Failure to follow the installation and operating instructions present a risk of serious injury or death.

• Place the inatable device on level ground, not less than 10ft (3m) in any direction from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.

• Do not install inatable device over concrete, asphalt, packed earth, carpet or any other hard surface. A fall onto a hard surface can result in serious injury to the user.

• To be used on soft ground only, the impact absorbing material (eg. Rubber mulch, engineered wood ber (EWF) etc) shall be at least 6.6ft (2m) from opening in all directions away from the inatable device. Item Age Maximum number of users Maximum weight capacity Critical fall height Maximum fall height 53302 5-10 years 5 600lbs (270kg) 76in (192cm) 56in (142cm) 53304 5-10 years 7 840lbs (381kg) 66in (167cm) 56in (142cm) 53306 5-10 years 9 1081lbs (490kg) 66in (167cm) 56in (142cm)3 303021211205_53302/53304/53306_14x21cm

OFF — O ON — l GROUNDING METHODS Grounding Pin Sketch A Grounded Outlet Keep Unit Grounded: air blower should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Warning: Improper installation of the grounding plug is able to result in a risk of electric shock.

When repair or replacement of the cord or plug is required, do not connect the grounding wire to either at blade terminal. The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire. CAUTION: Check with a qualied electrician or serviceman when the grounding instructions are not completely understood, or when in doubt as to whether the air blower is properly grounded. Do not modify the plug provided. If it will not t the outlet, have the proper outlet installed by a qualied electrician. The appliance must be positioned so that the plug is accessible. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualied person in order to avoid a hazard. GFCI Test A. To test the GFCI plug, insert it into a grounding type receptacle. B. Press the “RESET” button; the indicator turns red. NOTE: If the indicator light is not on, the test has failed. C. Press the “TEST” button. The indicator turns off. NOTE: If the indicator light is not off, the test has failed. D. Press the “RESET” button, the indicator light turns red, and the blower is ready for use.

Risk of electric shock. The GFCI must be tested before each use.

Do not use the blower if the above test fails. Please contact your local Bestway Customer Service. Placement: Use on a at, grassy area only. Do not use on pavement or hard surfaces. Usage area should be free of rocks, bumps, holes, sticks, etc. The water park setup location should have a minimum distance of 10ft (305cm) from any free-standing structures or obstructions. this include: houses, garages, fences, trees, playground equipment, large rocks, etc. Setup Instruction 10ft.(305cm)10ft.(305cm) safety area 10ft. (305cm) safety area 10ft. (305cm) 10ft. (305cm)safety area10ft. (305cm)4 303021211205_53302/53304/53306_14x21cm Place on level ground and rm grass or soil to allow proper use of stakes. Do not set up the inatable device on a slope or incline. Stakes should be placed at an angle for better anchorage, should be driven under the ground to prevent tripping. Do not use the product if wind speed exceeds 20 mph. Do not set up in windy or rainy conditions: sudden gust of wind may lift the product off the ground. Only the blower provided or other manufacturer specied replacement blower should be used for ination. Use only with Ground Fault Circuit Interrupter(GFCI) receptacle. Do not use extension cords with this product and keep the blower and power cord away from water. Product shall be fully inated and anchored before use. Anchor points: #53302,#53304: 8; #53306: 9. Attention: Each anchor bag should be lled to 40lbs.(18kg) of water. Each anchor bag must be attached while using the park (Only for #53302;#53304). After ination, the blower should run continuously while children are playing. IMPORTANT: Drain the water park of all water to prevent mold and mildew. Product should be completely dry before storage. Do not fold and store water park if any moisture remains. IMPORTANT: All children must exit the water park before deation or draining.

1. Turn off the garden hose and disconnect it from the tube.

2. Turn off the blower motor and unplug it from the outlet. Move the blower to dry ground if it appears that it will get wet from draining water.

3. Open the water valve and drain the water.

4. Remove stakes and drag water park away from the drained water to a dry area.

5. Re-stake the water park and blower, tie the ination tube to the blower, then reconnect and power up the blower.

6. Leave the water park inated until all remaining water has evaporated and the water park is dry.

7. Once water park is completely dry, turn off the blower and unpulg it from the outlet.

8. Remove and drain the hose assembly from the Water park. Untie the drawstring from the short outlet tube and allow the water park to fully deate. Remove the hose assembly and wrap it up with no kinks. WARNING

• Constant, competent adult supervision of children and other young users is required at all times in front of the device where all parts of play areas can be seen.

• Keep the area around the product clean, and clear of objects, to prevent slips and falls.

• Always check all anchors before and during use.

• To prevent electric shock, do not clean the blower with water.

• Children should not wear loose or baggy clothing, scarves, hoods or clothing with drawstrings or long cords while playing in this product.

• Children must remove helmets, loose clothing, scarves, headgear, shoes and glasses, as well as any sharp or hard objects from their pockets, as they may puncture the bounding surface.

• Separation of larger children from smaller children. Do not allow children to play together who are unevenly matched in weight and height.

• Do not allow users to climb or hang on containment walls.

• Do not allow users to do somersaults or rough play.

• Do not allow food, drink or gum inside unit.

• Children must not slide down head rst on their stomach.

• Keep pets away from product.

• Do not attach items to the inatable device that are not specically designed for use with the inatable device, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they have the potential to cause a strangulation hazard.

MAINTENANCE OF WATER PARK

1. To keep the product clean: wipe the inatable device using a dry cloth or a cloth dampened with a neutral, non-ammable, non-toxic cleaning and sanitizing solution or pure water.

2. If applicable, remove water and debris from pocket steps after each play cycle.

3. As an outdoor product, the inatable device is subject to wear and deterioration. Inspect for signs of fabric failure; weak or torn surface must be repaired promptly.

MAINTENANCE OF AIR BLOWER

The source of electrical supply must be disconnected prior to any servicing or cleaning.

1. Use a dry cloth to gently clean all surfaces.

2. Store in a cool, dry place and out of children’s reach.

IMPORTANT: 1. Never store the water park when wet. Allow to dry before folding for storage. Follow all previous instructions each use. 2. Store park in a secure place away from children to prevent suffocation hazards. Never leave either the park or the blower outside when not in use. 3. Please place it the dry and ventilated position where is not sour, not alkali and not corrosive gases. After having used it in outdoors, you should place it in a dry and ventilated room in time. Do not let water into the air-blower. Assembly Draining & Deation Storage5 303021211205_53302/53304/53306_14x21cm Fold all pieces of the water park toward the center. Note: If bottom surface is still moist, allow it to air dry prior to folding. Note: Do not place the water spray tubing inside the water park when rolling it up Roll up the water park tightly and compress the fabric to expel all of the remaining air.

Slip the carrying bag over the rolled-up inatable park. Flip the bag and the park over, close the bag, and store the park and the blower in a dry place. To extend the life of the water spraying hose assembly, store it in a adequately ventilated area. Do not store them together with the park.

1. Defalte the item, clean the area and allow to dry thoroughly.

2. Cut a portion of the patch to the size needed and round the corners.(See Fig.1&2).

3. Apply the repair patch:

Option #1: Using the vinyl patch. Remove the adhesive backing from the patch material, position the patch over the damaged area and smooth out any bubbles. Option #2: Using the fabric patch and the glue (not included). Apply only the amount of glue(not included) needed to cover the repair site and press patch rmly over the puncture.

4. Allow to sit for 30 minutes before re-inating.

Warning: Repair patched must be applied by an adult only. Keep out of children.

PROBLEM CAUSE Motor won’t run

1. Switch not turned on.

2. The circuit is opened or it is poor contact.

3. Electric capacity is damaged.

4. Choked up by hard objects.

Motor runs but wheel makes a scraping noise

1. Screws on the vaned wheel are loose.

2. Foreign objects in air-blower.

Motor is unable to run normally

1. The voltage is unstable.

2. Motor is affected with damp.

3. Electric capacity is failure.

4. The impeller is loose.6
