USER MANUAL JMW2430LM JENN-AIR

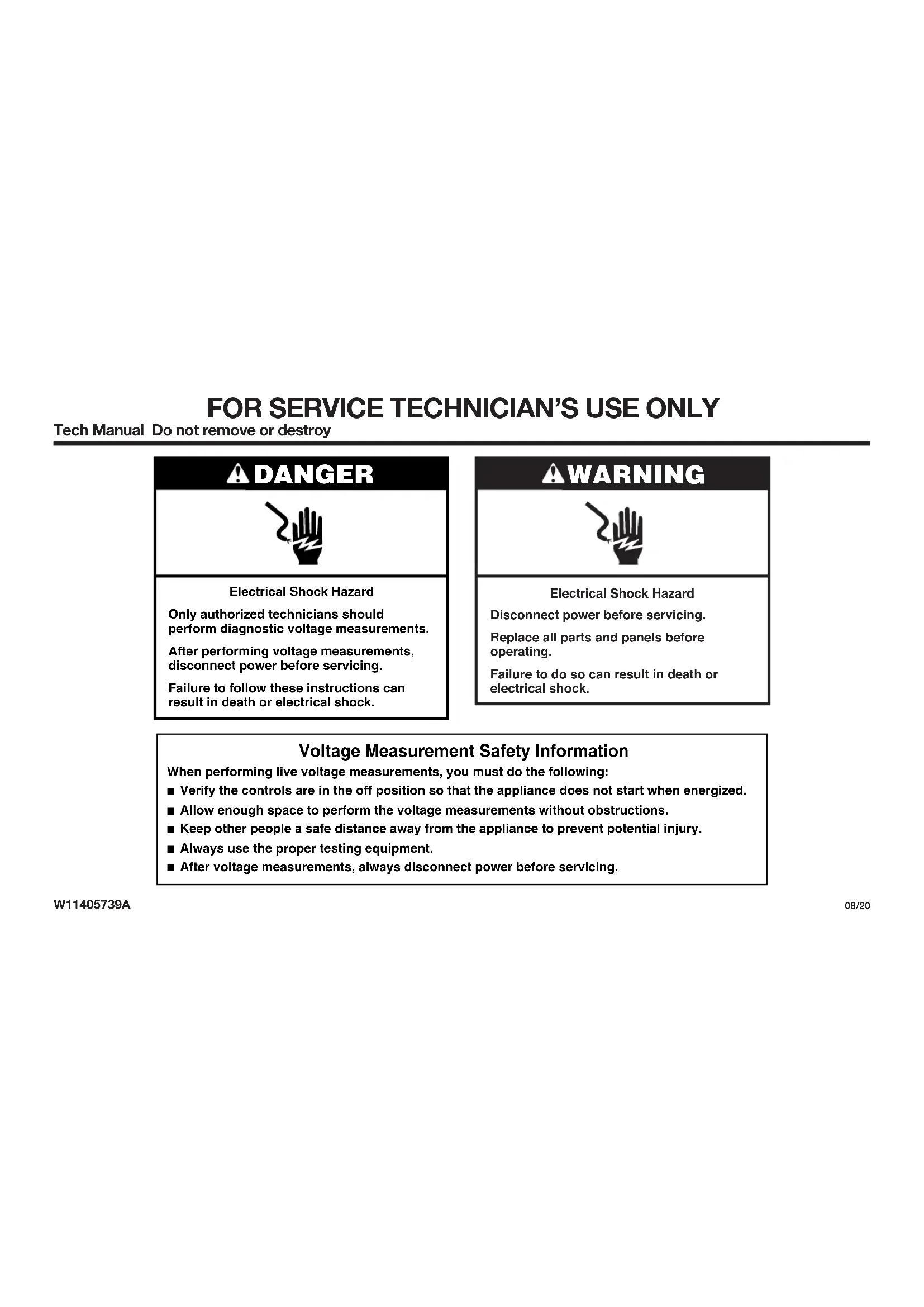

Electrical Shock Hazard

Only authorized technicians should perform diagnostic voltage measurements.

After performing voltage measurements, disconnect power before servicing.

Failure to follow these instructions can result in death or electrical shock.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

Voltage Measurement Safety Information

When performing live voltage measurements, you must do the following:

Verify the controls are in the off position so that the appliance does not start when energized.
- Allow enough space to perform the voltage measurements without obstructions.
- Keep other people a safe distance away from the appliance to prevent potential injury.
Always use the proper testing equipment.
After voltage measurements, always disconnect power before servicing.

FOR SERVICE TECHNICIAN'S USE ONLY

IMPORTANT: Electrostatic Discharge (ESD) Sensitive Electronics

ESD problems are present everywhere. ESD may damage or weaken the electronic control assembly. The new control assembly may appear to work well after repair is finished, but failure may occur at a later date due to ESD stress.

Use an antistatic wrist strap. Connect wrist strap to green ground connection point or unpainted metal in the appliance

-OR

Touch your finger repeatedly to a green ground connection point or unpainted metal in the appliance.

Before removing the part from its package, touch the antistatic bag to a green ground connection point or unpainted metal in the appliance.
- Avoid touching electronic parts or terminal contacts; handle electronic control assembly by edges only.
■ When repackaging failed electronic control assembly in antistatic bag, observe above instructions.

PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

a. Do not operate or allow the oven to be operated with the door open.
b. Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary:

1. Interlock Operation
2. Proper Door Closing
3. Seal and Sealing Surfaces (Arcing, Wear and Other Damage)
4. Damage to or Loosening of Hinges and Latches
5. Evidence of Dropping or Abuse

c. Before turning on microwave power for any service test or inspection within the microwave generating compartments, check the magnetron, waveguide or transmission line, and cavity for proper alignment, integrity and connections.
d. Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation and transmission systems shall be repaired, replaced, or adjusted by procedures described in service manual before the oven is released to the owner.
e. A microwave leakage check to verify compliance with the CSA should be performed on each oven prior to release to the owner.
f. Do not attempt to operate the oven if the door glass is broken.

FOR SERVICE TECHNICIAN'S USE ONLY

Diagnostics

IMPORTANT: Before powering microwave (MW) magnetron, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity.

Unplug oven or disconnect power before performing the following checks:

A potential cause of a control not functioning is corrosion on connections. Observe connections and check for continuity with an ohmmeter.
All tests/checks should be made with a VOM or DVM having a sensitivity of 20,000 per volt DC or greater.
- Check all connections before replacing components, looking for broken or loose wires, failed terminals, or wires not pressed into connectors far enough. Damaged harness must be entirely replaced. Do not rework a harness.
- Resistance checks must be made with power cord unplugged from outlet and with wiring harness or connectors disconnected.

IMPORTANT: Do not replace the control if there is no evidence of any failure.

To Enter Diagnostics Mode:

Before proceeding with any corrective action, perform the following steps to enter the Diagnostics mode:

1. Enter Diagnostics mode by pressing LOWER OVEN>LOWER LIGHT>OVEN CANCEL (repeat 2 more times).

TIP: You can also swipe your finger from left to right over the keyboards 3 times.

NOTE: You do not need to wait for any audible or visual feedback from the control between keypad presses.

1. If control does not enter Diagnostics mode, continue repeating the keypad sequence from Step 1. All the keypads will light up when the control enters Diagnostics mode.
2. From the Diagnostics menu, scroll to the desired selection using the touch screen.

Error Diagnostics: View and clear the failure history.

Component Activation: Manually activate each relay.

Sensors & Switches: View the traditional oven cavity temperatures and door/latch switch status.

System Information: View the model number, serial number, and software versions.

Exit Diagnostics

General Procedure: Error Codes

NOTE: All failures are stored in the failure history. To check if the error code is still present, start a cooking function and wait 1 minute to check if the error appears.

1. Plug in oven or connect power.
2. Enter Diagnostics mode.
3. Touch or scroll to "Error Diagnostics" in the Diagnostics menu, and then touch OK.

1. To clear error codes, touch "Clear History."
2. If no failures are listed, the message "No Error" will appear on the screen.

General Procedure: Component Activation

1. Plug in oven or connect power.
2. Enter Diagnostics mode.
3. Touch or scroll to "Component Activation" in the Diagnostics menu, and then touch "OK."
4. Touching the following selections will activate/ deactivate corresponding relay.

Selection Relay
MW Light MW Light Relay
MW Turntable MW Turntable Relay
MW Cooling Fan MW Cooling Fan Relay
MW Grill MW Broil Element Relay
MW Convection Element MW Convection Element Relay
MW Convection Fan MW Convection fan Relay
MW Magnetron/Cooling Fan	MW Magnetron and MW Cooling Fan Relay

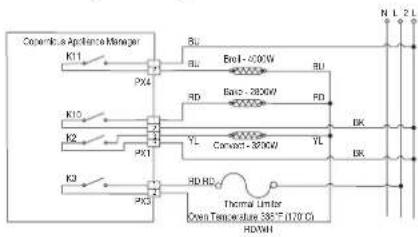

Oven Bake Element Oven Bake Element Relay
Oven Broil Element Oven Broil Element Relay
Oven Convection Element Oven Convection Element Relay
Oven Convection Fan Oven Convection Fan Relay
Oven Cooling Fan High Speed Oven Cooling Fan High-Speed Relay
Oven Cooling Fan Low Speed Oven Cooling Fan Low-Speed Relay
Oven Light	Oven Light Relay

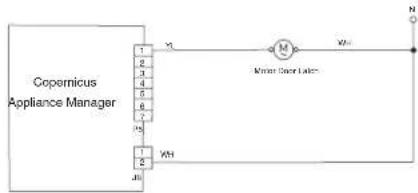

Oven Door Latch Motor	Oven Door Latch Motor Relay

General Procedure: Sensors & Switches

NOTE: This procedure is to view the current status of oven switches and sensor readings.

Display	Status
MW Door Switch	Open or Closed
MW Cavity Temperature	Degrees in Celsius
Oven Door Switch	Open or Closed

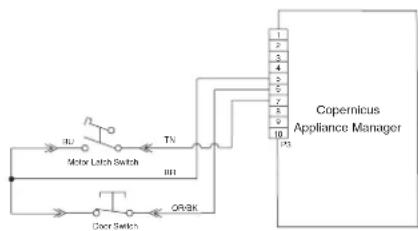

Oven Latch Switch	Open or Closed

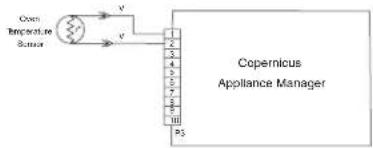

Oven Cavity Temperature	Degrees in Celsius
Oven Meat Probe Temperature	Degrees in Celsius

1. Plug in oven or connect power.
2. Enter Diagnostics mode.
3. Touch or scroll to "Sensors & Switches" in the Diagnostics menu, and then touch "OK."
4. Touch or scroll through the Sensors & Switches menu to view the desired status.

NOTE: Touching "Back" will return the display to the main Diagnostics menu.

FOR SERVICE TECHNICIAN'S USE ONLY

General Procedure: System Information

NOTE: This procedure is to view the following system information:

System Information Display
Model # Model Information
Serial # Product Serial Number
UI Serial # User Interface Serial Number
Oven ACU Serial # Appliance Control Unit Serial Number
UI Version User Interface Software Version
HMI Central SW HMI Central Board Software Version
HMI Left SW HMI Left Keyboard Software Version
HMI Left EE HMI Left Keyboard EEPROM Version
HMI Right SW HMI Right Keyboard Software Version
HMI Right EE HMI Right Keyboard EEPROM Version
Kernel Version HMI Central Board Software Version
Touch Calibration Version LCD/TP FPC Tail Software Version
Database Version	HMI Central Board Database Structure
Audio Version	HMI Central Board Software Version
Oven ACU SW	Oven Appliance Control Unit Software Version
MWO ACU SW	Microwave Oven Appliance Control Unit Software Version
Diagnostics Entries	Number of times Diagnostics menu has been entered.

1. Plug in oven or connect power.
2. Enter Diagnostics mode.
3. Touch or scroll to "System Information" in the Diagnostics menu, and then touch "OK."
4. Touch or scroll through the System Information menu to view the desired status.

NOTE: Touching "Back" will return the display to the main Diagnostics menu.

General Procedure: Model Selection

NOTE: When a new User Interface (UI) is installed, you will be prompted to select a new model number upon power-up. To change the model number on an existing UI, follow the steps below.

1. Plug in oven or connect power.
2. Enter Diagnostics mode.
3. Touch or scroll to "System Information" in the Diagnostics menu, and then touch "OK."
4. Touch or scroll to "Model Number," and then touch "OK."
5. Touch or scroll to the correct model number in the list, and then touch "Select."

Failure/Error Display Codes

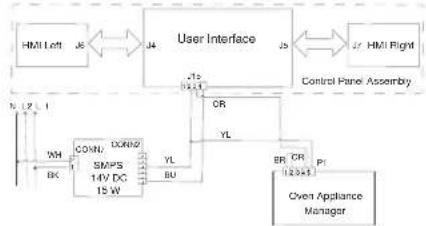

No Display - control is blank

Switch Mode Power Supply (SMPS), User Interface (UI)

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).

1. Unplug oven or disconnect power.
2. Remove plastic cover from UI. Check connection from display to UI.
3. Check wiring from main line to SMPS (CONN 7).

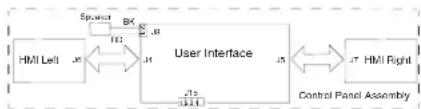

1. Check connection from wiring harness to UI (J15).
2. Check proper voltage input at J15-2 (GND) to J15-4 (14 VDC) on the UI by completing the following steps.
3. Connect voltage measurement equipment to J15-2 and J15-4 on UI.
4. Plug in oven or reconnect power.
5. Measure voltage and confirm voltage reading is 14 VDC. If voltage is correct, unplug oven or disconnect power and go to Step 13. If voltage is not correct, go to Step 9.
6. Unplug oven or disconnect power. Replace the SMPS.
7. Reassemble all parts and panels before operating.

8. Plug in oven or reconnect power.

9. Check for control board display. If still no display, unplug oven or disconnect power.

10. Replace HMI-Central/UI board.
11. Reassemble all parts and panels before operating.
12. Plug in oven or reconnect power. If the UI was replaced, follow the on-screen prompts to select the model number.
13. Verify operation is normal. If problem persists, replace the Control Panel Assembly and repeat steps 14 through 16.

FOR SERVICE TECHNICIAN'S USE ONLY

User Interface not reacting to touch

Control Panel Assembly

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).
1. Enter the Diagnostics menu, and then touch POWER.
2. To reset Touch Calibration: unplug oven or disconnect power, wait 10 seconds, and then plug in oven or reconnect power. If still no response, go to Step 3.
3. Unplug oven or disconnect power.
4. Replace Control Panel Assembly.
5. Reassemble all parts and panels before operating.
6. Plug in oven or reconnect power.
7. Verify operation is normal.

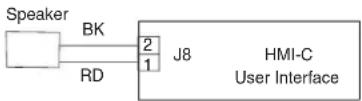

No Sound Speaker, Control Panel Assembly

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).

1. Verify sound is enabled. Touch the Tools menu, and then scroll to the Sound menu. Confirm Key Press, Timer & Alert, and Power On & Off actions are all turned on and set to the desired volume.
2. Unplug oven or disconnect power.
3. Confirm the speaker is firmly connected to the HMI-Central/UI board at J8. If speaker is firmly connected, go to Step 4. If speaker connection is loose, reconnect and proceed to Step 5.

1. Replace speaker.
2. Reassemble all parts and panels before operating.
3. Plug in oven or reconnect power.
4. Confirm operation of the speaker. If problem persists, unplug oven or disconnect power, replace Control Panel Assembly, and repeat steps 5 through 7.

FAILURE ERROR LIKELY FAILURE CONDITION

F1

Internal

E0 Oven user interface failure

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).
PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."
NOTE: If other error codes are stored, troubleshoot those other error codes first.
1. Unplug oven or disconnect power.
2. Confirm the control panel assembly is grounded to the oven chassis. If it is, go to Step 6. If it is not, fix the connection.
3. Reassemble all parts and panels before operating.
4. Plug in oven or reconnect power and cycle power.
5. If error persists unplug oven or disconnect power.
6. Replace HMI-Central/UI board.
7. Reassemble all parts and panels before operating.
8. Plug in oven or reconnect power and cycle power.
9. If error persists after HMI-Central/UI board is replaced, unplug oven or disconnect power and replace Control Panel Assembly.
10. Reassemble all parts and panels before operating.
11. Plug in oven or reconnect power. Follow the on-screen prompts for model selection.
12. Verify operation is normal. Enter Diagnostics mode, select "Error Diagnostics," and clear the history. If the Control Panel Assembly was replaced, there is no need to clear the error history.

FAILURE ERROR LIKELY FAILURE CONDITION

F1 E1 Internal oven ACU error

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).
PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."
NOTE: If other error codes are stored, troubleshoot those other error codes first.

1. Unplug oven or disconnect power.
2. Replace the Copernicus Appliance Manager.
3. Reassemble all parts and panels before operating.
4. Plug in oven or reconnect power
5. If error persists after Copernicus Appliance Manager is replaced, unplug oven or disconnect power, and then go to Step 6. If not, go to Step 9.
6. Replace Control Panel Assembly.
7. Reassemble parts and panels before operating.
8. Plug in oven or reconnect power.
9. Follow the on-screen prompts to select the model number
10. Verify operation is normal. Enter Diagnostics mode, select "Error Diagnostics," and clear the history. If the Control Panel Assembly was replaced, there is no need to clear the error history.

FOR SERVICE TECHNICIAN'S USE ONLY

FAILURE ERROR LIKELY FAILURE CONDITION

F1 E4 Microwave oven relay 4903 error

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on). After powering on, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a microwave cooking function. Wait 1 minute, and then verify that the failure happens again.

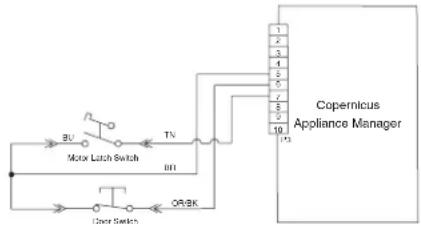

1. Make sure that all interlock switches work properly: when door is open, microwave light is on; when door is closed, microwave light is off.
2. Unplug oven or disconnect power.
3. Check the following on the Microwave Appliance Manager:

a. Wire connections to Relay 4903

b. Check if Relay 4903 is shorted. If so then go to Step 7.

1. Reassemble all parts and panels before operating.
2. Plug in oven or reconnect power.
3. To check if the error code is still present, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a cooking function in the microwave oven. Wait 1 minute to check if the error appears. If error remains, go to Step 7. If not, go to Step 10.
4. Unplug oven or disconnect power and replace the Microwave Appliance Manager.
5. Reassemble all parts and panels before operating.
6. Plug in oven or reconnect power.
7. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

F1 E5 Microwave oven inverter error

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on). After powering on, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a microwave cooking function. Wait 1 minute, and then verify that the failure happens again.

1. Make sure that all interlock switches work properly: when door is open, microwave light is on; when door is closed, microwave light is off.
2. Unplug oven or disconnect power.
3. Check the following on the Microwave Appliance Manager:

a. Relay 4903
b. Connector P8

1. Check the following connections on the Inverter board:

a. CN701
b. CN702
c. CN703

1. If the door works properly and all connections are okay, replace the Microwave Inverter Board.

2. Reassemble all parts and panels before operating.

3. Plug in oven or reconnect power.

4. To check if the error code is still present, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a cooking function in the microwave oven. Wait 1 minute to check if the error appears. If error remains, then go to Step 9. If not, go to Step 17.

5. Unplug oven or disconnect power.
6. Replace the Magnetron.
7. Reassemble all parts and panels before operating.
8. Plug in oven or reconnect power.
9. To check if the error code is still present, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a cooking function in the microwave oven. Wait 1 minute to check if the error appears. If error remains, then go to Step 14. If not, go to Step 17.
10. Unplug oven or disconnect power and replace the Microwave ACU.
11. Reassemble all parts and panels before operating.
12. Plug in oven or reconnect power.
13. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

F1 E6 Microwave generation error

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on). After powering on, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a microwave cooking function. Wait 1 minute, and then verify that the failure happens again.

1. Make sure that all interlock switches work properly: when door is open, microwave light is on; when door is closed, microwave light is off.
2. Unplug oven or disconnect power.
3. Check the following on the Microwave Appliance Manager: a. Relay 4903

1. If the door works properly and all connections are okay, replace the Magnetron.
2. Reassemble all parts and panels before operating.
3. Plug in oven or reconnect power.
4. To check if the error code is still present, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a cooking function in the microwave oven. Wait 1 minute to check if the error appears. If error remains, then go to Step 8. If not, go to Step 16.
5. Unplug oven or disconnect power and replace the Inverter Board.
6. Reassemble all parts and panels before operating.
7. Plug in oven or reconnect power.
8. To check if the error code is still present, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a cooking function in the microwave oven. Wait 1 minute to check if the error appears. If error remains, then go to Step 12. If not, go to Step 16.
9. Unplug oven or disconnect power.
10. Replace the Microwave ACU.
11. Reassemble all parts and panels before operating.

FOR SERVICE TECHNICIAN'S USE ONLY

1. Plug in oven or reconnect power.
2. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

F2	E0 Keypad disconnected
Keypad	E1 Stuck/Shorted keypad
SUGGESTED CORRECTIVE ACTION PROCEDURE
NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).
PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."

1. Unplug oven or disconnect power.
2. Check that connectors J4, J5, J6, and J7 are firmly connected. If they are not, go to Step 3. If they are, go to Step 6.

1. Reconnect any loose connectors.
2. Reassemble all parts and panels before operating.
3. Plug in oven or reconnect power. If the failure is gone, go to Step 9. If the failure is still present, unplug oven or disconnect power.
4. Replace the Control Panel Assembly.
5. Reassemble all parts and panels before operating.
6. Follow the on-screen prompts to select the model number.
7. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history. If the Control Panel Assembly was replaced, there is no need to clear the error history.

FAILURE ERROR LIKELY FAILURE CONDITION

F3

Sensors

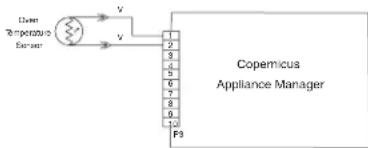

E0 Main oven sensor open or shorted

TED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).

PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."

1. Unplug oven or disconnect power.
2. Disconnect connector P3 from Oven Appliance Manager, and measure the resistance of the sensor between P3-1 and P3-2. Test for 1000 to 1200 at 77^ (25^) . Check sensor for short to ground. If checks on sensor are not correct, replace sensor and repeat the checks.

1. Reassemble all parts and panels and plug in oven or reconnect power.
2. Enter Diagnostics mode and select "Sensors & Switches" to verify if the temperature shown in the Cavity Temperature display is correct (ambient temperature). If it is, go to Step 8. If not, unplug oven or disconnect power.

NOTE: On the status screen, the unit of measurement is Celsius.

1. Replace the Copernicus Appliance Manager board.
2. Reassemble all parts and panels before operating.
3. Plug in oven or reconnect power.
4. Verify operation is normal. Enter Diagnostics mode, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

F3

E3

Meat probe connector jack or meat probe

shorted

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).

PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."

1. Unplug oven or disconnect power.
2. Remove meat probe if connected.
3. Disconnect connector P3 from Copernicus Appliance Manager.

1. Check connector jack resistance between P3-3 and P3-4. If it is 0 change the jack assembly, and then go to Step 5. If it is not 0 , the jack assembly is working properly. Go to Step 5.
2. Plug in the meat probe and check for short to ground or open. If checks on meat probe are not correct, replace the meat probe. At 77^ (25^) the expected value is approximately 50K . If they are correct, replace the Copernicus Appliance Manager.
3. Reassemble all parts and panels before operating.
4. Plug in oven or reconnect power.
5. Verify operation is normal. Enter Diagnostics mode, select "Error Diagnostics," and clear the history. Check the meat probe reading by entering Diagnostics mode and selecting "Sensors & Switches." The meat probe should detect the ambient temperature.

FOR SERVICE TECHNICIAN'S USE ONLY

FAILURE ERROR LIKELY FAILURE CONDITION

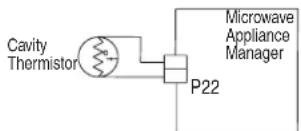

F4 E1 Microwave cavity temperature sensor error

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on). After powering on, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a microwave cooking function that uses the temperature sensor, such as a Convect cycle. Wait 1 minute, and then verify that the failure happens again.

1. Unplug oven or disconnect power.
2. Check that the P22 connection of the Microwave Appliance Manager is firmly connected. If it is, go to Step 3. If it is not, reconnect and go to Step 5.

1. Disconnect connector P22 from the Microwave Appliance Manager, and measure the resistance of the thermistor. It should be (approximately) 230k at 77^ ± 10^ ( 25^ ± 10^ ).
2. Check thermistor for short to ground. If check on thermistor is not correct, replace the thermistor. If thermistor check is correct, replace the Microwave Appliance Manager.
3. Reassemble all parts and panels before operating.
4. Plug in oven or reconnect power.
5. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

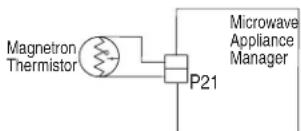

F4 E2 Magnetron temperature sensor error

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on). After powering on, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a microwave cooking function. Wait 1 minute, and then verify that the failure happens again.

1. Unplug oven or disconnect power.
2. Check that the P21 connection of the Microwave Appliance Manager is firmly connected. If it is, go to Step 3. If it is not, reconnect and go to Step 5.

1. Disconnect connector P21 from the Microwave Appliance Manager, and measure the resistance of the thermistor. It should be (approximately) 10k at 77^ ± 10^ ( 25^ ± 10^ ).
2. Check thermistor for short to ground. If check on thermistor is not correct, replace the thermistor. If thermistor check is correct, replace the Microwave Appliance Manager.
3. Reassemble all parts and panels before operating.
4. Plug in oven or reconnect power.
5. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

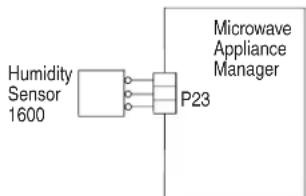

F4 Inputs E4 Microwave oven humidity sensor error

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on). After powering on, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a microwave cooking function that uses the humidity sensor, such as a Steam cycle. Wait 1 minute, and then verify that the failure happens again.

1. Unplug oven or disconnect power.
2. Check that the P23 connection of the Microwave Appliance Manager is firmly connected. If it is, go to Step 3. If it is not, reconnect and go to Step 5.

1. Disconnect connector P23 from Microwave Appliance Manager and measure the resistance of the sensor:
   Between pins 3 and 1. It should be approximately 2800 at 77^ ± 10^ (25^ ± 10^) .
   Between pins 3 and 2. It should be approximately 2800 at 77^ ± 10^ (25^ ± 10^) .
2. Check sensor for short to ground. If checks on sensor are not correct, replace the sensor. If sensor checks are correct, replace the Microwave Appliance Manager.
3. Reassemble all parts and panels before operating.
4. Plug in oven or reconnect power.
5. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

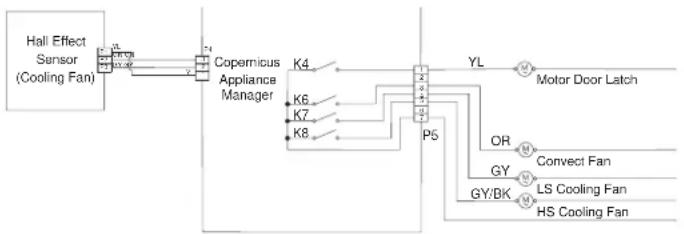

F4 E8 Inverter over temperature

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on). After powering on, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a microwave cooking function. Wait 1 minute, and then verify that the failure happens again.

1. Unplug oven or disconnect power.
2. Check the following:

a. Cooling fan connection for any loose connectors
b. Oven installation and make sure there is no air blockage

1. Reassemble all parts and panels before operating.
2. Plug in oven or reconnect power.
3. To check if the cooling fan is stalled, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a cooking function in the microwave oven. Make sure the fan is running. If it is not, unplug oven or disconnect power, replace the fan, and go to Step 8. Otherwise, go to Step 6.
4. Unplug oven or disconnect power.
5. Replace the inverter board.
6. Reassemble all parts and panels before operating.
7. Plug in oven or reconnect power.
8. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FOR SERVICE TECHNICIAN'S USE ONLY

FAILURE ERROR LIKELY FAILURE CONDITION

F4 E9 Inverter and magnetron over temperature

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on). After powering on, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a microwave cooking function. Wait 1 minute, and then verify that the failure happens again.

1. Unplug oven or disconnect power.
2. Check the following:

a. Cooling fan connection for any loose connectors
b. Oven installation and make sure there is no air blockage

1. Reassemble all parts and panels before operating.
2. Plug in oven or reconnect power.
3. To check if the cooling fan is stalled, be sure that a load, such as a microwave-safe cup of water, is present in the microwave oven cavity, and start a cooking function in the microwave oven. Make sure the fan is running. If it is not, unplug oven or disconnect power, replace the fan, and go to Step 8. Otherwise, go to Step 6.
4. Unplug oven or disconnect power.
5. Replace the Magnetron and the inverter board.
6. Reassemble all parts and panels before operating.
7. Plug in oven or reconnect power.
8. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

F5 Inputs E0 Door and latch switch do not agree

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).

PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."

1. Enter the Diagnostics menu and select "Component Activation." Touch or scroll to "Door Latch Motor," and then touch "OK." Touch "Latch Door." Wait at least 15 seconds, and then check if latch status changes on screen. If status does not change, unplug oven or disconnect power and go to Step 2. If status changes, unplug oven or disconnect power and go to Step 5.
2. If the oven door did not unlatch, unplug connector P3 and check for continuity (on the latch wire) between P3-5 and P3-7.

1. Disconnect J8 connector from Copernicus Appliance Manager.

2. Measure the resistance between connectors J8-2 and P5-1. It should be 500 to 3000 at 77^ (25^)

1. If the resistance check is outside the range, replace the affected door latch assembly. Verify that the error is gone.
2. Reassemble all parts and panels.
3. Plug in oven or reconnect power.
4. Enter the Diagnostics menu and select "Component Activation." Check the door status on the screen by opening and closing the oven door.
5. If status does not change, unplug the oven or disconnect power.
6. Check for continuity with door open and closed at P3-5 to P3-6. Door open = infinite resistance. Door closed = zero resistance.
7. If continuity check is not correct, replace the door latch assembly. If all checks were correct, replace Copernicus Appliance Manager.
8. Reassemble all parts and panels before operating.
9. Plug in oven or reconnect power.
10. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

F5 Inputs E1 Latch not operating

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).

PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."

1. Enter the Diagnostics menu and select "Component Activation." Touch or scroll to "Door Latch Motor," and then touch "OK." Touch "Latch Door." Wait at least 15 seconds, and then check if latch status changes on screen. If status does not change, go to Step 2. If status changes, unplug oven or disconnect power, replace Copernicus Appliance Manager and go to Step 6.
2. If latch status on screen is "open" unplug oven or disconnect power and check for loose harness connection between motor latch switch and P3-5 and P3-7.

1. Disconnect connector J8 from Copernicus Appliance Manager.

FOR SERVICE TECHNICIAN'S USE ONLY

1. Measure the resistance between connectors J8-2 and P5-1. It should be 500 to 3000 at 77^ (25^)

1. If the resistance check is outside the range, replace the door latch assembly. Verify that the error is gone. If all checks were correct, replace Copernicus Appliance Manager.
2. Reassemble all parts and panels before operating.
3. Plug in oven or reconnect power.
4. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

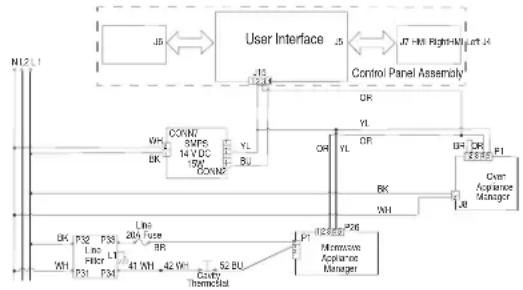

F6	E0 Oven user interface - lost communication
	E6 Oven appliance manager - lost communication
SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).

PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."

1. Unplug oven or disconnect power.
2. Check continuity of wires between P1-4 and J15-3, then P1-5 and J15-2.
3. Check for continuity between P1-1 and P1-2.
4. If all checks are correct, replace Copernicus Appliance Manager.

1. Reassemble all parts and panels before operating.
2. Plug in oven or reconnect power.
3. If the error appears again, unplug oven or disconnect power.
4. Replace the HMI-Central/UI board.
5. Reassemble all parts and panels before operating.
6. Plug in oven or reconnect power.
7. Follow the on-screen prompts to select the model number if the UI was replaced.
8. Verify operation is normal. Enter Diagnostics mode, select "Error Diagnostics," and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

F6 E1 Over temperature

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).
PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."
1. Unplug oven or disconnect power.
2. Check for elements shorted to ground. Check resistance of elements:

a. PX4-2 and PX3-2 to check Broil element (13.2 Ω to 14.6 Ω)
b. PX1-1 and PX3-2 to check Bake element (19 Ω to 21 Ω)
c. PX1-3 and PX3-2 to check Upper Convect element (15.2 Ω to 17.3 Ω)

1. If any element is shorted to ground, replace the element.
2. Check for shorted relays.

For Core Models: Disconnect PX1 and PX4 connectors and check for shorts between:

a. PX1-1 and PX1-2 (Bake relay)
b. PX1-3 and PX1-4 (Up Convect relay)
c. PX4-1 and PX4-2 (Broil relay)

1. If there is a shorted relay, replace the Copernicus Appliance Manager control. Go to Step 9.
2. If everything is correct, disconnect connector P3 from the Copernicus Appliance Manager.

3. Measure the resistance of the oven sensor. It should be 1000 Ω to 1200 Ω at 77^ (25°C).

4. Check sensor for short to ground. If checks on sensor are not correct, replace the sensor and repeat the checks.

1. Reassemble all parts and panels before operating.

2. Plug in oven or reconnect power.

3. Enter the Diagnostics menu and select "Sensors & Switches" to verify that the corresponding oven temperature displayed is correct (ambient temperature). If not, unplug oven or disconnect power, and replace the Copernicus Appliance Manager board.

NOTE: On the status screen, the unit of measurement is Celsius.

1. Reassemble all parts and panels before operating.
2. Plug in oven or reconnect power.
3. Verify operation is normal. Enter Diagnostics mode, select "Error Diagnostics," and clear the history.

FOR SERVICE TECHNICIAN'S USE ONLY

FALURE ERROR LIKELY FAILURE CONDITION
F6 E4	User interface/Appliance manager state status mismatch
SUGGESTED CORRECTIVE ACTION PROCEDURE
NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."NOTE: If other error codes are stored, troubleshoot those other error codes first.1. Unplug oven or disconnect power.2. Replace Copernicus Appliance Manager.3. Reassemble all parts and panels before operating.4. Plug in oven or reconnect power.5. Cycle power. If error persists after the Copernicus Appliance Manager is replaced, unplug oven or disconnect power. Go to Step 7.6. If the error is gone, go to Step 10.7. Replace the HMI-Central/UI board.8. Reassemble parts and panels before operating.9. Plug in oven or reconnect power, and follow the on-screen prompts for model selection.10. Verify operation is normal. If operation is normal, go to Step 14. If error still exists, go to Step 11.11. Unplug oven or disconnect power.12. Replace the control panel assembly.13. Plug in oven or reconnect power.14. Follow the on-screen prompts for model selection.15. Verify operation is normal. Enter Diagnostics mode, select "Error Diagnostics," and clear the history.

F6 E8	Lost communications with microwave oven appliance manager
SUGGESTED CORRECTIVE ACTION PROCEDURE
NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).
PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."
1. Make sure the oven is plugged in. Open microwave door to check if light comes on.
2. Ensure the Sabbath mode is disabled.
3. Unplug oven or disconnect power.
4. Check the connection between Oven User Interface Board J15-2 (yellow) and J15-3 (orange) and Microwave Appliance Manager P26-3 (orange) and P26-4 (yellow).
User Interface Wide/Power Nav YL J15 OR P26 Microwave Appliance Manager
5. If harness is correct, replace the Microwave Appliance Manager.
6. Reassemble all parts and panels before operating.
7. Plug in oven or reconnect power.
8. If the error appears again, unplug or disconnect power and replace HMI-Central/UI board.
9. Reassemble all parts and panels before operating.
10. Plug in oven or reconnect power.

1. Follow the on-screen prompts to select the model number if the UI was replaced.
2. Verify operation is normal. Enter the Diagnostics menu, select "Error Diagnostics," and clear the history.

FAILURE (Left-most 2 Clock digits)	ERROR (Right-most 2 Clock digits)	LIKELY FAILURE CONDITION
F8	E0 Product not wired correctly
	E1 Low fan speed overspeed
	E2 High fan speed underspeed
	E3 High fan speed overspeed
LOW FAN SPEEDMESSAGE ON SINGLE/DOUBLE: The product is experiencing a problem and can no longer be used.
SUGGESTED CORRECTIVE ACTION PROCEDURE
1. Unplug oven or disconnect power.
2. Wait for at least 30 seconds.
3. Plug in oven or reconnect power.
4. Enter Diagnostics mode and navigate to the Component Activation list.
5. Turn on the Cooling Fan Low Speed.
6. Check for proper voltage input at P5-5 and neutral for high speed fan, P5-4 and neutral for low speed fan when cooling fan should be running by completing following steps.
7. Unplug oven or disconnect power.
8. Connect voltage measurement equipment.
9. Plug in oven or reconnect power. Measure voltage and confirm voltage reading is 120 V. If it is not, unplug oven or disconnect power and go to Step 13. If it is, go to Step 10.
10. Check for proper voltage input at P4-1 and P4-2 and confirm voltage reading is 5 VDC. If it is not, unplug oven or disconnect power and go to Step 13. If it is, go to Step 11.
11. Unplug oven or disconnect power.
12. Replace cooling fan. Go to Step 15.
13. Check integrity of all harness wires and connections between the oven appliance manager and the cooling fan. Ensure no shorted wires to chassis. If the wiring is pinched or damaged, replace the cooling fan harness. Go to Step 15. If the wiring is good, go to Step 14.
14. Replace oven appliance manager. Go to Step 15

FOR SERVICE TECHNICIAN'S USE ONLY

1. Replace all parts and panels before operating.
2. Plug in oven or reconnect power.
3. Enter into Diagnostics mode and verify that fan speed is running within oven. (High speed: 1000-3300, Low speed: 400-3000)

Once Fan Speed is completed, navigate back to the activation list and activate the Cooling Fan High Speed and return to "More Information" screen for fan speed.

FAILURE ERROR LIKELY FAILURE CONDITION

F9 E0 Product not wired correctly

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven (power off, wait 10 seconds, and power on).

PROCEDURE: Before proceeding, verify the error code by entering the Diagnostics mode and selecting "Error Diagnostics."

1. Unplug oven or disconnect power.
2. Access the electrical wiring from the house power supply to the oven.
3. Check house wiring to the product. Check to see if the neutral connection is switched with L1 or L2 (refer to the installation instructions for product wiring).
4. Reassemble all parts and panels before operating.
5. Plug in oven or reconnect power.
6. Verify operation is normal by running a cooking function. Enter Diagnostics mode, select "Error Diagnostics," and clear the history.

Microwave Oven Components

Component Locations

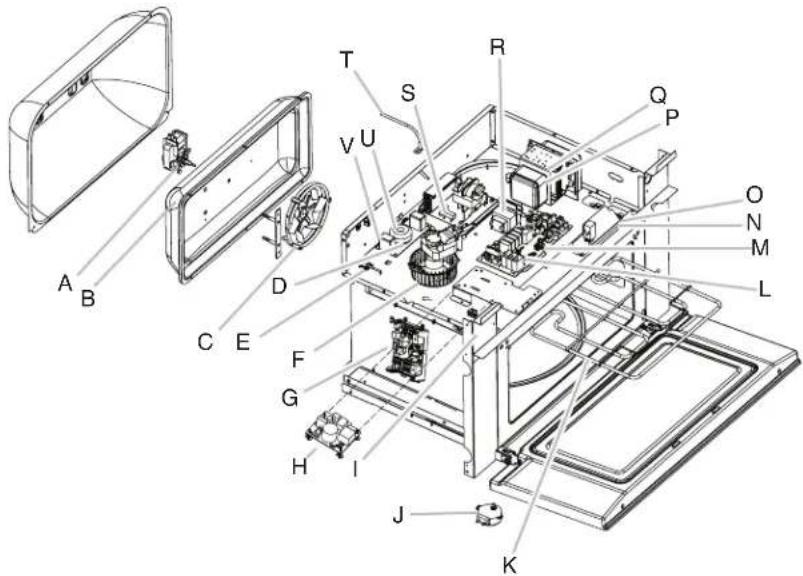

Upper Microwave Oven

A. Convect motor
B. Convect thermostat (behind cover)
C. Convect element
D. Line filter
E. Humidity sensor
F. Magnetron fan motor
G. Copernicus appliance manager (lower oven)
H. Switch mode power supply (SMPS)
I. Secondary interlock switch
J. Turntable motor
K. Broil element
L. Microwave appliance manager
M. Cavity halogen lamp
N. Primary interlock switch
O. Monitor interlock switch
P. Magnetron thermistor
Q. Magnetron
R. Microwave light transformer
S. Microwave inverter
T. Cavity temperature sensor
U. Grill thermostat
V. Cavity thermostat
Not shown: Monitor fuse, 20 A line fuse

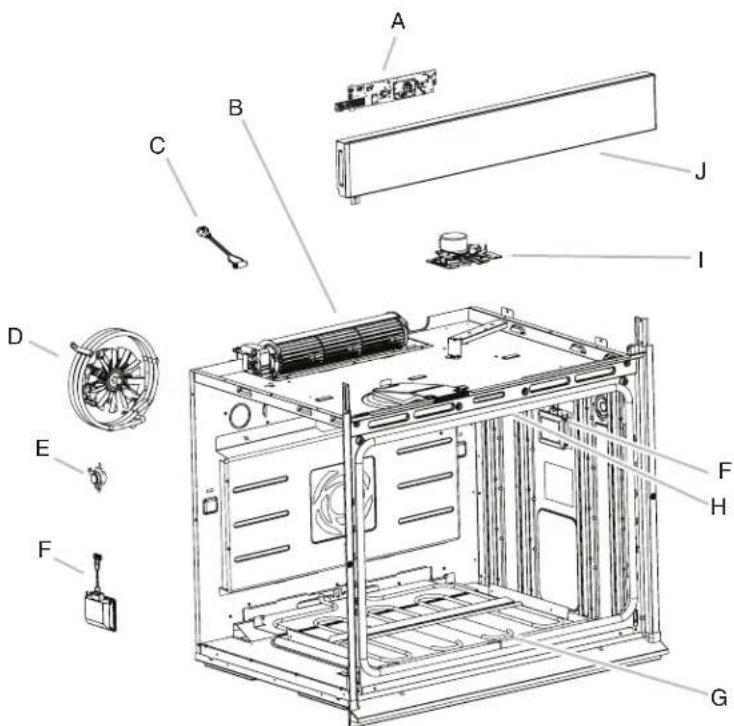

Lower Oven

FOR SERVICE TECHNICIAN'S USE ONLY

A. HMI-Central/UI board
B. Cooling fan
C. Oven temperature sensor
D. Convection assembly
E. Temperature limiter
F. Light assembly
G. Bake element (hidden)
H. Broil element
I. Door lock assembly
J. Control panel assembly

Cooling Fan Relay Logic

	Oven High-Speed Blower (Main/Upper or Lower)	Oven Low-Speed Blower (Main/ Upper or Lower)
Oven Cooking - Cold - ○
Oven Cooking - Warm - ○
Oven Cooking - Hot ○ -
Oven Self-Clean ○ -

LEGEND

Cold Cavity Temperature is less than 212°F (100°C).
Warm	Cavity Temperature is between 212°F and 599°F (100°C and 315°C).
Hot Cavity Temperature is greater than 599°F (315°C).

Mode Bake Broil		Convect Ring	Convect Fan
Convect Frozen Pizza C C C O
Convect Pastry C C C C
Convect Slow Roast 12 hrs	C C C O
Convect Slow Roast 8 hrs	C C C O
Convect Slow Roast 4 hrs	C C C O
Convect Roast	C C C O
Convect Broil	-	C	-
Convect Bake	C C C C
Convect Bake-Rapid Preheat C C C C
Bake	C C C C
Broil	-	C -	-
Keep Warm	C C -	C
Rapid Proof	C C -	-
Proof	C C -	-
Self Clean	C C -	-

LEGEND

Relay Off	Relay Cycles	Relay On	Not Available
-	C	O	NA

FOR SERVICE TECHNICIAN'S USE ONLY

Component Testing Chart - Oven

To properly check for voltage, complete the following steps:
1. Unplug oven or disconnect power.
2. Connect voltage measurement equipment to check points.

1. Plug in oven or reconnect power and confirm voltage reading.
2. Unplug oven or disconnect power.

Component Serviceable Side Check Points Copernicus Results-Resistance Results-Voltage

Lights Front P7-1 to L1 (J8-1) 0-40 Ω 120 V
Latch Switch Front P3-7 to P3-5 Open circuit
Door Switch	Front P3-6 to P3-5 Closed circuit with oven door closed
Latch Motor	Front	P5-1 to N (J8-2)	500-3000 Ω	120 V motor running
Oven Temperature Sensor	Front P3-1 to P3-2 1075 Ω at 68°F (20°C) DLB
Meat Probe	Side	P3-3 to P3-4 9876-10075 Ω
Blower Motor - High Speed	Rear	P5-5 to N (P7-1)	15-23 Ω	120 V motor running
Blower Motor - Low Speed	Rear	P5-4 to N (J8-2)	15-23 Ω	120 V motor running
Thermal Limiter	Rear	PX3-1 to L2 (Main line)	Closed circuit	0 V closed, N/A open
Convection Fan*	Rear	P5-3 to N (J8-2)	16-20 Ω	120 V motor running
Convection Element* Front PX1-3 to PX3-2		16.63-18.38 Ω		240 V Convection cycle operating
Bake Element	Rear	PX1-1 to PX3-2	19.0-21.6 Ω	240 V Bake cycle operating
Broil Element	Front	PX4-2 to PX3-2	13.5-14.92 Ω	240 V Broil cycle operating

Component Serviceable Side Check Points Copernicus Results-Resistance Results-Voltage

User Interface Board Front J15-2 to J15-4 N/A 14 VDC

Copernicus Appliance Manager Side (Combo) P1-2 to P1-5 N/A 14 VDC

\* NOTES:

• Disconnect the harness from the board before performing measurements.

See the following table for connector pin identification.

Copernicus Appliance Manager Harness Connector Pin

Copernicus Appliance Manager Pin

Pin 1 PX3 Pin 1 Pin 1 Pin 1 K3 P6 K11 K9 K9A K1 K1A K2 K2A K10 K10A Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 4 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 8 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 7 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 6 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 Pin 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 PIN 9 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 0 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin Ⅰ PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 1 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 2 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 3 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 4 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 6 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 7 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 8 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 10 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 11 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 13 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 19 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 15 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 17 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 14 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 18 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 12 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16 PIN 16

FOR SERVICE TECHNICIAN'S USE ONLY

Component Testing Chart - Microwave

Component	Serviceable Side	Procedure Results - Resistance		Component Location
Appliance Manager Top Check wiring to MW appliance manager:				G
		1. Unplug microwave oven or disconnect power.
		2. Visually inspect connectors on the microwave appliance manager, P1, P2, P8, P21, P22, P23, P26, P354, P355, and the top connectors (relays 4903, 4904, and 4905) to see whether there are signs of overheating or any signs of failure due to loose wires, bad crimping, etc.
		3. Reassemble all parts and panels before operating.
		4. Plug in microwave oven or reconnect power.
Cavity Thermostat	Top	1. Unplug microwave oven or disconnect power.	Normal = Continuity	V
		2. Remove wire leads.	Abnormal = Infinite
		3. Measure resistance.
		4. Replace wire leads.
		5. Reassemble all parts and panels before operating.
		6. Plug in microwave oven or reconnect power.
Magnetron Fan Motor	Top 1. Unplug microwave oven or disconnect power.	Normal = 15 Ω	F
		2. Remove wire leads.	Abnormal = Infinite
		3. Measure resistance (ohmmeter scale: Rx1).
		4. Replace wire leads.
		5. Reassemble all parts and panels before operating.
		6. Plug in microwave oven or reconnect power.
Turntable Motor Bottom 1. Unplug microwave oven or disconnect power.			Normal =2500 Ω (approximately)	J
		2. Remove wire leads.	Abnormal = Infinite
		3. Measure resistance (ohmmeter scale: Rx1).
		4. Replace wire leads.
		5. Reassemble all parts and panels before operating.
		6. Plug in microwave oven or reconnect power.
Monitor Fuse Top 1. Unplug microwave oven or disconnect power.			Normal = Continuity Abnormal = Infinite	Not shown
MW Light Transformer	Top 1. Unplug microwave oven or disconnect power.		Primary Winding = 40 Ω (approximately)	R
			Secondary Winding = 0.4 Ω (approximately)
Line Fuse Top 1. Unplug microwave oven or disconnect power.			Normal = Continuity Abnormal = Infinite	Not shown

FOR SERVICE TECHNICIAN'S USE ONLY

Component	Serviceable Side	Procedure Results - Resistance		Component Location
Primary Interlock Switch	Top Test 1:	1. Unplug microwave oven or disconnect power.2. Disconnect the wires at the Primary Interlock Switch.3. Check from the common terminal (brown wire) to the normally open terminal (yellow wire).4. Reconnect the wires at the Primary Interlock Switch.5. Reassemble all parts and panels before operating.6. Plug in microwave oven or reconnect power.	Test 1:Door Open = In niteDoor Closed = Continuity	N
		Test 2:1. Unplug microwave oven or disconnect power.2. Disconnect the wires at the Primary Interlock Switch.3. Check from the common terminal (brown wire) to the normally closed terminal (blue wire).4. Reconnect the wires at the Primary Interlock Switch.5. Reassemble all parts and panels before operating.6. Plug in microwave oven or reconnect power.	Test 2:Door Open = ContinuityDoor Closed = In nite
Secondary Interlock Switch	Top 1. Unplug microwave oven or disconnect power.2. Disconnect the wires at the Secondary Interlock Switch.3. Check from the common terminal (blue wire) to the normally open terminal (white wire).4. Reconnect the wires at the Secondary Interlock Switch.5. Reassemble all parts and panels before operating.6. Plug in microwave oven or reconnect power.	Door Open = ContinuityDoor Closed = In nite	I
Monitor Interlock Switch	Top 1. Unplug microwave oven or disconnect power.2. Disconnect the wires at the Monitor Interlock Switch.3. Check from the common terminal (yellow wire) to the normally closed terminal (blue wire).4. Reconnect the wires at the Monitor Interlock Switch.5. Reassemble all parts and panels before operating.6. Plug in microwave oven or reconnect power.	Door Open = ContinuityDoor Closed = In nite	O
Halogen Light Top 1. Unplug microwave oven or disconnect power.			Normal = approximately 3 Ω Abnormal = Infinite	M
Inverter Top Check wiring to MW inverter:				S
Magnetron Top 1. Unplug microwave oven or disconnect power.			Filament Terminals Normal = <1Ω Filament to Chassis Normal = Infinite	Q
Line Filter Top 1. Unplug microwave oven or disconnect power.			P31 to P32, P33 to P34 Normal >= 300 kΩ Abnormal <= 100 kΩ	D

FOR SERVICE TECHNICIAN'S USE ONLY

Component	Serviceable Side	Procedure Results - Resistance		Component Location
Humidity Sensor	Top	1. Unplug microwave oven or disconnect power.	Normal = 2.8 kΩ (approximately)	E
		2. Remove the 3-pin connector from MW Appliance Manager.	at 77°F ± 10°F (25°C ± 10°C)
		3. Measure resistance across pins 1 and 3 and across pins 2 and 3.	Abnormal = Infinite
		4. Replace the 3-pin connector from MW Appliance Manager.
		5. Reassemble all parts and panels before operating.
		6. Plug in microwave oven or reconnect power.
Magnetron Thermistor		1. Unplug microwave oven or disconnect power.	Normal = 10 kΩ (approximately)	P
		2. Remove wire leads.	at 77°F ± 10°F (25°C ± 10°C)
		3. Measure resistance.	Abnormal = Infinite
		4. Replace wire leads.
		5. Reassemble all parts and panels before operating.
		6. Plug in microwave oven or reconnect power.
Grill Thermostat	Top	1. Unplug microwave oven or disconnect power.	Normal = Continuity	U
		2. Remove wire leads.	Abnormal = Infinite
		3. Measure resistance.
		4. Replace wire leads.
		5. Reassemble all parts and panels before operating.
		6. Plug in microwave oven or reconnect power.
Convect Thermostat Rear 1. Unplug microwave oven or disconnect power.			Normal = Continuity	B
			Abnormal = Infinite
Broil Element Rear 1.	Unplug microwave oven or disconnect power.	Normal = 9 ΩAbnormal = Infinite	K
	2. Remove wire leads.
	3. Measure resistance.
	4. Replace wire leads
	5. Reassemble all parts and panels before operating.
	6. Plug in microwave oven or reconnect power.
Convect Element Rear 1.	Unplug microwave oven or disconnect power.	Normal = 12 ΩAbnormal = Infinite	C
	2. Remove wire leads.
	3. Measure resistance.
	4. Replace wire leads.
	5. Reassemble all parts and panels before operating.
	6. Plug in microwave oven or reconnect power.
Cavity Temperature Sensor	Rear 1. Unplug microwave oven or disconnect power.	Normal = 230 KΩ(approximately) at 77°F ± 10°F(25°C ± 10°C)Abnormal = Infinite	T
	2. Remove wire leads.
	3. Measure resistance.
	4. Replace wire leads.
	5. Reassemble all parts and panels before operating.
	6. Plug in microwave oven or reconnect power.
Convect Fan Motor Rear 1.	Unplug microwave oven or disconnect power.	Normal = 48 ΩAbnormal = Infinite	A
	2. Remove wire leads.
	3. Measure resistance.
	4. Replace wire leads.
	5. Reassemble all parts and panels before operating.
	6. Plug in microwave oven or reconnect power.

FOR SERVICE TECHNICIAN'S USE ONLY

For patent information, please see Pat. www.patent-listing.com W11405739A

NOTE: This sheet contains important Technical Service Data.

FOR SERVICE TECHNICIAN ONLY

DO NOT REMOVE OR DESTROY

W11405739A

©2020 All rights reserved.

08/20

FOR SERVICE TECHNICIAN'S USE ONLY

Manual technique No guitar ni destruiR

APELIGRO
