HTS6CBK5XWIFI - Basket HOOVER - Free user manual and instructions

Product type	Range hood
Brand	Hoover
Model	HTS6CBK5XWIFI
Installation type	Wall-mounted (external ducted or recirculation)
Recommended mounting height	65 to 75 cm above the cooking surface
Exhaust duct diameter	150 mm
Number of speeds	3 + boost (temporary 4th speed)
Boost function	Yes, activation for 5 minutes
Timer	Yes, automatic shut-off after 5 minutes
Lighting	LED (max 1.5 W)
Wi-Fi connection	Yes (802.11 b/g/n, 2.4 GHz)
Compatible app	hOn
Grease filter	Yes, monthly cleaning
Carbon filter	Yes (2 supplied), annual replacement
Network standby consumption	2 W
Electrical class	Class I (grounding required)
Supplied accessories	2 carbon filters, casing, chimneys, brackets, screws, wall plugs, air outlet

Frequently Asked Questions - HTS6CBK5XWIFI HOOVER

How to install the Hoover HTS6CBK5XWIFI range hood?

Wall-mounted installation requires drilling 8 mm holes to fix the wall bracket. Hang the hood, install the non-return valve on the air outlet, then connect the exhaust duct (diameter 150 mm). Fix the upper glass and the chimneys. For recirculation mode, add the supplied carbon filters.

What is the recommended distance between the hood and the cooking surface?

For best performance, the hood should be placed at a distance of 65 to 75 cm above the cooking surface.

How to activate the boost function?

Press button B until speed 4 (boost) is reached. The hood runs at full power for 5 minutes, then automatically returns to the previous speed.

How to set the timer?

Press and hold the lighting button for 3 seconds. The speed buttons flash and a 5-minute countdown starts. After 5 minutes, the motor and light turn off automatically with a beep.

How to connect the hood to the hOn app?

Download the hOn app on your device. Press and hold the Wi-Fi icon on the hood until it flashes. Follow the app instructions for pairing. Once connected, the Wi-Fi icon stays lit.

How to clean the grease filter?

Clean the grease filter every month with a domestic detergent or in the dishwasher. Use a soft cloth and avoid abrasives. A clogged filter may cause a fire hazard.

When to replace the carbon filter?

The carbon filter should be replaced at least once a year, or more often if the hood is used frequently. It is only necessary in recirculation mode.

What to do if the hood vibrates strongly?

Check that the fan blade is not damaged, that the motor is firmly fixed, and that the unit is properly suspended. If the problem persists, contact a qualified technician.

How to replace the LED lighting?

Unscrew the glass panel screws and remove it. Disconnect the light wiring. Remove the bulb, socket, and wiring assembly (non-separable). Replace with a new assembly (LED max 1.5 W) and reconnect. Replace the glass panel.

What to do if the fan does not work but the light turns on?

This may be due to a stuck fan blade or damaged motor. Turn off the appliance and have it repaired by a qualified technician.

USER MANUAL HTS6CBK5XWIFI HOOVER

ENGLISH	INSTALLATION AND USER'S MANUAL
DEUTSCH	EINBAU- UND BEDIENUNGSANLEITUNG
ΕΛΗΝΙΚA	ΕΓΚATAΣΤΑΣH KAI ΕΓXEΙΡΙΔΟ XPHΣTH
FRANÇAIS	MANUEL D'INSTALLATION ET D'UTILISATION
MAGYAR	TELEPΙTÉS ἔS FELHASZNÁLÔI KÉZIKÖNYV
NEDERLANDS	HANDLEIDING VOOR INSTALLATIE EN GEBRUIK
SRPSKI	UPUTSTVO ZA UGRADNJU I UPOTREBU
ČESTINA	NÁVOD K INSTALACI A POUŽITÍ
SLOVENÇINA	INSTALAÇNÁ A POUŽÍVATELŠKA PRÍRUČKA

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 02

SAFETY PRECAUTION 02

ELECTRICAL INSTALLATION 04

SPECIFICATION 05

INSTALLATION (VENT OUTSIDE) 06

INSTALLATION (VENT INSIDE) 13

DESCRIPTION OF COMPONENTS 14

OPERATION 14

MAINTENANCE 17

TROBULESHOOTING 18

CONFORMITY WITH DIRECTIVES 19

ENVIRONMENTAL PROTECTION 19

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market).

The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

SAFETY PRECAUTION

Never let the children operate the machine.
The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
The cooker hood and its filter should be clean regularly in order to keep in good working condition.
Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
Forbid the direct baking from the gas cooker.
Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
Regulations concerning the discharge of air have to be fulfilled.

• Children should be supervised to ensure that they do not play with the appliance.
• Do not flambe under the range hood.

The range hood is not intended to be installed over a hob having more than four hob elements

• These shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);

• the details concerning the method and frequency of cleaning.

• there is a fire risk if cleaning is not carried out in accordance with the instructions;
• do not flame under the range hood;
• CAUTION:Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

~ Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class I appliance and MUST be earthed

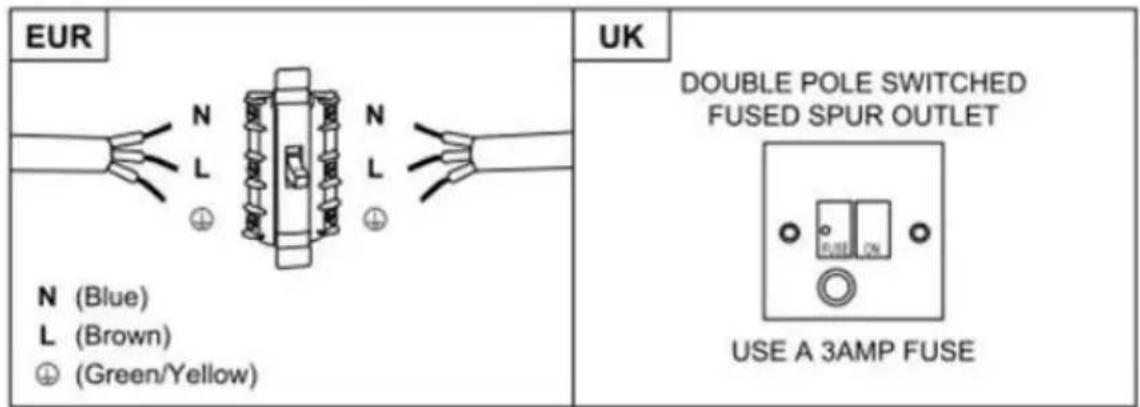

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

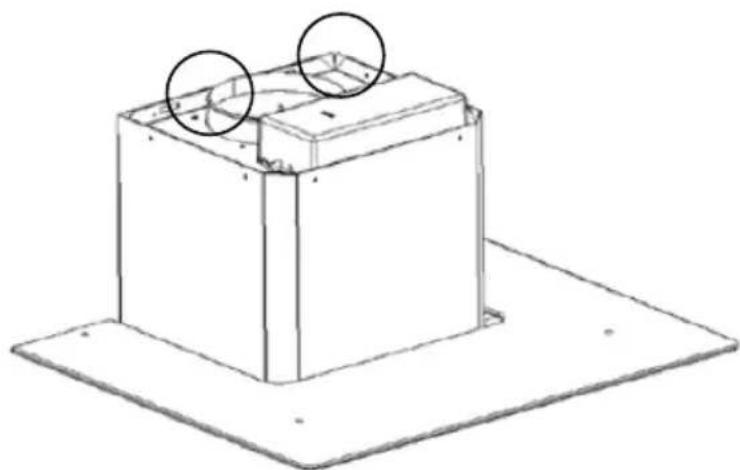

Standard Installation Accessories List

Spec. Qty	Illustration Picture
Casing 1
Upper Chimney 1
Lower Chimney 1
Lower chimney bracket 1
Upper chimney bracket 1
Hanging Board 1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2

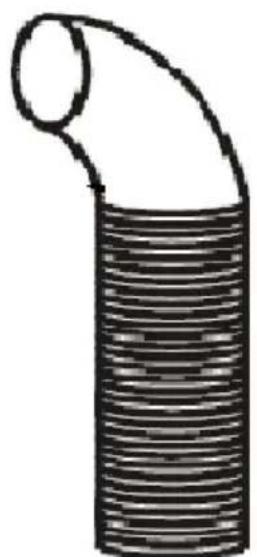

Air outlet 1
Carbon filter		2

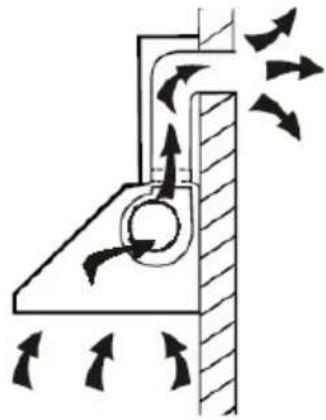

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe non flammabe with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65 75cm above the cooking plane for best effect.

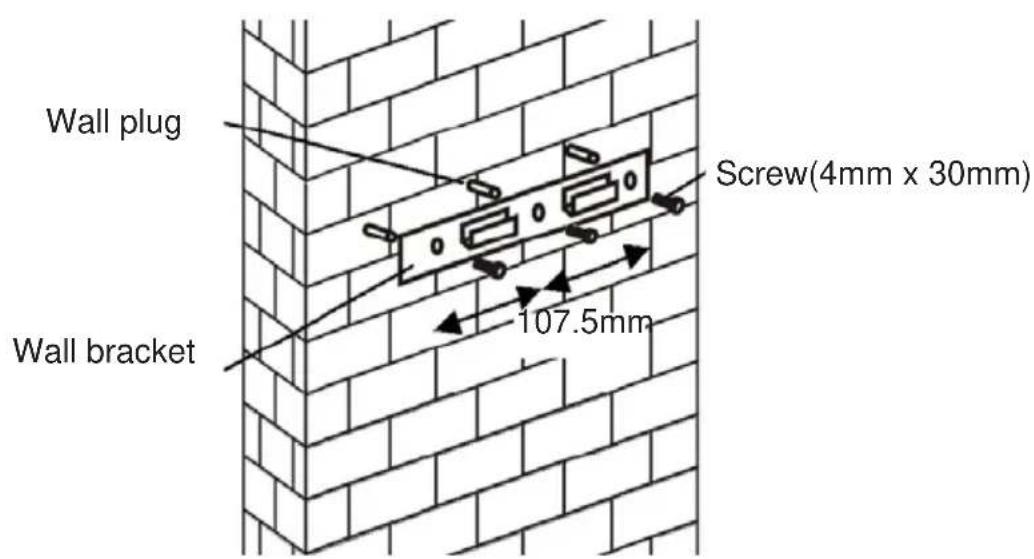

1. Drill 3 × 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

1. Leave up the cooker hood and hang onto the wall bracket hook.

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe

Cooker hood

6.

i. Place the glass in appropriate position on the top the cooker hood.

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

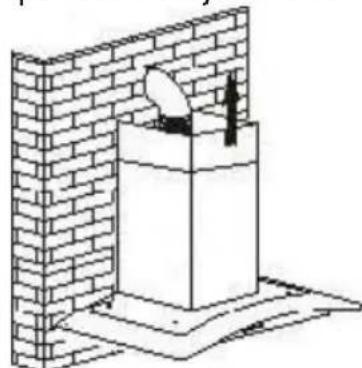

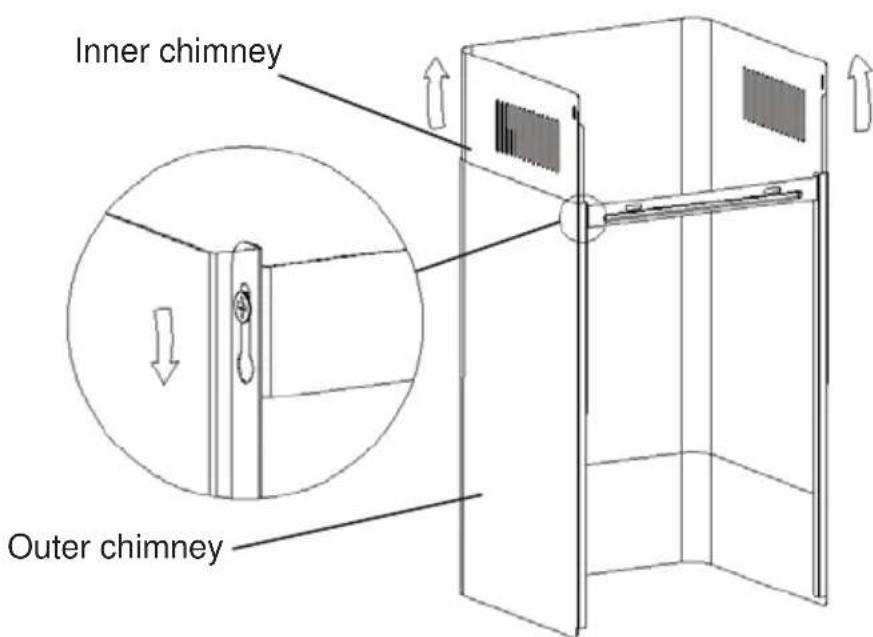

i. By Put the inner chimney into outer chimney .Then pulling out the inner chimney upwards. Adjust to reach the height required.

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures.

8.

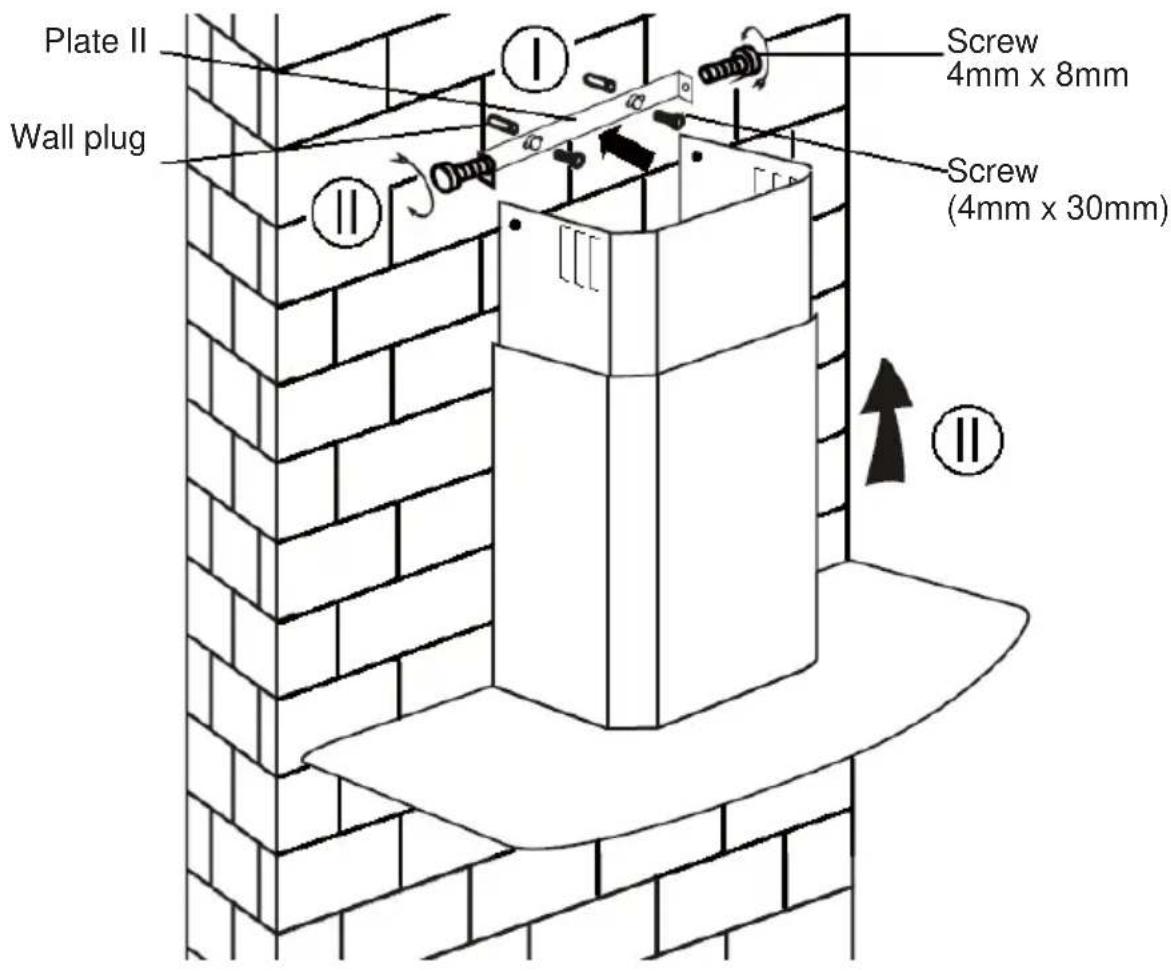

i. Drill 2 × 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.

INSTALLATION (VENT INSIDE)

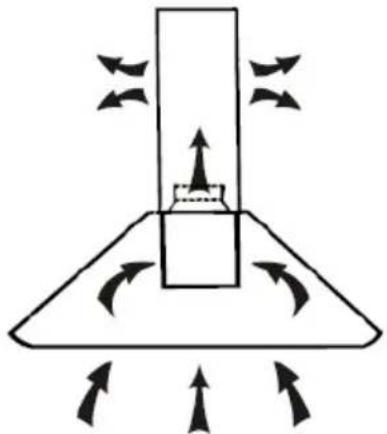

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
When activated carbon filter attached, the suction power will be lowere

DESCRIPTION OF COMPONENTS

123 B

OPERATION

STANDBY MODE.

After plug in, all lighting, system in STANDBY MODE.

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmeing and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

B Booster function

This hood has a booster function. To activate the booster, Press

B to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

Light

Short press for lighting on & off

Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5minutes count down, after 5 minutes motor & light will turn off automatic with three Buzzer sound.

Wi-Fi Connection

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

Download hOn App

First of all, you should download hOn APP and install to your portable device. Then enroll your hood.

NOTE

Get ready to add your appliance

Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGEWI-FI SETTINGS

3 Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password.

ENROLLMENT HOOVER HOOD

The image of the hood has the only purpose of presenting it. May not be perfectly representative.

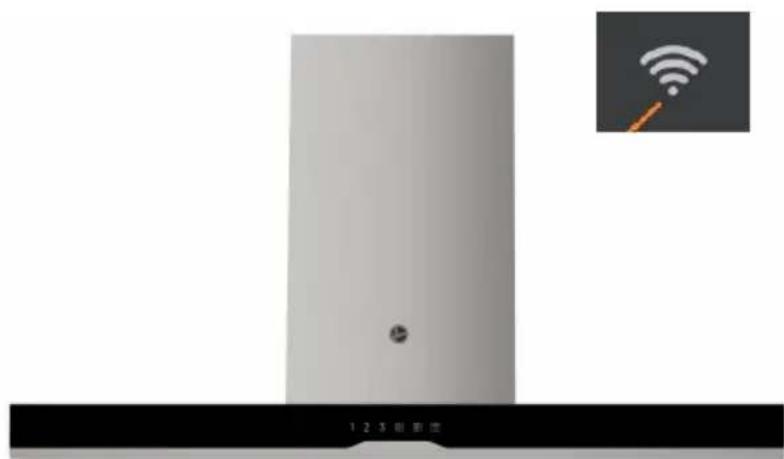

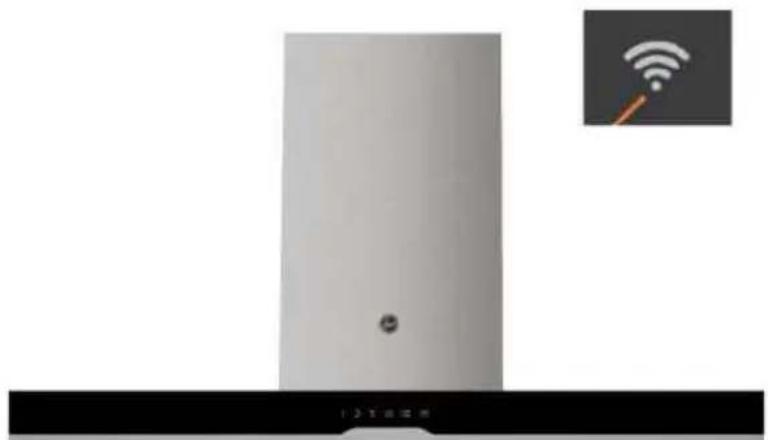

1- Press the WiFi button until the icon starts blinking When the pairing is completed the WiFi icon will be on.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust.... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

Technology Wi-Fi
Standard 802.11 b/g/n
Frequency Band(s)[MHz]	2400 MHz - 2483.5 MHz
Maximum Power[mW]	100 mW

Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	2W
How to activate wireless network port:	If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.
How to deactivate wireless network port:	If the Hood has been enrolled with the APP, turn off the Hood to deactivate wireless network port. If the Hood hasn't been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific

treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

INSTALLATION (ABLUFT NACH INNEN) 25

INSTALLATION (Wandmontage)

INSTALLATION (ABLUFT NACH INNEN)

Get ready to add your appliance

Stay close to your appliance
While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

3 Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password.

Get ready to add your appliance

Stay close to your appliance
While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGEWI-FIS SETTINGS

Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password.

EGTPAΦH ANOPPOΦHTHPA HOOVER

H Eikova Tou anoppoqntpa exi movo oKoTó va tov napouoiαe. Evexetai va mV eivai aIóLuta avTIPPOOwTEUTIKn.

1- PatnoTo Koupti WiFi xevi va apxioe i va avaoobnvei To Eikovidio. Otau ookpwoe i n ouzue, to Eikovidio WiFi th epyoToine.i.

SYNTHPHSEH

Piv ToV kaapioo, aTevpOToiHO Tn oukeun kai TpaBHeTo Bua.

Get ready to add your appliance

Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password.

ENREGISTREMENT DE LA HOTTE HOOVER

Get ready to add your appliance

Stay close to your appliance
While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password

INSTALLATIE (VENTILATIE BUITEN) 81

INSTALLATIE (VENTILATIE BINNEN) 85

BESCHRIJVING VAN DE ONDERDELEN 86

WERKING 86

ONDERHOUD 88

PROBLEMEN OPLOSSEN 89

INLEIDING

INSTALLATIE (VENTILATIE BINNEN)

Get ready to add your appliance

Stay close to your appliance
While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password

REGISTRATIE HOOVER-AFZUIGKAP

Get ready to add your appliance

Stay close to your appliance
While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password.

UPISIVANJE ASPIRATORA

Slika aspiratora služi samo za prikaz. Prikaz možda nje savršen.

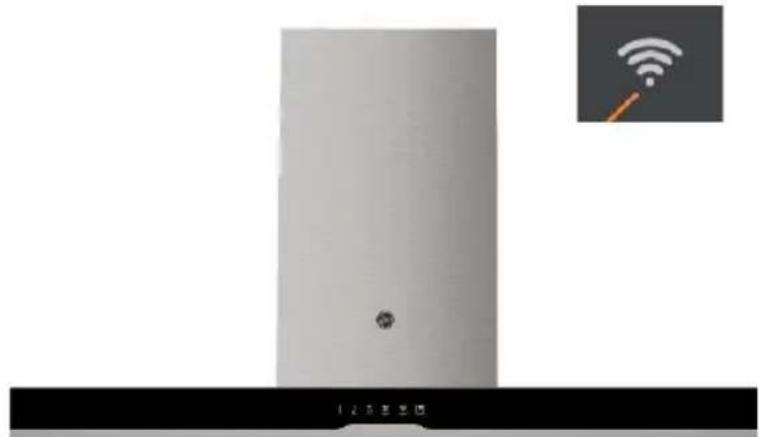

1- Pritisnite dugme WiFi dok ikona ne počne da treperi. Kada se uparivanje završi, ikona WiFi ce biti uključena.

ODRŽAVANJE

Pre ciścenja iskljucite uredaj i izvucite napojni kabl iz utičnice.

I. Redovno Čišćenje

Koristite meku krpu navlaženu mlakom vodom sa blagim sapunom ili deterdžentom za Čišćenje u domacinstvu. Ne koristite metalne jastučić, hemikalije, abrazivne materijale ili Čvṛstu Četku za Čišćenje urežaja.

ELEKTRICKÁ INSTALACE 109

SPECIFIKACE 110

INSTALLACE (ODVOD VZDUCHU MIMO BUDOVU) 111

INSTALACE (ODVOD VZDUCHU DOVNITR BUDOVY) 115

POPIS SOUCASTI 116

PROVOZ 116

UDRZBA 118

RESENI PROBLEMU 119

ZAKAZNICKA ASISTENCNI SLUZBA 120

UVOD

Get ready to add your appliance

Stay close to your appliance
While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGEWI-FI SETTINGS

Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password.

REGISTRACE ODSAVACE PAR

Get ready to add your appliance

Stay close to your appliance
While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password.

REGISTRÁCIA ODSÁVACA HOOVER
