USER MANUAL STB 2053 MIELE

Close-up of a mechanical component with a metallic tool inserted, showing a downward arrow indicating a process (no text or symbols present)

Typ STB 201 Vario

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or spread a small electronic device into a slot (no text or symbols visible)

Cutaway illustration of a mechanical device showing internal components and housing (no text or symbols)

Cutaway illustration of a mechanical device showing internal components (no text or symbols)

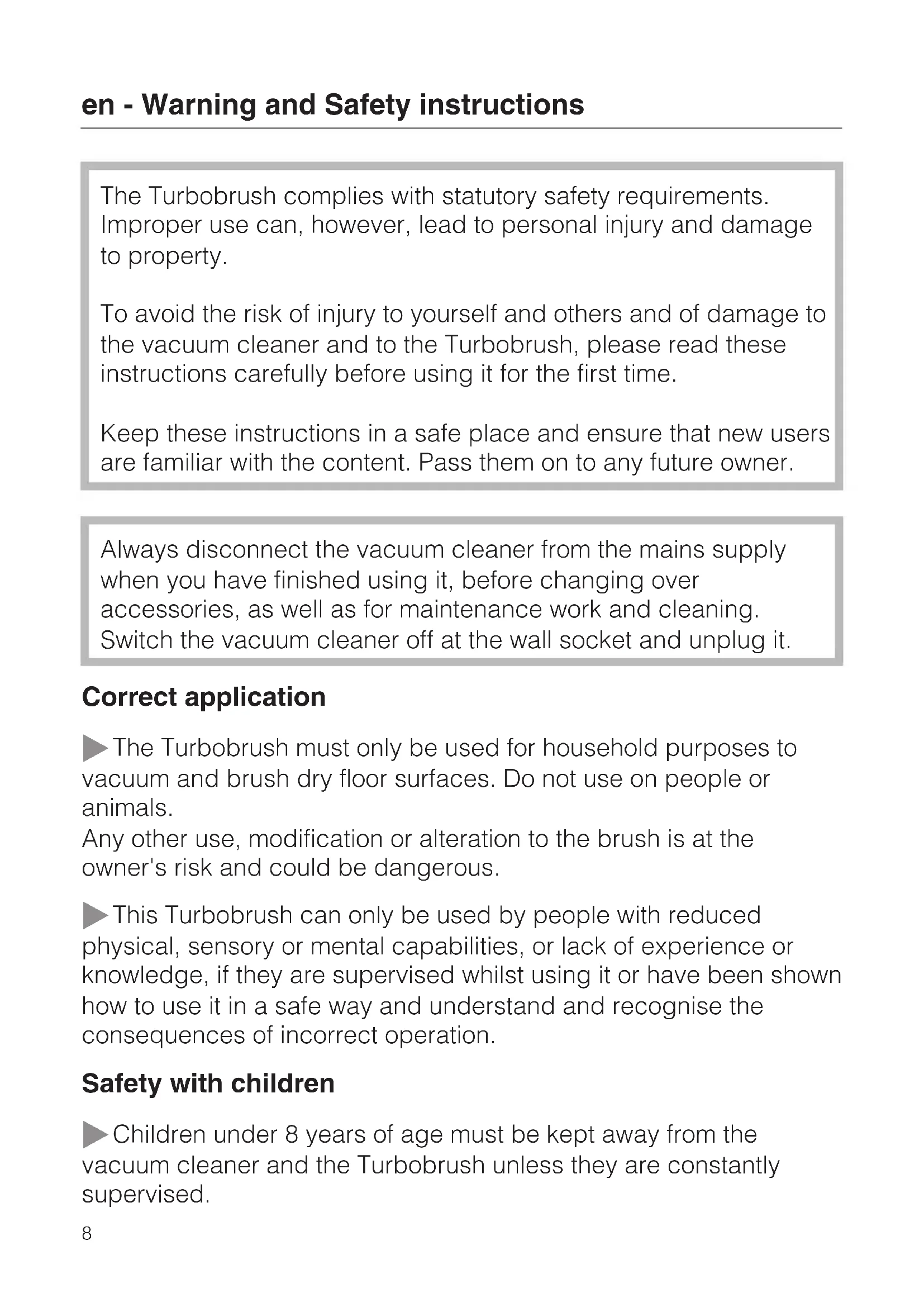

The Turbobrush complies with statutory safety requirements. Improper use can, however, lead to personal injury and damage to property.

To avoid the risk of injury to yourself and others and of damage to the vacuum cleaner and to the Turbobrush, please read these instructions carefully before using it for the first time.

Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner.

Always disconnect the vacuum cleaner from the mains supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Switch the vacuum cleaner off at the wall socket and unplug it.

Correct application

The Turbobrush must only be used for household purposes to vacuum and brush dry floor surfaces. Do not use on people or animals.

Any other use, modification or alteration to the brush is at the owner's risk and could be dangerous.

This Turbobrush can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it in a safe way and understand and recognise the consequences of incorrect operation.

Safety with children

Children under 8 years of age must be kept away from the vacuum cleaner and the Turbobrush unless they are constantly supervised.

Children 8 years and older may only use the vacuum cleaner and Turbobrush unsupervised if they have been shown how to use them safely and recognise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the vacuum cleaner and Turbobrush unsupervised.
Please supervise children in the vicinity of the vacuum cleaner and Turbobrush and do not let them play with them.

Technical safety

Before using the Turbobrush, check for any visible signs of damage. Do not use a damaged appliance or damaged accessories.
Do not immerse the Turbobrush in water. Clean all parts with a dry or slightly damp cloth only.

Correct use

▶ Switch the vacuum cleaner off immediately during pauses to avoid danger.
▶ Never touch the roller brush while it is rotating.
Do not use the Turbobrush at head level. Long hair, ties, scarves, etc. could become entangled in the roller brush.
Keep the Turbobrush away from curtains, clothing, etc. as these could be vacuumed in and become entangled in the roller brush.
Do not vacuum up any inflammable or combustible liquids or gases and do not vacuum in areas where such substances are stored.
Do not vacuum any surfaces where there is a danger of items being sucked up or becoming entangled in the roller brush.

Do not vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed carpets or floor coverings are completely dry before attempting to vacuum.
Do not vacuum up ashes or coals, whether glowing or apparently extinguished.

Miele cannot be held liable for damage caused by incorrect use or operation or by non-compliance with these Warning and Safety instructions.

Turbobrush features

The Turbobrush is operated by the suction power of the vacuum cleaner. It has a rotating roller brush which is very effective at picking up thread, hairs and fluff.

Four rollers maintain the brush 1.5 mm away from the floor.

Recommended use

The Turbobrush is particularly suitable for vacuuming thread and hair from cut pile carpeting.

The normal floorhead or one of the Miele floorbrushes should be used for cleaning hard floors, such as tiled or parquet floors.

It is also important to observe the flooring manufacturer's cleaning and care instructions.

The following should not be vacuumed using the Turbobrush:

• Floor surfaces with a variable or uneven profile. The brush might come into contact with the floor and cause damage.
• Carpets such as Saxony with very long pile, berber or sheepskin rugs and valuable hand-knotted carpets, e.g. Persian or similar. There is a danger of the threads being pulled out.

Using the Turbobrush

■ To achieve the best effect, pass the Turbobrush slowly backwards and forwards over the carpet or floor covering.

For carpets with fringes always draw the Turbobrush from the carpet across the fringe towards the rest of the floor.

Fitting the Turbobrush

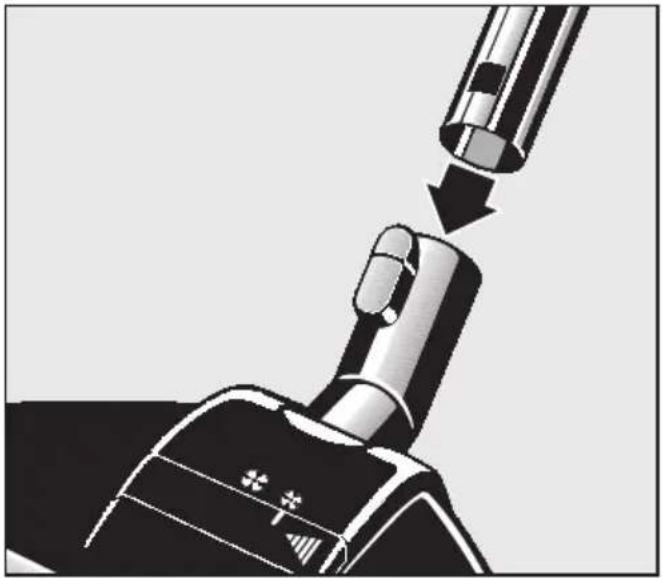

Model STB 205

This Turbobrush is intended for use with Miele vacuum cleaners.

■ Instead of the usual floor attachment, fit the Turbobrush to the suction tube. Ensure that the locking device engages.

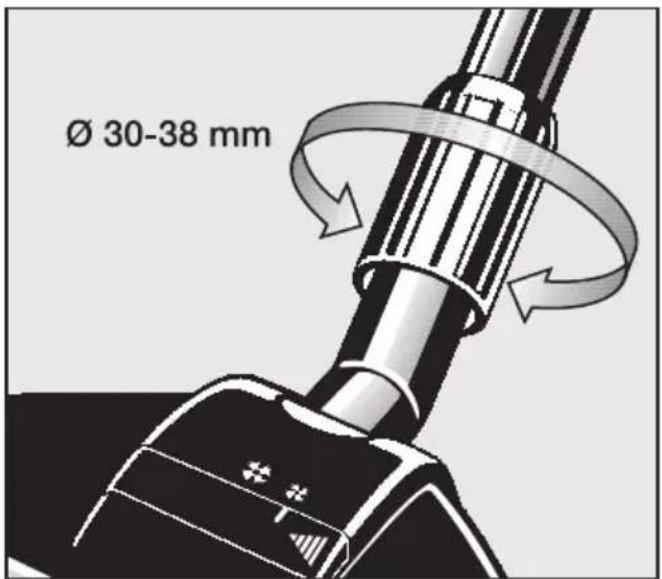

Model STB 201 Vario

This Turbobrush has an adapter, enabling it it be used with non-Miele vacuum cleaners. The adapter fits suction tubes with a diameter of between 30 and 38 mm. Only use the Turbobrush with high performance vacuum cleaners.

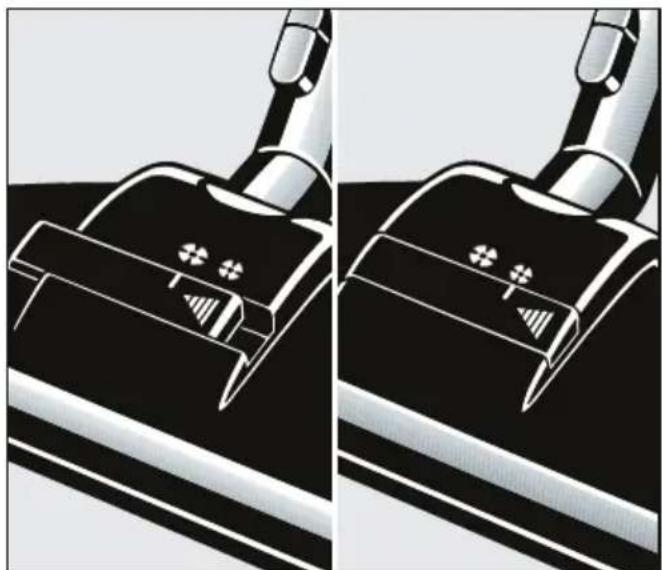

Opening the air adjustment slide

The brush is operated by the suction power of the vacuum cleaner. With deeper, dense pile carpets the roller brush may rotate more slowly. This is caused by the carpet pile creating a seal around the mouth of the Turbobrush and hindering the flow of air. This will affect how well the carpet is brushed.

■ To increase the airflow, open the air adjustment slide (left hand illustration).

In all other situations the air adjustment slide should be closed, to benefit from the full suction power.

■ Close the air adjustment slide (right hand illustration).

Close-up of a mechanical component with a downward arrow indicating a process or assembly (no visible text or symbols)

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

△! Always disconnect the vacuum cleaner from the electrical supply for cleaning and maintenance work on the Turbobrush. Switch off at the wall socket and remove the plug.

Removing threads and hairs

- Cut any threads or hairs that have become entangled on the roller brush with a pair of scissors. Then run the vacuum cleaner to vacuum up the bits.

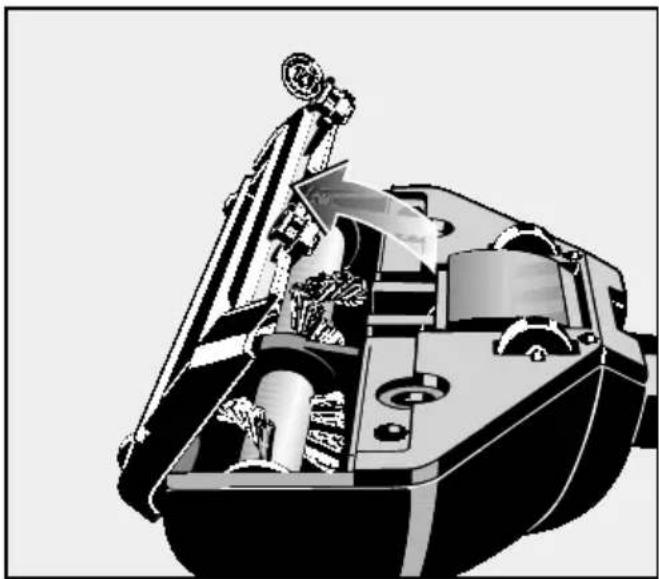

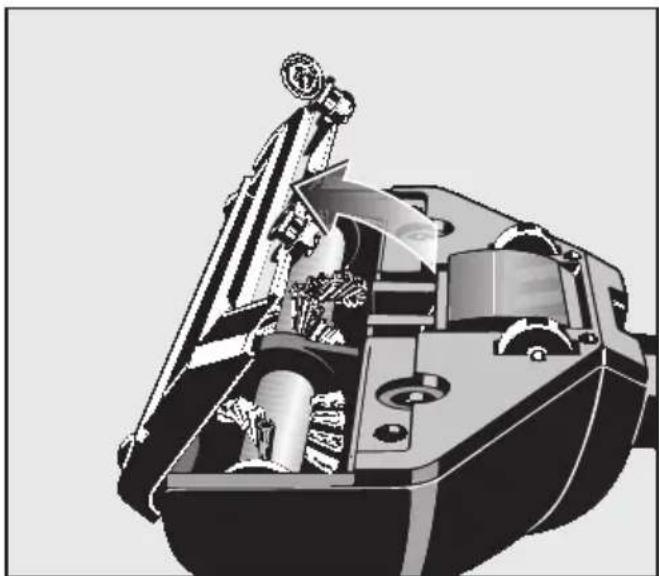

For more obstinate tangles or blockages inside the Turbobrush, the cover can be opened. Any large particles can then be easily removed.

■ Loosen the locking screws on the underside of the brush with a coin and take off the roller cover.
■ Remove any dirt in the brush compartment interior and from the roller brush.

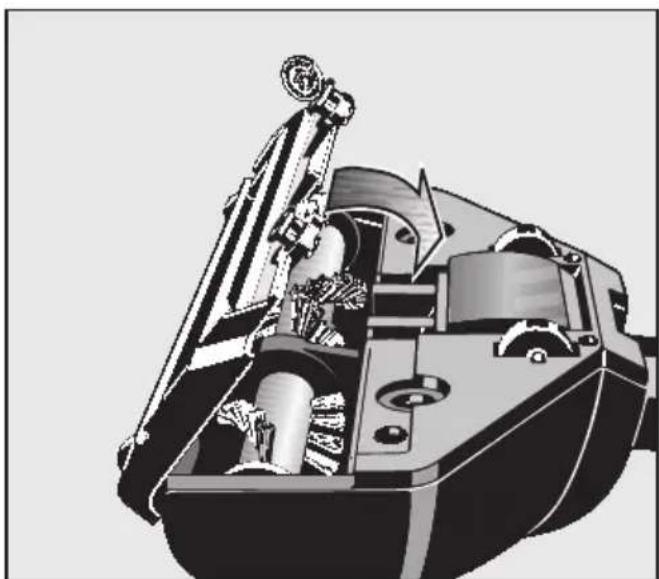

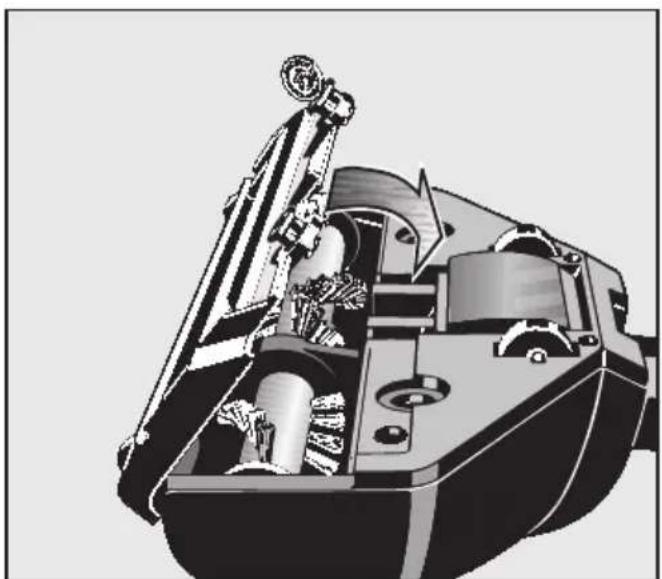

■ Put the roller cover back on and close it.
■ Tighten the locking screws.

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Cutaway illustration of a mechanical device showing internal components (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a process or assembly (no visible text or symbols)

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Cross-sectional illustration of a mechanical device with internal components (no text or symbols visible)

Close-up of a mechanical component with a metallic tool inserted, showing a downward arrow indicating a process (no text or symbols present)

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or adjust a mechanical component (no text or symbols visible)

Cutaway illustration of a mechanical device showing internal components and structural elements (no text or symbols)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a process or assembly (no visible text or symbols)

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cross-sectional diagram of a mechanical device showing internal components and structural elements (no text or labels)

Cutaway illustration of a mechanical device showing internal components (no text or symbols)

Close-up of a mechanical component with a metallic tool inserted, showing a downward arrow indicating a process (no text or symbols present)

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and screwdriver (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Cross-sectional illustration of a mechanical device showing internal components and structural elements (no text or symbols)

Close-up of a mechanical component with a cylindrical tool inserted, showing a downward arrow indicating a process (no text or symbols visible)

Modelo STB 201 Vario

Ø 30-38 mm

Abrir o regulador de ar

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or spread a small electronic device (no text or symbols visible)

Cross-sectional illustration of a mechanical device showing internal components and structural elements (no text or symbols)

Cutaway illustration of a mechanical device showing internal components (no text or symbols)

Close-up of a mechanical component with a cylindrical tool inserted, showing a downward arrow indicating a process (no text or symbols present)

Τύπος STB 201 Vario

Ø 30-38 mm

Two-panel illustration of a mechanical device with a lever and base, showing front and side views (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cross-sectional illustration of a mechanical device showing internal components and structural elements (no text or symbols)

Cutaway illustration of a mechanical device showing internal components (no text or symbols)

Close-up of a mechanical component with a cylindrical tool inserted, showing a downward arrow indicating a process (no text or symbols present)

Type STB 201 Vario

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cutaway illustration of a mechanical device showing internal components (no text or symbols)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Close-up of a mechanical component with a metallic tool inserted, showing a downward arrow indicating a process (no text or symbols present)

Type STB 201 Vario

Denne turbobørsten har en regulerbar tilkoblingsstuss. Den passer derfor til støvsugerrør med en diameter mellom 30 og 38 mm. Bruk likevel turbobørsten bare sammen med kraftige støvsugere.

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cross-sectional diagram of a mechanical device showing internal components and structural elements (no text or labels)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a process or assembly (no visible text or symbols)

Ø 30-38 mm

Öppna luftreglaget

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cutaway illustration of a mechanical device showing internal components (no text or symbols)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a process or assembly (no visible text or symbols)

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cutaway illustration of a mechanical device showing internal components and structural elements (no text or symbols)

Cross-sectional illustration of a mechanical device with internal components (no text or symbols visible)

The Miele Turbobrush complies with all legal safety requirements. Improper use can cause both personal injury and property damage.

Before using the appliance, read the Operating Instructions carefully. They give information on the safety, operation and care of the appliance.

Keep these instructions in a safe place for future reference.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

Correct usage

The Turbobrush must only be used for household purposes to vacuum and brush dry floor surfaces.
Do not use on people or on animals.
The manufacturer cannot accept responsibility for damage or injury when this appliance is used in a manner inconsistent with its designed purpose, or if the instructions in this manual are not followed. Use only as described in this manual.

Child Safety

Exercise extreme caution when using near children. Moving parts and suction can cause injury.
Do not allow appliance to be used as a toy.

Technical safety

Before connecting the Turbobrush to the vacuum cleaner, make sure the vacuum cleaner is turned off and disconnected from the electrical outlet.

Do not unplug vacuum by pulling on cord. To unplug, grasp the plug, not the cord.
▶ Turn off all controls before unplugging vacuum cleaner.
Do not submerge the Turbobrush into any liquid. Clean only with a dry cloth or slightly damp cloth to avoid any moisture getting into the vacuum cleaner, which could lead to the danger of an electric shock.

Daily Use

Do not touch the brush roller while it is rotating.
Do not use the Turbobrush at head level. Long hair, ties, scarves, etc. could be sucked in and become entangled in the brush roller.
Keep hair, loose clothing, curtains, fingers and all parts of the body away from openings and moving parts.
▶ Turn off all controls before unplugging. Unplug from the outlet when not in use and before servicing.
Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present, to avoid risk of fire.
Do not use the Turbobrush on surfaces that can unravel or be sucked in.
Do not vacuum liquids or damp dirt. This could impair the function and electrical safety of the vacuum cleaner, and could create a risk of electric shock. Freshly shampooed carpets or upholstery should be completely dry before they are vacuumed up.
Do not vacuum items which are heavy, hard or have sharp edges. They could cause a blockage and damage the appliance.

Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

Disposing of an old appliance

Before discarding an old appliance, the power cord should be removed. Unplug the vacuum. Cut the power cord of the appliance as close to the vacuum as possible and cut the plug off the cord. The plug cut from the cord should be disabled and properly discarded. Under no circumstance should this plug be inserted into a socket (electric shock hazard.)

Features of the Turbobrush

The Turbobrush is driven by the suction power of the vacuum cleaner. The brush roll rotation increases the intake of threads, hair and lint. Four wheels keep the turbobrush 1/16" (1.5 mm) from the floor.

Operation

The Turbobrush is intended for cleaning short-to-medium pile carpeting.

Read these Operating Instructions carefully and completely before using this appliance. Failure to do so can result in property damage or personal injury to you or others.

• Uneven surfaces should not be vacuumed with the Turbobrush. The brush could come into contact with the floor and cause damage.
• Please consult the carpet manufacturer before vacuuming carpets such as: saxony with very long-pile, berber and sheepskin rugs, and valuable hand-knotted carpets, e.g. Persian and similar. There is a danger of the threads being pulled out.

Using the Turbobrush

■ To achieve the best results, slowly pass the Turbobrush back and forth over the carpet or flooring.

For carpets with fringes, always draw the Turbobrush from the carpet across the fringe towards the rest of the floor.

Attaching the Turbobrush to the Miele Vacuum Cleaner

Model STB 205

This Turbobrush is intended for use with Miele vacuum cleaners only.

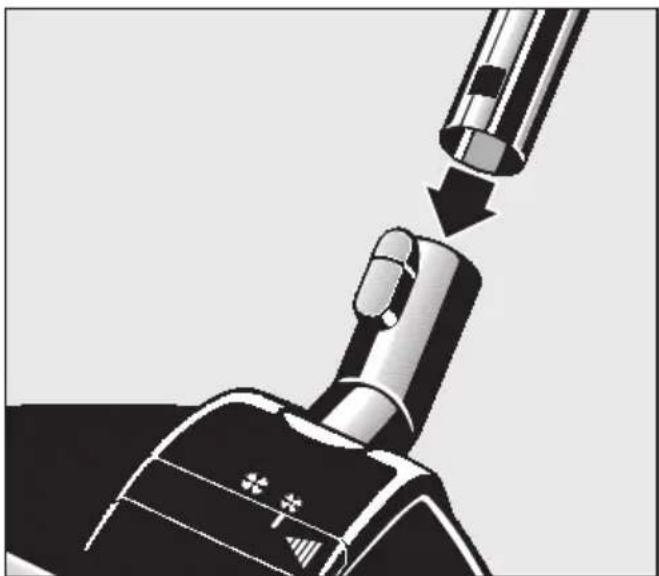

■ Insert the suction wand into the neck of the Turbobrush as shown. If the locking mechanism does not completely engage, gently twist the wand while it is in the neck until it clicks into place.

Using the Sliding Air Flow Regulator

The Turbobrush is driven by the suction power of the vacuum cleaner. Deeper pile carpeting can be drawn into the suction opening, thereby obstructing airflow and impeding the action of the wheel

■ This can be remedied by sliding the air flow regulator to the left as shown in the left hand illustration.

For routine cleaning of low-to-medium pile carpeting, or for deep cleaning in general, slide the airflow regulator to the right as shown in the far right illustration.

■ See right hand illustration to close the Airflow Regulator.

Close-up of a mechanical component with a downward arrow indicating a process or assembly (no visible text or symbols)

Two-panel illustration of a vacuum cleaner blade and base, showing mechanical components (no text or symbols)

△! Always turn off the vacuum cleaner and disconnect the plug from the electrical supply before cleaning or servicing the Turbobrush or vacuum.

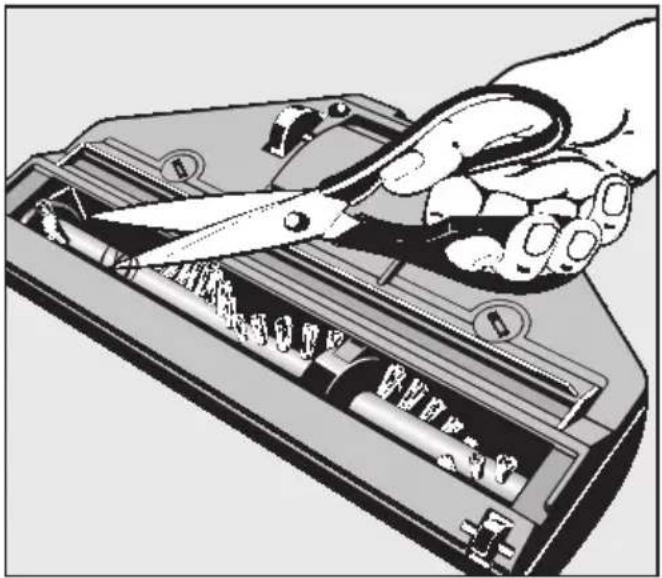

Removing threads and hairs

- Cut any threads or hairs that have become entangled on the brush roller with a pair of scissors. The cut pieces will be drawn in by the suction power of the vacuum cleaner the next time it is used.

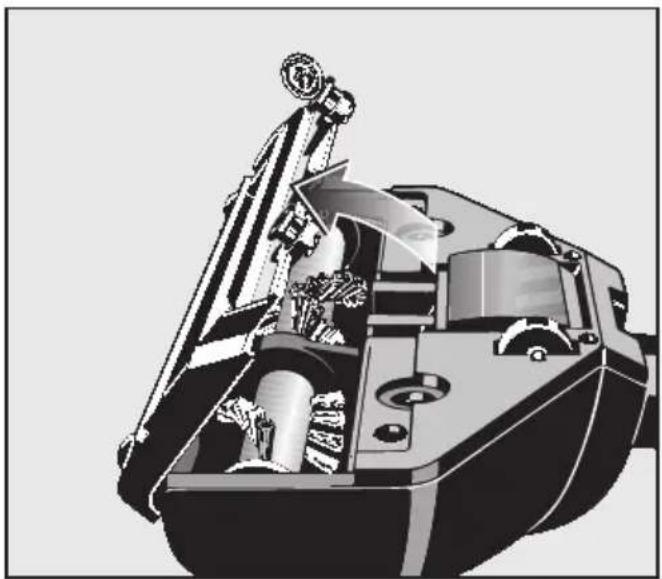

More obstinate tangles or blockages can be removed after opening the roller cover. Any large particles which have been drawn in can then be removed.

■ Loosen the two locking screws using a coin or screwdriver, and remove the roller cover.

■ Remove any items stuck in the brush compartment or wrapped around the roller brush.

■ Replace the cover and tighten the locking screws.

■ Tighten the locking screws.

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cross-sectional diagram of a mechanical device showing internal components and structural elements (no text or labels)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Close-up of a mechanical component with a metallic tool inserted, showing a downward arrow indicating a process (no text or symbols present)

Тип STB 201 Vario

Ø 30-38 mm

Two-panel illustration of a mechanical device with a lever and base, showing front and side views (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Cutaway illustration of a mechanical device showing internal components like gears and shafts (no text or symbols)

Close-up of a mechanical component with a metallic tool inserted, showing a downward arrow indicating a process (no text or symbols present)

Ø 30-38 mm

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or trim a small electronic device (no text or symbols visible)

Cross-sectional illustration of a mechanical device showing internal components and structural elements (no text or symbols)

Cutaway illustration of a mechanical device showing internal components and structural elements (no text or symbols)

Close-up of a mechanical component being inserted into a tool, showing a curved handle and a pointed tip (no text or symbols visible)

風力調節スライドの開け方

Two-panel illustration of a vacuum cleaner blade and its base, showing mechanical components (no text or symbols)

Illustration of a hand using scissors to cut or adjust a small electronic device (no text or symbols visible)

Cross-sectional illustration of a naval vessel with visible internal components and no text or symbols

Cross-sectional illustration of a mechanical device with internal components (no text or symbols visible)

Miele & Cie. KG
