Product type	Built-in warming drawer
Brand	Fulgor Milano
Model	CD 15
Use	Domestic (reheating dishes, serving)
Maximum drawer capacity	10 kg
Opening	By pressing the front panel
Closing	Push until it clicks
Built-in dimensions (W x H)	560 x 595 mm
Front panel material	Stainless steel
Cleaning front panel	Damp cloth, mild detergent, specific stainless steel products
Cleaning internal compartment	Damp cloth after each use
Cleaning restrictions	No steam cleaner, no abrasive products
Safety	Do not sit on the drawer; use under supervision
Installation	By a qualified technician; built-in under a compatible oven
Repairs	Exclusively by authorized service
Spare parts	Use original parts
Environmental protection	Recyclable packaging; dispose of appliance at recycling center
Provided documentation	User manual in French

Frequently Asked Questions - CD 15 Fulgor Milano

How to open and close the warming drawer?

To open, press the front part of the drawer, grasp it and pull towards you. To close, guide it shut and press the front panel until it clicks.

What is the maximum weight supported by the drawer?

The maximum load of the drawer is 10 kg. Do not sit or lean on it to avoid damaging the slides.

How to clean the stainless steel front panel?

Clean with a damp cloth and a little mild detergent. For stainless steel, use specific products that slow down dirt buildup. Then wipe with a dry cloth.

Can I use a steam cleaner?

No, the use of a steam cleaner is prohibited as it may permanently damage the surfaces and components of the appliance.

How to install the warming drawer?

Installation must be carried out by a qualified technician. The drawer is built into a cabinet with dimensions W 560 x H 595 mm, preferably under a compatible oven. Secure it with the provided screws.

What to do if the drawer does not heat up?

First check that the appliance is properly powered and the settings are correct. If the problem persists, contact the authorized service center. Any repairs must be carried out by a professional.

Is the appliance suitable for children?

Children should not play with the appliance. Use by persons with reduced capabilities requires supervision by a responsible adult.

How to dispose of the appliance at end of life?

Do not dispose of the appliance with household waste. Hand it over to an authorized local organization for the collection of waste appliances to allow recycling of materials.

Can I install the drawer under any oven?

No, the drawer can only be installed under appliances indicated by the manufacturer. Consult the instructions to check compatibility.

Where is the rating plate located?

The rating plate with technical data, serial number and brand is located on the lower part of the pull-out drawer. Never remove it.

USER MANUAL CD 15 Fulgor Milano

Close-up of a hand touching a metallic door panel (no text or symbols visible)

(fig. A)

Togliere la mano

Close-up of a hand reaching toward a metallic door panel (no text or symbols visible)

(fig. B),

Close-up of a hand reaching toward a white door panel (no text or symbols visible)

(fig. C)

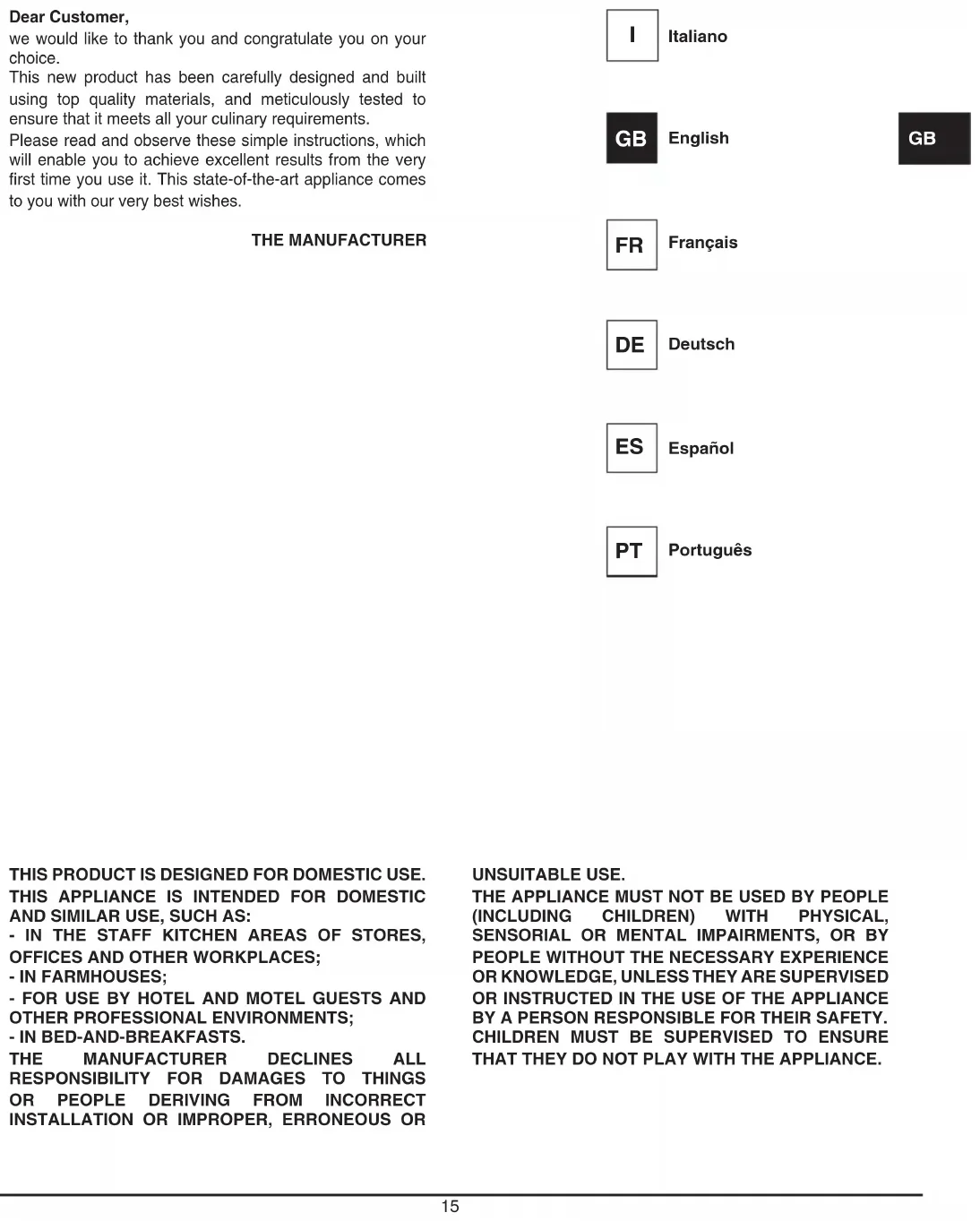

we would like to thank you and congratulate you on your choice.

This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first time you use it. This state-of-the-art appliance comes to you with our very best wishes.

THE MANUFACTURER

Italiano

English

Français

Deutsch

Español

Português

THIS PRODUCT IS DESIGNED FOR DOMESTIC USE. THIS APPLIANCE IS INTENDED FOR DOMESTIC AND SIMILAR USE, SUCH AS:

- IN THE STAFF KITCHEN AREAS OF STORES, OFFICES AND OTHER WORKPLACES;

- IN FARMHOUSES;

- FOR USE BY HOTEL AND MOTEL GUESTS AND OTHER PROFESSIONAL ENVIRONMENTS;

- IN BED-AND-BREAKFASTS.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGES TO THINGS OR PEOPLE DERIVING FROM INCORRECT INSTALLATION OR IMPROPER, ERRONEOUS OR

UNSUITABLE USE.

THE APPLIANCE MUST NOT BE USED BY PEOPLE (INCLUDING CHILDREN) WITH PHYSICAL, SENSORIAL OR MENTAL IMPAIRMENTS, OR BY PEOPLE WITHOUT THE NECESSARY EXPERIENCE OR KNOWLEDGE, UNLESS THEY ARE SUPERVISED OR INSTRUCTED IN THE USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. CHILDREN MUST BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

Table of Contents

1. PRECAUTIONS
2. INSTRUCTIONS FOR RECYCLING - PROTECTION OF THE ENVIRONMENT
3. SAFETY INSTRUCTIONS
4. APPLIANCE DESCRIPTION
5. BEFORE YOU BEGIN
6. USING YOUR WARMING DRAWER
7. APPLIANCE INSTALLATION

CONSUMER INSTRUCTIONS: Includes

recommendations for use, description of commands and correct procedures for the care and clearing of the appliance.

INSTALLATION INSTRUCTIONS: Use

intended for qualified technicians.

1. PRECAUTIONS

This manual is an integral part of the appliance.

Take care of it and keep it within reach for the entire life of the object-holder drawer.

Read these instructions before installing and using the appliance. Installation should be performed by qualified personnel only, in conformity with current law. This appliance is intended for domestic use only in conformity with current EEC directives. The manufacturer will not be held liable in the event of a failure to follow THESE WARNINGS AND SAFETY INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE APPLIANCE. IF THE APPLIANCE SHOULD BE GIVEN TO ANOTHER PERSON MAKE SURE THESE INSTRUCTIONS ARE SUPPLIED WITH IT.

DO NOT DISPOSE OF MATERIALS IN THE HOME. SORT THE VARIOUS MATERIALS BY CLASSIFICATION AND DISPOSE OF THEM PROPERLY.

THE IDENTIFICATION PLATE BEARING THE TECHNICAL DATA, SERIAL NUMBER AND BRAND IS LOCATED IN A PROMINENT POSITION AT THE BOTTOM OF THE EXTRACTABLE DRAWER. NEVER REMOVE THE DATA LABEL.

WARNING! NEVER USE SHARP METAL OBJECTS OR ABRASIVE SCRUBBING PADS THAT COULD CAUSE DAMAGE TO THE SURFACE OF THE APPLIANCE. IF NECESSARY, USE STANDARD NON-ABRASIVE UTENSILS MADE OF WOOD OR PLASTIC.

2. INSTRUCTIONS FOR RECYCLING

- PROTECTION OF THE ENVIRONMENT

Our products are made solely from non-polluting materials that do not harm the environment and are recyclable. We ask for your effort and collaboration in disposing of the packaging in a proper manner. Contact the product retailer or local organizations for further information on recycling. Dispose of the packaging properly. Parts of the package especially plastic, pose a risk for children.

Your old appliance must also be disposed of properly.

Important: consign the appliance to the proper local organization authorized to collect broken appliances. Proper and intelligent disposal consists of recovering materials of value.

3 SAFETY INSTRUCTIONS

THIS APPLIANCE IS INTENDED FOR DOMESTIC USE ONLY! FOLLOW THESE INSTRUCTIONS TO AVOID DAMAGING THE APPLIANCE OR CREATING DANGEROUS SITUATIONS:

- Do not lean or sit on the warming drawer when opened, this could cause damage to the telescopic guide. The maximum carrying weight of the warming drawer is 10kg.

CLEANING:

- Never use a vacuum cleaner. The vacuum may also damage the surface and the components of the appliance: damages for which the manufacturer will not be liable.

- For cleaning the appliance we recommend following the suggestions listed under “Cleaning and Maintenance” of the manual.

REPAIRS:

- ATTENTION! Maintenance work and/or repairs must be performed exclusively by specialized personnel. Incorrect installation and maintenance can cause personal injury to the consumer for which the manufacturer will not be liable.

- ATTENTION! During the warranty period, the appliance may only be serviced by technicians authorized by the manufacturer or the warranty will be void.

- WARNINGS! The manufacturer will not be liable for injury or property damage caused by a failure to follow the above rules or caused by tampering with even part of the appliance and the use of non-original spare parts.

4. INSTRUCTIONS FOR THE CONSUMER

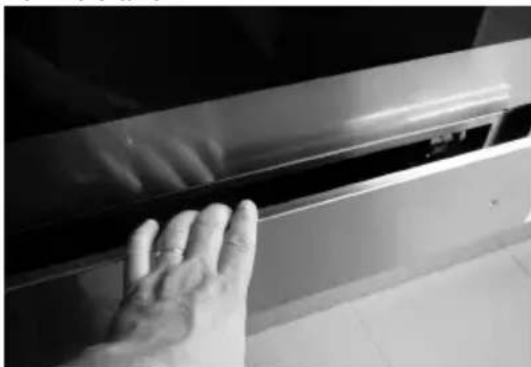

4.0 OPENING OF THE DRAWER

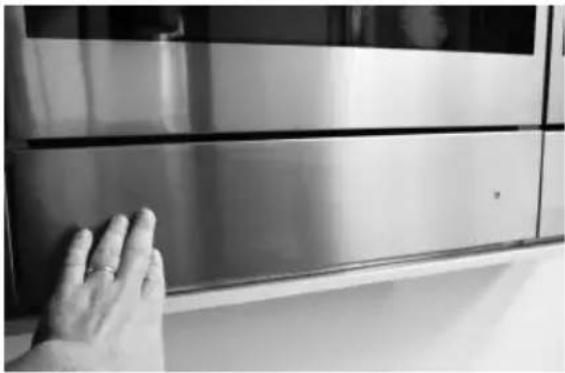

To open the drawer press the front of the drawer

Black-and-white photo of a hand reaching toward a metallic door panel (no text or symbols visible)

(fig. A)

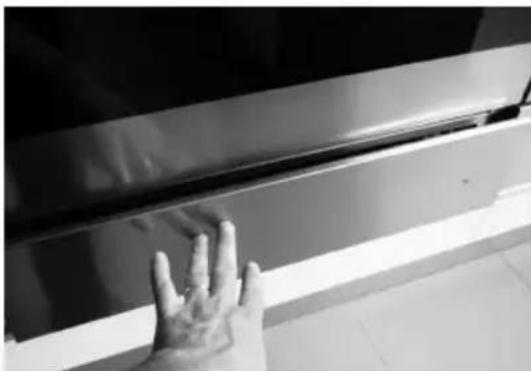

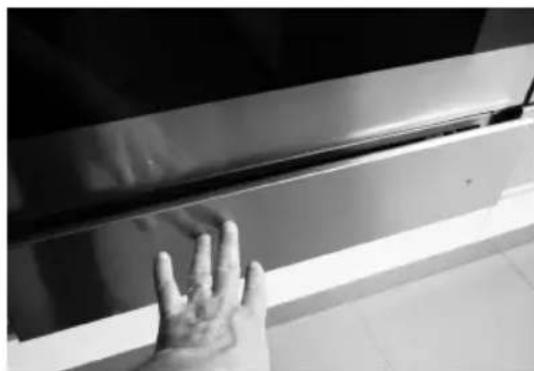

Grasp the handle

Close-up of a hand reaching toward a metallic panel edge (no text or symbols visible)

(fig. B),

Pull the drawer

Close-up of a hand reaching toward a wall-mounted air conditioner unit (no text or symbols visible)

(fig. C)

towards you until it is opened completely.

4.1 CLOSING THE DRAWER

To close the drawer, gently push the drawer back, pushing the front until it has completely gone back. Release the handle.

5. BEFORE YOU BEGIN

Do not leave parts of the packaging in the home. Separate the remaining packaging materials by category and deliver them to your nearest recycling center.

Before using the appliance for the first time, gently clean it with a moist cloth and dry it completely as described under "Cleaning and Maintenance".

6 CLEANING AND MAINTENANCE

Generally speaking, cleaning is the only form of maintenance necessary.

Warning! Do not use harsh detergents or abrasive products and/or scrubbing pads and sponges and sharp objects as they can stain and damage the appearance of the appliance.

Warning! Never use a vacuum cleaner on the internal parts of the appliance.

6.1 Front

The use of a moist cloth is sufficient when cleaning the appliance. In the event the appliance requires further cleaning, add drops of detergent in the water. Dry the appliance with a dry cloth. The stainless steel front of the object-holder drawer can be cleaned with special cleaners for that purpose. Such products prevent the formation of dirt on the surface of the drawer. Apply a minimal amount of the product on a soft and apply it to the surface of the appliance.

6.2 Inside Space

To clean the inside space use a moist cloth. In the event the appliance requires further cleaning add drops of detergent to the water. Dry the surface with a dry cloth.

7 APPLIANCE INSTALLATION

7.1 Before you begin installation

Open the drawer and remove all accessories and packing materials.

Attention! The front of the drawer may be covered with a protective coating over it. Carefully remove the protection before using the object-holder drawer, starting to detach it from below. Make sure that the drawer is not damaged. Be certain that the drawer closes properly. In case of damage, contact the Service Department.

The object-holder drawer can only be built-in on appliances specified by the manufacturer. The manufacturer does not guarantee the operation of the appliance if materials from a different manufacturer have been used. The manufacturer is not responsible for damage caused by improper use.

7.2 Proceed

Before installing the object-holder drawer and the appliance combined with it, provide a fixed intermediate shelf in the cabinet with the capacity to support both appliances.

The combined appliance is then positioned without further intermediate shelves directly on the built-in object-holder drawer.

For the combined, built-in appliance, absolutely follow the instructions for use and assembly.

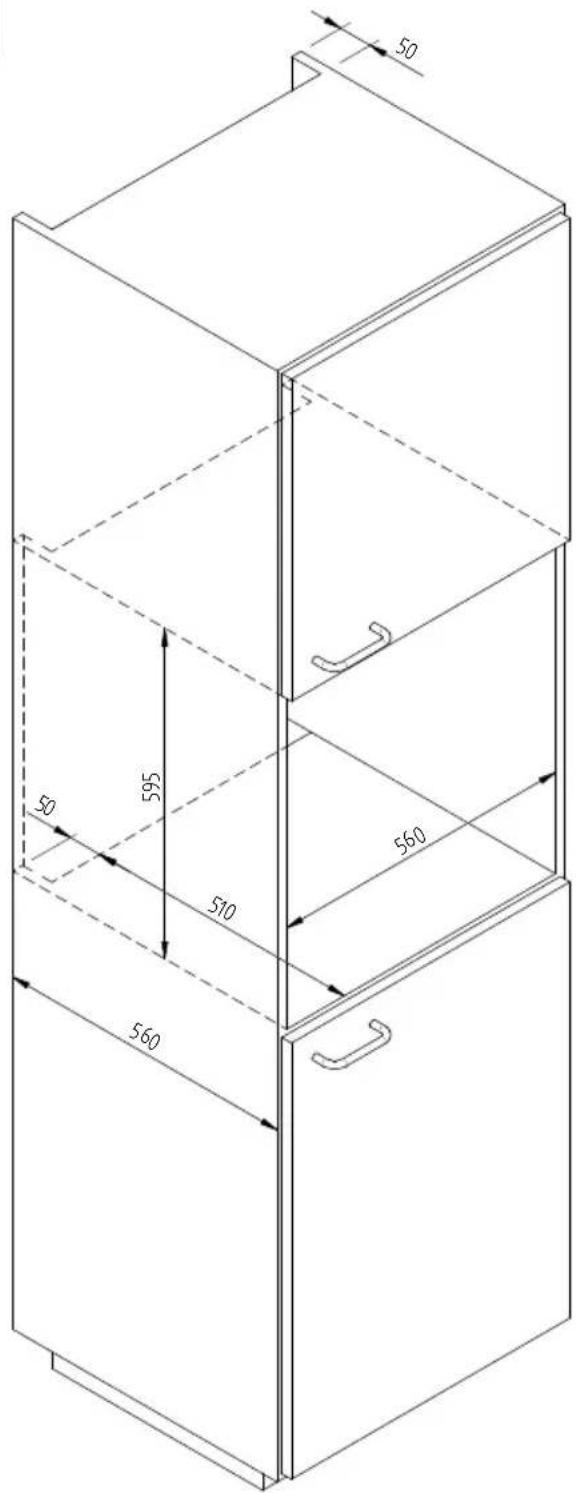

The main dimensions for the built-in appliance are indicated in mm and shown on the installation diagram. For installation proceed as follows:

1. place the drawer of the cabinet so that it is well centred and aligned;
2. make sure that the frame perfectly adheres to the cabinet;
3. open the drawer and fasten the housing to the walls of the cabinet with the two screws provided.

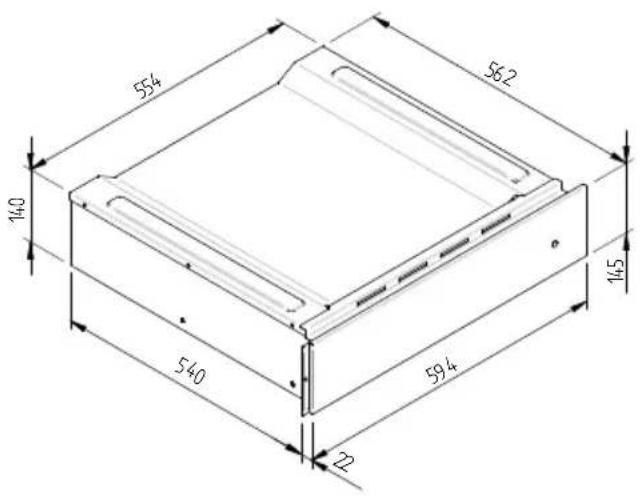

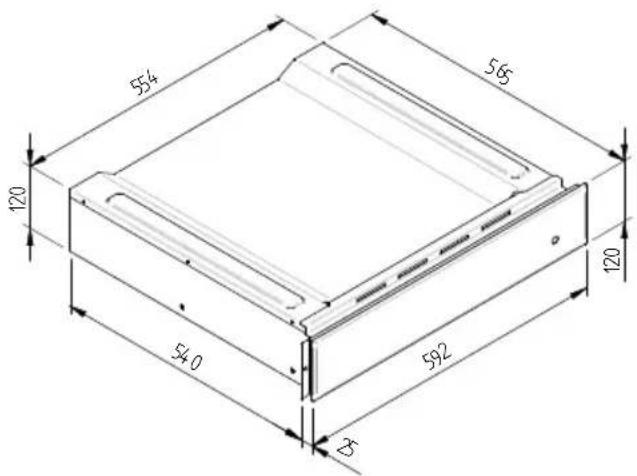

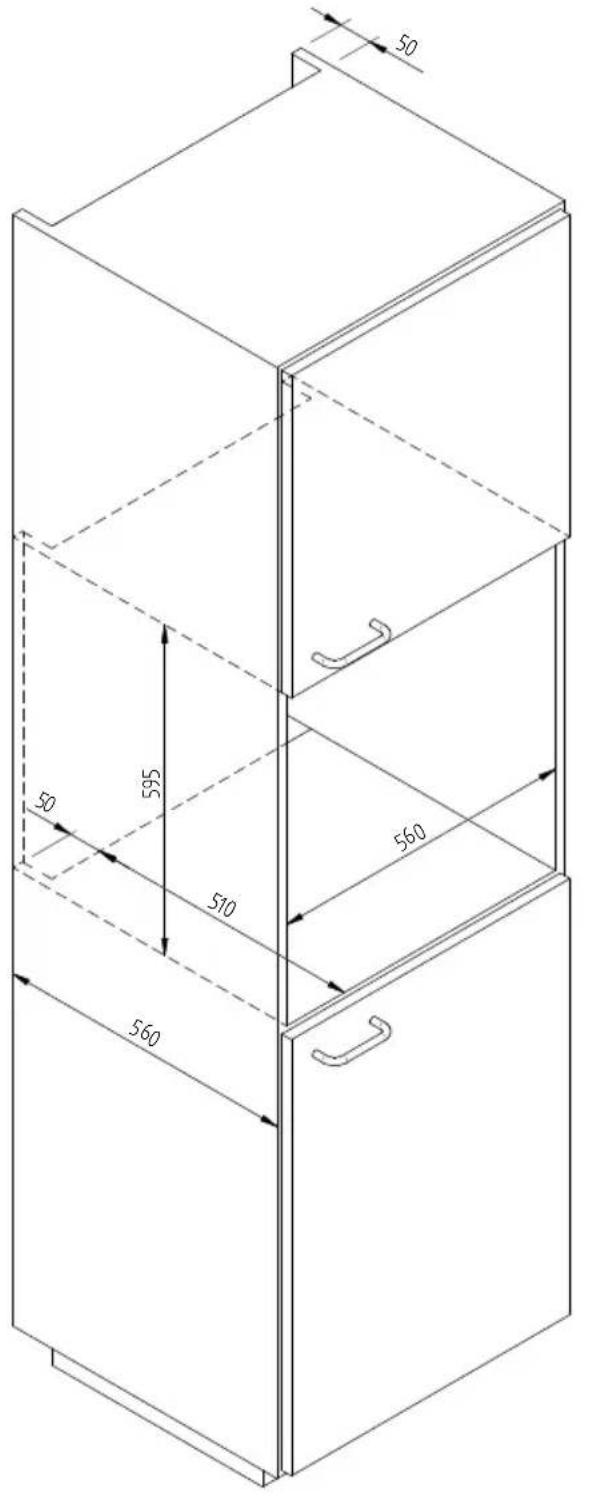

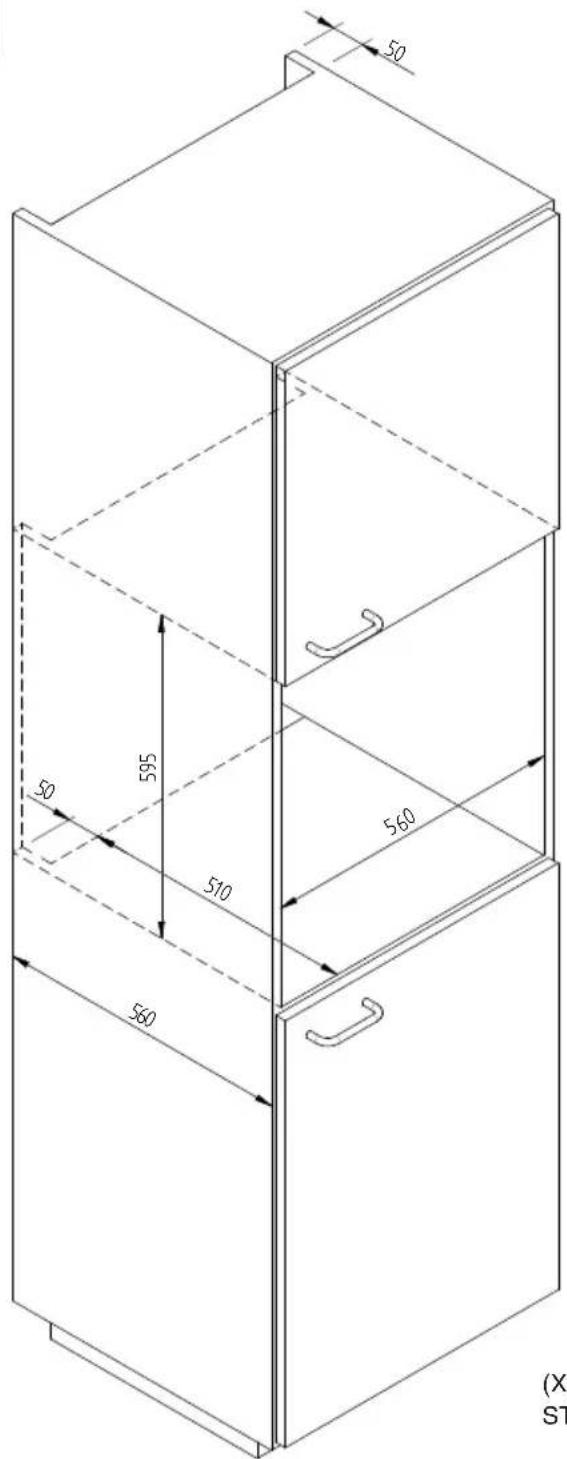

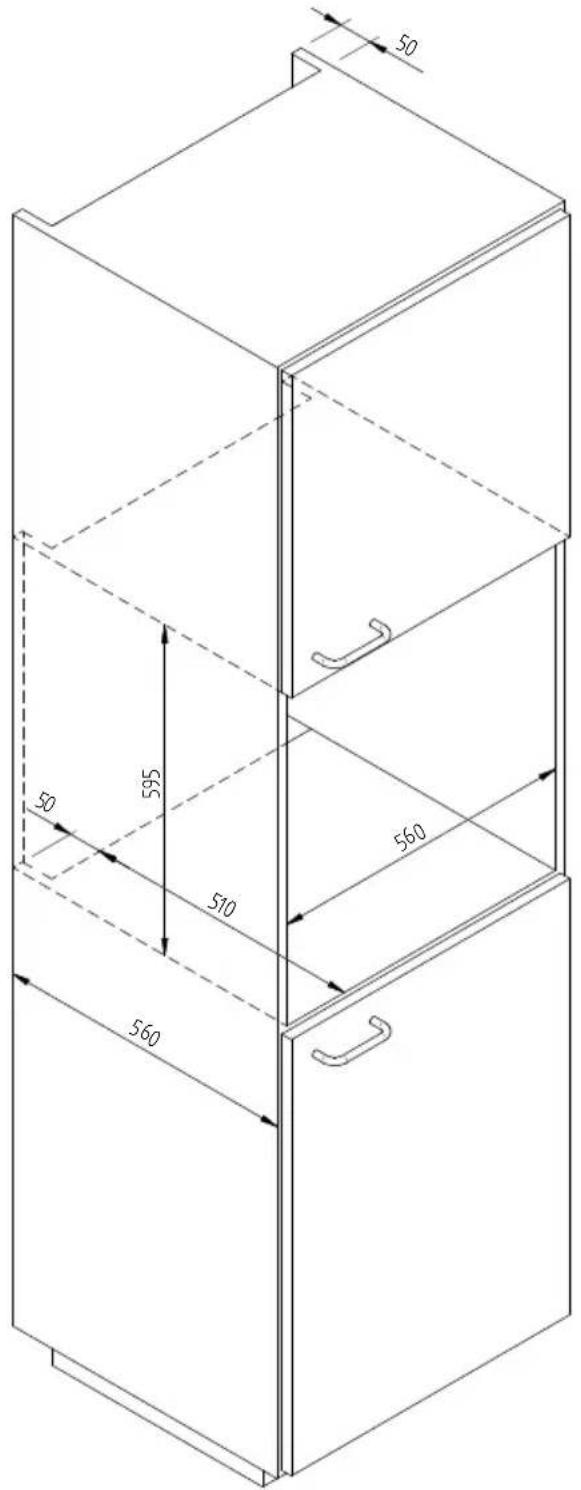

WARMING DRAWER DIMENSION DIAGRAM 560 X 595 FOR 480 OVENS

GB

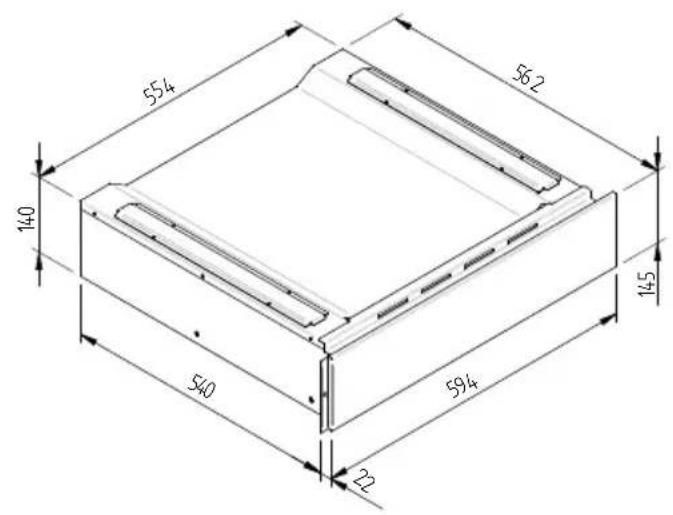

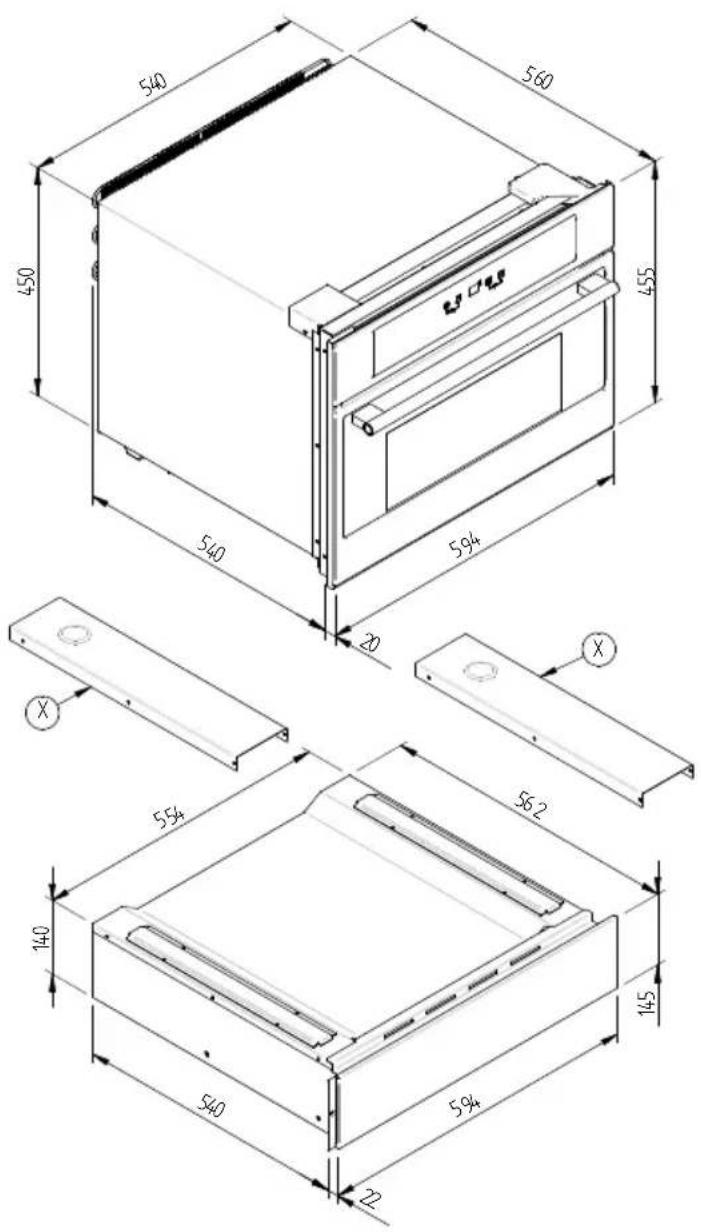

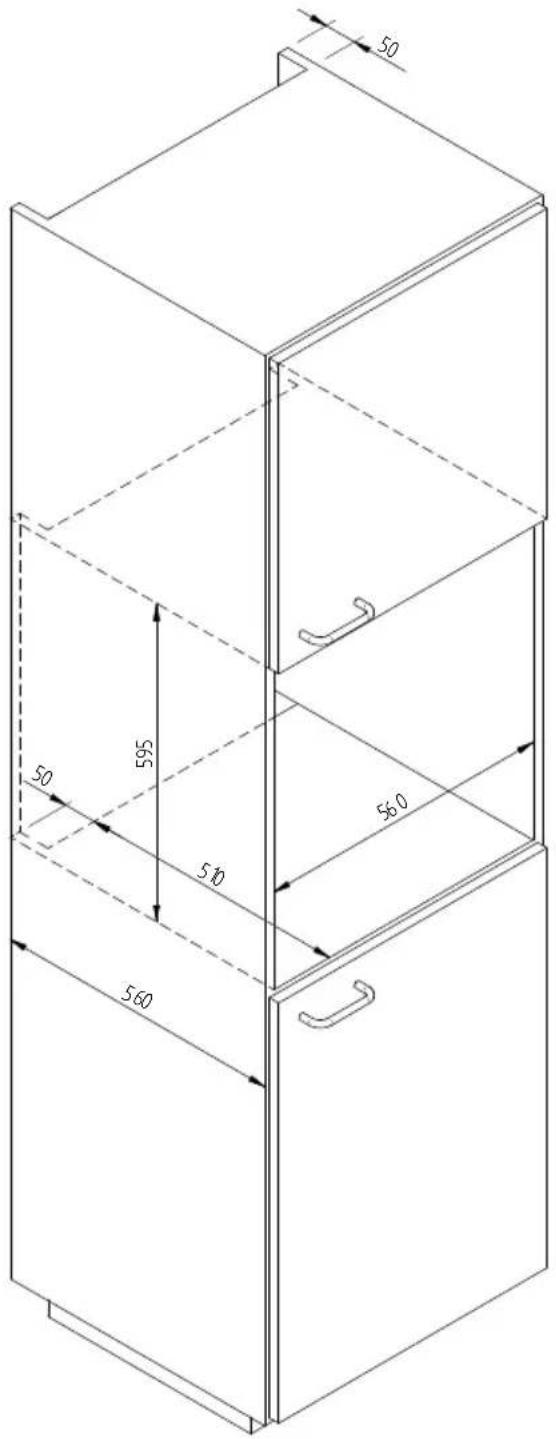

DIMENSIONAL DIAGRAM DRAWER 145 BUILT-IN 560 X 595 WITH 455 MM WINE CELLAR

GB

(X) OPTIONAL BRACKETS TO ORDER WHEN THE WOODEN STRIP IS COMBINED WITH THE OBJECT-HOLDER DRAWER

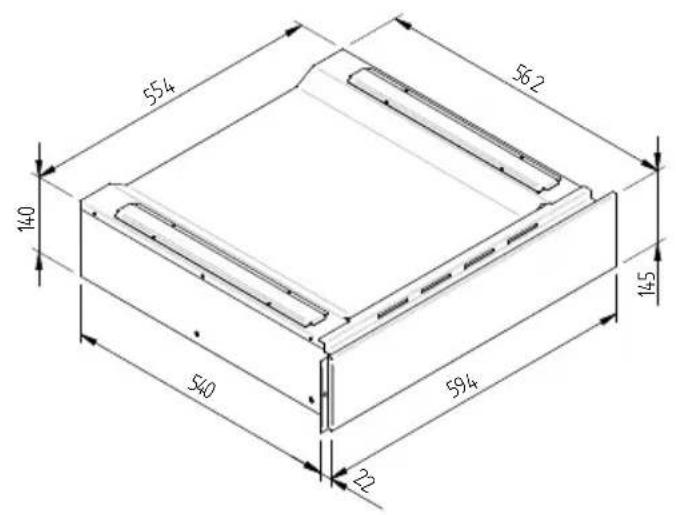

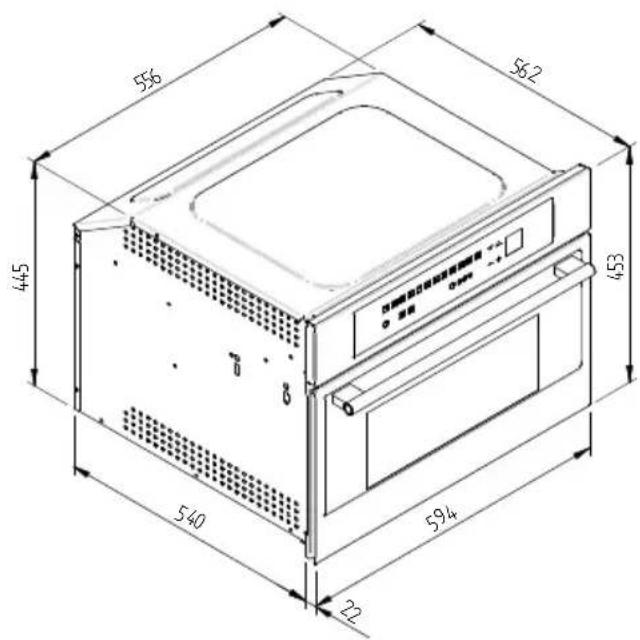

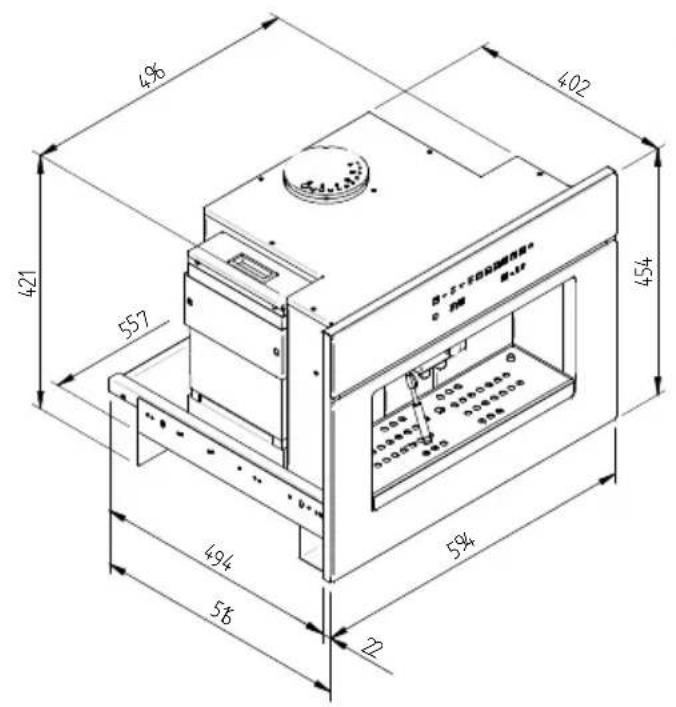

DIMENSIONAL DRAWING DRAWER 145 BUILT-IN 560 X 595 WITH 454 MM COFFEE MACHINE

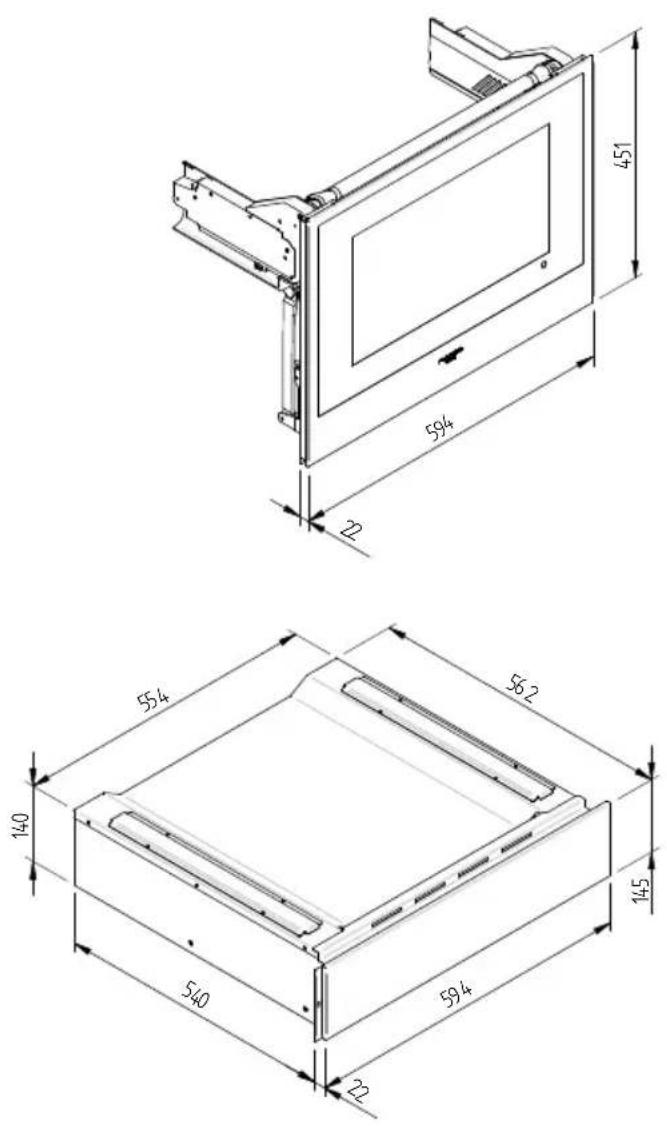

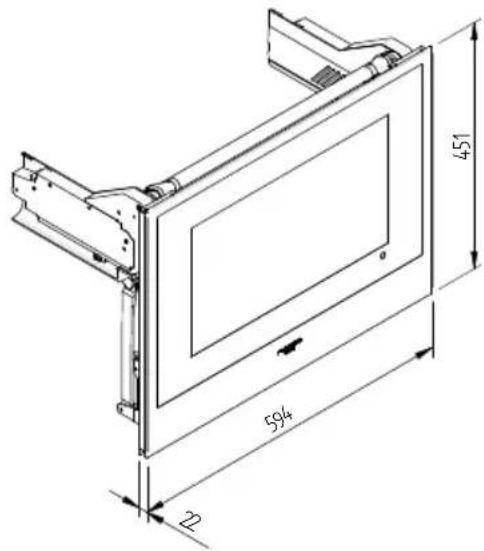

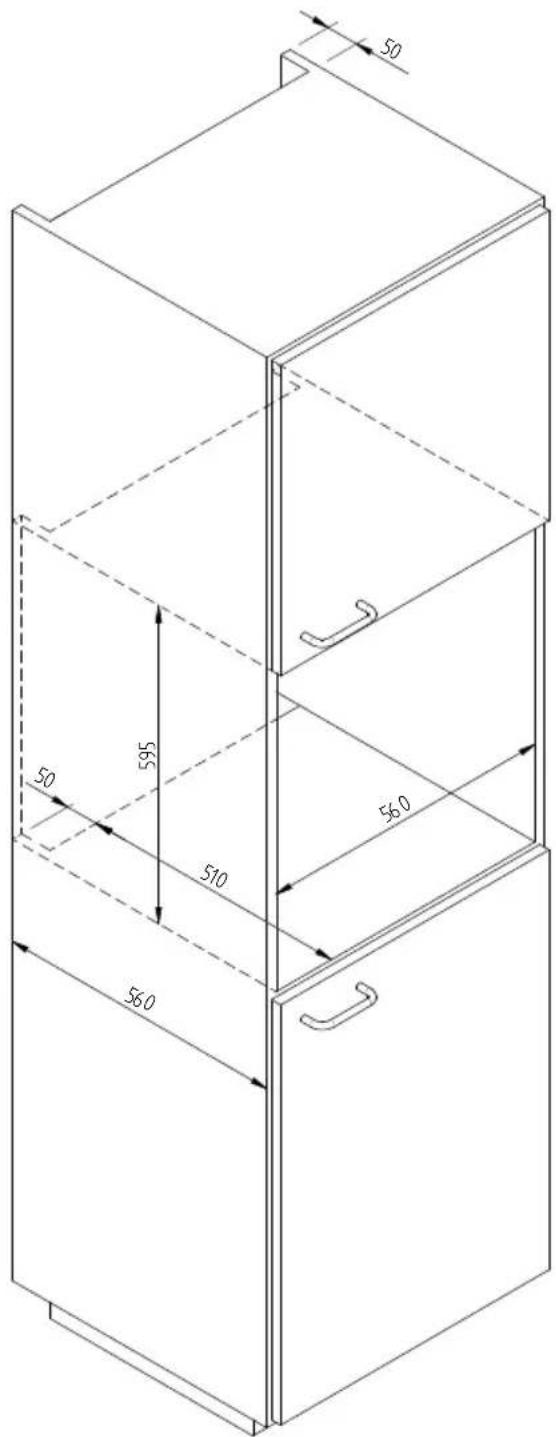

DIMENSIONAL DIAGRAM DRAWER 145 BUILT-IN 560 X 595 WITH 451 MM TV

GB

WARNING!

The manufacturer and retailers will not be liable for property damage and personal injury caused by a failure to follow the instructions provided in this manual.

Cher Client,

INSTRUCTIONS POUR L'INSTALLATION:

Black-and-white photo of a hand reaching toward a stainless steel door, with 'FR' text in the corner (no other signage)

(fig. A)

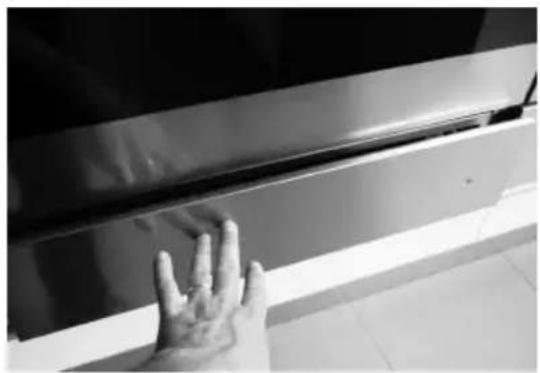

Enlevez la main

Close-up of a hand reaching toward a metallic door panel (no text or symbols visible)

(fig. B),

Close-up of a hand reaching toward a white door panel, no visible text or symbols

(fig. C)

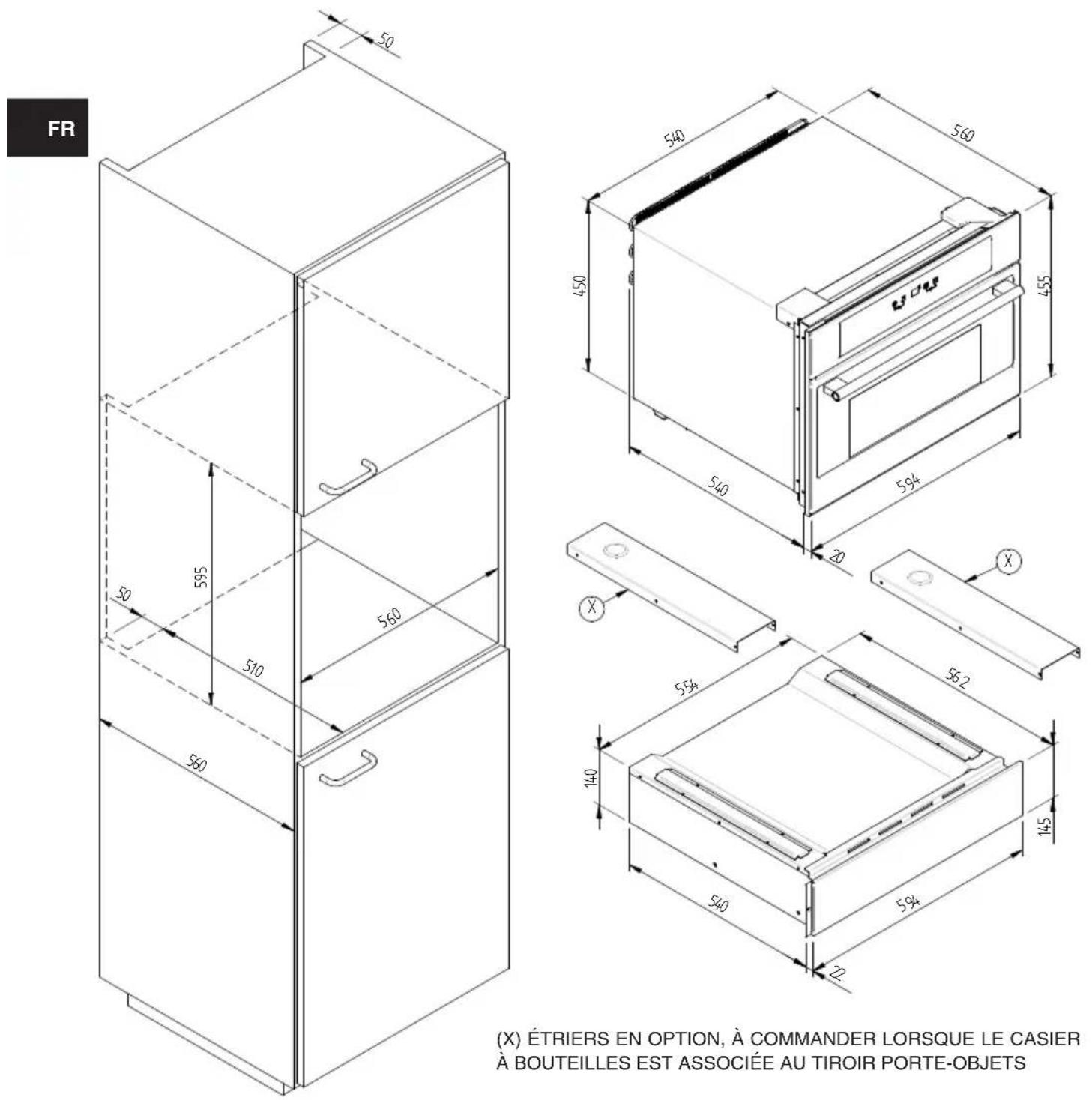

SCHÉMA DIMENSIONNEL DU TIROIR 145 ENCASTRABLE 560 X 595 AVEC CASIER A VIN DE 451

(X) ÉTRIERS EN OPTION, À COMMANDER LORSQUE LE CASIER À BOUTEILLES EST ASSOCIÉE AU TIROIR PORTE-OBJETS

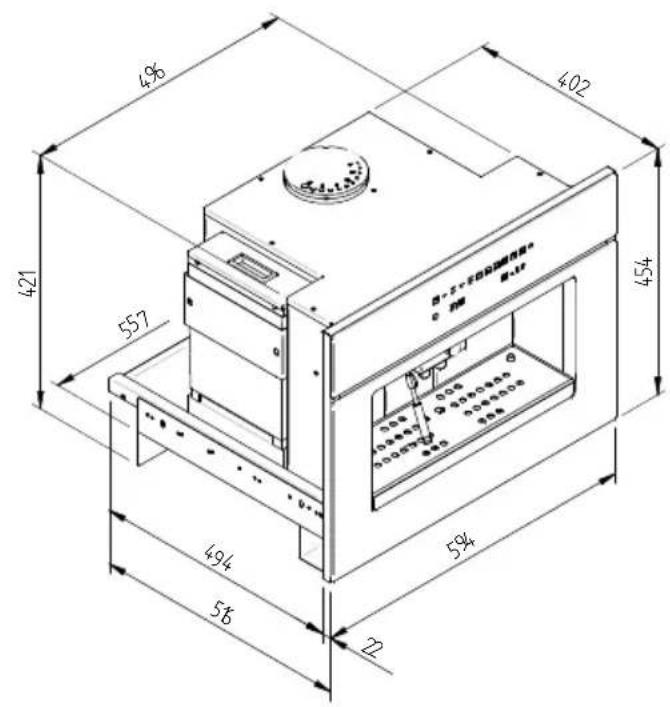

SCHÉMA DIMENSIONNEL DU TIROIR 145 ENCASTRABLE 560 X 595 AVEC PERCOLATEUR DE 454

SCHÉMA DIMENSIONNEL DU TIROIR 145 ENCASTRABLE 560 X 595 AVEC TV DE 451

AVERTISSEMENT!

Close-up of a hand touching a metallic door panel (no visible text or symbols)

(Abb. A)

Die Hand entfernen

Close-up of a hand reaching toward a metallic panel or fixture (no visible text or symbols)

(Abb. B),

Close-up of a hand reaching toward a wall-mounted air conditioner unit (no text or symbols visible)

Close-up of a hand touching a stainless steel appliance (no visible text or symbols)

(fig. A)

Retire la mano

Close-up of a hand reaching toward a glossy black panel edge (no text or symbols visible)

Close-up of a hand reaching toward a wall-mounted device (no visible text or symbols)

(fig. C)

Close-up of a hand touching a metallic door panel (no text or symbols visible)

(fig. A)

Retire a mão

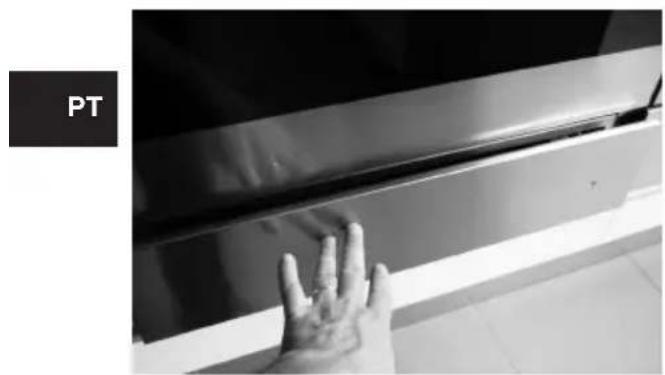

Close-up of a hand reaching toward a glossy black panel on a white surface, with 'PT' label in top-left corner (no other text or symbols)
