USER MANUAL GXPL03H GE

GE Water Filtration Pitcher

USE AND CARE/INSTALLATION INSTRUCTIONS

Filtration Pitcher - GE Model GXPL03H

Your new GE Water Filtration Pitcher comes complete with a filter. Each filter gives you up to 40 gallons (150 L) or 2 months of great-tasting water.

Filter should be changed after 2 months of use.

SAFETY PRECAUTIONS

WARNING

Do not use where water is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after the filter.

The GE Water Filtration Pitcher model GXPLO3H has been Tested and Certified by NSF International under NSF/ANSI International Standard 42 and Standard 53. See performance data sheet for specific claims.

Tested against NSF/ANSI Standard 53 for lead reduction by WQA laboratories

• Wash the pitcher, lid and reservoir with soap and warm water and rinse thoroughly. DO NOT WASH FILTER CARTRIDGE. Pitcher, reservoir and lid are NOT DISHWASHER-SAFE.
• All remaining plastic bags after the installation could be a suffocation hazard. Discard safely and promptly.
  For cold water use only. DO NOT FILTER HOT WATER (max. 85^ / 30^
  Make certain that use complies with state law, local laws and other regulations.

After draining the filter pitcher, add more water promptly to keep filter cartridge wet. If filter cartridge dries out, it may need to soak before being used. If filter cartridge becomes too dried out, it may need to be replaced.

• Keep pitcher filter refrigerated at all times. After 3-4 days, replace unused water with fresh water.
• All parts EXCEPT THE FILTER CARTRIDGE should be washed regularly. It is important to keep food and beverage equipment clean and sanitary.
  Pitcher, reservoir and lid ARE NOT DISHWASHER-SAFE.

SPECIFICATIONS

This System has been tested according to NSF/ANSI 42 and 53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.
Actual performance may vary with local water conditions.

FXPL3D & FXPL3CAD Cartridge

Max. Permissible Influent Challenge Substance	Product Water Reduction Concentration	Auction Minimum Average Concentration	Requirements	Reduction	Reduction
Standard 42
Chlorine	2.0 mg/L ± 10%		≥50%	77%	87%
Particulate Class V (30 to <50 μm)	at least 1,000 particles/mL		≥85%	83.7%	92.1%
Zinc	10 mg/L ± 10%	5 mg/L		58%	65%
Bacteriostatic*	Unit passes NSF Std 42 for Bacteniostatic effects
Standard 53
Copper (pH 6.5)	3.0 mg/L ± 10%	1.3 mg/L		85%	89.2%
Copper (pH 8.5)	3.0 mg/L ± 10%	1.3 mg/L		66.1%	82%
Mercury (pH 6.5)	0.006 mg/L ± 10%	0.002 mg/L		88.3%	91.6%
Mercury (pH 8.5)	0.006 mg/L ± 10%	0.002 mg/L		79%	87%
Cadmium (pH 6.5)	0.03 mg/L ± 10%	0.005 mg/L		96.5%	98.2%
Cadmium (pH 8.5)	0.03 mg/L ± 10%	0.005 mg/L		95.8%	97.2%

Capacity = 40 gallons (150L) or 2 months. Testing was performed under standard laboratory conditions; actual performance may vary.

• The term "bacteriostatic" indicates that the system limits the passage or growth of bacteria that may already exist in the incoming water. It does not mean that water leaving the system is safer to drink than water entering the system.

Tested against NSF/ANSI Standard 53 for lead reduction by WQA laboratories
Lead [pH 6.5]	0.15 mg/L ± 10%	0.010 mg/L		97.2%	98.5%
Lead [pH 8.5]	0.15 mg/L ± 10%	0.010 mg/L		95.2%	98.2%

Test Conditions

pH:6.5-8.5

Water Temperature: 72^ - 75^ (22^ - 24^)

Operating Requirements

Filter Capacity: Each filter is certified for 40 gallons (150 L) or approximately 80 pitchers, which lasts an average family at least two months.

Water Temperature: Max 85^ (30^) Min 35^ (2^)

LIMITED ONE-YEAR WARRANTY

What does this warranty cover?

Any defect in materials or workmanship in the manufactured product.

What does this warranty not cover?

Filter canister and batteries after 30 days from date of purchase.
Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
- Failure of the product if it is abused, misused, altered, used commercially or used for other than the intended purpose.

• Use of this product where water is microbiologically unsafe or of unknown quality, with adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.
• Damage to the product caused by accident, fire, floods or acts of God.
• Incidental or consequential damage caused by possible defects with this appliance, installation or repair.
  for how long after the original purchase?
  One (1) year
  How do I make a warranty claim?
• Return to the retailer from which it was purchased, along with a copy of the "Proof of Purchase." A new or reconditioned unit will be provided. This warranty excludes the cost of shipping the product to your home.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home or office use within the USA. In Alaska, the warranty excludes the cost of shipping or service to your home or office.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Contact us at ge.com, or call toll-free at 800.952.5039 in the U.S., or 866.777.7627 in Canada.

147207 Rev. A 215C1181P001 49-50166-3 (02-11 GE)

GEAppliances.com

GENERAL ELECTRIC COMPANY, Appliance Park, Louisville, KY 40225

1.800.952.5039 in U.S., 1.866.777.7627 in Canada

©2006 General Electric Company

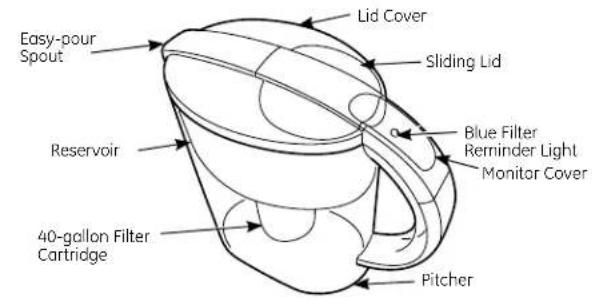

Parts Included

Start Up Procedures

1 Remove pitcher lid cover.

2 Unwrap filter cartridge and submerge the cartridge in clean water. Allow cartridge to soak for 15 minutes to flush out any loose, small carbon particles, which may be present in your water from the filter, but are not harmful.
3 Wash the pitcher, lid and reservoir with soap and warm water and rinse thoroughly. NOTE: NOT DISHWASHER SAFE. DO NOT WASH FILTER CARTRIDGE.
Place the reservoir into the pitcher. Make sure the spout and handle recess on the reservoir are in the correct orientation.

5 Push filter cartridge firmly into reservoir to create a good seal.

Start Up Procedures (cont.)

6 Install battery.

• Remove battery and monitor assembly from plastic bag inside the pitcher. Turn the monitor cover over and remove battery cover by removing the screw and prying the cover off.

• Insert one CR2032, 3 volt battery positive "+" side up under the retaining clip.

NOTE: Make sure the positive (+) side of the battery is up.

• Replace the battery cover by pressing around the lip to make sure it is fully installed.
• The blue light will flash five times, indicating that the timer is working. NOTE: If the blue light does not flash, check battery orientation.
• Press the monitor cover into place on the handle. It will snap when it is in the proper position.

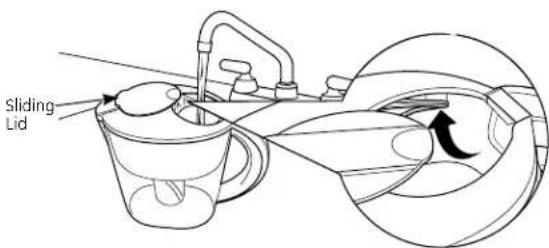

7 Replace lid cover. The lid will snap when it is in the proper location. Open the sliding lid and fill the reservoir with cold tap water and set the pitcher aside. Filtered water will begin to collect in the bottom of the pitcher. Continue to add water until the filtered water in the pitcher reaches the bottom of the reservoir. Do not overfill. Keep water below the bottom edge of the slot (see illustration below). Close the sliding lid on the pitcher.

Fill to the bottom edge of the sliding lid track.

After the filtered water has collected in the bottom of the pitcher discard the water. Refill the pitcher, allow water to collect in bottom, then discard the filtered water. Once two full pitchers of water have been discarded, refill pitcher and allow to collect in bottom. Pitcher is now ready to use.

NOTE: If small, black particles are present in the filtered drinking water, the filter cartridge may not have been thoroughly flushed. These particles are harmless, simply discard the water in pitch and fill again.

8 Keep pitcher filter refrigerated at all times. After 3 to 4 days, replace unused water with fresh, clean water.

Indicator Light

The filtration pitcher is equipped with a blue indicator light on the handle.

• Blinks 3 times - time to change the filter.
• Blinks 9 times - time to change the filter and battery.

The filter needs to be replaced approximately every two months and the batteries need to be replaced every six months.

Cartridge Replacement Procedure

1 Remove the pitcher lid cover and the monitor cover from the pitcher handle by lifting straight up.

Pull out the filter cartridge and dispose of used cartridge.
3 Follow steps 1 through 5 in the Start Up Procedures section.
Press and hold the reset button for 5 seconds.

Press the monitor cover back into place on the handle.
Replace lid cover.

Replacement Cartridge Filter

FXPL3D or FXPL3CAD - 3-pack replacement filters - 20- 30

For replacement parts and pricing in the U.S.: 800.626.2002. In Canada: 866.777.7627.

Filling the Pitcher with Tap Water

When you are adding tap water to the filtration pitcher, you do not need to remove the lid cover.

Use thumb to press down the thumb tab on the sliding lid on the lid cover. Then slide back.
2 Fill pitcher with cold tap water.
3 Slide the sliding lid back into place.
Water will be ready to drink in a few minutes.

NOTE: Keep pitcher filter refrigerated at all times. After 3 to 4 days, replace unused water with fresh, clean water.

IOWA RESIDENTS ONLY.
Store or Seller's name
Address
City	State	Zip Code
Telephone
Seller's signature
Customer's signature		Date

147207 Rev. A 215C1181P001 49-50166-3 (02-11 GE)

GEAppliances.com

GENERAL ELECTRIC COMPANY, Appliance Park, Louisville, KY 40225

©2006 General Electric Company

147207 Rev. A 215C1181P001 49-50166-3 (02-11 GE)

GEAppliances.com

GENERAL ELECTRIC COMPANY, Appliance Park, Louisville, KY 40225

1.800.952.5039 en USA; 1.866.777.7627 en Canadó

©2006 General Electric Company

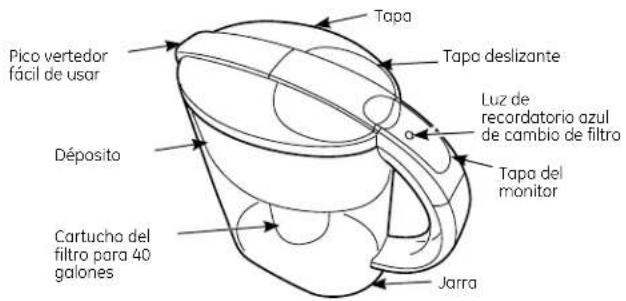

Piezas incluidas
