USER MANUAL SI6000 IFM

Operating instructions

Flow monitor

SI6000

SI6100

SI6200

Contents

1 Preliminary note.... 3

1.1 Symbols used.... 3
1.2 Warnings.... 3

2 Safety instructions 4
3 Transport, handling and storage 5
4 Intended use 6
5 Function 7
6 Installation 8

6.1 Installation position 8

6.1.1 Immersion depth 8
6.1.2 Recommended mounting position 8
6.1.3 Conditionally possible installation position.... 9
6.1.4 Impermissible installation position.... 9
6.1.5 Orientation.... 10

6.2 Interference.... 10
6.3 Process connection.... 11

7 Electrical connection 13
8 Operating and display elements.... 14
9 Set-up 15
10 Settings.... 16

10.1 Changing the switch point 16
10.2 High-flow adjustment.... 16
10.3 Low-flow adjustment 16
10.4 Switch point logic 17
10.5 Reset the device.... 17
10.6 Lock/unlock 17

11 Operation.... 18
12 Troubleshooting.... 19
13 Maintenance, repair and disposal 20

1 Preliminary note

You will find instructions, technical data, approvals, accessories and further information using the QR code on the device / packaging or at documentation.ifm.com.

1.1 Symbols used

√ Requirement
Instruction
Reaction, result

bold Designation of keys, buttons or indications

→ Cross-reference without link

→ Cross-reference with link

Important note

Non-compliance may result in malfunction or interference

Information

Supplementary note

1.2 Warnings

Warnings indicate the possibility of personal injury and damage to property. This enables safe product handling. Warnings are graded as follows:

WARNING

Warning of serious personal injury

▷ If the warning is not observed, fatal and serious injuries are possible.

CAUTION

Warning of minor to moderate personal injury

▷ If the warning is not observed, minor to moderate injuries are possible.

ATTENTION

Warning of damage to property

▷ If the warning is not observed, damage to property is possible.

2 Safety instructions

- The unit described is a subcomponent for integration into a system.

• The system architect is responsible for the safety of the system.

• The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. This documentation must contain all necessary information and safety instructions for the operator, the user and, if applicable, for any service personnel authorised by the architect of the system.

• Read this document before setting up the product and keep it during the entire service life.

• The product must be suitable for the corresponding applications and environmental conditions without any restrictions.
• Only use the product for its intended purpose (→ Intended use).
• Only use the product for permissible media.
• If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.
• The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the product must be carried out by qualified personnel authorised by the machine operator.
• Protect units and cables against damage.

3 Transport, handling and storage

▶ Store the device in its original packaging.
▶ When the device is to be stored again, use the original packaging.
▶ Otherwise, provide unused connections with either a mating connector or a protective cap and pack the device in suitable packaging.
▶ Observe the permissible ambient conditions for the device during storage (→ Technical data).

4 Intended use

The device monitors the flow in liquid and gaseous media.

5 Function

The device detects flow based on the calorimetric measuring principle and switches the output.

With the factory default setting, the switch point is at LED 7.

The device's output is set to a normally open contact by default and can be switched to a normally closed contact.

The switch point LED indicates the switching status:

• LED orange = output closed.
• LED red = output open.

Normal operation

With normal flow, the output has the following status:

• Output closed for normally open function.
• Output open for normally closed function.

Fig. 1: Flow ≥ SP / normally open function

Fig. 2: Flow ≥ SP / normally closed function

Deviation from normal operation

If the flow velocity decreases, the switching status changes when the value falls below the switch point SP minus the hysteresis.

Fig. 3: Flow < SP / normally open function

Fig. 4: Flow < SP / normally closed function

The hysteresis changes with the flow velocity and it is essentially influenced by the set monitoring range. It is 2...5 cm/s for the setting 5...100 cm/s (= factory setting), it increases with higher flow velocities.

The typical response time of the device is 1 ... 10 s. It can be influenced by the setting of the switch point:

• Low switch point = quick reaction with rising flow.
• High switch point = quick reaction with falling flow.

6 Installation

CAUTION

During installation or in case of mechanical failure, high pressure or hot media can leak from the system.

▷ Risk of injury caused by pressure or burns.
▶ Ensure that the system is free of pressure during installation.
▶ Ensure that no media can leak at the mounting location during installation.

6.1 Installation position

6.1.1 Immersion depth

Fig. 5: Immersion depth

• The sensor tip must be completely surrounded by the medium.
• Recommended immersion depths: minimum 12 mm.

6.1.2 Recommended mounting position

Fig. 6: Recommended mounting position

• For horizontal pipes: mounting from the side.
• For vertical pipes: mounting in the rising pipe.

6.1.3 Conditionally possible installation position

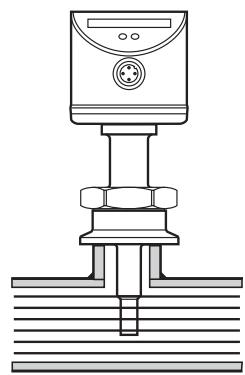

Fig. 7: Conditionally possible installation position

• For horizontal pipes, if the pipe is free from build-up: mounting from below.
• For horizontal pipes, if the pipe is completely filled with medium: mounting from the top.

6.1.4 Impermissible installation position

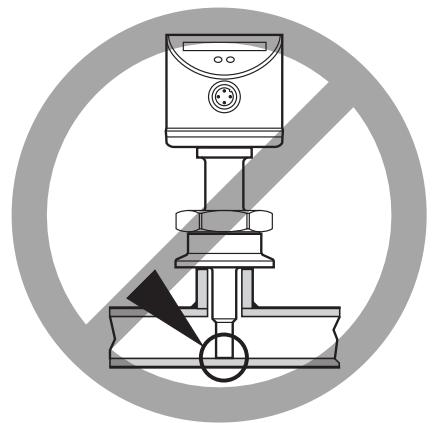

Fig. 8: Impermissible installation position

• The sensor tip must not be in contact with the pipe wall.
• Do not mount in downpipes that are open at the bottom.

6.1.5 Orientation

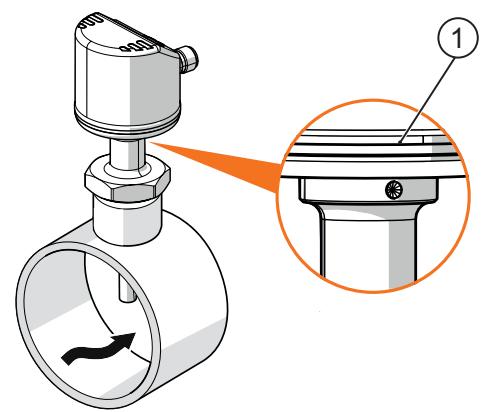

Fig. 9: Flow direction (arrow)

▶ To ensure optimum measurement accuracy, install the sensor so that the connector is facing away from the direction of flow.

The side opposite the direction of flow is also marked by a hole above the wrench flat (1).

6.2 Interference

Structures in the pipe, bends, valves, reducing pieces and the like affect the function of the unit.

▶ Adhere to the distances between sensor and interference.

Fig. 10: Inlet and outlet pipe lengths
D: Outside diameter of the pipe
S: Interference

6.3 Process connection

Fig. 11: Process connection

1: Device
2: Fixing element
3: O-ring

4: Adapter
5: Lubricating paste
6: Clamping fixture
7: Sealing area

▶ Mount the adapter on the device.
▶ The device and adapter are fixed to the process connection using a fixing element (coupling nut, clamp flange or similar).

If it is not possible to slide the fixing element down over the top of the unit:

▶ Before mounting the adapter, slide the fixing element onto the device from below.

Mounting the adapter

▶ Slightly grease the thread and sealing area of the sensor and the adapter with a lubricating paste.

The paste must be suitable and approved for the application and compatible with the elastomers used. Recommendation: Klüber paste UH1 84-201 with USDA-H1 approval for the food industry.

▶ Make sure that the O-ring is correctly positioned.
▶ Screw the device into the adapter until it is hand-tight (→ A). Avoid mechanical influence on the sealing areas.
▶ Clamp the device and adapter into a clamping device (→ B). The sealing areas must not be damaged.
▶ Tighten the device using a spanner until you can feel the end stop. This corresponds to a maximum tightening torque of 25 Nm.

Tightening beyond the maximum torque of 25 Nm may impair the sealing performance.

ATTENTION

Loss of hygienic sealing performance upon reassembly

▷ A guarantee for a long-term stable and maintenance-free fitting, with no bug traps in the hygienic sealing of the metal seal (Aseptoflex connection) is only valid for once-only mounting.
▶ Use a new adapter if the sealing is mounted several times.

Mounting using a welding adapter

▶ Weld the adapter into the pipe or tank.
▶ Once it has cooled down, insert the device and tighten it securely. Follow the instructions supplied with the adapter.

7 Electrical connection

The unit must be connected by a qualified electrician.

Observe the national and international regulations for the installation of electrical equipment. Voltage supply according to SELV, PELV.

▶ Disconnect power.
▶ Connect the unit as follows:

Fig. 12: Wiring

1: Ub+
3: Ub-
4: Digital output (PNP): Switching signal flow

8 Operating and display elements

1: Operation indication

• The LEDs 0...9 represent the range between flow standstill and maximum flow.
• The green LEDs show the current flow.
• An illuminated LED shows the position of the switch point:

– Orange: output closed

- Red: output open

In the current example: normally open function (factory setting).

2: Setting buttons for adjustment and configuration

9 Set-up

▶ Switch on the supply voltage.
▷ All LEDs light and go out again step by step. During this time, the output is closed if set to normally open and open if set to normally closed.
▷ The device is in the operating mode.
▶ Let the normal flow circulate in the installation.
▶ Check the display and determine further actions:

Display		Explanation
1		The factory set operating range is suited for the application.► ▶ If necessary, adjust the switch point to suit the application.
2		The normal flow is below the display range.► ▶ Carry out high-flow adjustment.► ▶ Ajust the switch point to the application.
3		Your normal flow exceeds the representation range of the display (LED 9 flashes).► ▶ Carry out high-flow adjustment.

Tab. 1: Display settings at factory settings (→ Function)

The factory settings can be restored at any time (→ Reset Device).

For media other than water:

▶ Perform an additional calibration for minimum flow (→ Low-flow adjustment).

10 Settings

10.1 Changing the switch point

For the factory setting the switch point is at LED 7. A change makes sense in the following cases:

• The normal flow falls below the representation range of the display, see ➞ 15.
  • The flow fluctuates strongly or pulsates.
  • A faster response time of the device is required.

• Low switch point = quick reaction with rising flow.
  – High switch point = quick reaction with falling flow.

▶ Briefly press the Ⓓ or ⬇ button.

▷ The switch point LED flashes.

▶ Press Ⓓ or ▶ as often as required.

▷ Each press of the pushbutton shifts the LED by one position in the indicated direction.

▶ When the required switch point is reached, do not press the button for more than 2 seconds.
▷ The device goes into operating mode with the newly set value.

10.2 High-flow adjustment

The device defines the current flow as the normal flow and adapts the display accordingly.

▶ Let the normal flow circulate in the installation.
▶ Press the ⬤ button and keep it pressed..

▷ LED 9 is on, after approx. 5 seconds it flashes.

▶ Release the ⬤ button.
▷ The device is adapted to the flow conditions. It goes into operating mode.
▷ The display should now show an LED indication similar to example 1 → 15.

If all LEDs are flashing red, the adjustment has failed. Possible causes ➕ Chapter “Troubleshooting”. The device switches to operating mode with unchanged values.

The adjustment affects the switch point: It is increased proportionally (maximum up to LED 7).

10.3 Low-flow adjustment

If the device is used in media other than water, the device should additionally be adapted to the minimum flow.

The low-flow adjustment may only be carried out after the high-flow adjustment.

▶ Let the minimum flow circulate in the installation or ensure flow standstill.
▶ Press the Ⓐ button and keep it pressed.

▷ LED 0 is on, after approx. 5 seconds it flashes.

▶ Release the Ⓓ button.
▷ The device adopts the new value and enters operating mode.

10.4 Switch point logic

Upon delivery, the device is set to normally open.

Changeover to normally closed function:

▶ Press the Ⓐ button for at least 15 seconds.
▷ LED 0 is on, after approx. 5 seconds it flashes.
▷ After 10 seconds the current setting is displayed: LEDs 5...9 light orange (= output normally open).
▷ After approx. 15 seconds LEDs 0...4 flash orange.

▶ Release the Ⓓ button.

▷ The output is changed to normally closed function.

▶ For a new changeover repeat the operation.

10.5 Reset the device

▶ Press the ⬤ button for at least 15 seconds.
▷ LED 9 is on, after approx. 5 seconds it flashes.
▷ After approx. 15 seconds LEDs 0...9 flash orange.

▶ Release the ⬤ button.

▷ All settings are reset to the factory setting:

• Operating range: 5 ...100 cm/s for water

- Switch point: LED 7

• Output function: normally open

- Not locked

10.6 Lock / unlock

The unit can be locked electronically to prevent unauthorised setting.

Factory setting: not locked.

▶ Press both setting keys for 10 seconds.

▷ The display goes off.

▷ The unit is locked.

▶ For unlocking repeat the process.

11 Operation

The device detects the flow and switches the outputs according to the parameter setting.

The device displays the current flow and the switching status.

In case of power failure or interruption of the operating voltage, all settings remain.

Display		Explanation
1	LED 0 flashes	Current flow below the display range.
2		Current flow below the switch point.
3		Current flow corresponds to the switch point.
4		Current flow above the switch point.
5	LED 9 flashes	Current flow above the display range.

Tab. 2: Display for normally open function, switch point at LED 4
LED orange: output closed; LED red: output open

12 Troubleshooting

Display	Description	Corrective measures
The LED display turns off briefly (0.6 s) when a button is pressed.	The device is permanently locked.	▸ Unlock device.
LEDs are permanently off.	Operating voltage too low (< 19 V) or failed.	▸ Ensure correct voltage supply.
Operating indicator and red LEDs light alternately.	Short circuit at the switching output.	▸ Remove short circuit.▸ ▷ The device immediately returns to the normal operating status and the current operating indication appears in the display.
LEDs flash red after flow adjustment. The device then returns to the operating mode with unchanged values.	High-flow adjustment or low-flow adjustment not successful.	▸ Check whether all installation requirements have been met.▸ Increase the distance between maximum flow and minimum flow and carry out the adjustment again.▸ ▶ Carry out the two adjustment operations again in the right sequence.

13 Maintenance, repair and disposal

Only the manufacturer is allowed to repair the unit.

▶ Ensure that the sensor tip is free from build-up:
- Check the sensor tip regularly for deposits. Determine check intervals based on the application.
- In case of soiling clean the sensor tip with a soft cloth. Stubborn build-up, such as lime, can be removed using a common vinegar cleaning agent.
▶ After use, dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations.
