Product Type	Fiber Optic Amplifier
Brand	IFM
Model	OB5025
Category	Microphone (optical detector)
Power Supply	DC 24 V (PNP or NPN depending on wiring)
Output	PNP/NPN switch, function programmable by wiring
Range	Depends on the fiber optic used
LED Indicators	Red (error), yellow (switching status), green (availability)
Adjustment Modes	Automatic switching threshold (moving or stationary objects)
Compatible Fibers	Ifm type FE-11 and FT-11
Mounting	On DIN rail or mounting device
Electrical Connection	3-wire cable: BN (brown), BU (blue), BK (black)
Protection	IP 65 (cover closed)
Maintenance	Cleaning of optical fibers, check for soiling
Safety	Disconnect power before connection
General Information	User manual available in PDF

Frequently Asked Questions - OB5025 IFM

How to adjust the switching threshold for moving objects?

Pass the objects through the optical beam, then press the button until the red LED flashes. The yellow and green LEDs flash alternately. Press once, then a second time to confirm. The green LED lights up in operating mode.

What does the red LED lit constantly mean?

The red LED lit constantly indicates an error during object detection, for example incorrect adjustment or soiling of the optical fibers.

What type of optical fiber to use with the OB5025?

The amplifier is designed for ifm optical fibers of type FE-11 (through-beam) and FT-11 (direct reflection).

How to mount the optical fibers in the amplifier?

Unscrew screw A, slide the fibers into the openings until you feel a slight resistance (O-ring), then push until the stop and tighten the screw.

What are the electrical connections?

Connection via 3-wire cable: BN (brown) = power +, BU (blue) = power -, BK (black) = output. The output function (PNP or NPN) is programmed by wiring.

How to reset the device after an error?

Check the fibers, adjustment and soiling. If the red LED flashes quickly, there is a short circuit. Correct the wiring. If it flashes slowly, internal error. Consult the manual.

Can we use fibers other than ifm?

No, the amplifier is optimized for ifm fibers FE-11 and FT-11. Using other fibers may reduce the range or damage the device.

What is the importance of the cover?

The cover must be closed after adjustment to ensure IP 65 protection against dust and moisture.

How to adjust the threshold with a stationary object?

Press until the red LED flashes. Place the object in the beam and press. Remove the object and press again. The green LED lights up in operating mode.

What to do if the threshold adjustment fails?

If the red LED flashes after the adjustment step, this means the signal of the object and background are too similar. The device remains in operating mode without changing the threshold. Adjust manually or clean the fibers.

USER MANUAL OB5025 IFM

Switching amplifier for fibre optics

Technical line drawing of a mechanical component with threaded end and mounting holes (no text or symbols)

Deutsch Seite

Controls and indicators 7

Mounting 8

Mount the fibre optics 8

Electrical connection 8

Setting of the switching threshold 9, 10

Connection 15

Français

out on auto range

Rote LED:

The switching amplifier senses objects and materials without contact and indicates their presence by a switching signal.

• Only for the connection of the ifm fibre optics type FE-11 and FT-11.
• Sensing range depends on the fibre optic.

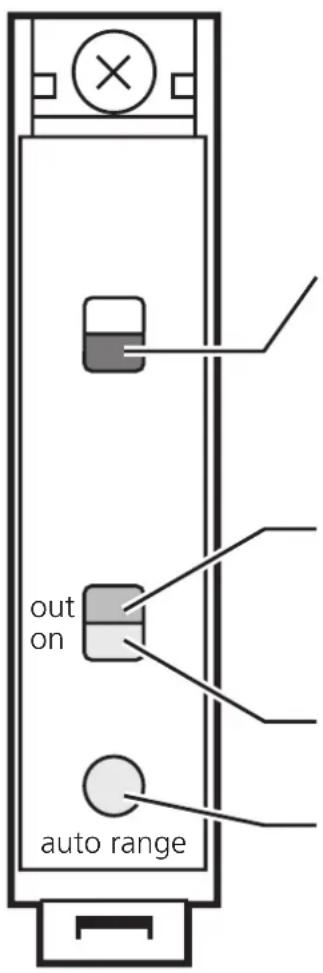

Controls and indicators

out on auto range

red LED:

• indicates the setting mode
• lights in the uncertain reception zone (maladjustment, soiling of the lens)
• flashes quickly: output short-circuited
• flashes slowly: internal malfunction

yellow LED:

switching status, lights when the output is switched

green LED:

lights when ready for operation

push button: starts the manual setting of the switching threshold

Mounting

Mount the unit on a DIN rail or by means of a mounting fixture.

Mount the fibre optics:

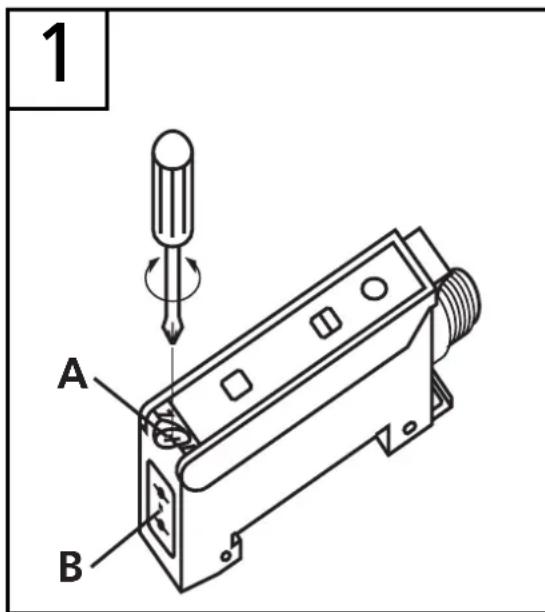

1. Loosen the screw A, fig. 1.

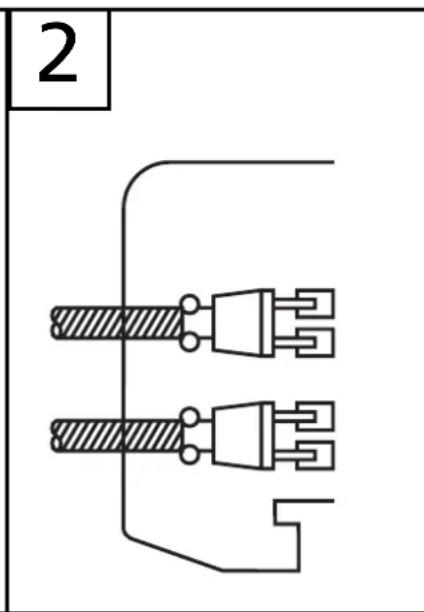

2. Place the fibre optics into the sensor holes B until you feel a slight resistance (O ring), fig. 2.

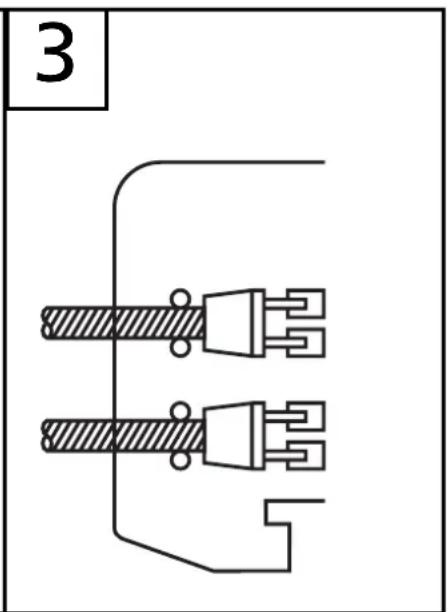

3. Push the fibre optics until they come to a stop (optical elements) and hold them, fig. 3.
4. Tighten the screw A.

1 A B

Pure electrical circuit lines without any symbols

Pure electrical connector diagram without any text, numbers, or symbols

If the fibre optics are not in contact with the optical elements, the sensing range is reduced.

Electrical connection

Isolate the power, then connect the unit as specified (see the last page or the type label).

• Core colours (for sensors with cable connection): BN = brown, BU = blue, BK = black.
• Programming of the output function by wiring (see the page 15 or the type label).

Setting of the switching threshold (1)

• Objects move through the detection area
• Diffuse reflection fibre (FT ...) and through-beam fibre (FE ...)

The unit detects input signals of various intensity in any sequence and calculates the optimum switching threshold.

1

Allow the objects to pass trough the detection area.Press until the red LED flashes.

→

Yellow and green LEDs flash alternately (= unit is in the programming mode).

2

Press once.

Yellow and green LEDs go out for a short time, then flash again alternately.

3	Press once.			Yellow and green LEDs go out for a short time,
				then the green LED is on (= unit is in the operating mode).

If the setting of the switching threshold is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3. The unit then passes into the operating mode with the switching threshold being unchanged.

Setting of the switching threshold (2)

• Stationary objects
• Diffuse reflection fibre (FT ...) and through-beam fibre (FE ...)

The unit detects input signals of various intensity in any sequence and calculates the optimum switching threshold.

1

Press until the red LED flashes.

Yellow and green LEDs flash alternately (= unit is in the programming mode).

2

Place the object into the detection area.*Press once.

Yellow and green LEDs go out for a short time, then flash again alternately.

3	Remove the object.*Press once.			Yellow and green LEDs go out for a short time,
				then the green LED is on (= unit is in the operating mode).

* You can also proceed in reverse order: first setting without the object, then with the object.

If the setting of the switching threshold is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3. The unit then passes into the operating mode with the switching threshold being unchanged.

Operation

Only open the cover to make adjustments. Close it after the adjustment has been made in order to maintain the protection IP65.

Check whether the unit functions properly.
