USER MANUAL BCSEK124SS BROAN

Series: BCDF1 and BCSEK1

INSTALLATION, USE

AND CARE MANUAL

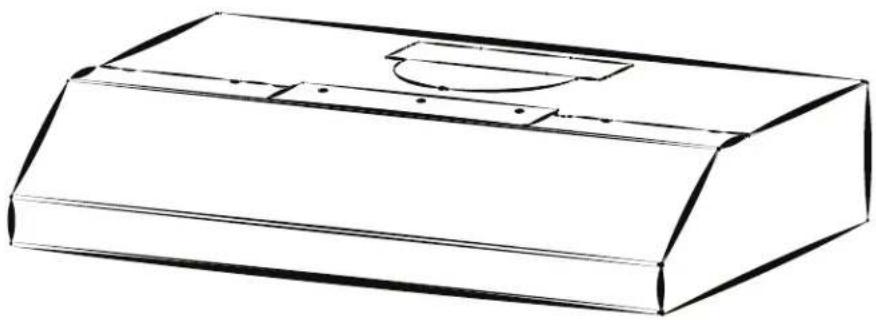

Line drawing of a rectangular metal enclosure with a recessed top opening (no text or symbols)

Serial number:

Safety 3-4

Operation 5

Cleaning and Maintenance 6

Motor

Grease Filter

Non-Ducted Recirculation Filter

Fan Blade

Stainless Steel Cleaning

Painted Finish Cleaning

Installation 7-20

Recommended Tools

and Accessories for Installation 7

Install Ductwork (Ducted Installations Only) . . . 7-8

Contents 8

Prepare the Hood 9-11

Prepare the Hood Location 12

EZ1 One-Person Installation 12-14

Install the Hood (EZ1 Bracket) 15-16

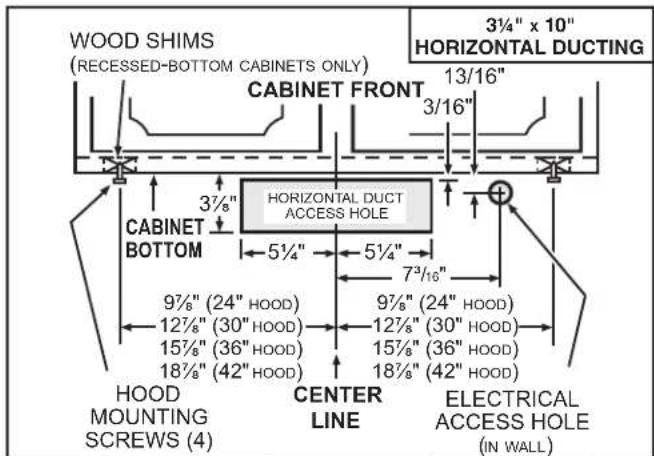

Standard Installation 17

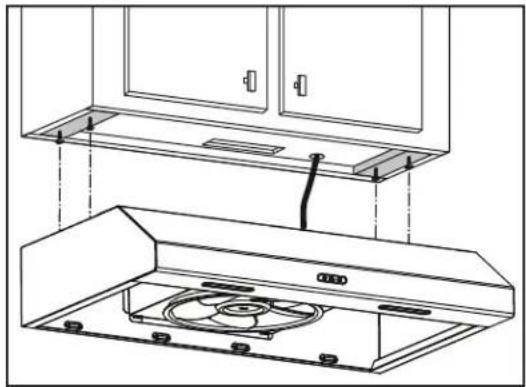

Install the Hood (Standard Installation) ..... 18

Connect the Wiring 19

Install the Filters 19

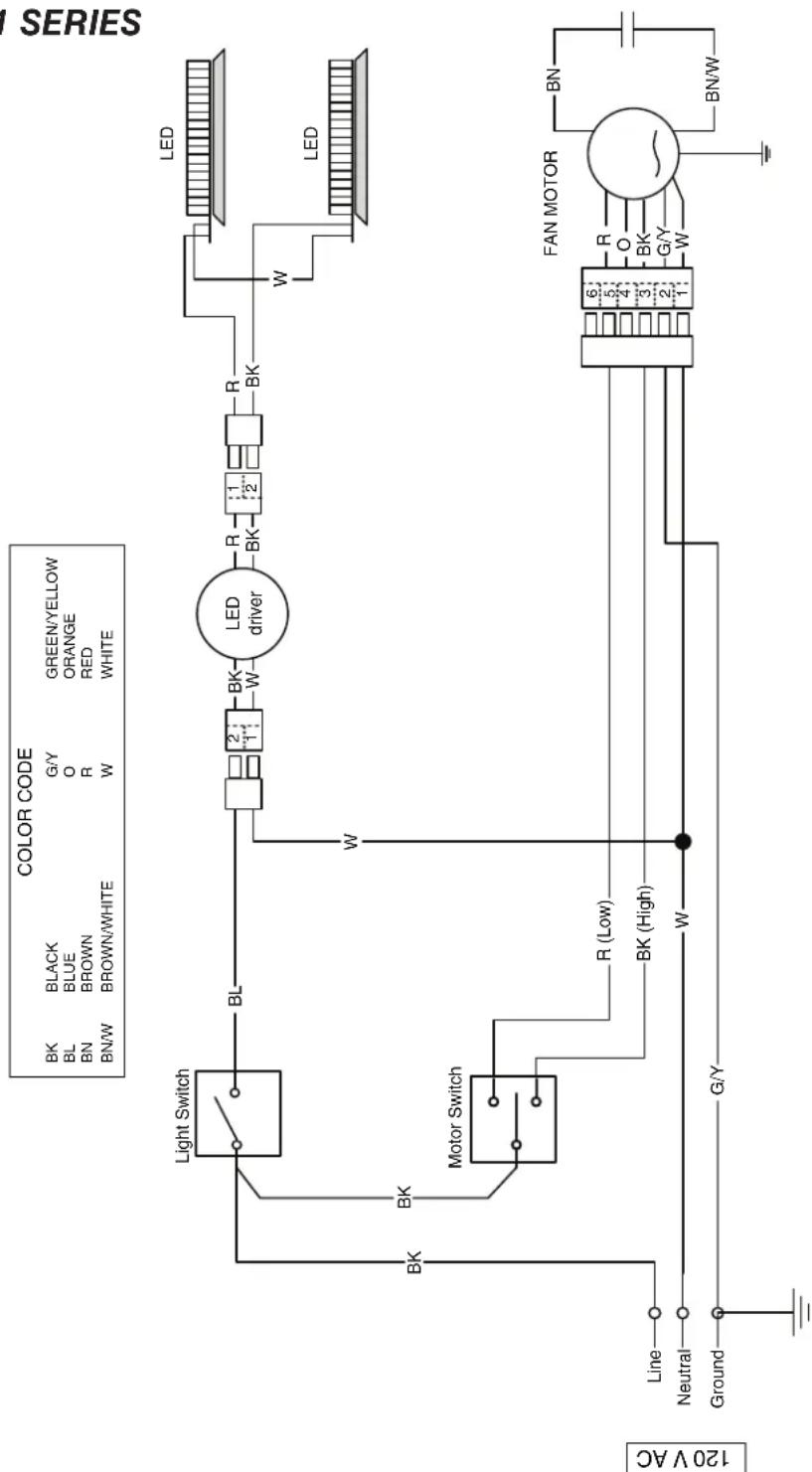

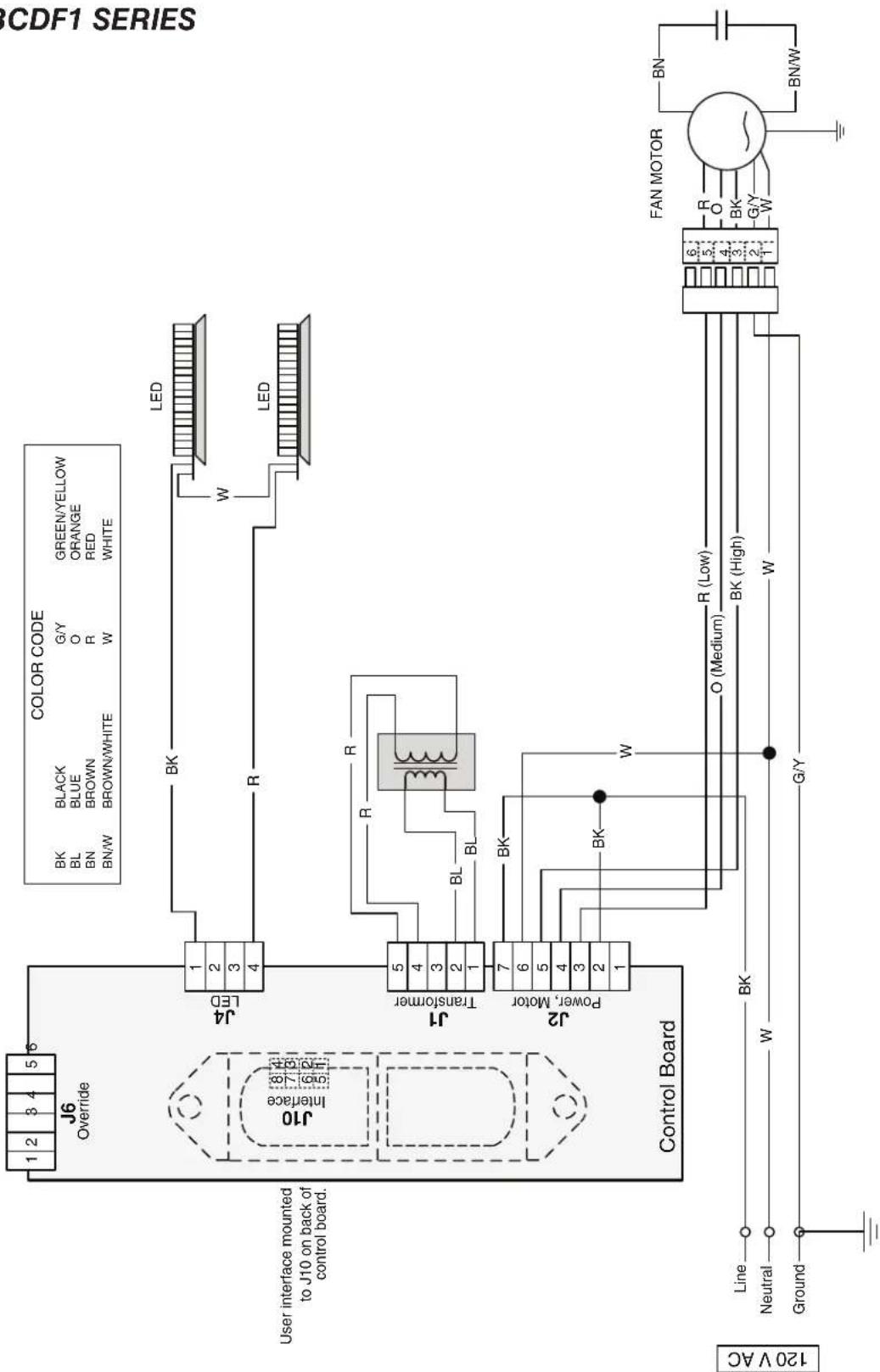

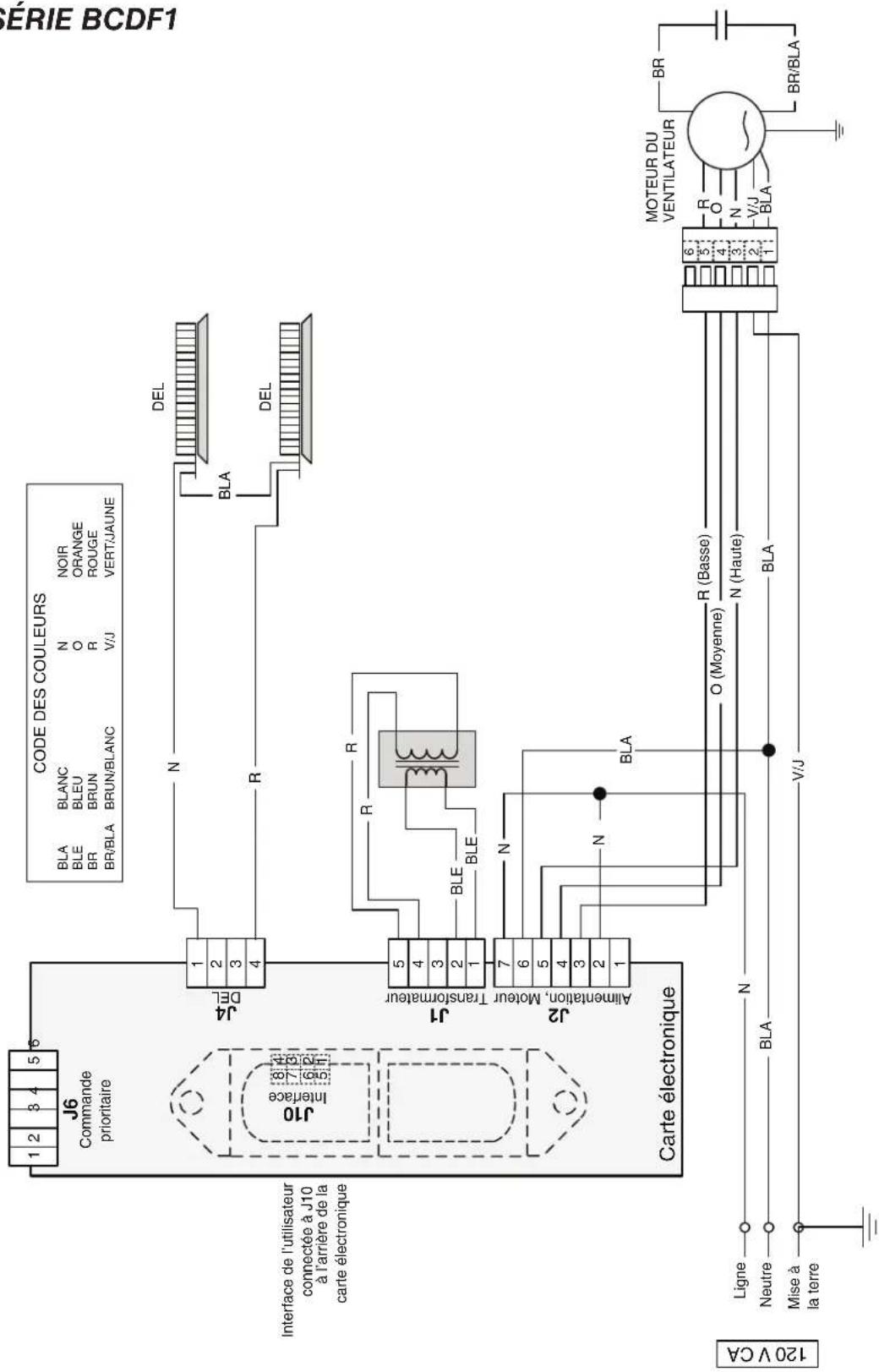

Wiring Diagrams 20-21

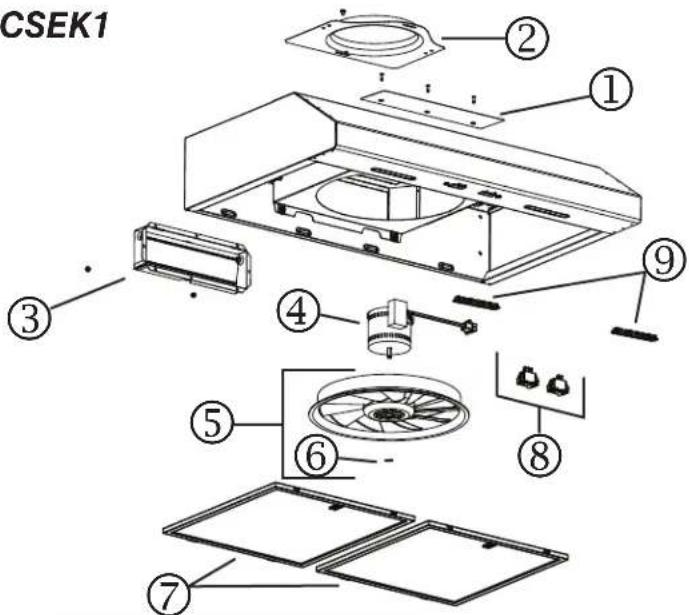

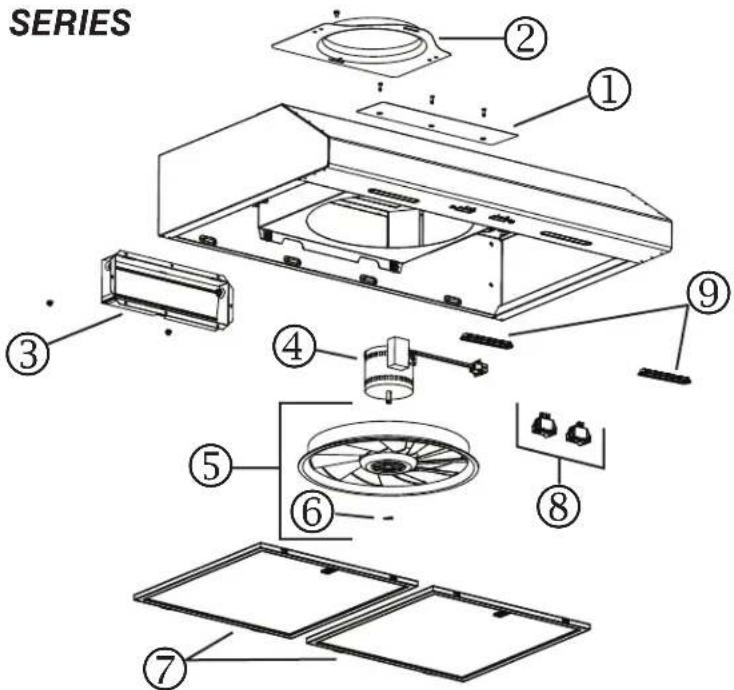

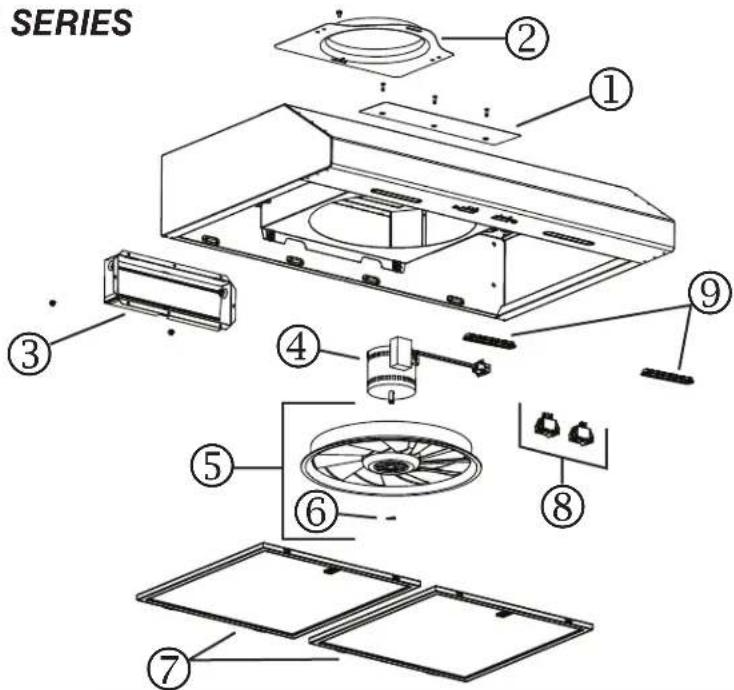

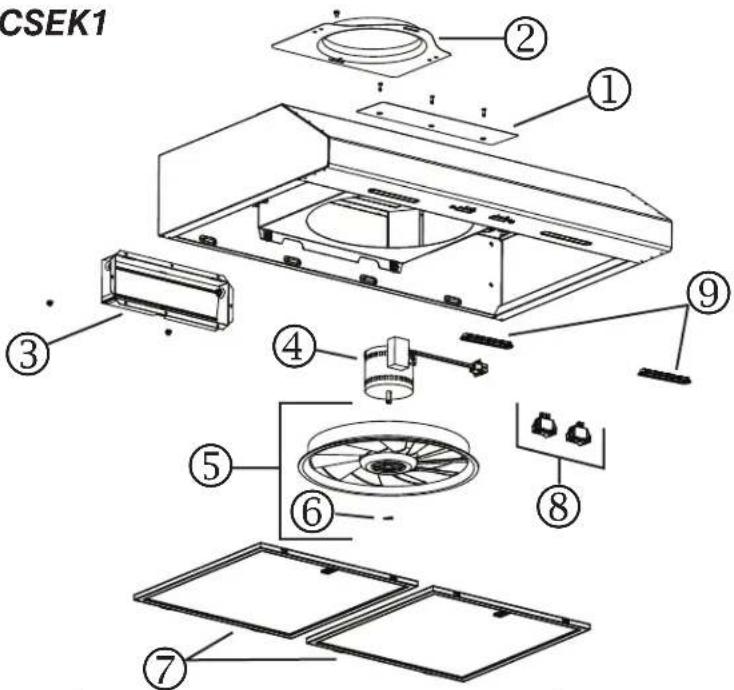

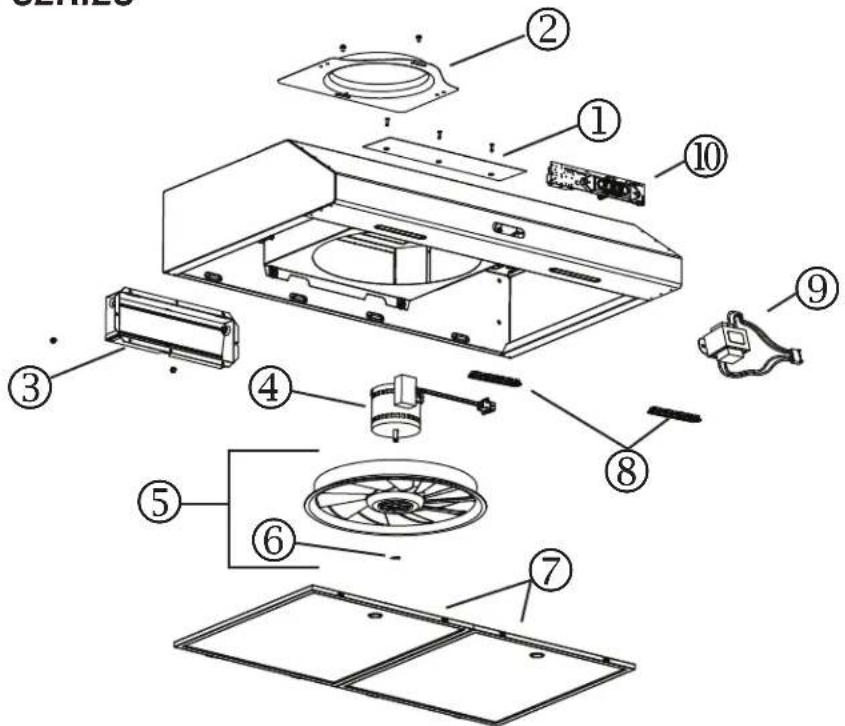

Service Parts 22-23

Warranty 24

READ AND SAVE THESE INSTRUCTIONS

Intended for domestic cooking only

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.

In U.S.A., register your range hood online at www.broan-nutone.com In Canada, register your range hood online at www.broan-nutone.ca

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
• Do not use this unit with any additional solid-state speed control device.
  • To reduce the risk of fire, use only metal ductwork.
  • This unit must be grounded.
• As an alternative, this product may be installed with the UL-approved cord kit designated for the product, following instructions packed with the cord kit.
• When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fan frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it.

B. The fire is small and contained in the area where it started.

C. The fire department has been called.

D. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

• For indoor use only.
• For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• To avoid motor bearing damage and noisy and/or unbalanced fan blade, keep drywall spray, construction dust, etc. off range hood.
• Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
• For best capture of cooking fumes, the bottom of the hood MUST NOT BE LESS than 18" and at a maximum of 24" above the cooking surface.
• Always follows the cooking equipment manufacturer's requirements regarding the ventilation needs.
• To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
• When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
• Please read specification label on product for further information and requirements.

Operation

Always turn your hood on before you begin cooking to establish an air flow in the kitchen.

Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and fresher. The LED modules included with this hood are the latest in LED cooktop illumination technology specially designed to operate in the elevated temperatures of cooking - offering bright lighting and lasting up to 25 times as long as a standard bulb and greater reliability than typical replacement LED bulbs.

Operate the hood as follows:

BCSEK1 SERIES

| • ||

BLOWER SWITCH

I Turns blower on to LOW speed.
- Turns blower OFF.
II Turns blower on to HIGH speed.

• |

LIGHT SWITCH

I Turns light ON.
- Turns light OFF.

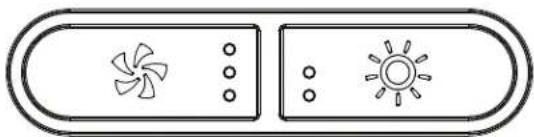

BCDF1 SERIES

Simple line drawing of a device with two panels, one showing a fan icon and the other a sun symbol (no text or labels)

BLOWER BUTTON

When blower is OFF, press this button to turn ON the blower at the last saved speed. If there was no speed saved, the blower will be set on LOW speed.

NOTE: When LOW speed is activated from OFF, the blower starts on MEDIUM speed for a very short lapse of time, and then resume to LOW speed.

To change the blower speed, press on this button again until the desired speed is reached (from LOW to MEDIUM to HIGH speed to OFF). Each time a blower speed is activated, a beep is heard and LED indicators light up to show the corresponding speed chosen (lower LED for LOW speed, lower and center LEDs for MEDIUM speed and all LEDs for HIGH speed).

When blower is on (no matter the speed level), press and hold this button until the beep sound ends; this will turn off the blower and save this blower speed to memory.

LIGHT BUTTON

When lights are OFF, press once on this button to turn ON the lights at the last saved setting. If there was no light setting saved, the lights will be set on LOW intensity. Press another time to set the lights on HIGH intensity. Pressing another time after the HIGH setting will turn OFF the lights. Each time the lights are turned ON, a beep is heard and LED indicators light up to show the corresponding intensity chosen (lower LED for LOW and both LEDs for HIGH).

When lights are on (no matter the lighting level), press and hold this button until the beep sound ends; this will turn off the lights and save the chosen light intensity.

FILTER CLEANING REMINDER

When it is time to clean the hood and filters (refer to Cleaning and Maintenance on page 6), the 3 blower button LED indicators will flash slowly for 30 seconds after turning the blower OFF. This will happen every time the blower is turned OFF until the filter cleaning reminder has been reset. Once the cleaning is done, reset the filter cleaning reminder indicators by pressing on blower button for 3 seconds during the 30 seconds the 3 blower button LED indicators flash slowly.

Cleaning and Maintenance

Proper maintenance of the Range Hood will assure proper performance of the unit.

MOTOR

The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The fan blade should also be replaced.

GREASE FILTERS

The grease filters should be cleaned frequently. Use a warm dishwashing detergent solution. Grease filters are dishwasher safe.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filters may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty. To minimize or prevent discoloration, hand wash filters using a mild detergent.

NON-DUCTED RECIRCULATION FILTERS

The non-ducted recirculation filters should be changed every 3 to 6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking. Refer to installation instructions included with non-ducted recirculation filters.

FAN BLADE

The fan blade should be cleaned frequently. Use a clean cloth soaked with warm detergent solution.

STAINLESS STEEL CLEANING

Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
  • Always clean in the direction of original polish lines.
  • Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the range hood to make sure no dust sticks to the stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PAINTED FINISH CLEANING:

Clean with warm water and mild detergent only. If discoloration occurs, use a finish polish such as automotive polish. (DO NOT use rough abrasive cleaner or porcelain cleaner.)

For ADA compliance installation guidelines, please type the model number into our website.

Recommended Tools and Accessories for Installation

• Measuring tape
  • Phillips screwdriver no. 2
• Flat blade screwdriver (to open knockout holes)
• Drill, 1/8" drill bit and 1½" hole saw (to mark holes for ducting and cut electrical access hole)
• 7/64" drill bit (to drill holes for EZ1 brackets mounting screws)
• Wood shims (2) and wood screws (4) (required for standard installation to framed cabinet)
• Saw (to cut holes for ducted application)
• Sheet metal shears (ducted installation only, for duct adjustment)
• Pliers (ducted installation only, for duct adjustment)
  • Metal foil duct tape (for ducted applications)
• Scissors (to cut metal foil duct tape)
• Pencil
• Wire stripper
• Strain relief, 1/2" diameter (to secure house wiring cable to the hood)
  • BP87Q Damper (needed if 7-in. round duct is used)

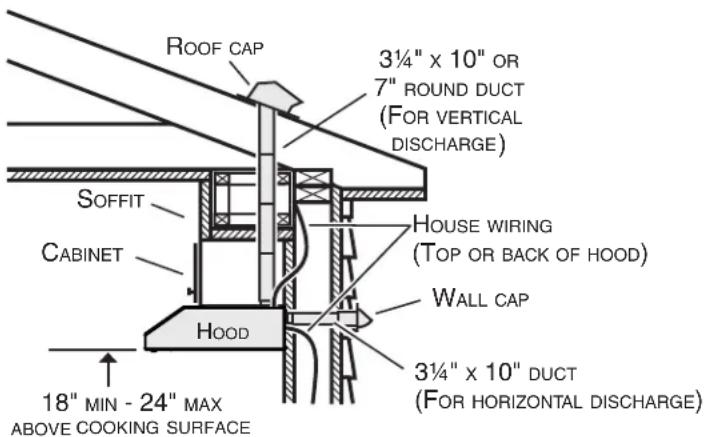

Install Ductwork (Ducted Installations Only)

ROOF CAP 3¼" x 10" OR 7" ROUND DUCT (FOR VERTICAL DISCHARGE) SOFFIT HOUSE WIRING (TOP OR BACK OF HOOD) CABINET WALL CAP HOOD 3¼" x 10" DUCT (FOR HORIZONTAL DISCHARGE) 18" MIN - 24" MAX ABOVE COOKING SURFACE

NOTE: Distances over 24" are at the installer and user discretion.

1] Determine whether hood will discharge vertically (3¼" x 10" or 7" round), or horizontally (3¼" x 10" only).
2] Decide where the ductwork will run between the hood and the outdoors.
3] The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow. Refer to the table on next page to help you plan the most efficient installation.
4 ] Install wall cap or roof cap (sold separately); ensure there is no leak in house insulation. Connect metal ductwork to cap and work back towards the hood location. Use 2" metal foil duct tape to seal the joints between ductwork sections.

Maximum Duct Lengths Recommended to Achieve 80% Exhaust Efficiency

3 14 ′′ x 10′′ HORIZONTAL MAXIMUM DUCT LENGTH	3 14 ′′ x 10′′ VERTICAL MAXIMUM DUCT LENGTH	7′′ ROUND MAXIMUM DUCT LENGTH	ROOF OR WALL CAP WITH DAMPER	ELBOW(s)* (90° AND/OR 45°)
91 ft. 79 ft. 92	ft. 1 0
82 ft. 71 ft. 78	ft. 1 1
73 ft. 62 ft. 62	ft. 1 2

* Standard elbows with 1" internal radius.
NOTE: 6" round ducting is possible but may reduce exhaust efficiency.

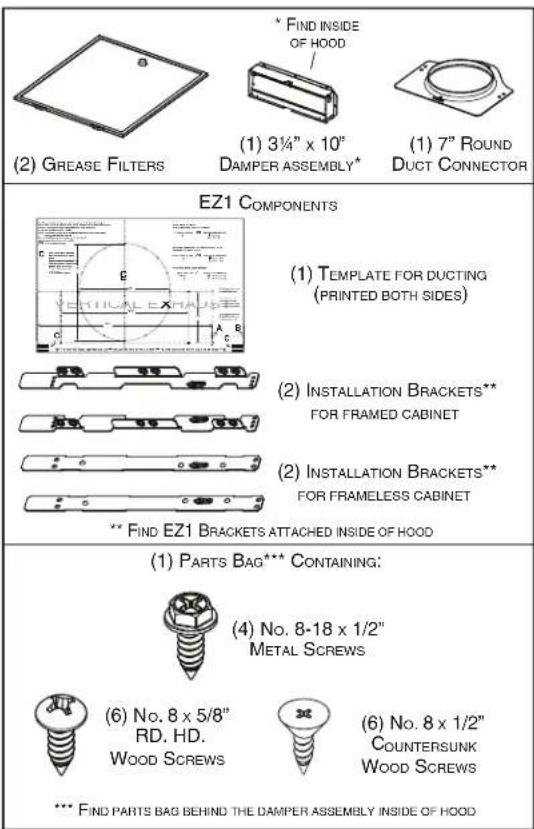

Contents

Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.

Make sure that the following items are included:

BCDF1 Series

BCSEK1 Series

(2) GREASE FILTERS

(1) 3¼" x 10" DAMPER ASSEMBLY*

(1) 7" ROUND DUCT CONNECTOR

EZ1 COMPONENTS

** FIND EZ1 BRACKETS ATTACHED INSIDE OF HOOD

(1) PARTS BAG*** CONTAINING:

(4) No. 8-18 x 1/2" METAL SCREWS

(6) No. 8 x 5/8" RD. HD. WOOD SCREWS

(6) No. 8 x 1/2" COUNTERSUNK WOOD SCREWS
*** FIND PARTS BAG BEHIND THE DAMPER ASSEMBLY INSIDE OF HOOD

Prepare the Hood

1] If present, remove all protective polyfilm from the hood and/or parts.

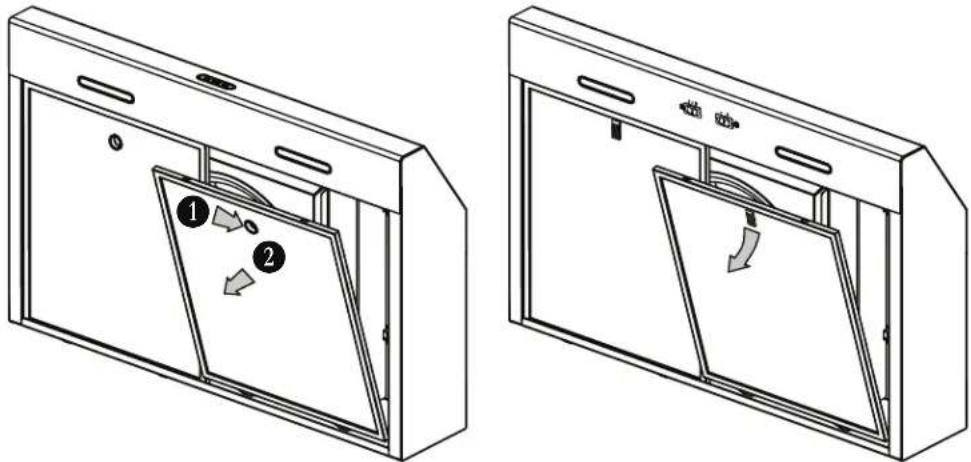

2] Using the finger cup (BCDF1 Series) or the tab (BCSEK1 Series), remove the grease filters from the hood by pushing down ① and tilting filter(s) out ②.

Two technical line drawings of a cabinet or enclosure with internal compartments and directional arrows indicating movement (no text or symbols)

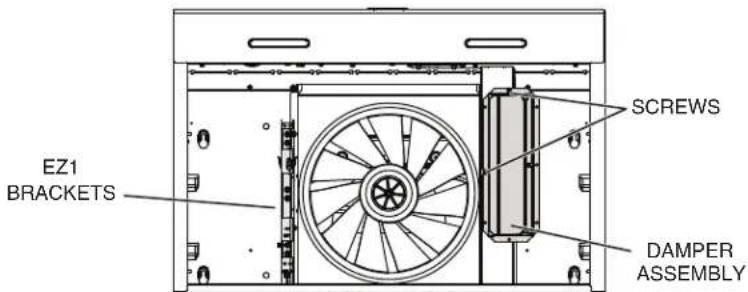

3] Remove the EZ1 brackets from inside the hood by cutting off the tie wrap. Remove both screws holding damper assembly to hood. Remove parts bag (captured behind the damper assembly). Remove damper assembly from inside the hood and keep the screws for further use.

EZ1 BRACKETS SCREWS DAMPER ASSEMBLY

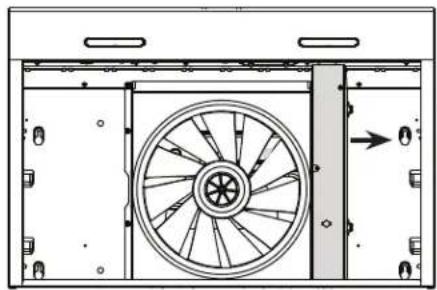

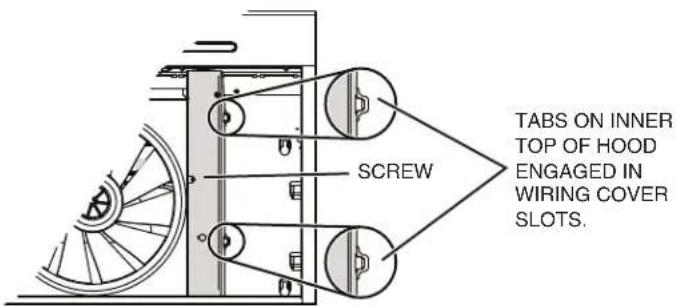

4] Remove the wiring cover (shaded part on illustration below) by sliding it out from the hood and set it aside.

Technical line drawing of a mechanical component with a central wheel and directional arrows (no text or symbols)

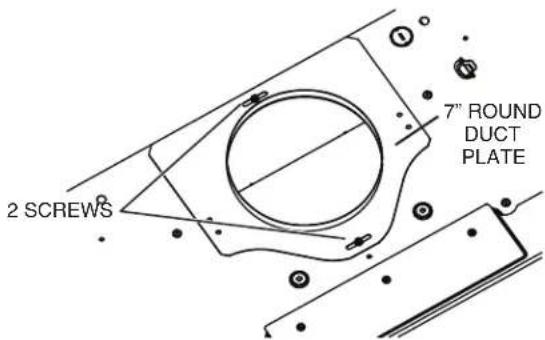

5] Remove 7" Round Duct Plate from top/back of hood (see illustration below).

2 SCREWS 7" ROUND DUCT PLATE

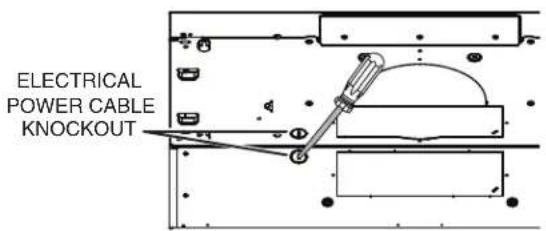

1] Remove Electrical Power Cable Knockout from top (vertical wiring) or back (horizontal wring) of hood. Install an appropriate strain relief, 1/2" diameter (not included).

ELECTRICAL POWER CABLE KNOCKOUT

NON-DUCTED INSTALLATION ONLY

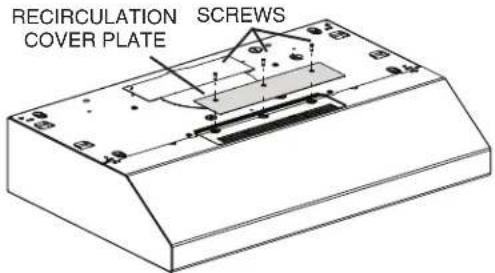

2] Remove 3 screws retaining the recirculation cover plate (shaded part in illustration below) to the hood. Discard this plate with its screws.

RECIRCULATION COVER PLATE SCREWS

DUCTED INSTALLATION ONLY

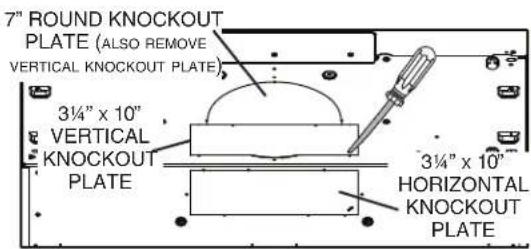

8] Remove 3¼" x 10" vertical, 3¼" x 10" horizontal, or 7-inch round knockout plate as appropriate for your ducting method (see FIGURES 1 A and 1 B).

FIGURE 1 A

7" ROUND KNOCKOUT PLATE (ALSO REMOVE VERTICAL KNOCKOUT PLATE) 3¼" x 10" VERTICAL KNOCKOUT PLATE 3¼" x 10" HORIZONTAL KNOCKOUT PLATE

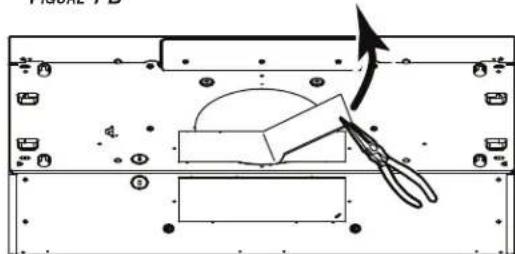

FIGURE 1 B

Diagram showing a mechanical assembly with labeled components and an arrow indicating direction or force, possibly illustrating a cutting or assembly process.

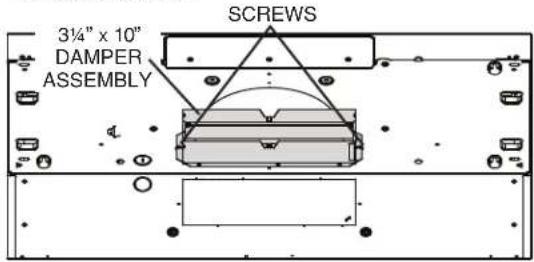

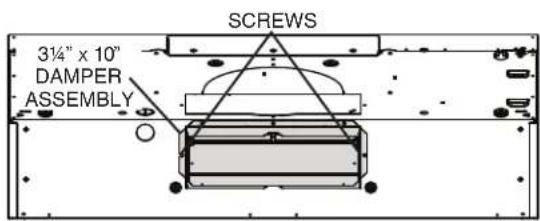

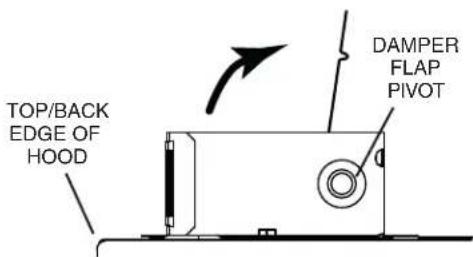

9] Attach 3¼" x 10" Damper Assembly on top OR back of hood (if using 3¼" x 10" duct; shaded part in FIGURE 2 A below) or 7" Round Duct Plate (if using 7-inch round duct, FIGURE 3) over the knockout opening. When installed, the 3¼" x 10" damper assembly must open as shown in FIGURE 2 B.

FIGURE 2 A FIGURE 2 B

3¼" x 10" DAMPER ASSEMBLY SCREWS

TOP/BACK EDGE OF HOOD DAMPER FLAP PIVOT

SCREWS 3¼" x 10" DAMPER ASSEMBLY

BACK OF HOOD DAMPER FLAP PIVOT

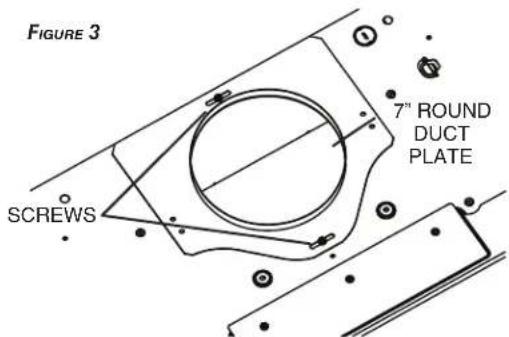

FIGURE 3 7" ROUND DUCT PLATE SCREWS

NOTE: To accommodate off-center ductwork, the 7" round duct plate can be installed up to 1/2" on either side of the hood center.
TIP: Insert a small length of duct over the 3¼" x 10" damper assembly (for rectangular ducting) or 7" round (for round ducting) and seal the joint using aluminum foil duct tape to ease connection with the house ductwork.

Prepare the Hood Location

NOTE: Before starting installation, read all the steps of these instructions. Use the illustration below to identify your kitchen cabinet type.

FRAMED CABINET FRAMELESS CABINET

Two technical line drawings of a cabinet or enclosure with no text, numbers, or symbols present.

This manual covers 2 kinds of installation: the standard (without EZ1 brackets) and the EZ1 one-person installation system (using included template and brackets). For the standard installation, go to page 17.

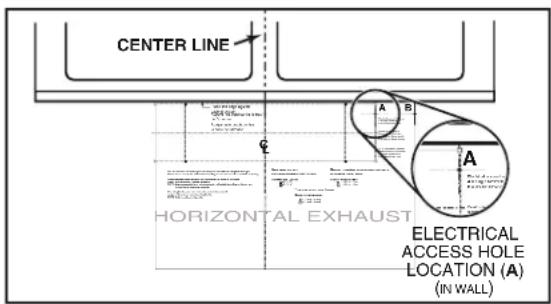

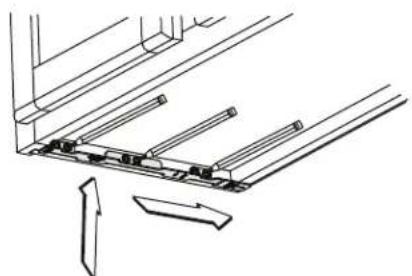

EZ1 one-person installation system

EZ1 installation is designed for use with kitchen cabinets that have the same width designation as the range hood width. If the cabinet is greater than 1/2" wider than the range hood width, please use the standard installation method.

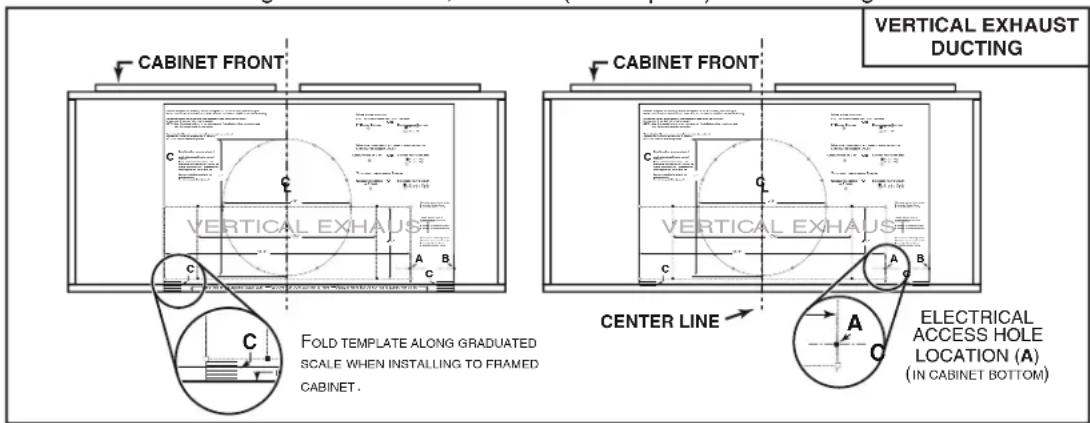

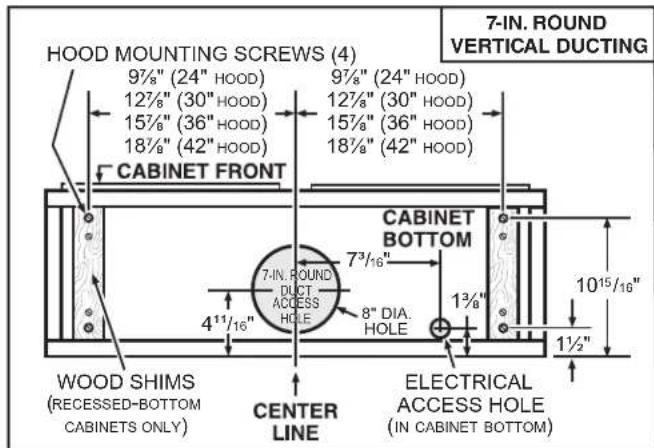

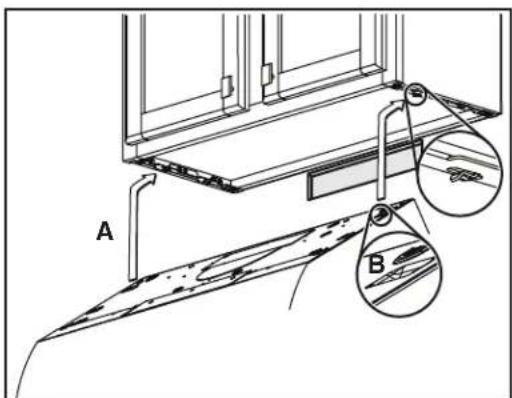

1] Use the proper template for vertical OR horizontal discharge (included) for placement of ductwork and electrical cutout in cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for electrical wiring. If replacing a hood and plan to use the existing duct and electrical, steps 2 to 5 may not be necessary. If so, skip to step 6.
2] Measure and mark the hood center line on cabinet bottom.
3] Align the center line on template with the hood center line marked on the bottom of the cabinet, placing the edge (where indicated) of the template against back wall. When using with framed cabinet for vertical exhaust installation, fold over rear edge of template equal to the depth of the cabinet frame at the wall (use graduations on template, C locations on template). Tape the template in place.

NOTE: When facing the installation, A and B (on template) must be at right.

CABINET FRONT VERTICAL EXHAUST DUCTING CABINET FRONT VERTICAL EXHAUST CENTER LINE ELECTRICAL ACCESS HOLE LOCATION (A) (IN CABINET BOTTOM) FOLD TEMPLATE ALONG GRADUATED SCALE WHEN INSTALLING TO FRAMED CABINET.

CENTER LINE HORIZONTAL EXHAUST ELECTRICAL ACCESS HOLE LOCATION (A) (IN WALL)

4] Drill a 1/8" dia. pilot hole for house wiring, at A location on template.
5] Use a sharp pencil or 1/8" drill bit to mark the locations for the appropriate duct access holes (16 locations for 7" round duct, or 4 corner locations for rectangular duct). Remove the template.
6] Draw the border for the exhaust ducting by linking its marks (16 for round duct and 4 for rectangular duct), then cut the opening in the cabinet bottom (vertical exhaust) or in the wall (horizontal exhaust). Drill the house wiring hole by using a 1 12 " hole saw centered with the pilot hole previously made in 4.
7 ] Install the proper installation brackets according to the type of cabinet (framed or frameless). See below.

FRAMED CABINET

Technical diagram showing mechanical assembly with pulleys and labeled components, including zoomed-in views and dimension annotations.

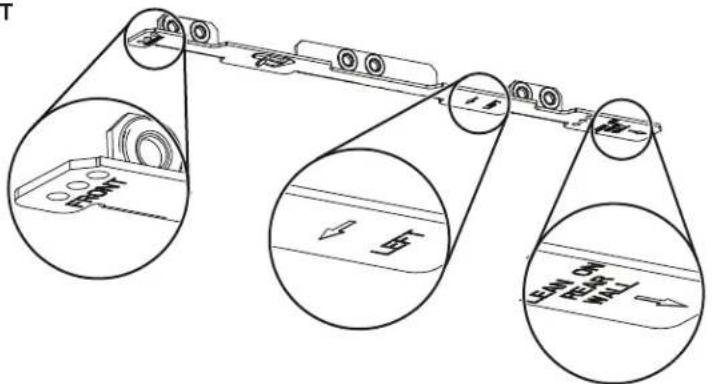

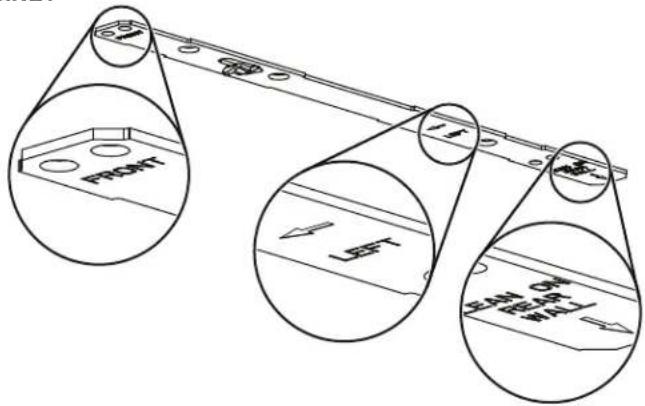

Refer to the marking on the brackets to determine the correct installation side and orientation.

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

7/64"

3

Technical line drawing of a structural connection detail (no text or symbols)

① Mate the corresponding bracket to the cabinet side frame, while placing rear end of bracket against the wall. Use a pencil to mark 3 holes (there are 6 holes but only 3 are necessary).

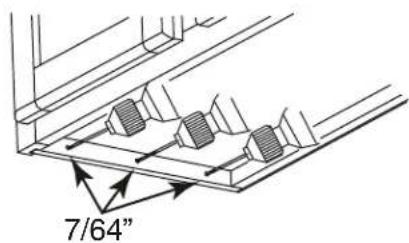

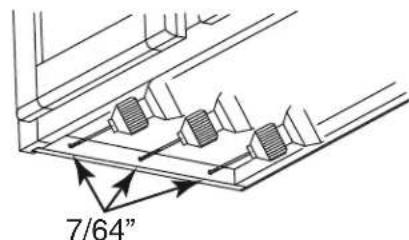

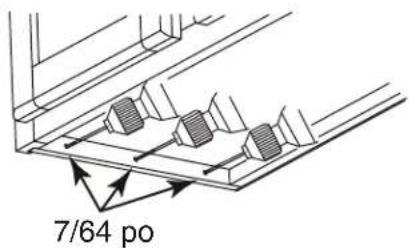

② Remove the bracket. Using a 7/64" drill bit, drill 3 holes where marked.
③ Assemble the bracket to the side frame using a Phillips screwdriver and 3 provided no. 8 x 5/8" wood screws. Repeat for the other side frame.

FRAMELESS CABINET

PART 5 0.4-1 0.4-1

Refer to the marking on brackets to determine the correct installation side and orientation.

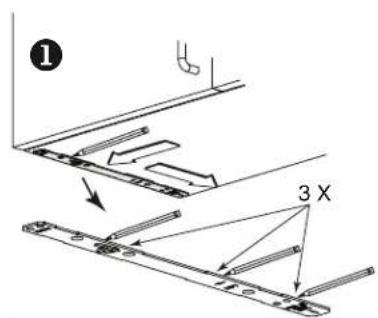

① 3 X

Technical diagram showing a mechanical assembly with labeled components and directional arrows

Technical line drawing of a structural support frame with columns and supports (no text or symbols)

4 7/64"

Technical diagram showing a structural support system with mounting fixtures and a numbered label (5), no readable text or symbols present.

① Align the corresponding bracket to the cabinet side, while placing rear end of bracket against the wall. Draw a line on the outer edge of the bracket (as shown).
② Slide the bracket towards the center of cabinet and align the outside edge of the bracket with the marked line, keeping the rear end edge leaning on the wall.
③ Use a pencil to mark 3 holes.
4 Remove the bracket. Using a 7/64" drill bit, drill 3 holes where marked.
⑤ Assemble the bracket to the cabinet bottom using a Phillips screwdriver and 3 provided countersunk wood screws. Repeat for the other cabinet side.

Install the Hood (EZ1 Bracket)

OTE: N The following procedure applies to both framed or frameless cabinet installations.

1 ] Run house power cable between service panel and hood location.

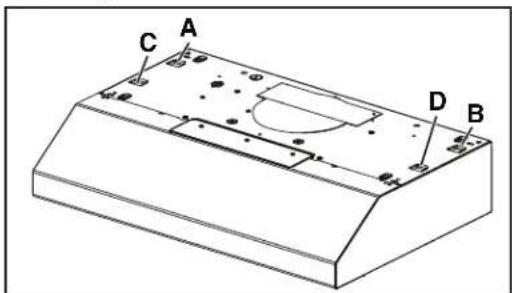

2] There are 2 pairs of recessed holes on each side of the top of the hood (on rear: A and B, on front C and D on illustration below); these holes allow the range hood to hang on the brackets (previously installed).

A C D B

HORIZONTAL EXHAUST INSTALLATION ONLY

3] Temporarily hang the hood on the brackets using its 2 recessed REAR HOLES (A and B). While holding the hood, run the house power cable into the hood through the strain relief previously installed in step 6 on page 10.

A B

4] Unhook the rear holes from the brackets and hang the hood using its 2 recessed FRONT HOLES (C and D). While holding the hood, attach the power cable to the hood using the strain relief.

VERTICAL EXHAUST INSTALLATION AND NON-DUCTED INSTALLATION ONLY

5] Hang the hood on the brackets using the 2 recessed FRONT HOLES (C and D). While holding the hood, run the house power cable into the hood through the strain relief previously installed in step 6 on page 10. Attach power cable to the hood.

DUCTED INSTALLATION ONLY

6] Connect the ductwork to the hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

NOTE: See final installation steps on next page.

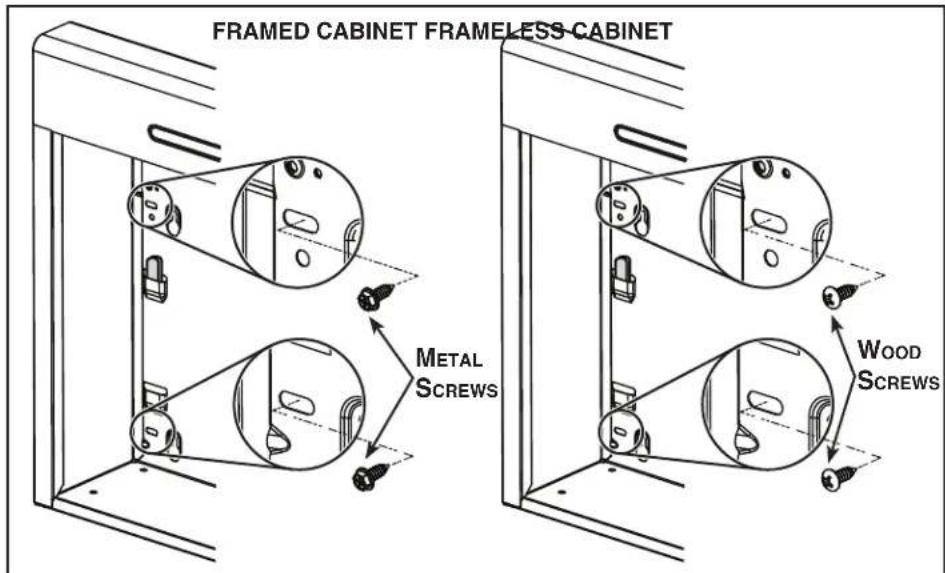

7] For framed cabinet, secure the hood to the EZ1 brackets using 4 no. 8-18 x 1/2" metal screws (included in parts bag). Insert 2 screws per side, in the slots (as shown in insets on illustration below).

8] For frameless cabinet, secure the hood to the cabinet using 4 no. 8 x 5/8" round head wood screws (included in parts bag). Insert 2 screws per side, in the slots (as shown in insets on illustration below).

FRAMED CABINET FRAMELESS CABINET METAL SCREWS WOOD SCREWS

Standard Installation (without EZ1 Brackets)

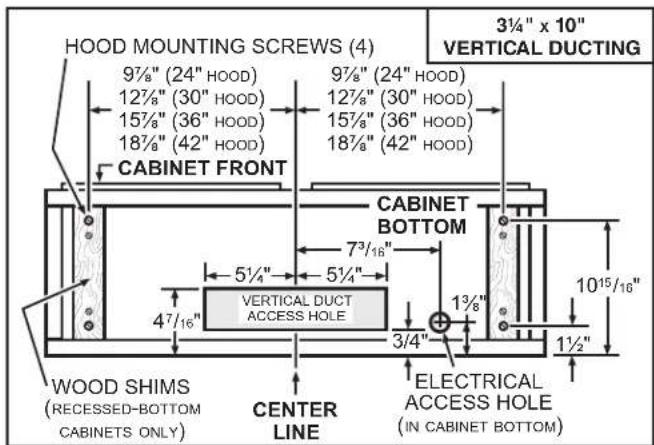

1] Use the proper diagram below for placement of ductwork and electrical cutout in cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for electrical wiring.

HOOD MOUNTING SCREWS (4) 9½" (24" HOOD) 12½" (30" HOOD) 15½" (36" HOOD) 18½" (42" HOOD) CABINET FRONT 9½" (24" HOOD) 12½" (30" HOOD) 15½" (36" HOOD) 18½" (42" HOOD) CABINET BOTTOM 7¾/16" 5½" 4⁷/16" VERTICAL DUCT ACCESS HOLE 3/4" 1½" ELECTRICAL ACCESS HOLE (IN CABINET BOTTOM) WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) CENTER LINE

WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) 3½" x 10" HORIZONTAL DUCTING CABINET FRONT 13/16" 3/16" 3½" HORIZONTAL DUCT ACCESS HOLE CABINET BOTTOM 5½" 5½" 7³/₁₆" 9½" (24" HOOD) 12½" (30" HOOD) 15½" (36" HOOD) 18½" (42" HOOD) 9½" (24" HOOD) 12½" (30" HOOD) 15½" (36" HOOD) 18½" (42" HOOD) HOOD MOUNTING SCREWS (4) CENTER LINE ELECTRICAL ACCESS HOLE (IN WALL)

HOOD MOUNTING SCREWS (4) 9½" (24" HOOD) 12½" (30" HOOD) 15½" (36" HOOD) 18½" (42" HOOD) CABINET FRONT 7-IN. ROUND VERTICAL DUCTING CABINET BOTTOM 7³/¹⁶" 7-IN. ROUND DUCT ACCESS HOLE 8" DIA. HOLE 1¾" 10¹⁵/¹⁶" 1½" WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) CENTER LINE ELECTRICAL ACCESS HOLE (IN CABINET BOTTOM)

2] Install part-way four (4) ROUND HEAD no. 8 x 5/8" mounting screws into shims/cabinet, according to the proper diagram above. (Mounting screws are included in parts bag, but wood shims and shim mounting screws are not included).

Install the Hood (Standard Installation)

1] Run house power cable between service panel and hood location. Run the house power cable into the hood through the strain relief previously installed in step 6 on page 10.
2] Hang hood from (4) mounting screws previously installed. Slide hood back towards wall until mounting screw heads are engaged in narrow end of keyhole slots in top of hood. Tighten screws securely. Attach power cable to the hood using the strain relief.

Technical line drawing of a kitchen appliance with an open hood and ventilation system (no text or symbols)

DUCTED INSTALLATION ONLY

3] Connect ductwork to hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

Connect the Wiring

! WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

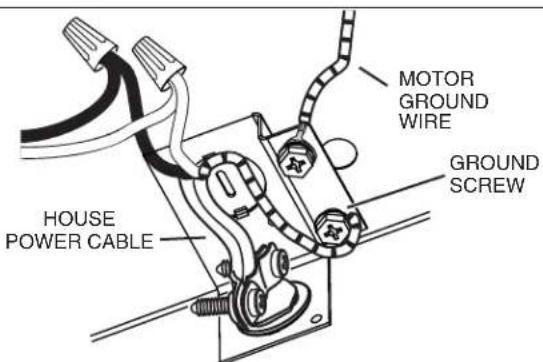

1] Connect House Power Cable to range hood wiring: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.

SCREW TABS ON INNER TOP OF HOOD ENGAGED IN WIRING COVER SLOTS.

2] Reinstall wiring cover and attach it to the hood using its retaining screw.

CAUTION

Ensure both tabs on inner top of hood are engaged in their corresponding slots in wiring cover. Also, take care not to pinch wires while reinstalling wiring cover.

Install the Filters

Ducted Installation Only:

Re-install grease filters removed in step 2, page 9, under "Prepare the Hood".

Non-ducted Installation Only:

Purchase two non-ducted filters from your local distributor or retailer (see product specification label for filter type). Attach the non-ducted filter(s) following instructions packed with the non-ducted filter.

20

INSTALLATION MANUAL WIRING DIAGRAMS

BCSEK1 SERIES

SERIES COLOR CODE G/Y GREEN/YELLOW BL BLUE ORANGE RED BN BROWN WHITE W LED driver R 1 2 3 4 5 6 7 8 9 10 11 LED W FAN MOTOR BN R O BK G/Y W R (Low) BK (High) W G/Y Line Neutral Ground 120 V AC

WIRING DIAGRAMS

INSTALLATION MANUAL

BCSEK1 SERIES

SERIES ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

KEYNO.	PART NO.	DESCRIPTION	QUANTITY
			24"WHITE	24"STAINLESS	24"BLACK	36"WHITE	36"STAINLESS	36"BLACK
1	S97020029 R	ECIRCULATION COVER PLATE, BLACK (INCL. SCREWS)			1			1
	S97020030 R	ECIRCULATION COVER PLATE, WHITE (INCL. SCREWS)	1			1
	S97020031	RECIRCULATION COVER PLATE, STAINLESS STEEL (INCLUDING SCREWS)		1			1
	S97020472 R	ECIRCULATION COVER PLATE, SLATE (INCL. SCREWS)
2 S	R680508 7" R	OUND DUCT PLATE (INCLUDING SCREWS)	1	1	1	1	1	1
3 S	97020534 31⁄4"	x 10" DAMPER ASSEMBLY (INCL. SCREWS)	1	1	1	1	1	1
4 S	97020408 B	LOWER MOTOR (INCLUDING 4 SCREWS)	1	1	1	1	1	1
5 S	97020407 F	ANPELLER (INCLUDING ITEM 6)	1	1	1	1	1	1
6	SR99420635	CLIP FOR FANPELLER	1	1	1	1	1	1
7	S99010430-001	GREASE FILTER - OPEN MESH - TYPE B1 (SET OF 2)	1	1	1
	S99010430-002	GREASE FILTER - OPEN MESH - TYPE C1 (SET OF 2)
	S99010430-003	GREASE FILTER - OPEN MESH - TYPE D1 (SET OF 2)				1	1	1
8	S99030377 R	OCKER SWITCHES, WHITE (SET OF 2)	1			1
	S99030376 R	OCKER SWITCHES, BLACK (SET OF 2)			1			1
	S99030375 R	OCKER SWITCHES, GREY (SET OF 2)		1			1
9 S	97020444 LED	MODULE (PAIR)	1	1	1	1	1	1
*	S97020446 D	RIVER FOR LED ENERGY STAR (WITH SCREWS)	1	1	1	1	1	1
*	S97020449 H	ARNESS FOR ROCKER SWITCH CONTROL WITH LEDs	1	1	1	1	1	1
* S	98011637 W	IRING COVER	1	1	1	1	1	1
*	S97020360	PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 x 1/2", 6 ROUND HEAD NO. 8 x 5/8" WOOD SCREWS, 6 NO. 8 x 1/2" COUNTERSUNK WOOD SCREWS	1	1	1	1	1	1
*	S97020465	NON-DUCTED FILTER - TYPE Xb (SET OF 2) (NON-DUCTED INSTAL. ONLY)	1	1	1
	S97020466	NON-DUCTED FILTER - TYPE Xc (SET OF 2) (NON-DUCTED INSTAL. ONLY)
	S97020467	NON-DUCTED FILTER - TYPE Xd (SET OF 2) (NON-DUCTED INSTAL. ONLY)				1	1	1
*	S99527587 N	ON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS)	1	1	1	1	1	1
*	S97020470 E	ASY INSTALL KIT (INCLUDING HARDWARE)	1	1	1	1	1	1

* ITEM NOT SHOWN.

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement parts and repairs.

BCSEK1 SERIES

SERIES ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

KEYNO.	PART NO.	DESCRIPTION	QUANTITY
			30"WHITE	30"STAINLESS	30"BLACK	30"SLATE
1	S97020029 R	ECIRCULATION COVER PLATE, BLACK (INCL. SCREWS)			1
	S97020030 R	ECIRCULATION COVER PLATE, WHITE (INCL. SCREWS)	1
	S97020031	RECIRCULATION COVER PLATE, STAINLESS STEEL (INCLUDING SCREWS)		1
	S97020472 R	ECIRCULATION COVER PLATE, SLATE (INCL. SCREWS)				1
2 S9680508 7" R		OUND DUCT PLATE (INCLUDING SCREWS)	1	1	1	1
3 S97020534 31⁄4"		X 10" DAMPER ASSEMBLY (INCL. SCREWS)	1	1	1	1
4 S97020408 B		LOWER MOTOR (INCLUDING 4 SCREWS)	1	1	1	1
5 S97020407 F		ANPELLER (INCLUDING ITEM 6)	1	1	1	1
6	SR99420635	CLIP FOR FANPELLER	1	1	1	1
7	S99010430-001	GREASE FILTER - OPEN MESH - TYPE B1 (SET OF 2)
	S99010430-002	GREASE FILTER - OPEN MESH - TYPE C1 (SET OF 2)	1	1	1	1
	S99010430-003	GREASE FILTER - OPEN MESH - TYPE D1 (SET OF 2)
8	S99030377 R	OCKER SWITCHES, WHITE (SET OF 2)	1
	S99030376 R	OCKER SWITCHES, BLACK (SET OF 2)			1	1
	S99030375 R	OCKER SWITCHES, GREY (SET OF 2)		1
9 S97020444 LED		MODULE (PAIR)	1	1	1	1
*	S97020446 D	RIVER FOR LED ENERGY STAR (WITH SCREWS)	1	1	1	1
*	S97020449 H	ARNESS FOR ROCKER SWITCH CONTROL WITH LEDs	1	1	1	1
* S98011637 W		IRING COVER	1	1	1	1
*	S97020360	PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 x 1/2",6 ROUND HEAD NO. 8 x 5/8" WOOD SCREWS, 6 NO. 8 x 1/2" COUNTERSUNK WOOD SCREWS	1	1	1	1
*	S97020465	NON-DUCTED FILTER - TYPE XB (SET OF 2) (NON-DUCTED INSTAL. ONLY)
	S97020466	NON-DUCTED FILTER - TYPE Xc (SET OF 2) (NON-DUCTED INSTAL. ONLY)	1	1	1	1
	S97020467	NON-DUCTED FILTER - TYPE Xd (SET OF 2) (NON-DUCTED INSTAL. ONLY)
*	S99527587 N	ON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS)	1	1	1	1
*	S97020470 E	ASY INSTALL KIT (INCLUDING HARDWARE)	1	1	1	1

* ITEM NOT SHOWN.

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement parts and repairs.

BCDF1 SERIES

Exploded view diagram of a kitchen appliance with numbered parts for identification

KEYNO.	PART NO.	DESCRIP	QUANTITY
			PTIO"30"STAINLESS	30"B LACKSTAINLESS	36"STAINLESS	36"B LACKSTAINLESS	42"STAINLESS
1	S97020031 R	ECIRC. COVER PLATE, STAINLESS STEEL (INCL. SCREWS)	1		1		1
	S98011873 R	ECIRC. COVER PLATE, BLACK STAINLESS (INCL. SCREWS)		1		1
2 S	SR680508 7" R	OUND DUCT PLATE (INCLUDING SCREWS)	1	1	1	1	1
3 S	S97020534 31⁄4"	x 10" DAMPER ASSEMBLY (INCLUDING SCREWS)	1	1	1	1	1
4 S	S97020408 B	LOWER MOTOR (INCLUDING 4 SCREWS)	1	1	1	1	1
5 S	S97020407 F	ANPELLER (INCLUDING ITEM 6)	1	1	1	1	1
6	SR99420635	CLIP FOR FANPELLER	1	1	1	1	1
7	S99010434-002	GREASE FILTER - MICRO MESH -TYPE C2 (SET OF 2)	1	1
	S99010434-003	GREASE FILTER - MICRO MESH -TYPE D2 (SET OF 2)			1	1
	S99010434-004	GREASE FILTER - MICRO MESH -TYPE E2 (SET OF 2)					1
8 S	S97020444 LED M	ODULE (PAIR)	1	1	1	1	1
9 S	S97020445 T	RANSFORMER 24 V 18 VA (WITH SCREWS)	1	1	1	1	1
10	S97020431 C	APTOUCH CONTROL, STAINLESS (WITH SCREWS)	1		1		1
	S97020433 C	APTOUCH CONTROL, BLACK (WITH SCREWS)		1		1
*	S97020452 W	IRE HARNESS	1	1	1	1	1
* S	S98011637 W	IRING COVER	1	1	1	1	1
*	S97020360	PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 x 1/2",6 ROUND HEAD NO. 8 x 5/8" WOOD SCREWS,6 NO. 8 x 1/2" COUNTERSUNK SCREWS	1	1	1	1	1
*	S97020466	NON-DUCTED FILTER - TYPE XC (SET OF 2)(NON-DUCTED INSTALLATION ONLY)	1	1
	S97020467	NON-DUCTED FILTER - TYPE XD (SET OF 2)(NON-DUCTED INSTALLATION ONLY)			1	1
	S97020468	NON-DUCTED FILTER - TYPE XE (SET OF 2)(NON-DUCTED INSTALLATION ONLY)					1
*	S99527587 N	ON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS)	1	1	1	1	1
*	S97020470 E	ASY INSTALL KIT (INCLUDING HARDWARE)	1	1	1	1	1

* ITEM NOT SHOWN.

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement parts and repairs.

Limited Warranty

Warranty Period and Exclusions: Broan-Nu Tone LLC and Venmar Ventilation ULC (either being the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the Product or its workmanship for a period of one (1) year from the date of original purchase (or such longer period as may be required by applicable law). For Range Hood Product that includes built-in LED modules, the Company warrants the LED modules and driver to be free from material defects for a period of three (3) years from the date of purchase. The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).

This warranty does not cover fluorescent lamp starters, tubes, halogen and incandescent bulbs, fuses, filters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage caused by environmental or natural elements, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to original consumers in the United States and Canada by the Company or its U.S. and Canadian distributors authorized by the Company.

This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser. No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the express warranty above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer period as may be required by applicable law).

Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product in lieu of repair or replacement. If the Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company's sole discretion. This is your sole and exclusive remedy for breach of this limited warranty.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR, REPLACE OR REFUND, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE. Incidental damages include but are not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if the Product does not work properly.

THE COMPANY SHALL NOT BE LIABLE TO YOU, OR TO ANYONE CLAIMING UNDER YOU, FOR ANY OTHER OBLIGATIONS OR LIABILITIES, INCLUDING, BUT NOT LIMITED TO, OBLIGATIONS OR LIABILITIES ARISING OUT OF BREACH OF CONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT OR ANY THEORY OF STRICT LIABILITY, WITH RESPECT TO THE PRODUCT OR THE COMPANY'S ACTS OR OMISSIONS OR OTHERWISE.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty. The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control. The most current limited written warranties for the Company's products can be found at www.broan-nutone.com and www.broan-nutone.ca. Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan-nutone.com 800-637-1453

Venmar Ventilation ULC, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 www.broan-nutone.ca 1-877-896-1119

HOTTE

DE CUISINIÈRE

MANUEL D'INSTALLATION,

D'UTILISATION ET D'ENTRETIEN

Line drawing of a rectangular metal enclosure with a recessed top opening (no text or symbols)

Numéro de série :

Sécurité 3-4

Fonctionnement 5

Installation standard 17

Installation de la hotte (installation standard) . 18

Simple line drawing of an umbrella with a sun symbol (no text or labels)

COMMUTATEUR DE L'ÉCLAIRAGE

Simple line drawing of a two-compartment electronic device with fan and sun icons (no text or symbols)

BOUTON DU VENTILATEUR

Technical diagram showing two views of a door with labeled components and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with a central wheel and directional arrows (no text or labels)

Diagram showing a mechanical or electrical component with labeled parts and an arrow indicating direction, possibly illustrating a cutting or dissection process.

Two technical line drawings of a cabinet or enclosure with no text, numbers, or symbols present.

Technical diagram showing mechanical assembly with labeled components and circular insets for detail views

Technical line drawing of a mechanical assembly with no visible text or symbols

2

7/64 po

3

Technical line drawing of a structural assembly with mounting holes and beams (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows

Technical line drawing of a structural support frame with columns and supports (no text or symbols)

4 7/64 po

Diagram of a ceiling-mounted fixture with hanging fixtures and mounting points (no text or symbols)

Installation standard (sans supports EZ1)

Line drawing of a kitchen appliance with a chimney and cabinet (no text or symbols)

INSTALLATION AVEC CONDUITS SEULEMENT

MANUEL D'INSTALLATION
SCHÉMAS

SÉRIE BCDF1

SCHEMAS ELECTRIOUES
MANUEL D.INSTALLATION

SÉRIE BCSEK1

CSEK1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

REPÈRE	N° DE PIÈCE	DESCRIPTION	QUANTITÉ
			24 PO BLANCHE	24 PO INOX.	24 PO NOIRE	36 PO BLANCHE	36 PO INOX.	36 PO NOIRE
1	S97020029 P	LAQUE DE GRILLE DE RECIRCULATION, NOIRE (INCL. LES VIS)			1			1
	S97020030 P	LAQUE DE GRILLE DE RECIRCULATION, BLANCHE (INCL. LES VIS)	1			1
	S97020031 P	LAQUE DE GRILLE DE RECIRCULATION, INOX. (INCL. LES VIS)		1			1
	S97020472 P	LAQUE DE GRILLE DE RECIRCULATION, ARDOISE (INC. LES VIS)
2 SF	680508 P	LAQUE POUR CONDUIT ROND DE 7 PO (INCLUANT LES VIS)	1	1	1	1	1	1
3 S9	7020534 A	DAPTATEUR/VOLET DE 314 PO x 10 PO (INCLUANT LES VIS)	1	1	1	1	1	1
4 S9	7020408 M	OTEUR DU VENTILATEUR (INCLUANT 4 VIS ET 1 CONDENSATEUR)	1	1	1	1	1	1
5 S9	7020407 H	ÉLICE (INCLUANT LE REPÈRE 6)	1	1	1	1	1	1
6	SR99420635	CUP D'HÉLICE	1	1	1	1	1	1
7	S99010430-001	FILTRE À GRAISSES À MAILLAGE RÉGULIER - TYPE B1 (ENS. DE 2)	1	1	1
	S99010430-002	FILTRE À GRAISSES À MAILLAGE RÉGULIER - TYPE C1 (ENS. DE 2)
	S99010430-003	FILTRE À GRAISSES À MAILLAGE RÉGULIER - TYPE D1 (ENS. DE 2)				1	1	1
8	S99030377 I	INTERRUPTEURS À BASCULE, BLANC (ENSEMBLE DE 2)	1			1
	S99030376 I	INTERRUPTEURS À BASCULE, NOIR (ENSEMBLE DE 2)			1			1
	S99030375 I	INTERRUPTEURS À BASCULE, GRIS (ENSEMBLE DE 2)		1			1
9 S9	7020444 E	NSEMBLE DE MODULE DEL (PAIRE)	1	1	1	1	1	1
*	S97020446 M	ODULE D'ALIMENTATION DEL ENERGY STAR (INCLUANT LES VIS)	1	1	1	1	1	1
*	S97020449 F	AISCEAU DE FILS POUR COMMANDE À INTER. À BASCULE AVEC DEL	1	1	1	1	1	1
* S9	8011637 C	OUVERCLE DU COMPARTIMENT ÉLECTRIQUE	1	1	1	1	1	1
*	S97020360	SAC DE PIÈCES COMPRENANT : 4 VIS À MÉTAUX N° 8-18 x 1/2 PO, 6 VIS À BOIS À TÊTE RONDE N° 8 x 5/8 PO, 6 VIS À TÊTE FRAISÉE N° 8 x 1/2 PO	1	1	1	1	1	1
*	S97020465	FILTRES DE RECIRCULATION - TYPE XB (ENSEMBLE DE 2) (INSTAL. SANS CONDUIT SEULEMENT)	1	1	1
	S97020466	FILTRES DE RECIRCULATION - TYPE XC (ENSEMBLE DE 2) (INSTAL. SANS CONDUIT SEULEMENT)
	S97020467	FILTRES DE RECIRCULATION - TYPE XD (ENSEMBLE DE 2) (INSTAL. SANS CONDUIT SEULEMENT)				1	1	1
*	S99527587 C	LIPS POUR FILTRE AU CHARBON (ENSEMBLE DE 4)	1	1	1	1	1	1
*	S97020470 E	NSEMBLE D'INSTALLATION EASY INSTALL (INCLUANT LA VISSERIE)	1	1	1	1	1	1

* ARTICLE NON ILLUSTRÉ.

PIÈCE DE REMPLACEMENT ET SERVICE

CSEK1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

REPÈRE	N° DE PIÈCE	DESCRIPTION	QUANTITÉ
			30 PO BLANCHE	30 PO INOX.	30 PO NOIRE	30 PO ARDOISE
1	S97020029 P	LAQUE DE GRILLE DE RECIRCULATION, NOIRE (INCL. LES VIS)			1
	S97020030 P	LAQUE DE GRILLE DE RECIRCULATION, BLANCHE (INCL. LES VIS)	1
	S97020031 P	LAQUE DE GRILLE DE RECIRCULATION, INOX. (INCL. LES VIS)		1
	S97020472 P	LAQUE DE GRILLE DE RECIRCULATION, ARDOISE (INC. LES VIS)				1
2 SF	680508 P	LAQUE POUR CONDUIT ROND DE 7 PO (INCLUANT LES VIS)	1	1	1	1
3 S9	7020534 A	DAPTATEUR/VOLET DE 3 14 PO x 10 PO (INCLUANT LES VIS)	1	1	1	1
4 S9	7020408 M	OTEUR DU VENTILATEUR (INCLUANT 4 VIS ET 1 CONDENSATEUR)	1	1	1	1
5 S9	7020407 H	ÉLICE (INCLUANT LE REPÈRE 6)	1	1	1	1
6	SR99420635	CLIP D'HÉLICE	1	1	1	1
7	S99010430-001	FILTRE À GRAISSES À MAILLAGE RÉGULIER - TYPE B1 (ENS. DE 2)
	S99010430-002	FILTRE À GRAISSES À MAILLAGE RÉGULIER - TYPE C1 (ENS. DE 2)	1	1	1	1
	S99010430-003	FILTRE À GRAISSES À MAILLAGE RÉGULIER - TYPE D1 (ENS. DE 2)
8	S99030377 I	NTERRUPTEURS À BASCULE, BLANC (ENSEMBLE DE 2)	1
	S99030376 I	NTERRUPTEURS À BASCULE, NOIR (ENSEMBLE DE 2)			1	1
	S99030375 I	NTERRUPTEURS À BASCULE, GRIS (ENSEMBLE DE 2)		1
9 S9	7020444 E	NSEMBLE DE MODULE DEL (PAIRE)	1	1	1	1
*	S97020446 M	ODULE D'ALIMENTATION DEL ENERGY STAR (INCLUANT LES VIS)	1	1	1	1
*	S97020449 F	AISCEAU DE FILS POUR COMMANDE À INTER. À BASCULE AVEC DEL	1	1	1	1
* S9	8011637 C	OUVERCLE DU COMPARTIMENT ÉLECTRIQUE	1	1	1	1
*	S97020360	SAC DE PIÈCES COMPRENANT: 4 VIS À METAUX N° 8-18 x 1/2 PO, 6 VIS À BOIS À TÊTE RONDE N° 8 x 5/8 PO, 6 VIS À TÊTE FRAISÉE N° 8 x 1/2 PO	1	1	1	1
*	S97020465	FILTRES DE RECIRCULATION - TYPE XB (ENSEMBLE DE 2) (INSTAL. SANS CONDUIT SEULEMENT)
	S97020466	FILTRES DE RECIRCULATION - TYPE Xc (ENSEMBLE DE 2) (INSTAL. SANS CONDUIT SEULEMENT)	1	1	1	1
	S97020467	FILTRES DE RECIRCULATION - TYPE Xd (ENSEMBLE DE 2) (INSTAL. SANS CONDUIT SEULEMENT)
*	S99527587 C	LIPS POUR FILTRE AU CHARBON (ENSEMBLE DE 4)	1	1	1	1
*	S97020470 E	NSEMBLE D'INSTALLATION EASY INSTALL (INCLUANT LA VISSERIE)	1	1	1	1

* ARTICLE NON ILLUSTRÉ.

PIÈCE DE REMPLACEMENT ET SERVICE

Exploded view diagram of a kitchen appliance with numbered parts for identification

REPÈRE	N° DE PIÈCE	DESCRIPTION	QUANTITÉ
			30 POINOX.	30 POINOX. NOIR	36 POINOX.	36 POINOX. NOIR	42 POINOX.
1	S97020031 P	LAQUE DE GRILLE DE RECIRCULATION,INOX. (INCLUANT LES VIS)	1		1		1
	S98011873 P	LAQUE DE GRILLE DE RECIRCULATION,INOX. NOIR (INCLUANT VIS)		1		1
2 SF	680508 P	LAQUE POUR CONDUIT ROND DE 7 PO (INCLUANT LES VIS)	1	1	1	1	1
3 S9	7020534 A	DAPTATEUR/VOLET DE 314 PO X 10 PO (INCLUANT LES VIS)	1	1	1	1	1
4 S9	7020408 M	OTEUR DU VENTILATEUR (INCLUANT 4 VIS ET 1 CONDENSATEUR)	1	1	1	1	1
5 S9	7020407 H	ÉLICE (INCLUANT LE REPÈRE 6)	1	1	1	1	1
6	SR99420635	CLIP D'HÉLICE	1	1	1	1	1
7	S99010434-002	FILTRE À GRAISSES À MAILLAGE FIN - TYPE C2 (ENSEMBLE DE 2)	1	1
	S99010434-003	FILTRE À GRAISSES À MAILLAGE FIN - TYPE D2 (ENSEMBLE DE 2)			1	1
	S99010434-004	FILTRE À GRAISSES À MAILLAGE FIN - TYPE E2 (ENSEMBLE DE 2)					1
8 S9	7020444 M	ODULE DEL (PAIRE)	1	1	1	1	1
9 S9	7020445 T	RANSFORMATEUR 24 V 18 VA (AVEC VIS)	1	1	1	1	1
10	S97020431 C	OMMANDE CAPACITIVE À TOUCHES DEL,INOX. (AVEC VIS)	1		1		1
	S97020443 C	OMMANDE CAPACITIVE À TOUCHES DEL,NOIRE (AVEC VIS)		1		1
*	S97020452 F	AISCEAU DE FILS	1	1	1	1	1
* S9	8011637 C	OUVERCLE DU COMPARTIMENT ÉLECTRIQUE	1	1	1	1	1
*	S97020360	SAC DE PIÈCES COMPRENANT: 4 VIS À MÉTAUX N° 8-18 x 1/2 PO,6 VIS À BOIS À TÊTE RONDE N° 8 x 5/8 PO,6 VIS À BOIS À TÊTE FRAISÉE N° 8 x 1/2 PO	1	1	1	1	1
*	S97020466	FILTRES DE RECIRCULATION - TYPE Xc (ENSEMBLE DE 2)(INSTALLATION SANS CONDUIT SEULEMENT)	1	1
	S97020467	FILTRES DE RECIRCULATION - TYPE Xd (ENSEMBLE DE 2)(INSTALLATION SANS CONDUIT SEULEMENT)			1	1
	S97020468	FILTRES DE RECIRCULATION - TYPE Xe (ENSEMBLE DE 2)(INSTALLATION SANS CONDUIT SEULEMENT)					1
*	S99527587 C	LIPS POUR FILTRE AU CHARBON (ENSEMBLE DE 4)	1	1	1	1	1
*	S97020470 E	NSEMBLE D'INSTALLATION EASY INSTALL (INCLUANT LA VISSERIE)	1	1	1	1	1

* ARTICLE NON ILLUSTRÉ.

PIÈCE DE REMPLACEMENT ET SERVICE

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan-nutone.com 800-637-1453

Venmar Ventilation ULC, 50 boul. Lemire, Drummondville, Québec, Canada J2C 7W9 www.broan-nutone.ca 1 877 896-1119

CAMPANA

DE COCINA

Line drawing of a rectangular metal enclosure with a recessed top opening (no text or symbols)

Número de serie:

Seguridad 3-4

Funcionamiento 5

Simple line drawing of a sun and an oval shape with internal rectangles, no text or symbols present.

INTERRUPTOR DE LA LUZ

Simple line drawing of a two-compartment electronic device with fan and sun icons (no text or symbols)

Two technical line drawings of a cabinet or rack with directional arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical component with a central wheel and directional arrows (no text or symbols)

Diagram showing a mechanical assembly with a cutting tool and a block, no text or symbols present

Two technical line drawings of a cabinet or shelf with two doors and a base, no text or symbols present.

Technical diagram showing mechanical assembly with pulleys and labeled components, including zoomed-in views and Chinese annotations.

Technical line drawing of a mechanical assembly with no visible text or symbols

2

7/64"

3

Technical line drawing of a structural assembly with mounting brackets and supports (no text or symbols)

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows

Technical line drawing of a structural support frame with columns and supports (no text or symbols)

4 7/64"

Technical diagram of a ceiling-mounted fixture with mounting fixtures and a numbered label (5), no readable text or symbols present.

Technical line drawing of a kitchen cabinet and a gas stove (no text or symbols)

CSEK1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

N.°	N.° DE PIEZA DESCR	IPCIÓN	CANTIDAD
			24"BLANCA	24"ACERO INOX.	24"NEGRA	36"BLANCA	36"ACERO INOX.	36"NEGRA
1	S97020029 P	LACA DE CUBIERTA DE RECIRC. NEGRA (CON TORNILLOS)			1			1
	S97020030 P	LACA DE CUBIERTA DE RECIRC. BLANCA (CON TORNILLOS)	1			1
	S97020031	PLACA DE CUBIERTA DE RECIRCULACIÓN, ACERO INOX. (INCLUYE TORNILLOS)		1			1
	S97020472	PLACA DE CUBIERTA DE RECIRCULACIÓN, PIZARRA (INCLUYE TORNILLOS)
2 S	R680508 P	LACA DE CONDUCTO REDONDO DE 7" (INCL. TORNILLOS)	1	1	1	1	1	1
3 S	97020534 C	ONJUNTO DE CLAPETA DE 314 " x 10 " (INCL. TORNILLOS)	1	1	1	1	1	1
4 S	97020408	MOTOR DEL VENTILADOR IMPELENTE (INCLUYE 4 TORNILLOS Y 1 CONDENSADOR)	1	1	1	1	1	1
5 S	97020407 H	ÉLICE (INCLUYE N° 6)	1	1	1	1	1	1
6	SR99420635	CLIP DE LA HELICE	1	1	1	1	1	1
7	S99010430-001	FILTRO DE GRASA - ESTÁNDAR - TIPO B1 (JUEGO DE 2)	1	1	1
	S99010430-002	FILTRO DE GRASA - ESTÁNDAR - TIPO C1 (JUEGO DE 2)
	S99010430-003	FILTRO DE GRASA - ESTÁNDAR - TIPO D1 (JUEGO DE 2)				1	1	1
8	S99030377 I	NTERRUPTOR OSCILANTE, BLANCO (JUEGO DE 2)	1			1
	S99030376 I	NTERRUPTOR OSCILANTE, NEGRO (JUEGO DE 2)			1			1
	S99030375 I	NTERRUPTOR OSCILANTE, GRIS (JUEGO DE 2)		1			1
9 S	97020444 M	ÓDULO LED (PAR)	1	1	1	1	1	1
* S	97020446 A	CTIVADOR LED ENERGY STAR (INCL. TORNILLOS)	1	1	1	1	1	1
* S	97020449	HARNÉS DE HILOS DEL CONTROL DE INTERRUPTOR OSCILLANTE CON LED	1	1	1	1	1	1
* S	98011637 T	APA DE CABLEADOS	1	1	1	1	1	1
* S	97020360	BOLSA DE PIEZAS, INCLUYE: 4 TORNILLOS PARA METAL N.° 8-18 x 1/2", 6 TORNILLOS DE CABEZA REDONDA PARA MADERA N.° 8 x 5/8", 6 TORNILLOS EMBUDITOS PARA MADERA N.° 8 x 1/2"	1	1	1	1	1	1
*	S97020465	FILTRO DE RECIRCULACIÓN - TIPO Xb (JUEGO DE 2) (INSTALACIÓN SIN CONDUCTOS ÚNICAMENTE)	1	1	1
	S97020466	FILTRO DE RECIRCULACIÓN - TIPO Xc (JUEGO DE 2) (INSTALACIÓN SIN CONDUCTOS ÚNICAMENTE)
	S97020467	FILTRO DE RECIRCULACIÓN - TIPO Xd (JUEGO DE 2) (INSTALACIÓN SIN CONDUCTOS ÚNICAMENTE)				1	1	1
* S	99527587	JUEGO DE SUJETADORES PARA FILTROS DE CARBÓN - INCLUYE 4 SUJETADORES	1	1	1	1	1	1
*	S97020470	EQUIPO PARA FÁCIL INSTALACIÓN (INCL. TORNILLOS)	1	1	1	1	1	1

*ÍTEM NO MOSTRADO.

SERIE BCSEK1

CSEK1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

N.°	N.° DE PIEZA DESCR	IPCIÓN	CANTIDAD
			30" BLANCA	30" ACERO INOX.	30" NEGRA	30" PIZARRA
1	S97020029 P	LACA DE CUBIERTA DE RECIRC. NEGRA (CON TORNILLOS)			1
	S97020030 P	LACA DE CUBIERTA DE RECIRC. BLANCA (CON TORNILLOS)	1
	S97020031	PLACA DE CUBIERTA DE RECIRCULACIÓN, ACERO INOX. (INCLUYE TORNILLOS)		1
	S97020472	PLACA DE CUBIERTA DE RECIRCULACIÓN, PIZARRA (INCLUYE TORNILLOS)				1
2 S	R680508 P	LACA DE CONDUCTO REDONDO DE 7" (INCL. TORNILLOS)	1	1	1	1
3 S	97020534 C	ONJUNTO DE CLAPETA DE 3 14 " x 10" (INCL. TORNILLOS)	1	1	1	1
4 S	97020408	MOTOR DEL VENTILADOR IMPELENTE (INCLUYE 4 TORNILLOS Y 1 CONDENSADOR)	1	1	1	1
5 S	97020407 H	ÉLICE (INCLUYE N° 6) 1 1 1 1
6	SR99420635	CLIP DE LA HÉLICE	1	1	1	1
7	S99010430-001	FILTRO DE GRASA - ESTÁNDAR - TIPO B1 (JUEGO DE 2)
	S99010430-002	FILTRO DE GRASA - ESTÁNDAR - TIPO C1 (JUEGO DE 2)	1	1	1	1
	S99010430-003	FILTRO DE GRASA - ESTÁNDAR - TIPO D1 (JUEGO DE 2)
8	S99030377 I	NTERRUPTOR OSCILANTE, BLANCO (JUEGO DE 2)	1
	S99030376 I	NTERRUPTOR OSCILANTE, NEGRO (JUEGO DE 2)			1	1
	S99030375 I	NTERRUPTOR OSCILANTE, GRIS (JUEGO DE 2)		1
9 S	97020444 M	ÓDULO LED (PAR)	1	1	1	1
*	S97020446 A	CTIVADOR LED ENERGY STAR (INCL. TORNILLOS)	1	1	1	1
*	S97020449	HARNÉS DE HILOS DEL CONTROL DE INTERRUPTOR OSCILLANTE CON LED	1	1	1	1
* S	98011637 T	APA DE CABLEADOS	1	1	1	1
*	S97020360	BOLSA DE PIEZAS, INCLUYE: 4 TORNILLOS PARA METAL N.° 8-18 x 1/2", 6 TORNILLOS DE CABEZA REDONDA PARA MADERA N.° 8 x 5/8", 6 TORNILLOS EMBUDITOS PARA MADERA N.° 8 x 1/2"	1	1	1	1
*	S97020465	FILTRO DE RECIRCULACIÓN - TIPO XB (JUEGO DE 2) (INSTALACIÓN SIN CONDUCTOS ÚNICAMENTE)
	S97020466	FILTRO DE RECIRCULACIÓN - TIPO XC (JUEGO DE 2) (INSTALACIÓN SIN CONDUCTOS ÚNICAMENTE)	1	1	1	1
	S97020467	FILTRO DE RECIRCULACIÓN - TIPO XD (JUEGO DE 2) (INSTALACIÓN SIN CONDUCTOS ÚNICAMENTE)
*	S99527587	JUEGO DE SUETADORES PARA FILTROS DE CARBÓN - INCLUYE 4 SUETADORES	1	1	1	1
*	S97020470	EQUIPO PARA FÁCIL INSTALACIÓN (INCL. TORNILLOS)	1	1	1	1

* ÍTEM NO MOSTRADO.
