USER MANUAL DHR1FZUC BOSCH

READ AND SAVE THESE INSTRUCTIONS

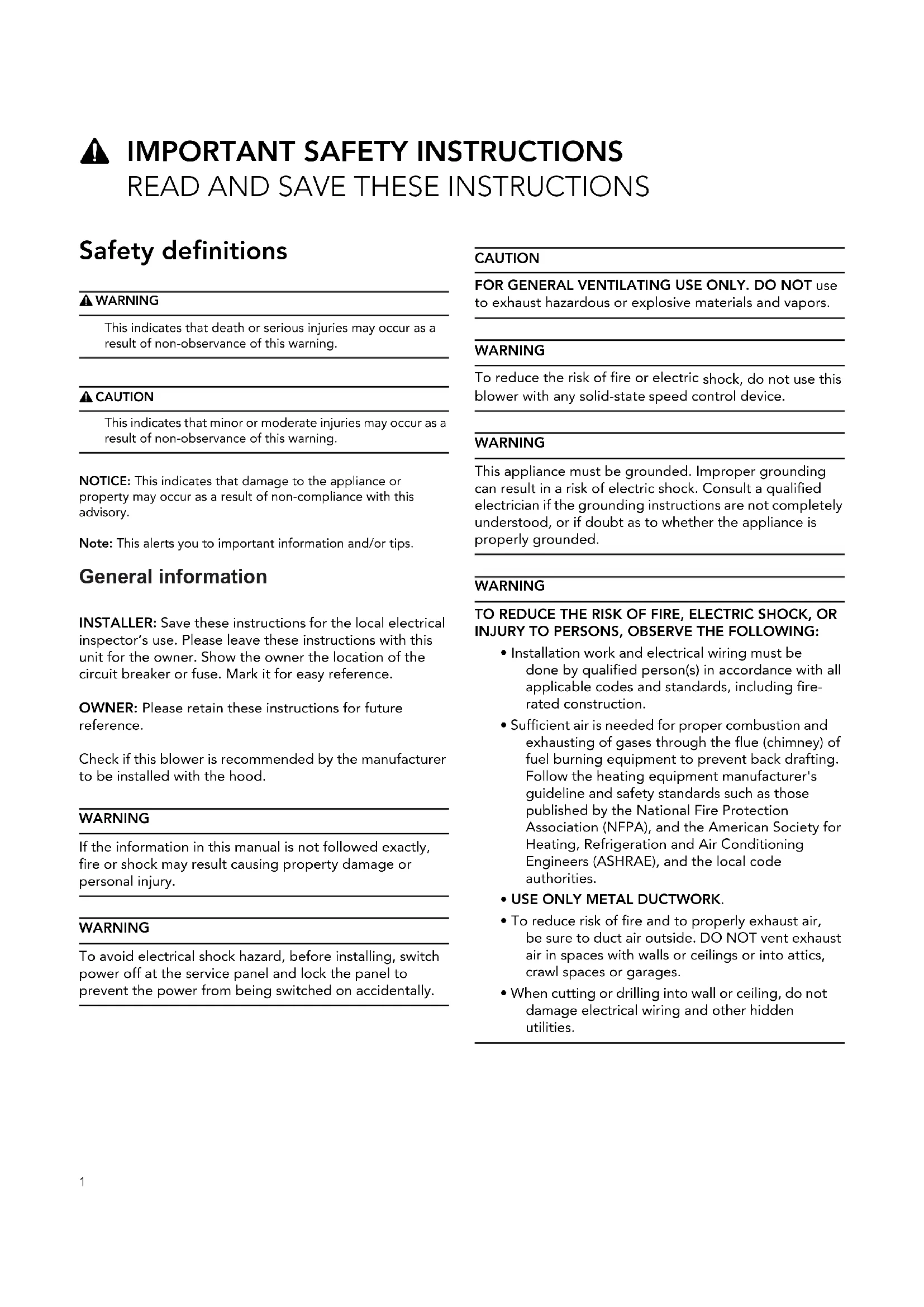

Safety definitions 9 WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. 9 CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note: This alerts you to important information and/or tips. General information INSTALLER: Save these instructions for the local electrical inspector’s use. Please leave these instructions with this unit for the owner. Show the owner the location of the circuit breaker or fuse. Mark it for easy reference. OWNER: Please retain these instructions for future reference. Check if this blower is recommended by the manufacturer to be installed with the hood. WARNING If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury. WARNING To avoid electrical shock hazard, before installing, switch power off at the service panel and lock the panel to prevent the power from being switched on accidentally. CAUTION FOR GENERAL VENTILATING USE ONLY. DO NOT use to exhaust hazardous or explosive materials and vapors. WARNING To reduce the risk of fire or electric shock, do not use this blower with any solid-state speed control device. WARNING This appliance must be grounded. Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt as to whether the appliance is properly grounded. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire- rated construction.

• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

• USE ONLY METAL DUCTWORK.

• To reduce risk of fire and to properly exhaust air, be sure to duct air outside. DO NOT vent exhaust air in spaces with walls or ceilings or into attics, crawl spaces or garages.

• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.2

9 IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Proposition 65 Warning This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California: WARNING DO NOT repair or replace any part of the appliance unless specifically recommended in the manuals. Improper installation, service or maintenance can cause injury or property damage. Refer to the Installation Manual for guidance. All servicing should be done by an authorized service provider. If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit. WARNING ELECTRICAL SHOCK HAZARD:

• DO NOT remove connections.

• DO NOT use an extension cord. Remove all tape and packaging before using the appliance. Destroy or recycle the packaging after unpacking the appliance. Never allow children to play with packaging material. State of California Proposition 65 Warning: : WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov3 Installation Step 1: EXHAUST-AIR MODE Equipment needed

• Rubber mallet Equipment included

• Connector 9 WARNING Turn off power circuit at service panel and lock out panel before wiring this appliance. Allow the appliance to cool after the power has been turned off before servicing the appliance. Exhaust air should not be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located. Exhaust air must be discharged in accordance with official

d statutory regulations only (e.g. national building regulations). Local authority regulations mu st be observed when discharging air into smoke or exhaust flues that are not otherwise in use. When the extractor hood is operated in exhaust-air mode simu ltaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers), care must be taken to ensure that there is an adequate supply of fresh air, which will be needed by the burner for combustion. Safe operation is possible provided that the underpressure in th e room where the burner is installed does not exceed 4 Pa (0.04 mbar). This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc. If the air intake is inadequate, there is a risk of carbon monoxide poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded. NOTE: Wh en assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

9 IMPORTANT SAFETY INSTRUCTIONS

• The blower must be attached at least 78 ¾'' (200 cm) from the extractor hood.

• When attaching the inner wall blower, ensure that

is accessible for maintenance and repairs.

• The plug-and-socket connections of the electric

bles must be located inside the building, according to local code.

• DO N OT reduce the 6'' (152 mm) diameter of the ducting connected to the extractor hood. Step 2: PREPARATION

• The wall must be flat and vertical.

• Ensure that the wall is capable of providing a firm hold for mounting screws and anchors. Technical information Model DHR1FZUC Weight 23 lbs / 10.4 kg Volts 120 V Hertz 60 Hz Dedicated breaker 15 AMP Duct size 6" (254 mm)4 Step 3: INSTALLATION

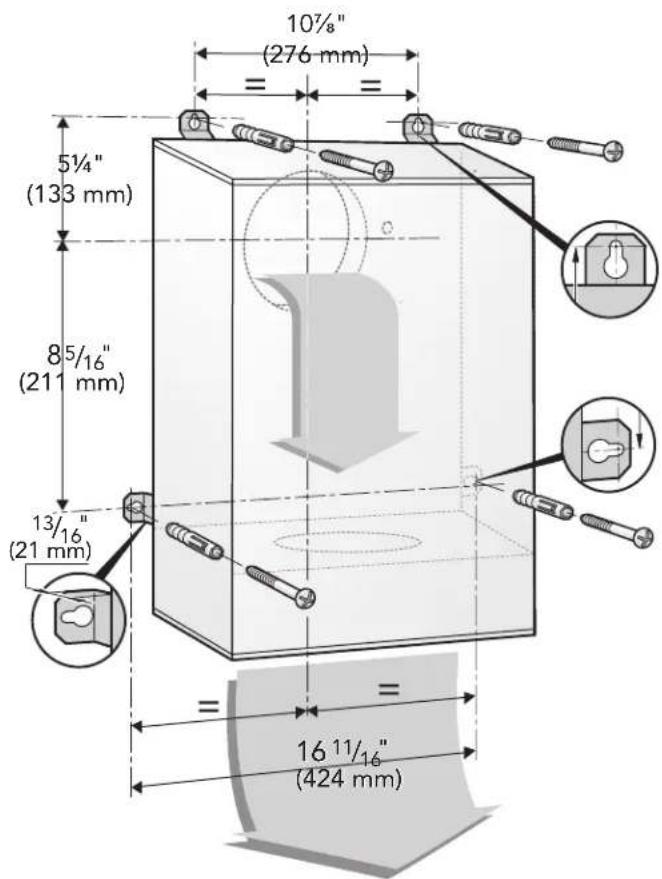

1. Hold the blower on the wall.

Note the direction of the air flow.

2. Mark the four (x 4) mounting holes.

• At least one screw must be installed through a stud.

• All hardware must be suitable for the wall’s construction materials.

• Ensure the air outlet points downward.

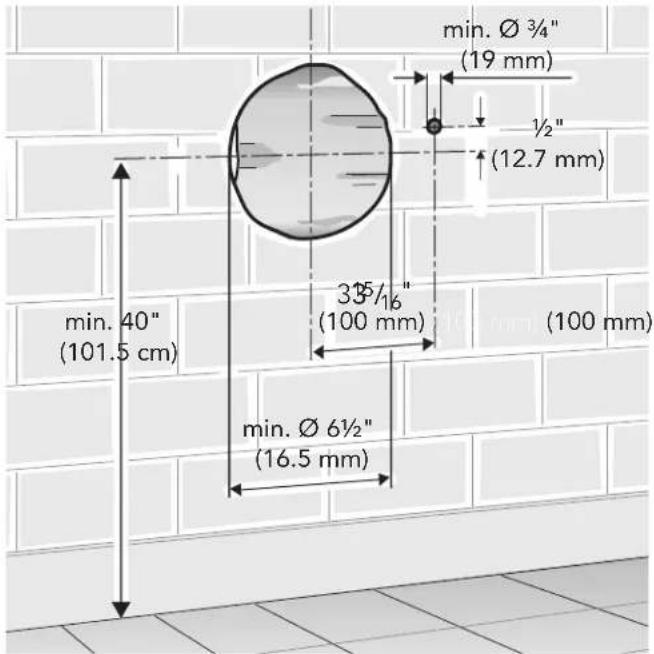

Mark and drill a guide hole and a separate hole for

Insert wall anchors and screw the blower to the wall.

5. Connect the duct from the blower to the extractor

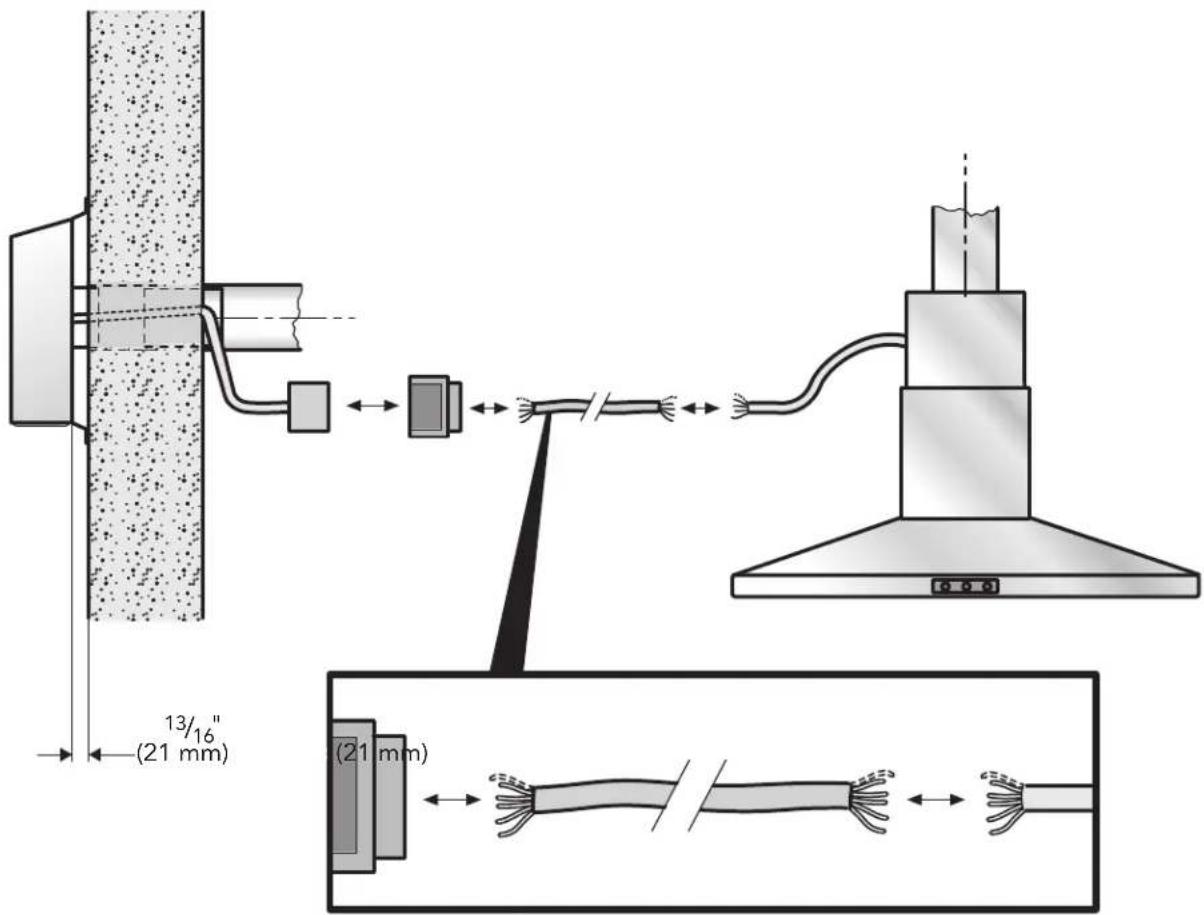

6. Connect the blower to the extractor hood with an

extension cable if required. Use the added connector to hard-wire to the blower, if required. Use the wire diagram for connecting. 9 WARNING

The additional cover on the plug must always be attached and closed for safety reasons.

ot needed wires must be isolated, capped with wire nuts and stored in a safe position. (21 mm) (21 mm) (21 mm)

NOTE: Confirm that the blower is securely attached to the wall and all connections are secure. NOTE: Th e unit can also be installed on the roof in combination with a roof plate accessory. Ask your retailer or contact the Bosch customer support at 1-800-944-2904.6
