• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from

• Bijgewerkte informatie (de meest recente gebruiksaanwijzing, systeemupdates, nieuwe functies, enz.) is beschikbaar op <https://www.kenwood.com/cs/ce/> Trim plate Plaque de garniture Ziertafel Afwerkingsplaat !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 1 2020/07/09 11:042 Important Notice on Software Ñ Software License on This Product The software embedded in this product comprises a number of independent software components, each of which is copyrighted by JVCKENWOOD Corporation or by a third party. This product uses software components that are based on an End-User License Agreement (hereinafter called “EULA”) stipulated by JVCKENWOOD Corporation and by third parties. The EULA dictates the availability of the source codes of free-software components as a prerequisite to distributing them in executable form under the terms of the GNU General Public License or the Lesser General Public License (hereinafter called “GPL/LGPL”). To get information about the software components that are subject to the terms of the GPL/LGPL, please visit the following Website: Website URL https://www2.jvckenwood.com/gpl/ Queries concerning the contents of the source code or the like will not be accepted. Please note that software components based on a EULA that is not subject to the terms of the GPL/LGPL or those that have been developed or created by JVCKENWOOD Corporation will be excluded from the scope of source code disclosure. Because licenses to use software components distributed under the GPL/LGPL are offered to the customers for free of charge, no warranty is granted to the customers, whether explicitly or implicitly, to the extent of the applicable laws. Unless otherwise stipulated by the applicable laws or agreed upon in writing, the copyright holders or those who are entitled to modify and redistribute the software components are not held responsible for any and all damages resulting from their use or from inability to use them. For more information about the terms of use of the software components, required items of compliance and so on, please refer to the GPL/LGPL. Customers wishing themselves to use a software component that is subject to the GPL/LGPL embedded in this product are encouraged to read the terms of the corresponding license before use. Because each individual license is prescribed by a third party other than JVCKENWOOD Corporation, the original (English) of the license is presented. EULA Ñ Software License Agreement JVCKENWOOD Corporation (hereinafter called “Licensor”) holds either the copyright to the embedded software or the right to sublicense it. This agreement establishes the conditions under which the customer uses this “Licensed Software.” The customer shall agree to the terms of this license agreement before proceeding to use Licensed Software. This agreement is deemed to have taken effect when the customer (hereinafter called “User”) has used a product implementation of Licensed Software. The Licensed Software may contain software Licensor has been licensed to use by third parties directly or indirectly. Some third parties may have terms of use prescribed for their customers, apart from this Software License Agreement. This agreement does not apply to such software. Be sure to consult “Important Notice on Software” as presented separately. Article 1 (General) Licensor grants to User a non-exclusive, non- assignable right of use Licensed Software within the country where the User purchases the Product (hereinafter the "Country") (except for the exception provided for in Paragraph 1, Article 3). Article 2 (Right of Use)

1. The rise of use granted under this agreement is the

right to use Licensed Software in this product.

2. User may not duplicate, copy, modify, add to,

translate or otherwise alter, or loan licensed Software and the associated literature in whole or in part.

3. Use of Licensed Software is limited to a private

extent , and Licensed Software may not be distributed, licensed or sublicensed for any purposes whatsoever, including commercial use.

4. User shall use Licensed Software as per the

instruction manual or instructions given in the help file and may not use or duplicate data in violations of the regulations of the Copyright Law or other governing laws by using Licensed Software in whole or in part. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 2 2020/07/09 11:043 Article 3 (Terms of License)

1. In assigning this product, User may not retain

the original copy of the embedded Licensed Software (including associated literature, updates and upgrades) and any duplicates and associated literature with regard to the license to use Licensed Software. User may transfer Licensed Software only to the condition of binding the assignee to abide by the terms of this Software License Agreement.

2. User may not reverse-engineer, disassemble,

decompile or otherwise analyze the source code of Licensed Software. Article 4 (Rights to Licensed Software) All rights to Licensed Software and the associated literature, including copyrights, shall reside with Licensor or the original right holder who has granted the Right of Use and right to sublicense to Licensor (hereinafter referred to as “Original Right Holder”), and User does not have any rights other than Right of Use granted hereunder with regard to Licensed Software and the associated literature. Article 5 (Exemption Granted to Licensor)

1. Licensor and Original Right Holder do not assume

any responsibility for damages caused to User or third parties resulting from the exercise by User of the license granted hereunder, unless otherwise provided by any law to the contrary.

2. Licensor does not warrant Licensed Software to

be merchantable, compatible and fit for specific purposes. Article 6 (Responsibility for Third Parties) If disputes over the infringement of third parties’ intellectual property rights, such as copyrights and patent rights, arise out of the use of Licensed Software by User, User shall resolve these disputes at User’s own expenses while keep Licensor and Original Right Holder harmless. Article 7 (Secrecy Obligation) User shall keep confidential Licensed Software provided hereunder, information contained in the associated literature or the like and those provisions of this agreement not yet in public knowledge and may not disclose or leak these to third parties without prior written consent from Licensor. Article 8 (Cancellation of the Agreement) Licensor reserves the right to cancel this agreement forthwith and claim compensation from User for the damages caused by such cancellation when User: (1) Breaches any of the provisions of this agreement, or (2) Has received a petition for seizure, provisional seizure, provisional disposition or any other kind of compulsory execution. Article 9 (Destruction of Licensed Software) If this agreement is terminated under the provision of the foregoing paragraph, User shall destroy Licensed Software, along with all associated literature and its duplicates, within two (2) weeks from the date of termination. Article 10 (Copyright Protection)

1. Copyrights and all other intellectual property

rights relating to Licensed Software shall reside with Licensor and Original Right Holder and in no circumstances with User.

2. User shall abide by the laws relating to copyrights

and intellectual property rights in using Licensed Software. Article 11 (Export Control)

1. Licensed Software and the associated literature or

the like may not be exported to places outside the Country (including transmission outside the Country over the Internet or the like).

2. User agrees that Licensed Software is subject to

export controls imposed by the Country and the United States of America.

3. User agrees to comply with all the international

and domestic laws that apply to this software (U.S. Export Administration Regulations and regulations established by the U.S., the Country and their governmental agencies regarding usage by end users and export destinations). Article 12 (Miscellaneous)

1. Even if this agreement is invalidated in part by law,

all other provisions shall remain in effect.

2. Licensor and User shall consult each other in

good faith to resolve any matters not provided for in this agreement or questions arising from the interpretation of this agreement.

3. Licensor and User agree that this agreement is

governed by the law of Japan and that all disputes involving claims and obligations that may arise out of this agreement will be settled by arbitration at the Tokyo District Court as the court of first instance. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 3 2020/07/09 11:04Before Use

Contents Before Use About the Quick start guide This Quick Start Guide describes basic functions of this unit. For detailed operations and information, refer to the INSTRUCTION MANUAL on the following website: <https://www.kenwood.com/cs/ce/> The Instruction manual is subject to change for modification of specifications and so forth. Be sure to download the latest edition of the Instruction manual for reference. How to read this manual

• The screens and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual screens or panels used, or some display patterns may be different.

• Indication language: English indications are used for the purpose of explanation. You can select the indication language from the [SETUP] menu. See Instruction Manual. Before Use ..................................................................... 4 About the Quick start guide ...........................................................4 How to read this manual ..................................................................4 Precautions ................................................................................................5 Basic Operations ......................................................... 6 Functions of the Buttons on the Front Panel ....................... 6 Turning on the Unit .............................................................................6 Getting Started ....................................................................................... 7 Adjusting the volume .........................................................................8 Touch screen operations ..................................................................8 HOME screen descriptions ..............................................................9 Source selection screen descriptions .......................................9 Source control screen descriptions ........................................11 MENU screen .........................................................................................12 List screen ...............................................................................................12 USB ................................................................................13 Connecting a USB device..............................................................13 USB Basic Operation ......................................................................... 13 Radio .............................................................................14 Radio Basic Operation ..................................................................... 14 Memory Operation ...........................................................................15 DAB ................................................................................ 16 DAB Basic Operation ........................................................................16 Storing Service in Preset Memory ...........................................17 Bluetooth Control.....................................................18 Register from the Bluetooth device........................................18 Using Hands-Free Unit .................................................................... 19 Controlling Audio ..................................................... 22 Connection/Installation .........................................24 Before Installation ..............................................................................24 Installing the unit ............................................................................... 25 Appendix .....................................................................29 Specifications ........................................................................................29 About this Unit ....................................................................................29 !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 4 2020/07/09 11:04Before Use 5English Precautions # WARNINGS Ñ To prevent injury or re, take the following precautions:

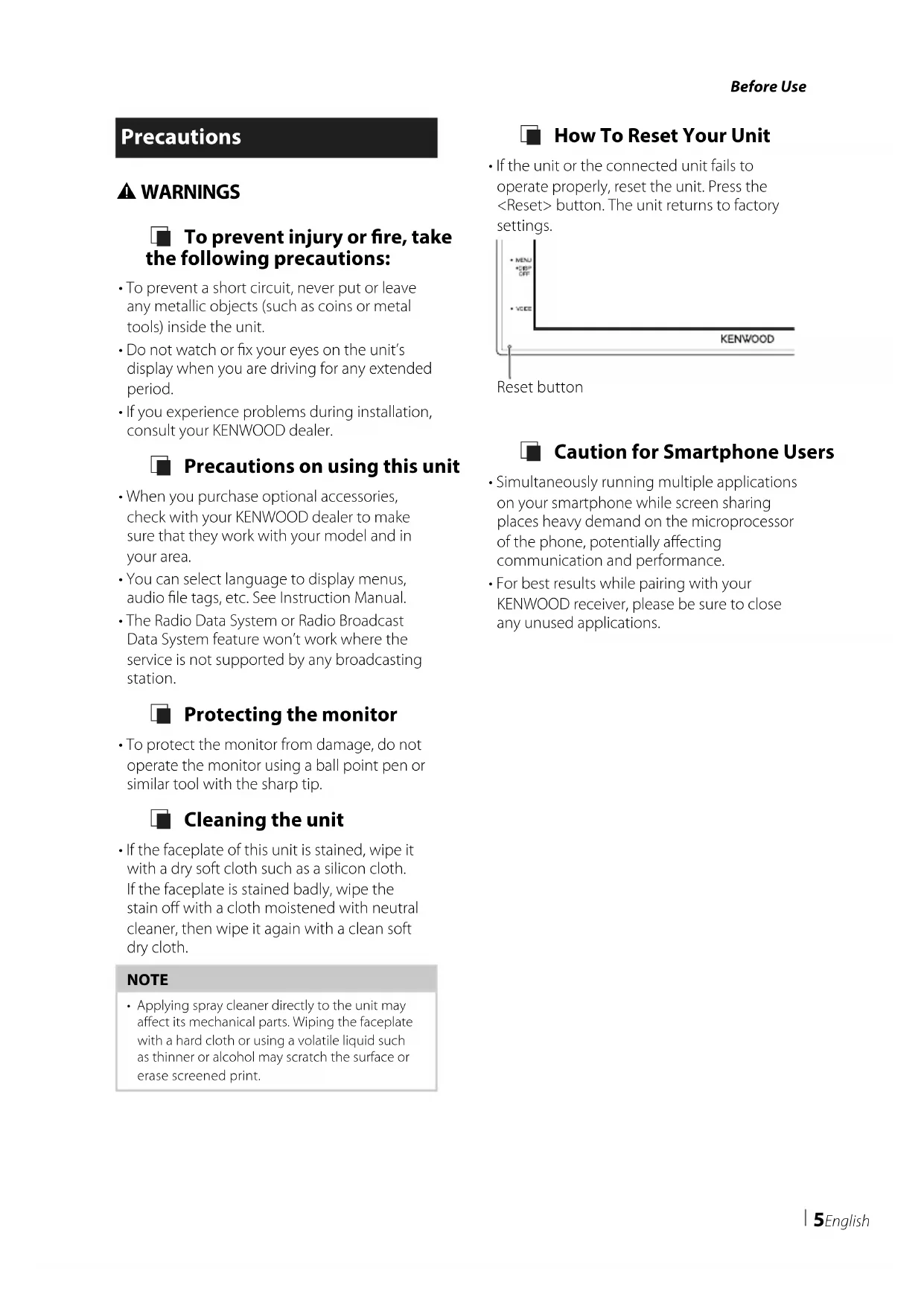

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

• Do not watch or fix your eyes on the unit’s display when you are driving for any extended period.

• If you experience problems during installation, consult your KENWOOD dealer. Ñ Precautions on using this unit

• When you purchase optional accessories, check with your KENWOOD dealer to make sure that they work with your model and in your area.

• You can select language to display menus, audio file tags, etc. See Instruction Manual.

• The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcasting station. Ñ Protecting the monitor

• To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip. Ñ Cleaning the unit

• If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth. NOTE

• Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print. Ñ How To Reset Your Unit

• If the unit or the connected unit fails to operate properly, reset the unit. Press the <Reset> button. The unit returns to factory settings. Reset button Ñ Caution for Smartphone Users

• Simultaneously running multiple applications on your smartphone while screen sharing places heavy demand on the microprocessor of the phone, potentially affecting communication and performance.

• For best results while pairing with your KENWOOD receiver, please be sure to close any unused applications. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 5 2020/07/09 11:04Basic Operations

Basic Operations Functions of the Buttons on the Front Panel

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels. Name
• Motion Remote Sensor• Receives the remote control signal.

• Adjusts volume.The volume will go up until 15 when you keep pressing [R]. [HOME]• Displays the HOME screen (P.9).• Pressing for 1 second turns the power off.• When the power off, turns the power on. [MENU]• Displays the MENU screen. • Pressing for 1 second turns the screen off. [VOICE]• Displays the Voice Recognition screen. Reset• If the unit or the connected unit fails to operate properly, the unit returns to initial settings when this button is pressed. Turning on the Unit

Press the [HOME] button. The unit is turned on. ● To turn off the unit:

Press the [HOME] button for 1 second. NOTE

• If it is your first time turning the unit on after installation, it will be necessary to perform Initial setup (P.7).!B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 6 2020/07/09 11:04Basic Operations 7English Getting Started Initial setup Perform this setup when you use this unit first time.

Set each item as follows. ■ [Language] Select the language used for the control screen and setting items. Default is “[British English(en)]”. 1Touch [Language]. 2Touch [Language Select]. 3Select the desired language. 4Touch [

For detailed operation, see Instruction Manual. ■ [DEMO] Set the demonstration mode. Default is “ON”. 1Touch [DEMO] and set [ON] or [OFF].

• These settings can be set from the SETUP menu. Calendar/clock settings

Press the [MENU] button. MENU screen appears.

Touch [ ]. SETUP Menu screen appears. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 7 2020/07/09 11:04Basic Operations

Touch [User Interface]. User Interface screen appears.

Adjust the date, then adjust the time.

• Deactivate [RDS CT] before adjusting the clock. See Instruction Manual. Adjusting the volume To adjust the volume (0 to 40), Press [R] to increase, and press [S] to decrease. Holding [R] increases the volume continuously to level 15. Touch screen operations To perform operations on the screen, you need to touch, touch and hold, flick or swipe to select an item, display setting menu screen or to change the page, etc. ● Touch Touch the screen gently to select an item on the screen. ● Touch and hold Touch the screen and keep your finger in place until the display changes or a message is displayed. ● Flick Slide your finger quickly to the left or right on the screen to change the page. You can scroll the list screen by flicking the screen up/ down. ● Swipe Slide your finger up or down on the screen to scroll the screen. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 8 2020/07/09 11:04Basic Operations 9English HOME screen descriptions Most functions can be performed from the HOME screen.

• Displays the control screen of current source.

• Current source information

• Displays the source selection screen. (P.9)

Press the [HOME] button. HOME screen appears. Source selection screen descriptions You can display all playback sources and options on the source selection screen.

• Changes the playback source. For playback sources, see Select the playback source (P.10).

• Returns to previous screen.

Select the playback source

Touch [ ] on the HOME screen. From the screen, you can select the following sources and functions.

• Switches to the DAB broadcast. (P.16)

• Switches to the Apple CarPlay screen from the connected iPhone.

• Switches to the Android Auto screen from the connected Android smartphone. It is necessary to connect Android smartphone compatible with Android Auto and to set [Mode] to [Android Auto].

• Displays the Hands Free screen. (P.19) When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is connected, displays "[Disconnected]" message in the TEL screen. When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

• Switches to the USB Mirroring screen from the connected Android smartphone. It is necessary to connect Android smartphone with “Mirroring OA for KENWOOD” application installed and to set [Mode] to [Mirroring for Android™].

• Switches to the Radio broadcast. (P. 14)

• Plays a Bluetooth audio player.

• Plays files on a USB device. (P.13)

• Switches to an external component connected to the AV-IN input terminal.

• Puts the unit in standby. (P.10) Put the unit in standby

Touch [ ] on the HOME screen.

Touch [STANDBY]. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 10 2020/07/09 11:04Basic Operations 11English Source control screen descriptions There are some functions which can be operated from most screens. Indicators

Connected Bluetooth device information.

All sources icon Displays all sources.

]/[ ] : The Secondary screen changes every time you touch it. You can also change the Secondary screen by flicking left or right on the screen.

• Indicators: Displays the current source condition and so on. – [MUTE]: The mute function is active. – [LOUD]: The loudness control function is on.

• Sub menu – [ ]: Operation when the icon is touched: The first touch darkens the screen, the second touch darkens the screen further, and the third touch restores the screen to its original brightness.

[Û] Touch to display the Hands Free screen. (P.19) When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 11 2020/07/09 11:04Basic Operations

Press the [MENU] button. MENU screen appears.

Touch to display the MENU screen. The contents of the menu are as follows.

• Displays the Screen Adjustment screen.

• Displays the view camera.

• Displays the source selection screen. (P.10)

• Turns the display off. (P.12)

Select [ ] on the MENU screen. ● To turn on the screen

Touch the display. List screen There are some common function keys in the list screens of most sources.

Displays list type selection window.

Displays music/movie file list.

etc. Keys with various functions are displayed here.

] : Plays all tracks in the folder containing the current track.

[ ] / [ ] / [ ] / [ ] Page scroll You can change the page to display more items by pressing [

• Buttons which cannot be activated from the list screen are not displayed. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 12 2020/07/09 11:04USB 13English USB Connecting a USB device 1 Connect the USB device with the USB cable. (P.27) 2 Press the [HOME] button. 3 Touch [ ]. 4 Touch [USB]. (P.10) Ñ Disconnect the USB device 1 Press the [HOME] button. 2 Touch [ ]. 3 Touch a source other than [USB]. 4 Detach the USB device. Ñ Usable USB device You can use a mass-storage-class USB device on this unit. The word “USB device” appearing in this manual indicates a flash memory device. USB Basic Operation Most functions can be controlled from the source control screen and playback screen.Control screen

[ ] / [ ]• [] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; File repeat ([]), Folder repeat ([ ]), Repeat all ([])• [] : Randomly plays all tracks in current folder. Each time you touch the key, random mode switches in the following sequence; File random ([]), Random off ([ ]) Track informationDisplays the information of the current file. [Operation keys• [1] : Searches track/file. For details on search operation, see Instruction Manual.

Radio Radio Basic Operation Most functions can be controlled from the source control screen. To enter Radio source, touch [Radio] icon in the source selection screen. (P.10) Control screen

Information display Displays the information of the current station: Frequency Touching [ ] allows you to switch between Content A and Content B. – Content A: PS name, Radio Text, PTY Genre – Content B: Radio Text plus, Title Artist [Preset#] : Preset number

Seek mode Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good reception automatically.

• [AUTO2]: Tunes in stations in memory one after another.

• [MANUAL]: Switches to the next frequency manually.

• [E] [F] : Tunes in a station. The method of frequency switching can be changed (see 2 in table).

] : Touch to mute or not to mute.

• Touch on the right side of the screen to display the Preset list. Touch again to close the list.

• Recalls the memorized station.

• When touched for 2 seconds, stores the current receiving station in memory.

Function panel Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [TI] (FM only): Sets the traffic information mode on. For details, see Instruction Manual.

• [SETUP] (FM only): Displays the Radio SETUP screen. For details, see Instruction Manual.

• [AME]: Presets stations automatically. For details, see Instruction Manual.

• [PTY] (FM only): Searches a program by setting program type. For details, see Instruction Manual.

• [MONO] (FM only): Select the Monaural reception.

• [LO.S] (FM only): Turns the Local Seek function on or off.

[FM] [AM] Switches the band.

• [ST]: A stereo broadcast is being received.

• [MONO]: The forced monaural function is on.

• [AF]: The AF search function is on.

• [LOS]: The Local Seek function is on.

• [RDS]: Indicates the state of the Radio Data System station when the AF function is on. White: Radio Data System is being received. Orange: Radio Data System is not being received. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 14 2020/07/09 11:04Radio 15English

• [TI] : Indicates the reception state of traffic information. White: TP is being received. Orange: TP is not being received. Memory Operation Ñ Auto memory You can store stations with good reception in memory automatically. 1 Touch desired band key. 2 Touch [ ] on the left side of the screen. Touch [AME]. A confirmation screen appears. 3 Touch [Ye s ]. Auto memory starts. Ñ Manual memory You can store the current receiving station in memory. 1 Select a station you wish to store in memory. 2 Touch [FM#] (#: 1-24) or [AM#] (#: 1-12) in which you want to store the station for 2 seconds. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 15 2020/07/09 11:04DAB

DAB DAB Basic Operation Most functions can be controlled from the source control screen. To enter DAB source, touch [DAB] icon in the source selection screen. (P.10) Control screen

Artwork area The picture data is displayed if available from current content. Touch to switch between the Control and Information screen. [[P#]: Preset number [[CH#]: Channel display

Seek mode Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a ensemble with good reception automatically.

• [AUTO2]: Tunes in ensemble in memory one after another.

• [MANUAL]: Switches to the next ensemble manually.

Indicator display Displays the received signal strength.

Information display Displays the information of the current station: Service Name Touching [ ] allows you to switch between Content A, Content B and Content C. – Content A: Ensemble name, PTY Genre – Content B: Song Title, Artist Name, DLS – Content C: Now Playing, Next Program, Audio Quality

Function panel Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [TI]: Sets the traffic information mode on. For details, see Instruction Manual.

• [SETUP]: Displays the DAB SETUP screen. For details, see Instruction Manual.

• [PTY]: Searches a program by setting program type. For details, see Instruction Manual.

• [DLS]: Display the Dynamic Label Segment screen.

• [1] : Displays the Service List screen. For details on search operation, see Instruction Manual.

• [E] [F] : Tunes in a ensemble, service, and component. The seek mode switching can be changed. (see

• Touch on the right side of the screen to display the Preset list. Touch again to close the list.

• Recalls the memorized service.

• When touched for 2 seconds, stores the current service in memory.

• [DAB+]: Digital Radio is being received.

• [RDS]: Radio Data System is being received. Storing Service in Preset Memory You can store the current receiving service in memory. 1 Select a service you wish to store in memory. 2 Touch [ ] on the right side of the screen. 3 Touch [P#] (#: 1-15) in which you want to store the station for 2 seconds. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 17 2020/07/09 11:04Bluetooth Control

Bluetooth Control Ñ About the cell-phone and Bluetooth audio player This unit conforms to the following Bluetooth specifications: Version Bluetooth Ver. 4.1 Profile Cell-phone: HFP (Hands Free Profile) SPP (Serial Port Profile) PBAP (Phonebook Access Profile) Audio player: A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) Sound codec SBC, AAC NOTE

• The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG.• However, it may be impossible for such units to communicate with your cell-phone depending on its type. Register from the Bluetooth device It is necessary to register the Bluetooth audio player or cell-phone to this unit before using the Bluetooth function. 1 Turn on the Bluetooth function on your smartphone/cell-phone. 2 Search the unit (“DMX*****”) from your smartphone/cell-phone. 3 Operate your smartphone/cell-phone according to the displayed messages. ■ Confirm the request on the smartphone/cell-phone. ■ If a PIN code is required, enter the PIN code (“0000”). 4 Touch [Yes]. 5 Press the [MENU] button. MENU screen appears. 6 Touch [ ]. SETUP Menu screen appears. 7 Touch [Bluetooth]. Bluetooth SETUP screen appears. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 18 2020/07/09 11:04Bluetooth Control 19English 8 Touch [Select Device] in the Bluetooth SETUP screen. 9 Touch [ ] you want to connect. NOTE
• If the icon is lighted, it means that the unit will use that device. To delete the registered Bluetooth device 1 Touch [ ]. Confirmation message appears. 2 Touch [Ye s ]. Using Hands-Free Unit You can use telephone function by connecting the Bluetooth telephone to this unit. NOTE
• While Apple CarPlay or Android Auto is being connected, Bluetooth Hands-Free function cannot be used. Only Apple CarPlay or Android Auto Hands-Free function can be used. Ñ Make a call 1 Touch [TEL] / [Û]. Hands Free screen appears. 2 Select a dialing method.

]: Call by entering a phone number

Bluetooth SETUP screen appears. NOTE

• The status icons such as battery and antenna displayed may differ from those displayed on the cell-phone.• Setting the cell-phone in the private mode can disable the hands-free function.!B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 19 2020/07/09 11:04Bluetooth Control

Call using call records 1 Touch [ ]. 2 Select the phone number from the list. Call by entering a phone number 1 Touch [ ]. 2 Enter a phone number with number keys. 3 Touch [ ]. Call using the preset number 1 Touch [ ]. 2 Touch the Name or phone number. Call using the phonebook 1 Touch [ ]. 2 Select the person you want to call from the list. 3 Select the phone number from the list. NOTE

• If no Phonebook has been downloaded, touching [Download Phonebook Now] will start downloading the Phonebook. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 20 2020/07/09 11:04Bluetooth Control 21English Ñ Receive a call 1 Touch [ ] to answer a phone call or [ ] to reject an incoming call. NOTE

• While monitoring the view camera, this screen does not appear even if a call comes in. To display this screen, return the shift knob of car to the driver position. To end call 1 While talking, touch [ ]. Ñ Operations during a call ● Adjust the receiver volume Press the [S] or [R] button. ● Output the dial tone Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys on the screen. ● Switching the speaking voice output Touching [ ]/ [ ] each time switches the speaking voice output between cell-phone and speaker. ● Call-waiting When you receive a call while talking on another call, you can answer the newly received call by touching [ ]. The current call is on hold. Each time you touch [ ], the caller will change. When you touch [ ], the current call will end and switch to the call in hold. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 21 2020/07/09 11:04Controlling Audio

Controlling Audio You can adjust the various settings such as audio balance or subwoofer level. 1 Press the [MENU] button. MENU screen appears. 2 Touch [ ]. Ñ Controlling General Audio 1 Press the [MENU] button. MENU screen appears. 2 Touch [ ]. Audio screen appears. 3 Touch [Fader / Balance]. 4 Set each item as follows. ■ [Fader] / [Balance] Adjust the volume balance around the touched area. [C] and [D] adjust the right and left volume balance. [R] and [S] adjust the front and rear volume balance. ■ [Center] Clear the adjustment. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 22 2020/07/09 11:04Controlling Audio 23English Ñ Equalizer Control You can adjust equalizer by selecting the optimized setting for each category. 1 Press the [MENU] button. MENU screen appears. 2 Touch [ ]. Audio screen appears. 3 Touch [Equalizer]. 4 Touch the screen and set the Graphic Equalizer as desired. ■ [ALL SRC] Apply the adjusted equalizer to all sources. Touch [ALL SRC] and then touch [OK] on the confirmation screen. ■ Gain level (dotted frame area) Adjust the gain level by touching the each frequency bar. You can select frequency bar and adjust its level by [R], [S]. ■ [Preset Select] Displays the screen to recall the preset equalizer curve. ■ [Initialize] The current EQ curve returns to flat. ■ [Memory] Saves the adjusted equalizer curve from “[User1]” to “[User3]”. ■ [Bass EXT] (Bass Extend Settings) When turned on, the frequency lower than

62.5 Hz is set to the same gain level as 62.5

Connection/Installation Before Installation Before installation of this unit, please note the following precautions. # WARNINGS

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse. # CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot. NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.

• Make sure to ground the unit to a negative 12V DC power supply.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

• If the power is not turned ON (“There is an error in the speaker wiring. Please check the connections.” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.

• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.

• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.

• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.

• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the ¤ wires or ground them to any metal part in the car.

• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the ¢ connector of the left speaker to a front output terminal, do not connect the ¤ connector to a rear output terminal.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.

• Reception may drop if there are metal objects near the Bluetooth antenna. Bluetooth antenna unit !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 24 2020/07/09 11:04Connection/Installation 25English Ñ Supplied accessories for installation

from the ignition and disconnect the ¤ terminal of the battery.

2) Make the proper input and output wire

connections for each unit.

3) Connect the ISO connector to the unit.

4) Install the unit in your car.

5) Reconnect the ¤ terminal of the battery.

6) Press the reset button.

Installing the unit Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. NOTE

• Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). Ñ Trim plate

1) Attach accessory 2 to the unit.

1) Check the installation position of the

microphone (accessory 1).

2) Clean the installation surface.

3) Remove the separator of the microphone

(accessory 1), and stick the microphone to the place shown below.

4) Wire the microphone cable up to the unit

with it secured at several positions using tape or other desired method.

5) Adjust the direction of the microphone

(accessory 1) to the driver.

Fix a cable with a commercial item of tape. NOTE

• Swap the clips if necessary. Ñ Removing the trim plate

1) Use the extraction key (accessory 4) to lever

out the four tabs (two on the left part, two on the right part).

2) Pull the trim plate forward.

1) Remove the trim plate by referring to step 1 in

“Removing the trim plate”.

2) Insert the extraction key (accessory 5) deeply

into the slot as shown. (The protrusion at the tip of the extraction key must face toward the unit.)

3) With the inserted extraction key secured,

insert the other extraction key into the slot.

4) Pull out the unit halfway.

• Be careful to avoid injury from the catch pins on the extraction key.

5) Pull the unit all the way out with your hands,

being careful not to drop it. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 26 2020/07/09 11:04Connection/Installation 27English Ñ Connecting wires to terminals

PRK SWSTEERINGWHEELREMOTEINPUT2 4 6 81 3 5 72 4 6 81 3 5 7REVERSE

GND Connect to the vehicle’s parking brake detection switch harness. For best safety, be sure to connect the parking sensor. Light Green (Parking sensor wire) Accessory 3: Parking Extention cable Purple/White (Reverse sensor wire) Accessory 1: Bluetooth Microphone To steering remote To use the steering wheel remote control feature, you need an exclusive remote adapter (not supplied) matched to your car. Connect to vehicle’s reverse lamp harness when using the optional rear view camera. Light Blue/Yellow (Steering remote control wire) Fuse (15A) Subwoofer Preout Cap Cap FM/AM antenna Φ 6.5 mm (maximum) DAB antenna CX-DAB1 [3] Connector A Connector B USB device [2] USB terminal [1] (1.0 m) [1] USB maximum power supply current : DC 5 V = 1.5 A [2] Sold separately [3] Optional accessory ISO Connector

FRONT OUTREAR OUTVIDEO OUTCAM IN

Rear Audio Preout (Left; White, Right; Red) AV-IN [2] (1; Left audio, 2; Composite video, 3; Ground, 4; Right audio). # CAUTION Use of a CX-DAB1 (optional accessory) as a DAB antenna is recommended. When using a commercially available DAB antenna, the diameter of the SMB connector must be Φ 6.5 mm or less. Front Audio Preout (Left; White, Right; Red) Visual Output (Yellow) Rear view camera input (Yellow) Bright Green/Red Purple/Red Gray/Red Connect to vehicle’s steering remote harness. Contact your KENWOOD dealer for details. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 27 2020/07/09 11:04Connection/Installation

• Speaker Impedance: 4-8 Ω ! CAUTION Before you connect the commercially available ISO connectors to the unit, check the following condition:

• Make sure that the pin assignment of the connector matches with the KENWOOD unit.

• Take extra notice of the power wire.

• In case battery wire and ignition wire are not corresponding then change them accordingly.

• In case the car does not have an ignition wire, use a commercially available interface. !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 28 2020/07/09 11:04Appendix 29English Appendix Specications ■ Bluetooth section Frequency: 2.402 – 2.480 GHzRF Output Power (E.I.R.P.): +8 dBm (Avg.), Power Class 1 ■ General Operating Voltage: 12V DC Car BatterySpeaker Impedance: 4 – 8 Ω Specications subject to change without notice. About this Unit ■ Copyrights
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.• Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.• This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.• Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.• App Store is a service mark of Apple Inc., registered in the U.S. and other countries.• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.• Google, Android, Google Play and Android Auto are trademarks of Google LLC. • To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app. • Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 29 2020/07/09 11:04Appendix

INFORMATION INCLUDING THAT RELATING TO

• libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007 ,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• libvorbis Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• La marque du mot et les logos Bluetooth® sont des marques déposées de Bluetooth SIG, Inc. et toute utilisation de ces marques par JVCKENWOOD est faite sous licence. Les autres marques déposées et appellations commerciales appartiennent à leurs propriétaires respectifs.• Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.• This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.• Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.• App Store is a service mark of Apple Inc., registered in the U.S. and other countries.• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.• Google, Android, Google Play and Android Auto are trademarks of Google LLC. • To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app. • Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 57 2020/07/09 11:04Annexes

INFORMATION INCLUDING THAT RELATING TO

• libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007 ,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• libvorbis Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• Die Bluetooth® Wortmarke und Logos sind eingetragene Markenzeichen der Bluetooth SIG, Inc. und jegliche Verwendung dieser Marken durch die JVC KENWOOD Corporation geschieht unter Lizenz. Andere Warenzeichen und Handelsmarken sind Eigentum der jeweiligen Inhaber.• Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.• This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.• Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.• App Store is a service mark of Apple Inc., registered in the U.S. and other countries.• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.• Google, Android, Google Play and Android Auto are trademarks of Google LLC. • To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app. • Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 85 2020/07/09 11:04Anhang

INFORMATION INCLUDING THAT RELATING TO

• libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007 ,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• libvorbis Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• Het Bluetooth®-woordmerk logo's zijn geregistreerde handelsmerken die eigendom zijn van Bluetooth SIG, Inc. en het gebruik van dergelijke handelsmerken door JVC KENWOOD Corporation is onder licentie. Andere handelsmerken en handelsnamen zijn het eigendom van hun respectievelijke houders.• Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.• This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.• Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.• App Store is a service mark of Apple Inc., registered in the U.S. and other countries.• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.• Google, Android, Google Play and Android Auto are trademarks of Google LLC. • To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app. • Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR !B5H-0358-07_QSG_DMX_E_EnFrDeNl.indb 113 2020/07/09 11:04Appendix

INFORMATION INCLUDING THAT RELATING TO

• libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007 ,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• libvorbis Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
