USER MANUAL KMMBT408DAB KENWOOD

The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software. The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded. The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below. Article 1 General Provision The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User. (the country where the User bought the Product (hereinafter the "Country") Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the

Software and any related documents, whether in whole or in part.

3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall

not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.

4. The User shall use the Licensed Software according to the directions described in the operation

manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software. Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software

embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.

2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code

analysis works in connection with the Licensed Software. KMM-BT408DAB_E_B5A-3856-00_Cover_3rd Draft.indd iiiKMM-BT408DAB_E_B5A-3856-00_Cover_3rd Draft.indd iii 1/25/2022 3:21:14 PM1/25/2022 3:21:14 PMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

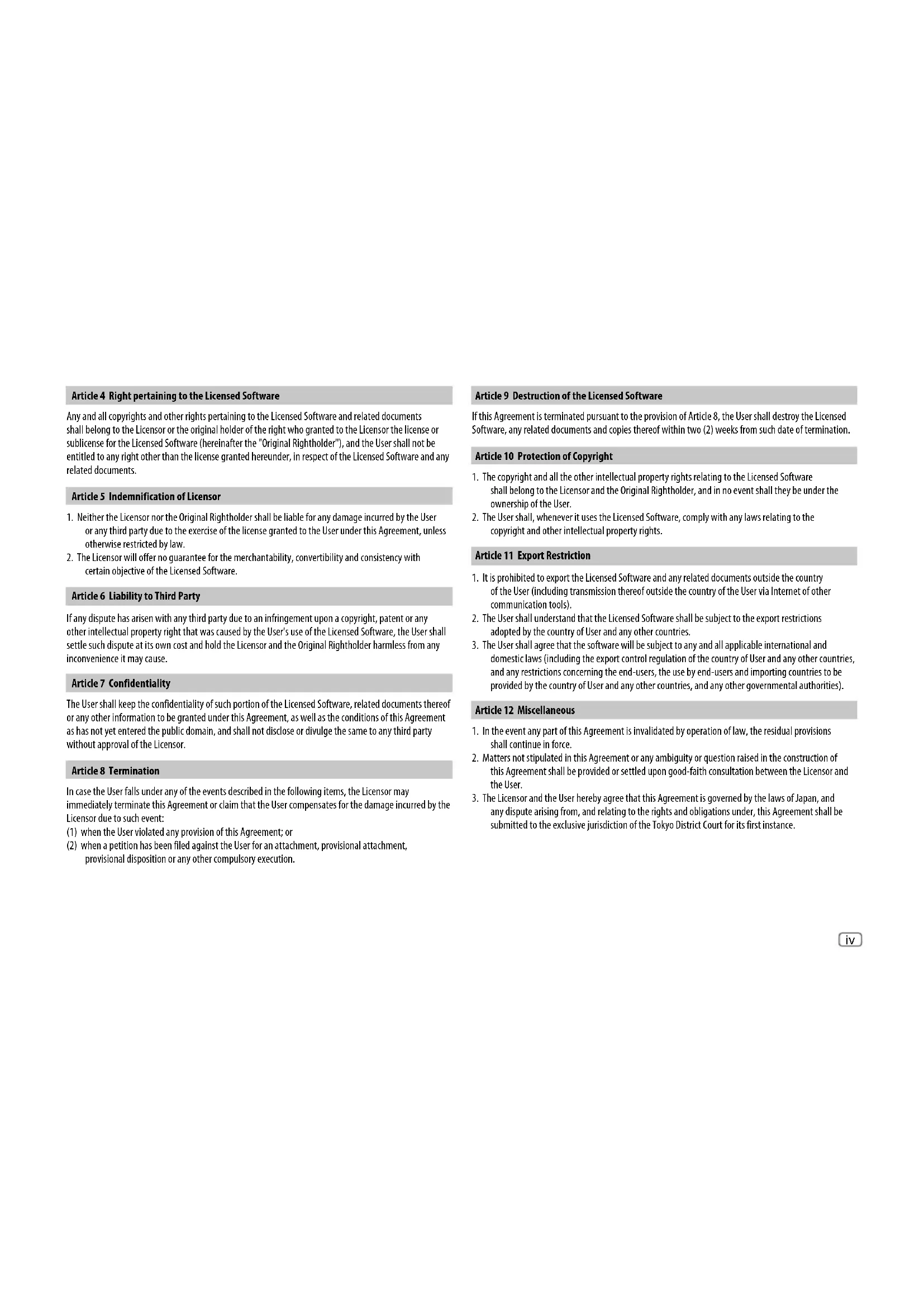

Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents. Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User

or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.

2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with

certain objective of the Licensed Software. Article 6 Liability to Third Party If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause. Article 7 Confidentiality The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor. Article 8 Termination In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event: (1) when the User violated any provision of this Agreement; or (2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution. Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination. Article 10 Protection of Copyright

1. The copyright and all the other intellectual property rights relating to the Licensed Software

shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User.

2. The User shall, whenever it uses the Licensed Software, comply with any laws relating to the

1. It is prohibited to export the Licensed Software and any related documents outside the country

of the User (including transmission thereof outside the country of the User via Internet of other communication tools).

2. The User shall understand that the Licensed Software shall be subject to the export restrictions

adopted by the country of User and any other countries.

3. The User shall agree that the software will be subject to any and all applicable international and

domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities). Article 12 Miscellaneous

1. In the event any part of this Agreement is invalidated by operation of law, the residual provisions

shall continue in force.

2. Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of

this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.

3. The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and

any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance. KMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd ivKMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd iv 9/8/2021 3:13:54 PM9/8/2021 3:13:54 PMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

Important Notice concerning the Software -jansson Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org> Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. -cJSON Copyright (c) 2009 Dave Gamble Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. -CMP The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. nanopb Copyright (c) 2011 Petteri Aimonen <jpa at nanopb.mail.kapsi.fi> This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote

the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the

3. This notice may not be removed or altered from any source distribution.

sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. You may obtain a copy of the license at https://opensource.org/licenses/BSD-3-Clause THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Posix Copyright (c) 1990, 1993 The Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following

acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of its contributors may be used to endorse or

promote products derived from this software without specific prior written permission. Copyright (C) 1993 by Sun Microsystems, Inc. All rights reserved. Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved. Copyright (C) 1991-2, RSA Data Security, Inc. Created 1991. All rights reserved. License to copy and use this software is granted provided that it is identified as the “RSA Data Security, Inc. MD4 Message-Digest Algorithm” in all material mentioning or referencing this software or this function. Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. Author: Chris G. Demetriou Permission to use, copy, modify and distribute this software and its documentation is hereby granted, provided that both the copyright notice and this permission notice appear in all copies of the software, derivative works or modified versions, and any portions thereof, and that both notices appear in supporting documentation. CARNEGIE MELLON ALLOWS FREE USE OF THIS SOFTWARE IN ITS "AS IS" CONDITION. CARNEGIE MELLON DISCLAIMS ANY LIABILITY OF ANY KIND FOR ANY DAMAGES WHATSOEVER RESULTING FROM THE USE OF THIS SOFTWARE. Carnegie Mellon requests users of this software to return to Software Distribution Coordinator or Software.Distribution@CS.CMU.EDU School of Computer Science Carnegie Mellon University Pittsburgh PA 15213-3890 any improvements or extensions that they make and grant Carnegie the rights to redistribute these changes. License is also granted to make and use derivative works provided that such works are identified as "derived from the RSA Data Security, Inc. MD4 Message-Digest Algorithm" in all material mentioning or referencing the derived work. RSA Data Security, Inc. makes no representations concerning either the merchantability of this software or the suitability of this software for any particular purpose. It is provided "as is" without express or implied warranty of any kind. Copyright (c) 1993 Martin Birgmeier All rights reserved. You may redistribute unmodified or modified versions of this source code provided that the above copyright notice and this and the following conditions are retained. This software is provided ``as is'', and comes with no warranties of any kind. I shall in no event be liable for anything that happens to anyone/anything when using this software. These notices must be retained in any copies of any part of this documentation and/or software. KMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd viKMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd vi 9/8/2021 3:13:54 PM9/8/2021 3:13:54 PMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) vii T-Kernel 2.0 This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org) BSD-3-Clause Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. You may obtain a copy of the license at https://opensource.org/licenses/BSD-3-Clause THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. LFS Subsystem Copyright The Regents of the University of California. All rights reserved. You may obtain a copy of the license at https://directory.fsf.org/wiki/License:BSD-4-Clause THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Accordo2 Player Apache License Licensed under the Apache License, Version 2.0, January 2004(the "License"); You may obtain a copy of the license at http://www.apache.org/licenses/LICENSE-2.0 THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. KMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd viiKMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd vii 9/8/2021 3:13:54 PM9/8/2021 3:13:54 PMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) viii KMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd viiiKMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd viii 9/8/2021 3:13:54 PM9/8/2021 3:13:54 PM2 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Contents Before Use p. 3
Basics p. 3
Getting Started p. 4
1 Select the display language, acknowledge the crossover type and cancel the demonstration 2 Set the clock and date 3 Set the other optional settings Digital Radio p. 7
Analog Radio p. 9
USB p. 11
AUX p. 12
KENWOOD Remote Application p. 13
Bluetooth® p. 13
Bluetooth – Connection Bluetooth – Mobile phone Bluetooth – Audio Audio Settings p. 18
Display Settings p. 23
Installation/Connection p. 24
References p. 30
Maintenance More information Change the display information Troubleshooting p. 31
Specifications How to read this manual p. 33

The displays and faceplates shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual displays or faceplates.

English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. (Page6)

[XX] indicates the selected items.

(PageXX) indicates references are available on the stated page. This symbol on the product means there are important operating and maintenance instructions in this manual. Be sure to carefully read instructions in this manual. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 2KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 2 9/8/2021 4:28:05 PM9/8/2021 4:28:05 PMENGLISH

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Cautions in this manual.

Please keep the manual in a safe and accessible place for future reference. WARNING

Do not operate any function that takes your attention away from safe driving. CAUTION Volume setting:

Adjust the volume so that you can hear sounds outside the car to prevent accidents.

Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

Avoid using the external device if it might hinder safe driving.

Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

USB rating is indicated on the main unit. To view, detach the faceplate.

Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (page26). Turn off the unit or change the source to STANDBY when parking at a low ceiling area. Before Use Basics Faceplate Volume knob Detach button Display window*

Only for illustration purpose. Attach Detach How to reset Reset the unit within 5 seconds after detaching the faceplate. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 3KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 3 9/8/2021 4:28:09 PM9/8/2021 4:28:09 PM4 ENGLISH Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) Basics To On the faceplate Turn on the power Press B SRC.

Press and hold to turn off the power. Adjust the volume Turn the volume knob. Select a source

Press B SRC repeatedly.

Press B SRC, then turn the volume knob within 2 seconds. Change the display information Press DISP repeatedly. (Page 31) Getting Started

Select the display language, acknowledge the crossover type and cancel the demonstration When you turn on the power for the first time (or [FACTORY RESET] is set to [YES] , see page6), the display shows: “SEL LANGUAGE” “PRESS” “VOLUME KNOB” 1 Turn the volume knob to select [EN] (English) / [RU] (Russian) / [SP] (Spanish) / [FR] (French), then press the knob. [EN] is selected for the initial setup. Then, the display shows: “2-WAY X ’ OVER” or “3-WAY X ’ OVER” “PRESS” “VOLUME KNOB” “TO CONFIRM”. 2 Press the volume knob to acknowledge the current crossover type.

To change the crossover type, see “Change the crossover type” on page6. Then, the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB”. 3 Press the volume knob again. [YES] is selected for the initial setup. 4 Press the volume knob again. “DEMO OFF” appears.

Set the clock and date

Set the other optional settings You can only set the following items while the unit is in STANDBY source. 1 Press B SRC repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected/activated. 5 Press and hold to exit. To return to the previous setting item, press

Getting Started Default: [XX] [AUDIO CONTROL] [SWITCH PREOUT] (Applicable only if [X’OVER] is set to [2WAY].) (Page 6) [REAR]/[SUB-W]: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier). (Page 27) [TUNER SETTING]

[ON]: Supplies power to the DAB antenna. ; [OFF]: Does not supply power. Selects when using passive antenna without booster. (Page 27) [PRESET TYPE] [NORMAL]: Memorizes one station for each preset button in each band (FM1/FM2/FM3/MW/LW/DB1/DB2/DB3). ; [MIX]: Memorizes one station (digital radio or analog radio) for each preset button, regardless of the selected band. [SYSTEM] [KEY BEEP] (Applicable only if [X’OVER] is set to [2WAY].) (Page 6) [ON]: Activates the keypress tone. ; [OFF]: Deactivates. [SOURCE SELECT]

[ON]: Enables BT AUDIO in source selection. ; [OFF]: Disables. (Page 17) [BUILT-IN AUX] [ON]: Enables AUX in source selection. ; [OFF]: Disables. (Page 12) [P-OFF WAIT] Applicable only when the demonstration mode is turned off. Sets the duration when the unit will automatically turn off (while in standby mode) to save the battery. [20M]: 20 minutes ; [40M]: 40 minutes ; [60M]: 60 minutes ; [– – –]: Cancels KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 5KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 5 9/8/2021 4:28:09 PM9/8/2021 4:28:09 PM6 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

[F/W UP xxxx] [F/W UP xxxxx] [YES]: Starts upgrading the firmware. ; [NO]: Cancels (upgrading is not activated). For details on how to update the firmware, visit <https://www.kenwood.com/cs/ce/>.

Once you have upgraded the firmware, you are unable to downgrade the firmware. [FACTORY RESET] [YES]: Resets the settings to default (except the stored station). ; [NO]: Cancels. [ENGLISH] Select the display language for [FUNCTION] menu and music information if applicable. By default, [ENGLISH] is selected.

Press B SRC repeatedly to enter STANDBY. 2 Press and hold number buttons 4 and 5 to enter crossover select. The current crossover type appears. 3 Turn the volume knob to select “2WAY” or “3WAY”, then press the knob. 4 Turn the volume knob to select “YES” or “NO”, then press the knob. The selected crossover type appears.

To adjust the selected crossover settings, see page 20. Once you have changed the crossover type, the next time when you turn on the power, the display shows: “2-WAY X ’ OVER” or “3-WAY X ’ OVER”

“PRESS” “VOLUME KNOB”

“TOCONFIRM” Press the volume knob to acknowledge in order to proceed to the next desired operation. CAUTION Select a crossover type according to how the speakers are connected. (Page26, 27) If you select a wrong type:

The speakers may damage.

The output sound level may be extremely high or low. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 6KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 6 9/8/2021 4:28:09 PM9/8/2021 4:28:09 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Digital Radio About DAB (Digital Audio Broadcasting) DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called “services”) to form one “ensemble.” The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information. Preparation: 1 Connect the supplied DAB antenna to the DAB antenna jack. (Page27) 2 Press B SRC repeatedly to select DIGITAL AUDIO. 3 Press and hold (LIST UPDATE) to start the Service List update. “LIST UPDATE” appears and update starts. “UPDATED” appears when update completes. Updates take up to 3 minutes. No interruption (such as traffic information) is possible during updates.

To cancel the Service List update: Press and hold (LIST UPDATE) again.

“DIGITAL” indicator lights up when receiving DAB digital signal and flashes when receiving a RDS signal.

The unit switches to DAB alarm automatically when receiving an alarm signal from DAB broadcast. Search for an ensemble

Press B SRC repeatedly to select DIGITAL AUDIO. 2 Press BAND repeatedly to select DB1/DB2/DB3. 3 Press and hold S / T to search for an ensemble. 4 Press S / T to select an ensemble, service or component to listen. You can store up to 18 services.

To store a service: Press and hold one of the number buttons (1 to 6).

To select a stored service: Press one of the number buttons (1 to 6). Select a service

Press to enter Service Search mode. 2 Turn the volume knob to select a service, then press the knob. To cancel the Service Search mode, press again. Select a service by name

Press to enter Service Search mode. 2 Turn the volume knob quickly to enter Alphabet Search mode. 3 Turn the volume knob or press S / T to select the character to be searched for.

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [TUNER SETTING] [SEEK MODE] Selects the searching method for

buttons when pressed. [AUTO1]: Select an ensemble, service or component. Pressing and holding

automatically search for an ensemble. ; [AUTO2]: Search for a preset service. ; [MANUAL]: Select an ensemble, service or component. Pressing and holding

manually search for an ensemble. [AF SET] [ON]: While listening to DAB: Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again. While listening to FM: Automatically switch to DIGITAL AUDIO source broadcasting the same program (if available). ; [OFF]: Cancels. [TI] [ON]: Allows the unit to temporarily switch to Traffic Information if available (“TI” indicator lights up). ; [OFF]: Cancels. [PTY SEARCH]

Turn the volume knob to select the available Program Type (see “Available Program Type for [PTY SEARCH]” on page 9), then press the knob.

to start searching. [ASW SELECT] [TRAVEL], [WARNINGS], [NEWS], [WEATHER], [EVENT], [SPECIAL], [RAD INFO], [SPORTS], [FINANCE]: Turn the volume knob to make a selection, then press the knob.

” appears in front of the activated announcement type. Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type.

Multiple announcement can be activated simultaneously.

To deactivate, press the volume knob again (“ ” goes off). [LIST UPDATE] [AUTO]: Automatically update the DAB Service List when the power is turned on. ; [MANUAL]: Updates the DAB Service List by pressing and holding (LIST UPDATE). [PTY WATCH]

The unit automatically switch from any source to Digital Radio ensembles broadcasting the selected type of program. Program Type: [NEWS], [AFFAIRS], [INFO], [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS], [OTHER M] (music),

[WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION], [PHONE

IN], [TRAVEL], [LEISURE], [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music), [DOCUMENT] [OFF]: Cancels.

Press the volume knob to enter PTY language selection.

Turn the volume knob to select the PTY language ([ENGLISH]/ [FRENCH]/[GERMAN]), then press the knob. [RELATED SERV] [ON]: Enable Soft-Link function to switch to an alternative service which is different audio program from the current audio program. ; [OFF]: Disable. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 8KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 8 9/8/2021 4:28:09 PM9/8/2021 4:28:09 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) [CLOCK] [TIME SYNC] [ON]: Synchronizes the unit’s time to the Digital Radio station time. ; [OFF]: Cancels.

If the volume is adjusted during reception of traffic information, announcement, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, announcement, alarm or news bulletin is turned on. Available Program Type for [PTY SEARCH] [SPEECH]: [NEWS], [AFFAIRS], [INFO] (information), [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION],

[PHONEIN], [TRAVEL], [LEISURE], [DOCUMENT]

[MUSIC]: [POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS], [OTHER M] (music), [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music) The unit will search for the Program Type categorized under [SPEECH]

“ST” indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast. Search for a station

Press B SRC repeatedly to select RADIO. 2 Press BAND repeatedly to select FM1/FM2/FM3/MW/LW. 3 Press S / T to search for a station. You can store up to 18 stations for FM and 6 stations for MW/LW.

To store a station: Press and hold one of the number buttons (1 to 6).

To select a stored station: Press one of the number buttons (1 to 6). Other settings

2 Turn the volume knob to select an item (page 10), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 9KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 9 9/8/2021 4:28:09 PM9/8/2021 4:28:09 PM10 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Default: [XX] [TUNER SETTING] [SEEK MODE] Selects the searching method for

buttons when pressed. [AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station. [LOCAL SEEK] [ON]: Searches only stations with good reception. ; [OFF]: Cancels.

Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again. [AUTO MEMORY] [YES]: Automatically starts memorizing 6 stations with good reception. ; [NO]: Cancels.

Selectable only if [NORMAL] is selected for [PRESET TYPE]. (Page 5) [MONO SET] [ON]: Improves the FM reception, but the stereo effect will be lost. ; [OFF]: Cancels. [NEWS SET] [ON]: The unit will temporarily switch to News Programme if available. ; [OFF]: Cancels. [REGIONAL] [ON]: Switches to another station only in the specific region using the “AF” control. ; [OFF]: Cancels. [AF SET] [ON]: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; [OFF]: Cancels. [TI] [ON]: Allows the unit to temporarily switch to Traffic Information if available (“TI” indicator lights up). ; [OFF]: Cancels.

[TI] in MW/LW band is for enabling traffic interruption to DIGITAL AUDIO source only. [PTY SEARCH]

Turn the volume knob to select the available Program Type (see the following “Available Program Type for [PTY SEARCH]”), then press the knob.

to start searching. [CLOCK] [TIME SYNC] [ON]: Synchronizes the unit’s time to the Radio Data System station time. ; [OFF]: Cancels.

selectable only when the band is FM1/FM2/FM3.

If the volume is adjusted during reception of traffic information, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, alarm or news bulletin is turned on. Available Program Type for [PTY SEARCH] [SPEECH]: [NEWS], [AFFAIRS], [INFO] (information), [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION],

[PHONE IN], [TRAVEL], [LEISURE], [DOCUMENT]

[MUSIC] if selected. Analog Radio KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 10KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 10 9/8/2021 4:28:10 PM9/8/2021 4:28:10 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) USB Connect a USB device USB input terminal USB type A cable* (general products) USB device The source changes to USB automatically and playback starts.

Do not leave the cable inside the car when not in use. Basic operations Selectable source: USB For playable audio file, see “Playable files” on page 30. To On the faceplate Play back/pause Press 6 IW. Reverse/Fast-forward Press and hold S / T. Select a file Press S / T. Select a folder Press 2 / 1 . Repeat play Press 4 repeatedly. [FILE REPEAT]

[ALL REPEAT] : MP3/ WMA/WAV/FLAC file Random play Press 3 repeatedly. [FOLDERRANDOM]

[RANDOM OFF] : MP3/WMA/ WAV/FLAC file Press and hold 3 to select [ALL RANDOM]

Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back.

Selected internal or external memory of a smartphone (Mass Storage Class).

Selected drive of a multiple drive device. (This unit can support multiple drive device of up to 4 drives. However, this unit may take some time to read if three or more cards are connected.) KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 11KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 11 9/8/2021 4:28:10 PM9/8/2021 4:28:10 PM12 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) USB You can also select the music drive from the [FUNCTION] menu. 1 Press the volume knob to enter [FUNCTION]

[DRIVE 4] ) is selected automatically and playback starts. 5 Repeat step 1 to step 4 to select the following drives. 6 Press and hold to exit. To return to the previous setting item, press

Select a file to play From a folder or list

Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Selected file starts playing. Quick search If you have many files, you can search through them quickly. 1 Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob quickly to browse through the list quickly. 4 Turn the volume knob to select a file, then press the knob. Selected file starts playing.

You can listen to music from a portable audio player via the auxiliary input jack. Preparation: Select [ON] for [BUILT-IN AUX]

Connect a portable audio player (commercially available). Portable audio player

3.5 mm stereo mini plug with “L” shaped connector

(commercially available) Auxiliary input jack 2 Press B SRC repeatedly to select AUX. 3 Turn on the portable audio player and start playback. Set the name of the external device While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]

[TV] 5 Press and hold to exit. To return to the previous setting item, press

AUX KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 12KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 12 9/8/2021 4:28:10 PM9/8/2021 4:28:10 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) KENWOOD Remote Application You can control the KENWOOD car receiver from Android device (via Bluetooth) using KENWOOD Remote application.

For more information, visit <https://www.kenwood.com/cs/ce/>. Preparation: Install the latest version of KENWOOD Remote application on your device before connecting. Start using KENWOOD Remote application

Start up the KENWOOD Remote application on your device. 2 Connect your device. Pair the Android device with this unit via Bluetooth. (Page 14) 3 Select the device to use from the [FUNCTION] menu. See the following “Settings to use KENWOOD Remote application”. Settings to use KENWOOD Remote application

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [REMOTE APP] [ANDROID LIST] Selects the Android device to use from the list. [STATUS] Shows the status of the selected device. [ANDROID CONNECTED]: You are able to use the application using the Android device connected via Bluetooth. [ANDROID NOT CONNECTED]: No Android device is connected to use the application.

Depending on the Bluetooth version, operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit.

Be sure to turn on the Bluetooth function of the device to make the following operations.

Signal conditions vary depending on the surroundings. Bluetooth — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) Connect the microphone Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. Microphone input jack Microphone (supplied) Rear panel Bluetooth® KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 13KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 13 9/8/2021 4:28:10 PM9/8/2021 4:28:10 PM14 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Pair and connect a Bluetooth device for the first time

Press B SRC to turn on the unit. 2 Search and select the name of your receiver (“KMM-BT408DAB”) on the Bluetooth device. “PAIRING” “PASS XXXXXX” “Device name” “PRESS” “VOLUME KNOB” appears on the display.

For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed. Once pairing is completed, Bluetooth connection is established automatically.

“BT1” and/or “BT2” indicator on the display window lights up.

This unit supports Secure Simple Pairing (SSP).

Up to five devices can be registered (paired) in total.

Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see [DEVICE DELETE] on page17.

A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. To connect or disconnect the registered device, see [PHONE SELECT]

[BT MODE] . (Page 17) However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page18)

Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.

Refer to the instruction manual of the Bluetooth device for more information. Bluetooth — Mobile phone Receive a call When there is an incoming call:

The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (Page15) During a call:

If you turn off the unit or detach the faceplate, Bluetooth is disconnected. The following operations may differ or be unavailable depending on the connected phone. To On the faceplate First incoming call... Answer a call Press or the volume knob or one of the number buttons (1 to 6). Reject a call Press

While talking on the first incoming call... Answer another incoming call and hold the current call Press

Reject another incoming call Press

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Bluetooth® While having two active calls... End current call and activate held call Press

Swap between the current call and held call Press

Adjust the phone volume*1 [00]

Turn the volume knob during a call. Switch between hands-free and private talk modes*2 Press 6 IW during a call. *1 This adjustment will not affect the volume of the other sources. *2 Operations may vary according to the connected Bluetooth device. Improve the voice quality While talking on the phone... 1 Press the volume knob to enter [FUNCTION]

Default: [XX] [MIC GAIN] [–10] to [+10] ([–4]): The sensitivity of the microphone increases as the number increases. [NR LEVEL] [LEVEL –5] to [LEVEL +5] ([LEVEL 0]): Adjust the noise reduction level until the least noise is being heard during a phone conversation. [ECHO CANCEL] [LEVEL –5] to [LEVEL +5] ([LEVEL 0]): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

Call quality may depend on mobile phone. Make the setting for answering a call

[30] , or select [OFF] to cancels. (Default: [OFF]

5 Press and hold to exit. To return to the previous setting item, press

Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. “(First device name)” appears.

If two Bluetooth phones are connected, press again to switch to the other phone. “(Second device name)” appears. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

[CALL HISTORY] (Applicable only if the phone supports PBAP.)

“I” indicates call received, “O“ indicates call made, “M” indicates call missed.

Press DISP to change the display category (NUMBER or NAME).

“NO DATA” appears if there is no recorded call history or call number. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 15KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 15 9/8/2021 4:28:10 PM9/8/2021 4:28:10 PM16 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

Press the volume knob to call. [PHONE BOOK] (Applicable only if the phone supports PBAP.)

Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJK) appears.

, then press the knob. Select “1” to search with numbers and select “ ” to search with symbols.

For using phonebook with this unit, make sure to allow access to or transfer from your smartphone. Depending on the connected phone, the process may be different.

Contacts are categorized as: HM (home), OF (office), MO (mobile), OT (other), GE (general)

This unit can display only non-accent letters. (Accent letters such as “Ú” are shown as “U”.) [NUMBER DIAL]

Turn the volume knob to select a number (0 to 9) or character ( , #, +).

to move the entry position. Repeat step 1 and step 2 until you finish entering the phone number.

Press the volume knob to call. [VOICE] Speak the name of the contact you want to call or the voice command to control the phone functions. (See also the following “Make a call using voice recognition”.) [LOW]/[MID]/[FULL]: Shows the strength of the battery.* [NO SIGNAL]/[LOW]/[MID]/[MAX]: Shows the strength of the current received signal.*

Functionality depends on the type of the phone used. Bluetooth® Make a call using voice recognition

Press and hold to activate the voice recognition of the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details. Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [CALL HISTORY]

[NUMBERDIAL] , then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “STORED” appears when the contact is stored. To erase a contact from the preset memory, select [NUMBER DIAL] in step 2, store a blank number in step 3 and proceed to step 4. Make a call to a registered number

Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call. “NO MEMORY” appears if there is no contact stored. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 16KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 16 9/8/2021 4:28:10 PM9/8/2021 4:28:10 PMENGLISH

Default: [XX] [BT MODE] [PHONE SELECT] Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected.

” appears in front of the current playback audio device.

You can connect a maximum of two Bluetooth phones and one Bluetooth audio device at a time. [AUDIO SELECT] [DEVICE DELETE]

Turn the volume knob to select a device to delete, then press the knob.

to move the entry position. Repeat step 1 and step 2 until you finish entering the PIN code.

Press the volume knob to confirm. [RECONNECT] [ON]: The unit is automatically reconnect when the last connected Bluetooth device is within the connectable range. ; [OFF]: Cancels. [INITIALIZE] [YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels. Bluetooth test mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

Make sure there is no Bluetooth device paired. 1 Press and hold . “PLEASE PAIR YOUR PHONE PIN 0000” appears on the display. 2 Search and select the name of your receiver (“KMM-BT408DAB”) on the Bluetooth device. 3 Operate the Bluetooth device to confirm pairing. “TESTING” flashes on the display. The connectivity result (OK or NG) appears after the test. PAIRING: Pairing status HF CNT: Hands-Free Profile (HFP) compatibility AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility PB DL: Phonebook Access profile (PBAP) compatibility To cancel test mode, press and hold B SRC to turn off the unit. Bluetooth — Audio

Operations and display indications may differ according to their availability on the connected device.

Depending on the connected device, some features may not work with your device. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 17KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 17 9/8/2021 4:28:10 PM9/8/2021 4:28:10 PM18 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Bluetooth® While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. Listen to the audio player via Bluetooth

Press B SRC repeatedly to select BTAUDIO.

Pressing enters BT AUDIO directly. 2 Operate the audio player via Bluetooth to start playback. To On the faceplate Play back/pause Press 6 IW. Select group or folder Press 2 / 1 . Reverse skip/Forward skip Press S / T. Reverse/Fast-forward Press and hold S / T. Repeat play Press 4 repeatedly. [ALLREPEAT]

[REPEATOFF] Random play Press and hold 3 to select [ALLRANDOM]

Press 3 to select [RANDOMOFF]. Select a file from a folder/list Refer to “Select a file to play” on page 12. Switch between connected Bluetooth audio devices Press 5. (Pressing the “Play” key on the connected device itself also causes switching of sound output from the device.) Audio Settings 1 Press the volume knob to enter [FUNCTION]

Default: [XX] [AUDIO CONTROL] [SUB-W LEVEL] [LEVEL –50] to [LEVEL +10] ([LEVEL 0]): Adjusts the subwoofer output level. [EASYEQ] Adjusts your own sound settings.

The settings are stored to [USER] in [PRESET EQ].

The settings made may affect the current settings of [MANUAL EQ]. [SW]: [LEVEL –50] to [LEVEL +10] (Default: [LEVEL 0] [BASS]: [LEVEL –9] to [LEVEL +9] [LEVEL 0] [MID]: [LEVEL –9] to [LEVEL +9] [LEVEL 0] [TRE]: [LEVEL –9] to [LEVEL +9] [LEVEL 0]) KMM-BT408DAB_E_B5A-3856-00_EN_3rd Draft.indd 18KMM-BT408DAB_E_B5A-3856-00_EN_3rd Draft.indd 18 3/11/2022 12:01:09 PM3/11/2022 12:01:09 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) [MANUAL EQ] Adjusts your own sound settings for each source.

The settings are stored to [USER] in [PRESET EQ].

The settings made may affect the current settings of [EASYEQ]. [62.5HZ] [LEVEL] [LEVEL–9] to [LEVEL+9] ([LEVEL0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) [BASS EXTEND] [ON]: Turns on the extended bass. ; [OFF]: Cancels. [100HZ]/[160HZ]/ [250HZ]/[400HZ]/ [630HZ]/[1KHZ]/ [1.6KHZ]/[2.5KHZ]/ [4KHZ]/[6.3KHZ]/ [10KHZ]/[16KHZ] [LEVEL –9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) [Q FACTOR] [1.35]/[1.50]/[2.00]: Adjusts the quality factor. [PRESET EQ] [NATURAL]/[ROCK]/[POPS]/[EASY]/[TOP40]/[JAZZ]/[POWERFUL]/ [USER]: Selects a preset equalizer suitable to the music genre.

When the display demonstration is activated ([ON] is selected initially, page 23), [ROCK] is automatically selected as the [PRESETEQ]. – If you set [DEMO MODE] to [OFF] (page 23), [NATURAL] is selected as the default setting for [PRESET EQ]. (Select [USER] to use the settings made in [EASY EQ] or [MANUALEQ].) [BASS BOOST] [LV1] to [LV5]: Selects your preferred bass boost level. ; [OFF]: Cancels. [LOUDNESS] [LV1]/[LV2]: Selects your preferred low or high frequencies boost to produce a well-balanced sound at low volume. ; [OFF]: Cancels. [SUBWOOFER SET] [ON]: Turns on the subwoofer output. ; [OFF]: Cancels. [FADER] (Not applicable if 3-way crossover is selected.) (Page 6) [R15] to [F15] ([0]): Adjusts the front and rear speaker output balance. Audio Settings [BALANCE] [L15] to [R15] ([0]): Adjusts the left and right speaker output balance. [VOLUME OFFSET] [–15] to [+6] ([0]): Presets the initial volume level of each source by comparing to the FM volume level. (Before adjustment, select the source you want to adjust.) [SOUND EFFECT] [SOUND RECNSTR] (Sound reconstruction) (Not applicable for RADIO source, DIGITAL AUDIO source and AUX source.) [ON]: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; [OFF]: Cancels. [SPACE ENHANCE] (Not applicable for RADIO source and DIGITAL AUDIO source.) [SML]/[MED]/[LRG]: Virtually enhances the sound space. ; [OFF]: Cancels. [SND REALIZER] [LV1]/[LV2]/[LV3]: Virtually makes the sound more realistic. ; [OFF]: Cancels. [STAGE EQ] [LOW]/[MID]/[HI]: Virtually adjusts the sound position heard from the speakers. ; [OFF]: Cancels. [DRIVE EQ] [ON]: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; [OFF]: Cancels. [SPEAKER SIZE] Depending on the crossover type you have selected (see “Change the crossover type” on page 6), 2-way crossover or 3-way crossover setting items will be shown. (See “Crossover settings” on page 20.) By default, 2-way crossover type is selected. [X ‘ OVER] [DTA SETTINGS] For settings, see “Digital Time Alignment settings” on page 21. [CAR SETTINGS]

For 2-way crossover: [SUB-W LEVEL]

[SUBWOOFER SET] is selectable only if [SWITCH PREOUT] is set to [SUB-W] . (Page 5)

[SUB-W LEVEL] is selectable only when [SUBWOOFER SET] is set to [ON]

KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 19KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 19 9/8/2021 4:28:10 PM9/8/2021 4:28:10 PM20 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Audio Settings Crossover settings Below are the available setting items for 2-way crossover and 3-way crossover. SPEAKER SIZE Selects according to the connected speaker size for optimum performance.

The frequency and slope settings are automatically set for the crossover of the selected speaker.

If [NONE] is selected for the following speaker in [SPEAKER SIZE] , the [X ‘ OVER] setting of the selected speaker is not available. – 2-way crossover: [TWEETER]

[SUBWOOFER] – 3-way crossover: [WOOFER] X ‘ OVER (crossover)

[LPFFRQ] : Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).

[THROUGH] is selected, all signals are sent to the selected speakers.

Adjusts the crossover slope. Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.

[PHASE] : Selects the phase of the speaker output to be in line with the other speaker output.

[GAIN LEFT] [–8] to [0] [GAIN RIGHT] [–8] to [0]

[FRONT HPF] [F-HPF FRQ]

[F-HPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB] [F-HPF GAIN] [–8] to [0]

[REAR HPF] [R-HPF FRQ]

Configure the settings for the rear speakers similarly to the front speakers. [R-HPF SLOPE] [R-HPF GAIN] KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 20KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 20 9/8/2021 4:28:10 PM9/8/2021 4:28:10 PMENGLISH

[SPEAKER SIZE] and [SUBWOOFER LPF]

selectable only when [SWITCH PREOUT] is set to [SUB-W] (page5) and [SUBWOOFERSET] is set to [ON] (page19). 3-way crossover setting items [SPEAKER SIZE] [TWEETER]

[HPF SLOPE] [–6DB]/[–12DB] [LPF FRQ]

[SPEAKER SIZE] and [WOOFER]

[X’OVER] is selectable only when [SUBWOOFER SET] is set to [ON] . (Page19) Digital Time Alignment settings Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

For more information, see “Determining the delay time automatically” on page22. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 21KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 21 9/8/2021 4:28:11 PM9/8/2021 4:28:11 PM22 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Audio Settings [DTA SETTINGS] [POSITION] Selects your listening position (reference point). [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; [FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats

[FRONT ALL] is displayed only when [2-WAY X’OVER] is selected. (Page 6) [DISTANCE] [0CM] to [610CM]: Fine adjust the distance to compensate. (Before making an adjustment, select the speaker you want to adjust.) [GAIN] [–8DB] to [0DB]: Fine adjust the output volume of the selected speaker. (Before making an adjustment, select the speaker you want to adjust.) [DTA RESET] [YES]: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default. ; [NO]: Cancels. [CAR SETTINGS] Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS]. [CAR TYPE] [COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/ [MINIVAN(LONG)]: Selects the type of vehicle. ; [OFF]: Not compensating. [R-SP LOCATION] Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).

[DOOR]/[REAR DECK]: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV].

[2ND ROW]/[3RD ROW]: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)].

Before making an adjustment for [DISTANCE] and [GAIN]

select the speaker you want to adjust: When 2-way crossover is selected: [FRONT LEFT]

[SUBWOOFER] – You can only select [REAR LEFT]

[REAR RIGHT] and [SUBWOOFER] if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER]

[SUBWOOFER] is selectable only when [SWITCH PREOUT] is set to [SUB-W] (page5) and [SUBWOOFER SET] is set to [ON] (page19). When 3-way crossover is selected: [TWEETER LEFT]

[WOOFER] – You can only select [WOOFER] if a setting other than [NONE] is selected for [WOOFER]

[CAR SETTINGS] is selectable only if: – 2-way crossover is selected. (Page6) – A setting other than [NONE] is selected for [REAR]

(Page20) Determining the delay time automatically If you specify the distance from the currently set listening position to every speaker, the delay time will be automatically calculated.

Set [POSITION] and determine the listening position as the reference point (the reference point for [FRONT ALL] will be the center between the right and left in the front seats).

Measure the distances from the reference point to the speakers.

Calculate the distance between the furthest speaker (subwoofer on the illustration) and other speakers.

Sets the [DISTANCE] calculated in step 3 for individual speakers.

Adjusts [GAIN] for individual speakers. Example: When [FRONT ALL] is selected as the listening position. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 22KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 22 9/8/2021 4:28:11 PM9/8/2021 4:28:11 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Display Settings Zone identification for brightness setting Set the dimmer Press and hold DISP to turn on or off the dimmer.

Default: [XX] [DISPLAY] [DIMMER] Dims the illumination. [ON]: Dimmer is turned on. [OFF]: Dimmer is turned off. [DIMMER TIME]: Set the time to turn on dimmer and to turn off dimmer.

[DAY]/[NIGHT]: Select day or night.

Select a zone. (See the illustration on left column.)

Not applicable to Dynamic Label display information (page 31) while in DIGITAL AUDIO source. [CLOCK] [CLOCK DISPLAY] [ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels. [DEMO MODE] [ON]: Activates the display demonstration automatically if no operation is done for about 15 seconds. ; [OFF]: Deactivates. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 23KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 23 9/8/2021 4:28:11 PM9/8/2021 4:28:11 PM24 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Installation/Connection This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer. WARNING

The unit can only be used with a 12V DC power supply, negative ground.

Disconnect the battery’s negative terminal before wiring and mounting.

Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

To prevent short circuit: – Insulate unconnected wires with vinyl tape. – Be sure to ground this unit to the car’s chassis again after installation. – Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires. CAUTION

Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

Mount the unit at an angle of less than 30°.

If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

Keep all cables away from heat dissipate metal parts.

After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Part list for installation (A) Faceplate (×1) (B) Trim plate (×1) (C) Mounting sleeve (×1) (D) Wiring harness (×1) (E) Extraction key (×2) Basic procedure

Remove the key from the ignition switch, then disconnect the terminal of the car battery. 2 Install the DAB antenna. See “Installing the DAB antenna” on page 27. 3 Connect the wires properly. See “Wiring connection” on page26. 4 Install the unit to your car. See “Installing the unit (in-dash mounting)” on page 25. 5 Connect the terminal of the car battery. 6 Press B SRC to turn on the power. 7 Detach the faceplate and reset the unit within 5 seconds. (Page3) KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 24KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 24 9/8/2021 4:28:11 PM9/8/2021 4:28:11 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Installing the unit (in-dash mounting)

Do the required wiring. (Page 26) Bend the appropriate tabs to hold the sleeve firmly in place. Hook on the top side Orientate the trim plate as illustrated before fitting. Dashboard of your car Installation/Connection Removing the unit

Detach the faceplate. 2 Remove the trim plate. 3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 25KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 25 9/8/2021 4:28:11 PM9/8/2021 4:28:11 PM26 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Installation/Connection REMOTE CONT

: Rear speaker (right) For 3-way crossover: Tweeter (right)

: Front speaker (right) For 3-way crossover: Mid range speaker (right)

: Front speaker (left) For 3-way crossover: Mid range speaker (left)

: Rear speaker (left) For 3-way crossover: Tweeter (left)

Fuse (10 A) Antenna terminal Blue/White*2 (Power control wire/ Antenna control wire) Light blue/yellow (Steering remote control wire) To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle Brown (Mute control wire) Connect to the device equipped with muting feature to mute this unit If no connections are made, do not let the wire come out from the tab. To the steering wheel remote control adapter If your car does not have an ISO terminal: We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below. UnitVehicle A7 (Red) Ignition wire (Red) A4 (Yellow) Default wiring Battery wire (Yellow) Yellow (A4) Red (Ignition wire) Red (A7) Yellow (Battery wire) ISO connectors NOTE: Total output for Blue/White wire (*1) + (*2) is 12 V 350 mA Wiring connection KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 26KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 26 9/8/2021 4:28:11 PM9/8/2021 4:28:11 PMENGLISH

Output terminals (See the following “Connect external amplifiers via output terminals”.)

DAB antenna jack (Page 7, 30) Connect external amplifiers via output terminals When connecting an external amplifier to the output terminals of this unit, securely connect the amplifier ground wire to the car chassis to prevent damage to the unit. Output terminals 2-way crossover 3-way crossover REAR/SW: Rear/subwoofer output Woofer output Installation/Connection Installing the DAB antenna Connect the supplied DAB antenna to the DAB antenna jack. (See the left column.) For details, see the following. CAUTION

The film antenna (F) is exclusively for use inside the vehicle.

Do not install at the following locations: – where it may block the driver’s view. – where it may obstruct the operation of safety devices such as air bags. – on movable glass surfaces such as the rear hatch. – at side of vehicle (e.g. door, front quarter window). – on rear window.

Signal strength will weaken when installed at the following locations: – on IR reflecting glass or locations covered with mirror type glass film. – where it overlaps with genuine radio antenna (pattern). – where it overlaps with window heating wires. – on glass that blocks radio signals (e.g. IR reflecting glass, thermal insulation glass).

Poor reception may occur: – due to noise when windscreen wiper, air conditioner, or motor is turned on. – depending on the direction of the broadcast station with respect to the vehicle (antenna).

Thoroughly wipe oil and dirt from the pasting surface with the supplied cleaner (I).

Do not bend or damage the film antenna (F).

It may not be possible to install on certain vehicles.

Check the cable routing of the film antenna (F) and amplifier unit (G) before pasting.

Do not apply any glass cleaner after pasting the film antenna (F). KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 27KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 27 9/8/2021 4:28:11 PM9/8/2021 4:28:11 PM28 ENGLISH Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) Installation/Connection Part list for installation (F) Film antenna (×1) (G) Amplifier unit (cable with booster, 3.5 m) (×1) (H) Cable clamper (×3) (I) Cleaner (×1) Determine the antenna installation position

The direction of the film antenna (F) changes depending on whether the film antenna (F) is installed on the right side or left side.

Be sure to check the installation location of film antenna (F) before installing. Film antenna cannot be re-pasted.

Separate from other antennas by at least 100 mm.

Do not paste the amplifier unit (G) on the ceramic line (black part) around the front glass. Because there is not enough adhesion. Installing the antenna on the left side Installing the antenna on the right side (F) (F) (G) (G) Ceramic line (black part) Earth sheet* Earth sheet*

Paste the earth sheet of the amplifier unit (G) on the metal part of the front pillar. CAUTION When installing the antenna cable inside the front pillar with the air bag installed

The front pillar cover is secured with a special clip which may need to be replaced when it is removed. Contact your vehicle dealer for details on removing the front pillar cover and availability of replacement parts. Front pillar Clip

Install the amplifier unit (G) above the air bag so that it does not obstruct the operation of the air bag. (G) Air bag Installation overview The antenna should be installed on the passenger side for safety. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 28KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 28 9/8/2021 4:28:11 PM9/8/2021 4:28:11 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Installation/Connection Antenna installation

Remove the front pillar cover of your car. Front pillar

Clean the windscreen with the supplied cleaner (I). (I) – Wait until the glass surface is completely dry before proceeding. – Warm the surface of the windscreen with defroster if it is cold (during winter).

Remove the separator (tag 1) of film antenna (F) horizontally and paste the antenna on the windscreen. Separator (tag 1) Do not touch the pasting surface (adhesive side) of the film antenna (F).

Rub the film antenna gently onto the windscreen in the direction of the arrow shown to allow it to stick firmly.

Remove the separator (tag 2) of film antenna (F) vertically. (F) Separator (tag 2)

Set the position of the protrusion of the amplifier unit (G) with the

mark on the film antenna (F) and paste. Do not touch the lead terminal or the pasting surface (adhesive side) of the amplifier unit (G).

When installing the antenna on the right side Earth sheet Set the position of the protrusion with

mark Lead contact of the amplifier unit (metal part) Lead terminal of the film antenna (F)

When installing the antenna on the left side (G) (F) Earth sheet KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 29KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 29 9/8/2021 4:28:11 PM9/8/2021 4:28:11 PM30 ENGLISH Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) Installation/Connection References Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab. Be careful not to damage the connector. More information For: – Latest firmware updates and latest compatible item list – KENWOOD original application – Any other latest information Visit <https://www.kenwood.com/cs/ce/>. Playable files

USB mass storage class device: Playable audio file: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac) Playable file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices.

For detailed information and notes about the playable audio files, visit <https://www.kenwood.com/cs/ce/audiofile/>. About USB devices

You cannot connect a USB device via a USB hub.

Connecting a cable whose total length is longer than 5 m may result in abnormal playback.

This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A. Connector (on the reverse side of the faceplate)

Remove the film covering the earth sheet and paste the earth sheet on the metal part of the vehicle. Provide sufficient leeway for the earth sheet so that it does not interfere with the interior parts (front pillar cover). Also take care that the interior parts do not interfere with the amplifier unit (G). (G) Windscreen Earth sheet Front pillar cover

Wire the antenna cables. Use cable clamper (H) to secure the antenna to the pillar at several positions.

Attach the front pillar cover back to its original position. Be sure not to damage the earth sheet and amplifier unit (G) when covering.

Connect the amplifier unit (G) to the DAB antenna jack on the rear of the unit. Note: Make sure

is set to [ON] on the [FUNCTION] menu in standby mode. (Page 5) [ON] is selected initially. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 30KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 30 9/8/2021 4:28:12 PM9/8/2021 4:28:12 PMENGLISH

If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name) appears or display will be blank. Main display Source name Display information: Main display STANDBY Source name/Clock Clock back to the beginning DIGITAL AUDIO Source name/Clock Service label Ensemble label Dynamic label Song title/Artist Next program Signal level Clock back to the beginning RADIO Source name/Clock Frequency Clock back to the beginning FM Radio Data System stations only: Source name/Clock Station name/Program type Radio text Radio text+ Radio text+ song title/Radio text+ artist Frequency Clock back to the beginning USB For MP3/WMA/WAV/FLAC files: Source name/Clock Song title/Artist Album title/Artist Folder name File name Playing time Clock back to the beginning BT AUDIO Source name/Clock Song title/Artist Album title/Artist Playing time Clock back to the beginning AUX Source name/Clock Clock back to the beginning Troubleshooting Symptom Remedy General Sound cannot be heard. • Adjust the volume to the optimum level.

Check the cords and connections.

“MISWIRING CHECK WIRING

THEN PWR ON” appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

“PROTECTING SEND SERVICE”

appears. Send the unit to the nearest service center. Source cannot be selected. Check the [SOURCESELECT] setting. (Page 5)

Sound cannot be heard.

The unit does not turn on.

Information shown on the display is incorrect. Clean the connectors. (Page 30) The unit does not work at all. Reset the unit. (Page 3) Correct characters are not displayed.

This unit can only display uppercase letters, numbers, and a limited number of symbols.

Depending on the display language you have selected (page 6), some characters may not be displayed correctly. Digital Radio DAB reception is poor. Make sure [ON] is selected for [DAB ANT POWER]. (Page 5) “DAB ANT ERR” Check the DAB antenna. If a passive antenna (without a booster) is used, set [DAB ANT POWER] to [OFF]. (Page 5) “RELATED SERV FOUND” • Press the volume knob to activate Soft-Link. (Page 8)

Press to cancel. KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 31KMM-BT408DAB_E_B5A-3856-00_EN_1st Draft.indd 31 9/8/2021 4:28:12 PM9/8/2021 4:28:12 PM32 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy Analog Radio

Radio reception is poor.

Static noise while listening to the radio. Connect the antenna firmly. USB Playback order is not as intended. USB device, the folders are played in the order of creation (date and time). The files within each folder are played in the order of the file name (alphabet). Elapsed playing time is not correct. This depends on the recording process earlier. “READING” keeps flashing. • Do not use too many hierarchical levels and folders.

Reattach the device. “UNSUPPORTED DEVICE” appears.

Check whether the connected USB device is compatible with this unit and ensure the file systems are in supported formats. (Page 30)

Reattach the USB device. “UNRESPONSIVE DEVICE” appears. Make sure the USB device is not malfunction and reattach the USB device.

SUPPORTED” appears. This unit cannot support a USB device connected via a USB hub.

The source does not change to “USB” when you connect a USB device while listening to another source.

“USB ERROR” appears. The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device. “NA FILE” Make sure the media contain supported audio files. (Page 30) “COPY PRO” A copy-protected file is played. Troubleshooting Symptom Remedy USB “NO DEVICE” Connect a device and change the source to USB again. “NO MUSIC” Connect a device that contains playable audio files. Bluetooth® No Bluetooth device is detected.

Search from the Bluetooth device again.

Reset the unit. (Page 3) Bluetooth pairing cannot be made.

Make sure you have entered the same PIN code to both the unit and Bluetooth device.

Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (Page 14) Echo or noise is heard during a phone conversation.

Adjust the microphone unit’s position. (Page 13)

Check the [ECHO CANCEL] setting. (Page 15) Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth device.

Move the car to a place where you can get a better signal reception. Phone call sound cannot be heard from the car speakers.

during a call to switch between hands-free and private talk mode. (Page 15) Voice calling method is not successful.

Use voice calling method in a more quiet environment.

Reduce the distance from the microphone when you speak the name.

Make sure the same voice as the registered voice tag is used. Sound is being interrupted or skipped during playback of a Bluetooth audio player.

Reduce the distance between the unit and the Bluetooth audio player.

Turn off, then turn on the unit and try to connect again.

Other Bluetooth devices might be trying to connect to the unit. KMM-BT408DAB_E_B5A-3856-00_EN_3rd Draft.indd 32KMM-BT408DAB_E_B5A-3856-00_EN_3rd Draft.indd 32 1/25/2022 3:29:18 PM1/25/2022 3:29:18 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Troubleshooting Symptom Remedy Bluetooth® The connected Bluetooth audio player cannot be controlled.

Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

Disconnect and connect the Bluetooth player again. “NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer. “NO ENTRY” There is no registered device connected/found via Bluetooth. “ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “NO INFO”/“NO DATA” Bluetooth device cannot get the contact information.

“BT ERROR” Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center. “SWITCHING NG” The connected phones might not support phone switching feature. The Bluetooth connection between the Bluetooth device and the unit is unstable. Delete the unused registered Bluetooth device from the unit. (Page 17) Specifications Digital radio DAB Frequency Range Band III:

6.2 dBf (0.56 μV/75 Ω)

Quieting Sensitivity (DIN S/N = 46 dB)

(AM) Frequency Range 531 kHz — 1 611 kHz (9 kHz step) Usable Sensitivity (S/N = 20 dB)

Frequency Response (±1 dB) 20 Hz — 20 kHz Signal-to-Noise Ratio (1 kHz) 98 dB Dynamic Range 93 dB Channel Separation 91 dB MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio WAV Decode Linear-PCM FLAC Decode FLAC file (Up to 96 kHz/24 bit) Auxiliary Frequency Response (±3 dB) 20 Hz — 20 kHz Input Maximum Voltage 1 000 mV Input Impedance 30 kΩ Bluetooth Version Bluetooth 4.2 Frequency Range 2.402 GHz — 2.480 GHz RF Output Power (E.I.R.P.) +4 dBm (MAX), Power Class 2 Maximum Communication Range Line of sight approx. 10 m (32.8 ft) Profile HFP 1.7.1 (Hands-Free Profile) SPP (Serial Port Profile) PBAP (Phonebook Access Profile) A2DP (Advanced Audio Distribution Profile) AVRCP 1.6.1 (Audio/Video Remote Control Profile) Specifications Audio Maximum Output Power 50 W × 4 Full Bandwidth Power (at less than 1 % THD) 22 W × 4 Speaker Impedance 4 Ω — 8 Ω Tone Action Band 1: 62.5 Hz ±9 dB Band 2: 100 Hz ±9 dB Band 3: 160 Hz ±9 dB Band 4: 250 Hz ±9 dB Band 5: 400 Hz ±9 dB Band 6: 630 Hz ±9 dB Band 7: 1 kHz ±9 dB Band 8: 1.6 kHz ±9 dB Band 9: 2.5 kHz ±9 dB Band 10: 4 kHz ±9 dB Band 11: 6.3 kHz ±9 dB Band 12: 10 kHz ±9 dB Band 13: 16 kHz ±9 dB Preout Level/Load 2 500 mV/10 kΩ Preout Impedance ≤ 600 Ω General Operating Voltage 12 V DC car battery Installation Size (W × H × D) 182 mm × 53 mm × 100 mm Net Weight (includes Trim plate and Mounting sleeve)

“PRESS” “VOLUME KNOB” “TO CONFIRM”

[SUBWOOFER] – Transition 3 voies: [WOOFER] X ‘ OVER (transition)

[FRONT HPF] [F-HPF FRQ]

[HPF SLOPE] [–6DB]/[–12DB] [LPF FRQ]

“PRESS” “VOLUME KNOB”

[FRONT HPF] [F-HPF FRQ]

[HPF SLOPE] [–6DB]/[–12DB] [LPF FRQ]

Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Android is a trademark of Google LLC.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. KMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd 2KMM-BT408DAB_E_B5A-3856-00_Cover_1st Draft.indd 2 9/8/2021 3:13:54 PM9/8/2021 3:13:54 PM
