USER MANUAL Arctis Nova Pro Wireless STEELSERIES

PRODUCT INFORMATION GUIDETABLE OF CONTENTS

PlayStation 5, PlayStation 4 Nintendo Switch (TV Mode) Mobile (with USB-C) Mac SOFTWARE Use Engine inside SteelSeries GG to set custom equalizer settings and control your mic. GG also has other amazing apps like Sonar, a breakthrough in gaming sound, that allows you to hear what matters most, through cutting-edge audio tools. DOWNLOAD NOW steelseri.es/gg

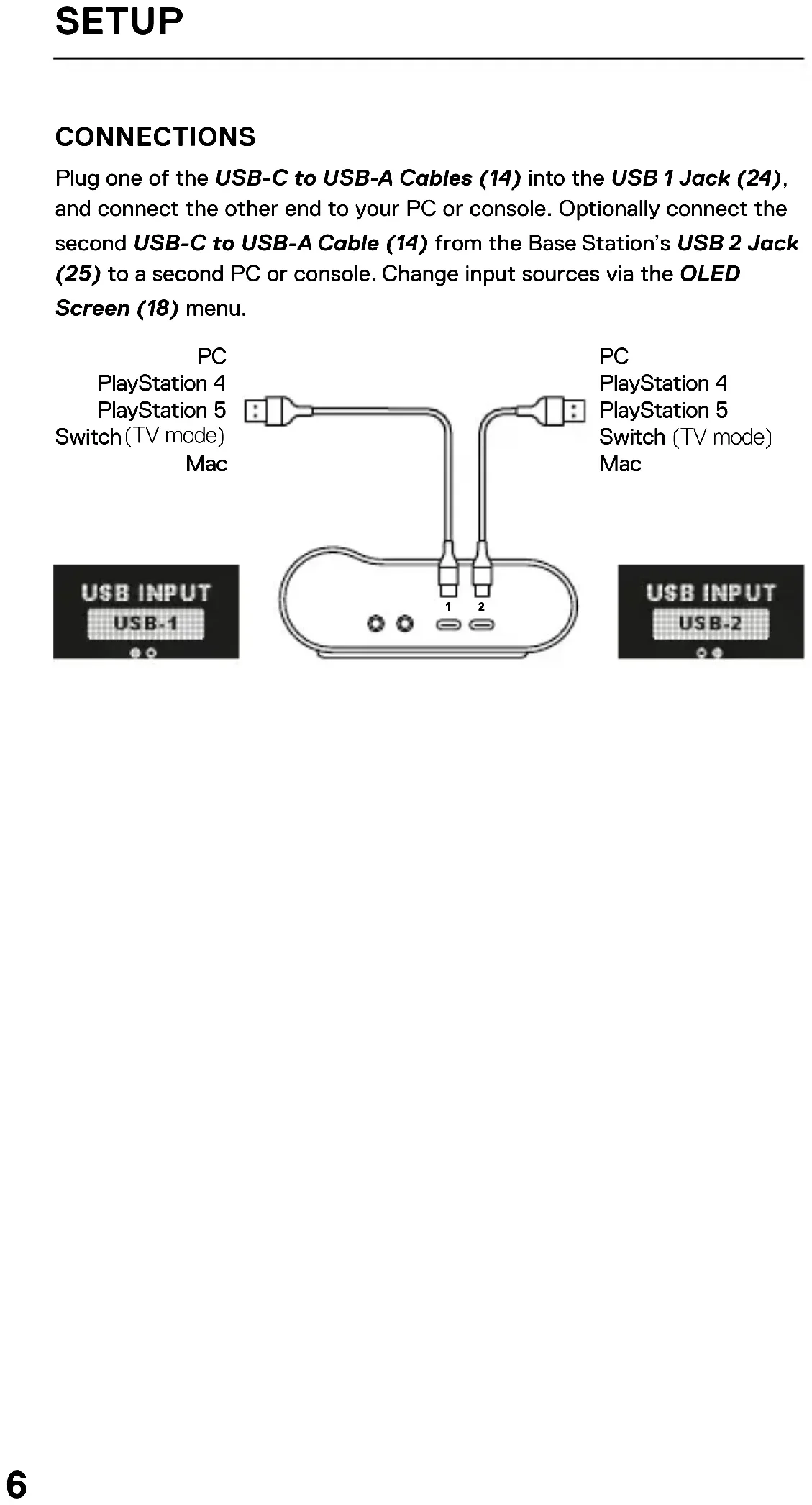

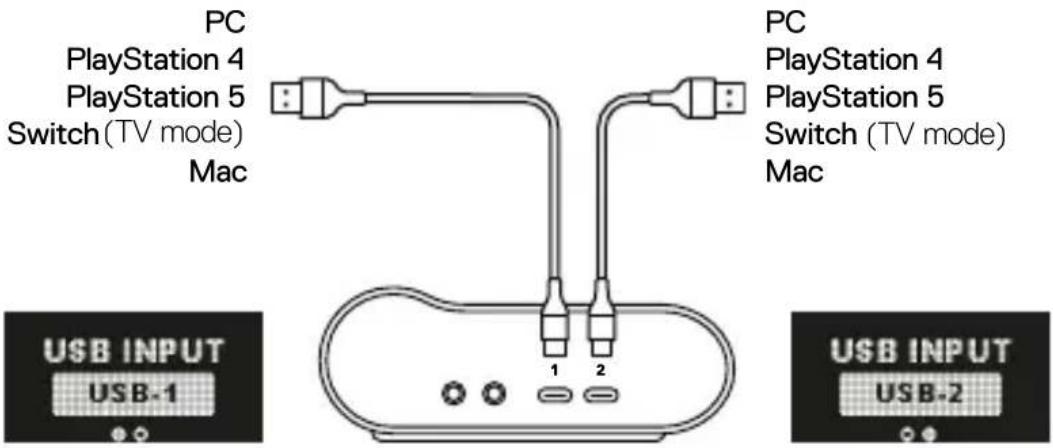

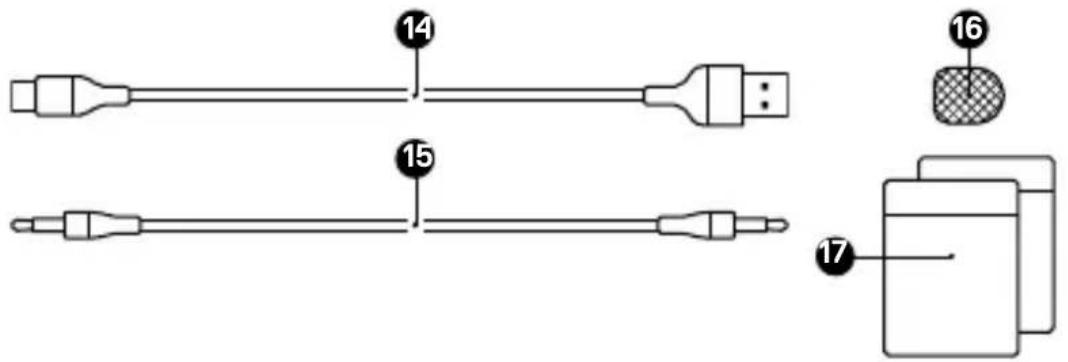

*Find accessories and replacement parts at steelseries.com/gaming-accessories6 SETUP CONNECTIONS Plug one of the USB-C to USB-A Cables (14) into the USB 1 Jack (24), and connect the other end to your PC or console. Optionally connect the second USB-C to USB-A Cable (14) from the Base Station’s USB 2 Jack (25) to a second PC or console. Change input sources via the OLED Screen (18) menu.

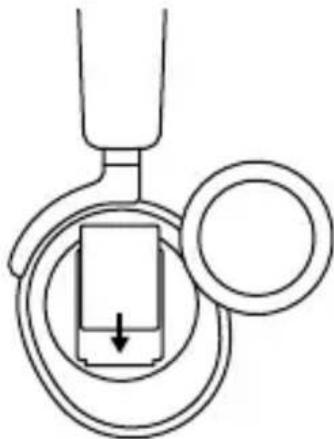

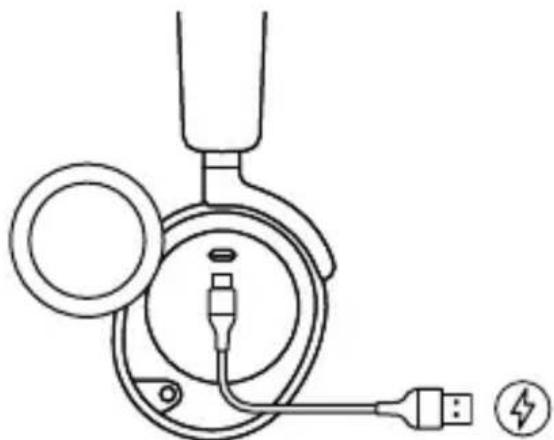

To charge the second Lithium-Ion Battery (17) place it in the Battery Charging Slot (21) of the base station. CHANGING BATTERIES To change the battery, rst remove the right-side Removable Speaker Plate (7) by lifting from the groove on the bottom. Then remove the Swappable Battery (10) by pushing downward and out to release. MOBILE CHARGING The USB-C to USB-A Cable (14) can be used to charge the headset while on the go. Remove the left-side Removable Speaker Plate (7), and connect the cable from the Mobile Charging Jack (8) to a USB power source.8

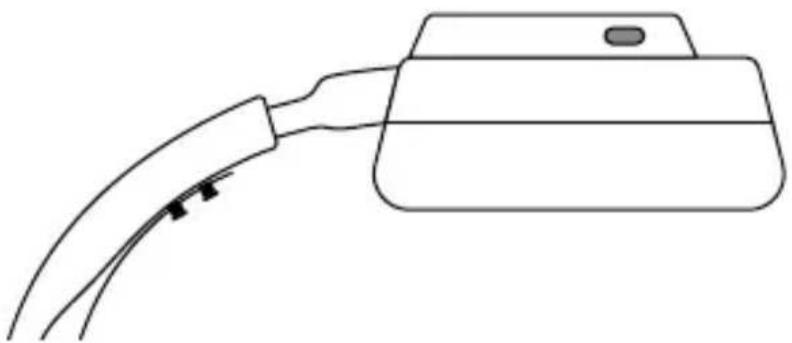

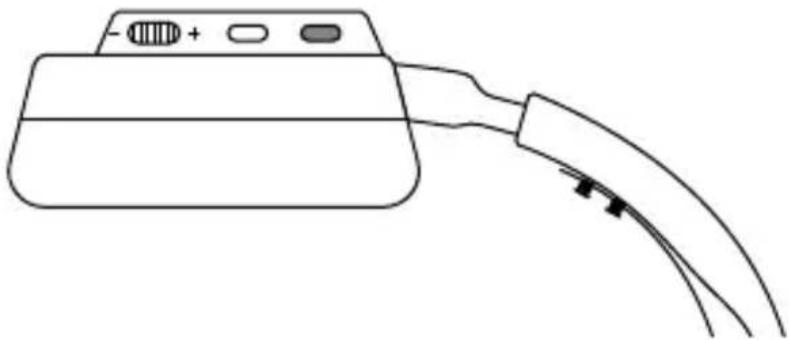

POWER To power the headset on or o press and hold the Power Button (9) for 1 second. PAIRING The headset is already paired to the base station when it arrives. In the event you need to re-pair, open the base station menu, and navigate to the following: Wireless → 2.4 G → 2.4 G Pairing Next, while the headset is powered o, hold the power button for 6 seconds until you hear a beep and the light on the headset is ashing rapidly.9 BLUETOOTH BLUETOOTH POWER Bluetooth can be powered on or o independently of the 2.4 G wireless by pressing and holding the Bluetooth Button (11) for 1 second PAIRING With Bluetooth o, press and hold the Bluetooth Button (11) for 4 seconds. CONTROL Answer/End Voice Call Single · press the Bluetooth Button (11) Play/Pause Music Single · press the Bluetooth Button (11) Skip Track Double · · press the Bluetooth Button (11) Previous Track Triple · · · press the Bluetooth Button (11)10

BASE STATION OPERATION

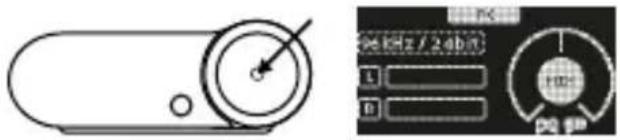

HOME SCREEN 1 Press and release the Control Wheel (20) or the Headset’s Volume/Control Wheel (5) to toggle between Volume and ChatMix (PC only, requires software install). 2 Rotate the Control Wheel (20) or the Headset’s Volume/ Control Wheel (5) to adjust the selected parameter. 3 Press and hold the Control Wheel (20) or the Headset’s Volume/Control Wheel (5) to bring up the main menu. MAIN MENU 1 Rotate the Control Wheel (20) or the Headset’s Volume/Control Wheel (5) to cycle menu items. 2 Press and release the Control Wheel (20) or the Headset’s Volume/Control Wheel (5) to select. 3 Press and release the Secondary Button (19) or the Headset’s Power Button (9) to move back in the menu.11 AUDIO OPTIONS SURROUND Toggle Software Surround Sound On/O (PC only, requires software install) EQUALIZER Customize your sound with included presets or fully adjustable 10-band EQ GAIN Changes the maximum output level of the GameDAC SIDETONE Select the amount of your own voice you wish to hear in the headphones MIC VOLUME Optimize the level of the microphone for your system12

AUDIO OUTPUT SETTINGS

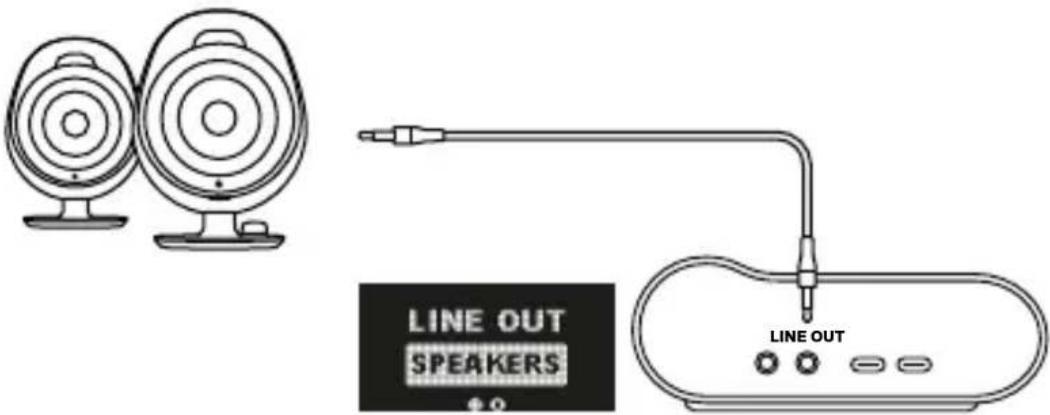

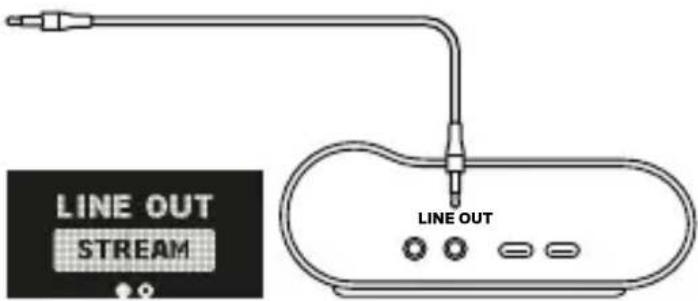

SPEAKERS Play game and chat audio through a pair of external speakers. 1 Connect a 3.5 mm cable (not included) from the Base Station’s Line-Out Jack (22) to your speakers. 2 In the OLED Screen (18) Menu set the Line Out option to ‘Speakers’. STREAM Mix your Main, Aux, and Mic audio together to send to a PC for streaming. 1 Connect a 3.5 mm cable (not included) from the Base Station’s Line-Out Jack (22) to your stream PC’s Soundcard input. 2 In the OLED Screen (18) Menu set the Line Out option to ‘Stream’. 3 Adjust your custom mix via the Stream Mixer on the OLED Screen (18). LINE OUT LINE OUT13

󻜛󻢣󻧳󻮃󾖴󼀓󽊫󼱓󾖴󽉻󻕷󼓣󽀧󼓜󾘥󼔬󻺹󼓘󻗸󾘥󻬜󼧅󻇅󻁤󻂀󺫬󼩐󻜘󾘥󼒠󽌐󾘥󼖸󺨌󽋴󻗀󻠐 󽊨󻖤󼔐󽁔󾘥󻦰󻂁󼓴󾘥󽏤󼍬󾘥󻼬󼽍󼓠󾘥󺺿󼍐󾘥󼘌󼂈󽔤󾘥󻊀󼍐󾘥󼏈󻝈󼂉󼁸󼏀5152 REGULATORY Europe – EU Declaration of Conformity Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS

2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/

EU) which are issued by the Commission of the European Community. The full text of the EU declaration of conformity is available at the following internet address: https://steelseries.com/ SteelSeries ApS. hereby conrms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to oering REACH compliance on the products and posting accurate REACH compliance status for the all of products. Frequency bands and Powers (Headset and Transceiver) a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz

Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:

• EIRP: GFSK: 3.71 dBm (Headset/BLE)

• EIRP: GFSK: 3.92 dBm (Headset/BT)

• EIRP: GFSK: 4.37 dBm (Headset/SRD)

• EIRP: GFSK: 9.22 dBm (Transceiver-PC/PS5 Version/SRD) c. Firmware Version: P1.20.00 UK Declaration of Conformity Hereby, SteelSeries ApS. declares that the following equipment which is compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy& Industrial Strategy. The full text of the UK declaration of conformity is available at the following internet address: www.steelseries.com WEEE This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city oce, your household waste disposal service or the shop where you purchased the product. Turkey RoHS Compliance Republic of Turkey: In conformity with the EEE Regulation Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur53 Safety Guideline for Lithium Battery This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city oce, your household waste disposal service or the shop where you purchased the product. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction. FCC ID: ZHK-HS25 (Wireless Headset) FCC ID: ZHK-HS25TX(Transceiver) Industry Canada Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and

The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.

Please keep this battery pack away from re and high heat sources due to the explosion that might happen. Do not place your battery pack close to any heater or hot location.

This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.

4. This battery pack shall not be exposed to moisture, dripping or splashing.

5. If any electrolyte ows out of this battery pack when touching the user’s eyes and skin,

please seek medical advice immediately.
