KDAS104HSS - Dishwasher KITCHENAID - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	KitchenAid
Model	KDAS104HSS
Width	60.9 cm (24 in)
Height (min - max)	86.4 - 91.4 cm (34 - 36 in)
Depth (door closed)	60.9 cm (24 in)
Net Weight	Approximately 45 kg
Power Supply	120 V, 60 Hz, 15 A
Capacity (place settings)	14 place settings
Wash Programs	Normal, Intensive, Light, Rinse, ProWash™
Additional Functions	Delayed Start, ProDry™ Drying, Soil Sensor
Drying Type	Heat Assisted Drying
Energy Class	Not specified (estimated A+ per standard)
Water Consumption per Cycle	Approximately 11 L
Noise Level (dBA)	Approximately 44 dBA
Tub Material	Stainless Steel
Custom Panel Compatibility	Yes (kit included)
Custom Panel Thickness	1.5 cm (0.59 in) min.
Tools Required for Installation	Drill, Phillips screwdriver, pliers
Included Parts	Template, brackets, dowels, screws (ST4X14, ST3.5X45, etc.)
Recommended Maintenance	Clean filters regularly, use rinse aid
Manual Access	Manual available in PDF format at notice-facile.com

Frequently Asked Questions - KDAS104HSS KITCHENAID

How to install a custom panel on the KitchenAid KDAS104HSS dishwasher?

Use the provided template to drill holes at the back of the wooden panel (1.5 cm thickness). Attach brackets and dowels with the supplied screws. Slide the panel onto the door by aligning dowels with the keyhole slots. Then secure with the four mounting screws. Adjust spring tension if necessary.

What is the capacity of this KitchenAid dishwasher?

The KDAS104HSS model can accommodate up to 14 standard place settings.

How to adjust door spring tension?

Use a Phillips screwdriver to turn the door spring tension adjustment screws. Turn clockwise to increase tension, counterclockwise to decrease.

What wash programs are available?

Programs include: Normal, Intensive, Light, Rinse, and ProWash™ (adaptive). Some cycles may vary by model.

Does this dishwasher accept a custom panel?

Yes, the KDAS104HSS is designed to accept a custom panel (not included) with a minimum thickness of 1.5 cm. Mounting kit is included.

How to clean the dishwasher?

Regularly clean the filter under the wash arm, wipe door seals, and use a dishwasher cleaner once a month to remove residue.

What is the water consumption per cycle?

Approximately 11 liters per cycle, making it one of the efficient models.

Is this model compatible with low height installation?

Its adjustable height from 86.4 to 91.4 cm allows it to fit most standard kitchens. Check your space dimensions.

Where to find the full user manual?

You can download the PDF manual for free at notice-facile.com by searching for the KitchenAid model KDAS104HSS.

What additional tools are needed for panel installation?

You will need an electric drill, a Phillips screwdriver or magnetic bit, and a pair of needle-nose pliers.

USER MANUAL KDAS104HSS KITCHENAID

INSTALLATION INSTRUCTIONS

FOR CUSTOM 18" AND 24" WOOD DOOR PANEL

IMPORTANT: Before installing your dishwasher, please use this instruction sheet as a supplement to the Installation Instructions.

Custom Panel Models Only

Gather these additional tools and parts before starting attachment of the custom panel. Read and follow the instructions provided in this instruction sheet.

Additional Tools Needed:

Power Drill

Phillips-head screwdriver or magnetic bit

Needle nose pliers
■Template (located inside Use and Care Guide bag assembly)

Parts Supplied with Custom Panel Models:

NOTE: The screws supplied are used for only a 0.59" (1.5 cm) thick wooden panel. If the wooden panel is less than 0.59" (1.5 cm) thick, customer must purchase screws locally.

Custom Panel Dimensions

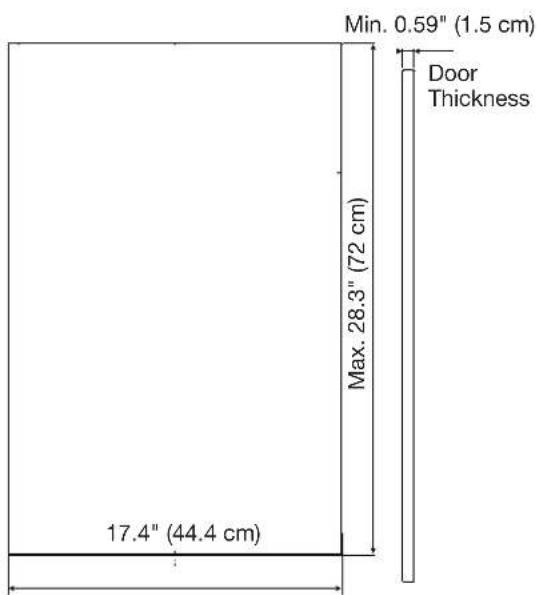

18" Custom Panel Dimensions

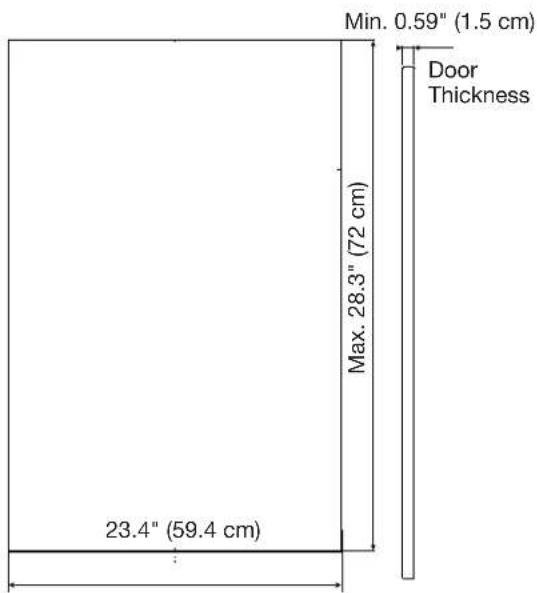

24" Custom Panel Dimensions

NOTES:

■The handle for the custom panel is not included.

All mounting hardware supplied is for a 0.59" (1.5 cm) thick wood panel. If a thinner wood panel or materials other than wood are used, it is the customer's responsibility to obtain the proper length screws and adjust the pilot holes accordingly.

IMPORTANT: Use a moisture-resistant sealer on both sides and all edges of the panel to avoid damage from moisture.

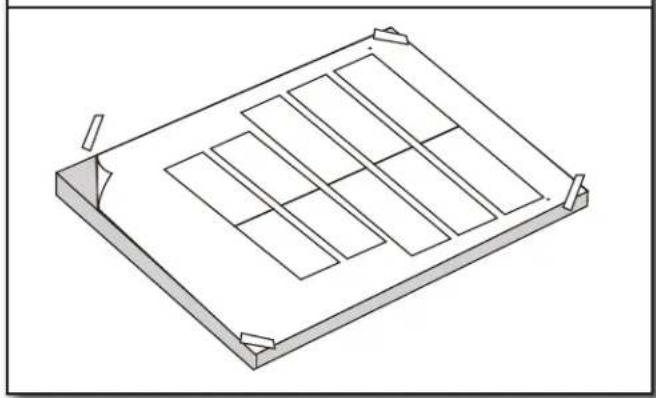

1. Attach template to wood panel


Isometric line drawing of a rectangular frame with internal compartments and corner supports (no text or symbols)

Attach the provided template to the back side of the custom panel with tape. Make sure that the center of the template is aligned with the center of the wooden panel and top of the template is aligned to the top face of the wooden panel.

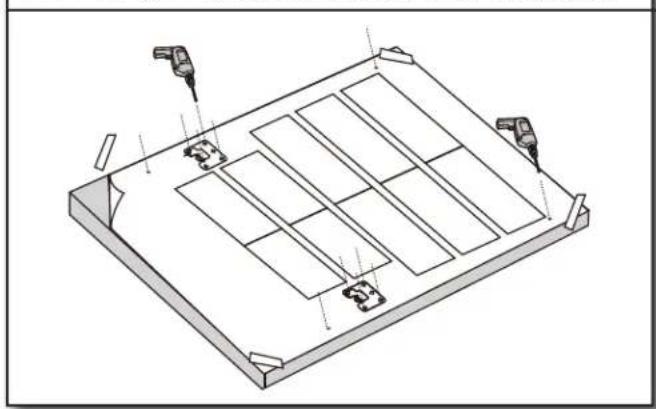

1. Pre-drill holes for studs and brackets


Isometric technical drawing of a rectangular panel with internal compartments and mounting fixtures (no text or symbols)

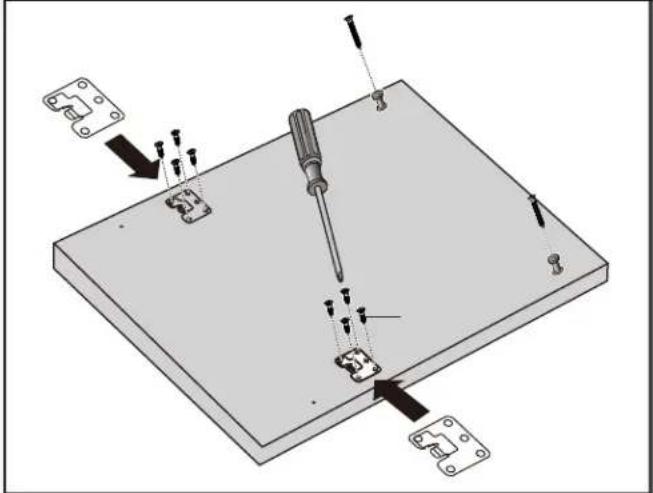

1. Install brackets and studs


Remove the template. Install brackets and studs using the screws provided.

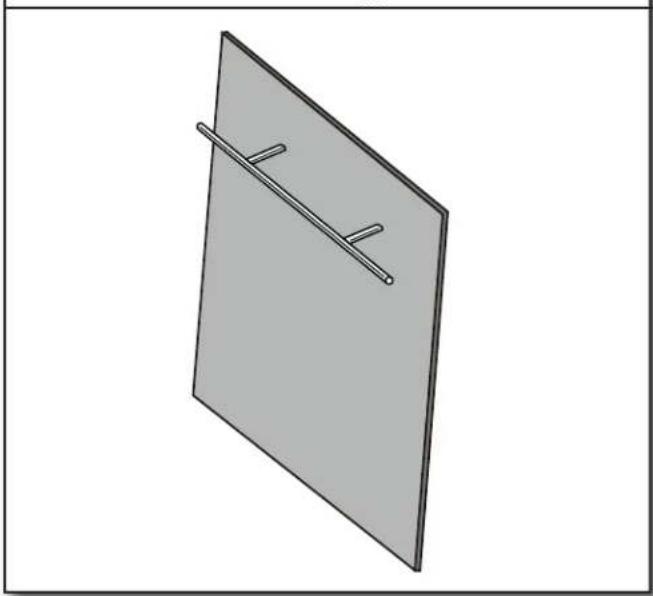

1. Install customer-supplied handle


Simple 3D diagram of a rectangular plate with a diagonal line and two small protrusions on top (no text or symbols)

IMPORTANT: Make sure to countersink screw heads on back side of panel so that the screw heads are flush with the panel.

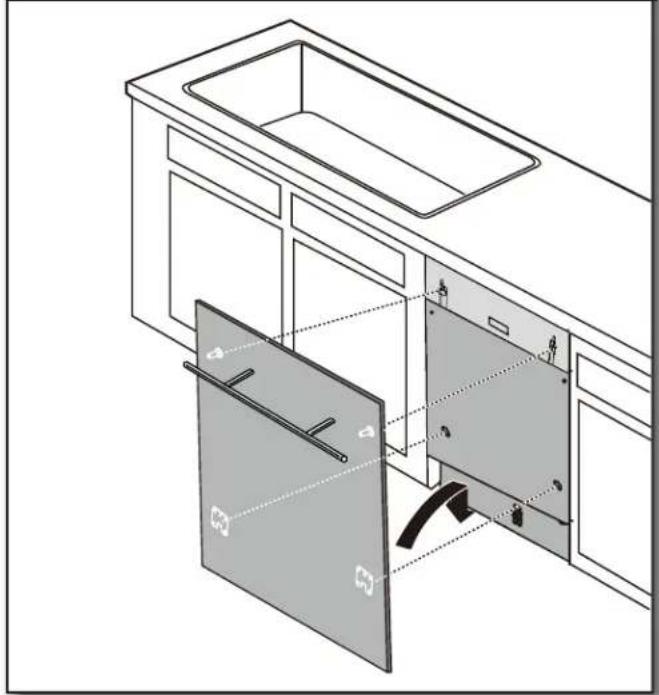

1. Slide panel onto door


Technical line drawing of a kitchen appliance showing internal compartments and doorways (no text or symbols)

Align the studs on the custom panel to the keyhole slots on the door assembly. Ensure that the studs and brackets are engaged in the keyhole slots. Slide panel down until the top surface of the panel is flush with the top of the door.

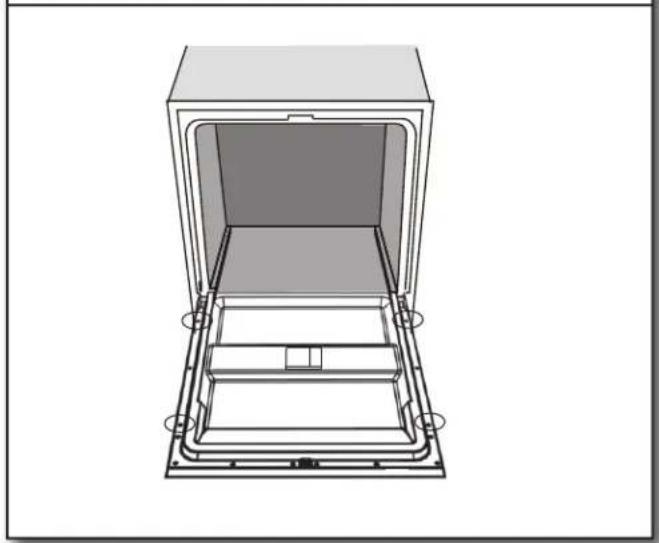

1. Secure the door panel


Technical line drawing of a rectangular oven or storage unit with internal compartments and mounting base (no text or symbols)

Secure the door panel by inserting the four anchor screws provided into the inner door frame holes. See screw hole locations in the above illustration.

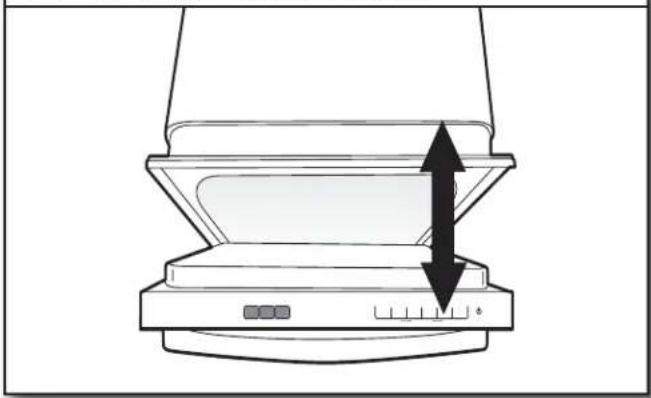

1. Check the spring tension


Diagram of a computer monitor with an open lid and two arrows indicating directional movement (no text or symbols)

Open and close the door to check the spring tension of the door.

1. Adjust spring tension (if needed)

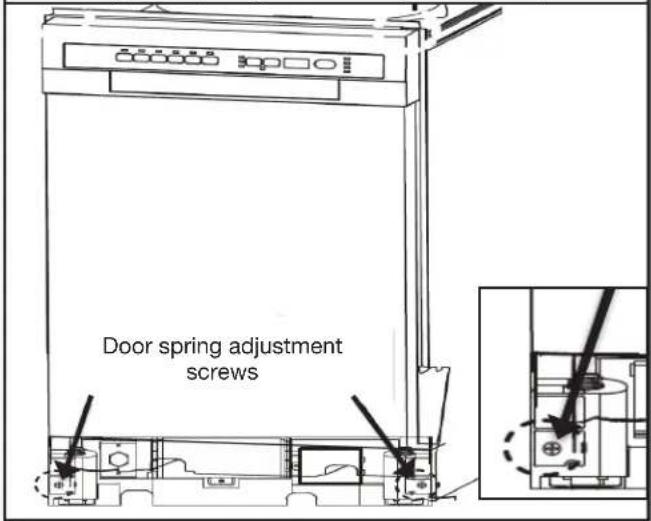

If needed, adjust the spring tension by using a Phillips-head screwdriver. Turn screws clockwise to increase tension or counterclockwise to decrease door tension.
