USER MANUAL WTB 30K3N Kern

Further language versions you will find online under www.kern-sohn.com/manuals

6.3.1 Mains connection during rechargeable battery operation ..................................................18

KERN WTB 1K -4N WTB 3K -4N WTB 6K -3N Weighing range (max)

1 g Linearity ±0.4 g ±1 g ±2 g Recommended adjustment weight, not added (class) 1500 g (M1) 3 kg (M1) 6 kg (M1) Stabilization time (typical) 2 sec. Units

Warm-up time 30 min. Electric Supply Input voltage: 110V-230V AC Power supply unit: 12 V, 500 mA Rechargeable battery operation Service life: background illumination ON: 30 h Background illumination off: 50 hours Loading time 12 h Auto-Off (rechargeable battery) 15 min., 5 min., 3 min., off Display type LCD with background illumination Character height 2.5 cm Operating temperature -10° C …. + 40° C Humidity of air 0 % - 80 % (non-condensing) Dimensions of weighing plate (Stainless steel) (mm) 262 x 202 Casing dimensions 286 x 316 x 126.5 Weight kg (net)

IP protection IP654 WTB-N_WTB-NM-BA-def-2424 English KERN WTB 10K -3N WTB 30K -3N Weighing range (max) 15 kg 30 kg Readability (d) 2 g 5 g Reproducibility 2 g 5 g Linearity ±4 g ±10 g Recommended adjustment weight, not added (class) 15 kg (M1) 30 kg (M1) Stabilization time (typical) 2 sec. Units

IP protection IP65WTB-N_WTB-NM-BA-def-2424 5 English KERN WTB 1K-4NM WTB 3K-3NM WTB 6K-3NM Weighing range (max)

1 g 2 g Linearity ±0.5 g ±1 g ±2 g Recommended adjustment weight, not added (class) 1500 g (M3) 3 kg (M3) 6 kg (M3) Stabilization time (typical) 2 sec. Units

Warm-up time 30 min. Electric Supply Input voltage: 110V-230V AC Power supply unit: 12 V, 500 mA Rechargeable battery operation Service life: background illumination ON: 30 h Background illumination off: 50 hours Loading time 12 h Auto-Off (rechargeable battery) 15 min., 5 min., 3 min., off Display type LCD with background illumination Character height 2.5 cm Operating temperature -10° C …. + 40° C Humidity of air 0 % - 80 % (non-condensing) Dimensions of weighing plate (Stainless steel) (mm) 262 x 202 Casing dimensions 286 x 316 x 126.5 Weight kg (net)

IP protection IP656 WTB-N_WTB-NM-BA-def-2424 English KERN WTB 10K-3NM WTB 30K-2NM Weighing range (max) 15 kg 30 kg Readability (d) 5 g 10 g Reproducibility 5 g 10 g Linearity ±5 g ±10 g Recommended adjustment weight, not added (class) 15 kg (M3) 30 kg (M3) Stabilization time (typical) 2 sec. Units

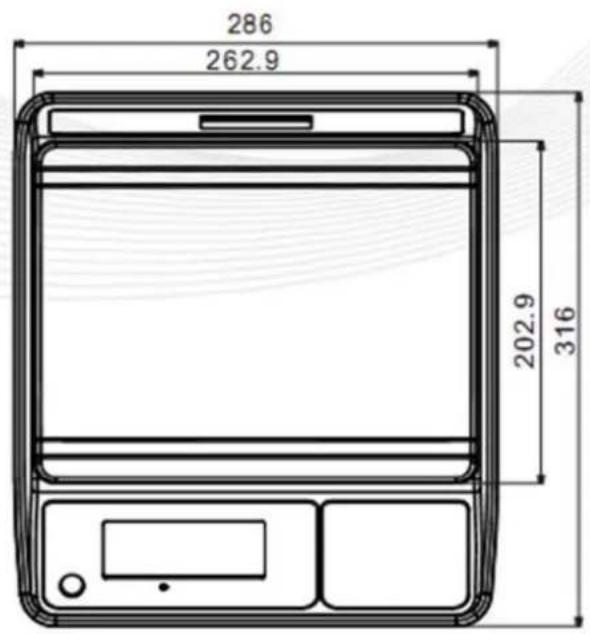

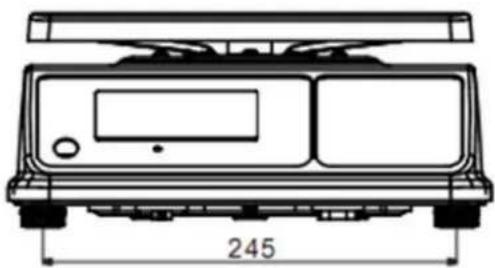

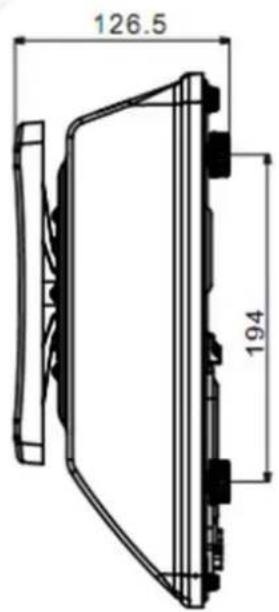

Rear view:WTB-N_WTB-NM-BA-def-2424 9 English

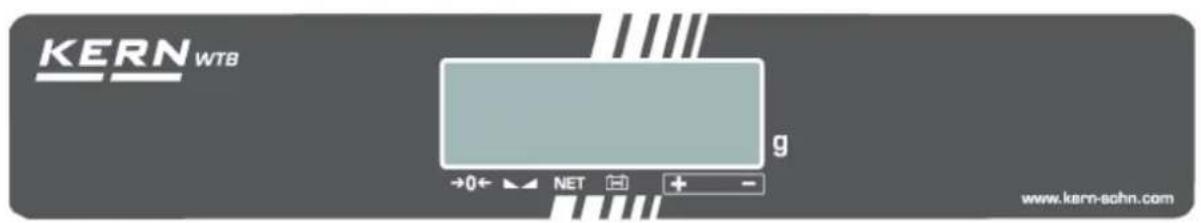

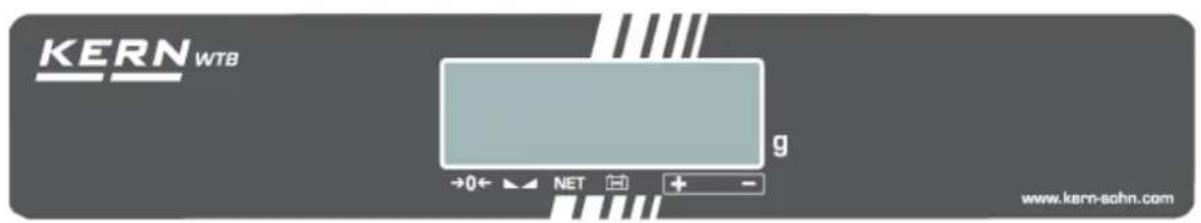

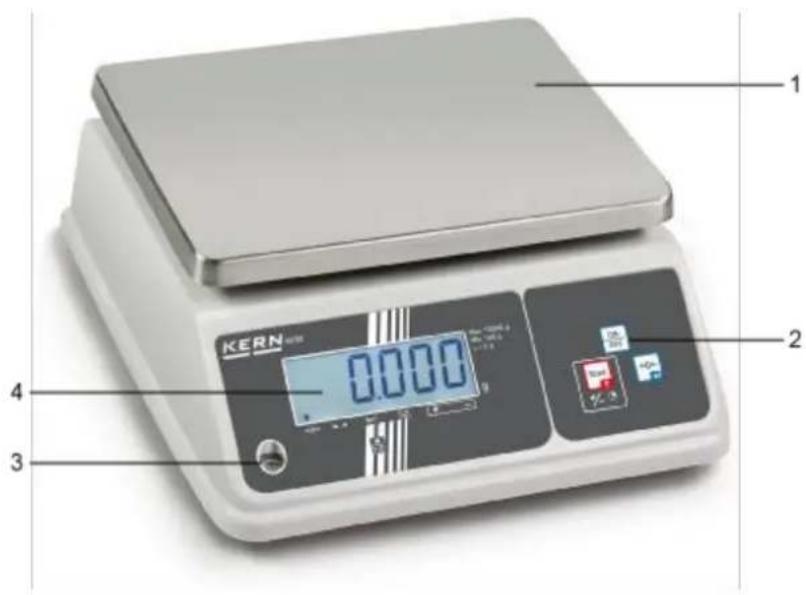

Zeroing display Should the balance not display exactly zero despite empty scale pan, press the button. The balance will be set to zero after a short standby time.

Stability display Scales are in a steady state

Capacity display Rechargeable battery Triangle above the capacity indicator appears when the battery capacity is almost exhausted

Power supply connected Lights with power supply via power supply unit, then the battery is being charged

Display Weighing unit kg Displayed weight in kg10 WTB-N_WTB-NM-BA-def-2424 English

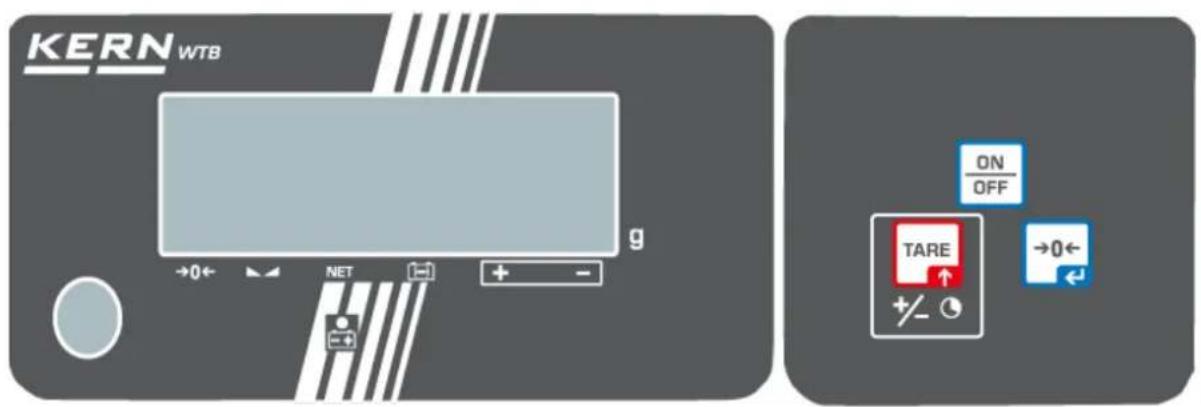

2.2 Keyboard overview

Key Description Function in menu

• Weighing with tolerance range

Zero setting key Set balance to zero

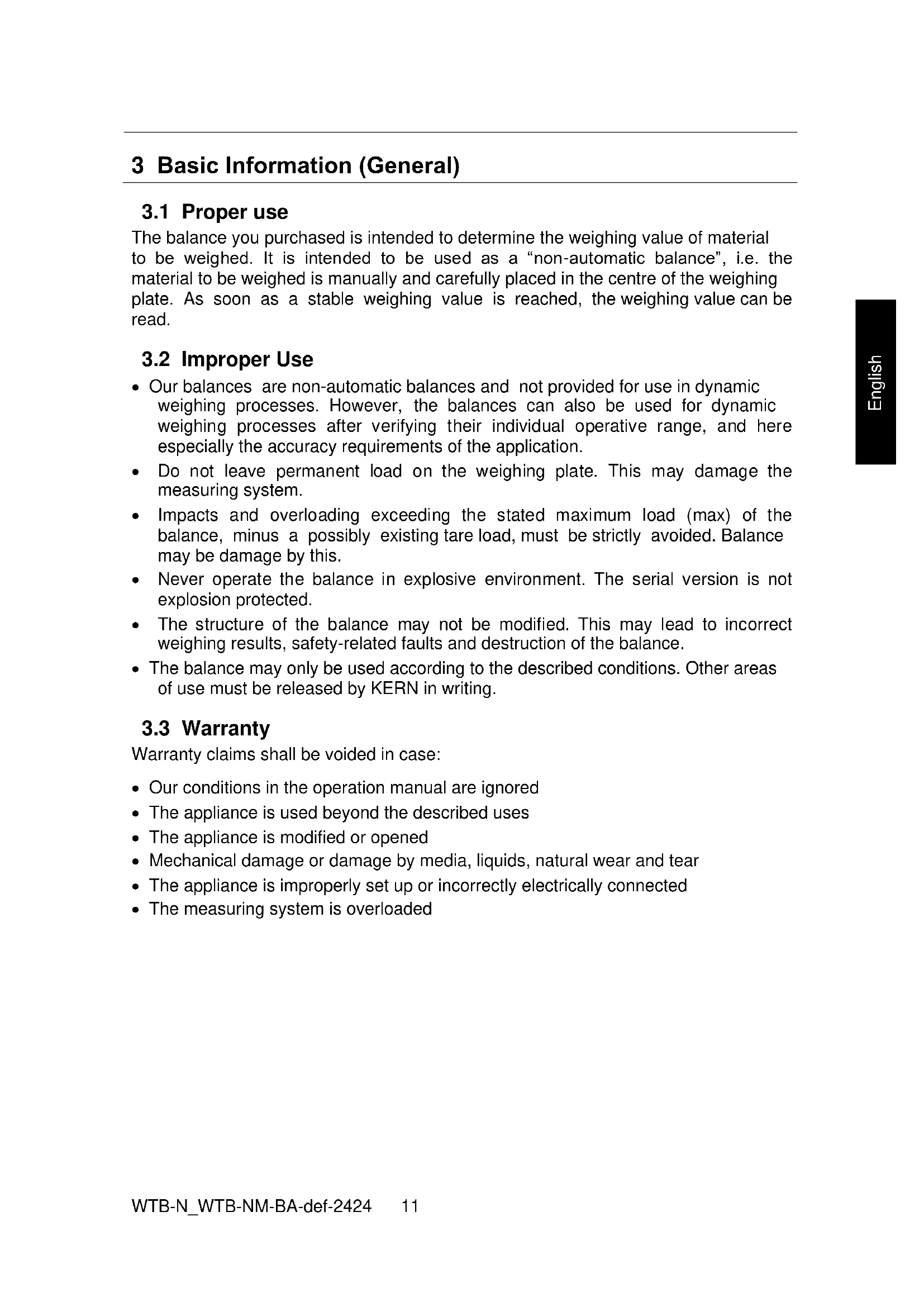

The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic balance”, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing plate. As soon as a stable weighing value is reached, the weighing value can be read.

• Our balances are non-automatic balances and not provided for use in dynamic weighing processes. However, the balances can also be used for dynamic weighing processes after verifying their individual operative range, and here especially the accuracy requirements of the application.

• Do not leave permanent load on the weighing plate. This may damage the measuring system.

• Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this.

• Never operate the balance in explosive environment. The serial version is not explosion protected.

• The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance.

• The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.

Warranty claims shall be voided in case:

• Our conditions in the operation manual are ignored

• The appliance is used beyond the described uses

• The appliance is modified or opened

• Mechanical damage or damage by media, liquids, natural wear and tear

• The appliance is improperly set up or incorrectly electrically connected

• The measuring system is overloaded12 WTB-N_WTB-NM-BA-def-2424 English 4 Basic Safety Precautions

4.1 Pay attention to the instructions in the Operation Manual

Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances.

4.2 Personnel training

The appliance may only be operated and maintained by trained personnel. 5 Transport and storage

5.1 Testing upon acceptance

When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.

Keep all parts of the original packaging for a possibly required return. Only use original packaging for returning. Prior to dispatch disconnect all cables and remove loose/mobile parts. Reattach possibly supplied transport securing devices. Secure all parts such as the glass wind screen, the weighing platform, power unit etc. against shifting and damage.WTB-N_WTB-NM-BA-def-2424 13 English 6 Unpacking, Setup and Commissioning

6.1 Installation Site, Location of Use

The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. On the installation site observe the following:

• Place the balance on a firm, level surface.

• Avoid extreme heat as well as temperature fluctuation caused by installing next to a radiator or in the direct sunlight.

• Protect the balance against direct draughts due to open windows and doors.

• Avoid jarring during weighing.

• Protect the balance against high humidity, vapours and dust.

• Do not expose the device to extreme dampness for longer periods of time. Non-permitted condensation (condensation of air humidity on the appliance) may occur if a cold appliance is taken to a considerably warmer environment. In this case, acclimatize the disconnected appliance for ca. 2 hours at room temperature.

• Avoid static charge of goods to be weighed or weighing container.

• Do not operate in areas with hazard of explosive material or in potentially explosive atmospheres due to materials such as gasses, steams, mists or dusts.

• Keep away chemicals (such as liquids or gasses), which could attack and damage the balance inside or from outside.

• In the event of the occurrence of electromagnetic fields, static charges (e.g., when weighing / counting plastic parts) and unstable power supply, large display deviations (incorrect weighing results, as well as damage to the scale) are possible. Change location or remove source of interference.14 WTB-N_WTB-NM-BA-def-2424 English

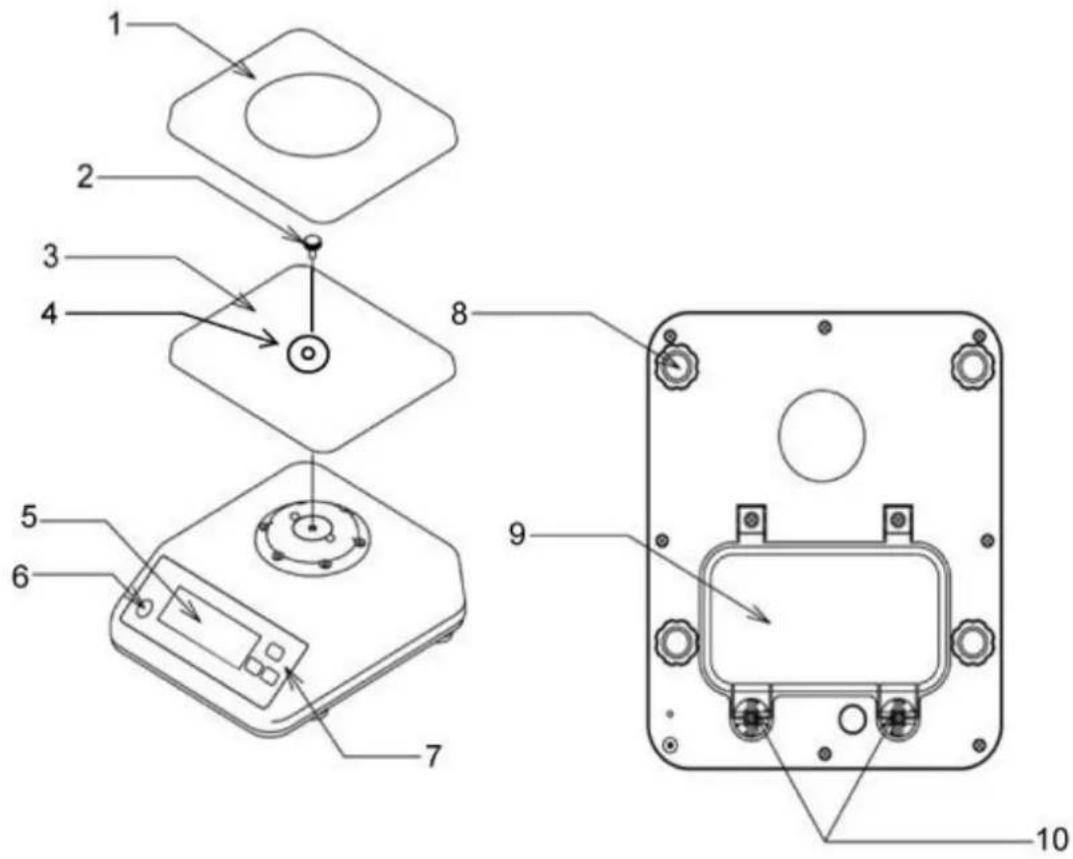

6.2 Unpacking and placing

Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation.

Carrier weighing plate

Rechargeable battery compartment cover

Screws of battery compartment coverWTB-N_WTB-NM-BA-def-2424 15 English Level balance with foot screws until the air bubble of the water balance is in the prescribed circle.

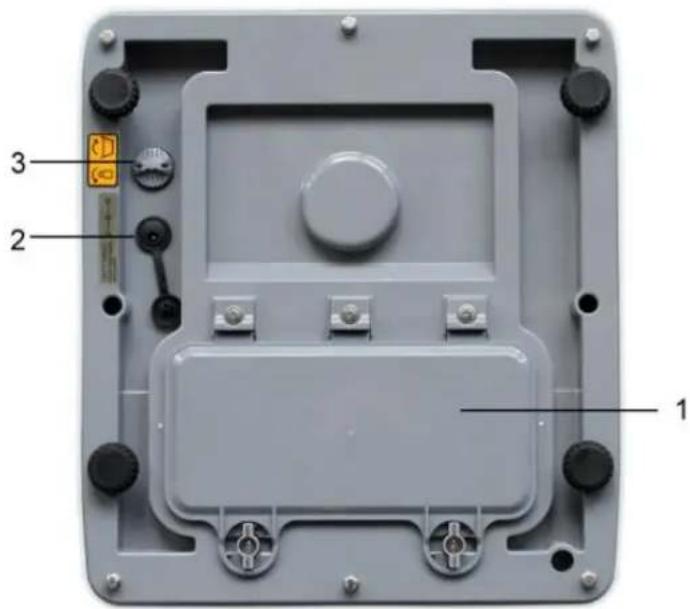

1 Rechargeable battery compartment 2 Mains port 3 Pressure compensation screw

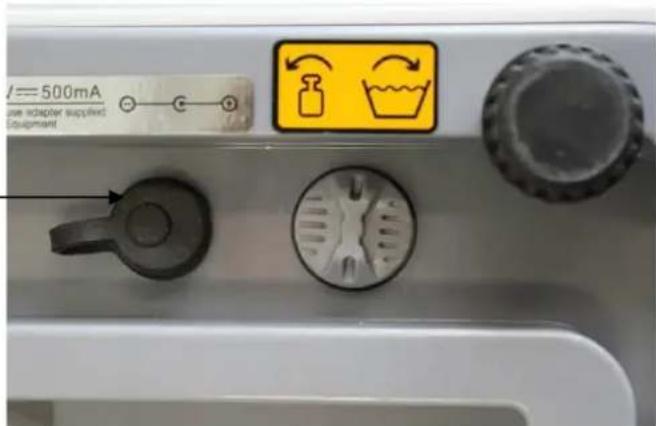

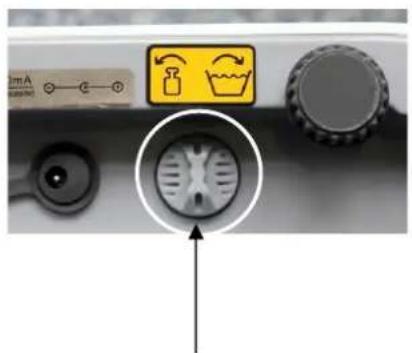

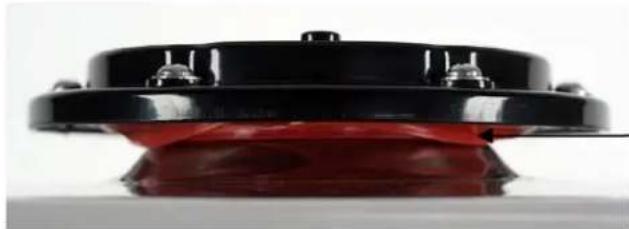

Pressure compensation screw:

On the lower side of the balance there is a pressure compensation screw [1] which has to be opened for the weighing process. Fasten the screw before cleaning the balance.16 WTB-N_WTB-NM-BA-def-2424 English

6.2.1 Scope of delivery

• Carrier weighing plate

• Fastening screw of the carrier weighing plate

• Operating instructions

• Hexagonal socket wrench

6.3 Rechargeable battery operation (optional)

The rechargeable battery is charged via the delivered power supply. The operating time of the rechargeable battery with background illumination is 30h, without that it is 50 hrs. Charging time until complete recharging 12h. In the menu you can activate the AUTO-OFF function time off], see chap. 9.2. According to menu settings, the balance switches automatically off in order to spare the battery. Insert rechargeable battery:

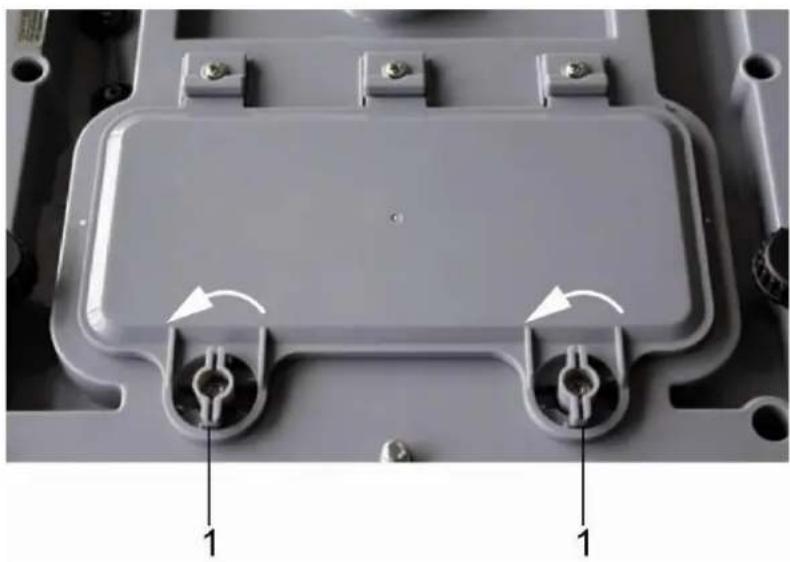

Remove any adherent moisture from the balance Rotate both levers (1) 90 degrees to the left

Membrane for degree of protection IP65WTB-N_WTB-NM-BA-def-2424 17 English

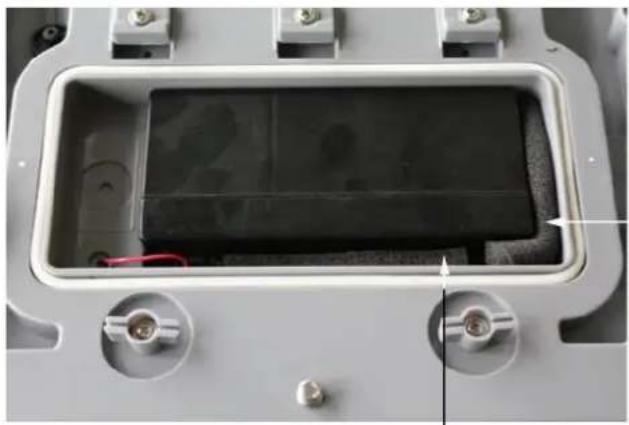

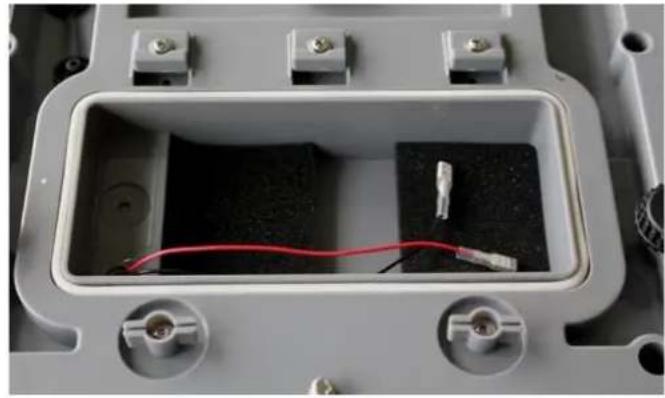

Remove battery compartment cover and the foam pieces

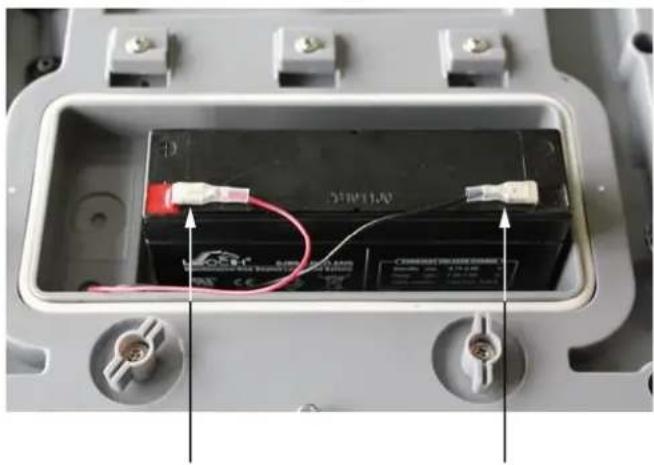

Connecting the rechargeable battery Watch the colours: Red on red ! Black on black!

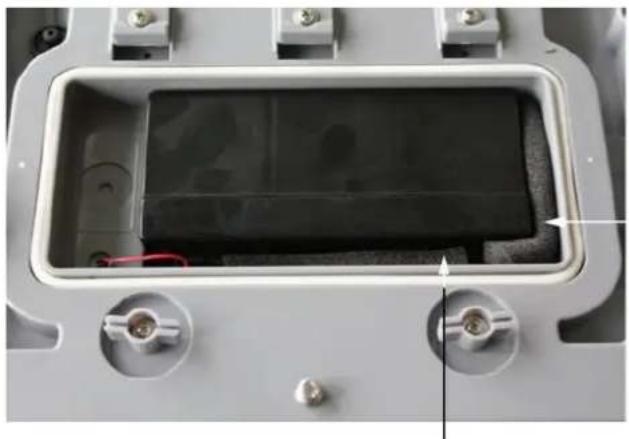

Insert the rechargeable battery in a manner that it cannot slip (fasten with a rubber foam mat)

Ensure that the cables are not squeezed.18 WTB-N_WTB-NM-BA-def-2424 English

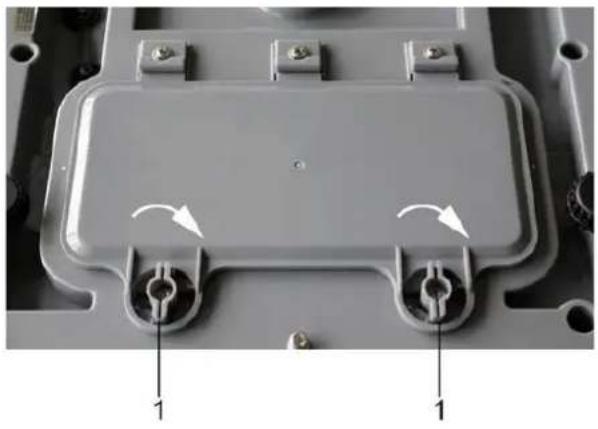

Close the rechargeable battery cover Rotate both levers (1) 90 degrees to the right

If in the display the triangle appears above the capacity display , the rechargeable battery is nearly exhausted. Connect power pack, the rechargeable battery is loaded.

Avoid excess pressure on the balance in order to avoid damaging it, particularly as it is supported by the weighing plate.

6.3.1 Mains connection during rechargeable battery operation

During the rechargeable battery operation ensure that the mains connection is covered with a rubber cap. Only by this the type of protection IP65 is ensured.WTB-N_WTB-NM-BA-def-2424 19 English

6.4 Initial Commissioning

In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. 1). For this warm-up period the scale must be connected to the power supply (batteries). The accuracy of the balance depends on the local acceleration of gravity. Strictly observe hints in chapter Adjustment.

6.5 Type of protection IP65

The KERN WTB meets the requirements for IP65 protection type. Suitable for a short-time contact with liquids. For cleaning use damp cloth. Dust-tight.

As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). This adjustment process must be carried out for the first commissioning, after each change of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the balance periodically in weighing operation.

Carry out adjustment as close as possible to the maximum load of the scales )see chap. 1 „Technical data“). The accuracy of the adjustment weight must correspond approximately to or, if possible, be better than, the readability d of the balance. Information about test weights you will find in the internet under http://www.kern- sohn.com Procedure when adjusting: Observe stable environmental conditions. A warming up time (see chapter 1) is required for stabilization.20 WTB-N_WTB-NM-BA-def-2424 English

7.1.1 Adjustment non verifiable models

Start balance by pressing While the balance carries out a self test (00…- 99…), press and keep pressed until „F1 CAL“ appears on the display.

Press ; in the display appears „UnLod“. Wait for the triangle above the stability symbol, then press , the value of the last- used adjustment weight is displayed. Exp: „6 kg“. If necessary, change value by .

(example) Place the adjustment weight Wait for the triangle above the stability symbol

Press While the balance carries out a self-test, take away the adjustment weight The balance changes over to zero display. Now the process of adjustment is completed.

7.1.2 Adjustment of verifiable models

In verified balances the menu is locked by the verification switch. To disable the access lock, destroy the seal and actuate the adjustment switch. Position of the adjustment switch see chapter 7.2.1 Attention: After destruction of the seal the balance must be re-verified by an authorised agency and a new verification wire/seal mark fitted before it can be reused for applications subject to verification.

Start balance by pressing . While the balance carries out a self test (00…- 99…), press and keep pressed until „F1 CAL“ appears on the display. Actuate the adjustment switch on the lower side of the balance

(example) Press anew The weighing value is displayed.

Press to enter the value of the adjustment weight (see chapter 1) Place the adjustment weight Press While the balance carries out a self-test, take away the adjustment weight The balance changes over to zero display. Now the process of adjustment is completed.22 WTB-N_WTB-NM-BA-def-2424 English

General introduction: According to EU directive 2014/31EU balances must be officially verified if they are used as follows (legally controlled area): a) For commercial transactions if the price of goods is determined by weighing. b) For the production of medicines in pharmacies as well as for analyses in the medical and pharmaceutical laboratory. c) For official purposes d) For manufacturing final packages In cases of doubt, please contact your local trade in standard. Verification notes: An EU type approval exists for balances described in their technical data as verifiable. If a balance is used where obligation to verify exists as described above, it must be verified and re-verified at regular intervals. Re-verification of a balance is carried out according to the respective national regulations. The validity for verification of balances in Germany is e.g. 2 years. The legal regulation of the country where the balance is used must be observed!

Verification of the balance is invalid without the seal. The seal marks attached on verified balances point out that the balance may only be opened and serviced by trained and authorised specialist staff. If the seal mark is destroyed, verification looses its validity. Please observe all national laws and legal regulations. In Germany a re-verification will be necessary.WTB-N_WTB-NM-BA-def-2424 23 English

7.2.1 Adjustment switch and seals

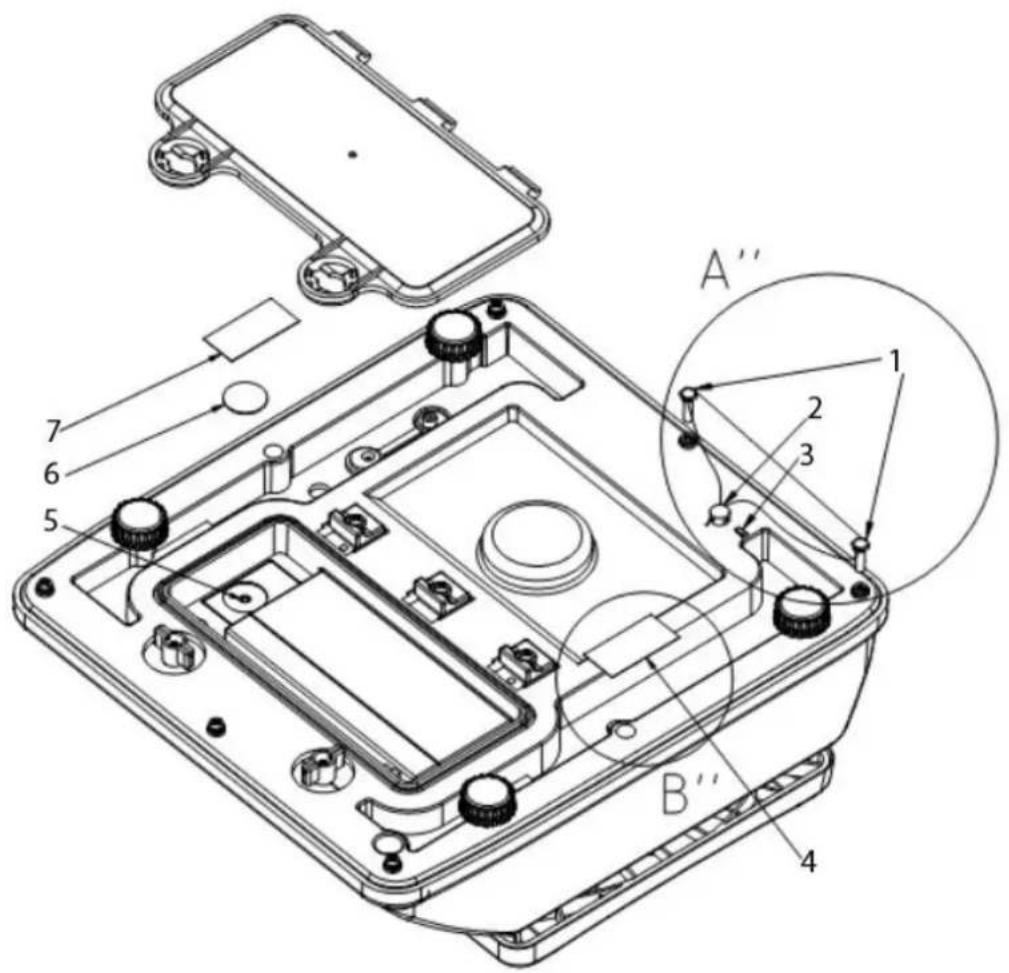

After a verification the balance is sealed at the indicated positions.

Position of the official seals:

4. Self-destructing sealing mark

5. Adjustment switch

Start balance by pressing . The balance will carry out a self-test When the weight display shows "0.0" and the triangle symbol above the stability display appears, the scale is ready for weighing.

• However, you can reset the weighing scale to zero by pressing the key.

Switch off balance using . The "0.0" display disappears and the scales are switched off.

The tare weight of any preloads can be deducted by pressing a button so that the actual weight of the weighed material is displayed in subsequent weighings.

Put on weighing receptacles and press . The zero display appears, and above the reset symbol the stability symbol and the net weight symbol the triangle appears. The weight of the container is now internally saved.

(example) Place goods to be weighed in the weighing container. The net weight of the goods to be weighed is displayed.

The weight of the weighing container will be displayed as a minus number (=gross weight) after removing the weighing container.WTB-N_WTB-NM-BA-def-2424 25 English

The tare weight is saved until it is deleted. Remove the load from the balance and press . The zero display appears and the triangle above the net weight symbol vanishes.

Gross weight: Press as long as the weighing container and the object to be weighed are on the weighing plate. Remove the object to be weighed as well as the weighing container. The gross weight is displayed as a negative value.

In weighing mode press for about 3 seconds, "bK-AU" appears. Press to select background illumination automatically off („bK-AU“) and background illumination off („bK-oF“). Press to confirm selected setting.

The balance changes into weighing mode26 WTB-N_WTB-NM-BA-def-2424 English

8.4 Weighing with tolerance range

You can set an upper or lower limit when weighing with tolerance range and thus ensure that the weighed load remains exactly within the set tolerance limits. Settings:

In weighing mode press for about 3 seconds, the display for entering the upper limit appears. The left digit blinks. A triangle appears above the "+" symbol. Moreover, the background of the screen turns red. Enter upper limit value, the active position blinks. Mit Correct the numerical value by , change the decimal using . If the last digit is entered, confirm input by , the upper limit value is hereby saved. The display changes to the prompt for entering the lower limit value. The colour of the display then changes to orange. Now enter the lower limit value as described above and confirm input using . The lower limit value is thus entered. The balance changes into weighing mode.

Audio signal: The acoustic signal depends on the settings in menu block „F9 BEP“. Options:

• BEP 0 Acoustic signal turned off

• BEP 1 An acoustic signal sounds when load is within tolerance limits

• BEP 2 An acoustic signal sounds when load is beyond tolerance limitsWTB-N_WTB-NM-BA-def-2424 27 English Optical signals: The triangle above the "+" - or the "-" symbol indicates whether the sample weighed is within the tolerance range:

Goods to be weighed above tolerance limit

Goods to be weighed within tolerance range

Goods to be weighed below tolerance limit

Traffic light function: The indicator lights up in red, green and orange, depending on the area in which your sample is: red Goods to be weighed above tolerance limit green Goods to be weighed within tolerance range orange Goods to be weighed below tolerance limit

Weighing with tolerance range Tare when using a weighing container Put on goods to be weighed, tolerance control is started

9.1 Navigation in the menu

In verified balances the menu is locked by the verification switch.

Switch on the scales by and during the balance’s self- test, press until "F1 CAL" is displayed.

9.2 Menu overview (locked in verifiable models)

dual Resolution Please do not change default setting

3 min 5 min 15 min off Auto-OFF function, adjustable between off, 3, 5 and 15 minutes

Acoustic signal in tolerance weighing mode bEP 0 Acoustic signal turned off bEP 1 Acoustic signal when weighed material is within the tolerance range bEP 2 Acoustic signal when weighed material is outside the tolerance range

Switch on the scales by and during the balance’s self- test, press until "F1 CAL" is displayed.

“F5 oFF“ appears, now the function is enabled

Press repeatedly until “bACK“ appears Press The balance carries out a restart and changes to weighing mode32 WTB-N_WTB-NM-BA-def-2424 English

9.4 Multi-Tare function

The scale has the ability to tare several times in a row. For this purpose, select the menu item "F8 tm" and set the parameter "P tare".

A/D converter outside range Unload the balance; check if the weighing is correctly placed and screwed onWTB-N_WTB-NM-BA-def-2424 33 English

11 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Fault Possible cause The displayed weight does not glow.

• The balance is not switched on.

• Batteries are inserted incorrectly or empty

• No batteries inserted. The displayed weight is permanently changing

• Draught/air movement

• Table/floor vibrations

• Weighing pan has contact with other objects.

• Electromagnetic fields / static charging (choose different location/switch off interfering device if possible) The weighing value is obviously wrong

• The display of the balance is not at zero

• Adjustment is no longer correct.

• Great fluctuations in temperature.

• The balance is on an uneven surface.

• Electromagnetic fields / static charging (choose different location/switch off interfering device if possible)

Before cleaning, please remove batteries from the appliance Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device and wipe with a dry soft cloth. Loose residue sample/powder can be removed carefully with a brush or manual vacuum cleaner. Spilled weighing goods must be removed immediately.

12.2 Service, maintenance

The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply.

Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.

13 Declaration of Conformity

To view the current EC/EU Declaration of Conformity go to:

The scope of delivery for verified weighing balances (= conformity- rated weighing balances) includes a Declaration of Conformity.WTB-N_WTB-NM-BA-def-2424 1 Français
