USER MANUAL CFANAM8 VELLEMAN

Illustration of a standard office desk fan with a propeller and stand (no text or symbols)

USER MANUAL 3

HANDLEIDING 7

MODE D'EMPLOI 11

MANUAL DEL USUARIO 15

Exploded diagram of a fan assembly with numbered parts for identification

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Class 2.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• If the external flexible cable or cord of this device is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
  • Always connect the device to a grounded circuit to avoid risk of electrocution.
• Always disconnect mains power when the device is not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.
• All cords and cables should be routed so that they will not be walked on or pinched by items placed upon or against them. Pay particular attention to the point where they exit the unit.
• Do not operate a visibly damaged device. Do not attempt to operate this device if the power cord has been frayed or broken.
• Always make sure to connect the device to an alternating current matching the value stated on the device.
• Never connect the device to a dimmer or rheostat.
• In the event of an operating problem, stop using the device immediately.
  • This device should only be serviced by qualified service personnel.
• This device is for household use only.
• Protect this device from water and moisture. Never immerse the device in any liquid.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Technical Specifications

power supply .... 220-240 V\~, 50 Hz power consumption .... 40 W IP-number .... IPX0 dimensions .... 455 x 455 x 1300 mm weight .... 4.8 kg cable .... H03VVH2-F 2 x 0.5 mm², 1.5 m

Information requirements

Information to identify the model to which the information relates:
Description		Symbol	Value	Unit
Maximum fan flow rate		F	39.08	m^3/min
Power input		P	37.7	W
Service value		SV	1.04	(m^3/min)/W
Standby power consumption		PSB	0.31	W
Fan sound power level		LWA	53.5	dB(A)
Maximum air velocity		C	2.63	m/sec
Measurement standard for service value		IEC 60879:1996+ (corr. 1992)
Contact	Velleman nvLegen Heirweg 33, 9890 Gavere, Belgium

CFANAM8

5. Overview

Refer to the illustrations on page 2 of this manual.

1	plate
2	front guard
3	clips
4	bolt
5	blade
6	nut
7	rear guard
8	shaft
9	handle
10	oscillation button

11	motor
12	angle adjustment knob
13	switch box
14	switch box fixing knob
15	extension pole
16	extension pole fixing knob
17	base
18	locking mechanism
19	guard screw
20	remote control

6. Assembly

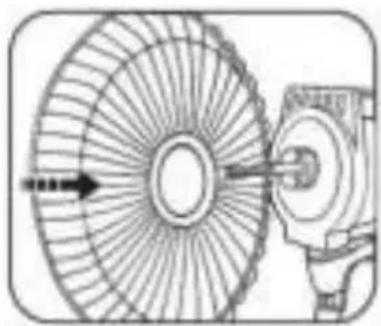

1. Slide the rear guard onto the shaft and secure with the bolt.

Diagram of a fan blade and rotor assembly (no text or labels)

Diagram of a mechanical device with a hand operating a circular component (no text or symbols visible)

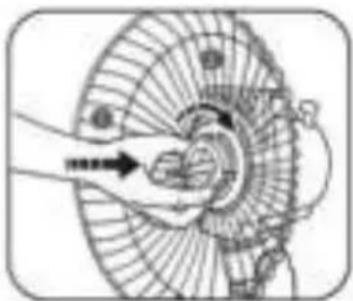

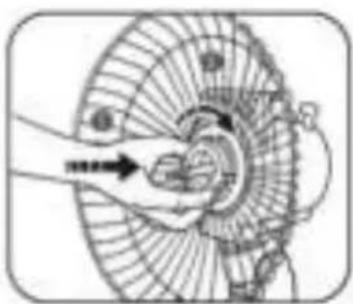

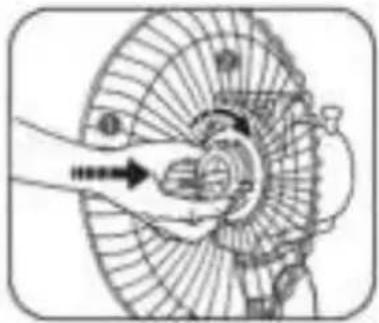

1. Slide the blade onto the shaft and secure with the bolt.

Diagram of a fan blade with internal blades and a handle, showing mechanical components (no text or labels)

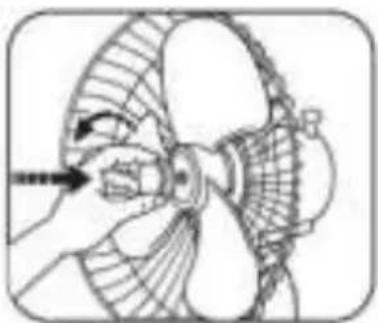

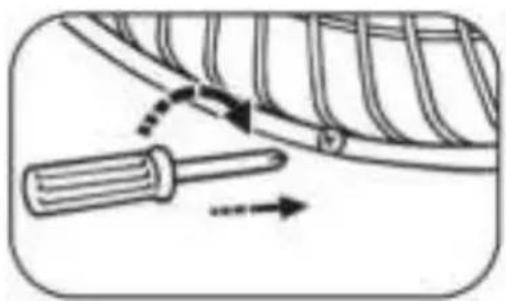

1. Place the front guard on the rear guard. Secure with the clips and the guard screw.

Simple line drawing of a ladder and a ramp mechanism (no text or symbols)

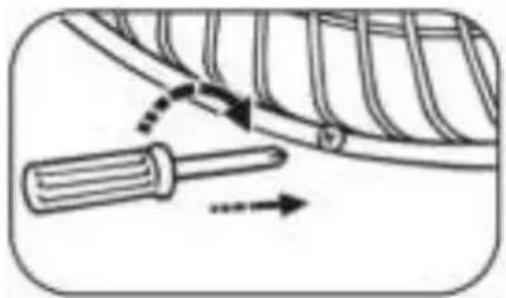

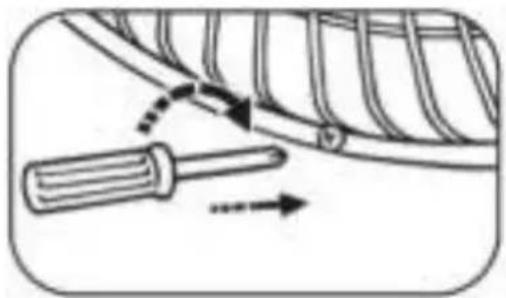

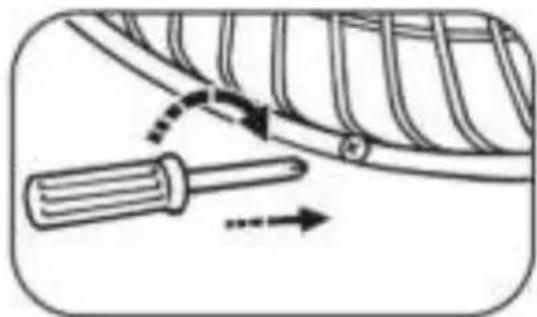

Diagram showing a screwdriver and curved tool interacting with a curved surface (no text or symbols)

1. Slide the fan onto the extension pole. Secure the fan with the fixing knob.

7. Operation

1. Install the fan on a dry, level and non-slippery surface.
2. Connect the fan to the mains.
3. Press the on-off switch to switch on the fan. Set the timer and fan speed with the timer and speed buttons. You can also control the fan using the included remote control.
4. Fix or let the fan oscillate with the oscillation button.
5. Switch off the fan and disconnect from the mains after use.

8. Cleaning and Maintenance

Before starting any cleaning activities:

1. Switch off the device.
2. Unplug the device's power cord from the outlet.

Cleaning

1. Switch off the appliance.
2. Unplug the appliance from the mains.
3. Clean the inlet and outlet ribs with a vacuum cleaner.

Do not disassemble the appliance.

Do not immerse the appliance in water or any other liquid. Do not clean the appliance with water and never allow water to enter the motor and housing.

Do not use harsh chemicals, cleaning solvents or strong detergents.

Storing

Store the device in its original package in a dry and clean place.

RED Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type [CFANAM8] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
