USER MANUAL HS 12.0 B2 SILVERCREST

SILVERCREST HS 12.0 B2 - 1


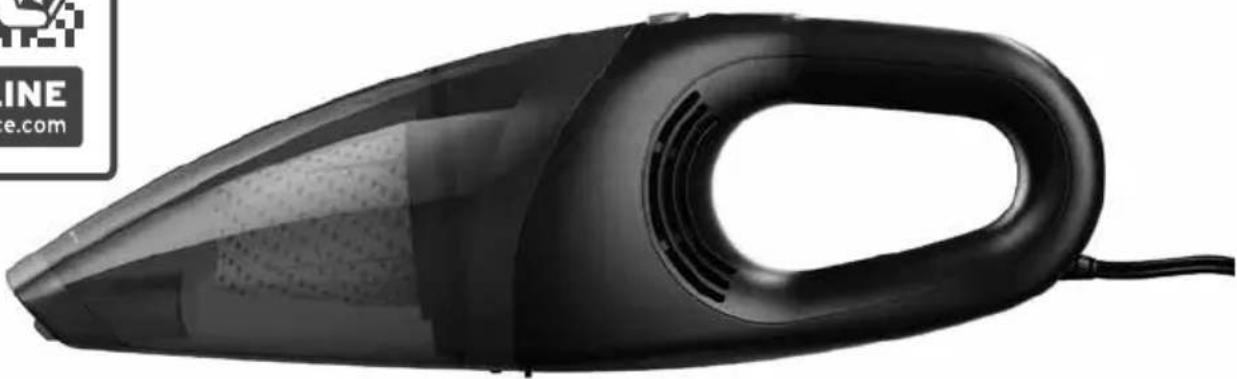

Black handheld air cleaner with handle and control panel (no visible text or symbols)

HAND-HELD CAR VACUUM CLEANER /

AUTO-HANDSTAUBSAUGER /

ASPIRATEUR À MAIN POUR VOITURE HS 12.0 B2

GB IE

HAND-HELD CAR VACUUM CLEANER

Operating instructions

FR BE

ASPIRATEUR À MAIN POUR VOITURE

Mode d'emploi

RUČNÍ VYSAVAČ DO AUTA

Návod k obsluze

RUČNÝ VYSÁVAČ DO AUTA

Návod na obsluhu

HÅNDST∅VSUGER TIL BILEN

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Information about this short manual .... 2

Proper use....2

Included items....2

Parts list....2

Technical information....2

Safety 3

Safety advice 3

Operation 4

Before first use 4

Fitting and removing attachments....4

Switching On/Off 5

Servicing and cleaning....5

Disposal....5

Service....6

Importer 6

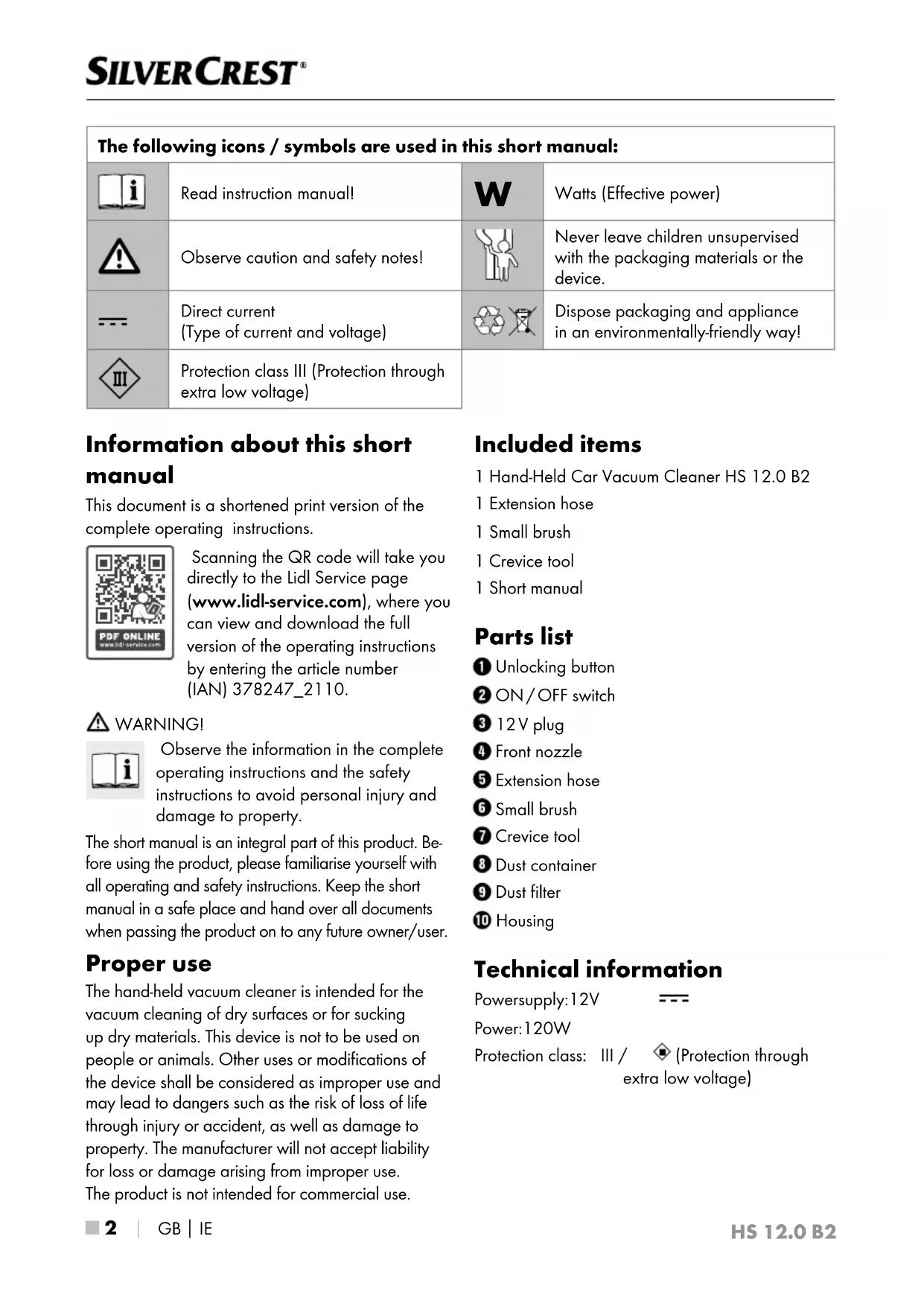

The following icons / symbols are used in this short manual:
	Read instruction manual!	Watts (Effective power)
	Observe caution and safety notes!	Never leave children unsupervised with the packaging materials or the device.
	Direct current (Type of current and voltage)	Dispose packaging and appliance in an environmentally-friendly way!
	Protection class III (Protection through extra low voltage)

Information about this short manual

This document is a shortened print version of the complete operating instructions.

SILVERCREST HS 12.0 B2 - Information about this short manual - 1

Scanning the QR code will take you directly to the Lidl Service page (www.lidl-service.com), where you can view and download the full version of the operating instructions by entering the article number (IAN) 378247_2110.

WARNING!

SILVERCREST HS 12.0 B2 - WARNING! - 1

Observe the information in the complete operating instructions and the safety instructions to avoid personal injury and damage to property.

The short manual is an integral part of this product. Before using the product, please familiarise yourself with all operating and safety instructions. Keep the short manual in a safe place and hand over all documents when passing the product on to any future owner/user.

Proper use

The hand-held vacuum cleaner is intended for the vacuum cleaning of dry surfaces or for sucking up dry materials. This device is not to be used on people or animals. Other uses or modifications of the device shall be considered as improper use and may lead to dangers such as the risk of loss of life through injury or accident, as well as damage to property. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.

Included items

1 Hand-Held Car Vacuum Cleaner HS 12.0 B2

1 Extension hose

1 Small brush

1 Crevice tool

1 Short manual

Parts list

① Unlocking button
② ON/OFF switch
③ 12V plug
4 Front nozzle
⑤ Extension hose
6 Small brush
⑦ Crevice tool
8 Dust container
9 Dust filter
10 Housing

Technical information

Powersupply:12V

SILVERCREST HS 12.0 B2 - Technical information - 1

Power:120W

Protection class:

SILVERCREST HS 12.0 B2 - Technical information - 2

(Protection through

extra low voltage)

Safety

Safety advice

This safety advice is an important part of these operating instructions and must be observed every time electrical devices are used. The advice and instructions will help you to avoid risk to life, accidents and damage to property. Therefore you must read carefully through the following information concerning safety and proper use.

RISK OF LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials or the device. There is a risk of suffocation and loss of life from electric shock. Children often underestimate the dangers associated with electrical devices. Always keep children away from the device.

This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks.

Children should not be allowed to play with the appliance.

Cleaning and user maintenance should not be performed by children without supervision.

- Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.

- Do not use the lead for any purpose for which it was not intended, e.g. to carry the device or to pull the plug out of the 12 V socket. Keep the lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled leads or plugs increase the risk of electric shock.

■ Damage to the device, mains lead or plug presents a risk of loss of life from electric shock. Frequently check the condition of the device, mains lead and plug.

■ Do not use a device with damaged parts. If a dangerous situation arises pull out the plug from the socket immediately.

WARNING!

▶ Never open up the device. Always have any repairs carried out or replacement parts fitted at the service centre or by an electrical equipment repair specialist.

■ When not in use always ensure that electrical devices are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical devices are dangerous when they are used by inexperienced people.

■ The appliance should only be supplied with SELV (safety extra-low voltage) according to the labelling on the appliance.

If the connecting cable or plug of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person in order to avoid hazards.

Operation

Before first use

Take all the parts carefully out of the packaging and remove all the packaging material. Dispose of all the packaging material in an environmentally friendly manner.
◆ Fully unwind the lead attached to the 12 V plug.

NOTE

▶ Always make sure that the dust filte is installed before you use the device.

Fitting and removing attachments

Extension hose

♦ Insert the smaller end of the extension hos 5 snugly into the front nozzle 4
♦ Insert the desired attachment 6, 7 nugly into the extension hose 5

Small brush 6:

This accessory has hard bristles and is very suitable for initially loosening and then vacuuming up stubborn dirt, e.g. from the upholstery or footwell.

◆ Insert the small brush 6 snugly into the front nozzle 4

Crevice tool 7:

Use this attachment to get into narrow, difficult-to-access places.

◆ Insert the crevice too snugly into the front nozzle 4

Removing attachments:

Simply pull the attachment off the front nozzle ④ or the extension hose ⑤

Switching On/Off

Insert the 12 V plug into the 12 V socket / cigarette lighter socket of the vehicle.
To switch the device on, press the ON / OFF switch ② forwards into the I position.
To switch the device off, press the ON / OFF switch ② back into the 0 position.
◆ Pull the 12 V plug 3 out of the 12 V socket after use.

NOTE

▶ If you going to vacuum for a long period, we recommend that you carry out the cleaning with the engine running.

Servicing and cleaning

The device requires no maintenance.

SILVERCREST HS 12.0 B2 - Servicing and cleaning - 1

CAUTION

Before you clean the device itself, pull the 12V plug ③ out of the 12 V socket, otherwise there is a risk of electric shock
- Clean all the housing with a soft, dry cloth. Never use liquids or cleaning agents, as they may damage the device.
For the best possible performance, you should empty the dust container 8 immediately after use and when the suction power drops.
◆ Press the unlocking button 1 and take the dust container 8 out of the housing . 10
Take out the dust filter. You will be able to clean the dust filter better if you detach it from the end seal. To do this, hold the end seal firmly and twist the filter off carefully anticlockwise (bayonet fitting). Rinse out the dust filter thoroughly in cold water and allow both parts (filter and end seal) to dry completely. Attach the filter back on to the end seal.

◆ Empty the dust containe ^8 completely.
- Carefully replace the dust filter ③ back into the dust container ⑧ Never use the vacuum cleaner without the dust filter ⑨ in place.
- Attach the dust containe ^8 carefully back on to the housing ^10 nd ensure the two parts engage.

SILVERCREST HS 12.0 B2 - CAUTION - 1

CAUTION

The front nozzle must be free and unobstructed at all times. Blockages can lead to overheating and damage to the motor.

Disposal

SILVERCREST HS 12.0 B2 - Disposal - 1

The packaging is composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

SILVERCREST HS 12.0 B2 - Disposal - 2

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics; 20-22: Paper and cardboard; 80-98: Composites.

SILVERCREST HS 12.0 B2 - Disposal - 3

Do not dispose of electrical devices with the household rubbish!

In accordance with European Directive 2012 / 19 / EU, worn out electrical devices must be collected separately and taken for environmentally compatible recycling.

SILVERCREST HS 12.0 B2 - Do not dispose of electrical devices with the household rubbish! - 1

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

SILVERCREST HS 12.0 B2 - Do not dispose of electrical devices with the household rubbish! - 2

The product is recyclable, subject to extended producer responsibility and is collected separately.

Service

GB Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk

IE Service Ireland Tel.: 1800 101010 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 378247_2110

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

Varnostna navodila 69

Uporaba 70

Pred prvo uporabo....70

Vgradnja/odstranjevanje nastavkov....70

Vklop/izklop....71

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

SILVERCREST HS 12.0 B2 - Kazalo - 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
