Product type	Electric pressure cooker (rice cooker)
Brand	Cuckoo
Model	CR0671V
Capacity	1.0 L (approx. 5 cups of rice)
Power supply	AC 220-240 V, 15 A
Main functions	Rice cooking, automatic keep warm
Bowl coating	Fluorocarbon-based non-stick
Lid	Removable with detachable inner lid
Safety	Pressure release valve, safety lock, overheat protection
Cleaning	Removable bowl, removable inner lid, water collection tray
Included accessories	Measuring cup, rice spoon
Maintenance	Regularly clean the inner lid and bowl with a soft sponge and mild detergent
Usage	Household use only, do not use for frying
Warranty	Refer to retailer

Frequently Asked Questions - CR0671V Cuckoo

Why does my rice burn and stick to the bowl?

This may be due to a lack of water, a poorly positioned bowl, or a blocked temperature sensor. Check the water and rice levels, clean the sensor, and ensure the bowl is properly in place.

What should I do if water overflows during cooking?

Overflow is often caused by too much water or rice. Follow the markings in the bowl and do not exceed the MAX line. Also check that the inner lid is properly in place.

Why is my rice too soft or half-cooked?

Rice that is too soft indicates too much water; half-cooked rice indicates too little water. Use the provided measuring cup and adjust the water level according to the markings. Ensure the lid is properly closed.

How to clean the pressure cooker correctly?

Unplug the appliance and let it cool down. Remove the removable bowl and the inner lid. Clean with a soft sponge and mild detergent. Never use steel wool or abrasive products. Wipe the body with a dry cloth.

Can I cook other foods besides rice in this appliance?

This pressure cooker is designed primarily for cooking rice. It is not recommended to cook foods like pasta, compotes, or soups, as they may block the valve and cause overflow.

What if the appliance emits a bad odor?

To eliminate odors, fill the bowl with water to the 10 serving level, close the lid, and press the COOK button. Let it boil for 10 minutes until it switches to keep warm mode. Then thoroughly clean the bowl and lid.

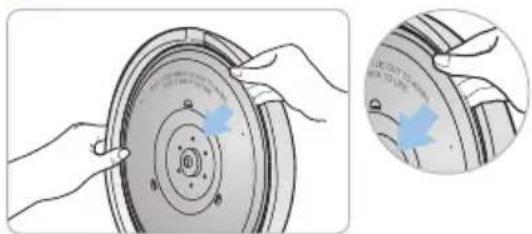

How to detach and reattach the inner lid?

To detach, gently pull the inner lid while pushing the lever upward. To reattach, press it gently against the lid until it snaps into place. Do not pull on the rubber gasket.

The light stays on even after cooking, is that normal?

Yes, it's normal. The light indicates that the appliance is powered on. When the appliance switches to keep warm mode, the light stays on. Unplug it if not in use.

Can I use vinegar or lemon for descaling?

Avoid acidic products like vinegar or lemon, as they can damage the non-stick coating. Use only a mild detergent and soft sponge.

What if the rubber gasket is worn or damaged?

The rubber gasket is essential for a proper seal. If damaged, contact customer service or the retailer for a suitable replacement part. Do not use the appliance without a good gasket.

USER MANUAL CR0671V Cuckoo

Operating Instruction

使用說明書

MANUEL D'UTILISATION

CR-0671

NO.1 CUCKOO

Mechanical type Electric Rice Cooker/Warmer

CUCKOO

always new

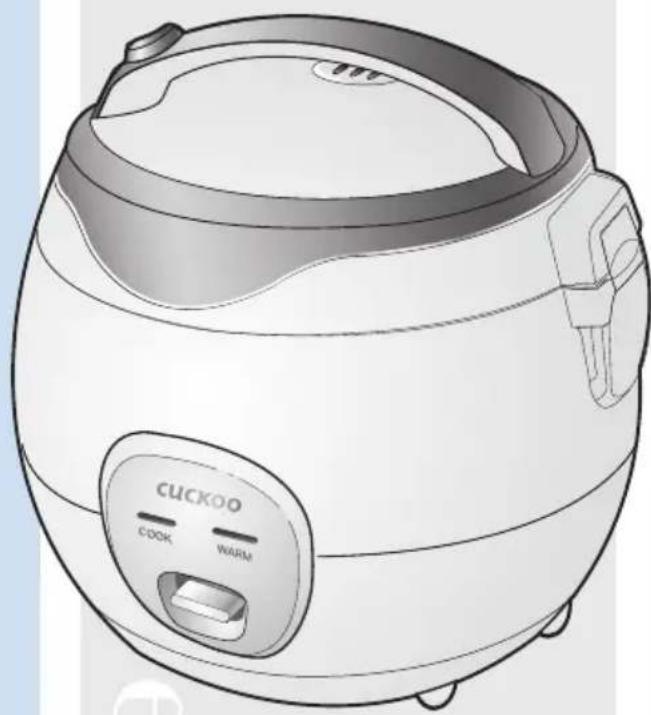

Line drawing of a white rice cooker with 'COOK' and 'WARM' control buttons (no text or symbols on body)

design

love

CUCKOO ELECTRONICS CO., LTD.

CONTENTS

Important safeguards 3

제품규격 5

안전상의 경고.... 6\~9

각 부분의 이름 10

제품손질방법 11\~12

사용방법 13\~14

Thank you very much for purchasing "CUCKOO" Electric Rice Cooker/Warmer

Read all instructions before use.

Save these instructions for future reference.

Contents

English

Important safeguards 3

Specifications 5

Name of each part 10

Caution for safety 16\~19

Cleaning and maintenance 20\~21

How to use.... 22\~23

Check before asking for service 24

Important safeguards 3

产品规格 5

部件名称 10

安全警告 34\~37

清洁保养方法 38\~39

使用方法 40\~41

常见故障及处理方法 42

IMPORTANT SAFEGUARDS

1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and / or injury to persons do not immerse cord, plugs, or Pressure Cooker Body in water or any other liquid.
4. Close supervision is necessary when this appliance is used by or near children. This appliance is not intended for use by young children without supervision.
5. Unplug cord from outlet when not in use and before cleaning. Allow appliance to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, and / or injury to persons.
8. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or your service agent.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas, electric burner, or in a heated oven.
12. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, or set all control to "off", then remove the plug from the wall outlet.
13. Do not use this appliance for other than its intended use.
14. Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
15. Oversized foods, metal foil packages, or utensils must not be inserted into the appliance as they are a risk of fire or electric shock.
16. Fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, etc while in operation.
17. To reduce the risk of electric shock, cook only in the provided removable container.
18. This appliance cooks under pressure. Improper use may result in scalding injury. Before operating the unit, properly secure and close the unit. See “Operating Instructions.”
19. Do not cook foods such as applesauce, cranberries, cereals, macaroni, spaghetti, or other foods. These foods tend to foam, froth, and sputter, and may block the pressure releasing device
20. Before use always check the pressure releasing device for clogging.
21. Do not open the pressure cooker until the unit has cooled and internal pressure has been reduced. See "Operating Instructions."
22. Do not use this pressure cooker to fry in oil.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY

ADDITIONAL IMPORTANT SAFEGUARDS

WARNING : This appliance generates heat and releases steam during use. Use proper precaution to prevent risk of burns, fires, other injuries, or damage to property.

1. Keep hands and face away from the Pressure Release Valve when releasing pressure.
2. Take extreme caution when opening the Lid after cooking. Severe burns can result from steam inside.
3. Never open the Lid while the unit is in operation.
4. Do not use without the inner Pot in place.
5. Do not cover the Pressure Valve with anything as an explosion may occur.
6. Do not touch the inner pot nor any heating parts, immediately after use. Allow the unit to cool down completely first.

This appliance is intended to be used in household and similar applications such as :

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

MESURES DE PROTECTION IMPORTANTES

ADDITIONAL SAFEGUARDS

▶ Avoid touching hot parts : outer lid, inner pot, inner lid and especially the steam vent hole.
▶ Do not switch on when the main body is empty.
▶ Make sure that heating plate and the magnetic switch are clean and dry whenever putting the inner pot into the cooker.
▶ Do not use sharp instruments to clean the inner pot as these will damage the non-stick coating.
▶ A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
▶ Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
This appliance is intended to be used in household and similar applications such as :

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

SHORT CORD INSTRUCTIONS/SPECIFICATIONS

Note : A. A short power-supply cord (or cord set) is to be provided to reduce the hazards resulting from becoming entangled in or tripping over a longer cord.

B. Longer cord set or extension cords are available and may be used if care is exercised in their use.
C. If a long cord set or extension cord is used.

(1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
(2) if the appliance is of the grounded type, the extension cord should be a grounding-type three-wire cord, and
(3) the longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over accidentally.

CAUTION : During use, the internal parts of the rice cooker and the area around the steam vent are HOT. Keep out of reach of children to avoid possible injury.

제품규격/Specifications /SPÉCIFICATIONS/产品规格

모델명 / Model Name / NOM DU MODÈLE / 型号		CR-0671
전원 / Power Supply / CORDON D'ALIMENTATION / 额定电压		AC 120V, 60Hz
소비전력 / Power Consumption / CONSOMMATION D'ÉNERGIE /额定功率 (approx.) W	취사 / Cooking / 煮饭	500W
	보온 / Keeping Warm / 保温	60W

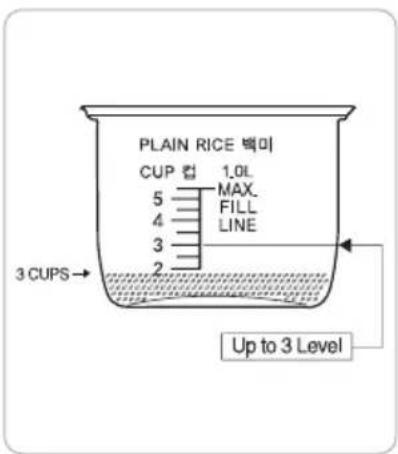

취사용량 / Cooking Capacity / CAPACITÈ DE CUISSON / 煮饭容量 L (Cups)	백미 / White Rice / 白米	0.36~1.0L(1.5~5.5杯)
코드길이(m) / Power Cord Length(ft) / LONGUEUR DU CORDON D'ALIMENTATION / 电源线长度		1.4m/4.6ft/1.4米
외형크기 / Dimension / DIMENSION / 外形尺寸 cm (in)	길이 / Length / LARGEUR / 長	25.8cm
	폭 / Width / LONGUEUR / 宽	26.2cm
	높이 / Height / HAUTEUR / 高	27.8cm

Illustration of a cracked surface with steam rising, no text or symbols present

Cartoon illustration of a person with a sprout on their head, crossed by a blue X (no text or symbols)

Illustration of a cartoon rabbit and a baby with a cross mark, no text or symbols present

Illustration of a steaming pot with a hand holding a cup, showing a sad face (no text or symbols)

Pure electrical circuit lines without any symbols

Illustration of a person washing a baby in a bowl with a pan, no text or symbols present

Illustration of a hand holding an electrical outlet with lightning bolts indicating electrical hazard (no text or symbols)

Illustration of a person inside a box with a blue X symbol, no text or symbols present

Cartoon illustration of a person with a brush and face, holding a pen, pointing at a large Earth (no text or symbols present)

Illustration of two hands connecting electrical plugs with a power cord, no text or symbols present

Cartoon illustration of a smiling jar with open lid and steam rising (no text or symbols)

Cartoon illustration of a dog holding an electric shock plug with lightning bolts (no text or symbols)

Illustration of three food containers with steam rising, no text or symbols present

Cartoon illustration of a bowl with steam rising, crossed by a blue X (no text or symbols)

Cartoon illustration of a smiling face with a raised hand, no text or symbols present

Cartoon character with a large blue 'X' symbol, no text or symbols present

Illustration of a smiling woman and a cartoon character (no text or symbols)

Illustration of a hand opening a circular object with a lid, no text or symbols present

청소는 제품을 식힌 후에 하십시오.

Diagram of two mechanical components with arrows indicating motion or force direction (no text or symbols)

Line drawing of a rectangular container or holder with a side clip (no text or symbols)

제품 손질 방법

Hand cleaning a large bowl with a cloth (no text or symbols visible)

Hand pressing a button on a circular mechanical component (no text or symbols visible)

Illustration of a hand cleaning a large bowl with a lid (no text or symbols)

Illustration of a hand holding a bowl with liquid, inside a pot (no text or symbols)

Illustration of hands holding a circular mechanical component with concentric rings and a blue arrow indicating a specific point (no text or symbols present)

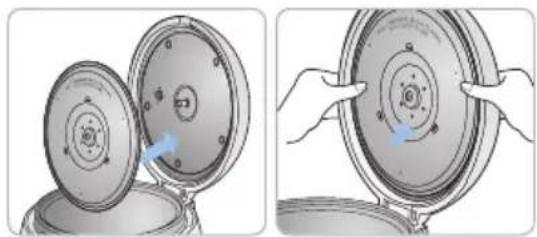

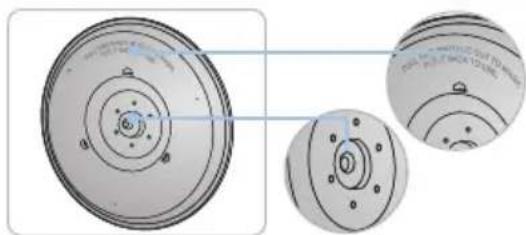

2 분리형커버 부착 방법

Mechanical component diagram showing two circular parts with a central hub and a blue arrow pointing to one (no text or symbols)

Illustration of hands holding a circular mechanical component with concentric rings and central hub (no text or symbols)

Technical diagram of a circular mechanical component with concentric rings and mounting holes (no text or symbols)

Two circular mechanical components with bolt holes and concentric rings, no visible text or symbols.

Line drawing of a rice cooker with open lid and side panel (no text or symbols)

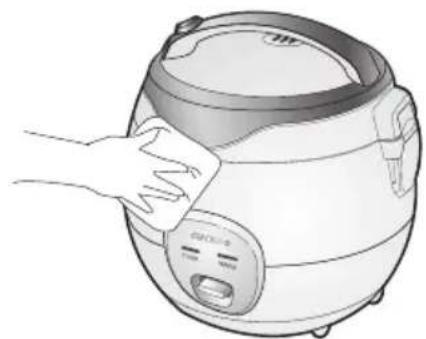

Illustration of a hand cleaning a rice cooker with a cloth (no text or symbols)

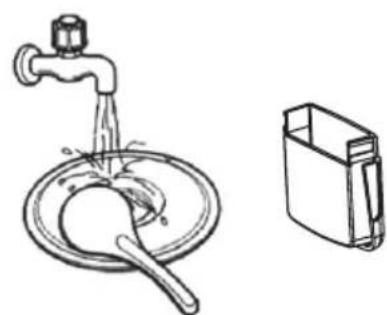

Simple line drawing of a faucet with water flowing through it into a basin (no text or symbols)

(물받이) ※위치는 8페이지 참조

사용방법

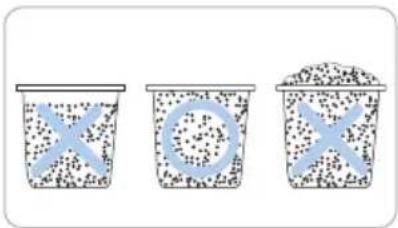

Three identical containers with scattered particles and blue X-shaped symbols inside, no text or labels present.

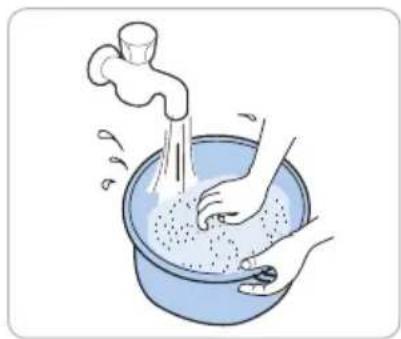

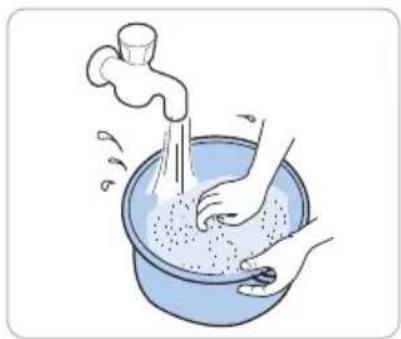

Illustration of hands washing a bowl with a faucet, no text or symbols present

Illustration of a hand touching a rice cooker with a starburst effect (no text or symbols)

5

Illustration of a power outlet connected to a water heater with a hand inserting a plug (no text or symbols present)

6

Close-up illustration of a white rice cooker with a circular control knob (no text or symbols visible)

7

• The following must be observed to use the product safely and correctly to prevent accidental and dangerous situations.
• 'Warning' and 'Caution' are different as follows.

Warning

This means that the action it describes may result in death or severe injury.

• This sign is intended to remind and alert that something may cause problems under the certain situation.
• Please read and follow the instruction to avoid any harmful situation.

Caution

This means that the action it describes may result in injury or property damage.

• Indicates a prohibition.
• Indicates an instruction.

Warning (Do not)

Do not use the cooker near hot things such as stove, gas stove or direct ray of light.

Illustration of a globe with a person walking away and a magnifying glass over clouds, no text or symbols present.

- It can cause an electric shock, fire, transformation or discoloration. Please check the power cord or plug frequently.

Please pay careful attention not to get any water or chemicals on the cooker.

Cartoon illustration of a person with steam rising above head, crossed by a blue X (no text or symbols)

- It can cause an electric shock or fire.

Keep the cooker out of children's reach.

• It can cause bums, electric shock or injury.

Illustration of a rabbit lying on stomach with a cross symbol indicating an explosion or death (no text or symbols present)

Do not sprinkle water on the cooker.

• It can cause an electric shock or fire.
• If it contacts water, please separate power cord and contact dealer or service center.

Do not bend, tie or pull the power cord by force.

- It can cause an electric shock or short circuit resulting in fire. Please check the power cord and plug frequently.

Do not over unplug and plug the power cord over and over.

- It can cause an electric shock or fire.

Keep your hand or face away from the steam outlet.

Illustration of a steaming pot with steam rising, showing a hand holding a cup (no text or symbols)

Do not open the lid while in heating and cooking.

Illustration of a steaming bowl with steam rising, crossed out by a blue X (no text or symbols)

- It can cause burns. - Especially keep it out of children's reach.

- It can cause burns.

CAUTION FOR SAFETY

Warning (Do not)

Use a single socket with the rated current above 15A.

Pure electrical wiring diagram showing three connected components with no text or symbols

• Using several lines in one socket can cause overheating resulting in fire. Please check the power cord or plug frequently.
• Use an extension cord with a rated current above 15A.

Do not use pots that are not designed for the cooker.

Do not use abnormal pot and do not use without the inner pot.

(Inner pot)

- It can cause an electric shock or fire.

Do not use it without the inner pot.

Illustration of a hand pouring liquid into a bowl with a pan nearby (no text or symbols)

• It can cause an electric shock or malfunction.
• Do not pour rice or water without the inner pot.
• If rice or water gets in then do not turn the product over or shake it, please contact the dealer or service center.

Do not alter, reassemble, disassemble or repair.

• It can cause fire, electric shock or injury.
• For repair, contact dealer or the service center.

Do not place the product near dusty places or near chemical substances.

• Do not place the product near combustible gas or near inflammables.
• It can cause an explosion or fire.

Do not use damaged power cord, plug or loose socket.

Illustration of a hand holding an electrical socket connected to a fuse, with lightning bolts indicating electrical hazard (no text or symbols)

• Please check the power cord frequently for damage.
• Serious damage can cause electric shock or fire.
• If the plug is damaged, contact the dealer or service center.

Do not use on a rice chest or a shelf.

Cartoon illustration of a person inside a computer with a blue X symbol (no text or symbols present)

• Do not wedge the power cord between furniture. It can cause an electric shock resulting in fire.
  Please check the power cord or plug frequently.
• When using on furniture, automatically released steam can cause damage, fire, and an electric shock.

Don't spray or put any insecticide or chemicals on the cooker.

• It can cause an electric shock or fire.
• In case cockroach or any insects get inside of the cooker please call a dealer or a service center.

Products such as metal rods inside.

Do not insert alien substance.

- It can cause an electric shock or fire.

Cartoon illustration of a child with a brush touching their face, while another character looks distressed (no text or symbols present)

Do not change, extend or connect the power cord without the advice of a technical expert

- It can cause an electric shock or fire.

Do not move the product by pulling or using the power cord.

• Electric short might cause fire.

Warning (Remember)

Do not plug or pull out the power cord with wet hands.

- It can cause an electric shock.

Illustration of two hands connecting electrical plugs with a power cord, no text or symbols present

Remove a foreign substance on the cord and plug with a clean cloth.

- It can cause fire. Please check the power cord and plug frequently.

Simple line drawing of a hand holding a small object and a computer mouse (no text or symbols)

Be careful not to harm your hand when opening the cover.

- Do not leave the cover opened. It might cause accident.

Be careful that both the plug and power cord are not to let animal bite or to be shocked by sharp metal materials.

- Damages by impact can cause an electric shock or fire. Please check the power cord or plug frequently.

Do not place heavy things on the power cord.

- It can cause an electric shock or fire. Please check the power cord and plug frequently.

Clean any dust or alien substance off the temperature sensor, heating plate and inner pot.

- It can cause a system problem or fire.

Caution (Do not)

Do not touch the metallic surface of the inner pot and heating plate after cooking or warming.

- It can cause burns.

Do not cover the steam outlet with a duster, a towel or a pron, etc.

- It can cause a transformation or a breakdown.

Cartoon illustration of a smiling bowl with wings and steam rising, crossed out by a blue X (no text or symbols)

If possible, only use warming function when cooking white rice. Other foods are easily discolored.

Do not use over the maximum capacity.

- It can cause overflow or breakdown. - Do not cook over stated capacity for cooking of chicken soup and congee.

Please pull the plug out when not in use.

- It can cause electric shock or fire. - Use AC 120V only.

When warming, please close the cover and turn on the power.

- It may cause rice discolor or/and rice to stink.

Take out the spatula before warming.

- It may cause rice discolor or/and rice to stink.

CAUTION FOR SAFETY

Caution (Do not)

Don't use for various purpose for inner pot. and do not heat up the inner pot on the gas stove.

• It can cause the deformation of the inner pot.
• It can cause to spill the inner coating.

Please use the cooker for it's intended purpose.

- It can cause malfunction or smell.

Do not drop or impact the cooker.

• It can cause a safety problem.

Do NOT use near wall or furniture. Otherwise wall or furniture may be damaged, discolored or deformed due to vapor or heat.

- When using in drawer cabinet etc, ensure that no vapor enters it.

Use product on a flat surface. Do not use on a cushion. Please avoid using it on an unstable location prone to falling down.

Cartoon illustration of a smiling bowl character waving, with a blue X symbol overlay (no text or symbols present)

- It can cause malfunction or a fire. Please check the power cord and plug frequently.

Do not place on rough top or tilted top.

• It can cause bums or malfunction.
• Be careful to install the power cord which does not disturb to pass.

Please call customer service if the inner pot coating peels off.

• Inner pot coating may wear away after long use.
- When cleaning the inner pot, do not use tough scrubber, metallic scrubber, brush, abrasive metallic etc.

Caution (Remember)

Please contact dealer or service center if there is a smell or smoke coming from the cooker.

- First pull out the power cord. And contact dealer or the service center.

Please pull out the plug when not in use.

- It can cause an electric shocks or fire.

Do NOT pull out or damage steam vent or steam vent seal packing.

- In case steam vent or steam vent seal packing is separated or damaged, stop using the device and contact your representative or service center.

Keep steam vent always clean with no foreign matters near it.

In case Cooking switch refuses to be pressed or does not work before or after use, contact your representative or service center.

Please clean the body and other parts after cooking.

• It can cause the transformation or smell.

To clean the product, wait until it cools down.

- Touch hot area may become a cause of burn.

When you pull out the power plug, don't pull the power cord. Please, safely pull out the power plug.

- If you inflict impact on power cord, it can cause an electric shock or fire.

CLEANING AND MAINTENANCE

• Negligent cleaning may cause a bad smell while keeping the rice warm. Clean the lid frequently (Clean the rice cooker after pulling out the plug and wait until the main body cools.)
• Wipe the main body and the lid with a dry dishcloth. Do not use benzene or thinners.
• The rice water left on the inner lid or in the inner pot may form a starch film but it is harmless.

Inner Pot Main Unit

Hand washing a textured object into a metal bowl (no text or symbols visible)

Wipe alien materials and moisture from the outer and the bottom of the inner pot. Using a rough sponge, brush or abrasive may result in peeling of the coating. Use dishwashing detergent and a soft cloth or sponge.

Hand pressing a button on a circular mechanical component (no text or symbols visible)

If rice water remains on the inner lid, wipe the lid with a dry dishcloth. Since the edge of the lid is made of metal, clean it with care.

Illustration of a hand cleaning a large bowl (no text or symbols visible)

The rice water generated while cooking is designed to be collected in the dew dish. After cooking, clean it with a dry dishcloth.

Inner BodyInner Lid

Illustration of a hand cleaning a large bowl with a cloth (no text or symbols)

If alien materials stick to the temperature detector, remove them while avoiding damage to the metal plate. Wipe alien materials or moisture from the thermal plate.

※ Caution when cleaning inner pot

When cleaning the inner pot, do not clean it with sharp cutlery (fork, spoon etc) placed in the pot.

- It can cause damage on the inner pot coating.

How to detach/attach detachable cover

1 How to detach detachable cover

Illustration of hands adjusting a circular tire with blue arrows indicating direction (no text or symbols)

2 How to attach detachable cover

Two-step illustration showing a mechanical component being folded into a circular housing, with no visible text or symbols.

Technical illustration of three circular mechanical components with concentric rings and mounting holes, shown from different angles (no text or symbols present)

▶ Gently pull the detachable cover.
▶ Push the Detachable Cover lever upwards with the other hand, and gently pull the Detachable Cover. Then, it will be detached.
※ Do not grab and pull by the cover packing of the lid.

▶ Referring to the photo, push the detachable cover gently to the lid for attaching.

CLEANING AND MAINTENANCE

How to Manage the Inner Part

We have coated the inside of the product with non-stick fluorocarbon coating in order to prevent rice from sticking on the pot.

• Use the Rice Scoop.
• Do not put a metallic spoon or dishware into the product.
• Do not use benzene, thinner etc.
• If you have used seasoning, wash the product immediately after use.
• Some stain may remain during the use, but this does not affect the hygiene.

Line drawing of a rice cooker with two open doors and a control panel (no text or symbols)

Before cleaning, pull out the detachable cover.

When storing, cooking, and warming, make sure to wipe out all the moisture off the outer part of the oven. It may cause outer coating to change color.

After cooking, wipe the excess water with a wet cloth to prevent any smell in the future.

If there is any alien substance on the temperature sensor carefully wipe it out without damping the metal plate.

Wipe the body frequently with dry cloth, soft material or etc.

Illustration of a hand cleaning a rice cooker with a cloth (no text or symbols)

Wash inner lid and accessories with running water and wipe them with dry cloth.

Illustration of a faucet with water flowing into a basin and a separate box (no text or symbols)

HOW TO USE

1 Measure rice precisely with measuring cup.

▶ One measuring cup of rice is about 180mL, the cooking amount for 1 serving of adults.

Three identical containers with scattered dots and blue X-shaped symbols inside, no text or labels present.

2 Wash rice in container other than Inner pot.

▶ How to wash rice

① Wash rice by rubbing it 20 times or so with palm in separate container.
② Rinse rice sufficiently until clear water comes out.
③ For better taste of rice, cook washed rice after leaving it for 30 minutes or so in sieve.

Illustration of hands washing a basin with a faucet (no text or symbols)

3 Put washed rice in Inner pot and adjust water amount.

The graduations of Inner pot serve as the criteria to adjust water level. For instance, to cook rice for 3 servings, put 3 measuring cups of washed rice into Inner pot, and adjust water precisely so that water may be filled up to graduation of 3.
※ Water may be adjusted accurately only if Inner pot is placed at horizontal place.
▶ Water Amount:

- When rice is swollen sufficiently - For thicker rice ____ Pour less water than specified amount.

- When cooking with long-stored rice - For soft-boiled rice ____ Pour more water than specified amount.

▶ CAUTION

· If rice and water amounts are not adjusted precisely, rice won't be cooked to desired condition.
· If rice amount exceeds maximum rice graduation, rice may not be cooked.

HOW TO USE

4

Put Inner pot and close the lid tightly.

Illustration of a hand holding a rice cooker with a starburst effect (no text or symbols)

5

Connect power plug, and press Cooking switch.

Simple line drawing of a plug inserted into an electrical outlet (no text or symbols)

Illustration of a hand inserting a small circular component into a cylindrical device (no text or symbols visible)

6

Once cooking is completed, the cooker enters Warm mode automatically.

(Please keep the lid closed for 15\~20 Mins in Warm mode for better taste.)

Close-up of a kitchen appliance with a button labeled 'cuckoo' (no additional text or symbols visible)

7

Before having the rice, please stir the rice after 15\~20 Mins in Warm

mode. Then close the lid and keep the cooker in Warm mode.

Take note

1. To remove odor during Warming:

① Pour water in Inner pot up to the graduation for 10 servings cooking.
② Close the lid of Inner pot, and press Cooking button.
③ Leave the water boiling for 10 minutes or so, and switch to Warm mode.
④ When water is cooled down properly, take out inner pot and inner lid and wash them clean.

1. After product is opened, foreign matters may be stained at Inner pot. Wash Inner pot clean before using it.

2. If inner lid is not attached, warm performance may drop. Be sure to attach separable cover before use.

3. NEVER use inner pot for purpose other than rice cooking. If inner pot is used for other purpose, remove odor in the method provided in paragraph 1 before cooking.

4. What is melanoizing?

Rice cooked/warmed in this rice cooker will assume slightly yellowish tone at the bottom. This is a phenomenon called melanoizing which is intended to produce the unique soothing flavor and taste of rice.

1. During warming, 'click' sound may occur from the product. This sound indicates that thermometer is working properly and does not mean it's malfunctioned.

2. This rice cooker is designed so that power be supplied and lamp illuminate even when Inner pot is not in place. (When the rice cooker is not used, pull out power plug.)

CHECK BEFORE ASKING FOR SERVICE

If the cooker is not used according to specified procedure, it may not work properly even though the cooker is not malfunctioned.

If rice does not cook properly or warm is abnormal, check the condition per the checklist below.

If abnormality still persists even after checking, consult customer care center.

Symptom Checkpoint		Action
Rice water overflows	Wasn't there too much water beyond criteria water level when rice was cooked? Was the rice cooked without inner lid attached?	Open the lid and take out water.Attach inner lid.
Cooked rice is:Too thickHalf-cookedToo soft-boiled	Is water adjusted to proper level?Is there any foreign object stuck at the outer bottom of inner pot, or is the bottom of inner pot uneven?Did you open the lid without waiting 15 mins after Cooking switch was turned off?Wasn't power cut or did Cooking switch go OFF during rice cooking?	Adjust water level to measurement graduation depending on rice amount.Clean foreign object.Keep the lid closed and let the steam settled as long as possible.Do not touch Cooking switch until rice cooking is completed and the switch turns OFF automatically.
Rice is scorched and stuck to Inner pot.	Was the rice washed properly?Wasn't Cooking switch pressed forcefully even if rice cooking is completed and the cooker switched to warm mode.Wasn't the rice cooked without the scorched trace at the bottom of inner pot washed off?Wasn't there any foreign object stuck between heating plate and inner pot when rice was cooked?	Wash rice clean always.Once rice cooking is completed, NEVER press Cooking switch.Use inner pot cleanly always.Use heating plate and inner pot cleanly always lest foreign object should stick to them.
Cooked rice has odor or is discolored in warm mode mode.	Is the lid closed tightly?Does power plug refuse to be pulled out during warming?Was there any spatula, cold rice or other grains during warming?Wasn't the amount of rice too small?	Close the lid completely to allow no gap.Keep power socket plugged always during warming.Do NOT put in spatula, cold rice or other grains.If the amount of rice to remain in warming mode is small, gather rice at the center of inner pot during warming.

CONSIGNES DE SECURITE

Illustration of a cracked surface with smoke and sun, no text or symbols present

Illustration of a baby crawling under a steaming bowl with a cross symbol (no text or symbols present)

Illustration of a person washing clothes with steam rising (no text or symbols)

Cartoon illustration of a cow with a faucet above its head, crossed out by a blue X (no text or symbols)

Illustration of a steaming bowl with steam rising, crossed out by a blue X (no text or symbols)

! ATTENTION (ne pas)

Pure electrical circuit lines without any symbols

Illustration of a hand inserting a plug into an electrical outlet with lightning bolts (no text or symbols)

Illustration of a cooking step with a pan, lid, and bowl containing food (no text or symbols)

Illustration of a cooking pot with steam rising from it, no text or symbols present

Illustration of a cartoon character with a hand holding a pen, no text or symbols present

Cartoon illustration of a character with a long object and a blue arrow, no text or symbols present

Illustration of two hands connecting electrical outlets with a power plug, no text or symbols present

Cartoon illustration of a dog holding an electrical outlet connected to a plug (no text or symbols)

Simple line drawing of two hands interacting, one holding a small object (no text or symbols)

Illustration of a person with a large cross symbol above their head, surrounded by a globe (no text or symbols present)

ATTENTION (ne pas)

Illustration of three food containers with steam rising, no text or symbols present

Illustration of a smiling woman in business attire reacting with a cartoon character (no text or symbols present)

Illustration of a hand opening a cylindrical container with a lid (no text or symbols)

Hand washing a metal bowl with a sponge (no text or symbols visible)

Hand pressing a button on a circular mechanical component (no text or symbols visible)

Illustration of a hand pouring liquid into a pan (no text or symbols visible)

Illustration of a cooking pot with a cloth partially covered by it, showing liquid and steam (no text or symbols)

Illustration of hands installing a car wheel rim with blue arrows indicating the component (no text or symbols present)

Two-step illustration showing a mechanical component being held, with no visible text or symbols.

Technical diagram of three circular mechanical components with concentric rings and mounting holes, shown from different angles (no text or symbols present)

Line drawing of a rice cooker with open lid and base, showing internal components (no text or symbols)

Illustration of a hand cleaning a rice cooker with a cloth (no text or symbols)

Illustration of a faucet with water flowing into a basin and a separate storage bag (no text or symbols)

CONSEILS D'UTILISATION

Illustration of hands washing a basin with a faucet and bubbles (no text or symbols)

Illustration of a hand holding a rice cooker with a starburst effect (no text or symbols)

5

Illustration of a power plug connected to a water tank with a hand inserting a plug into it (no text or symbols present)

6

Close-up of a kitchen appliance with a labeled button (no visible text or symbols)

7

Illustration of a globe with a figure standing on it, emitting smoke and sun (no text or symbols)

Cartoon illustration of a person standing on a large object with a smokestack, crossed out by a blue X (no text or symbols)

Illustration of a person next to a steaming bowl with a cross symbol (no text or symbols present)

· 因高温烫伤或触电的可能。

请勿将产品放置在洗碗池里清洗。

- 漏电或触电的可能。

请勿将电源插头反复插拔

- 发生火灾或触电的可能

请勿将电源线强行弯曲、捆绑或拉伸。

·触电或因短路发生火灾的可能。

请勿直接接触排出口。

Illustration of a hand washing a steaming bowl with a sad face, no text or symbols present

Pure electrical circuit lines without any symbols

Illustration of a hand inserting a plug into an electrical outlet with lightning bolts (no text or symbols)

Illustration of a person inside a computer with a blue X symbol crossed out (no text or symbols present)

禁止将本产品放置在米桶及多层柜上使用。

Illustration of a food item being placed into a pan with a lid and cloth (no text or symbols)

Cartoon illustration of a character holding a brush and pointing at a sad face (no text or symbols)

请勿在有化学物品或灰尘的地方使用。

Illustration of two hands connecting to a wall-mounted power socket (no text or symbols)

Cartoon illustration of a dog holding a plug with lightning bolts (no text or symbols)

· 短路、触电或发生火灾的可能。

请用拧干抹布擦净电源插头的异物。

Illustration of three cooking containers with a crossed-out X symbol (no text or symbols present)

请勿超出最大容量（6人份）。

· 因米汤溢出可能会发生故障。

本产品只限用120V 交流电源。

触电或发生火灾的可能。

产品不能正常使用。

Cartoon illustration of a character with a large 'X' symbol crossed out, no text or symbols present

保温时请先盖好锅盖后插入电源。

· 米饭会产生异味或变色。

Cartoon illustration of a smiling barrel character with a hand raised, crossed by a blue X (no text or symbols)

Cartoon illustration of a sad, anthropomorphic object with a blue X symbol above its head (no text or symbols present)

Illustration of a hand opening a cylindrical container with lid (no text or symbols)

待产品冷却后擦拭产品。

·烫伤的可能。

请勿拉电源线拔电源插头。

Hand washing a large metal bowl with a sponge (no text or symbols visible)

Hand pressing a button on a circular mechanical component (no text or symbols visible)

Illustration of a hand pouring liquid into a container (no text or symbols visible)

煮饭完成后请及时擦净机体积水部的水.

机体内部

Illustration of a hand holding a bowl with liquid, no text or symbols present

Illustration of hands adjusting a circular mechanical component with blue arrows indicating features (no text or symbols present)

Two-step illustration showing a mechanical component being handled, with no visible text or symbols.

Technical diagram of three circular mechanical components with concentric rings and mounting holes (no text or symbols)

Illustration of a hand cleaning a rice cooker with a cloth (no text or symbols)

清洗内锅盖后请用抹布擦净。

Illustration of a faucet with water flowing into a sink and a separate box (no text or symbols)

使用方法

1 请用量杯正确调整米量

▶ 一杯米约180ml（1人份）。

2 请用其它容器淘米

▶ 淘米方法

Illustration of hands washing a basin with a faucet, no text or symbols present

3 将淘米放入内锅调整水量

▶ 内锅的刻度是调整水量的刻度。

Illustration of a hand holding a rice cooker with a starburst effect (no text or symbols)

5

插入电源后按煮饭按钮。

Line drawing of a wall socket connected to a power plug (no text or symbols)

Illustration of a hand inserting a small electronic device into a rice cooker (no text or symbols visible)

6

煮饭完成后自动开始保温。

(保温状态下焖饭15\~20分钟)

Illustration of a white electric cooker with a button labeled 'ECKING' (no additional text or symbols)

7

KEY Company, P&K USA TRADING CORP and Cuckoo Trading Canada will repair at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use, during the warranty period listed below from the date of original purchase. This warranty is good only to the original purchaser of the product during the warranty period. P&K USA TRADING CORP. covers the east and the central districts, KEY Company covers the west and the central districts, Cuckoo Trading Canada covers the whole Canada.

MODEL#

CR-0671

#LABOR

1YEAR

PARTS

1YEAR

WARRANTY PERIOD

HOW SERVICE IS HANDLED

The East and the Central Districts

Call: 718 888 9144

Address : 129-04 14th Avenue College Point, NY 11356, USA

The West and the Central Districts.

Call : 323 780 8808

Address: 1137 E. 1st Street, L.A, CA 90033, USA

Canada (TORONTO)

Call: 905 707 8224

Address : #D8-7398 Yonge Street Thornhill Ontario Canada L4J 8J2

Canada (VANCOUVER)

Call : 604 540 1004

Address : 945 Lougheed Hwy Coquitlam BC Canada V3K 3T4

No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. CUCKOO ELECTRONICS CO.,LTD, SHALL NOT BE LIABLE FOR THE LOSS, THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts: so these limitations or exclusions may apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

THE ABOVE WARRANTY DOES NOT APPLY IN THESE CASES:

* To damages problems which result from delivery or improper installation.
* To damages problems which result from misuse, abuse, accident, alteration, or incorrect electrical current or voltage.
* To serve call which do not involve defective workmanship or material and explaining the operation of the unit.

Therefore, these costs are paid by the consumer. Customer assistance numbers :

To Prove warranty Coverage :

▶ Retain your Sales Receipt to prove date of purchase
▶ Copy of your Sales Receipt must submitted at the time warranty service is provided.

To Obtain Product, Customer, or Service Assistance and Nearest Authorized service center, Parts Distributor or Sales Dealer:

The East and the Central Districts

Call:718 888 9144

Address:129-04 14th Avenue

College Point, NY 11356, USA

The West and the Central Districts.

Call: 323 780 8808

Address: 1137 E. 1st Street, L.A.

CA 90033, USA

Canada (Toronto)

Cal: 9057078224

Address: #D8-7396 Yonge Street

Thornhill Ontario Canada

L4J 8J2

Canada (Vancouver)

Cal:6045401004

Address: 103-4501 North Road

Burnaby BC Canada

V3R 4R7
