USER MANUAL CHT-800 Cuckoo

Operating Instructions

사용설명서

CHT-800

love

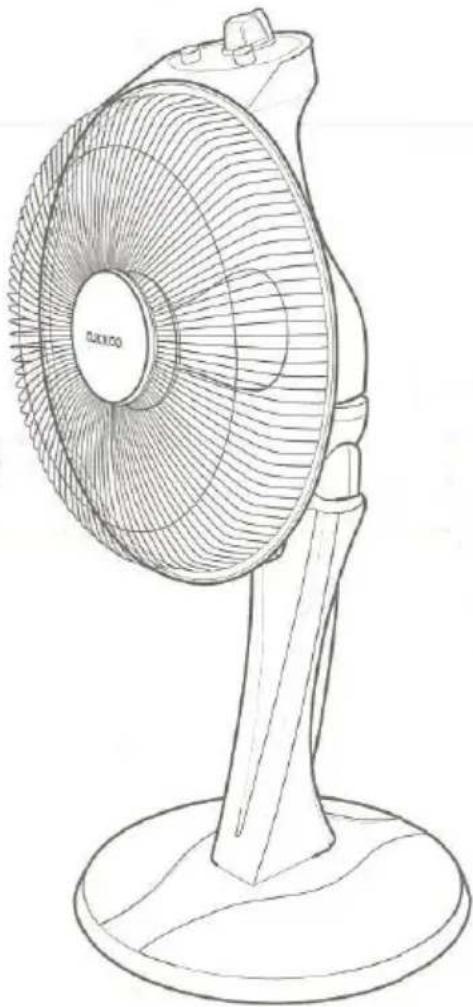

Line drawing of a standard office desk fan with visible blades and base (no text or symbols)

Cartoon chef character wearing a blue hat and holding a plate with the word 'CUCKOO' (no other text or symbols)

Thank you very much for purchasing "CUCKOO" Electric Heater

Read all instructions before use.

Save these instructions for future reference.

CONTENTS

BEFORE USING

Important safeguards 3

Specifications 3

Warnings for safety 4,5

Caution for safety 6

Name of each part / Function control part .... 7

Assembling instructions 8

WHEN USING

How to use 9

How to maintain / How to store 10

BEFORE ASKING FOR SERVICE

Confirmation before failure report.... 10

Limited warranty 20

Important safeguards 3

제품규격 3

안전상의 경고 11.12

안전상의 주의 13

각 부분의 이름/기능 조작부 14

조립방법 15

사용할 때

사용방법 16

손질방법/보관방법 17

고장 신고 전에

고장신고 전 확인 사항 17

Limited warranty 20

IMPORTANT SAFEGUARDS

When using any electrically powered product, basic safety precautions should always follow, include the following :

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT.

WARNING - to reduce the risk of fire, electrical shock or injury to persons or property

1. Read all instructions carefully before you use the appliance.
2. Remove the packages and ensure that the appliance is undamaged. In case of doubt do not use the Heater and contact with your supplier.
3. Do not let children play with parts of the packages (such as plastic bags).
4. Before plugging to the socket, check that if the voltage of your main supply matches the voltage marked on the rating label of the appliance.
5. Before assembling or dismantling the Heater, make sure that the Heater is unplugged
6. Before unplugging the power cord, turn off the switch.
7. Do not insert any object into the guard while the Heater operates. It will cause injury to the person.
8. The Heater shall be used for temperate climate, do not use the fan at the high humidity area or dusty area Do not use the Heater where acid or alkali is stored

9. Do not hang any clothes on the Heater guards.

10. Do not use the Heater outdoors.

11. Do not continuously on the baby or the patient directly for a long time.

12. The appliance is not intended for use by young children or infirm persons without supervision

13. Young children should be supervised to ensure that they do not play with the appliance

14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safe

• 'Safety Warning' is a way to prevent an accident or a danger by safely and correctly using the product. So, please observe this.
• 'Safety Warning' is classified into 'Warning' and 'Caution' and the definition for them are followed.

Potential risk that might Warning occur death or serious injury if not avoid

Caution Potential risk that might occur minor injury if not avoided

• This mark calls attention to warning and avoids risks under specific condition
• Read carefully and follow the instruction to avoid the risks

Warning

Use only with 120 Voltage.

• Might cause fire or electric shock.
• Product might not operate normally

Do not use in humid area(bathhouse, shower room, swimming pool) or soak or pour water on the product.

- Might cause the failure or electric shock,

Use only 120 Voltage above 10A rate and Do not put several plugs in one socket.

• Might cause fire, ignition, or electric shock when using with other product.
• When the power plug is wet or dust is on it, Wipe if out before use.
• Use more than 10A for extension code.

Do not bend, tie or pull the power code by force.

• Might cause fire due to electric shock.

Do not put dishcloth or towel on heating part (safety net, reflector)

• Might cause electric shock, fire, or failure.

Do not open or disassemble the product.

• Might cause fire or electric shock
- Do not disassemble or repair except the service engineer.
• Inquire to service center for repair and failure counseling.

Do not allow children or olds to use alone and do not place the product in touchable place for them.

• Might cause burns or electric shock

When the power cod or plug is destroyed or shaking, stop operating and inquire to customer service.

- When power code or plug is destroyed, exchange the code from service center to prevent further danger.

Do not touch the safety net or reflector since it is hot while operating. Do not put an iron rod or chopstick into the safety net.

• Might cause electric shock or burns.

Using the product near curtain or wall paper might cause fire.

Do not use in closed space or while sleeping, since it might cause fire or burn.

Warnings for safety

Warning

When put or pull out the power code, dry your hands.

• When pull the power code out by force, it might cause electric shock or leakage.
• When pull the power plug with wet hands it might cause electric shock.

When it makes strange sound or smoke, while using, inquire to service center immediately after plug out.

- Might cause fire or electric shock

Do not use in the place where uses gas, range and electric heating appliance or where chemical substance exists.

• Might cause fire or failure
• Especially, when the gas leaks after heat is extinguished, it might cause a explosion when operating the gas range.

When using the product, make sure to leave 1m distance away from the Heater.

Do not use Heater without Safety net.

Do not directly look at the heater for a long time. It may cause negative effects to your eyes.

When using the product, make sure to leave 1m distance away from the wall.

Do not put mat, sitting cushion, or electric mat under the product.

- Might cause fire or strain,

Be cautious not to put heavy thing on the power code or not to suppress the code to the floor.

• Might cause electric shock or fire.

Do not rotate the head of the product by force.

- Might cause a failure.

Wipe the dust on the power plug with dry cloth.

- Might cause, fire.

Do not use when the heater or safety net is broken.

- Might cause failure or safety accident.

To avoid fire risk, topple switch can shut off power when heater is downfallen.

Make sure not to trip powercord, and do not leave the power cord hanging from the table.

Caution

Do not give a shock to body.

- Might cause failure or destroy the heater when giving a shock

When moving the product while using, stop operating by placing the timer on 'stop' sign and move safely by carrying the handle.

- Might cause a failure or tire when you throw down while handling.

When plug out, do not pull the power code but pull the power plug only.

- Might cause electric shock or fire when apply a force to a power code.

Install and use it on the plane floor and dry place.

• Might cause a failure when it falls.

Plug out from the socket when not using.

- Might cause electric shock, leakage, or fire by insulation heat.

Do not use outdoors.

Avoid the product to be stained with chemicals, oil, or insecticides(fly poison or culicide) and do not use the product on the place with direct light.

- Exterior might be strained or discolored.

Name of each part / Function control part

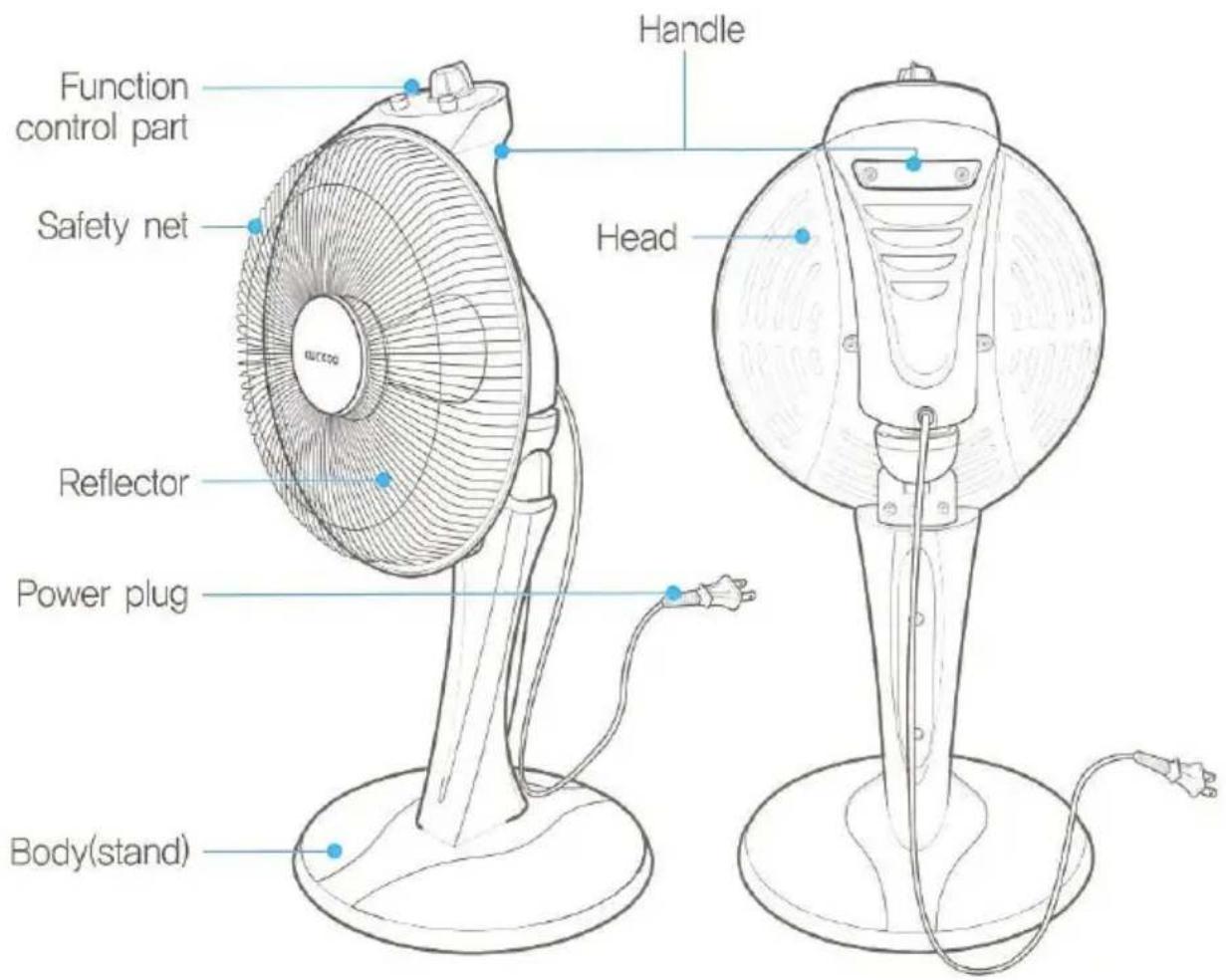

Name of each part

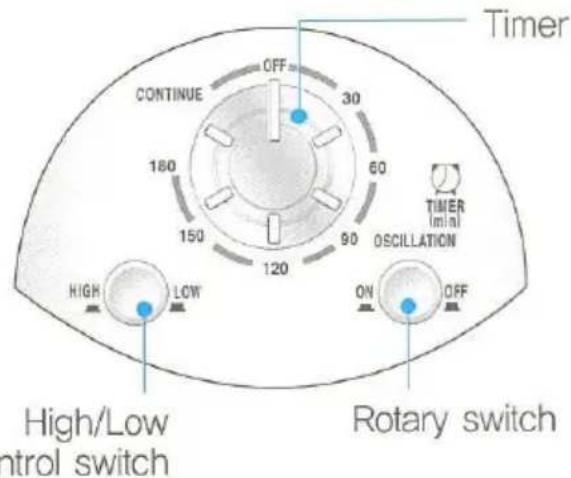

Function control part

• High/ Low control switch: Controls the movement of the heater to high or low.
- Rotary switch: Rotates the heater to left or right.
- Timer: Controls the timer until 180 minutes and controls the power to OFF or Continue.

Assembling instructions

How to assemble

• Read this instruction carefully then assemble it correctly.
• Keep the package box well and use it during non-using period.
  · To avoid fire risk, topple switch can shut off power when heater is downfallen.
• When using the product, make sure to leave 1m distance away from the wall.

① Loosen two screws on the head.

Diagram showing a soldering process with a screwdriver and a component being inserted (no text or symbols present)

② Put head on the stand.

Technical line drawing of a mechanical component with a bracket and base (no text or symbols)

3 Tighten screws that were loosened at number 1

Simple line drawing of a mechanical component with a tool, no text or symbols present

How to use

Warning

• Use only with 120 Voltage.
• Might cause fire or electric shock and product might not operate normally.

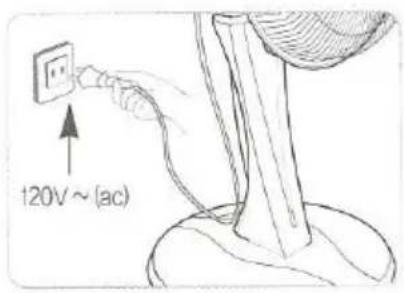

1 Put the power plug to 120 Voltage.

Confirm whether safety net is correctly assembled before operate it.

2 Timer

Put timer (180minutes) or power to OFF or Continue.

3 High/Low control switch.

Choose wanted heating value by pusing high/low control switch.

4 Rotary switch

Choose whether rotate or stop by pusing.

How to maintain / How to store/Confirmation before failure report

Warning

1. Take out power plug before cleaning
2. In case of cleaning, do not pour water on the body and try to prevent water from going inside

How to maintain

When cleaning, sweep with clothing with neutral detergent. And then remove water totally with dry cloth.
2 When clean safety net, please sweep it slightly. It might cause a strain to safety net.

• The safety net is laminated. Do not sweep it with gasoline, alcohol, and chemicals. It causes a strain, discoloration, or corrosion.
• Do not disassemble the safety net when cleaning.

How to store

When storing the product for long period keep it in dry area after cover with large vinyl.

- Might cause failure and short life span, when store it humid area.

Confirmation before failure report

When you did not follow the direction, the product might not operate well even though it is not a failure. When there is a problem with the product, follow the checklist. When the problem exists afterward, please report to customer service.

Symptoms	Check	Checklist
Heater doesn't work	• Is the electricity on?	• Check whether the electricity is on by plugging other appliances.
	• Did you check whether it is blackout?	• Check whether it is blackout or not end plug it to exclusive socket.
	• Did you slant the product over 35 degree?	• Use the product on the plane floor to prevent it from slanted (Since there is a safety device in the product that stops power supply when it is slanted to specific degree, the safety device cuts the power)
	• Is the timer set on 'off'?	• Put the timer on 'Continue' or choose time.
Heat of the heater is weak	• Did you put it on 'low'?	• Put the heater on 'high'.
The product does not rotate	• Did you push rotary button?	• Push the rotary button.

안전상의 경고

Diagram showing a soldering process with a screwdriver and a component being inserted (no text or symbols present)

2 헤드를 스텐드에 꽃아 주십시오,

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component with a hand operating a tool (no text or symbols)

사용방법

경고

KEY Company, P&K USA TRADING CORP and Cuckoo Trading Canada. will repair at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use, during the warranty period listed below from the data of original purchase. This warranty is good only to the original purchaser of the product during the warranty period. P&K USA TRADING CORP covers the east and the central districts, KEY Company covers the west and the central districts, Cuckoo Trading Canada covers the whole Canada.

WARRANTY PERIOD

MODEL#	#LABOR	PARTS	HOW SERVICE IS HANDLED
CHT-800	1YEAR	1YEAR	The East and the Central DistrictsCall: 718 888 9144Address: 129-04 14th Avenue College Point, NY 11356, USAThe West and the Central Districts.Call: 213 687 9828 Toll Free: 877 481 9828Address: 700 Jackson Street, L.A, CA 90012, USACanada (TORONTO)Call: 416 878 4561 / 905 707 8224Address: #D8-7398 Yonge StreetThornhill Ontario Canada L4J 8J2Canada (VANCOUVER)Call: 604 540 1004 / 604 523 1004Address: 945 Lougheed Hwy Coquitlam BC Canada V3K 3T4

No other express warranty is applicable to this product. THE DURATION OF ANY IMPLED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. CUCKOO ELECTRONICS CO.,LTD, SHALL NOT BE LIABLE FOR THE LOSS THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSE QUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts: so these limitations or exclusions may apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

THE ABOVE WARRANTY DOES NOT APPLY IN THESE CASES:

* To damages problems which result from delivery or improper installation.
* To damages problems which result from misuse, abuse, accident, alteration, or incorrect electrical current or voltage.
* To serve call which do not involve defective workmanship or material and explaining the operation of the unit.

Therefore, these costs are paid by the consumer. Customer assistance numbers :

To Prove warranty Coverage : ▶ Retain your Sales Receipt to prove data of purchase

▶ Copy of your Sales Receipt must submitted at the time warranty service is provided.

To Obtain Product, Customer, or Service Assistance and Nearest Authorized service center, Parts Distributor or Sales Dealer:

The East and the Central Districts

Call:7188889144

Address:129-04 14th Avenue

College Point, NY 11356, USA

The West and the Central Districts.

Call: 213 687 9828

Toll Free: 877 481 9828

Address: 700 Jackson Street, L.A.

CA 90012, USA

Canada (Toronto)

Call:416 878 4561/905 707 8224

Address: #D8-7398 Yonge Street

Thomhill Ontario Canada

L4J8J2

Canada (Vancouver)

Call:604 415.9858/604 524 8282

Address: 103-4501 North Road

Bumaby BC Canada

V3R
