USER MANUAL Arctis Nova 7X Wireless STEELSERIES

PRODUCT INFORMATION GUIDETABLE OF CONTENTS

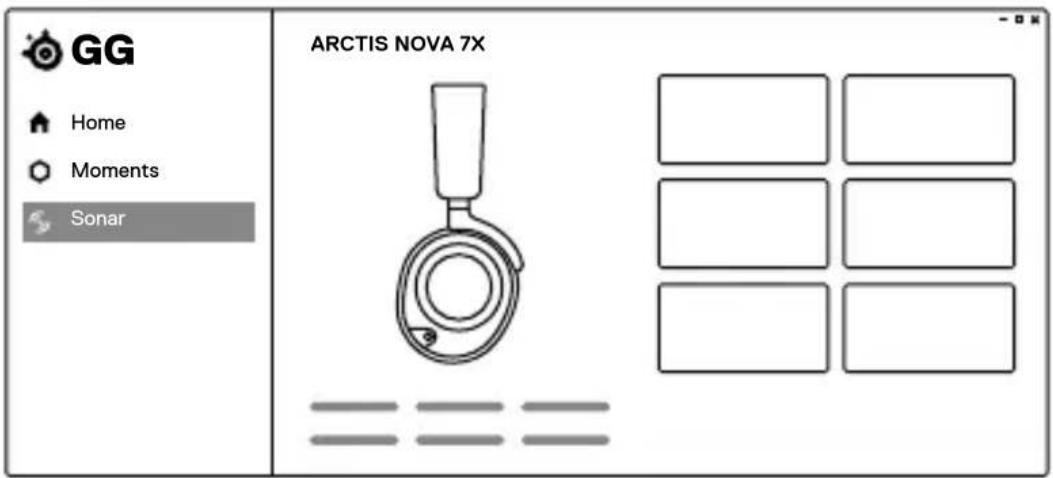

PlayStation 5 PlayStation 4 Mobile Nintendo Switch Mac SOFTWARE Use Engine inside SteelSeries GG to set custom equalizer settings and control your mic. GG also has other amazing apps like Sonar, a breakthrough in gaming sound, that allows you to hear what matters most, through cutting-edge audio tools. DOWNLOAD NOW steelseri.es/gg

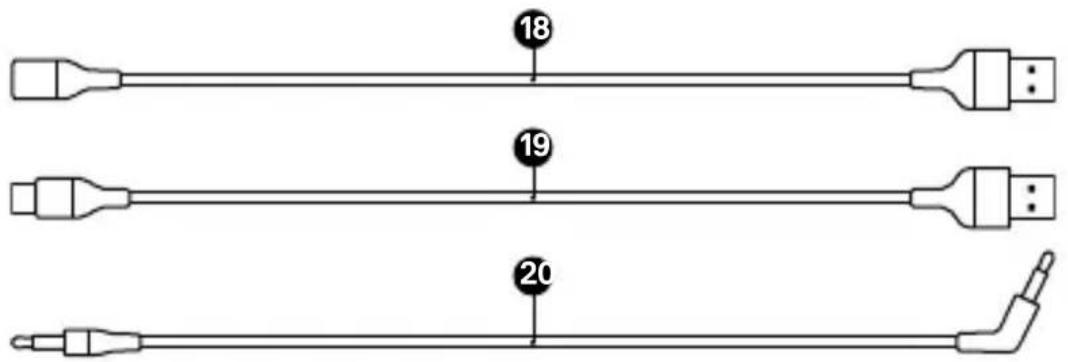

14 USB-C Multi-Platform Dongle* 15 Wireless Mode Switch 16 Pairing Button 17 Status LED ACCESSORIES* 18 USB-C to USB-A Extension Cable 19 USB-C to USB-A Charging Cable 20 5-pole to 4-pole 3.5 mm Cable

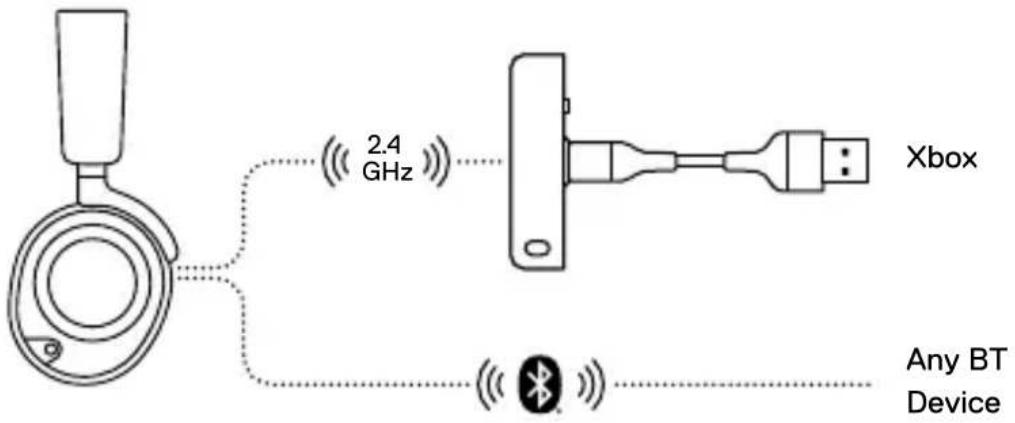

*Find accessories and replacement parts at steelseries.com/gaming-accessories6 SETUP XBOX CONNECTION Set the Dongle’s Wireless Mode Switch (15) to “Xbox”.

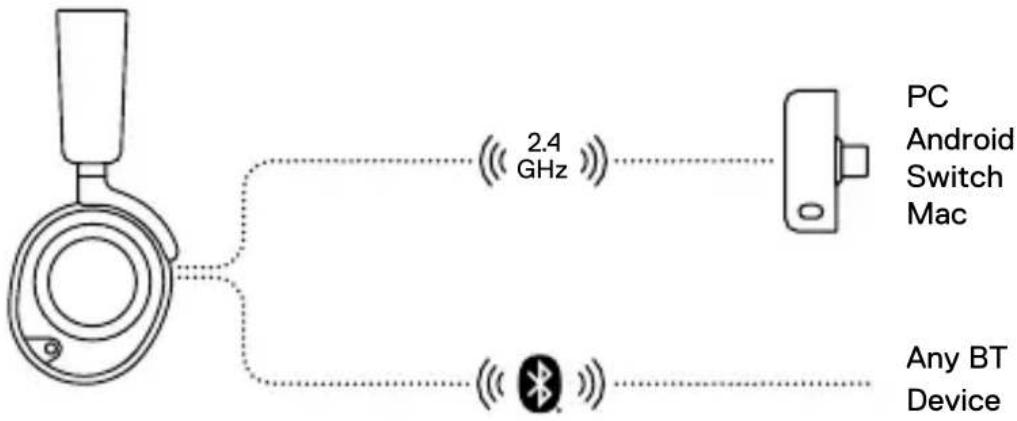

OTHER CONNECTION TO USB-C

Set the Dongle’s Wireless Mode Switch (15) to “USB”.

OTHER CONNECTION TO USB-A

Set the Dongle’s Wireless Mode Switch (15) to “USB”.

Set the Dongle’s Wireless Mode Switch (15) to “USB”.

OTHER CONNECTION TO USB-A

Set the Dongle’s Wireless Mode Switch (15) to “USB”.

Output to Headphones All Audio

PS5 SETTING > AUDIO OUTPUT > VOLUME

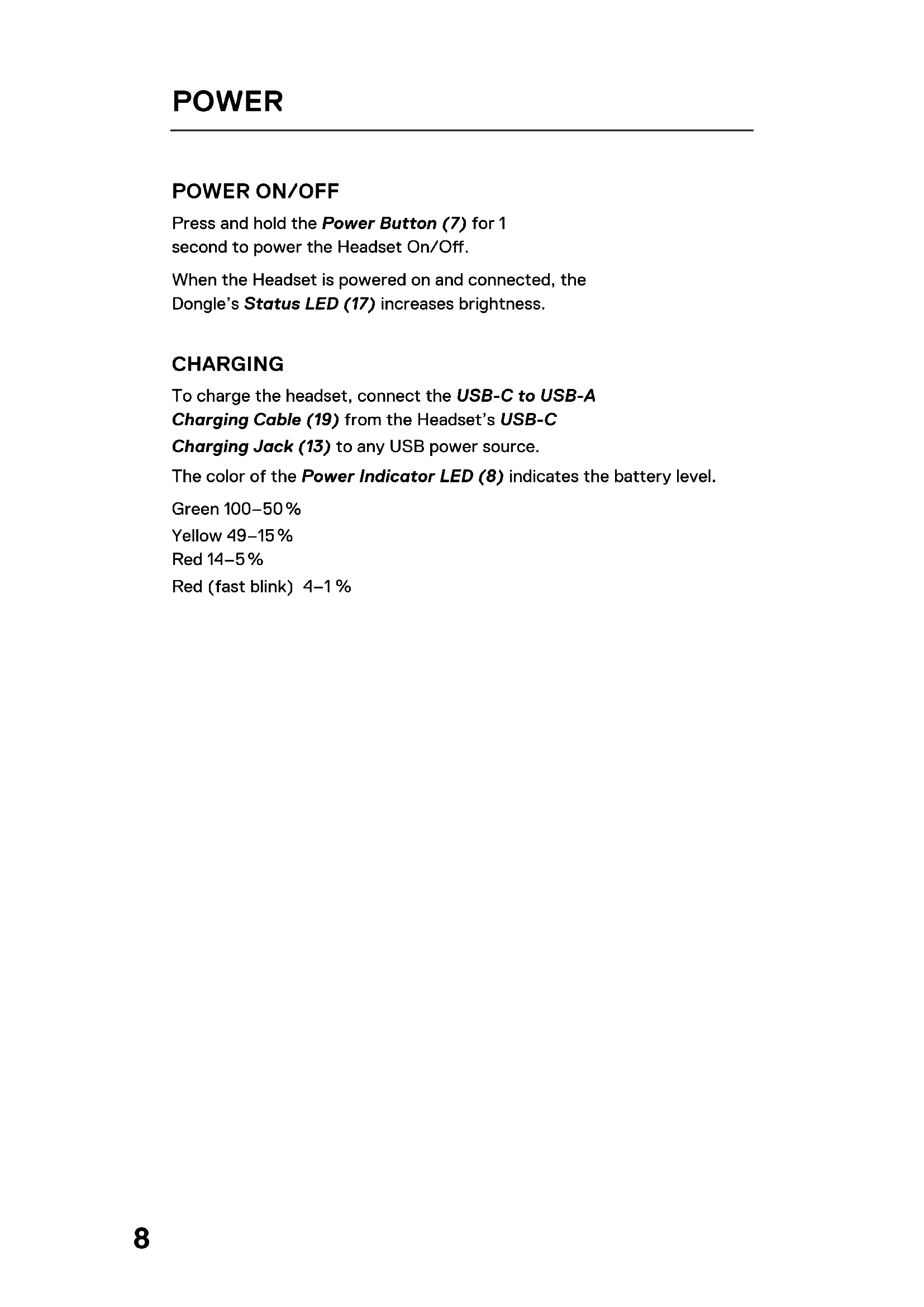

Headphones Set to Max8 POWER

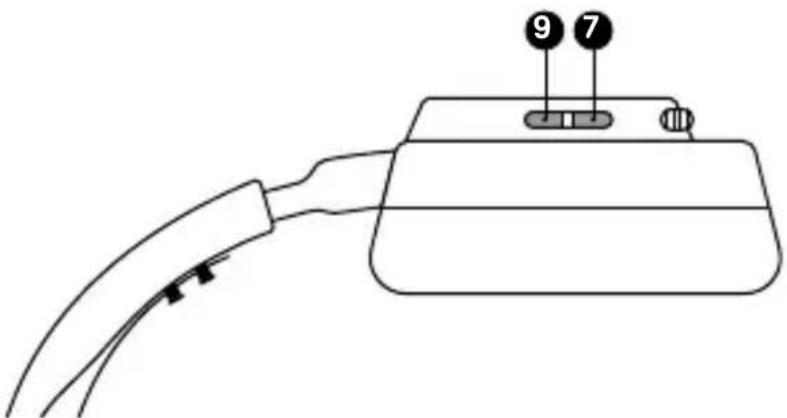

Press and hold the Power Button (7) for 1 second to power the Headset On/O. When the Headset is powered on and connected, the Dongle’s Status LED (17) increases brightness. CHARGING To charge the headset, connect the USB-C to USB-A Charging Cable (19) from the Headset’s USB-C Charging Jack (13) to any USB power source. The color of the Power Indicator LED (8) indicates the battery level. Green 100–50 % Yellow 49–15 % Red 14–5 % Red (fast blink) 4–1 %9 PAIRING Note: The headset and dongle come paired. If you need to re-pair: 1 Connect the USB-C Multi-Platform Dongle (14) to your gaming device. 2 Press and hold the Dongle’s Pairing Button (16) for 4 seconds until the Power Indicator LED (8) blinks rapidly. 3 With the headset o, press and hold the Power Button (7) for 4 seconds until the Power Indicator LED (8) blinks rapidly. 4 When pairing is successful you will hear a tone, and the Dongle’s Status LED (17) will turn solid.10 BLUETOOTH BLUETOOTH POWER Bluetooth can be powered On / O independently of the 2.4 GHz wireless by pressing and holding the Bluetooth Button (9) for 1 second. PAIRING With Bluetooth O, press and hold the Bluetooth Button (9) for 4 seconds. MULTIMEDIA CONTROL Answer/End Voice Call Single press the Bluetooth Button (9) Play/Pause Music Single press the Bluetooth Button (9) Skip Track Double press the Bluetooth Button (9) Previous Track Triple press the Bluetooth Button (9) Note: The Power Button (7) can be used for Multimedia control in the same way.

CHATMIX To control ChatMix on PC, rst install the SteelSeries GG software: steelseries.com/gg At the middle position of the ChatMix Dial (6) game and chat are full volume. Rotating the ChatMix Dial (6) towards chat reduces the game volume and vice versa.

󼊷󼒫󻗋󾖴󼝀󼌣󺺒󼒳󾖴󻾇󾖴󼓷󻀃󾖴󻜷󼓣󼷛 1 󽎀󻉸󻻧󼓠󾘥󼘌󼖱󽋴󻀰󾘥󻇬󾘥󺦜󼝜󾘥󻧅󻨱󼔐󾘥󼔤󼁑󻁤󻂀 2 󼑬󽋴󻀰󾘥󻂕󺯜󺪘󾘥󼒼󼎌󻻍󼓠󾘥󼍗󺯌󾘥󼒠󽌐󾘥󽋸󼡙󾘥󻎬󻀰󾘥󼌭󼡙󼓘󻗸 󺩏󻢣󾖴󽍓󻉋󻦣󻉋󼓴󾘥󼒠󼯴󻜘󾘥󻩜󺩙󽌅󻁤󻂀38 REGULATORY Europe – EU Declaration of Conformity Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS

2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/

EU) which are issued by the Commission of the European Community. The full text of the EU declaration of conformity is available at the following internet address: https://steelseries.com/ SteelSeries ApS. hereby conrms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to oering REACH compliance on the products and posting accurate REACH compliance status for the all of products. Frequency bands and Powers (Headset and Transceiver) a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz

Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:

• EIRP: GFSK: 5.14 dBm (Headset/SRD)

• EIRP: GFSK: 5.63 dBm (Headset/BT)

• EIRP: 8DPSK: 5.58 dBm (Headset/BT)

• EIRP: GFSK: 8.94 dBm (Transceiver-XBOX/SRD) c. Firmware Version: V1.0 (Headset); V1.0 (Transceiver) UK Declaration of Conformity Hereby, SteelSeries ApS. declares that the following equipment which is compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy& Industrial Strategy. The full text of the UK declaration of conformity is available at the following internet address: www.steelseries.com WEEE This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city oce, your household waste disposal service or the shop where you purchased the product. Turkey RoHS Compliance Republic of Turkey: In conformity with the EEE Regulation Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur39 Safety Guideline for Lithium Battery This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city oce, your household waste disposal service or the shop where you purchased the product. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction. FCC ID: ZHK-HS31 (Wireless Headset) FCC ID: ZHK-HS31TXX(Transceiver) Industry Canada Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and

The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.

Please keep this battery pack away from re and high heat sources due to the explosion that might happen. Do not place your battery pack close to any heater or hot location.

This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.

4. This battery pack shall not be exposed to moisture, dripping or splashing.

5. If any electrolyte ows out of this battery pack when touching the user’s eyes and skin,

please seek medical advice immediately.
