USER MANUAL PowerSpeed NEU180 EUREKA

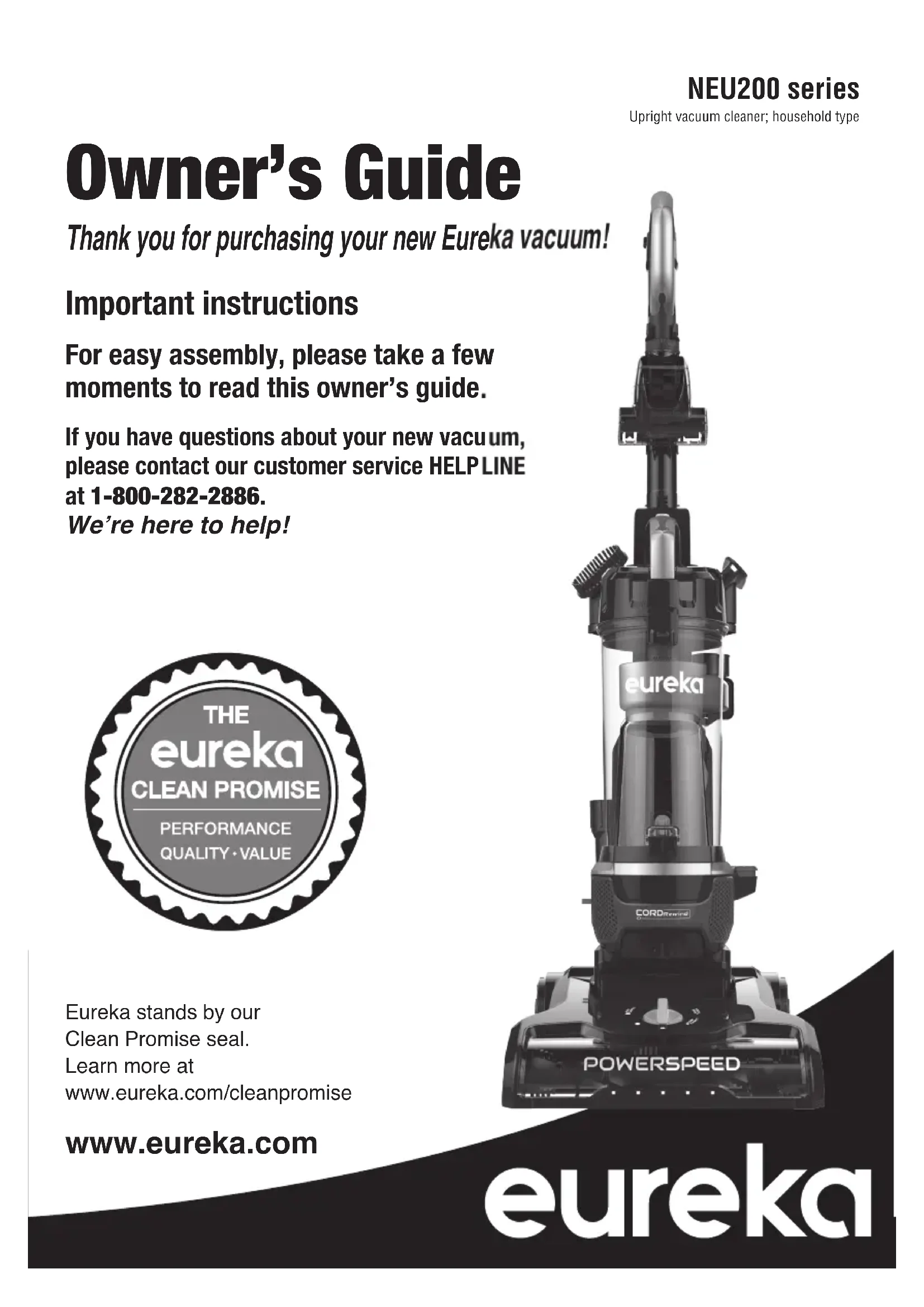

• www.eureka.com 1 Thank you for purchasing your new Eureka vacuum! Important instructions For easy assembly, please take a few moments to read this owner’s guide. If you have questions about your new vacuum, please contact our customer service HELPLINE at 1-800-282-2886. We’re here to help!Eureka stands by our Clean Promise seal. Learn more at www.eureka.com/cleanpromise www.eureka.com Owner’s Guide NEU200 series Upright vacuum cleaner; household type2 Eureka Customer Service HELPLINE 1-800-282-2886 Contents Important safeguards p. 3
• What comes in the carton p. 4
• How to assemble your vacuum cleaner p. 5
• How to identify parts of your vacuum cleaner p. 6
• How to use your vacuum cleaner p. 7
• How to use accessories p. 8

The Eureka two-year limited warranty

How to order replacement parts ....................... 15 Keep this information Write the model, type and serial number here: Date of purchase (keep your receipt) ______________ Model number and type _________________________ Serial number ________________________________ Find these numbers on a label on the middle back side of the vacuum cleaner. Refer to these numbers when ordering parts and accessories or if service is needed. This Owner’s Guide provides important instructions to prolong the life of your Eureka vacuum cleaner. Registration: To register your product visit www.eureka.com and click on the ‘Register Your Product’ link in the top right corner. Inspection: Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage. Each unit is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call the Eureka Customer Service HELPLINE at 1-800-282-2886 immediately.

Follow caution information wherever you see this symbol.www.eureka.com 3Motor Do Not Oil the motor or the brush roll at any time. The bearings are permanently lubricated and sealed. IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER WARNING shock, or injury: • Do not use outdoors or on wet surfaces. • Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the electrical cord when not in use and before servicing. • Do not allow to be used as a toy. Close attention is necessary when used by or near children. • Use only as described in this manual. Use only manufacturer’s recommended attachments. • Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call the Eureka Customer Service HELPLINE at 1-800-282-2886.

• Do not pull or carry by cord. Do not use cord as a handle. Do not close a door on cord or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity. • Turn off all controls before unplugging. • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. • Do not handle plug or vacuum cleaner with wet hands. • Do not put any objects into openings. Do not use with any openings blocked; keep free of dust, lint, hair, and anything that
• This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, away from openings and moving parts.
• Do not place vacuum cleaner on furniture or stairs as the brush roll may cause damage. Use extra care when cleaning the handle in storage position while using attachments. • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. • screen in place.• Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the drive belt. • combustible liquids such as gasoline, or use in areas where they may be present. • Store your vacuum cleaner indoors in a cool, dry area.• Keep your work area well lit.• Unplug electrical appliances before vacuuming them.
• WARNING: This product can expose you to chemicals includingDi(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other).

!4 Eureka Customer Service HELPLINE 1-800-282-2886 What comes in the carton OWNER’S GUIDE Important safeguards Vacuum cleaner Crevice toolDusting brush Upholstery tool Handle Accessories may vary depending on which model was purchased. Turbo brushwww.eureka.com 5 How to assemble your vacuum cleaner Store accessories on back of vacuum cleaner. Click! Slide handle into top of vacuum cleaner. Push down until it clicks. Push loose end of hose securely onto hose inlet. Put the vacuum cleaner main body in the upright position. Loop hose over hose retainer. Store turbo brush on front of handle. Align brush opening with slot and push to snap tool into clip. Loop hose under the hose hook.6 Eureka Customer Service HELPLINE 1-800-282-2886 Handle with wandDust cup release buttonHeight adjustment knob Washable foam lter Filter screen Crevice toolPower switchHose retainer Hose Cord outletHose inlet Vacuum cleaner Belt Brushroll How to identify parts of your vacuum cleaner For lter maintenance instructions, see page 9 Dust cup Turbo brushUpholstery toolCord clip Dusting brushHandle release latchDust cup Dust cup latch Dust cup lid Carry handleBrushroll coverCord hookCord rewind pedalwww.eureka.com 7 How to use your vacuum cleaner Plug power cord into outlet. Empty dust cup after every use Step on front of the oor nozzle and recline the vacuum back from the handle to vacuum oors. Step on power switch to turn vacuum cleaner on. Step on again to turn off. Turn height adjustment knob to adjust from bare oors to high pile carpet. Press release button and lift off dust cup. To empty debris, press lever to release bottom lid. Grab onto the end of cord and pull it out until the yellow tape is visible. Step on the cord rewind pedal to retract the cord when needed.8 Eureka Customer Service HELPLINE 1-800-282-2886

How to use accessories

CAUTION Upholstery tool – Use for furniture, chairs, sofas and mattresses.• Place vacuum in upright position. • Turn height adjustment knob to highest position. • Pull up on hose connection to release hose end from hose inlet (Fig. 1). • Push end of hose into top of handle and twist clockwise until it clicks (Fig. 2). • Press handle release latch and pull out handle with wand (Fig. 3). • To attach accessories, push desired tool onto end of wand (Fig. 4). • To use accessories without handle and wand, push desired tool directly onto end of hose (Fig. 5). • When nished using accessories, twist hose counterclockwise and pull off handle. Slide handle into top of vacuum cleaner and push down until it clicks. Push loose end of hose securely onto hose inlet. Store tools on vacuum cleaner back. (See page 5.) When using tools, always place handle in upright position. Make sure vacuum cleaner is turned off while attaching tools. Crevice tool – Use for baseboard edges, corners, detailing chairs, sofas, dryer vents and tight spaces.Dusting brush – Use for furniture, drapes, blinds, drawers and vents.Turbo brush – Use to remove pet hair from stairs, carpet and upholstery.

Click! Accessories may vary depending on which model was purchased.www.eureka.com 9 How to maintain dust cup and lters Dust cup – Empty after each use Press release button and lift off dust cup. Hold dust cup over wastebasket and press lever to release bottom lid. Debris will empty.Click! Close bottom lid until it clicks. Washable dust cup lters – Clean monthly Pull dust cup latch to lift up dust cup lid.Lift out foam lter and shake off dust. Rinse foam lter and dry THOROUGHLY.Align tab on lter screen with slot on back of dust cup and drop into position. Grip tabs and lift out lter screen. Twist bottom of lter screen counterclockwise to unlock and pull apart. Shake off dust. Rinse screen and dust cup. Dry all THOROUGHLY. Reassemble screen; twist clockwise to lock.Click! Close cover until it clicks.

Warning: Never operate vacuum cleaner without foam lter, lter screen and

dust cup in proper position. Reinstall foam lter. !10 Eureka Customer Service HELPLINE 1-800-282-2886 How to clear a blockage If vacuum is not cleaning oors, or if no suction at end of hose, check to be sure air path is not blocked. • Press release button and lift off dust cup (Fig. 1). • Empty debris. Hold over wastebasket and press lever to release bottom lid (Fig. 2). • Check lter and lter screen. Remove any debris and shake off dust. (See maintenance instructions on page 9.) • Loosen end of hose. • Use a rod or similar blunt implement to clear a blockage in wand or hose. Flex hose to loosen debris (Fig. 3). Use caution if there is any risk that glass or nails could have become imbedded in hose. • Use nger to check for debris in air path (Fig. 4). • Reinstall lter and lter screen inside dust cup and position dust cup onto vacuum cleaner.Warning: Never operate vacuum cleaner without foam lter, lter screen and dust cup in proper position.

Make sure vacuum is turned off and power cord is unplugged.

• Step on oor nozzle to lower handle. • Turn vacuum face down on oor. • To avoid unnecessary service calls, check brushroll for debris. • Use scissors to clip heavy threads or strings. Make sure vacuum is turned off and power cord is unplugged.

CAUTION How to maintain turbo brush Grasp collar and twist to unlock cover. Lift cover up.With cover open, use gers or small brush to clear accumulated pet hair from bristles.Close cover and twist collar to lock.12 Eureka Customer Service HELPLINE 1-800-282-2886 How to replace brushroll or belt

• Step on oor nozzle to lower the nozzle. • Use Phillips screwdriver to remove 6 screws from brushroll cover (Fig. 1). Lift off cover. Refer to Fig. 7 for location of screws. • Rotate right end of brushroll and lift out (Fig. 2). • Lift out left end of brushroll. • To replace belt, position new belt around motor shaft (Fig. 3). • Loop new belt around brushroll shaft at left end of brushroll (Fig. 4). • To reposition brushroll into base, pull belt down and insert left end of brushroll rst. Align brushroll end cap with slot so it ts into position (Fig. 5). Press right end of brushroll into position. • To replace brushroll cover, align slot on cover with tab (Fig. 6) and snap cover into place. Replace 6 screws (Fig. 7).

Make sure vacuum is turned off and power cord is unplugged.

Make sure vacuum is turned off and power cord is unplugged. NOTICE: Thermal cut-off This vacuum cleaner has a special thermostat that protects the vacuum in case of motor overheating. If the vacuum suddenly shuts off, proceed as follows: 1) Push the power switch to off and unplug the vacuum. 2) Check the vacuum for a possible source of overheating such as a full dust cup, blocked hose or clogged lter. If these conditions are found, x them and wait at least 30 minutes before attempting to use the vacuum. 3) After the 30 minute period, plug the vacuum back in and turn on the switch. If the vacuum still does not work, call the Eureka Customer Service HELPLINE at 1-800-282-2886. Problem Solution Motor will not start. • Push plug securely into outlet, try another outlet or check circuit breaker. • Step on power switch to turn vacuum on. • See detailed “thermal cut-off” instructions above. Vacuum cleaner does not clean oors. • Empty dust cup, clean and/or change lter. • Clean or replace lter regularly to maintain suction. • Check vacuum height adjustment knob position.• Clean brushroll if needed. Page 11.No suction at the end of hose or wand. • See other solutions above. • Remove clogs from the hose or wand that restrict the airow. Page 10. Burning smell; brushroll will not turn. • Check brushroll for debris. • Replace broken or out of shape belt. Page 12. Vacuum is hard to push. • Adjust vacuum height knob to a higher position.

• Check brushroll for debris and clean if needed. Page 11.Turbo brush will not turn.• Check turbo brush for debris. Page 11. Cord will not retract. • Pull out slightly and then step on the cord rewind pedal again.
• Make sure the cord has a clear path and is not twisted.14 Eureka Customer Service HELPLINE 1-800-282-2886 The Eureka two-year limited warranty Midea America (Canada) Corp. (“Eureka”), subject to the terms and conditions herein, warrants this vacuum cleaner to be free from defects in material and workmanship for a term of two years from the date of original purchase when used in accordance with the Eureka operating and maintenance instructions and under normal household usage. This warranty is granted only to the original purchaser and members of immediate household, and is applicable only to original purchases from Eureka authorized resellers. What Eureka will do: Eureka will, at its option, repair or replace a defective vacuum or vacuum part that is covered by this warranty. Repairs may be performed using new or refurbished parts that meet or exceed elects to replace the vacuum, the replacement may be a reconditioned unit. Depending on availability of products, Eureka reserves the right to provide you with a replacement product that is the same or similar, or substitute equivalent of the original product. As a matter of warranty policy, Eureka will not refund the consumer’s purchase price. This warranty does not cover:

• Normal wear and tear of the vacuum and vacuum parts that require replacement under normal use light bulbs, brush-roll, bristles, impellers and cleaning.

• Damages or malfunctions resulting from: improper or unreasonable use or maintenance, abuse, negligence, failure to follow instructions contained in any written materials that accompany the product, deterioration by reason of excess moisture, corrosive atmosphere, lightning, power surges, connections to improper voltage supply, unauthorized alteration, or other external causes such as extremes in temperature or humidity, accidents, misuse, or acts of God. This warranty also does not cover damage resulting from repair or attempted repair by anyone other than Eureka. This warranty is not applicable to any product that has been altered or on which the serial Altering, erasing, or forging any proof-of-purchase documents voids any applicable product warranty. Obtaining warranty service: To obtain warranty service you must contact the Eureka Service Team, toll free, at 1-800-282-2886 or [e-mail], to discuss the warranty claim and procedures to be followed. All warranty claims must include submission of proof-of-purchase documentation. For additional information, you may also visit www.eureka.com. Shipping charges: You will be responsible for any initial shipping and insurance charges if the defective product(s) must be shipped for warranty service or warranty evaluation; however, Eureka will pay the return shipping charges if repairs are covered by the warranty. When returning parts for repair, you must include the model, type and serial number located on the rating plate. If any product submitted for warranty service is found to be ineligible, an estimate of repair cost will be furnished and the repair performed only if requested by the owner and upon receipt of payment or acceptable arrangements for payment. Further limitations and exclusions: Any warranty that may be implied in connection with your purchase or use of the vacuum, including any warranty of Merchantability or any warranty of Fitness For A Particular Purpose is limited to the duration of this limited warranty. Some provinces/ territories do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall the manufacturer be liable for any consequential or incidental damages you may incur in connection with your purchase or use of the vacuum. Some provinces/territories do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. also have other rights, which may vary by province/territory. Midea America (Canada) Corp. Markham, ON Canada L3R 8V2www.eureka.com 15 Order genuine Eureka accessories and replacement parts Visit www.eureka.com or call 1-800-282-2886 Image Part name Part # E0102 Crevice tool E0101 Dusting brush tool E0201 Upholstery tool E0202 Washable foam lter E0203B Brushroll E0204 Hose E0205Belt E206CDetachable handle E0208 Turbo brush E207CDust cup16 Eureka Customer Service HELPLINE 1-800-282-2886 Do not return to the store, call Eureka Customer Service
