USER MANUAL RapidClean Pro NEC180 EUREKA

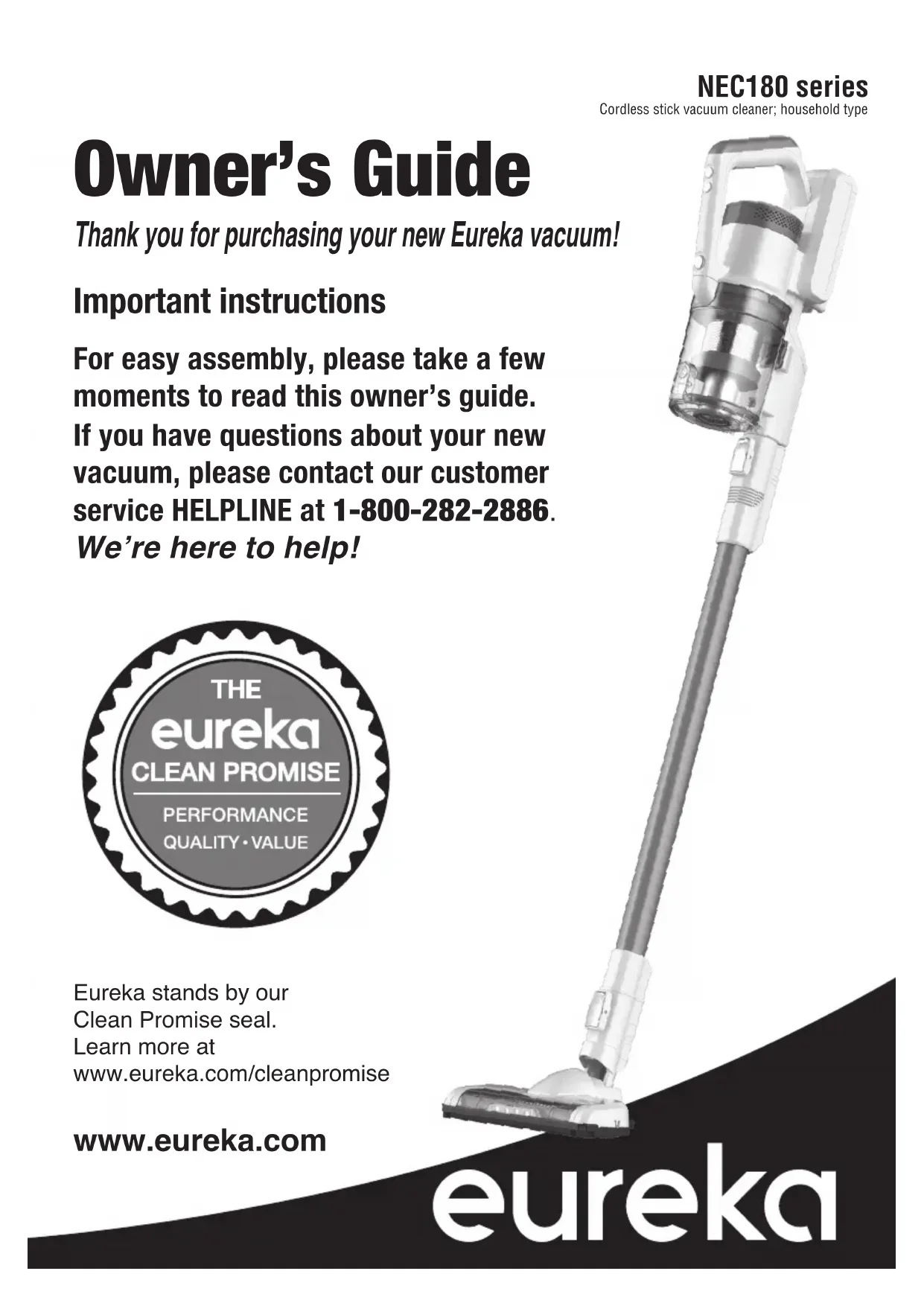

• Thank you for purchasing your new Eureka vacuum! Important instructions For easy assembly, please take a few moments to read this owner’s guide. If you have questions about your new vacuum, please contact our customer service HELPLINE at 1-800-282-2886. We’re here to help! Eureka stands by our Clean Promise seal. Learn more at www.eureka.com/cleanpromise www.eureka.com Owner’s Guide NEC180 series Cordless stick vacuum cleaner; household type2 Contents Important safeguards p. 3
• What comes in the carton p. 4
• How to identify parts of your vacuum cleaner p. 5
• Easy assembly, How to install wall mount, How to charge battery and Battery indicator lights p. 6
• How to use your vacuum cleaner p. 7
• How to use hand vacuum and accessory tools p. 7
• -8 How to maintain your vacuum cleaner p. 9
• How to maintain dust cup, lters and brushroll p. 9
• The Eureka limited warranty p. 10
• Thermal cut-off and problem solving p. 11
• How to dispose vacuum cleaner and battery pack p. 11
• How to order replacement parts Eureka Customer Service HELPLINE 1-800-282-2886 Follow caution information wherever you see this symbol. Where to nd important vacuum information Keep this information Write the model, type and serial number here: Date of purchase (keep your receipt) ______________ Model number and type _________________________Serial number ________________________________ Find these numbers on a label on the hand vacuum, battery, and charger. Refer to these numbers when ordering parts and accessories, or if service is needed. This Owner’s Guide provides important instructions to prolong the life of your Eureka vacuum cleaner Registration: To register your product visit www.eureka.com and click on the ‘Register Your Product’ link in the top right corner. Inspection: Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage. Each unit is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call the Eureka Customer Service HELPLINE at 1-800-282-2886 immediately.IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER WARNING eht ni si hctiws eht erusnE .gnitrats lanoitnetninu tneverP •off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that has the switch on invites accidents regnaD .no si renaelc muucav eht nehw elzzon hcuot ton oD • yna htiw esu ton oD .sgninepo otni tcejbo yna tup ton oD • openings blocked; keep free of dust, lint, hair and anything that may reduce air flow secafrus tew no ro sroodtuo esu ton oD • neeb sah ti fi regrahc ro renaelc muucav eht etarepo ton oD • damaged in any way. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call the Eureka Customer Service HELPLINE at 1-800-282-2886. eht ,yrettab ro tinu eht ot egamad dna taeh evissecxe diova oT • vacuum cleaner will not operate while charging. yrassecen si noitnetta esolC .yot a sa desu eb ot wolla ton oD • when used by or near children. s’rerutcafunam ylno esU .launam siht ni debircsed sa ylno esU • recommended attachments. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.” ,eldnah a sa droc esu ,droc yb regrahc eht yrrac ro llup ton oD • close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces srelevart yb esu rof dednetni ton si regrahc sihT • -tnerruc etauqedani htiw steltuo ro sdroc noisnetxe esu ton oD • carrying capacity for the charger. ,gulp eht psarg ,gulpnu oT .droc no gnillup yb gulpnu ton oD • not the cord sdnah tew htiw renaelc muucav ro regrahc eldnah ton oD • p. 12

• Us e appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. YEHT .SEIRETTAB ETARENICNI RO ETALITUM TON OD • BECOME DANGEROUS AT HIGH TEMPERATURES. fI .snrub ro noitatirri esuac yam yrettab eht morf detceje diuqiL • the liquid gets on the skin, (1) seek medical attention, (2) wash quickly with soap and water, and (3) neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. latem rehto morf yawa ti peek ,esu ni ton si kcap yrettab nehW • objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. • This product is functioning at temperature range within 40°F - 104°F.
• Do not use a battery pack or appliance that is damag

or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. rettab a esopxe ton oD • y pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F may cause explosion. yrettab eht egrahc ton od dna snoitcurtsni gnigrahc lla wolloF • pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. rep gnicivres evaH • formed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. yrettab eht ro ecnailppa eht riaper ot tpmetta ro yfidom ton oD • pack except as indicated in the instructions for use and care. dluohs yrettab dna renaelc muucav eht htob no slanimret ehT • be kept free and clean of objects. Do not insert metal objects inside the terminals. ,gnihtolc esool ,riah peeK .noitcus setaerc renaelc muucav sihT • fingers, and all parts of body away from openings and moving parts. sa hcus ,gnikoms ro gninrub si taht gnihtyna pu kcip ton oD • cigarettes, matches, or hot ashes. Do not use without filters in place. .sriats gninaelc nehw erac artxe esU •

• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. .aera yrd ,looc a ni sroodni regrahc dna renaelc muucav erotS • To avoid electric shock and/or cleaner damage, do not expose to weather elements. secnailppa lacirtcele gulpnU .til llew aera krow ruoy peeK • before vacuuming them. ro gnitalitum ,gnigrahc esrever ,gnitiucric trohs ,gnigrahcrevO • incinerating the cells and the batteries must be avoided.
• eb dluohs ti ,detnev ro dekael sah yrettab a ro llec a fI replaced immediately using protective gloves. eb tsum seirettab ro sllec eseht ,yrassecen nehw dna fI • replaced with identical new ones from the same manufacturer. If a cell or a battery to be replaced is connected with other cells or batteries in series, it is recommended that the other cells or batteries be replaced with new ones at the same time. dne eht ni yrettab eht ro llec eht fo noitallatsni ytiralop esreveR • product must be avoided. .degamad ylereves si ti fi neve ecnailppa siht etarenicni ton oD • Contact local waste facility before discarding in trash.

SAVE THESE INSTRUCTIONS

What comes in the carton Hand vacuum Wall mount Crevice tool Motorized oor nozzle Eureka Customer Service HELPLINE 1-800-282-2886 Wand 2-in-1 upholstery toolDetachable hand vacuum Charging port Battery indicator lights Release button for hand vacuum Wand Release button for oor nozzle Motorized oor nozzle Brushroll Dust cup lever Filter assembly (inside dust cup) For lter maintenance instructions, see page 9 Post-motor lter Hand vacuum Bottom lid Power button Handle Filter cover (post-motor lter inside) How to identify parts of your vacuum cleaner www.eureka.com 5 Cordless vacuum cleaner One-click dust cup release Low/High mode button Battery indicator lights Easy Rest nook Dust cup lter Nozzle4

1. Slide wand onto hand vacuum

until it clicks (Fig. 1).

2. Push wand into motorized oor

nozzle until it clicks (Fig. 2). How to install wall mount

• Choose location near power outlet. Locate point high enough on wall to allow wand and motorized oor nozzle to hang freely.

• Place mount against wall and use pencil to mark drill holes.

• Drill holes (with 1/4” bit) and insert drywall anchors. Insert screws through holes on mount and tighten until rmly attached (Fig. 3). How to charge battery and store accessories

• Place assembled vacuum cleaner on wall mount.

• Plug charger into power outlet and then into charger port on handle (Fig. 4).

• Loop charger cord into clips on sides of wall mount. Battery indicator lights show level of charge (Fig. 4): A. Half charged B. Fully charged

Indicator lights stop blinking when fully charged.

• Charge battery fully before using for the rst time. This may take up to six hours.

How to use cleaner for cleaning oors

1. Click power button once to start (Fig 1).

Vacuum starts on High mode. Use Low/ High button to switch between modes.

2. Using motorized oor nozzle, glide

back and forth on area to be cleaned. Avoid oversized or sharp items (such as screws) with cleaner.

3. Twist wrist to engage swivel function.

4. When done, click power button once to

stop motor. Empty dust cup after every use

1. Click the dust cup release button,

located on the front of the handle just above the dust cup and pull dust cup out. (Fig. 2).

3. To place the dust cup back, angle it

forward so the lower hook catches in the slot and then gently push it back towards the wand until you hear click indicating it is locked in place. (Fig. 3) How to use hand vacuum and accessories

Power button Crevice tool: Cleans hard-to-reach areas such as corners, baseboard edges, dryer vents, chairs and sofas. www.eureka.com 7 CAUTION The hand vacuum can be used with or without tools.

• To use tools with hand vacuum only, press release button to remove wand. Slide tool onto hand vacuum until it clicks. Moving parts! Aways turn off hand vacuum before attaching accessories.1. Press2. Pull out3. PressClick!Use with or without wand.

• 2-in-1 upholstery tool: Use brush to vacuum blinds, vents or upholstered surfaces. Use felt portion to clean delicate surfaces. To switch between felt and brush portions, press thumb release and slide brush up or down.

Eureka Customer Service HELPLINE 1-800-282-2886 How to use hand vacuum and motorized oor nozzle Ideal for cleaning stairs.

• Press release button to remove wand from hand vacuum. Attach motorized oor nozzle directly to hand vacuum until it clicks.

• Click power button once to start. Vacuum starts on High mode. Use Low/High button to switch between modes depending on suction power desired.24h

4. Click dust cup back into place on unit.

3. Reattach filter and Cyclone.

3. Shake to remove dust. 2. Press other end into slot.

How to maintain brushroll To avoid unnecessary service calls, periodically check brushroll for debris. If brushroll gets clogged it will automatically shut off. Turn vacuum off and unplug before attempting to remove clog. 1. Press2. Pull out1. Press2. Pull outClick! 3. Press Replace brushroll release tab into slot and press down to click it into place.www.eureka.com 24h How to maintain your vacuum cleaner CAUTION Never operate vacuum in proper position. WARNING: Moving parts! Recharge cleaner after each use. If debris cannot be removed easily, locate the brushroll release tab on the right side and open the brushroll cover. Remove the brushroll and clear any tangled hair and remaining debris. Dust cup – Empty after each use Click the dust cup release button, located on the front of the handle just above the dust cup and pull dust cup out. Press lever to release bottom lid of dust cup to empty debris. Washable brushroll – clean frequently To reassemble: dust frequently. Every three months

CAUTION Make sure vacuum cleaner is turned off and not plugged into a power source.

WARNING: Do not attempt to remove belt.

Click the dust cup release button, located on the front of the handle just above the dust cup and pull dust cup out. 2.The Eureka 1.5 year limited warranty Media America (Canada) Corp. (“Eureka”), subject to the terms and conditions herein, warrants this vacuum cleaner to be free from defects in material and workmanship for a term of one and a half years from the date of original purchase when used in accordance with the Eureka operating and maintenance instructions and under normal household usage. This warranty is granted only to the original purchaser and members of immediate household, and is applicable only to original purchases from Eureka authorized resellers. What Eureka will do: Eureka will, at its option, repair or replace a defective vacuum or vacuum part that is covered by this warranty. Repairs may be performed using new or refurbished parts that meet or exceed Eureka specifications for new parts. If Eureka elects to replace the vacuum, the replacement may be a reconditioned unit. Depending on availability of products, Eureka reserves the right to provide you with a replacement product that is the same or similar, or substitute equivalent of the original product. As a matter of warranty policy, Eureka will not refund the consumer’s purchase price. This warranty does not cover: Damages or malfunctions resulting from: improper or unreasonable use or maintenance, abuse, negligence, failure to follow instructions contained in any written materials that accompany the product, deterioration by reason of excess moisture, corrosive atmosphere, lightning, power surges, connections to improper voltage supply, unauthorized alteration, or other external causes such as extremes in temperature or humidity, modifications, scratches or discoloration, accidents, misuse, or acts of God. This warranty also does not cover damage resulting from repair or attempted repair by anyone other than Eureka or an authorized Eureka Warranty Station. This warranty is not applicable to any product that has been altered or on which the serial number has been defaced, modified or removed. Altering, erasing, or forging any proof-of-purchase documents voids any applicable product warranty. Obtaining warranty service: To obtain warranty service you must contact the Eureka Service Team, toll free, at 1-800-282-2886 or email [e-mail], to discuss the warranty claim and procedures to be followed. All warranty claims must include submission of proof-of-purchase documentation. For additional information, you may also visit www.eureka.com. Shipping charges: You will be responsible for any initial shipping and insurance charges if the defective product(s) must be shipped for warranty service or warranty evaluation; however, Eureka or a Eureka Authorized Warranty Station will pay the return shipping charges if repairs are covered by the warranty. When returning parts for repair, you must include the model, type and serial number located on the rating plate. If any product submitted for warranty service is found to be ineligible, an estimate of repair cost will be furnished and the repair performed only if requested by the owner and upon receipt of payment or acceptable arrangements for payment. Further limitations and exclusions: Any warranty that may be implied in connection with your purchase or use of the Battery Module, including any warranty of Merchantability or any warranty of Fitness For A Particular Purpose is limited to the duration of this limited warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall the manufacturer be liable for any consequential or incidental damages you may incur in connection with your purchase or use of the Battery Module. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights, which may vary by state. ©2020 Midea America (Canada) Corp. Markham ON, L3R 8V2 Eureka Customer Service HELPLINE 1-800-282-2886 Battery module and battery components. The battery module and its components are covered by a separate one-year limited battery warranty. • Normal wear and tear of the vacuum and vacuum parts that require replacement under normal use such as disposable dust bags, filters, drive belts, light bulbs, brush-roll, bristles, impellers and cleaning. • Damages or malfunctions resulting from: improper or unreasonable use or maintenance, abuse, negligence, failure to follow instructions contained in any written materials that accompany the product, deterioration by reason of excess moisture, corrosive atmosphere, lightning, power surges, connections to improper voltage supply, unauthorized alteration, or other external causes such as extremes in temperature or humidity, modifications, scratches or discoloration, accidents, misuse, or acts of God. This warranty also does not cover damage resulting from repair or attempted repair by anyone other than Eureka or an authorized Eureka Warranty Station. This warranty is not applicable to any product that has been altered or on which the serial number has been defaced, modified or removed. Altering, erasing, or forging any proof-of-purchase documents voids any applicable product warranty. Obtaining warranty service: To obtain warranty service you must contact the Eureka Service Team, toll free, at 1-800-282-2886 or email [e-mail], to discuss the warranty claim and procedures to be followed. All warranty claims must include submission of proof-of-purchase documentation. For additional information, you may also visit www.eureka.com. Shipping charges: You will be responsible for any initial shipping and insurance charges if the defective product(s) must be shipped for warranty service or warranty evaluation; however, Eureka or a Eureka Authorized Warranty Station will pay the return shipping charges if repairs are covered by the warranty. When returning parts for repair, you must include the model, type and serial number located on the rating plate. If any product submitted for warranty service is found to be ineligible, an estimate of repair cost will be furnished and the repair performed only if requested by the owner and upon receipt of payment or acceptable arrangements for payment. Further limitations and exclusions: Any warranty that may be implied in connection with your purchase or use of the vacuum, including any warranty of Merchantability or any warranty of Fitness For A Particular Purpose is limited to the duration of this limited warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall the manufacturer be liable for any consequential or incidental damages you may incur in connection with your purchase or use of the vacuum. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights, which may vary by state.

The Eureka 12-month limited battery warranty Midea America Corp. (“Eureka”), subject to the terms and conditions herein, warrants this Battery Module to be free from defects in material and workmanship for a term of one year from the date of original purchase when used in accordance with the Eureka operating and maintenance instructions and under normal household usage. This warranty is granted only to the original purchaser and members of immediate household, and is applicable only to original purchases from Eureka authorized resellers. What Eureka will do: Eureka will, at its option, repair or replace a defective Battery Module or battery part that is covered by this warranty. Repairs may be performed using new or refurbished parts that meet or exceed Eureka specifications for new parts. If Eureka elects to replace the Battery Module, the replacement may be a reconditioned unit. Depending on availability of products, Eureka reserves the right to provide you with a replacement product that is the same or similar, or substitute equivalent of the original product. As a matter of warranty policy, Eureka will not refund the consumer’s purchase price. This warranty does not cover:

• Normal wear and tear of the Battery Module and battery parts that require replacement under normal use.

• Makesurechargerissecurelyinsertedintoelectricaloutlet.•Makesurechargingplugissecurelyinsertedintohandle.•Indicatorlightsstopblinkingwhenfullycharged.• Empty dust cup and clean or change lters. See page 9 for maintenance instructions. • Make sure cleaner is fully powered. Charge battery. • Remove clogs that restrict the airow.• Make sure cleaner is fully powered. • Charge battery for up to six hours before using.• Check brushroll for debris. See page 9 for maintenance instructions.Li-ion Problem solving Make sure vacuum cleaner is off and charging plug is unplugged. This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum suddenly shuts off, proceed as follows: 1) Check the vacuum for a possible source of overheating such as a full dust cup, blocked wand or clogged lters. If these conditions are found, x them and wait at least 30 minutes before attempting to use the vacuum.

2) After the 30 minute period, press the power button. If the vacuum still does not work, call the

Eureka Customer Service HELPLINE at 1-800-282-2886.Problem Solution N O T I C E : Thermal cut-off Motor will not start Charging indicator lights are not lit while charging Not enough suction power Brushroll will not turn Not enough running time

• Make sure cleaner is fully powered. • Push charger securely into electrical outlet, try another outlet or check circuit breaker. • See detailed “thermal cut-off” instructions above. Discarding the vacuum and battery pack Beforeyoudiscardthisvacuum,disposeofbatteryinanenvironmentallysafe manner.Donotdiscardbatterywithyourregularhouseholdtrash. Important battery disposal information. To nd a disposal location nearest you, call 1-800-822-8837. To preserve natural resources, please recycle or dispose of expired battery pack properly.Thisproductcontainsalithium-ionbattery.Itmustbedisposed ofproperly.Locallawsmayprohibitdisposaloflithium-ionbatteriesinordinary trash.Consultyourlocalwasteauthorityforinformationregardingavailable recyclingand/ordisposaloptions. www.eureka.com 112-in-1 upholstery tool P0801 Z0101 (all) P0301 P0701 P0101 P0401 Z0201 (all) 12 © 2020 Media America (Canada) Corp. Order genuine Eureka accessories and replacement parts Visit www.eureka.com or call 1-800-282-2886 Image P0501 Brush roll P0601 Charger Crevice tool Wall mount Floor nozzle Wand Part name0HUFLG·DYRLUDFKHWpYRWUHQRXYHODVSLUDWHXU(XUHND Instructions importantes Pour faciliter le montage, veuillez prendre un moment pour lire ce guide du propriétaire. Si vous avez des questions concernant votre nouvel aspirateur, veuillez contacter notre ligne d’assistance du service à la clientèle au 1 800 282-2886. 1RXVVRPPHVOjSRXUYRXVDLGHU (XUHNDUHVWHÀGqOHjVRQVFHDX GHSURPHVVHGHSURSUHWp 3RXUHQVDYRLUSOXVYLVLWH]ODSDJH ZZZHXUHNDFRPFOHDQSURPLVH www.eureka.com Guide du propriétaire Série NEC180 Aspirateur-balai sans fil pour usage domestique2 Table des matières 0HVXUHVGHVpFXULWpLPSRUWDQWHV3 &HTXLHVWOLYUpGDQVODERvWH4 &RPPHQWLGHQWLÀHUOHVSLqFHVGHYRWUHDVSLUDWHXU5
