USER MANUAL EM93M MACKIE

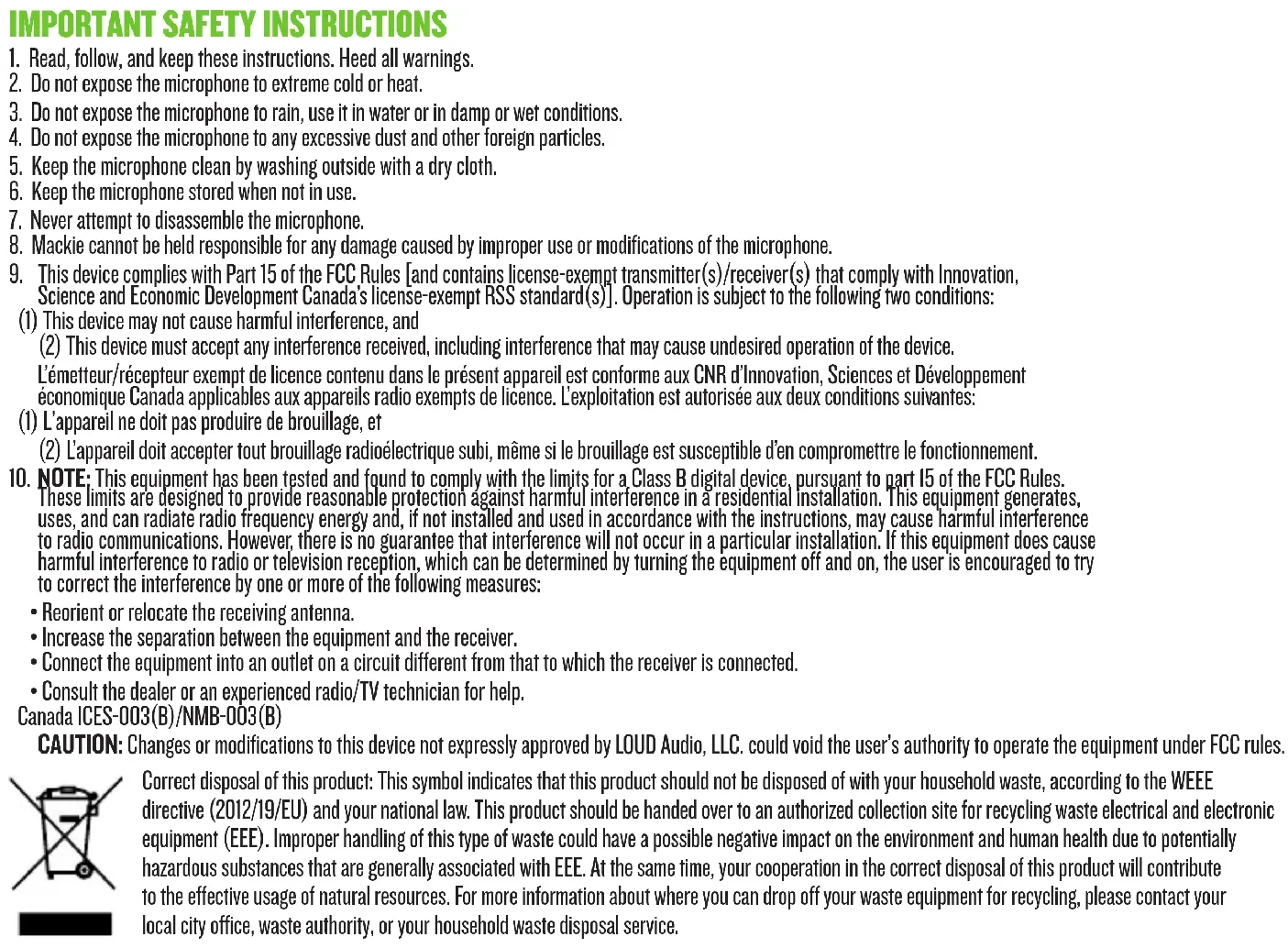

2. Do not expose the microphone to extreme cold or heat.

3. Do not expose the microphone to rain, use it in water or in damp or wet conditions.

4. Do not expose the microphone to any excessive dust and other foreign particles.

5. Keep the microphone clean by washing outside with a dry cloth.

6. Keep the microphone stored when not in use.

7. Never attempt to disassemble the microphone.

8. Mackie cannot be held responsible for any damage caused by improper use or modifications of the microphone.

9. This device complies with Part 5 of the FCC Rules [and contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS standard(s)]. Operation is subject to the following two conditions: () This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: () L’appareil ne doit pas produire de brouillage, et (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 0. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Canada ICES-003(B)/NMB-003(B) CAUTION: Changes or modifications to this device not expressly approved by LOUD Audio, LLC. could void the user’s authority to operate the equipment under FCC rules. Correct disposal of this product: This symbol indicates that this product should not be disposed of with your household waste, according to the WEEE directive (202/9/EU) and your national law. This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, or your household waste disposal service.INTRODUCTION EM-93M is the ultra-compact microphone upgrade for your smartphone or DSLR that you need to step up your mobile audio game. Unlike other compact mics out there, EM-93M is built with professional-grade components that deliver clearer, more defined sound that is crucial for mobile productions. With cables for both smartphones and DSLRs, you are ready to connect right out of the box, plus included mounting hardware makes setting up a snap. So, get the talent ready, build your sets, line up those interviews, or whatever your creativity has in store for you, because your audio is good to go. FEATURES PREMIUM COMPACT CONDENSER MICROPHONE

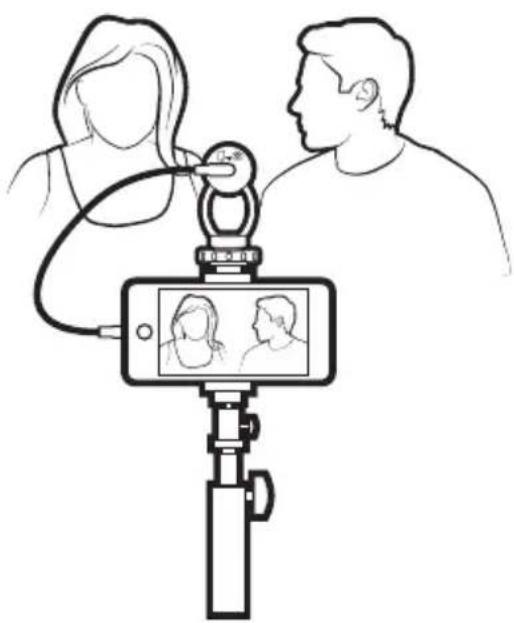

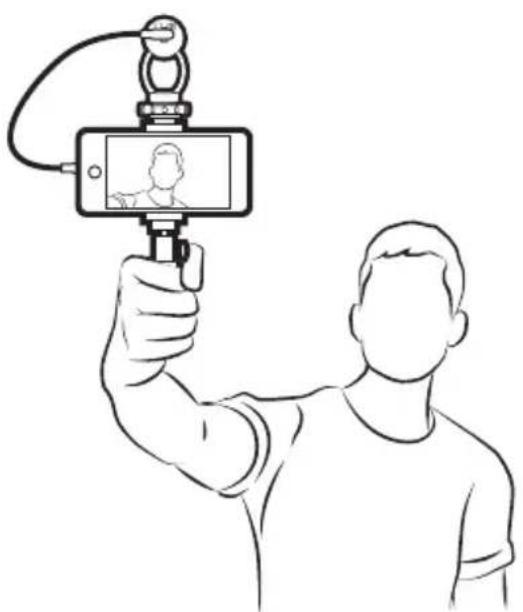

GREAT FOR MOBILE VIDEO

PRODUCTION AND LIVE STREAMING

CABLES INCLUDED GETTING STARTED Connect the EM-93M and camera-shoe adaptor shock mount (A) by “snapping” it into place. Do not force it! Next, hand-tighten (clockwise) the camera-shoe adaptor shock mount to the shoe mount on top of the audio/video recording device (B). [Loosen if it doesn’t fit at first]. The stickers on the included cables determine if it’s for DSLR (TRS, black jack) or phone (TRRS, green jack). Plug the green connector into a phone, tablet or laptop OR plug the black connector into the “audio in” of a camera, camcorder, audio recorder or other audio/video recording device. The other end of the cable connects to the EM-93M (C). Slide the furry windscreen or sponge foam over the mic (D) to minimize wind and other environmental noises for crystal clear indoor or outdoor recording.

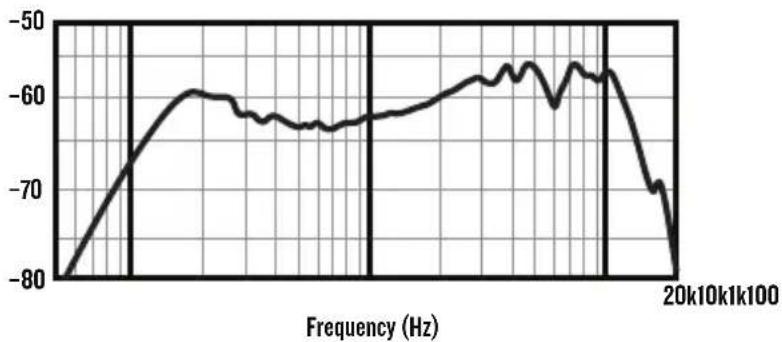

FREQUENCY RESPONSE GRAPHCARDIOIDNEED HELP WITH THE MICROPHONE? • Visit www.mackie.com and click Support to find: FAQs, manuals, and addendums. • Telephone [phone] to speak with one of our splendid technical support chaps (Monday through Friday, normal business hours, Pacific Time).Technical Specifications EM-93MElement CondenserPolar Pattern Cardioid Frequency Response 35 Hz – 20 kHzSensitivity –42 dBSignal-to-Noise Ratio 68 dBOutput Impedance 680 ΩSize (H × W )3.1" × 0.9" 79 × 23 mmWeight 0.09 lb • 0.04 kgAll specifications subject to change Frequency (Hz) 20k10k1k100 –60 –50 –70 –80LIMITED WARRANTY This Limited Product Warranty (“Product Warranty”) is provided by LOUD Audio, LLC. (“LOUD”) and is applicable to products purchased in the United States or Canada through a LOUD-authorized reseller or dealer. The Product Warranty will not extend to anyone other than the original purchaser of the product (hereinafer, “Customer,” “you” or “your”). For products purchased outside the U.S. or Canada, please visit www.mackie.com to find contact information for your local distributor, and information on any warranty coverage provided by the distributor in your local market. LOUD warrants to Customer that the product will be free from defects in materials and workmanship under normal use during the Warranty Period. If the product fails to conform to the warranty then LOUD or its authorized service representative will at its option, either repair or replace any such nonconforming product, provided that Customer gives notice of the noncompliance within the Warranty Period to the Company at: www.mackie.com or by calling LOUD technical support at .800.898.32 (toll-free in the U.S. and Canada) during normal business hours Pacific Time, excluding weekends or LOUD holidays. Please retain the original dated sales receipt as evidence of the date of purchase. You will need it to obtain any warranty service. For full terms and conditions, as well as the specific duration of the Warranty for this product, please visit www.mackie.com. The Product Warranty, together with your invoice or receipt, and the terms and conditions located at www.mackie.com constitutes the entire agreement, and supersedes any and all prior agreements between LOUD and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Product Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby. Please keep your sales receipt in a safe place.INSTRUCCIONES IMPORTANTES DE SEGURIDAD

–80BESCHRÄNKTE GARANTIE
