USER MANUAL LF61R842 AEG

Welcome to AEG! Thank you for choosing our appliance. Table title.In our drive to be sustainable, we are reducing paper assets and provide full user manuals online. Access your full user manual at aeg.com/manualsGet usage advice, brochures, troubleshooting, service and repair information at aeg.com/supportBuy accessories, consumables, and original spare parts for your appliance at aeg.com/shopSubject to change without notice. CONTENTS

Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if 2 ENGLISHthey have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

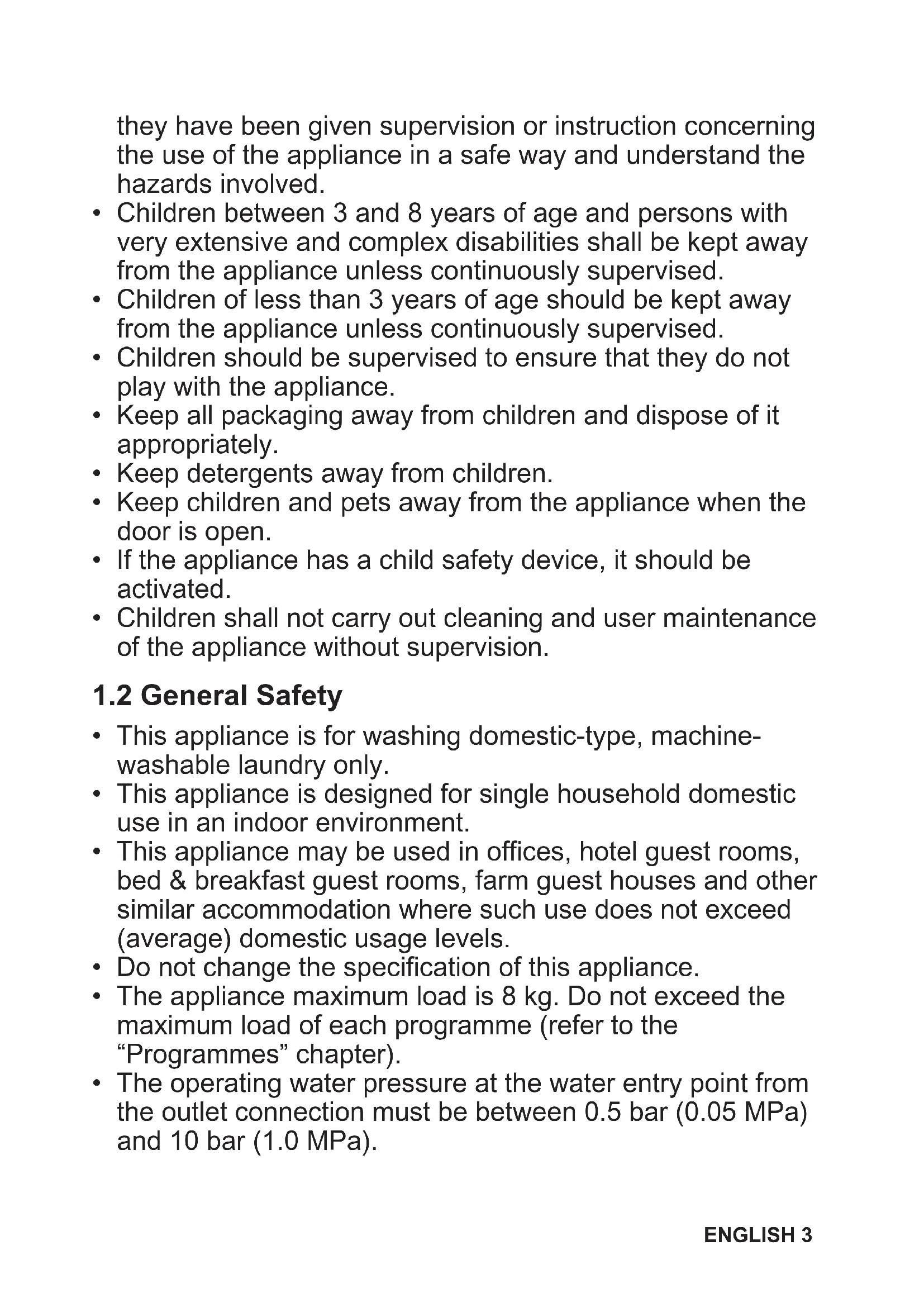

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• Keep detergents away from children.

• Keep children and pets away from the appliance when the door is open.

• If the appliance has a child safety device, it should be activated.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

• This appliance is for washing domestic-type, machine- washable laundry only.

• This appliance is designed for single household domestic use in an indoor environment.

• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

• Do not change the specification of this appliance.

• The appliance maximum load is 8 kg. Do not exceed the maximum load of each programme (refer to the “Programmes” chapter).

• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa). ENGLISH 3• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.

• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.

• Old hose sets must not be reused.

• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

• Do not use high pressure water sprays and/or steam to clean the appliance.

• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

The installation must comply with relevant national regulations.

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.

• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Follow the installation instructions supplied with the appliance.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the temperature can be less than 0°C or where it is exposed to the weather.

• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.

• Make sure that there is air circulation between the appliance and the floor.

• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.

• Do not install the appliance directly above a floor drain.

• Do not spray water on the appliance and do not expose it to excessive humidity.

• Do not install the appliance where the appliance door cannot be fully opened.

• Do not put a closed container to collect possible water leakage under the appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building. 4 ENGLISH• Always use a correctly installed shockproof socket.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not touch the mains cable or the mains plug with wet hands.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Water connection

• The inlet water shall not exceed 25 °C.

• Do not cause damage to the water hoses.

• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.

• Ensure that there are no visible water leaks during and after the first use of the appliance.

• Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.

• When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the appliance with the use of water in the factory.

• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.

• Make sure that there is access to the tap after the installation.

WARNING! Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the appliance. Prewash such fabrics by hand before loading them into the appliance.

• Do not use laundry fragrances to avoid the risk of damaging plastic and rubber parts of the appliance.

• Do not touch the glass door while a programme operates. The glass can get hot.

• Make sure that all metal objects are removed from the laundry.

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.

• Please note that self-repair or non- professional repair can have safety consequences and might void the guarantee.

• The following spare parts are available for at least 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. The duration may be longer in your country. For further information, please visit our website. ENGLISH 5• Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.

• Cut off the mains electrical cable close to the appliance and dispose of it.

• Remove the door catch to prevent children or pets from becoming trapped in the drum.

• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

Inlet hose connection

Hose support Table title.

00A Mod. xxxxxxxxx000V ~ 00Hz 0000 W910000000 Prod.No. B C D EA The rating plate reports: A. QR code B. Model name C. Product number D. Electrical ratings E. Serial number Scan the QR code on the appliance to register your product and get the most out of it.

• Access your appliance details, documentation and articles on how to use the best features (User Manual also available at aeg.com/manuals )

• Get usage advice, troubleshooting, service and repair information (also available at aeg.com/ support )

• Buy accessories, Consumable and Original Spare parts for your appliance (also available at aeg.com/ shop )

4. TECHNICAL INFORMATION

Table title. Dimension Width/ Height/ Total depth 59,6 cm /84,7 cm /57,7 cm Electrical connection Voltage Overall power Fuse Frequency 230 V 1900 W 10 A 50 Hz Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture IPX4 Water supply pressure Minimum Maximum

Connect the water inlet hose to a water tap with a 3/4'' thread.

WARNING! Refer to Safety chapters.

1. Open the door and remove the piece from

the door seal and all the items from the drum. ENGLISH 7Accessories delivered with the appliance may vary depending on the model.

2. Put the packaging element on the floor

behind the appliance and carefully put it down onto its rear side. Remove the protection from the bottom.

CAUTION! Do not lay washing machine on its front.

3. Put the appliance back into an upright

position. Remove the power supply cable and the drain hose from the hose holders. WARNING! It is possible to see water flowing from the drain hose. This is because the washing machine has been tested at the factory.

4. Remove the three bolts and pull out the

5. Put the caps, that you find in the user

manual bag, in the holes. We recommend that you keep the packaging and the transit bolts for any transport of the appliance.

5.2 Positioning and levelling

1. Install the appliance on a flat hard floor.

Make sure that carpets do not stop the air circulation below the appliance. Make sure that the appliance does not touch the wall or other units.

2. Loosen or tighten the feet to adjust the

level. WARNING! Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level. 8 ENGLISHx4 The appliance must be level and stable. A correct adjustment of the appliance level prevents the vibration, noise and the movement of the appliance when in operation. When the appliance is installed on a plinth or a tumble dryer is stacked on the washing machine, use the accessories described in chapter 'Accessories'. Read carefully the instructions supplied with the appliance and with the accessory.

1. Connect the water inlet hose to the back

of the appliance if needs. Usually, it is already installed at the factory. 20º20º45º45º

2. Position it toward left or right depending

on the position of the tap. Make sure that the inlet hose is not in vertical position.

3. If necessary, loose the ring nut to set it in

the correct position

4. Connect the water inlet hose to the cold

water tap with 3/4" thread. Some model can contain inlet hose with water stop device. It prevents any leaks in the hose because of its natural ageing. The sector in the window shows this fault A. If this occurs, close the water tap and contact the authorized service center for information to replace the hose. 3/4” 3/4”

WARNING! The inlet water shall not exceed 25 °C. ENGLISH 9CAUTION! Make sure that there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Contact the service centre for information on inlet hose replacement.

The drain hose should be positioned at a height of not less than 60 cm and not more than 100 cm from the floor. You can extend the drain hose to maximum 400 cm. Contact the authorized service centre to buy the other drain hose and the extension. Table title. It is possible to connect the drain hose in different ways: min.600 mm max.1000 mm

(*) Subject to change without notice.

• Connect the drain hose to the spigot and tighten it with a clamp.

• Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.

• Without the plastic hose guide, to a sink spigot - put the drain hose in the spigot and tighten it with a clamp.

• To a stand pipe with vent hole - insert the drain hose directly into a drain pipe or stand pipe.

• The drain hose can be bent into U shape and put around the plastic guide. On the edge of a sink - fasten the guide to the water tap or to the wall. Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink. Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance. Buy accessories from authorised supplier. 10 ENGLISHThe end of the drain hose must always be ventilated , i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

5.5 Electrical connection

At the end of installation you can connect the mains plug to the mains socket. The rating plate and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply. Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances may also be in use. Connect the appliance to an earthed socket. The power supply cable must be easily accessible after installing the appliance. For any electrical work required to install this appliance, contact our Authorised Service Centre. The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution.

A. The digital indicator can show:

• Indication of total operating hours of the appliance. Refer to the "Operating hours counter" section in the "Settings" paragraph for more details. B. Extra rinse indicator. It lights on when this option is selected . C. This indicator blink during the laundry load detections. D. Child safety lock indicator. E. Door locked indicator.

For selecting the desired washing programme. Refer to 'Programmes' chapter for more details. The position is a "Reset" function, which stops and resets the running programme. When the selector is in this position, display shows . It indicates that no programme was selected.

7.2 Aan/Uit - Marche/Arrêt

Pressing this button for a few seconds allows to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off. As the Stand-by function automatically deactivates the appliance to decrease the energy consumption in a few cases, you may need to activate the appliance again. For more details, refer to Stand-by paragraph in Daily Use chapter.

The options/functions are not selectable with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set the incompatible options/functions together. Make sure the screen and touch buttons are always clean and dry.

When you select a washing programme, the appliance automatically proposes a default temperature. Set this option to change the default temperature. The indicator = cold water of the set temperature comes on (the appliance does not heat the water). 12 ENGLISH7.5 Centrifugeren - Essorage When you set a programme, the appliance automatically sets the maximum spin speed allowed. Touch repeatedly this button to: Decrease the spin speed Activate the Spülstopp option

• Set this option to prevent the laundry creases.

• The related indicator comes on.

• There is a water in the drum when the programme is completed.

• The door stays locked and the drum turns regularly to reduce creasing.

• You must drain the water to unlock the door.

• If you touch the Start/Pauze - Départ/ Pause button, the appliance performs the spinning phase and drains the water. The appliance empties the water out automatically after 18 hours approximately. Activate the Ohne Schleudern option

• Set this option to deactivate all spin phases. Only the drain phase is available.

• The related indicator comes on.

• Set this option for very delicate fabrics.

• The rinses phase uses more water for some washing programmes. The spin speed can be reduce.

Press this button repeatedly to activate one of the available options.

• Vlekken - Taches Select this option to add an anti-stain phase to a programme in order to treat heavily soiled or stained laundry with stain remover. Pour the stain remover into compartment . The stain remover will be added in the appropriate phase of the washing programme. This option can increase the programme duration. This option is not available with a temperature lower than 40 °C.

• Voorwas - Prélavage Use this option to add a prewash phase at 30 °C before the washing phase. This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles. This option can increase the programme duration. The relevant indicator comes on.

7.7 Startuitstel - Départ Différé

With this option you can delay the start of a programme in a more convenient time. Touch repeatedly the button to set the required delay. The time increases by steps of 30 minutes up to 90' and from 2 hours up to 20 h. The indicator of the option and the indicator of the set value are on. After touching theStart/Pauze - Départ/Pause button the appliance begins the countdown.

7.8 Tijd besparen - Gain de temps

This option may be advisable to shorten the washing programme. Use this option for items with normal or light soil or items to refresh. Touch this button once to decrease the duration. In case of smaller load, touch this button twice to set an extra quick programme. The indicator of the option and the indicator of the set value are on.

Washing programmes Programme Programme description Eco 40-60 White cotton and fast-coloured cotton. Normally soiled items. The energy con sumption decreases and the time of the washing programme is extended, ensuring good washing results. Katoen - Coton White and coloured cotton heavily and normally soiled cotton items. Synthetica - Synthétiques Synthetic items or mixed fabric items. Normally soiled items. Strijkvrij - Repassage facile Synthetic items requiring a gentle wash. Normally and lightly soiled items.

Fijne was - Délicats Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normally and lightly soiled items. Wol/Zijde - Laine/Soie Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol

Machine clean - Lavage tambour Maintenance cycle with hot water to clean and freshen the drum and to remove residue that may cause odour. For the best result use this cycle once a month. Be fore running this cycle, remove all items from the drum. In the washing phase com partment of the detergent dispenser, put the flap of the compartment in upward po sition. Pour a cup of chlorine bleach or a washing machine cleaner in the washing phase compartment. DO NOT use both together. After the drum cleaning, run a further rinse cycle with empty drum and no detergent to remove any residue of bleach. Centr./Pompen - Essorage/ Vidange All fabrics, except woollens and delicate fabrics. To spin the laundry and to drain the water in the drum. Spoelen - Rinçage All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning the laundry. The default spin speed is the one used for cotton pro grammes. Reduce the spin speed accordingly to the type of laundry. If necessary, set the Spoelen+ Rinçage+ option to add rinses. With a low spin speed the appli ance performs delicate rinses and a short spin. Anti-allergie White cotton items. This high-performance wash program combined with steam vapour, removes more than 99,99% of bacteria and viruses

keeping the temper ature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper re moval of detergent and micro-organism residues. This program ensures also a proper reduction of pollens/allergenic items. Jeans Denim clothing and jersey items. Normal soiled. This programme performs a gentle rinsing phase, designed for denim, that reduces fading and does not cause washing powder residues on the fibres. 14 ENGLISHProgramme Programme description Sport Mixed fabric sportswear like polyester, polyester, elastane blends, polyamide. A cycle for outdoor sport clothes normal soiled Katoen 20° - Coton 20° Mixed fabric (cotton and synthetic items)

20 min. - 3 kg Cotton and synthetic items lightly soiled or once worn.

To reduce creasing, this cycle regulates the water temperature and performs a soft wash and spin phase. The appliance adds some rinses.

During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

This programme is for daily use and has the lowest energy and water consumption whilst maintaining a good washing performance. Programme temperature, maximum spin speed and maximum load Programme Default tempera ture Temperature range Reference spin speed Spin speed range Maximum load Eco 40-60 40 °C

According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle. For the reached temperature in the laundry, the programme duration and other data, please refer to 'Con sumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower tem peratures and longer duration.

Set the spin speed. Make sure it is suitable for the type of fabric being washed. If you set the No Spin option then only the drain phase is available. Programme options compatibility Table title Programme Centrifugeren - Essorage Ohne Schleudern Spülstopp Vlekken - Taches

This option is not available with temperature lower than 40 °C.

If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully load the appliance, however the washing results can be less satisfactory. Suitable detergents for washing programmes Programme Universal pow der

At temperature higher than 60 °C the use of powder detergent is recommended. -- = Not recommended ▲ = Recommended

8.2 Woolmark Premium Wool Care - Blue

Table title. The wool wash cycle of this machine has been tested and ap proved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing ma chine. M1511

With this option you can prevent children from playing with the control panel.

• To activate/deactivate this option, touch the Centrifugeren - Essorage and the Extra buttons simultaneously until the indicator comes on/goes off on the display. You can activate this option:

• After you touch the Start/Pauze - Départ/ Pause button: all the buttons and the programme dial are deactivated (except Aan/Uit - Marche/Arrêt button ).

• Before you touch the Start/Pauze - Départ/ Pause button: the appliance cannot start. The appliance keeps the selection of this option after you switch it off. 18 ENGLISH9.2 Acoustic signals The acoustic signals operate when the programme is completed (sequence of sounds for about 2 minutes). To deactivate/activate the acoustic signals, touch the Startuitstel - Départ Différé and the Tijd besparen - Gain de temps buttons simultaneously for about 6 seconds. If you deactivate the acoustic signals, they continue operate when the appliance has a malfunction.

9.3 Permanent Extra Rinse

With this option you can permanently have an extra rinse when you set a new programme.

• To activate/deactivate this option touch the Temp. button and the Centrifugeren - Essorage button simultaneously until relevant indicator comes on/goes off on display.

9.4 Operating Hours Counter

It is possible to visualise the total operating time of the appliance in hours, starting from the first switching on. This value will count operating time of the cycles (does not include pauses, delayed start time). To visualise this value, proceed as follows:

1. Switch the appliance on by pressing

Aan/Uit - Marche/Arrêt button.

2. Turn the programme knob to the Eco

40-60 programme (1st position clockwise).

3. Press and hold the Startuitstel - Départ

Différé and Tijd besparen - Gain de temps buttons for some seconds (within 10 seconds after the switching on. After these 10 seconds, the key combination activates and deactivates the acoustic signals).

4. After 3 seconds the total hours operated

by the appliance are shown in the display: e.g. 1276 hours, the display shows the text Hr for 2 seconds, 12 (thousands and hundreds) for 2 seconds and 76 (tens and units). If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

1. Switch the appliance on by pressing

Aan/Uit - Marche/Arrêt button.

2. Turn the programme knob to the

Différé and Tijd besparen - Gain de temps buttons for some seconds (within 10 seconds after the switching on. After these 10 seconds, the key combination activates and deactivates the acoustic signals).

4. The display will show for about 5

seconds. If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

WARNING! Refer to Safety chapters.

10.1 Activating the appliance

1. Connect the mains plug to the mains

2. Open the water tap.

ENGLISH 193. Press the Aan/Uit - Marche/Arrêt button for a few seconds to activate the appliance. A short tune sounds.

10.2 Loading the laundry

• Open the appliance door.

• Shake the items before you put them in the appliance.

• Put the laundry in the drum, one item at a time. Make sure not to put too much laundry in the drum.

• Close the door firmly. CAUTION! - Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry. - Washing heavily oiled, greasy stains or using fragrances perfume could cause damage rubber parts of the appliance.

10.3 Filling the detergent and

additives Table title Compartment for prewash phase, soak programme or stain remover. Compartment for washing phase. Compartment for liquid additives (fabric conditioner, starch). Maximum level for quantity of liquid additives. Flap for powder or liquid detergent. Table title Always follow the instructions that you find on the packaging of the detergent products, but we recommend that you do not exceed the maximum indicated level ( ). This quantity will however guarantee the best washing results. After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser.

10.4 Check the position of the flap

1. Pull out the detergent dispenser until it

2. Press the lever down to remove the

dispenser. 20 ENGLISH3. To use powder detergent, turn the flap up.

With the flap in the position DOWN:

• Do not use gelatinous or thick liquid detergents.

• Do not put more liquid detergent than the limit shown on the flap.

• Do not set the prewash phase.

• Do not set the delay start function.

5. Measure out the detergent and the fabric

6. Carefully close the detergent dispenser.

Make sure that the flap does not cause a blockage when you close the drawer.

10.5 Setting a programme

1. Turn the programme knob to set the

spin speed, the cycle duration, or add available options. When you activate an option, the indicator of the set option comes on. In case a selection is not possible, no indicator comes on and an acoustic signal sounds.

10.6 Additional information about

daily use The ProSense load detection The ProSense System starts estimating the weight of the load to calculate the real programme duration. The appliance automatically adjusts the programme duration to the load to achieve perfect washing results in the minimum possible time. The ProSense System is not available in programmes with short cycles. Starting a programme Touch the Start/Pauze - Départ/Pause button to start the programme. The related indicator stops flashing and stays on. The programme starts, the door is locked. The display shows the indicator . Starting a programme with delay start

1. Touch the Startuitstel - Départ Différé

button repeatedly until the display shows the desired delay time.

2. Touch the Start/Pauze - Départ/Pause

button. The appliance door locks and starts the countdown of the delay start. When the countdown is completed, the programme starts automatically. ENGLISH 21Interrupting a programme and changing the options.

1. When the programme is running, you can

in the display changes accordingly.

3. Touch the Start/Pauze - Départ/Pause

again. The washing programme continues. Cancelling a running programme

1. Press the button Aan/Uit - Marche/Arrêt

button to cancel the programme and to deactivate the appliance

2. Now, you can set a new washing

programme. Press again to activate the appliance. Opening the door - adding garments While a programme or the delay start operates, the appliance door is locked.

Départ/Pause again. The programme or the delay start continues. End of the programme

1. The appliance stops automatically. The

acoustic signals operate (if they are active).

2. The indicator of the Start/Pauze - Départ/

Pause button goes off. The door unlocks and the indicator goes off .

3. Press the Aan/Uit - Marche/Arrêt button to

deactivate the appliance. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours. Draining water out after end of cycle If you have chosen a programme or an option that does not empty out the water of the last rinse you must remember to drain the water to open the door.

1. Touch button Start/Pauze - Départ/Pause.

• If you have set , the appliance drains the water and spins.

• If you have set , the appliance only drains the water.

2. Touch button Centrifugeren - Essorage to

decrease the spin speed proposed by the appliance When the programme is completed and the door locked indicator goes off, you can open the door.

3. Press the Aan/Uit - Marche/Arrêt to

deactivate the appliance. Stand-by function The Stand-by function automatically deactivates the appliance to reduce the energy consumption.

11. CARE AND CLEANING

WARNING! Refer to Safety chapters.

11.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance. After each cycle, keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance: this will prevent mildew and odours. If the appliance is not used for a long time: close the water tap and unplug the appliance. Indicative periodic cleaning schedule:

Descaling Twice a year Maintenance wash Once a month Clean door seal Every two months Clean drum Every two months Clean detergent dispens

Every two months Clean drain pump filter Twice a year Clean the inlet hose and the valve filter Twice a year The following paragraphs explain how you should clean each part. 22 ENGLISH11.2 Removing foreign objects Make sure that pockets are empty and all loose elements are tied up before running your cycle. Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump" and "Cleaning the inlet hose and the valve filter" paragraphs. Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase. If necessary, please contact the Authorised Service Centre.

11.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces. Do not use a scouring pads or any scratching material. CAUTION! Do not use alcohol, solvents or chemical products. CAUTION! Do not clean the metal surfaces with chlorine-based detergent.

If the water hardness in your area is high or moderate, we recommend that you use a water descaling product for washing machines. Regularly examine the drum to check for limescale. The regular detergents already contain water softening agents, but we recommend to run a cycle with empty drum and a descaling product occasionally. Always follow the instructions that you find on the packaging of the product.

11.5 Maintenance wash

With the low temperature programmes it is possible that some detergent stays in the drum. Perform a maintenance wash regularly. To do this:

• Remove all laundry from the drum.

• Select the cotton programme with the highest temperature or use if is available programme Machine clean - Lavage tambour. Add a small quantity of powder detergent into empty drum, in order to rinse out any left residues.

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle. Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface. Always obey the instructions that you find on the packaging of the product.

11.7 Cleaning the drum

Regularly examine the drum to prevent rust particles. For a complete cleaning:

1. Clean the drum with special products for

stainless steel. ENGLISH 23Always follow the instructions that you find on the packaging of the product.

2. Run a short cotton programme at high

temperature or use if is available programme Machine clean - Lavage tambour. Add a small quantity of powder detergent into empty drum, in order to rinse out any left residues.

11.8 Cleaning the detergent

dispenser To prevent possible deposits of dried detergent or clotted fabric softener and/or formation of mould in the detergent dispenser drawer, every two months carry out the following cleaning procedure how explained in the following diagrams:

1. Open the drawer. Press the catch

downwards as indicated in the picture and pull it out.

2. Remove the top part of the additive

compartment to aid cleaning. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

3. Flush the detergent drawer out under

running warm water to remove any traces of accumulated detergent. After cleaning, replace the top part in its position.

4. Insert the detergent drawer into the guide

rails and close it. Run the rinsing programme without any clothes in the drum.

11.9 Cleaning the drain pump filter

Regularly check the drain pump filter and make sure that it is clean. Clean the drain pump filter if:

• The appliance does not drain the water.

• The appliance makes an unusual noise because of the blockage of the drain pump.

• The drum does not turn.

• The display shows the alarm code . 24 ENGLISHWARNING!

• Disconnect the mains plug from the mains socket.

• Do not remove the filter while the appliance operates.

• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down Proceed as follows to clean the pump: Always keep a rag nearby to dry up any water spillages when removing the filter.

1. Open the pump cover.

2. Place a suitable bowl below the drain

pump access to collect the water that flows out.

3. Open the chute downwards. Always keep

a rag nearby to dry up any water spillages when removing the filter.

4. Turn the filter 180 degrees in anti-

clockwise direction to open it, without removing. Let the water flow out. 180˚

When the bowl is full of water, turn the filter back and empty the container.

6. Repeat the steps 4 and 5 until the water

7. Turn the filter anti-clockwise to remove it.

8. If it is necessary, remove fluff and objects

from the filter recess.

9. Make sure that the impeller of the pump

can rotate. If it does not rotate, contact the Authorised Service Centre.

10. Clean the filter under the water tap.

ENGLISH 2511. Put the filter back into the special guides by turning it clockwise. Make sure that you tighten the filter correctly to prevent leakages.

12. Close the pump cover.

11.10 Cleaning the inlet hose and

the valve filter It is recommended to clean both the filters of the inlet hose and valve twice a year to remove any deposit, collected over the time. Proceed as described in following diagrams to clean filters:

1. Remove the inlet hose from the tap and

2. Remove the inlet hose from the appliance

by loosening the ring nut.

3. Clean the valve filter on the back of the

appliance with a toothbrush.

4. When you reconnect the hose to the back

of the appliance, turn it left or right (not in vertical position) depending on the position of your water tap. 26 ENGLISH45° 20°

11.11 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump.

11.12 Frost precautions

If the appliance is installed in an area where the temperature can reach the values around 0° C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the

2. Close the water tap.

3. Put the two ends of the inlet hose in a

container and let the water flow out of the hose.

4. Empty the drain pump. Refer to the

emergency drain procedure.

5. When the drain pump is empty, install the

inlet hose again. WARNING! Make sure that the temperature is higher than 0 °C before you use the appliance again. The manufacturer is not responsible for damages caused by low temperatures.

Table title. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to find the same information in EPREL using the link https:// eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance. Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme. According to Commission Regulation Eu 2019/2023 Eco 40-60 pro gramme kg kWh Litres hh:mm

Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.

Maximum spin speed. Common programmes Table title These values are indicative only. Table title Programme kg kWh Litres hh:mm

Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.

Reference indicator of the spin speed.

Suitable for washing heavily soiled textiles.

Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.

It also performs as quick washing cycle for lightly soiled laundry. Power consumption in different modes Off (W) Stand-by (W) Delay start (W)

Time to Off/Standby mode is 15 minutes maximum.

Connect the mains plug to the mains socket. Open the water tap. Load the laundry. Pour the detergent and other treatment in the proper compartment of the detergent dispenser.

1. Turn the programme dial to set the

2. Set the desired options by means of the

Pauze - Départ/Pause button. The appliance starts. At the end of the programme, remove the laundry. Turn the programme dial to switch off the appliance. Care and cleaning Periodic cleaning schedule will helps to extend the life of your appliance. After each cycle, keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance: this will prevent mildew and odours. If the appliance is not used for a long time: close the water tap and unplug the appliance. Table title. Descaling Twice a year Maintenance wash Once a month Clean door seal Every two months Clean drum Every two months Clean detergent dispens

Every two months Clean drain pump filter Twice a year Clean the inlet hose and the valve filter Twice a year Keep clear the plastic parts, especially near the detergent drawer area, remove excess spillage. The following paragraphs explain how you should clean some part. Door seal with double lip trap This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle. ENGLISH 29Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface. Always obey the instructions that you find on the packaging of the product. Check and remove objects (if there are any) that could be trapped in the fold. Make sure that no laundry remains between the seal and the door. Use a moist cloth to wipe off any dirt or water residue left behind in the door seal after completion of program cycle. Removing foreign objects Make sure that pockets are empty and all loose elements are tied up before running your cycle. Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. If necessary, please contact the Authorised Service Centre. Cleaning the drain pump filter Clean the filter regularly and, especially, if the alarm code appears on the display.

8 kg White cotton and coloured cotton. Normally, heavily and lightly soiled items. Katoen - Coton 8 kg White cotton and coloured cotton. Synthetica - Synthétiques 3 kg Synthetic items or mixed fabric items. Strijkvrij - Repassage facile 3 kg Synthetic items requiring a gentle wash. Normally and lightly soiled items.

Fijne was - Délicats 2 kg Delicate fabrics such as acrylics, viscose, polyester items. Wol/Zijde - Laine/Soie 1,5 kg Machine washable wool, hand washable wool and delicates. 30 ENGLISHProgrammes Load Product description Machine clean - Lavage tambour - Maintenance cycle for drum cleaning. Centr./Pompen - Essorage/ Vidange 8 kg All fabrics, except woollens and very delicate fabrics. Programme for spinning and draining the water. Spoelen - Rinçage 8 kg All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning. Anti-allergie 8 kg White cotton items. This program removes more than 99,99% of bacteria and viruses

. It also ensure a proper reduction of aller gens. Jeans 8 kg Denim clothing and jersey items. Sport 3 kg Sportswear. Katoen 20° - Coton 20° 8 kg White cotton and coloured cotton. 20 min. - 3 kg 3 kg Cotton and synthetic lightly soiled items or once worn items. Loading the appliance to the maximum capacity indicated for each programmes helps to reduce energy and water consumption.

According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle. For the reached temperature in the laundry, the programme duration and other data, please refer to 'Con sumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower tem peratures and longer duration.

To reduce creasing, this cycle regulates the water temperature and performs a soft wash and spin phase. The appliance adds some rinses.

Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117). Suitable detergents for washing programmes Programme Universal powder

At temperature higher than 60 °C the use of powder detergent is recommended. -- = Not recommended ▲ = Recommended Detergent type and quantity.

• Use only detergents and other treatments specially made for washing machines. First, follow these generic rules: – powder detergents (also tablets and single-dose detergents) for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization, – liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

• Do not mix different types of detergents.

• Use less detergent if: – you are washing a small load, – the laundry is lightly soiled, – there is large amounts of foam during washing.

• When using detergent tabs or pods, always put them inside the drum, not in the detergent dispenser and follow the manufacturer's recommendations. Insufficient detergent may cause:

• unsatisfactory washing results,

• the wash load to turn grey,

• mould in the appliance. Excessive detergent may cause:

• reduced washing effect,

• a greater impact for the environment.

13.2 Alarm Codes and possible failures

Table title The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables). WARNING! Deactivate the appliance before carrying out any check. Table title Problem Possible solution 32 ENGLISH. The appliance does not fill with water properly.

• Make sure that the water tap is open.

• Make sure that the pressure of the water supply is not too low. For this infor mation, contact your local water authority.

• Make sure that the water tap is not clogged.

• Make sure that the inlet hose has no kinks, damages or bends.

• Make sure that the connection of the water inlet hose is correct.

• Make sure that the filter of the inlet hose and the filter of the valve are not clogged. The appliance does not drain the water.

• Make sure that the sink spigot is not clogged.

• Make sure that the drain hose has no kinks or bends.

• Make sure that the drain filter is not clogged. Clean the filter, if necessary.

• Make sure that the connection of the drain hose is correct.

• Set the drain programme if you set a programme without drain phase.

• Set the drain programme if you set an option which ends with water in the tub. The appliance door is open or not closed correctly.

• Make sure that the door is properly closed. Internal fail. No communica tion between electronic ele ments of the appliance.

• The programme was not finished properly or the appliance stopped too early. Switch the appliance off and on again.

• If the alarm code appears again, contact the Authorised Service Centre. The mains supply is unsta ble.

• Wait until mains supply is stable. The anti-flood device is on.

• Disconnect the appliance and close the water tap. Contact the Authorised Service Centre. If the problem persists, contact the Authorised Service Centre. The necessary data for the service centre are on the rating plate *Some alarm codes may not occur. Subject to change without notice.

• verminderd waseffect,
