Product type	Educational toy - Farm train
Brand	Playtive
Model	IAN 367227
Recommended age	From 3 years
Vehicle power supply	1 battery 1.5 V AAA (LR03)
Sound rail power supply	1 battery 3 V CR2032
Number of batteries included	2 (one of each type)
Delivery contents	Stable, barn, mill, sound rail, foliage, plants, tree trunks, bridge pillars, electric vehicle, battery, track pieces, level crossing, railing, trees, bushes, sign, trailer, hay bale, pitchfork, barriers, figures, connector piece, instruction manual
Main functions	Motorized train with forward drive, sound rail (sound effects), modular assembly
Materials	Plastic, electronic components
Care and cleaning	Clean with a damp cloth; do not use harsh cleaning products
Safety	Not suitable for children under 36 months (choking hazard); contains small magnets; adult supervision required
Warranty	3 years (excluding normal wear and batteries)
Swiss after-sales service	Tel. [phone] (0.08 CHF/min); email: [e-mail]
Standards	Compliant with directives 2009/48/EC, 2014/30/EU, 2011/65/EU
Manufacturing date	07/2021
Spare parts and repairability	Spare parts available during the warranty period; replaceable batteries

Frequently Asked Questions - IAN 367227 Playtive

From what age is this toy suitable?

This toy is recommended for children from 3 years. It contains small parts that pose a choking hazard for children under 36 months.

What type of batteries are needed and how to insert them?

The vehicle requires a 1.5 V AAA (LR03) battery and the sound rail requires a 3 V CR2032 battery. Batteries are included. To insert the vehicle battery, unscrew the cover on top of the vehicle, insert the battery respecting polarity (+/-), then screw back on. For the sound rail, the compartment is located under the rail.

How to replace the sound rail battery?

Use a suitable screwdriver (not included) to unscrew the screw of the battery compartment cover under the sound rail. Remove the cover, replace the old battery with a new CR2032 respecting polarity, then screw the cover back on.

Is the toy easy to assemble?

Yes, assembly is simple and guided by diagrams (fig. B to E). It is recommended to first assemble the base structure (floors and walls) then snap the side walls into place. Several assembly variants are possible.

How to clean the train and tracks?

Clean the tracks with a damp cloth before first use. For the entire toy, use a damp cloth and wipe. Never use harsh cleaning products.

What to do if the vehicle does not work or stops?

First check that the battery is correctly inserted and not depleted. Make sure the tracks are clean. If the problem persists, contact customer service.

Is there a risk of derailment?

On layouts with many consecutive curves, vehicles may derail. It is recommended to limit sharp curves.

How to activate the sound effects?

Remove the protective film from the sound rail battery compartment before first use. As soon as the vehicle runs over the sound rail button, the sound effects activate.

Does the toy contain dangerous magnets?

Yes, this toy contains small magnets. If swallowed, consult a doctor immediately. Keep the toy out of reach of young children.

How to dispose of the toy at end of life?

Do not dispose of the toy with household waste. Take it to an appropriate collection point. Used batteries must be recycled in accordance with Directive 2006/66/EC.

USER MANUAL IAN 367227 Playtive

EISENBAHN-SET BAUERNHOF

DE AT CH

EISENBAHN-SET BAUERNHOF

Gebrauchsanweisung

IT CH

PISTA " FATTORIA"

Istruzioni d'uso

FR CH

SET CHEMIN DE FER - FERME

Instructions for use

CE

IAN 367227_2101

DE AT CH

FR IT GB

B

c

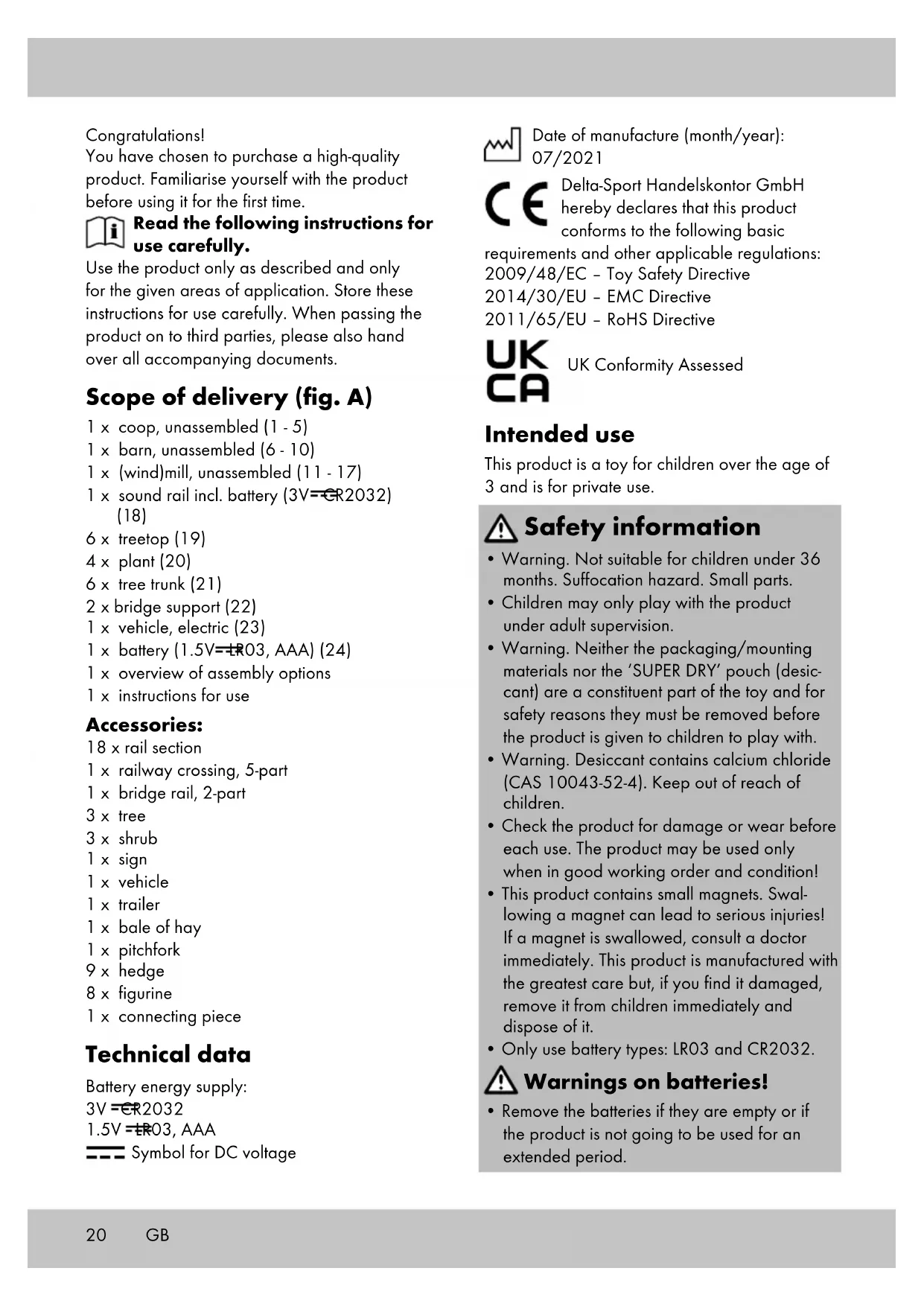

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

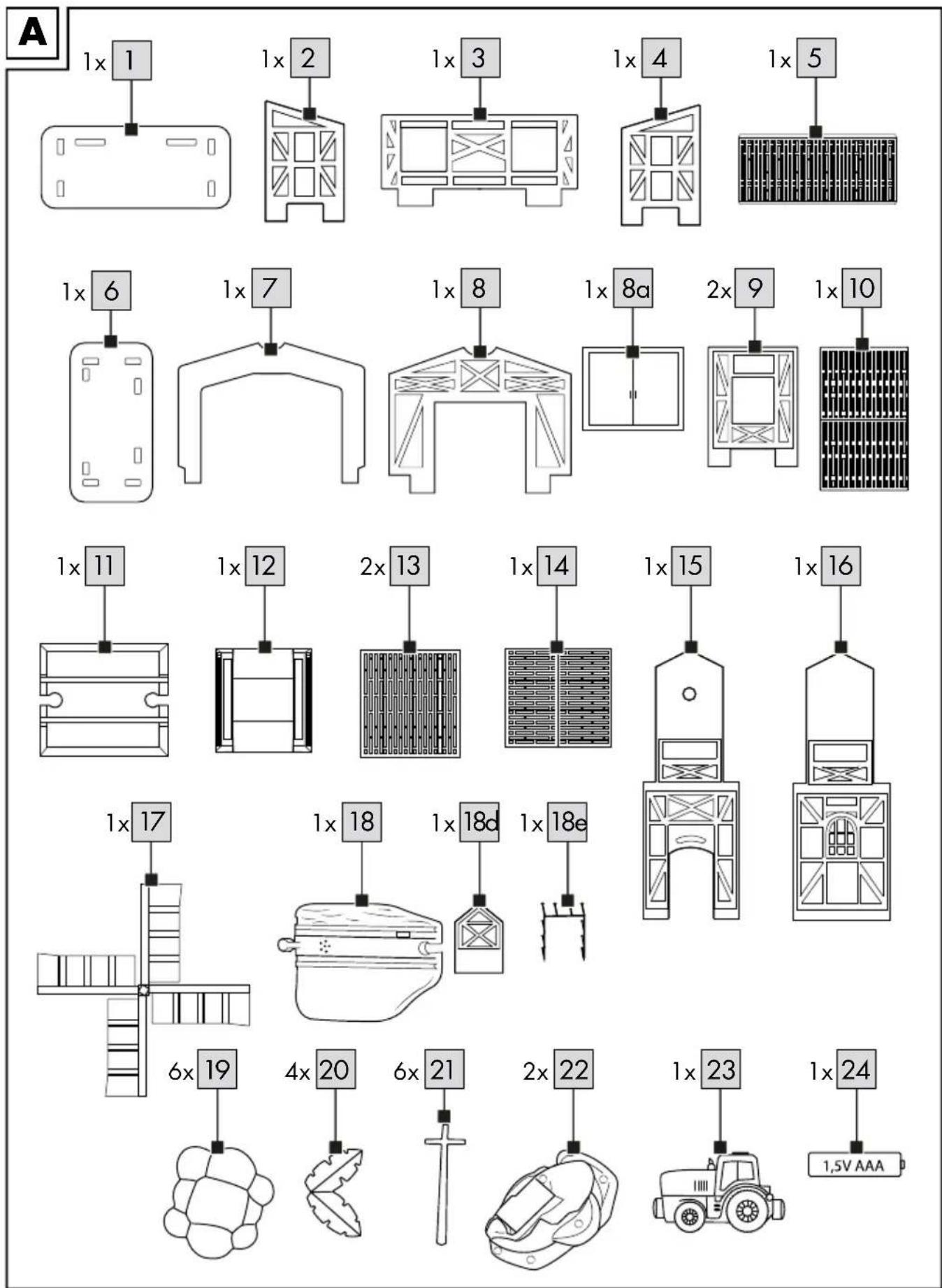

Scope of delivery (fig. A)

1 × coop, unassembled (1-5)
1 x barn, unassembled (6 - 10)
1 × (wind)mill, unassembled (11-17)
1 x sound rail incl. battery (3V=CR2032) (18)
6x treetop (19)
4× plant (20)
6x tree trunk (21)
2 × bridge support (22)
1 x vehicle, electric (23)
1xbattery(1.5V=R03,AAA)(24)
1 x overview of assembly options
1 x instructions for use

Accessories:

18 x rail section
1 x railway crossing, 5-part
1 x bridge rail, 2-part
3xtree
3 × shrub
1x sign
1 x vehicle
1 x trailer
1 x bale of hay
1 x pitchfork
9x hedge
8xfigurine
1 x connecting piece

Technical data

Battery energy supply:

3V=ER2032

1.5V=RO3, AAA

• • Symbol for DC voltage

Date of manufacture (month/year): 07/2021

Delta-Sport Handelskontor GmbH hereby declares that this product conforms to the following basic

requirements and other applicable regulations:

2009/48/EC - Toy Safety Directive

2014/30/EU - EMC Directive

2011/65/EU - RoHS Directive

UK Conformity Assessed

Intended use

This product is a toy for children over the age of 3 and is for private use.

Safety information

• Warning. Not suitable for children under 36 months. Suffocation hazard. Small parts.
  Children may only play with the product under adult supervision.
• Warning. Neither the packaging/mounting materials nor the 'SUPER DRY' pouch (desiccant) are a constituent part of the toy and for safety reasons they must be removed before the product is given to children to play with.
• Warning. Desiccant contains calcium chloride (CAS 10043-52-4). Keep out of reach of children.
• Check the product for damage or wear before each use. The product may be used only when in good working order and condition!
• This product contains small magnets. Swallowing a magnet can lead to serious injuries! If a magnet is swallowed, consult a doctor immediately. This product is manufactured with the greatest care but, if you find it damaged, remove it from children immediately and dispose of it.
• Only use battery types: LRO3 and CR2032.

Warnings on batteries!

• Remove the batteries if they are empty or if the product is not going to be used for an extended period.

• Do not use different battery types or brands, new and used batteries in combination, or batteries with different capacities, as they leak and can thus cause damage.

• Observe the polarity (+/-) when inserting batteries.
• Change all batteries at the same time and dispose of the old batteries properly.
• Warning! Batteries may not be charged or reactivated in any way. They may not be dismantled, thrown into fire, or short-circuited.
• Always keep batteries out of the reach of children.
• Do not use rechargeable batteries!
• The cleaning and user-maintenance may not be carried out by children without supervision.
• Clean the batteries and the device contacts as necessary and before inserting the batteries.
• Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leaks.
• Batteries can endanger life if swallowed. Keep batteries out of the reach of small children for this reason. Seek medical help immediately if a battery is swallowed.

Danger!

• Handle a damaged or leaking battery with extreme care and dispose of it properly and immediately. Wear gloves to handle the battery.
• If you come into contact with battery acid then wash the affected area with soap and water. If battery acid gets in your eye rinse it out with water and seek medical help immediately!
• Do not short-circuit the terminals.

Replacing the battery of the sound rail (fig. F)

If the battery inside no longer works replace it.

1. Using a suitable screwdriver (not supplied), remove the screw (18a) of the battery compartment lid (18b) on the bottom of the sound rail (18).
2. Remove the battery compartment lid and carefully insert a new battery into the battery compartment (18c). The battery must be fully seated in the battery compartment.

Note: Pay attention to the plus/minus polarity of the battery and its correct installation.
3. Screw the battery compartment lid back on tightly.

Inserting the battery into the electric vehicle (fig. G)

WARNING! Comply with the following instructions in order to prevent mechanical and electrical damage.

Insert the battery (24) included with the product into the electric vehicle (23) before first use.

1. Using a suitable screwdriver (not supplied), remove the screw (23a) of the battery compartment lid (23b) on the top of the electric vehicle (23).
2. Remove the battery compartment lid and carefully insert the battery into the battery compartment (23c). The battery must be fully seated in the battery compartment.

Note: Pay attention to the plus/minus polarity of the battery and its correct installation.
3. Screw the battery compartment lid on the top of the electric vehicle back on tight.

Replacing the battery

If the battery stops working, replace it using the same process as described for inserting. Remove the battery already in the product before inserting the new one.

Assembly

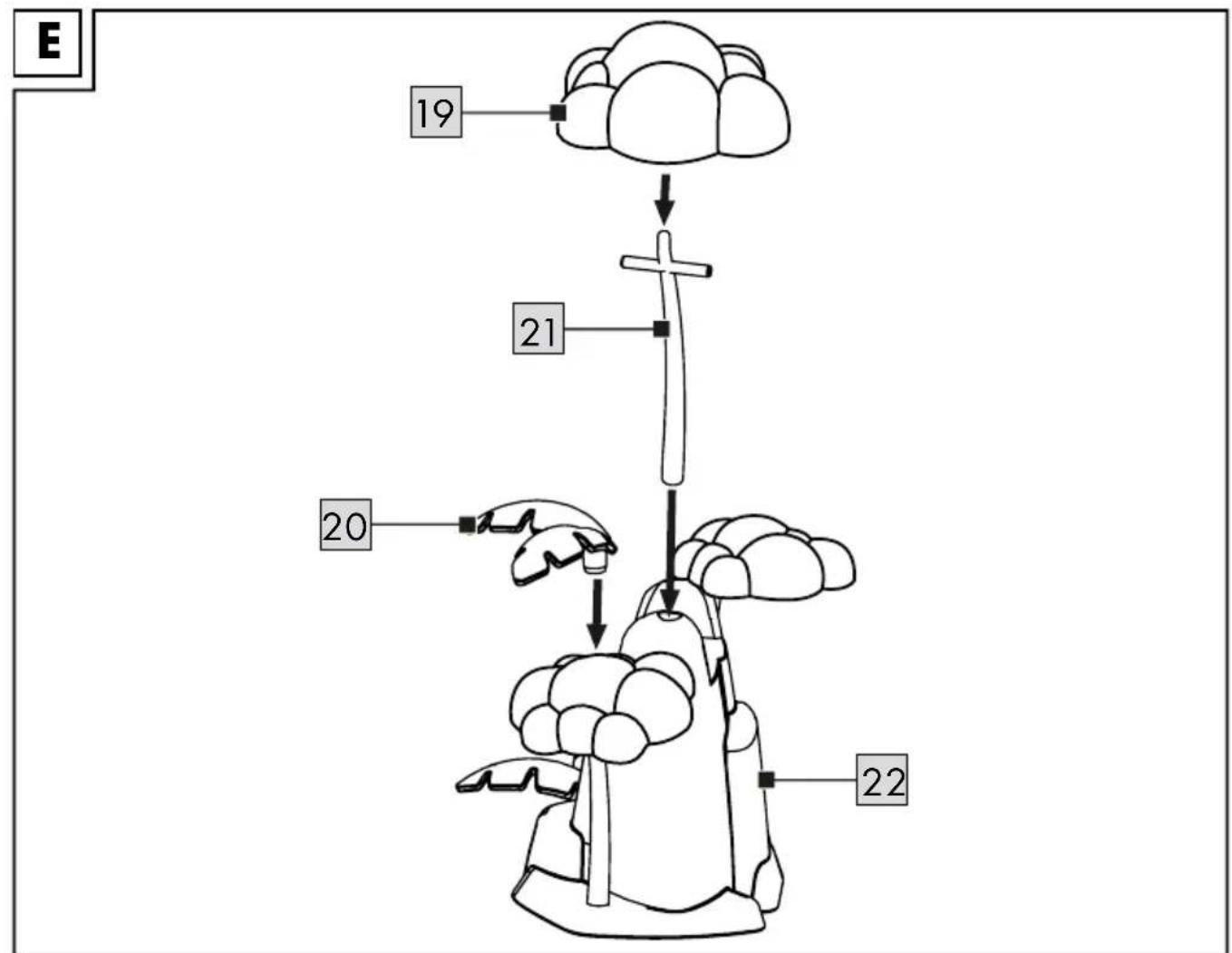

Follow the individual steps as shown in figs. B-E to assemble the product.

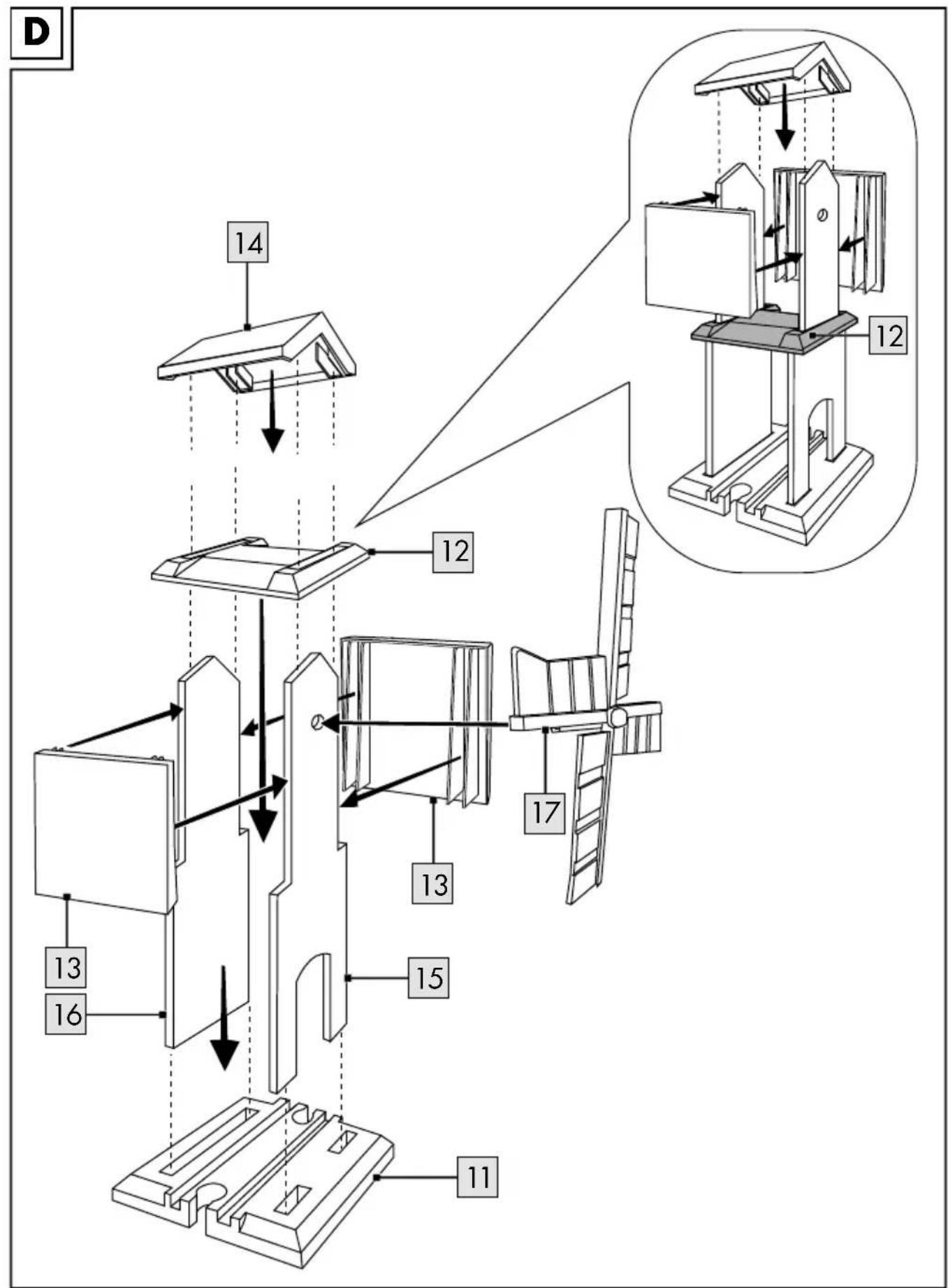

Note: First assemble the basic structure with the floors (11), (12) and the walls (15), (16) and then insert the side walls (13) (fig. D).

Assembly options

You will find options for assembly in the enclosed overview.

Note: The vehicles may derail with assembly options with many consecutive curves! Clean the rails with a damp cloth before first use!

Activating and deactivating the electric vehicle (fig. H))

• Press the button (23d) to activate forward motion of the electric vehicle (23).
• Press the button (23d) once to deactivate the electric vehicle.

Activating the sound rail

Remove the protective foil from the battery compartment lid before first using the sound rail (18).

Whenever a vehicle passes over the button on the sound rail, the sound function is activated.

Storage, cleaning

When not in use, always store the product dry, clean, without batteries, and at room temperature. Only clean the product with a damp cloth and wipe dry afterwards.

Warning: The rails should be cleaned before first use!

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished

with it, but rather take it to a specialty disposal facility. Find out about collection sites and their hours of operation from your local authority. Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided. Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Environmental damage caused by improper disposal of batteries! Batteries may not be disposed of with household

waste. They may contain toxic heavy metals and are subject to hazardous waste treatment.

The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury,

Pb = lead. Dispose of used batteries at a municipal collection site.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a)

and numbers (b) with the following meaning: 1-7: plastics/20-22: paper and cardboard/80-98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN:367227_2101

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

07/2021
