USER MANUAL TWN30 OMEGA

SERIE TWN30 EXTRACTOR DE JUGOS DE ENGRANAJE DOBLEMODELOCongratulations! CONGRATULATIONS on the purchase of your new Omega product. At Omega, we strive to develop technologically advanced machines that help deliver nutrition and avor of the highest kind and closest to nature’s purest form. We are driven by you, our brand supporters. Your enthusiasm helps us continue to reinvent and renew our line of juicers, high speed blenders and beverage equipment. Our team at Omega thanks you for supporting us for over 50 years! PRODUCT REGISTRATION, VISIT: www.omegajuicers.com/omega-warranty-registration RECIPES, VISIT: www.omegajuicers.com/recipes CUSTOMER SERVICE: visit: www.omegajuicers.com After using your Omega, we kindly ask you to rate the machine on www.OmegaJuicers.com FOLLOW OMEGA JUICERS ON SOCIAL:TABLE OF CONTENTS

When using electrical appliances, basic safety precautions should always be followed including the following.

1. READ ALL INSTRUCTIONS BEFORE USING.

2. To protect against electrical shock, do not immerse cord, plug, or main body (motor)

in water or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4. Unplug from outlet before assembling, before taking off parts, before cleaning and

5. Avoid contact with moving parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions or has been damaged in any manner. Return appliance to the manufacturer (see warranty) for examination, repair, or electrical or mechanical adjustment.

7. The use of attachments not recommended or sold by manufacturer may cause re,

electric shock or injury.

8. Do not let cord hang over edge of table or counter or touch heated surfaces.

9. Always make sure juicer locking clip is locked when juicer is in operation.

10. To disconnect, press/switch OFF then remove plug from wall outlet. Make sure the

motor stops completely before disassembling.

11. Do not put your ngers or other objects into the juicer while it is in operation. If food

becomes lodges in opening, use food plunger or another piece of fruit or vegetable to push down the lodged food. When this method is not possible, turn off the machine, remove the plug from wall outlet and disassemble juicer to remove the remaining food.

12. Do not use outdoors.

13. Do not place on or near a hot gas or electric burner or in a heated oven.

14. Do not use appliance for anything other than its intended use.

15. Keep the appliance clean. Refer to the Care & Cleaning instructions in this manual.

16. This appliance is not intended for use by persons (including children) with reduced

physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given surpervision or instruction concerning use of the appliance by a person responsible for their safety. SAVE THESE INSTRUCTIONSKNOW YOUR OMEGAKNOW YOUR OMEGA

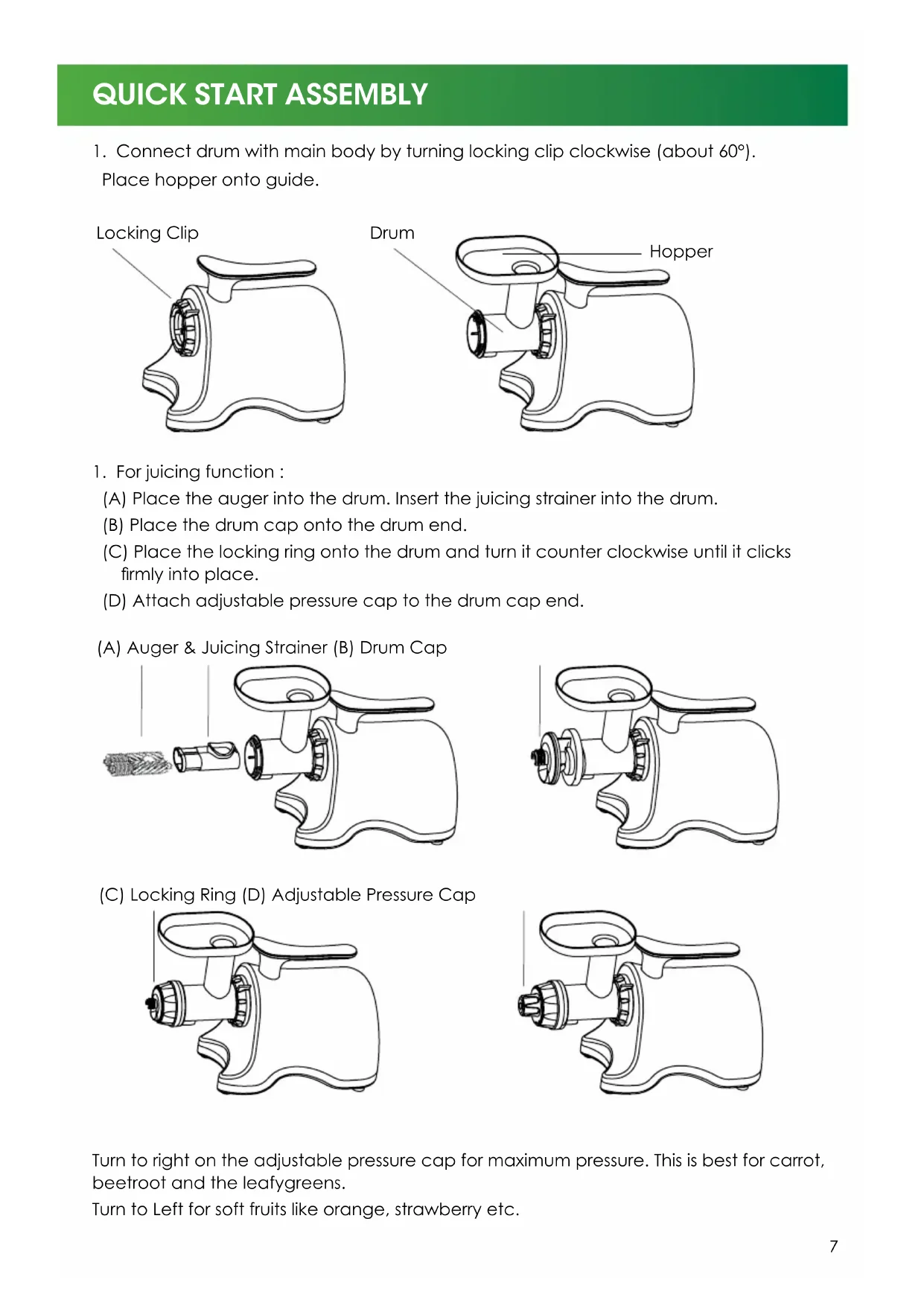

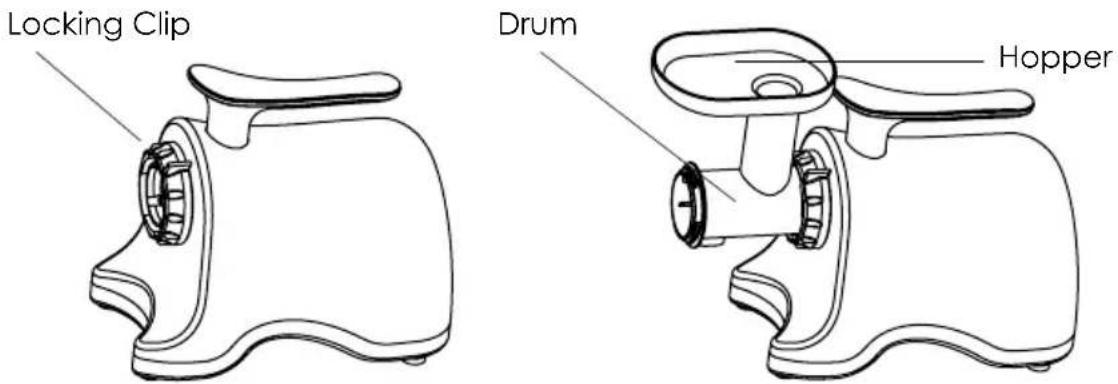

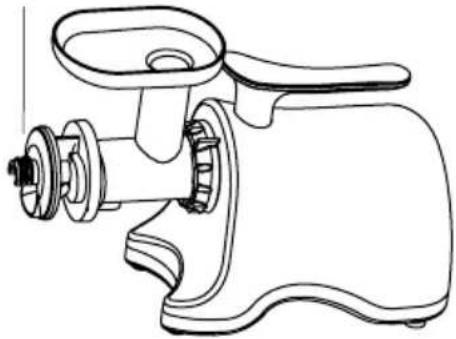

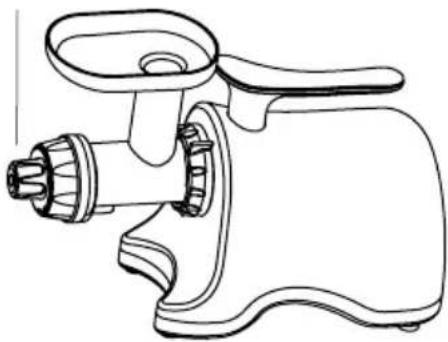

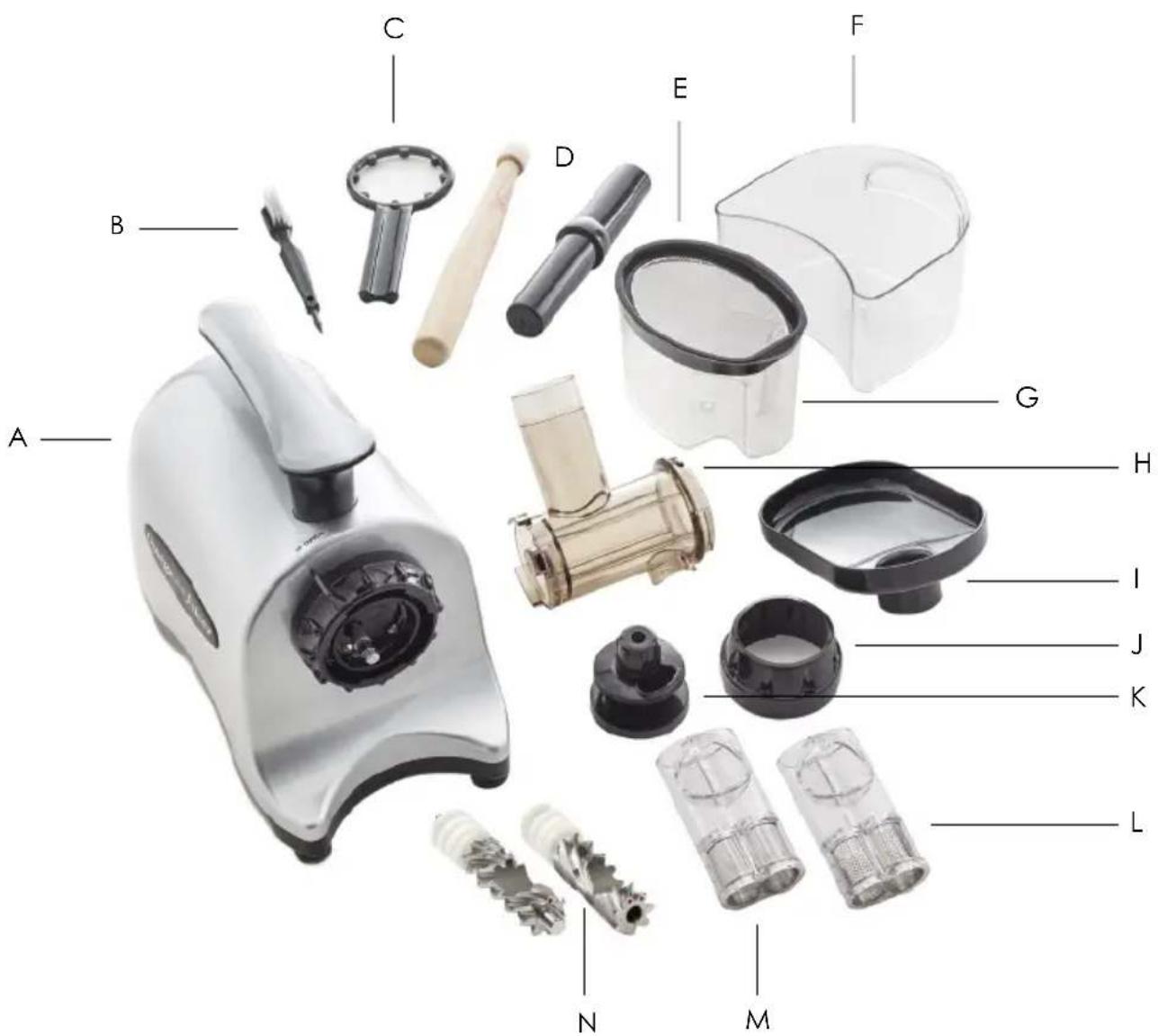

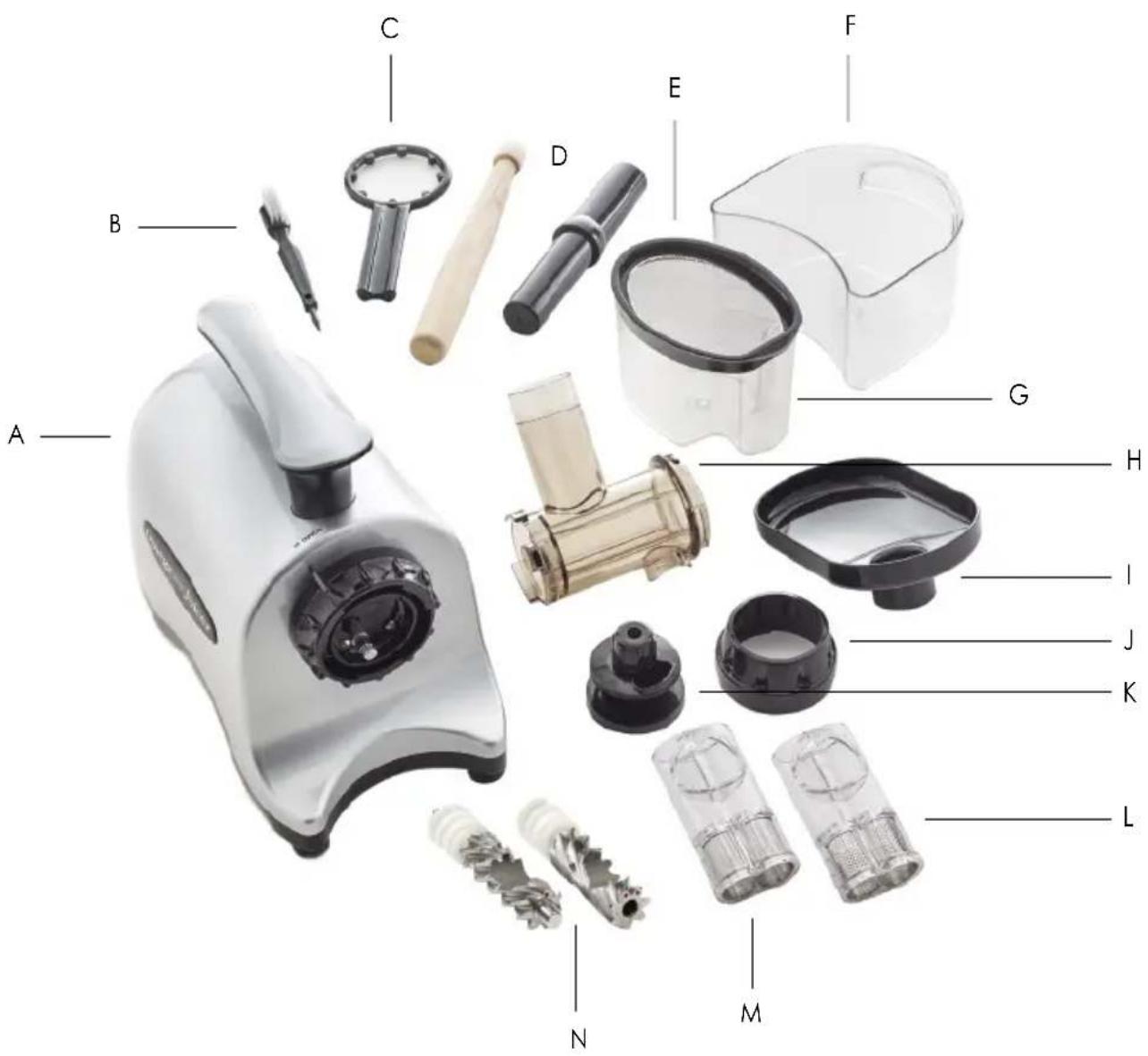

A Main Body B Cleaning Brush C Locking Handle D 2 Pushers (Wood & Plastic) E Sieve F Pulp Container G Juice Cup H Drum I Hopper J Locking Ring K Drum Cap L Coarse Juice Strainer M Fine Juice Strainer N Twin Gear AugersQUICK START ASSEMBLY AND STERILIZATION & CLEANING1. Connect drum with main body by turning locking clip clockwise (about 60°). Place hopper onto guide.

1. For juicing function :

(A) Place the auger into the drum. Insert the juicing strainer into the drum. (B) Place the drum cap onto the drum end. (C) Place the locking ring onto the drum and turn it counter clockwise until it clicks rmly into place. (D) Attach adjustable pressure cap to the drum cap end. Turn to right on the adjustable pressure cap for maximum pressure. This is best for carrot, beetroot and the leafygreens. Turn to Left for soft fruits like orange, strawberry etc.

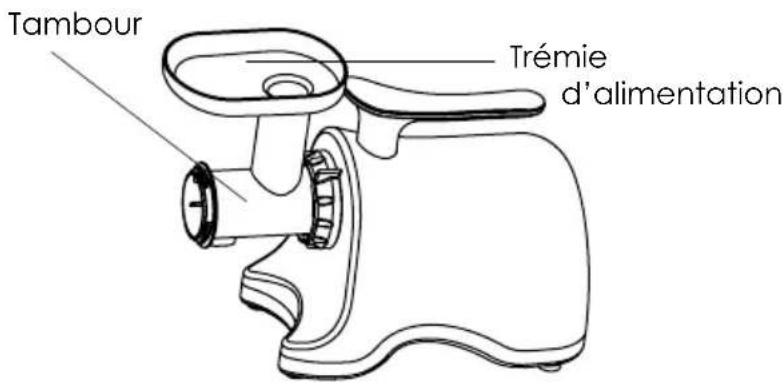

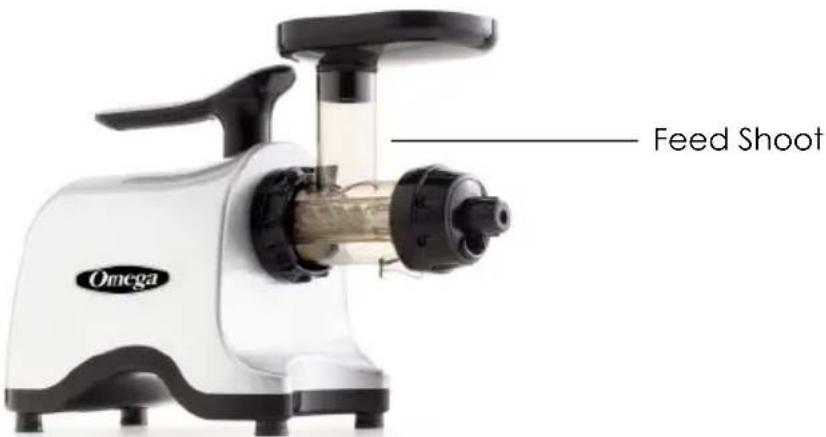

Locking Clip Hopper Drum (A) Auger & Juicing Strainer (B) Drum Cap (C) Locking Ring (D) Adjustable Pressure Cap3. When juicing, place juice bowl and pulp bowl under drum set. Plug power cord into wall outlet.

4. Press the ON button. Place a few pieces of cut fruit or vegetables, one at a time into

the guide. Use the food pusher to press the fruit or vegetables gently down the guide. Leave the machine on as you feed in the fruits / vegetables.

5. Do Not place any metal objects into the hopper. If the drum set is clogged or the

machine stops operating, press the reverse button 2 to 3 times which will clear the clogging. Press the ON button again to resume normal operation.

6. Switch the juicer OFF before changing accessories or touching any moving parts.

Remove the drum set from the main body by turning the locking clip counter-clockwise. Pull the auger forward to disassemble it from the drum set. After juicing, wash all parts in warm soapy water. Do NOT place any of the juicer accessories in the dishwasher.

7. Do NOT run juicer for more than 30 minutes continuously at any one time.

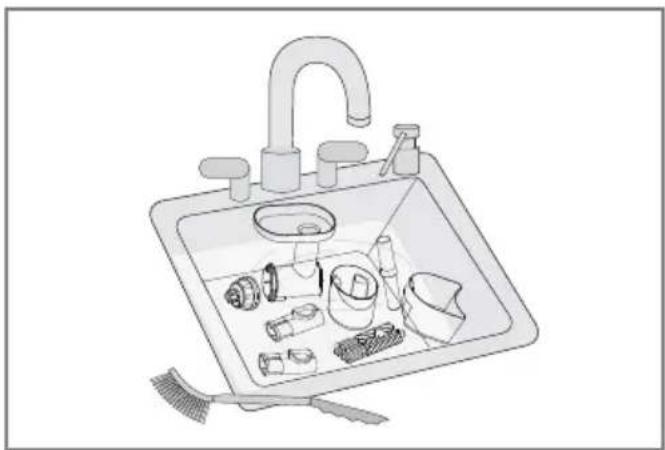

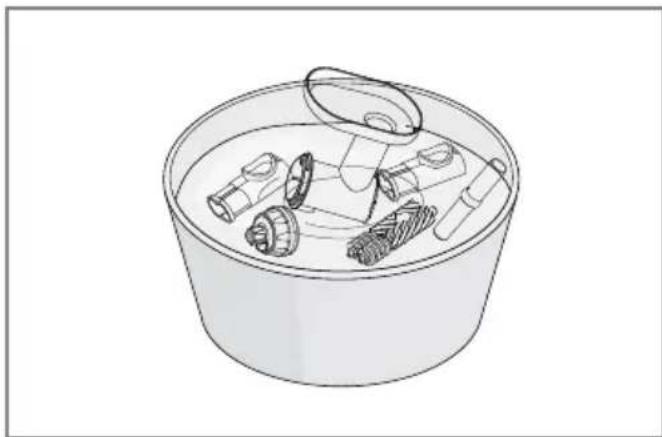

Make sure indicated parts are properly aligned when combining the clean twin gears. Failure to align properly may lead to product malfunct ion and excess noise generation. Twin Gear Auger 2nd Gear Point 1st Gear Point9 CLEANING Do not place parts or accessories in your dishwasher. Do not immerse unit in water. Clean with a damp cloth. DAILY CLEANING DEEP CLEANING A deep cleaning should be done approximately once per month, or as needed depending on frequency of use. To do a deep clean you will need a one gallon bowl lled with warm water and approximately one cup of liquid dishwasher soap which specically states that it removes mineral buildup. Let the parts soak for half an hour then thoroughly rinse and completely dry. Make sure water doesn’t extend past 140 F˚. It is important to always scrub all sides and surfaces of your juicing parts with warm water, liquid dish soap and a scrubbing brush after each use to remove minerals and debris.5

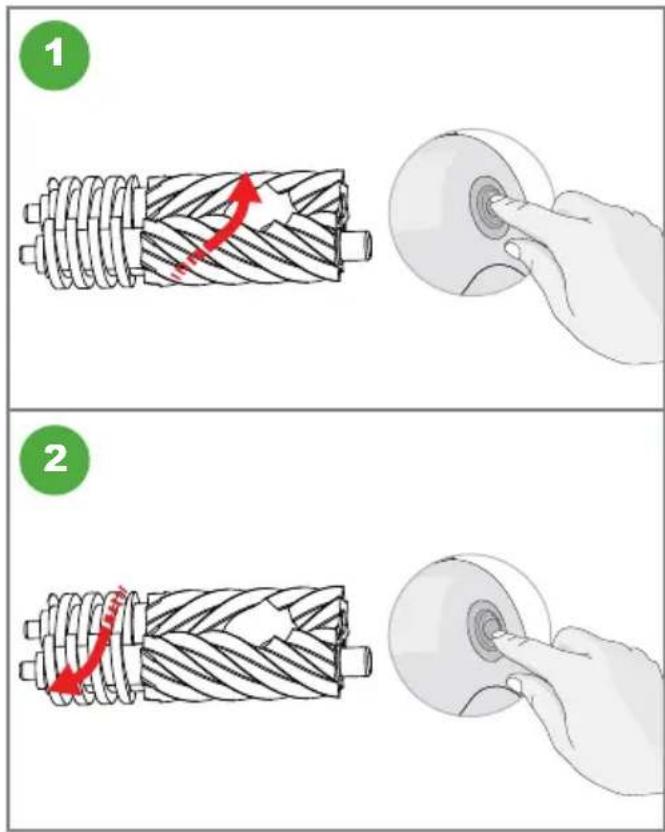

Press [ON] button to operate properly. When using the [ON] or [Rev] button, make sure the twin gear auger stops completely after stopping or releasing the button Note: Even after following the directions above, if the juicer still doesn’t work, please unplug the power cord, disassemble the chamber set and clean it. Then try again. Press [Rev] button for 3 to 5 seconds, then release. When the [Rev] button is released, the twin gear auger will stop rotating. Repeat this 2 to 3 times. The [Rev] button pushes the ingredients upward releasing the food clog.5 PRECAUTIONS

CAUTION Hazards or unsafe practices which could result in minor personal injury or appliance damage. This sign indicates contents that may cause risk of a re or an electrical shock. Specic warning is written in the sign. This sign indicates contents that may cause risk of a re or an electrical shock. Specic warning is written in the sign. This sign indicates prohibited acts. Specic prohibitions are written around or in the sign. This sign indicates contents of regulating or directing actions. Specic prohibitions are written around or in the sign. WARNING Hazards or unsafe practices which could result in serious personal injury or death. DO NOT PLUG IN OR UNPLUG WITH WET HANDS. It may cause an electric shock or an injury. DO NOT USE WITH OTHER THAN RATED VOLTAGE. It may cause an electric shock, a re or abnormal performance. If the voltage is different, it may shorten the life of the motor or cause a failure. PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET. It may cause electric shock or a re. IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD. If the power cord is damaged, it may cause electric shock or a re. NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF. DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE BASE. It may cause a re, an electric shock or a failure. For any technical support,contact the authorized local Customer Care Center. All users of this appliance must read and understand these safety precautions before operating. SIGN SAMPLES PRECAUTIONSDO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY. It may cause an injury or a failure. NEVER PUT A FINGER, A FORK OR A SPOON ETC. INTO JUICE OUTLET. It may cause an injury or a failure. IF SCREW ROTATION IS STOPPED IN NORMAL OPERATION, PRESS [REVERSE/REV] BUTTON AND HOLD FOR 2-3 SECONDS AND THEN AFTER REVERSE OPERATION IS COMPLETELY STOPPED, PRESS [ON] BUTTON AGAIN. If such a stop event continues during the operation, the parts may be damaged and performance may be deteriorated due to overheating in a motor. When the problem continues, immediately stop the appliance and contact the local Customer Care Center. WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN PART BECOMES LOOSE, DO NOT OPERATE IT. It may cause an electric shock, a re or an injury. FOR SAFETY, MUST DO GROUND CONNECTION DO NOT DO THE GROUNDING ON GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC. It could cause an electric shock, a re, or a malfunction and an explosion. Be sure to use the socket with ground connection. NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS ETC. INTO FEEDING TUBE OR JUICE OUTLET. It may cause an injury, an accident or a failure. THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. Children should be supervised to ensure that they do not play with the appliance. WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN THE WINDOW TO VENTILATE FULLY AND IMMEDIATELY. It may cause an injury or a failure. DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE. Be careful not to let any liquids or other substances get into the switch on the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause electric shock or a re.

PRECAUTIONS FOR SAFE USE15

DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BASE, DISASSEMBLE THE BOWL SET OR PARTS AND TRY TO LOCK THEM. It may cause an injury or a failure. Any act of event needed, switch off rst and unplug the power cord. WHEN USING THE APPLIANCE, BE CAREFUL FOR A NECKTIE, LONG NECKLACE, SCARF ETC. NOT TO BE ENTANGLED INTO FEEDING TUBE. It may cause an injury, a failure or a breakage. PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause an injury or a failure. DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME. It may cause a motor failure due to overheating. Cool it down sufciently for 5 minutes and operate it again. WHEN PLACING INGREDIENTS INTO THE FEEDING TUBE, ONLY USE THE PUSHER PROVIDED. It may cause an injury or a failure. DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT. It may cause an electric shock, a re or damage IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL OR EXCESSIVE HEATING, SMOKE, STOP USING IMMEDIATELY AND CONTACT THE LOCAL CUSTOMER CARE CENTER. When using a new appliance, it gives off a smell and the smell disappears naturally over time. ALWAYS UNPLUG THE APPLIANCE AFTER USE. WHEN UNPLUGGING THE POWER CORD, MAKE SURE TO HOLD THE POWER CORD. If holding the wire to unplug, it may cause an electric shock or a re. DO NOT WASH AT HIGH TEMPERATURES OF 176°F (80°C) OR MORE. DO NOT PUT THE APPLIANCE IN A DISHWASHER, A DRYER OR A MICROWAVE ETC. It may cause a failure or parts deformation. THE APPLIANCE WEIGHS ABOUT 13.2 LB (6 KG). WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE BOTTOM WITH BOTH HANDS. If attempting to hold bowl or the edge of the base, the base falls causing an injury or a failure. 30minute5 TROUBLESHOOTING17 TROUBLESHOOTING Please troubleshoot using the details below before contacting Omega Customer Service for repair or service. When contacting Omega for after-sales service, please have the manufacturer’s serial number or bar code available. The Appliance Does Not Work

• Make sure the power cord is plugged in correctly.

• Make sure the hopper is assembled correctly. If the hopper is not locked into place, the appliance will not operate.

• Make sure the appliance is assembled according to the instructions in this manual. Refer to the instructions.

• If the appliance still does not work, please contact Omega Customer Service for additional support. The Hopper Does Not Open

• If there is a lot of pulp inside the chamber, press [On] to release the excess pulp.

• Check the appliance for any foreign substance or solid objects including seeds.

• Press [Rev] button to push up stuck ingredients.

• Do not attempt to open by force. If the hopper still does not open, please contact Omega Customer Service for additional support. The Appliance Stops During Normal Operation

• Check for large pieces of food stuck in the appliance.

• Refer to the section “If the Auger Stops Working” and follow the guideline for the [Rev] button.

• If the appliance still does not work, please contact Omega Customer Service for additional support. Fine Lines or Scratch Marks around the Auger

• This is normal. Do not be concerned. These are molding marks resulting from the normal manufacturing process. Juice Leaks Over the Base

• Check for an excessive amount of ingredients in the hopper chute.

• If you try to juice a large amount of food compared to the pulp outlet, the packing will be slightly pushed away. Juice may leak out of the gap.

• Do not force too much food into the juicer. Push food gradually for extraction.

• Check to make sure the juice ap is closed. Juicer Shakes when In-Use

• This is normal as the auger rotates. It is not a malfunction. Hard ingredients such as carrots, potato, radish, beets, etc. may cause shaking more so than soft ingredients.

• Depending on the rmness of the ingredient, there may be a more pronounced shaking of the motor.

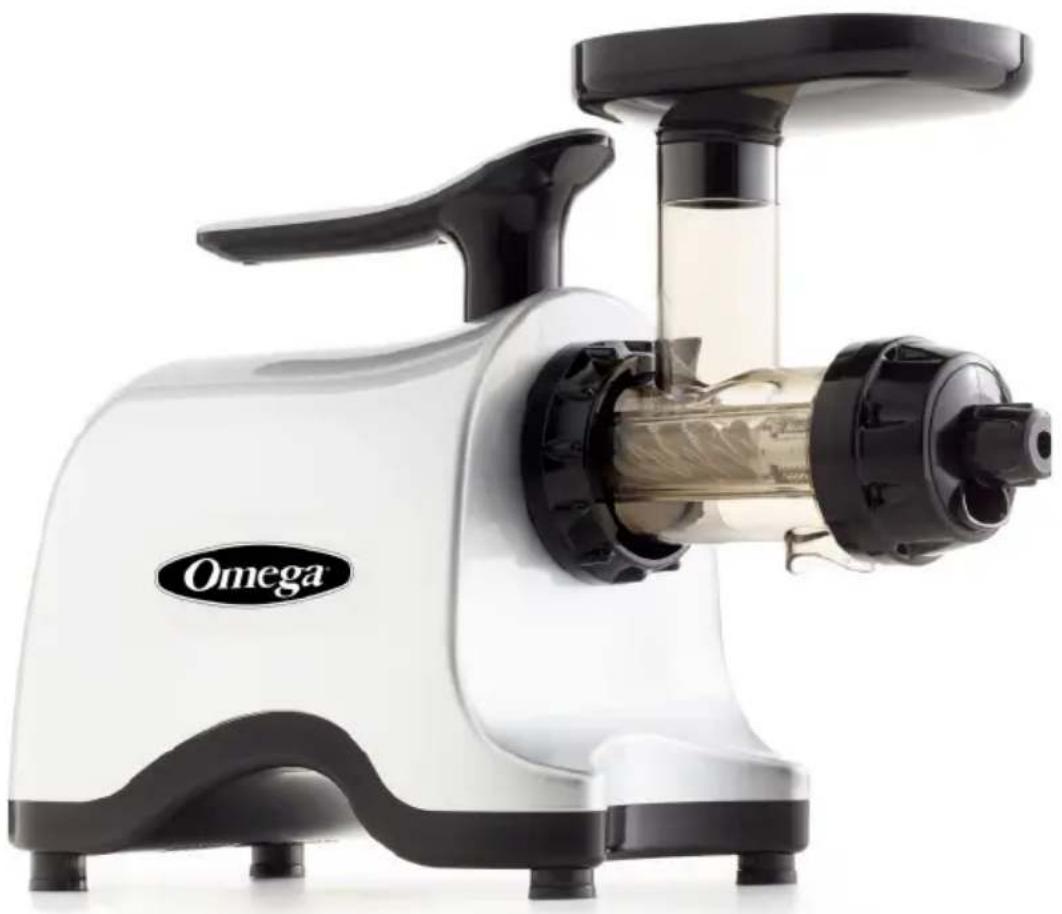

• Slight shaking may be caused by the motor.5 PRODUCT SPECIFICATIONS19 PRODUCT SPECIFICATIONS Product Name Omega® Cold Press 365® Twin Gear Juicer Model Name TWN30 Rated Voltage 120 V Rated Frequency 60 Hz Rated Power Consumption 150 W RPM 160 RPM Cord Length 60 inches (1.52 m) Motor 2 HP Weight 14.3 lb (6.5 kg) Outward Dimension 6.5” Width (165 mm) 17.3” Depth (440 mm) 12” Height (305 mm) Also Available TWN32 220-240 V / 50-60 HzRECIPESRECIPES

2 cups of unsalted almonds 6 cups of distilled water PREP 12 hours PROCESS 4 minutes What You’ll Need: How To Prepare: Soak almonds overnight in 3 cups of water. Drain. Place almonds in 3 cups of fresh water. Using the juicing screen in the Omega

Twin Gear, ladle almonds and water into juicer. If you prefer the milk thinner add more water. You can sweeten milk by adding 1 tsp of honey, agave nectar, cane sugar or maple syrup. You can make vanilla almond milk by adding 1 tsp of vanilla extract or make chocolate almond milk by adding 1 tbsp of unsweetened cocoa powder. Almond Milk 1 cup dried organic soy beans 6 cups of water dash of salt ½ tsp vanilla extract 1 tsp agave or other sweetener 1 tsp cinnamon PREP 10 minutes PROCESS 35 minutes What You’ll Need: How To Prepare: Soy Milk Soak soy beans overnight in 3 cups of water. Drain. Place soy beans in 3 cups of fresh water. Using the juicing screen in the Omega

Twin Gear. Ladle soy beans and water into juicer. If you prefer the milk thinner add more water. Transfer the milk to a pot on the stove. Bring the milk to a boil. Then reduce to low and let simmer for 25 minutes. Skim off and discard any foam or lmy layers that occur. Remove from heat and avor with salt, vanilla extract, agave and cinnamon. Mix and Enjoy.

42 grapefruits (peeled) 1 red bell pepper 2 pears 6 carrots PREP 5 minutes JUICE 5 minutes What You’ll Need: How To Prepare: Morning Glory Citrus Wash all produce well. Juice all produce in an Omega

Twin Gear and enjoy! Serving Size: 16 - 18 oz. Bursting with Vitamin C and beta-carotene, as well as Vitamins A & K and even copper.

2 apples 3 kiwis PREP 5 minutes JUICE 5 minutes What You’ll Need: How To Prepare: Wash the apples, then remove the core and cut into quarters. Peel the kiwis and chop into small pieces. Juice ingredients in your Omega

Twin Gear. Stir before drinking. Apple & Kiwi Juice RECIPES23

1 medium apple, cored and cubed 2 medium soft pears, cored and cubed ½ cup fresh cherries (pits removed or frozen and thawed) PREP 5 minutes JUICE 5 minutes What You’ll Need: How To Prepare: In your Omega

Twin Gear, juice apple, pears, and cherries. Before serving, garnish with fresh cherries, if desired. Total Health Booster

1 cucumber 2 collard green leaves 1 handful of cauliflower florets ½ lemon (yellow rind removed) PREP 5 minutes JUICE 5 minutes What You’ll Need: How To Prepare: Wash all produce. Add all ingredients into your Omega

Twin Gear and juice. Pour into your glass and enjoy! Cukelear PowerRECIPES

2 beets (australian beetroot) 2 organic carrots 1 cup organic strawberries 2 cups kale leaves (6-8 leaves) (australia tuscan cabbage) What You’ll Need: How To Prepare: Wash all produce well. Cut as needed to t into juicer. Juice in an Omega

Twin Gear. Pour over ice and enjoy. Australian Dream

½ a beetroot 5 spinach leaves ¼ cabbage 1 broccoli stick ½ a grapefruit ½ a lemon 1 orange 1 kiwi fruit 2 small pieces of ginger PREP 2 minutes JUICE 4 minutes What You’ll Need: How To Prepare: Cut product to t into hopper. Juice in an Omega

Twin Gear. Pour over ice. Enjoy! PREP 3 minutes JUICE 6 minutes Clean Boost25

Twin Gear and juice. Serve and enjoy. Salsa in a Glass

6 tbsp lemon juice 3 tbsp raw honey 1 cup water PREP 6 hours PROCESS 5 minutes What You’ll Need: How To Prepare: Heat lemon juice and honey for 10-20 seconds in microwave. Stir. Add in the water and stir. Freeze the mixture in ice cube trays or ice pop mold. With an Omega

Nutrition System, change the juicing cone for the blank cone and assemble your preferred nozzle. Thaw lemon cubes slightly before pushing thru the chute of Omega
