USER MANUAL VRT350 OMEGA

USER MANUAL Vertical Juicer

Extractor Vertical de Jugos EXTRACTOR DE JUGOS POR MASTICACIÓN A BAJA VELOCIDADCongratulations! CONGRATULATIONS on the purchase of your new Omega product. At Omega, we strive to develop technologically advanced machines that help deliver nutrition and avor of the highest kind and closest to nature’s purest form. We are driven by you, our brand supporters. Your enthusiasm helps us continue to reinvent and renew our line of juicers, high speed blenders and beverage equipment. Our team at Omega thanks you for supporting us for over 50 years! Join us on Twitter @OmegaAppliances &/or on Facebook @OmegaJuicers PRODUCT REGISTRATION, VISIT: www.omegajuicers.com/omega-warranty-registration RECIPES, VISIT: www.omegajuicers.com/recipes CUSTOMER SERVICE: Visit: www.omegajuicers.com/contact-omega-juicers After using your Omega, we kindly ask you to rate the machine on www.OmegaJuicers.comTABLE OF CONTENTS

08 - 09 How to Assemble

10 - 11 Operating Instructions

12 - 13 Spinning Brush Assembly,

Disassembly and Washing

14 - 15 Bowl Packaging Assembly

68 -101 SpanishSAFETY FIRSTWhen using electrical appliances, basic safety precautions should always be followed including the following.

1. READ ALL INSTRUCTIONS BEFORE USING.

2. To protect against electrical shock, do not immerse cord, plug, or main body

(motor) in water or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4. Unplug from outlet before assembling, before taking off parts, before cleaning and

5. Avoid contact with moving parts.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions or has been damaged in any manner. Return appliance to the manufacturer (see warranty) for examination, repair, or electrical or mechanical adjustment.

7. The use of attachments not recommended or sold by manufacturer may cause

re, electric shock or injury.

8. Do not let cord hang over edge of table or counter or touch heated surfaces.

9. Always make sure juicer locking clip is locked when juicer is in operation.

10. To disconnect, press/switch OFF then remove plug from wall outlet. Make sure the

motor stops completely before disassembling.

11. Do not put your ngers or other objects into the juicer while it is in operation.

If food becomes lodges in opening, use food pusher or another piece of fruit or vegetable to push down the lodged food. When this method is not possible, turn off the machine, remove the plug from wall outlet and disassemble juicer to remove the remaining food.

12. Do not use outdoors.

13. Do not place on or near a hot gas or electric burner or in a heated oven.

14. Do not use appliance for anything other than its intended use.

15. Keep the appliance clean. Refer to the Care & Cleaning instructions in this

SAVE THESE INSTRUCTIONS

Safety Locking System

Auto Cleaning System

High Performance Motor

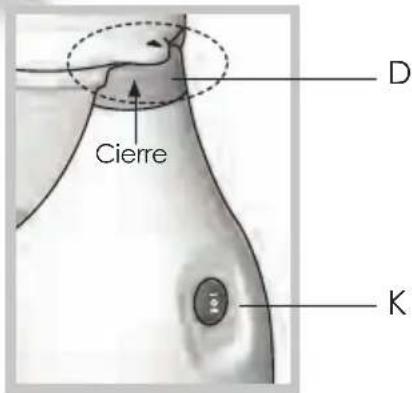

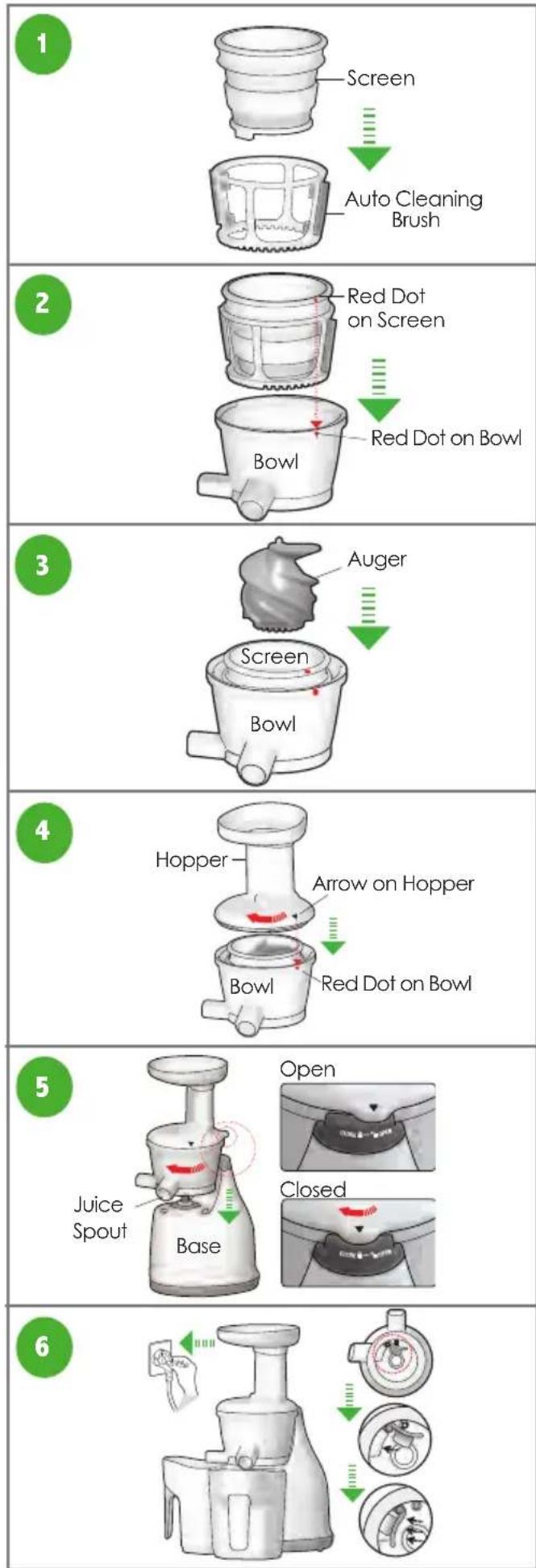

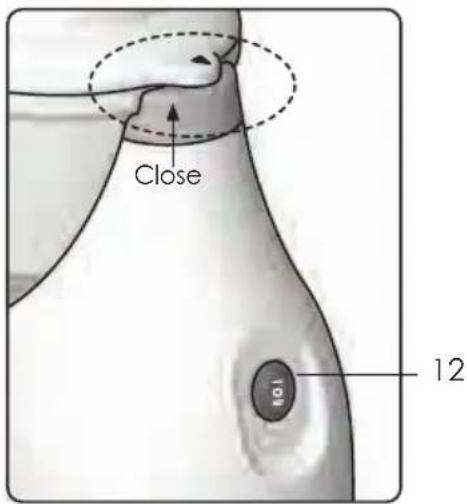

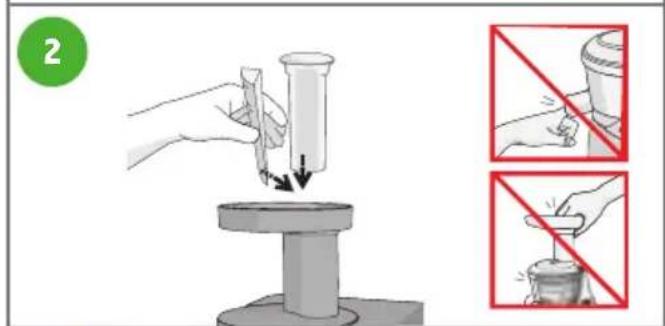

As shown below, the hopper edge must point to “close” sign on the base in order for the machine to operate properly. IMPORTANT CloseHOW TO ASSEMBLE2

Push the Auger into the screen. Place the screen and the auto clean brush into the bowl, making sure the red dot on the screen and the red dot on the bowl are aligned. Place the screen into the auto clean brush. Red Dot on Bowl Screen Auger Red Dot on Screen Auto Cleaning Brush Screen

Bowl Bowl Bowl Assemble the hopper onto bowl.

• Make sure the arrow on the hopper and the red dot on the bowl are aligned.

• Make sure the arrow on the hopper is pointing to the “close” sign on the base. Assemble the entire top set onto the base. Assemble the bowl onto the base and twist the bowl so that the hopper edge is pointing to the “close” sign.

• Connect the power cord.

• Place containers under both ejection spouts. (Juice & Pulp Ejection) Underneath the bowl, there is a rubber gasket which allows all the juice to only discharge from the spout. The rubber gasket is removable. Simply grab onto one side of the rubber gasket and pull out. Open Closed Hopper Arrow on Hopper Red Dot on Bowl Juice Spout Base

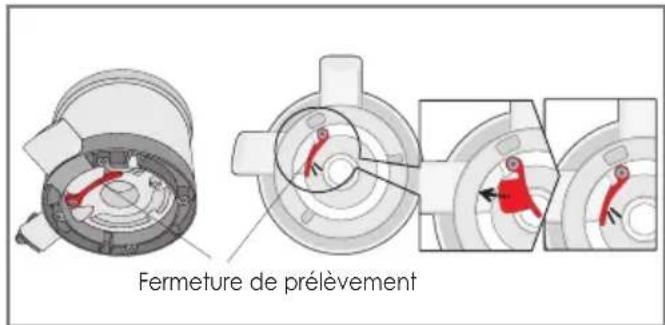

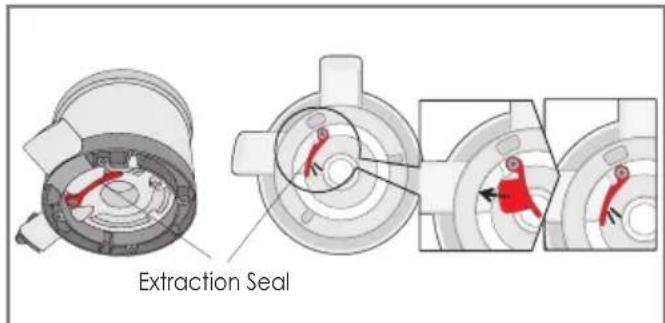

• The silicone pulp stopper is located at the bottom of the Juice Bowl.

• Before use, make sure the seal is closed.

• For cleaning, open the extraction sea and wash out trapped food. WARNING When using [ON] or [Rev] button, make sure that the auger stops completely. After the extraction is complete, place the switch in stop position to stop. Gradually put the ingredients into the hopper chute and press down with the pusher. Press [ON] button to start. Extraction Seal EXTRACTION SEAL

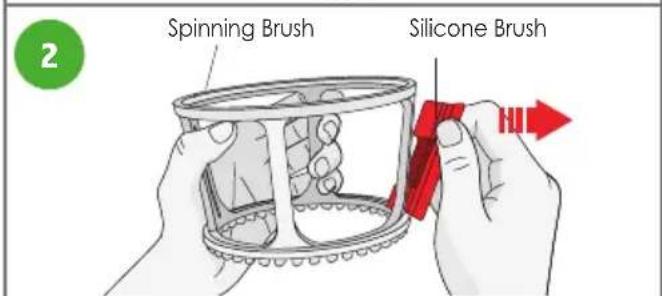

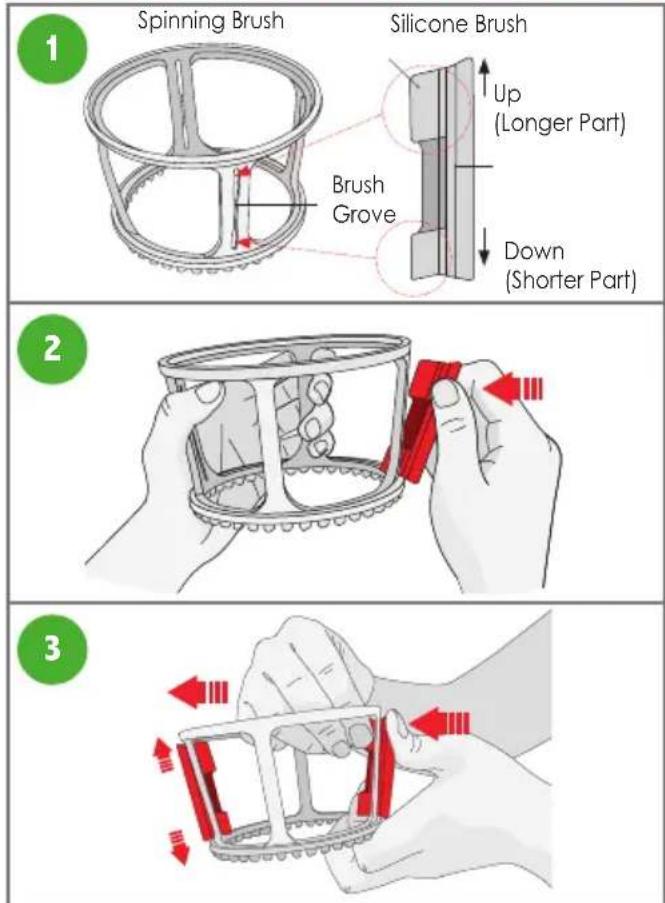

• Push silicone brush from the outer side of spinning brush and pull ‘inner wing’ in the direction of inside of the spinning brush with the other hand as shown to the left.

• Pull it until you cannot pull it any longer. If unit is not fully assembled, there is a risk of breakage. Insert the silicone brush into the spinning brush. The longer part should face upward. Hold the outer wing of silicone brush with your thumb and index nger and insert silicone brush into the groove of spinning brush. Check the groove of the spinning brush and the direction of silicone brush.

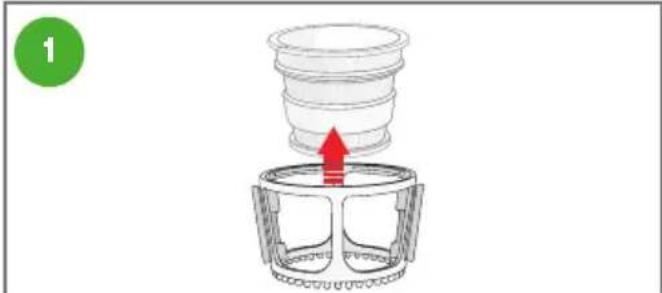

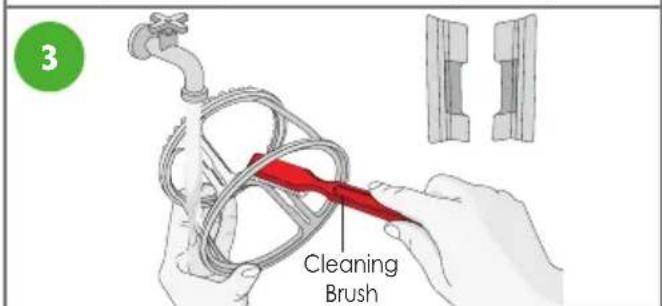

• As shown to the left, let groove inserts face the spinning brush. With cleaning brush, wash inside and outside of spinning brush under running water. Wash silicone brush in the same way under running water. Detach the silicone brush from spinning brush. As shown to the left, hold the outer part of silicone brush with your ngers and pull it out to the arrow direction. If pulling it by force, silicone brush may be torn or spinning brush may be damaged. Remove the spinning brush from juicing screen. Spinning BrushSilicone BrushCleaning Brush

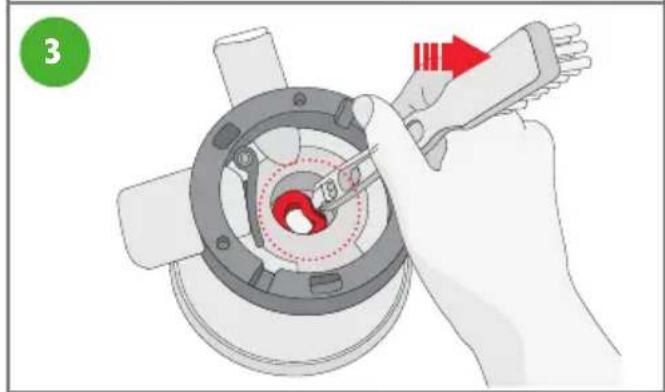

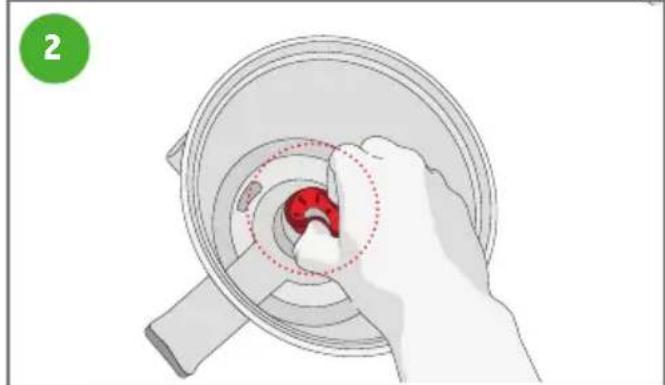

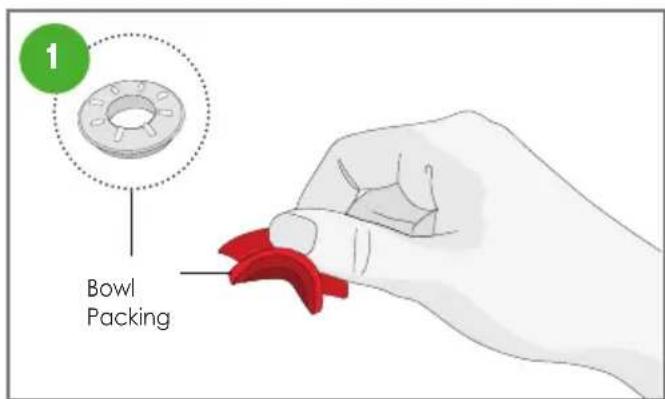

As shown to the left in the dotted circle, let the protrusion part on the bowl packing face upward and hold it, like pinching, with your thumb and index nger. If the bowl packing at the bottom of the bowl is not fully inserted and is bent, set it into place with the rotating attractor of the cleaning brush.

• I nsert the bottom of the bowl packing into the bowl hole and fully press it down.

• Do not insert whole part of bowl packing.

• The upper part of the bowl packing must be shown.

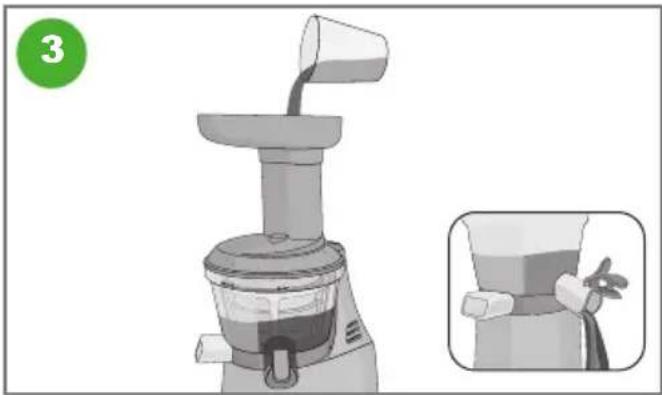

CLEANING BETWEEN RECIPES

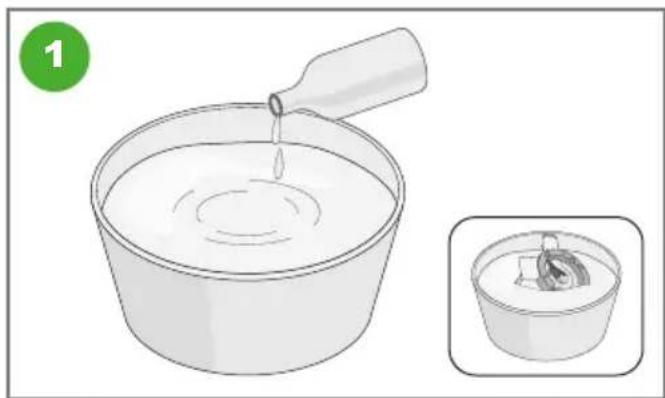

Open Open the juice cap and discharge the water. After you are done juicing for the day, disassemble and fully wash the bowl set. You can thoroughly wash parts by immersing in warm water diluted with one or two drops of baking soda or dishwashing soap for about 30 minutes.

When juicing multiple recipes successively, it is not necessary to disassemble and wash parts. Simply close the juice cap, pour water into hopper and operate the appliance.

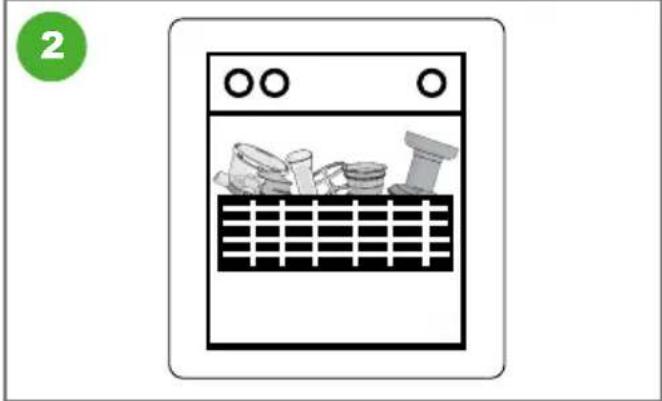

Open When nished using the Omega® Nutrition System, simply put parts into dishwasher, on top rack.5 PRECAUTIONS

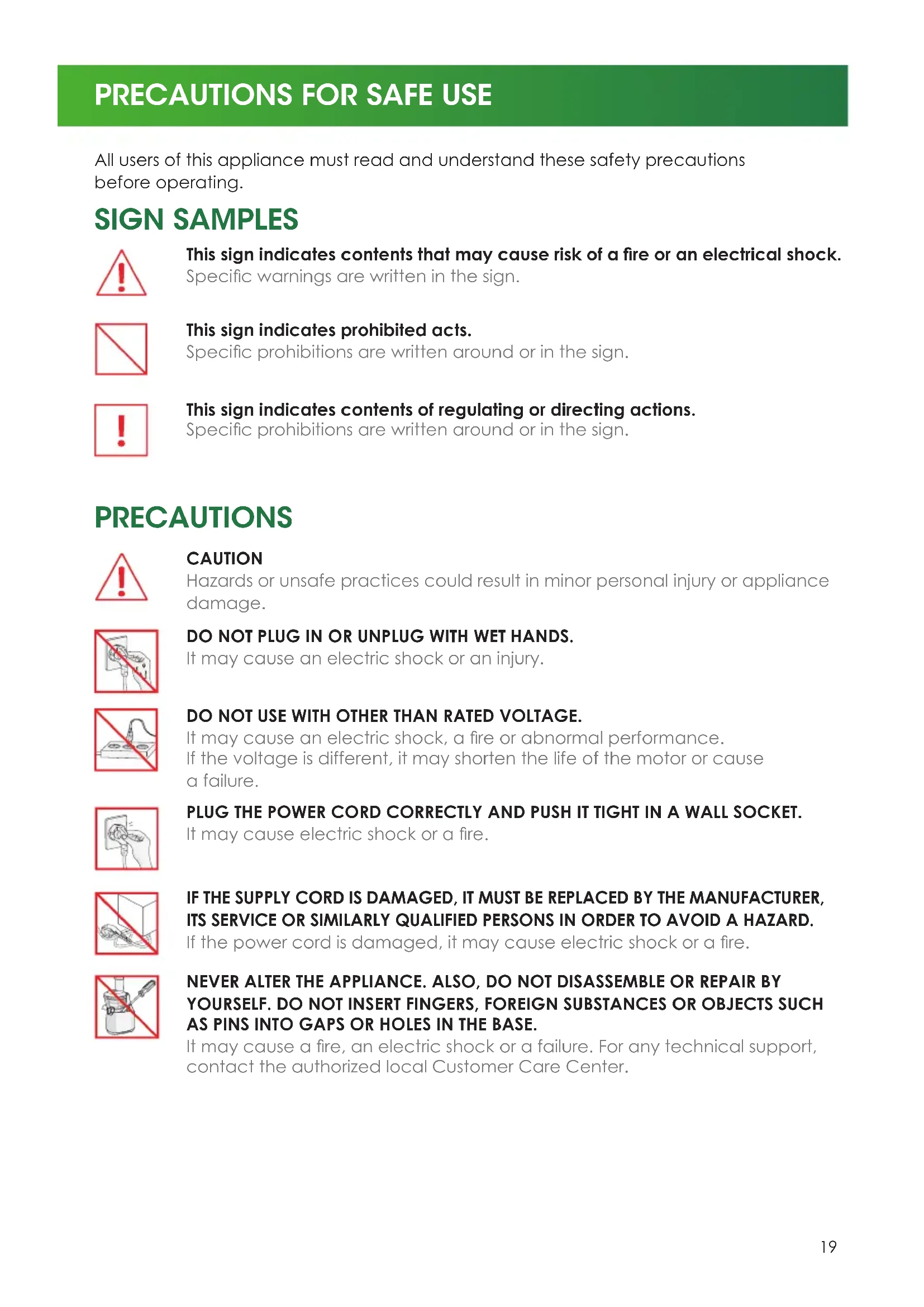

CAUTION Hazards or unsafe practices could result in minor personal injury or appliance damage. This sign indicates contents that may cause risk of a re or an electrical shock. Specic warnings are written in the sign. This sign indicates prohibited acts. Specic prohibitions are written around or in the sign. This sign indicates contents of regulating or directing actions. Specic prohibitions are written around or in the sign. DO NOT PLUG IN OR UNPLUG WITH WET HANDS. It may cause an electric shock or an injury. DO NOT USE WITH OTHER THAN RATED VOLTAGE. It may cause an electric shock, a re or abnormal performance. If the voltage is different, it may shorten the life of the motor or cause a failure. PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET. It may cause electric shock or a re. IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD. If the power cord is damaged, it may cause electric shock or a re. NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF. DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE BASE. It may cause a re, an electric shock or a failure. For any technical support, contact the authorized local Customer Care Center. All users of this appliance must read and understand these safety precautions before operating. SIGN SAMPLES PRECAUTIONS20

PRECAUTIONS FOR SAFE USE

DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY. It may cause an injury or a failure. NEVER PUT A FINGER, A FORK OR A SPOON ETC. INTO JUICE SPOUT. It may cause an injury or a failure. IF SCREW ROTATION IS STOPPED IN NORMAL OPERATION, PRESS [REVERSE/ REV] BUTTON AND HOLD FOR 2~3 SECONDS AND THEN AFTER REVERSE OPERATION IS COMPLETELY STOPPED, PRESS [ON] BUTTON AGAIN. If such a stop event continues during the operation, the parts may be damaged and performance may be deteriorated due to overheating in a motor. When the problem continues, immediatly stop the appliance and contact the local Customer Care Center. WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN PART BECOMES LOOSE, DO NOT OPERATE IT. It may cause an electric shock, a re or an injury. FOR SAFETY, MUST DO GROUND CONNECTION DO NOT DO THE GROUNDING ON GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC. It could cause an electric shock, a re, or a malfunction and an explosion. Be sure to use the socket with ground connection. NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS ETC. INTO FEEDING CHUTE OR JUICE SPOUT. It may cause an injury, an accident or a failure. THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. Children should be supervised to ensure that they do not play with the appliance. WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN THE WINDOW TO VENTILATE FULLY AND IMMEDIATELY. It may cause an injury or a failure. DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE. Be careful not to let any liquids or other substances get into the switch on the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause electric shock or a re.21

PRECAUTIONS FOR SAFE USE

30minute 30minute 30minute 30minute 30minute 30minute 30minute 30minute DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BASE, DISASSEMBLE THE BOWL SET OR PARTS AND TRY TO LOCK THEM. It may cause an injury or a failure. Any act of event needed, switch off rst and unplug the power cord. WHEN USING THE APPLIANCE, BE CAREFUL OF A NECKTIE, LONG NECKLACE, SCARF ETC. BECOMING ENTANGLED INTO FEEDING CHUTE. It may cause an injury, a failure or a breakage. PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause an injury or a failure. DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME. It may cause a motor failure due to overheating. Cool it down sufciently for 5 minutes and operate it again. WHEN PLACING INGREDIENTS INTO THE FEEDING CHUTE, ONLY USE THE PUSHER PROVIDED. It may cause an injury or a failure. DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT. It may cause an electric shock, a re or damage IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL, EXCESSIVE HEATING, OR SMOKE, STOP USING IMMEDIATELY AND CONTACT THE LOCAL CUSTOMER CARE CENTER. When using a new appliance, it will give off a smell and the smell disapears naturally over time. ALWAYS UNPLUG THE APPLIANCE AFTER USE. WHEN UNPLUGGING THE POWER CORD, MAKE SURE TO HOLD THE POWER CORD. If holding the wire to unplug, it may cause an electric shock or a re. THE APPLIANCE WEIGHS ABOUT 11.51 LB (5.2 KG). WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE IF THE BOTTOM WITH BOTH HANDS. If attempting to hold bowl or the edge of the base, the base may fall causing an injury or a failure.5

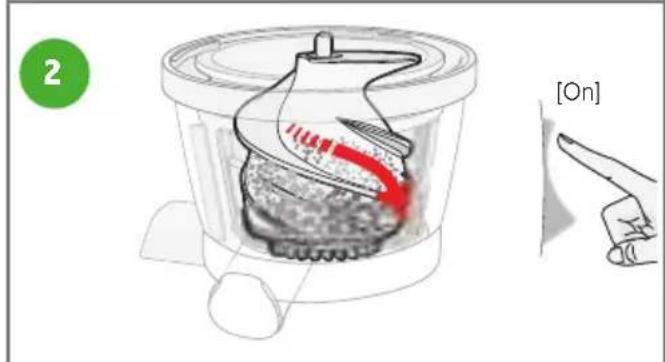

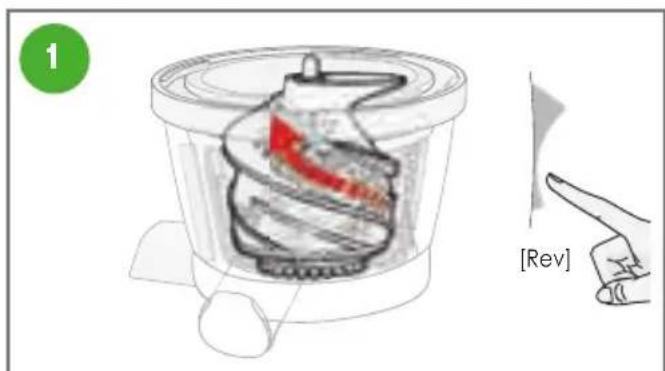

IF THE AUGER STOPS WORKING

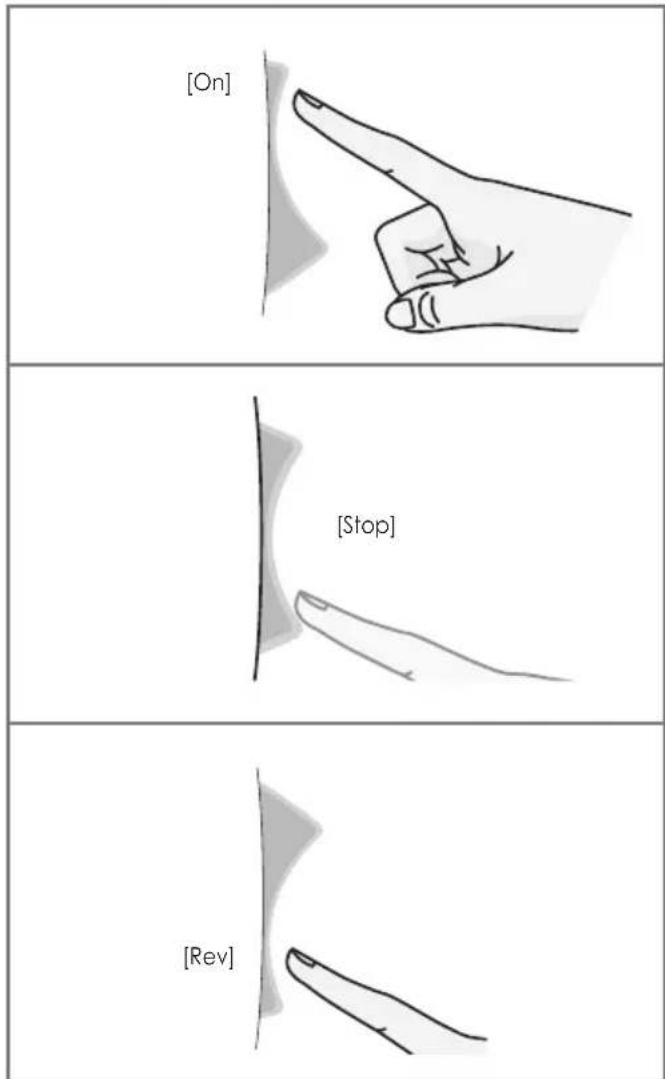

CAUTION WHEN USING OPERATION BUTTON

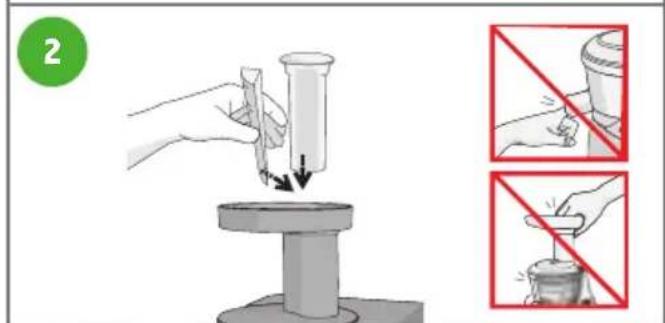

To STOP the operation, press the [Rev] button quickly. The auger will rotate slowly then stop. After the auger rotation stops completely, you can press [ON] to continue operation as normal or hold down the [Rev] button to push ingredients upward. Press [Rev] button for 3 to 5 seconds, then release. When the [Rev] button is released, the auger will stop rotating. Repeat this 2 to 3 times. The [Rev] button pushes the ingredients upward releasing the food clog.

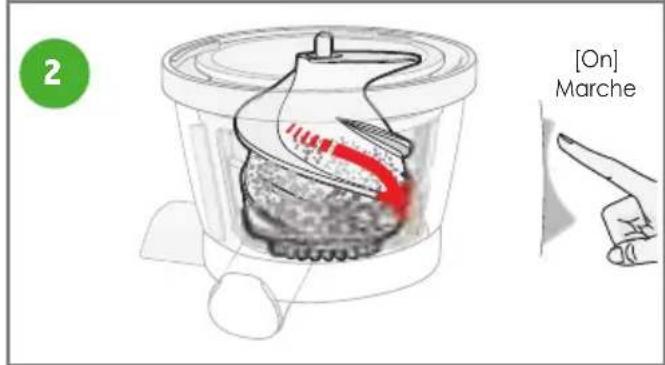

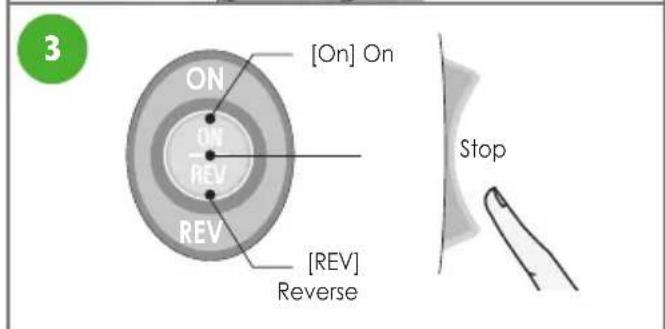

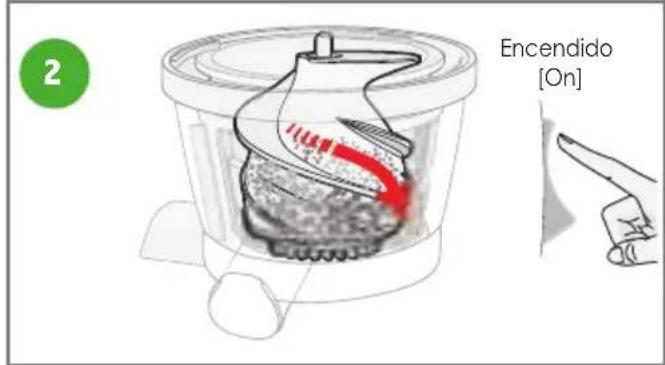

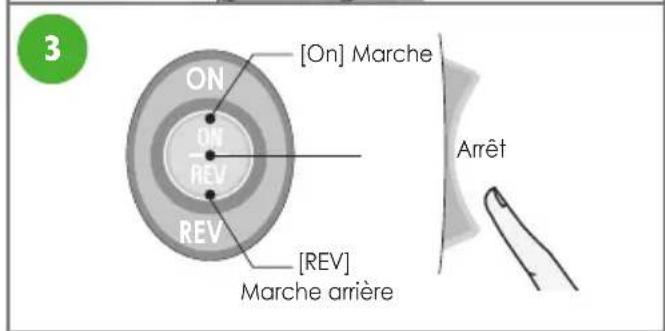

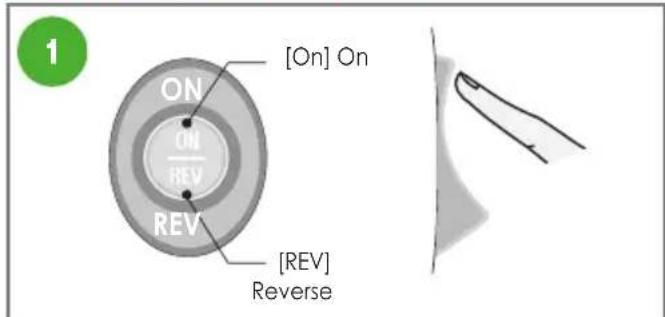

[Rev] [Stop] [On] [Rev] [On] Press [ON] button to start. When using [ON] auger should rotate. Wait 2 to 3 seconds. Then presss [REV] button. Repeat this 2 to 3 times. Make sure the auger stops completely after releasing the button. Note: Even after following the directions above, if the juicer still doesn’t work, please unplug the power cord, disassemble the chamber set and clean it. Then try again.5 HINTS & TIPS25 HINTS & TIPS

• Use caution when juicing the following ingredients: - Fruits with seeds that are hard to chew should be pitted before extraction. Fruits such as plums, peaches, and apricots. - Stalk vegetables with strong ber should be cut into smaller sizes of 1 to 2 inches before placing in the hopper. Vegetables such as water parsley, celery, fennel, etc. - Do not use sesame, coffee beans, bark of a tree, Chinese pepper, etc. which cannot be extracted. - Do not use fruits preserved in alcohol, sugar, honey, etc. It may cause damage or failure.

Frozen fruit or withered ingredients stored in the refrigerator for a long time, may extract less amounts of juice or may even be impossible to juice.

Do not re-squeeze residue expelled through pulp outlet, except for soft fruits. Soft fruits can be re-squeezed.

• You can use the appliance to crush spices (garlic and red pepper).

• Do not use appliance to grind grains. It may cause damage or failure.

• We recommend you drink juice immediately after extraction.

Do not use the appliance for more than 30 minutes continuously. It may cause failure due to overheating of the motor.5 TROUBLESHOOTING27 TROUBLESHOOTING Please troubleshoot using the details below before contacting Omega Customer Service for repair or service. When contacting Omega for after-sales service, please have the manufacturer’s serial number or bar code available. The Appliance Does Not Work

Make sure the power cord is plugged in correctly.

Make sure the hopper is assembled correctly. If the hopper is not locked into place, the appliance will not operate.

Make sure the appliance is assembled according to the instructions in this manual. Refer to the instructions.

If the appliance still does not work, please contact Omega Customer Service for additional support. The Hopper Does Not Open

If there is a lot of pulp inside the chamber, press [On] to release the excess pulp.

Check the appliance for any foreign substance or solid objects including seeds.

Press [Rev] button to push up stuck ingredients.

Do not attempt to open by force. If the hopper still does not open, please contact Omega Customer Service for additional support. The Appliance Stops During Normal Operation

Check for large pieces of food stuck in the appliance.

Refer to the manual “If the Auger Stops Working” and follow the guideline for the [Rev] button.

If the appliance still does not work, please contact Omega Customer Service for additional support. Fine Lines or Scratch Marks around the Auger

This is normal. Do not be concerned. These are molding marks resulting from the normal manufacturing process. Juice Leaks Over the Base

Check for an excessive amount of ingredients in the hopper chute.

If you try to juice a large amount of food compared to the pulp outlet, the packing will be slightly pushed away. Juice may leak out of the gap.

Do not force too much food into the juicer. Push food gradually for extraction. Juicer Shakes when In-Use

This is normal as the auger rotates. It is not a malfunction. Hard ingredients such as carrots, potatoes, radishes, beets, etc. may cause shaking more so than soft ingredients.

Depending on the rmness of the ingredient, there may be a more pronounced shaking of the motor.

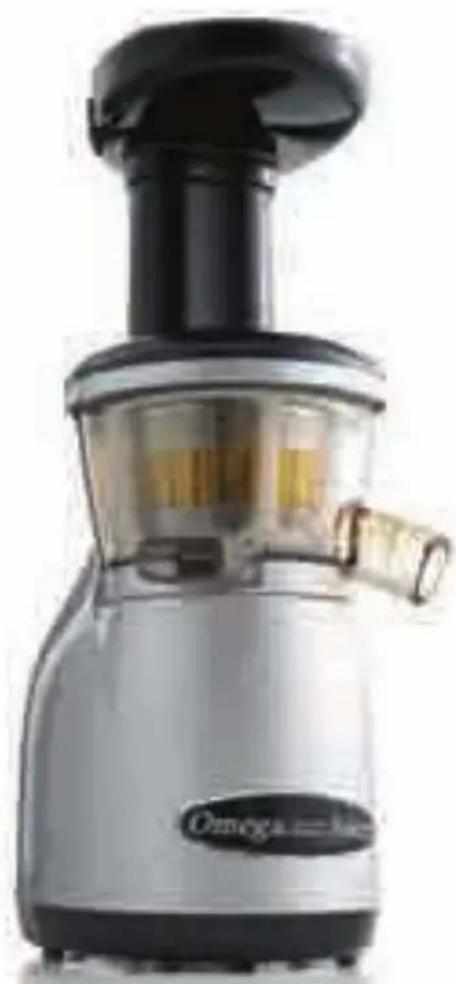

Slight shaking may be caused by the motor. CONTACT US: Online: www.OmegaJuicers.com/contact-omega-juicers5 PRODUCT SPECIFICATIONS29 PRODUCT SPECIFICATIONS Product Name VERT Low Speed Juicing System Model Name VRT330/VRT350 Rated Voltage 120 V Rated Frequency 60 Hz Rated Power Consumption 150 W RPM 80 rpm Cord Length 55” (1.4 mm) Motor Single-phase induction motor Weight 22 lb (10 kg) Outward Dimension 7” Width (178 mm) 8.5” Depth (216 mm) 15.5” Height (394 mm) Rated Operating Hour Less than 30 minutes continuously Also available VRT332 and VRT352 220-240 V / 50-60 Hz

2 beets (australian beetroot) 2 organic carrots 1 cup organic strawberries 2 cups kale leaves (6-8 leaves) (australia tuscan cabbage) What You’ll Need: How To Prepare: Wash all produce well. Cut as needed to t into hopper. Juice in an Omega Juicer. Pour over ice and enjoy. Australian Dream RECIPES

½ a beetroot 5 spinach leaves ¼ cabbage 1 broccoli stick ½ a grapefruit ½ a lemon 1 orange 1 kiwi fruit 2 small pieces of ginger PREP 2 minutesJUICE 4 minutes What You’ll Need: How To Prepare: Cut product to t into hopper. Juice in an Omega Juicer. Pour over ice. Enjoy! Clean Boost PREP 3 minutesJUICE 6 minutes32 RECIPES

1 medium apple, cored and cubed 2 medium soft pears, cored and cubed ½ cup fresh cherries (pits removed or frozen and thawed) PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: In your Omega Juicer, juice apple, pears, and cherries. Before serving, garnish with fresh cherries, if desired. Total Health Booster

1 cucumber 2 collard green leaves 1 handful of cauliower orets ½ lemon (yellow rind removed) PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Wash all produce. Add all ingredients into your Omega Juicer and juice. Pour into your glass and enjoy! Cukelear Power33

2 apples 3 kiwis PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Wash the apples, then remove the core and cut into quarters. Peel the kiwis and chop into small pieces. Juice ingredients in your Omega Juicer. Stir before drinking. Apple & Kiwi Juice RECIPES 1 peach (remove pit) 1 mango (peeled and seed removed) 1 orange (skin removed) ½ cup coconut water 1 teaspoon agave nectar PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Tropical Morning Cut produce to t hopper. In your Omega Juicer, juice peach, mango and orange. Add remaining ingredients and stir. Serve chilled and garnish with a peach slice.
