Ionic 2200 D3190S - Tumble drier REMINGTON - Free user manual and instructions

Product type	Hair dryer
Brand	Remington
Model	Ionic 2200 D3190S
Power supply	230 V ~ 50 Hz
Power	2200 W
Number of speeds	2 (low, high)
Number of temperatures	3 (low, medium, high)
Cool shot function	Yes (cool shot button)
Ionic technology	Yes
Included accessories	Concentrator, diffuser
Removable rear filter	Yes
Hanging loop	Yes
Approximate weight	500 g
Approximate dimensions	25 x 10 x 8 cm
Cord length	2 m
Overheat protection	Auto shut-off in case of overheating
Recycling	Do not dispose of with household waste

Frequently Asked Questions - Ionic 2200 D3190S REMINGTON

How to use the diffuser?

Attach the diffuser to the hair dryer by twisting it clockwise. To enhance curls, tilt your head forward and gently place hair into the diffuser while slightly rotating the dryer. Use low or medium heat to avoid burning the scalp. Do not use the highest heat setting ())) with the diffuser.

How to clean the filter?

Remove the rear filter grille as shown (FIG A). Clean it with a soft cloth or brush. Replace the grille after cleaning. Regular cleaning maintains performance and extends the motor's lifespan.

What to do if the device suddenly stops or blows cold air?

This is usually due to overheating caused by a blocked filter or grille. Unplug the device immediately and clean the filter. If the problem persists, contact Remington customer service.

Can I use this hair dryer in the bathroom?

Yes, but with caution. Do not use it near a bathtub, shower, sink or other water container. Unplug after use. For additional safety, install a residual current device (RCD) of maximum 30 mA.

The power cord is damaged, what to do?

Stop using the device immediately. Return it to an authorized Remington customer service center for repair or replacement. Do not attempt to repair it yourself.

What is the required voltage?

The device operates on a voltage of 230 V ~ 50 Hz. Check that your installation matches before plugging in.

How to get smooth hair with this hair dryer?

Use the concentrator in combination with a round brush (not included) while drying. Direct the airflow along the hair shaft to smooth.

Can I use styling sprays while drying?

No, styling sprays contain flammable products. Do not use them while the device is in use.

How to create volume at the roots?

Keep your head upright and place the diffuser against the top of your head. Gently rotate the hair dryer to massage the scalp. Dry with low heat and speed.

How to set the hairstyle after drying?

Press the cool shot button () while styling to set the hairstyle.

USER MANUAL Ionic 2200 D3190S REMINGTON

Black Remington 11 hair dryer with a side-view illustration of its hair filter (no text or symbols on the device itself)

Ionic Dry 2200

D3190S

4 3 1 2 5 6 7 8

A

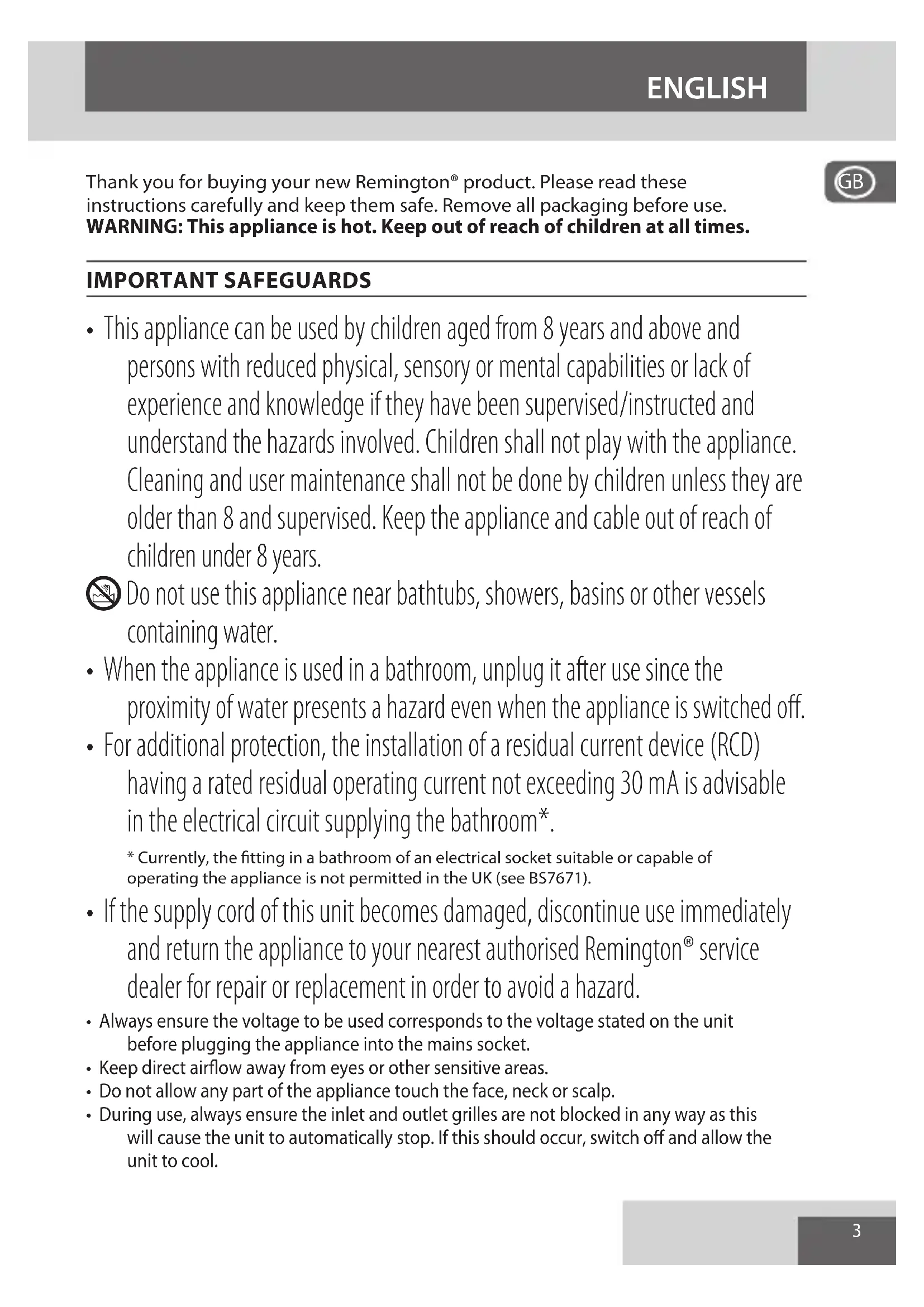

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

WARNING: This appliance is hot. Keep out of reach of children at all times.

IMPORTANT SAFEGUARDS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom*.

* Currently, the fitting in a bathroom of an electrical socket suitable or capable of operating the appliance is not permitted in the UK (see BS7671).

- If the supply cord of this unit becomes damaged, discontinue use immediately and return the appliance to your nearest authorised Remington® service dealer for repair or replacement in order to avoid a hazard.

- Always ensure the voltage to be used corresponds to the voltage stated on the unit before plugging the appliance into the mains socket.

- Keep direct airflow away from eyes or other sensitive areas.

- Do not allow any part of the appliance touch the face, neck or scalp.

- During use, always ensure the inlet and outlet grilles are not blocked in any way as this will cause the unit to automatically stop. If this should occur, switch off and allow the unit to cool.

• Keep the power plug and cord away from heated surfaces.
• Do not leave the appliance unattended while plugged in.
• Do not place the appliance on any soft furnishings.
• Do not use attachments other than those we supply.
• Do not set the appliance down while still on.
• Do not twist or kink the cable, or wrap it round the appliance.
• Do not use the appliance if it is damaged or malfunctions.
• Check the cord regularly for any sign damage.
• This appliance is not intended for commercial or salon use.

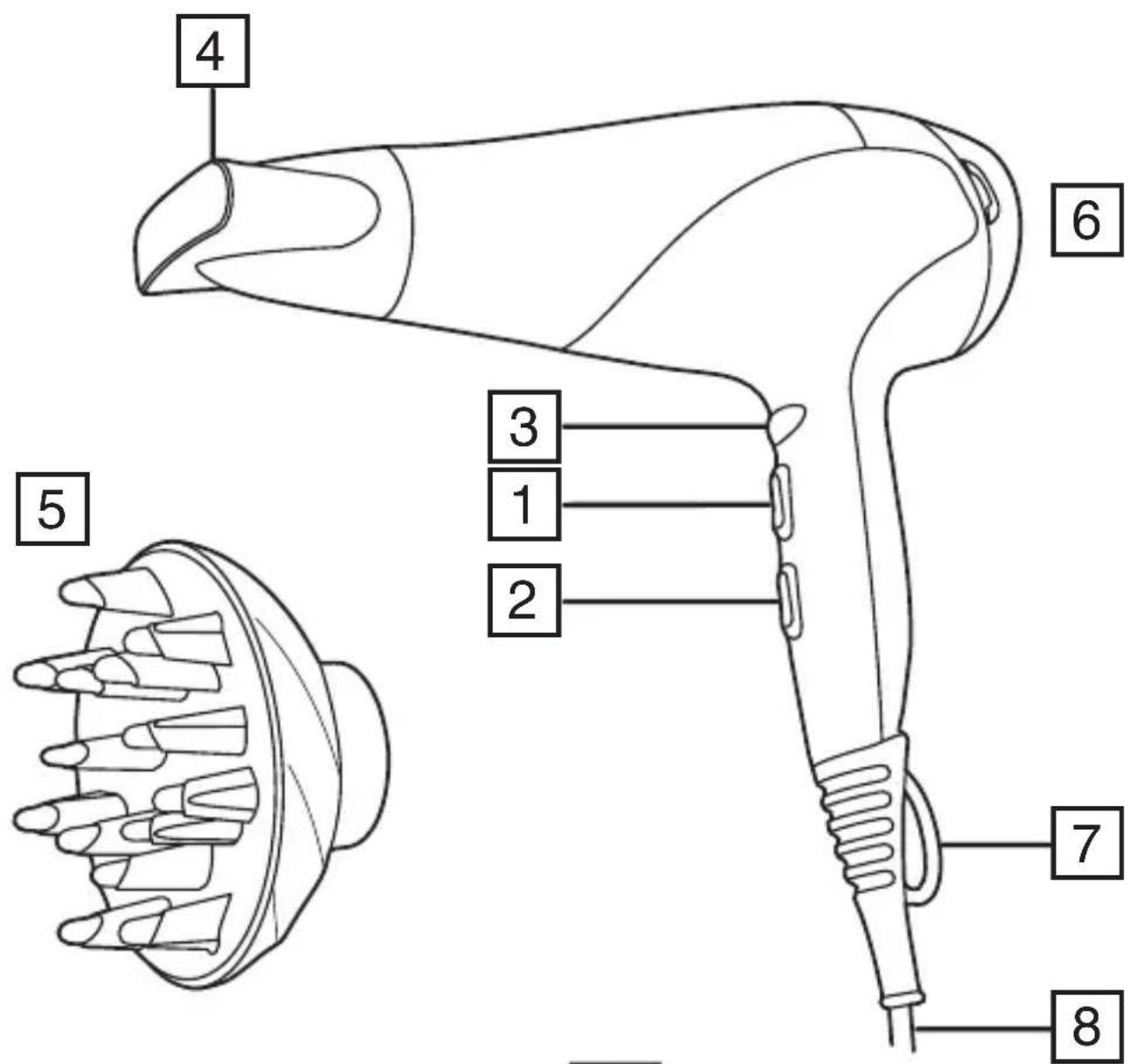

PARTS

1. Heat selector switch ( , , )
2. Speed selector switch (0, x, x)
3. Cool shot ()
4. Concentrator
5. Diffuser
6. Removable easy clean rear grille
7. Hang up loop
8. Cord

INSTRUCTIONS FOR USE

• Wash and condition your hair as normal.
• Squeeze out excess moisture with a towel and comb through.
• Hairsprays contain flammable material – do not use while using this product.
• Fit accessory attachments to the front of the hairdryer then twist clockwise to lock in place. Take care when you do this because the attachments can become hot during use.
• Plug the product into the mains power supply.
• Switch your hairdryer on and select the desired speed setting (low ✗ or high ✗) using the speed selector switch.
• Select the desired heat setting (low , medium or high ) using the heat selector switch.
• After use, turn the appliance off and unplug it.
• Let the appliance cool down before cleaning or storing away.

TIPS

• For fast drying use the high heat / high speed function.
  • To create smooth styles use the concentrator and a round hair brush (not included) whilst drying.
  • To enhance natural curls and waves, attach the diffuser to the dryer. Turn your head upside down and gently place your hair into the diffuser bowl slightly rotating the dryer as you style.
  • To create extra volume at the roots of the hair, keep your head upright and place the diffuser against the top of the head. Gently rotate the hairdryer allowing the diffuser fingers to gently massage the scalp being careful not to burn the scalp. Dry gently on a medium heat / low speed setting.
  Caution: Do not use the diffuser on the highest heat setting (###).
  • To set your style, press the cool shot button whilst styling ().

STORAGE, CLEANING AND MAINTENANCE

Let the appliance cool down before cleaning and storing away.

• To maintain peak product performance and to prolong motor life, it is important to regularly remove any dust and dirt from the inlet grille.

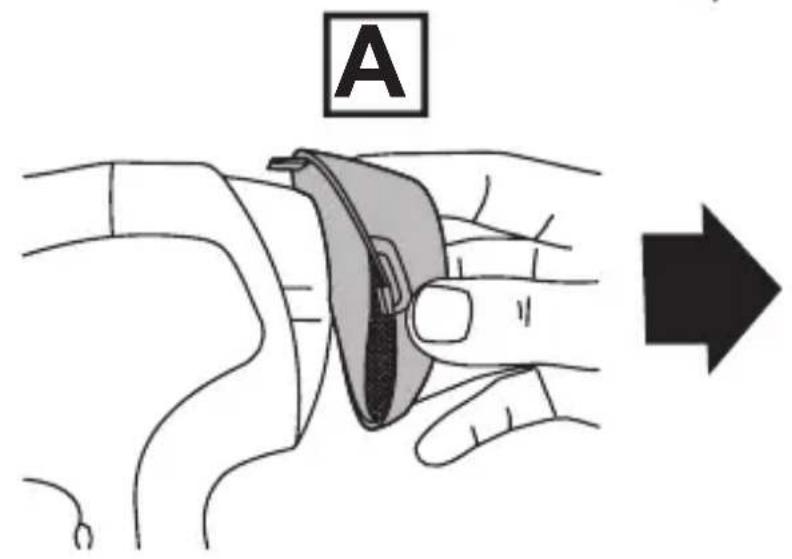

• Remove the grille as shown (FIG A), clean with a cloth or soft brush, then replace it.

OVERHEAT PROTECTION

In the event of overheating, the appliance may either stop unexpectedly or start to blow cold air. Overheating is usually caused by a blocked grille/filter. If this happens, immediately unplug the appliance and refer to STORAGE, CLEANING AND MAINTENANCE to clean the grille/filter. If, after doing this overheating continues to happen, stop using the appliance and contact Customer Service.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

Remington ^® is a Registered Trade Mark of Spectrum Brands, Inc., or one of its subsidiaries

Russell Hobbs Deutschland GmbH, Am Unisyspark 1, 65843 Sulzbach, Germany remington-europe.com
