USER MANUAL USK PPG 37241 GM KALORIK

Gravity-Activated Pepper and Salt Mills

When using electrical appliances, basic safety precautions should always be followed, including the following:

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

□ Never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. Never use the appliance if it shows any signs of damage. All repairs should be made by a qualified service, like the after-sales service of the manufacturer or a qualified electrician use to the repair of this type of appliance. Please return the appliance to this service in case of dysfunction.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
□ Never immerse the appliance in water or any other liquid for any reason whatsoever.
Before cleaning, always remove the batteries.
☐ If the batteries leak, remove them, clean the contacts of the appliance and wash your hands.
☐ If you do not use the appliance for a long time, remove the batteries so that they do not leak.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

BEFORE USE (see also part description p.20)

• Each mill runs on 6 x AAA/LR03 batteries.
- Open the battery housing by turning the bottom cap of the mill counterclockwise. Remove the bottom lid, and using the steel ring, lift the battery cradle out by raising it.
- Insert the batteries in such a way that the polarity of each battery is respected, and matches with the symbol indicated on the battery cradle.
- By pressing the switch on the top of the battery cradle, you should hear a motor noise.
- To close the battery housing, put the battery cradle back into the appliance, and replace the bottom cap turning it clockwise until it gets locked firmly (but not too tight).

To fill with pepper or salt:

• Turn the upper stainless steel lid/grinding head counter-clockwise, to expose the refill chamber. The arrow shall be above the "Unlock" sign.
• Fill the transparent refill chamber with salt or pepper.
• Close the lid by returning it back into its initial position, lock in place by turning the upper stainless steel part counter-clockwise, until the arrow reaches the "Lock" symbol.

USE

• Before seasoning your meals, you can adjust the fineness of the ground salt and pepper by turning the adjustment wheel on the underside of the mill.
• To do so, turn the wheel clockwise for a finer grind and counterclockwise for a coarser grind.
• Hold the appliance above the meal to season. There is no button to push, grinding will start automatically when the grinder is put upside down (gravity-activated and automatic function) - see Fig. A page 20.-

MAINTENANCE

Disassemble the different parts of the appliance and clean them separately with a damp cloth. Do not immerse the mill in liquid or put it in a dishwasher. Do not use with wet hands. Do not use cleaning products or detergents.

BATTERIES

If your appliance does not work properly, it is probably because the batteries are discharged. In that case, replace them with new ones of the same type (see "Before use").

Please eliminate the old batteries in an environmentally friendly way.

TROUBLESHOOTING

If the mill does not grind, or if no motor noise can be heard, please check that the batteries are installed correctly and are not discharged. For best results we recommend alkaline batteries.

If the mill gets stuck during use (motor produces hum, but internal shaft does not turn and no pepper is ground), gently shake the mill or tap the mill gently on a hard surface, to remove the stuck pepper or salt.

To remove deeply stuck peppercorn, remove the upper lid as if for re-filling the mill, turn the coarseness setting to its coarsest, and tap lightly on a hard surface until all the peppercorn is released. Re-adjust coarseness setting to the desired level once done and replace upper lid.

Note: Too fine a grind setting may not enable salt or pepper to be ground. If this is the case, set the grinder to a coarser setting (see above).

PROTECTION OF THE ENVIRONMENT

In order to preserve our environment and protect human health, electrical and electronic equipment waste should be disposed of in accordance with specific rules with the implication of both suppliers

and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

WARRANTY

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Customer Service Representatives can help solve the problem without having the product serviced. If servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center). When sending the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from 9:00am - 4:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Customer Service Department

Team International Group of America Inc.

1400 N.W 159th Street, Suite 102

Miami Gardens, FL 33169 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.

SP MANUAL DE INSTRUCCIONES

Team International Group of America Inc. 1400 N.W 159th Street, Suite 102 Miami Gardens, FL 33169 USA

O llame gratuitamente (U.S.A.) al +1 888-521-TEAM / +1 888-KALORIK

Team International Group of America Inc.

1400 N.W 159th Street, Suite 102

Miami Gardens, FL 33169 USA

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International USA. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity. Print only what is inside the frame.

USK PPG 37241 - 120501

1. Adjustment wheel
2. Lid / Grinding Head
3. Refill Chamber
4. Housing
5. Motor Block / Battery cradle

6. Bottom Cap

7. Rueda

8. Parte Superior
9. Envase transparente
10. Cuerpo en acero inoxidable
11. Soporte de la batería

12. Tapa de la base

13. Molette

14. Couvercle supérieur
15. Réservoir transparent
16. Corps en acier inoxydable
17. Bloc-piles
18. Couvercle du bloc-piles

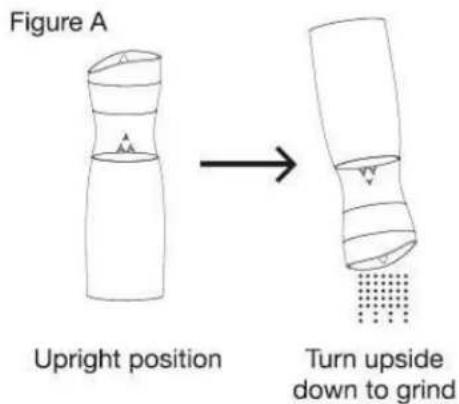

Figure A Upright position Turn upside down to grind

1 2

3 4

5
