Product Type	Single Door Refrigerator
Brand	AYA
Model	ARC043
Power Supply	220-240 V~, 50 Hz, 0.5 A
Climate Class	N/ST/T (10 °C to 43 °C)
Refrigerant	R600a (15 g)
Insulation Foam	Cyclopentane
Electric Shock Protection	Class I (grounded)
Compartment Type	Refrigerator only (no freezer)
Coldest Zone	Indicated by a symbol on the relevant shelf
Temperature Adjustment	Thermostat knob (position variable according to ambient temperature)
Defrosting Capacity	Manual (defrost when frost > 2 mm)
Cleaning and Maintenance	Monthly cleaning with damp cloth and baking soda
Adjustable Feet	Yes, for leveling
Reversible Door	Yes, door opening direction can be changed
Legal Conformity Warranty	2 years
Spare Parts Availability	5 years
After-Sales Service	BUT International (09 78 97 97 97)

Frequently Asked Questions - ARC043 AYA

How to adjust the temperature of my AYA ARC043 refrigerator?

Turn the thermostat knob inside. Settings generally range from 1 (least cold) to 7 (coldest). For optimal preservation, adjust the thermostat so that the coldest zone displays 'OK' on the temperature indicator. Wait 12 hours before readjusting if necessary.

How to defrost the refrigerator?

Defrost when the frost layer reaches 2 mm thickness. To do this, unplug the appliance, remove food and leave the door open. Do not use mechanical tools or electrical appliances to speed up the process. Clean and dry the inside before reconnecting.

What to do if my refrigerator does not cool enough?

Check: 1) that the appliance is plugged in and the fuse is working; 2) that the door is properly closed; 3) that the door seals are not damaged; 4) that ventilation spaces around the appliance are sufficient (100 mm at the back, 100 mm on the sides, 200 mm above); 5) that the thermostat is correctly set; 6) that you have not overloaded the appliance or introduced warm food.

How to reverse the door opening direction?

Unplug the appliance. Remove the top hinge cover, unscrew the top hinge and bottom hinge, then transfer the feet and hole covers to the other side. Follow the steps in the manual, making sure to flip the bottom hinge. Reassemble the door and adjust the level.

How to clean the inside of the refrigerator?

Unplug the appliance and remove all food and accessories. Clean with a soft cloth soaked in warm water and baking soda (2 tablespoons per liter of water). Rinse with clean water, wipe and leave the door open to dry completely before turning on again. Do not use abrasive products or solvents.

Why does my refrigerator make a water running noise?

This noise is normal: it comes from the circulation of refrigerant fluid in the circuit. If the noise is abnormal or too loud, check that the appliance is level and not in contact with furniture or resonant objects.

Where is the coldest zone and how to check it?

The coldest zone is indicated by a symbol (often a specific shelf). A temperature indicator is provided: place it in this zone. If the indicator displays 'OK', the temperature is correct. Otherwise, set the thermostat to a higher position and wait 12 hours.

What does the crossed-out bin symbol on the appliance mean?

It means that the appliance should not be disposed of with household waste. In accordance with the European WEEE directive (2012/19/EU), you must take it to a collection point for recycling. Contact your local council or retailer for details.

How to install the refrigerator correctly?

Place the appliance on a flat, solid floor, away from moisture and heat sources (sun, oven, radiator). Leave a space of 100 mm at the back and sides, and 200 mm above. Plug into a grounded outlet. Use a voltage regulator if necessary.

Can I freeze food in this refrigerator?

No, this appliance is a refrigerator only. It does not have a freezer compartment and is not designed for freezing fresh food. The star compartments present are for storing already frozen products or making ice cubes.

USER MANUAL ARC043 AYA

MANUEL D'UTILISATION ARC043

FR

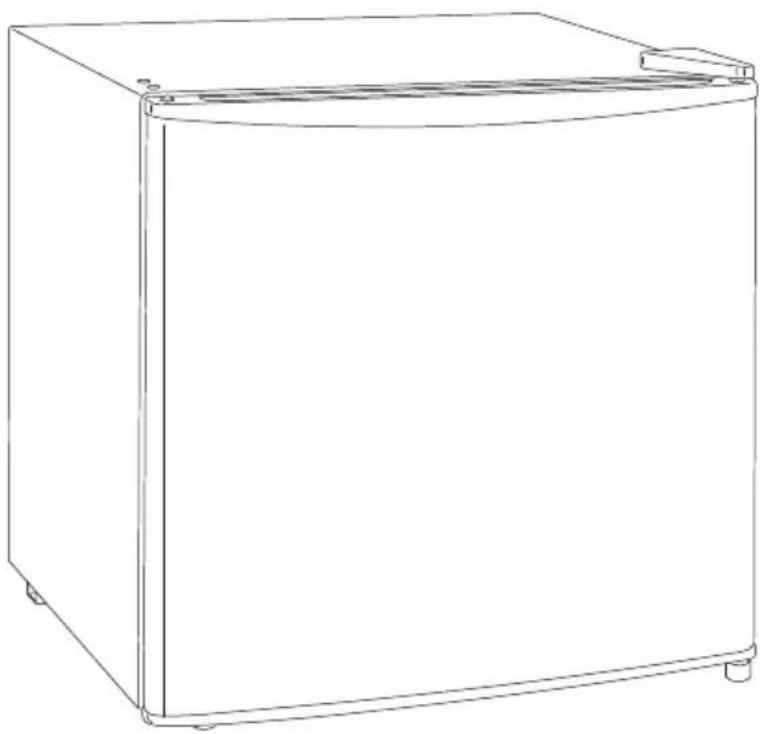

Line drawing of a simple rectangular refrigerator with lid and side legs (no text or symbols)

Symbolic icon of a person walking with circular arrows, no text or symbols present

FAITES UN GESTE ECOCITOYEN ENTRIANT VOS EMBALLAGES CARTON

À LA FIN DE VIE DE VOTRE PRODUCT, PENSEZ À LE RAPPORTER DANS UN POINT DE COLLECTE OU DÉPOSER LE À LA DÉCHETERIE PROCHE DE VOTRE DOMICILE

CET APPAREIL EST DESTINE A UN USAGE DOMESTIQUE UNIQUEMENT!

Cartoon illustration of a smiling document character with arms and legs, holding a tray (no text or symbols)

Cartoon illustration of a smiling pot with steam rising (no text or symbols)

Cartoon illustration of a book character with arms and legs, no text or symbols present

• Déplacement

Cartoon illustration of a person standing on a platform with arms extended, no text or symbols present

Exploded view diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Line drawing of a simple refrigerator with lid and side legs (no text or symbols)

1 door fridge

TABLE OF CONTENTS

Cautions -21-

Name of parts -29-

Correctly positioning -30-

Coldest zone in the refrigerator -33-

Cleaning and maintenance -34-

Troubleshooting -35-

Technical specifications -36-

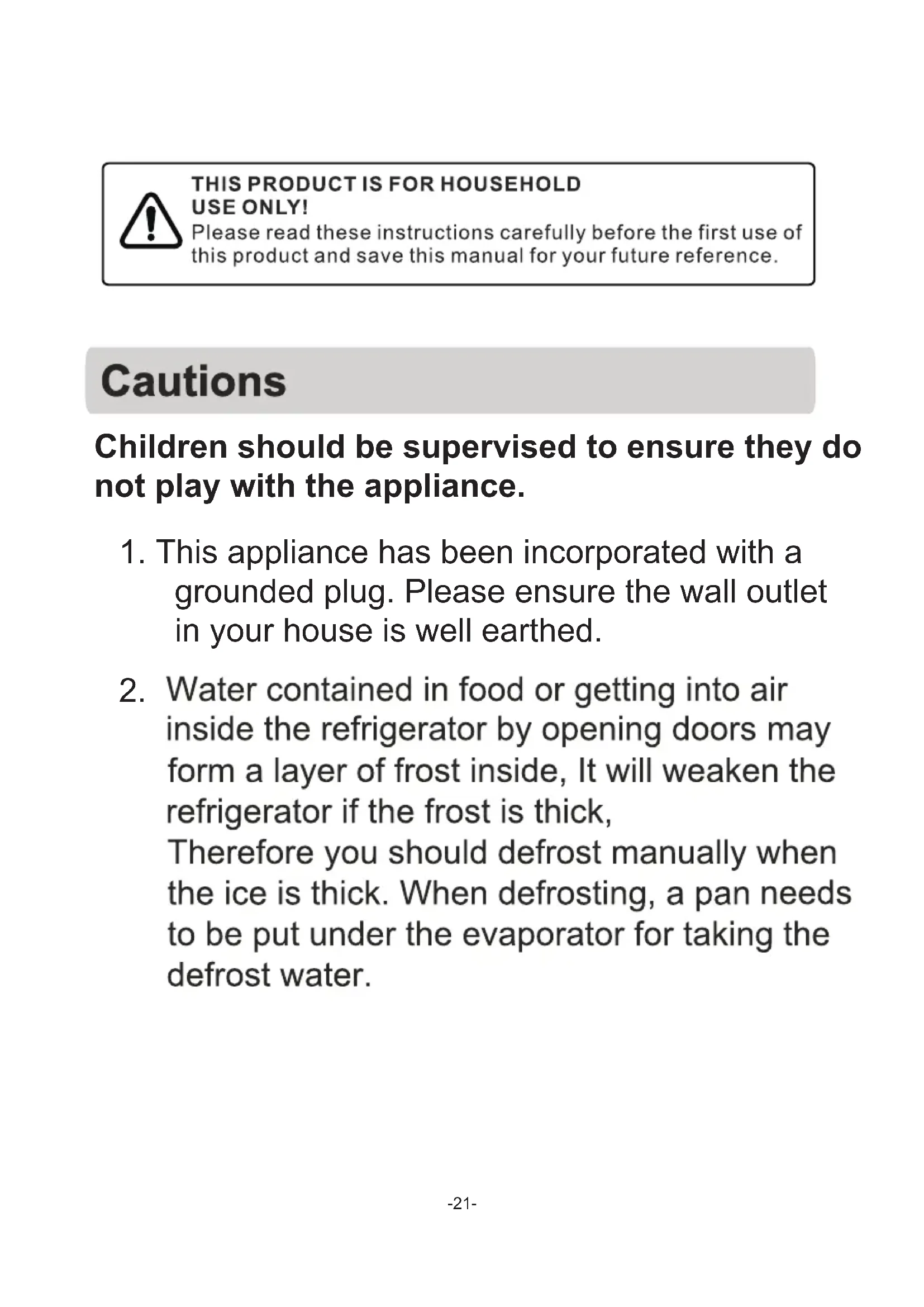

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

Cautions

Children should be supervised to ensure they do not play with the appliance.

1. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

2. Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside, It will weaken the refrigerator if the frost is thick, Therefore you should defrost manually when the ice is thick. When defrosting, a pan needs to be put under the evaporator for taking the defrost water.

3. It is dangerous to alter the specifications or attempt to modify this products in any way.

4. When the refrigerator is not in use for long periods, disconnect it from the electricity supply.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

7. This equipment is Group 2 equipment as it intentionally generates radio-frequency energy for treating material and is designed to be used in domestic premises or an establishment directly connected to the low voltage electricity distribution network supplying buildings used for domestic purposes (Class B).

8. Wait for 5 minutes before restart the unit after the power supply blackout.

9.-WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

10.-WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

1. Before throwing away your appliance: remove the door, leave the shelves in place so that the children cannot play easily inside.

2. Never clean parts of the appliance with flammable fluids. Do not store gasoline or other flammable gases or liquids near this appliance. Fumes can result in the risk of fire or may cause explosions.

3. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

4. Regarding the information pertaining to the installation, handing, maintenance, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

5. Always handle the appliance to avoid any damage.

6. Disposal of the appliance To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points.

7. Appliances should place on a horizontal floor and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

8. This appliance is intended to be used in household and similar applications such as :
   -staff kitchen areas in shops, offices and other working environments ;
   -farm houses ;
   -by clients in hotels, motels and other residential type environments ;
   -bed and breakfast type environments.

9. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

21.-WARNING: Keep ventilation openings, in the appliance enclosure enclosure or in the built-in structure, clear of obstruction.

1. -WARNING: Do not damage the refrigerant circuit.

2. Ensure the refrigerator is unplugged before cleaning or if the product is not in use.

3. To clean the appliance use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.

4. It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

1. Warming: Risk of fire / flammable materials. There are flammable materials at the back of appliance, please keep the product far away fire source.

2. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

3. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

4. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

5. If the refrigerant circuit is damaged:

6. Avoid naked flames and sources of ignition.
7. Thoroughly ventilate the room in which the appliance is situated. To avoid contamination of food, please respect the following instructions:
8. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
9. Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1. This refrigerating appliance is not intended to be used as a built-in appliance.

2. This refrigerating appliance is not suitable for freezing foodstuffs.

Thermostat knob Drain tray Shelf Adjustable foot

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consume in the short term. Suggested storage time 3 days to 5 days.
  It is the most energy efficient to place food in the position shown in the picture above
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	Foods with natural preservatives, such as jams, juices, drinks, condiments.Do not store perishable foods.
Fridge shelf	Raw meat, poultry, fish (for short-term storage), dairy products, eggs, fruit. Meat and fish should be eaten within 2 days.

Correctly positioning

- Well Ventilating

Good ventilation around the refrigerator is necessary for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space is needed around the refrigerator. Its back should be at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height from over its top is not less than 200mm. A clear space should be left to open its doors to 160°.

• Power Supply

The refrigerator is only applied with power supply of single phase alternating current of (220-240)V\~/50Hz; If fluctuation of voltage in the district user is of so large that the voltage exceeds the above scope, for safety sake, be sure to apply a.c. automatic voltage regulator to the refrigerator. The refrigerator must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

• Power Line Cord

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord is kept close onto the compressor at the back of the refrigerator, the surface temperature of which is quite high when operating. Touching with it would deactivate the insulation or cause leakage for electricity.

• Protection from Moisture

Cartoon illustration of a character holding a device with a magnifying glass highlighting internal components like IIB, N, L.

Avoid placing the refrigerator in a place where is heavily moist so as to minimize the possibility of rusty for its metal parts. Furthermore, it is forbidden to spray the refrigerator with water directly, otherwise, poor insulation and current leakage would

occur.

Cartoon illustration of a smiling document character with arms and legs, holding a tray (no text or symbols)

Correctly positioning

• Protection from Heat

The refrigerator should be far away from any heat source or direct sunshine.

- Fixing Stable

Simple line drawing of a cartoon character resembling a pot with arms and legs, emitting smoke or vapor (no text or symbols)

Floor where refrigerator will be placed must be flat and solid. It should not be laid on any soft material such as foam plastic, etc. If the refrigerator is not on the same level, adjust the screws suitably. The refrigerator should not be placed near anything which may echo.

- Keep Away from Danger

It is inadvisable that the refrigerator is placed near anything volatilizable or combustible such as gas, petrol, alcohol, lacquer and banana oil, etc. The objects mentioned above can not be stored in the refrigerator.

- Moving

Cartoon illustration of a smiling rectangular character holding a smartphone and a phone (no text or symbols)

When fixed or moved, the refrigerator can not beset horizontally or declined to more than 45^ or upside-down.

Cartoon illustration of a person standing on a platform with arms extended, no text or symbols present

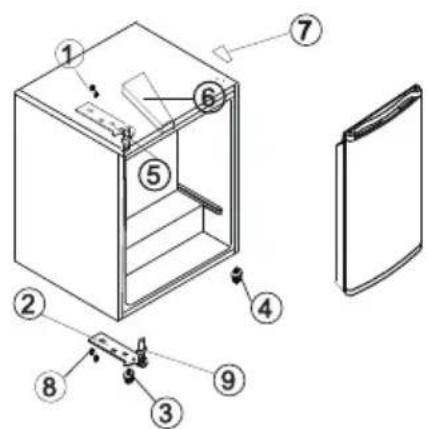

Changing the reversible door

NOTE:

This refrigerator has the capability of either opening the door from the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow these instructions.

Before Reversing the door, the power must be shut off. All parts removed must be saved to do the reinstallation of the door.

1. Remove the upper hinge cover(6) first.
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).

3. Lift the door and place it on a padded surface to prevent scratching it.

4. Remove the two screws(8) that hold the lower hinge(2) and Make sure to Remove the lower hinge(2).

5. Remove the left front leg (4) and transfer it to the right side.

6. Remove the hole cover plate(7) to the right side.

7. Before placing this lower hinge(2), remove the bolt-pin (9) and reverse the direction of the lower hinge(2). Then install the lower hinge (2) onto the left side of the lower frame with two screws (8).

8. Insert the bolt-pin(9) to the lower hinge (2).

9. Set the door to its place making sure the door seat at the lower hinge(2)

10. While holding the door in the closed position secure the upper hinge (5) in the top frame of left side with two screws (1). Please remember that do not tighten the two screws(1) until the top of the door is levelled with the counter top.

11. Install the upper hinge cover(6) on the upper hinge..

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

FIGURE 1
Door opening from left side

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

FIGURE 2
Door opening from right side

This symbol indicates the location of the coldest zone of the refrigerator,

To ensure the temperatures in this area, do not change the positioning of the shelf.

TEMPERATURE INDICATOR SETTING

To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone. WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

CHECKING THE TEMPERATURE IN THE C OLDEST ZONE

With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.

When the indicator shows « OK », this means that your thermostat is well adjusted and the internal temperature correct.

OK

If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

Cleaning and maintenance

1. The appliance must be cleaned and serviced every month.
2. Never spray water directly on the refrigerator to avoid rusting or affecting insulation.
3. When performing maintenance, make absolutely sure that the power plug is first disconnected from the power outlet.
4. Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If they are too dirty, scrub them with neutral detergent, and then clean them with water and dry them with clean cloth. After this, a small quantify of glass wax is recommended to polish the refrigerator surface with a flannelette.
5. For cleaning, don't use hot water, diluent, petrol, alcohol, kerosene, washing powder, cleanser, aikailinous detergent, acid, Chemical cloth, etc. So as not to damage the lacquer coat and plastics. It is forbidden that the refrigerator is directly sprayed with water. Otherwise, it would cause rusty or weaken the insulation.
6. Be careful to upkeep the sealing rubber bars of the doors. They should always be clean.
7. If the plastic parts in refrigerator remain contaminated for a long time by oil (animal or vegetable), they will be easily aged and possibly cracked.
8. The drain pan gets dirty very easily if it is not cleaned regularly, bad odours will be produced, get into the habit of cleaning this pan regularly.
9. Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
10. The interior of the refrigerator should be cleaned regularly to avoid odor.
11. Check the door gasket regularly to make sure there are no debris.
12. Please turn off the power before cleaning, remove all food, shelves, drawers, etc.
13. Clean the door gasket with mild soap and water.
14. Use a soft cloth or sponge to clean the inside of the refrigerator, with two

Cleaning and maintenance

tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.

1. For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

2. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator.

3. Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.

4. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

5. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.

6. Do not rinse with water so as not to affect the electrical insulation properties.

Troubleshooting

1. When the refrigerator does not work.

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

1. When the refrigerator is cooling excessively.

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily. This does not indicate a malfunction.

1. When the refrigerator is not cooling sufficiently.

The food may be packed too tightly together which will block the flow of cool air.

You may have put something hot or a lot of foodstuffs into the refrigerator.

The door may not have been closed properly.

The door gaskets may be damaged.

The refrigerator may not be ventilated.

There may be insufficient clearance between the refrigerator and the surfaces.

The temperature control dial may not be set properly.

1. When condensation form on the outside of the refrigerator.

Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.

1. When you hear a sound like water flowing.

A sound like water flowing is the refrigerant flowing. It does not Indicate a malfunction.

1. When the cabinet's side panel heats up.

The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature, In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Reference:	ARC043
Rated voltage:	220-240V~
Ampere:	0.5A
Rated frequency:	50Hz
Climate class:	N/ST/T
Refrigerant:	R600a(15g)
Protection against electrical shock:	I
Insulation foam:	CYCLOPENTANE

Climate classes

-Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
-Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
-Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
-Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Note: More data information, please scan the QR code on the energy label.

About your product service :

To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97

From Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call).

Period of availability of repair spare parts: 5 years

In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity.
