Brand	BLAUPUNKT
Model	5DW69751
Product type	Extractor hood
Usage	Domestic, for capturing grease and eliminating cooking odors
Minimum distance between hob and hood	650 mm
Minimum diameter of exhaust duct	120 mm
Electrical class	Class I (earthing required)
Supply voltage	230 V ~ 50 Hz (refer to rating plate)
Number of motor speeds	3 (T1, T2, T3)
Lighting	Yes, control L (on/off)
Type of grease filter	Metallic, dishwasher safe
Cleaning frequency of grease filter	Every 2 months (more often with heavy use)
Type of charcoal filter	Activated charcoal, not washable, replaceable
Replacement frequency of charcoal filter	Approximately every 4 months (more often with heavy use)
Exterior maintenance	Damp cloth and neutral liquid detergent (avoid alcohol and silicone)
Safety - Safety distance	Respect the minimum distance of 650 mm to avoid overheating
Safety - Flambéing	Never flambé food under the hood (fire risk)
Safety - Ventilation	Ensure adequate ventilation if used simultaneously with gas appliances
Safety - Use by children	Appliance usable by children aged 8 and above under supervision
Included accessories	Grease and charcoal filters (depending on model)
User manual	40 pages, available in multiple languages

Frequently Asked Questions - 5DW69751 BLAUPUNKT

What is the minimum distance between the hob and the hood?

The minimum safety distance is 650 mm. If your hob's manual specifies a higher distance, adhere to that without fail.

Can I use the hood simultaneously with a gas appliance?

Yes, but you must ensure adequate ventilation of the room to prevent backflow of exhaust gases. Negative pressure must not exceed 0.04 mbar.

How to clean the grease filters?

The grease filters are dishwasher safe. Clean them every 2 months (more often with heavy use). Put them back after drying.

How often should the charcoal filter be replaced?

The activated charcoal filter cannot be washed and must be replaced approximately every 4 months, or more often if the hood is heavily used.

What to do if the lighting stops working?

First check the power supply. If the problem persists, contact after-sales service for lamp replacement. Use exclusively self-protected tungsten halogen lamps or self-protected metal halide lamps.

Can I install the hood myself?

The electrical installation (cable connection) must be carried out by a qualified technician to ensure safety. Comply with local air exhaust regulations.

Which product to use for cleaning the exterior of the hood?

Use a damp cloth with a neutral liquid detergent. Never use alcohol or silicone-based products as they can damage the surface.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer or a technician from an authorized after-sales service.

Can the hood be used by children?

Yes, by children aged 8 and above, but only under adult supervision and after receiving instructions on safe use. Children must not play with the appliance.

How to dispose of the hood at the end of its life?

Do not dispose of it with household waste. Take it to a specialized waste collection center for recycling of electrical and electronic components, in accordance with local regulations.

USER MANUAL 5DW69751 BLAUPUNKT

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650~mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.

• Connect the plug to a socket that complies with current regulations and is in an accessible position.

• As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.
  CAUTION: remove the protective films before installing the hood.

• Only use screws and hardware of a sort suitable for the hood.
  CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.
• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambé food under the hood: you might cause a fire.

• This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

• Supervise children, to make sure they do not play with the appliance.

• The appliance must not be used by persons (including children) with limited psychophysical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

• Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.
• The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).
• The symbol on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist recycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

In case of replacement with halogen lamp use only self-shielded tungsten halogen lamps or self-shielded metal halide lamps."

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

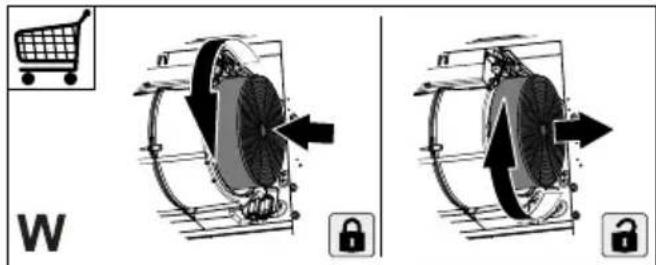

• The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or more frequently in the case of particularly intensive use (W).

The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly

intensive use. They can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and neutral liquid detergent.
• Avoid using alcohol or silicone-based products to clean the inside and outside of the cooker hood.

4. CONTROLS

① | T1	2 | T2	3 | T3
Key Function
T1	Turns the suction motor on and off at the first speed.
T2	Turns the motor on at the second speed.
T3	Turns the motor on at the third speed.
L	Turns the lighting system on and off at maximum intensity.

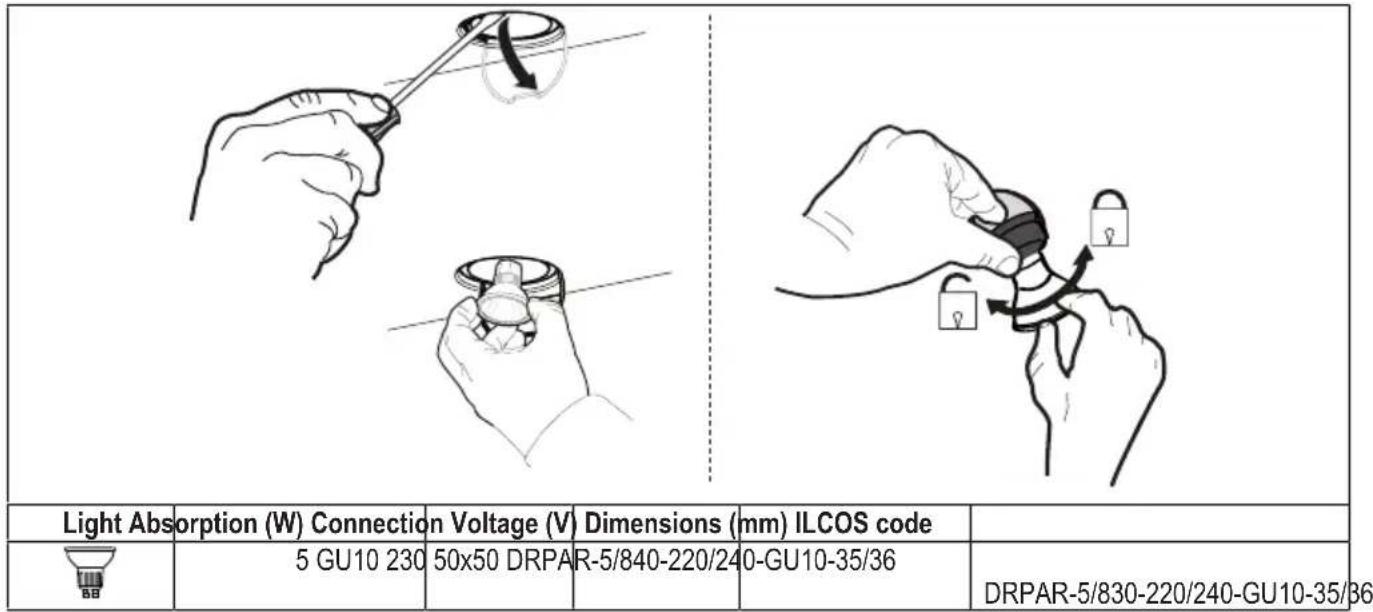

5. LIGHTING
