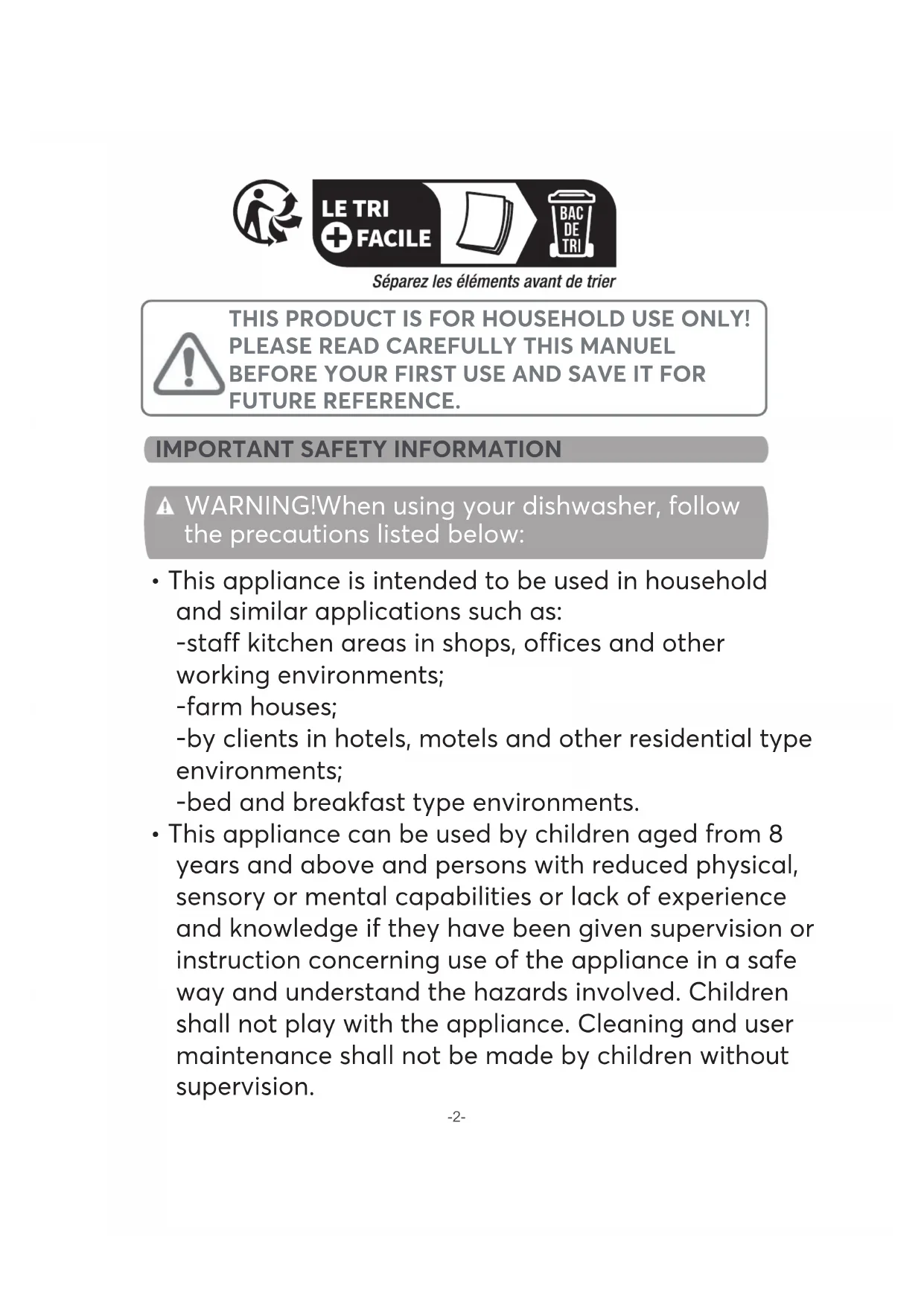

• This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

IMPORTANT SAFETY INFORMATION- 3 -

• This appliance is for indoor use only, for household use only.

• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

• Please unplug before cleaning and maintenance the appliance.

• Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again. ©Earthing Instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of anelectric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.

• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.

• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.- 4 -

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

• Do not modify the plug provided with the appliance; If it does not fit the outlet.

• Have a proper outlet installed by a qualified electrician.

• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.

• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

• When loading items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal; 2)Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

• Check that the detergent powder is empty after completion of the wash cycle.

• Do not wash plastic items unless they are marked dishwasher safe or the equivalent.

• For plastic items not so marked, check the manufacturer’s recommendations.

• Use only detergent and rinse additives designed for an automatic dishwasher.

• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.- 5 -

• Children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• During installation, the power supply must not be excessively or dangerously bent or flattened.

• Do not tamper with controls.

• The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.

• The maximum number of place settings to be washed is 14.

• The maximum permissible inlet water pressure is 1 MPa.

• The minimum permissible inlet water pressure is 0.04MPa.

• The ventilation openings must not be obstructed by a carpet.

• Use only connection assemblies that comply with standard EN 61770 and recommended for that country.

• For cleaning instructions, please read the paragraph at the end of the manual.

• The door should not be left in the open position since this could present a tripping hazard.

• The appliance shall be connected to the water mains using new hose-sets supplied with the appliance, old hose-sets should not be reused.- -- 6 -

• Regarding the instructions for installation and electric connection of the appliance, thanks to refer to the below paragraph of the manual.

• Regarding the instructions for cleaning and maintenance, thanks to refer to the below paragraph of the manual.

• Regarding the information pertaining to the installation, handling, loading, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

• Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.- 7 - Disposal

• For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable.

• Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

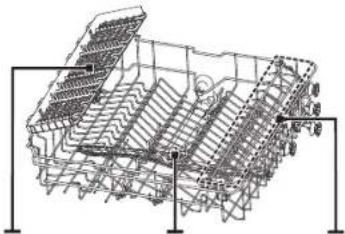

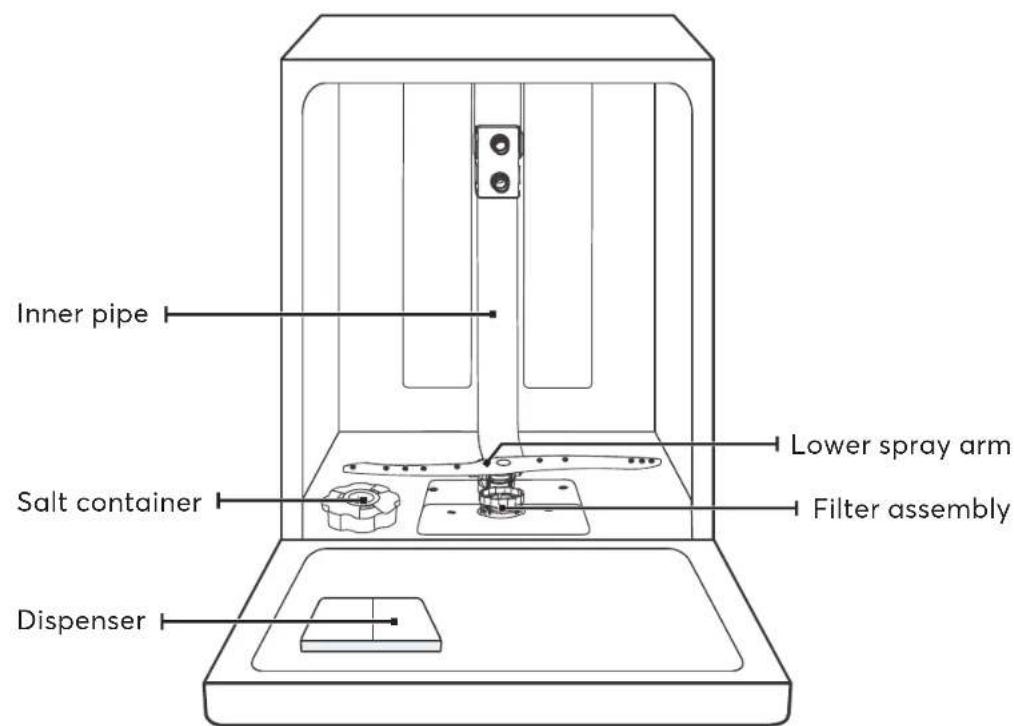

• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.- 8 - PRODUCT OVERVIEW To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Dispenser Salt container Lower spray arm Filter assembly Inner pipe IMPORTANT: NOTE: Pictures are only for reference, different models may be different. Cutlery basket Lower basket Upper basket Cutlery rackUpper spray armCup rack- 9 -

USING YOUR DISHWASHER

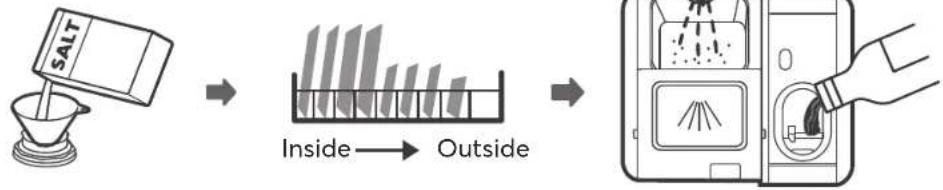

Please read the corresponding content in the instruction manual for detailed operating method. Quick User Guide:

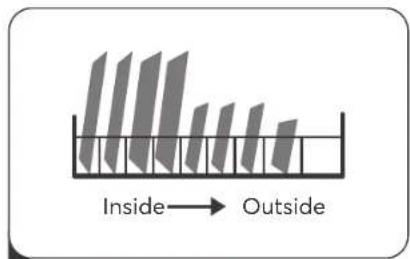

Remove larger residue from dishes.Avoid pre-rinsing.

Fill the dispenser with detergent andrinse aid.Select a suitable program andstart the dishwasher.Inside Outside Install the dishwasher(Please check the section “INSTALLATION INSTRUCTION”)- 10 - Control Panel Operation (Button) Power Delay Half-load Program When you have about or less than 6 place settings dishware to wash, you can choose this function to save energy and water. (It can only be used with All in one, Intensive, ECO, Glass and 90 min.)

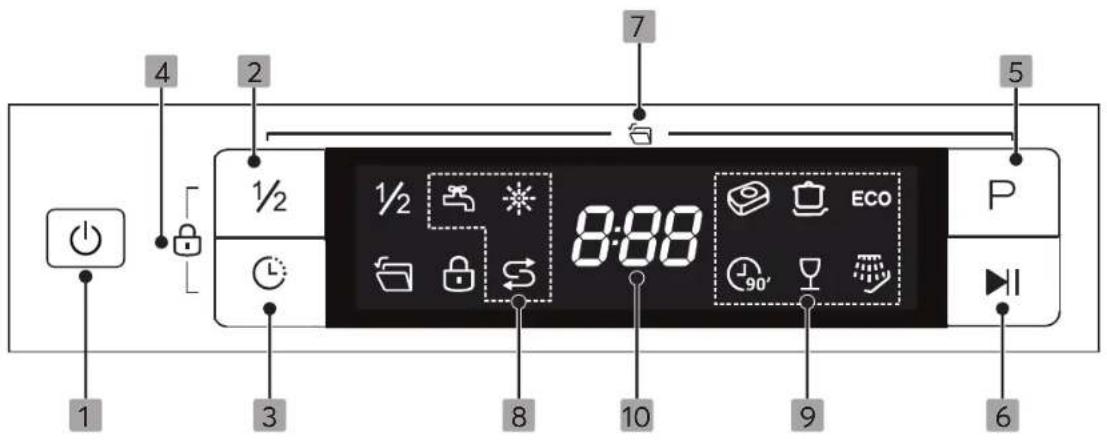

Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hour. When pressing this button, corresponding indicator will be lit.Press this button to turn on your dishwasher. Child lock This option allows you to lock the buttons on the control panel, so children cannot accidently start the dishwasher by pressing the buttons on the panel. Only the Power button remains active.To lock or unlock the buttons on the control panel, press and hold the Delay button + Half load button for 3 seconds simultaneously.Press this button to select the appropriate washing program,the program indicator will be lit.

Display To show the remaining program time and delay time, error code etc. Program indicator

Water Faucet If the “ ” indicator is lit, it means the water faucet closed. Rinse Aid If the “ ” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. Salt If the “ ” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. Start / Pause

Screen Press the button to start the selected washing program or pause the working program. All in one For normally soiled loads, use multi functional detergent. Intensive For the heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food. ECO This is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware. 90 Min For normally soiled loads that need quick wash. Glass For lightly soiled crockery and glass. Soak To rinse dishes that you plan to wash later that day.

7 Auto-open After washing, the door will open automatically to achieve better drying effect. ( It can be only used with All in one, Intensive, ECO, 90 min,Glass). Press and hold the "1/2" and "P" buttons for 3seconds to enable or cancel this function. When the icon lights up, the function of Auto open is selected.-12 - Water Softener Before using your dishwasher : Adjusting salt consumption The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption. Please follow the steps below for adjustment in salt consumption.

1. Close the door, switch on the appliance;

2. Within 60 seconds after the appliance was switched on press the Program button

for more than 5 seconds to enter the water softener setting mode.

3. Press the Program button again to select the proper set according to your local

environment, the setting will change in the following sequence: H1->H2->H3->H4->H5->H6;

1. Set the water softener

2. Loading the salt Into the softener

Please check the section “Water Softener”, If you need to set the water softener.- 13- dH=1.25 Clarke=1.78 fH=0.178mmol/l

The setting: H3factory

No regenerationWater softnerlevel Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extents by 4 minutes.

Regeneration occurs every X program sequence

Please check the section "Loading The Salt Into The Softener”, If your dishwasher lacks salt. NOTE: If your model does not have any water softener, you may skip this section. Water Softener The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.- 14- Loading The Salt Into The Softener NOTE: If your model does not have any water softener, you may skip this section. Always use salt intended for dishwasher use. The salt container is located beneath the lower basket and should be filled as explained in the following: Please follow the steps below for adding dishwasher salt:

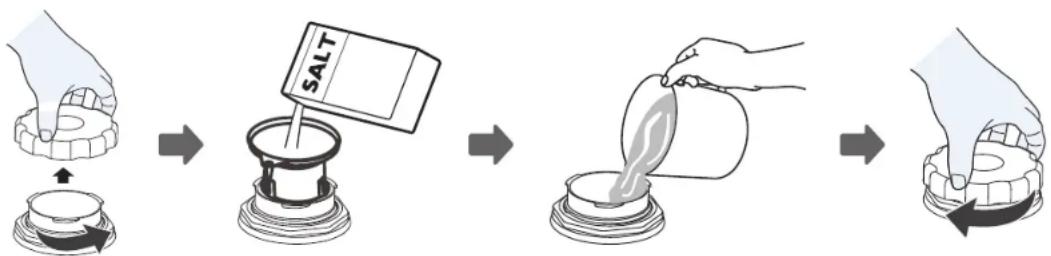

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg

3. Fill the salt container to its maximum limit with water, It is normal for a small

amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will turn off after the salt container has been filled with

6. Immediately after filling the salt into the salt container, a washing program

should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

• Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.

• Only fill with salt before running a cycle. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. WARNING-15- Preparing And Loading Dishes NOTE:

• The salt container must only be refilled when the salt warning light ( ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

• If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

• If salt has spilled, run a soak or quick program to remove it. Consider buying utensils which are identified as dishwasher-proof.

• For particular items, select a program with the lowest possible temperature.

• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable

• Cutlery with wooden, horn china or mother-of-pearl handles

• Plastic items that are not heat resistant

• Older cutlery with glued parts that are not temperature resistant

• Bonded cutlery items or dishes

• Steel items subject to rusting

• Items made from synthetic fibers Are of limited suitability

• Some types of glasses can become dull after a large number of washes

• Silver and aluminum parts have a tendency to discolour during washing

• Glazed patterns may fade if machine washed frequently-16 - Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in the following way:

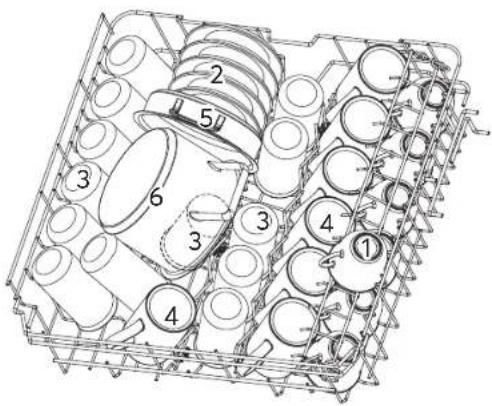

• Items such as cups, glasses, pots/pans, etc. must face downwards.

• Curved items, or ones with recesses, should be loaded aslant so that water can run off.

• All utensils are stacked securely and cannot tip over.

• All utensils are placed in the way that the spray arms can rotate freely during washing.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.

• Dishes and items of cutlery must not lie inside one another, or cover each other.

• To avoid damage, glasses should not touch one another.

• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.

• Long bladed knives stored in an upright position are a potential hazard!

• Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended. NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket. Removing the dishes To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket. WARNING- 17- Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water. Loading the lower basket We suggest that you place large and difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it. Loading the cutlery basket Cutlery should be placed in the cutlery basket separate from each other in the appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning performance Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down! For the best washing effect, please load the baskets refer to standard loading options on section “Loading the baskets”. WARNING-18 -

Loading the dishwasher to its full capacity will contribute to energy and water savings. 1.Upper basket: 2.Lower basket:

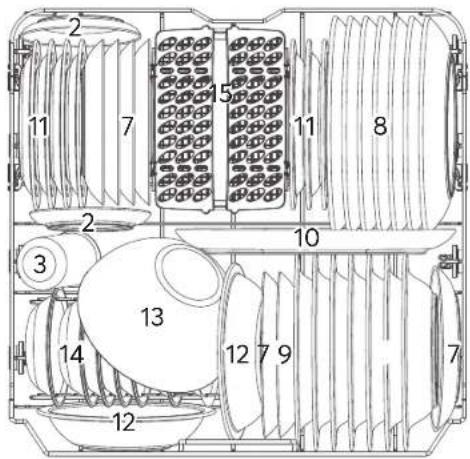

Cups Mugs Oven potSmall potSaucersGlasses Item Number

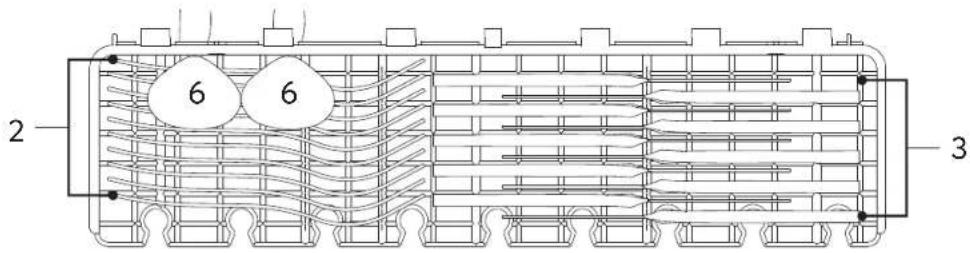

15NOTE: Please place the light flat wares on the shelf. The maximum loading weight is 1.5kg. - 19- 3.Cutlery rack: 4.Cutlery basket:

Information for comparability tests in accordance with EN60436: Capacity: 14 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: Max Softener setting: H3

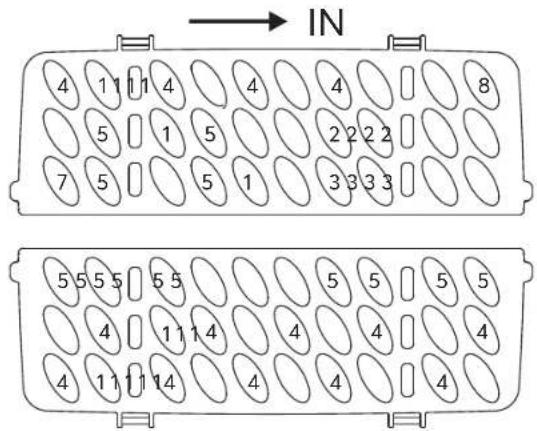

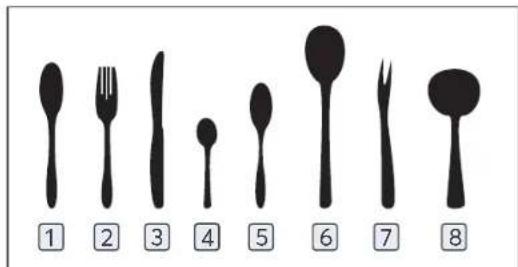

Soup spoonsForksKnivesTea spoonsDessert spoonsServing spoonsServing forkGravy ladle Item Number- 20- Basket Loading Tips Adjusting the upper basket Type 1: The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. To adjust the height of the upper rack, follow these steps:

Pull out the upper basket.

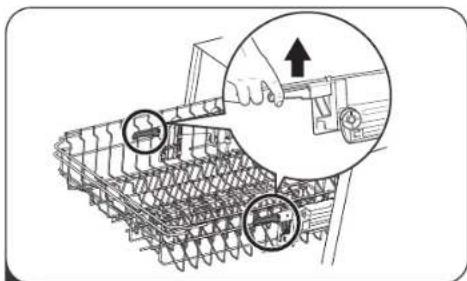

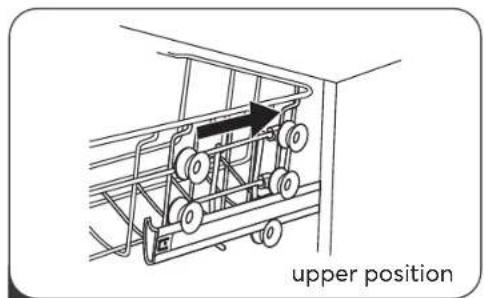

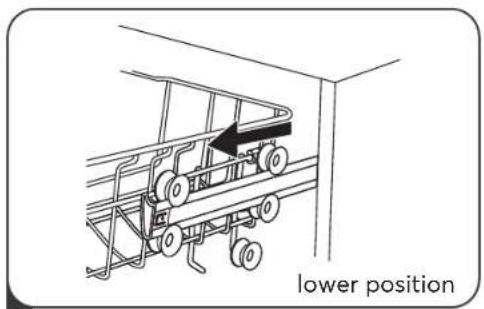

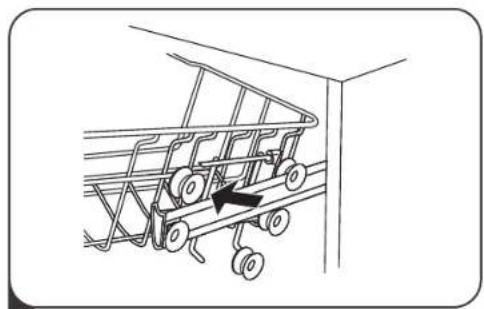

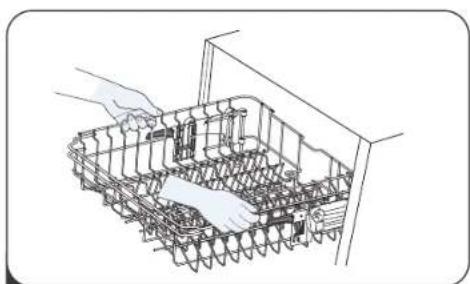

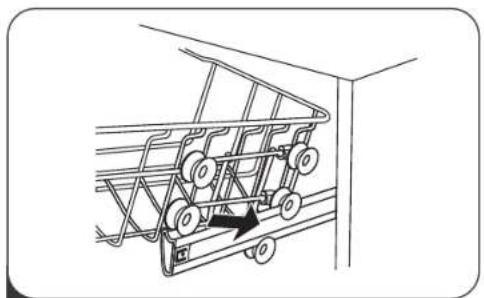

To raise the upper basket, just lift the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle. To lower the upper basket, lift the adjust handles on each side to release the basket and lower it to the lower position.

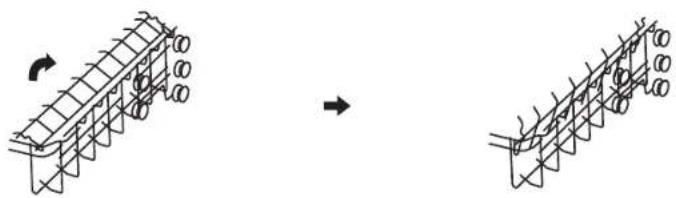

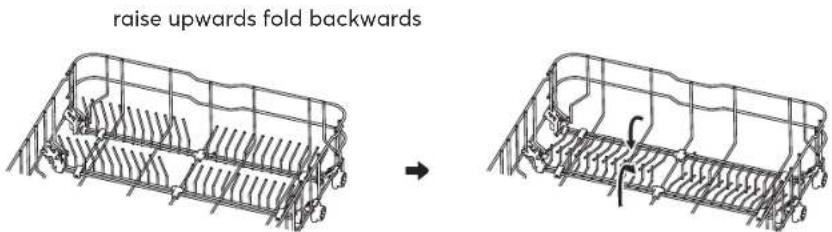

Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. raise upwards fold backwardsOnly use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. When to refill the rinse aid dispenser Unless the rinse-aid warning light ( ) on the control panel is on, you can always estimate the amount from the color of the optical level indicator located next to the cap. When the rinse-aid container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level be less than 1/4 full. As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Function of detergent The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to run off the dishes. Your dishwasher is designed to use liquid rinse aids. Full 3/4 full 1 /2 full 1 /4 full Empty Proper Use of Detergent Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry. Do not fill detergent into the dispenser until you are ready to start the dishwasher. Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children. WARNING WARNING- 23- Filling The Rinse Aid Reservoir Adjusting the rinse aid reservoir To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps. 1.Close the door, switch on the appliance. 2.Within 60 seconds after the appliance was switched on press the program button for more than 5 seconds, and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency. 3.Press the Program button again to select the proper set according to your using habits, the setting will change in the following sequence: D1->D2->D3->D4->D5->D1. The higher the number, the more rinse aid the dishwasher uses. 4.Without operation in 5 seconds or press the Power button to complete the setup and exit the setting mode.

CClose the cap after all.

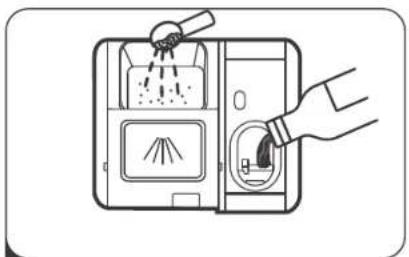

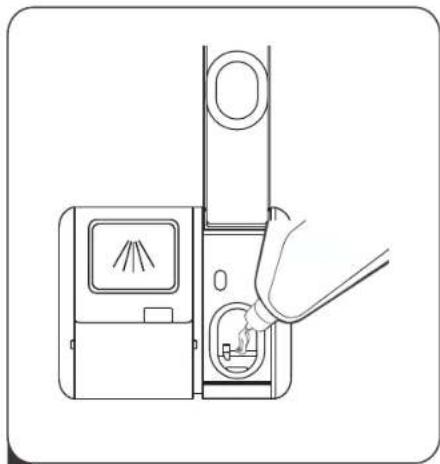

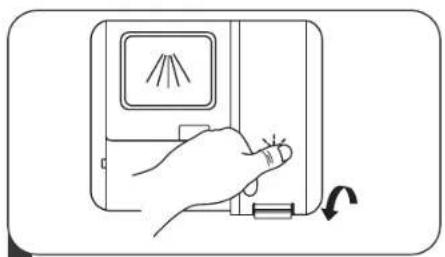

Remove the rinse reservoir cap by lifting up the handle . Pour the rinse aid into the dispenser, being careful not to overfill.- 24- Filling The Detergent Dispenser

Please choose an open way according to the actual situation.

1. Open the cap by sliding the release

2. Open the cap by pressing down the

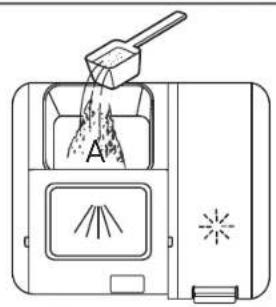

release catch. Add detergent into the larger cavity (A) for main wash. For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door. The additional detergent will activate during the pre-wash phase.

Close the flap by sliding it to the front and then pressing it down. Sliding it to the rightPress down

NOTE: Please observe the manufacturer's recommendations on the detergent packaging. A- 25-

MAINTENANCE AND CLEANING

The door and the door sealClean the door seals regularly with a soft damp cloth to remove food deposits.When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.The control panelIf cleaning is required, the control panel should be wiped with a soft damp cloth only. External Care Filtering systemThe filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign objects such as toothpicks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. Follow the steps below to clean the filter. Internal Care

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface. NOTE Pictures are only for reference, different models of the filtering system and spray arms may be different. WARNING• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.

• Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

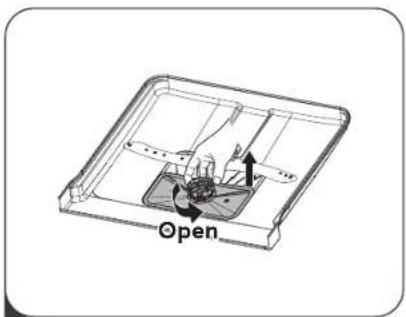

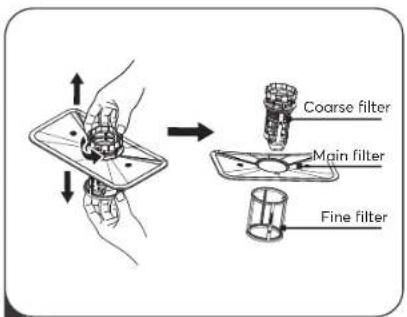

Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher. The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

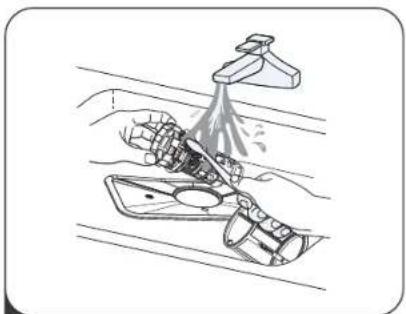

Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow. Main filterCoarse filterFine filter Open WARNING- 27- It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: Spray arms Wash the arms in soapy and warm water and use a soft brush to clean the jets.

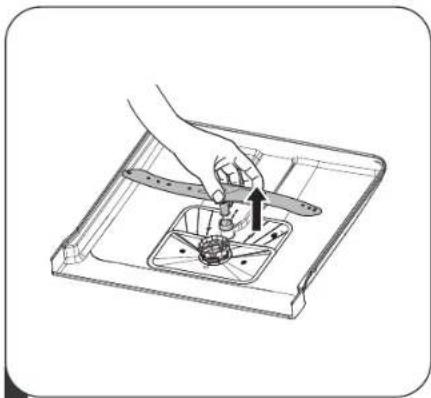

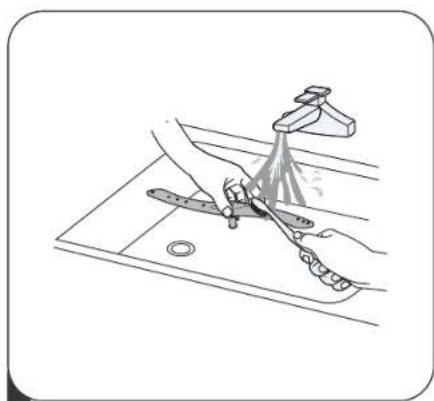

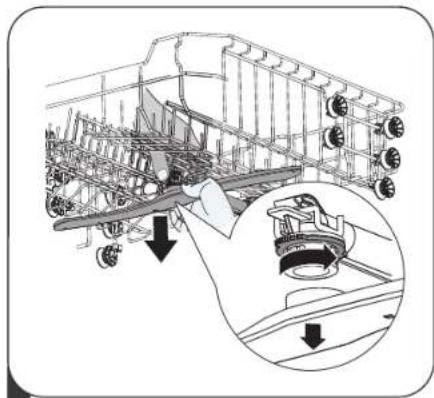

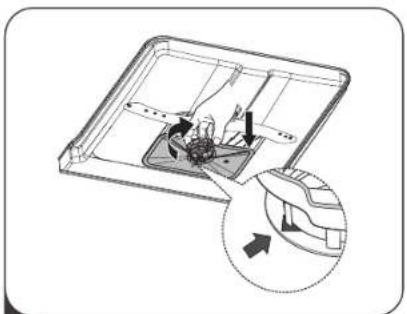

To remove the lower spray arm, pull put the spray arm upward.

To remove the upper spray arm, hold the nut in the center still and rotate the spray arm counterclockwise to remove it.- 28- Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the

2. Turn off the water supply and disconnect the water inlet

pipe from the water valve.

3. Drain the water from the inlet pipe and water valve. (Use

a pan to gather the water)

4. Reconnect the water inlet pipe to the water valve.

5. Remove the filter at the bottom of the tub and use a

sponge to soak up water in the sump. After every wash After every wash, turn off the water supply to the appliance and leave the door slightly open for a while so that moisture and odors are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. No solvents or abrasive cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.- 29- Caring For The Dishwasher When not in use for a long time It is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance. Moving the appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back. Seals One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.About Power Connection Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. For personal safety:

• Do not use an extension cord or an adapter pl ug with this appliance.

• Do not, under any circumstances, cut or remove the earthing connection from the power cord. Electrical requirements

ease look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Electrical connection Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptor or the like as they could cause overheating and burns. Ensure that proper earthing exists before use The installation of the pipes and electrical equipments should be done by professionals.

INSTALLATION INSTRUCTION Attention WARNING WARNINGCold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance. About the safety supply hose The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water. How to connect the safety supply hose 1.Pull the safety supply hoses out from storage compartment located at rear of dishwasher. 2.Tighten the screws of the safety supply hose to the faucet with thread 3/4inch. 3.Turn the water fully on before starting the dishwasher. How to disconnect the safety supply hose 1.Turn off the water. 2.Unscrew the safety supply hose from the faucet.

Water Supply and Drain A hose that attaches to a tap can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged. safety supply hose ordinary supply hose WARNINGInsert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000 mm. The free end of the hose must not be immersed in water to avoid the back flow of it. How to drain excess water from hoses If the connection to the drain pipe is positioned higher than 1000 mm, excess water may remain in the drain hose. It will be necessary to drain excess water from the hose into a bowl or suitable container that is held outside and lower than the sink. Water outlet Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed. Extension hose If you need a drain hose extension, make sure to use a similar drain hose. It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher could be reduced. Syphon connection The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dishwasher.

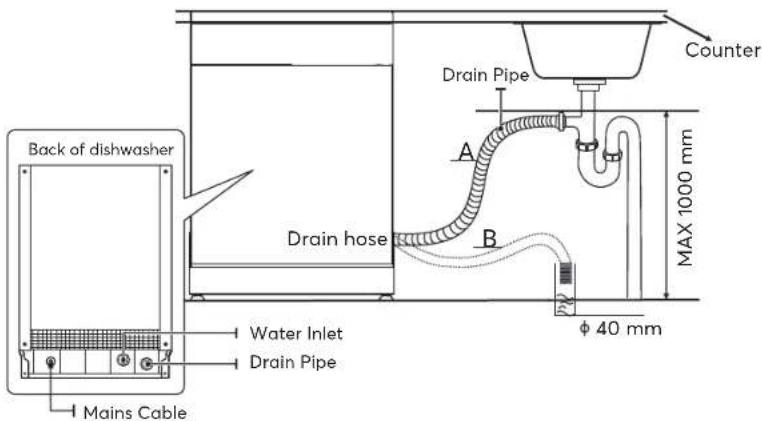

Connection Of Drain Hoses Please securely fix the drain hose in either position A or position B

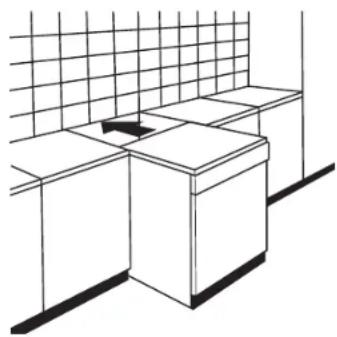

MAX 1000 mm CounterDrain hoseBack of dishwasherWater InletDrain PipeMains Cable40 mmDrain Pipe- 33- After removing the work top, the screws must be screwed again under the rear edge of the top (b). Attention Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Positioning The Appliance Levelling the appliance Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°. Fitting between existing cabinets The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof. Underneath existing work top (When fitting beneath a work top) In most modern fitted kitchens, there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a). Positioning The Appliance Positioning The ApplianceFree Standing Installation

Pre-washWash(50℃)RinseRinse(65℃)Drying(1 or 2 tabs) 4/18g1.1521.000 : The ECO program is suitable to clean normally soiled tableware, that for this use, it is the most efficient program in terms of its combined energy and water consumption, and it is used to assess compliance with the EU ecodesign legislation. NOTE: (*EN60436) ECO The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs.

Consumption values and program duration are only indicative except indicates that the program uses rinse aid in the last rinse.( ) ProgramRunningTime(min)Energy( )kWhWater (L) DescriptionOf CycleRinse Aid DetergentPre/Main Wash 90 mins (*EN 60436) Intensive Glass Soak All in one

5 2(40℃)(1 or 2 tabs)Saving Energy Starting A program Changing The Program Mid-cycle

1. Manual pre-rinsing of tableware items leads to increased water and energy

consumption and is not recommended.

2. Washing tableware in a household dishwasher usually consumes less energy

and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.

3. Loading the household dishwasher up to the capacity indicated by the

manufacturer will contribute to energy and water savings and information on correct loading of tableware and main consequences of incorrect loading.

1. Draw out the lower and upper basket, load the dishes and push them back.

It is commended to load the lower basket first, then the upper one.

2. Pour in the detergent.

3. Insert the plug into the socket. The power supply refer to last page "Product

fiche". Make sure that the water supply is turned on to full pressure.

4. Close the door, press the Power button.

5. Choose a program, the response light will turn on. Then press the Start/Pause

button, the dishwasher will start its cycle. A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to pause the washing.

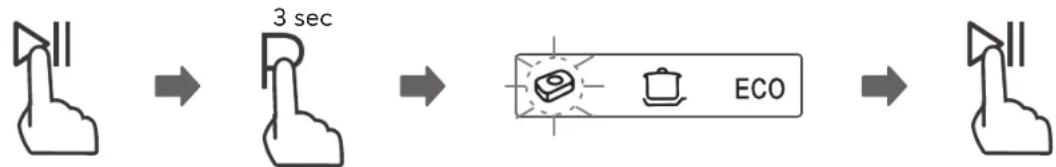

2. Press Program button more than three seconds the machine will be in

program selection mode.

3. You can change the program to the desired cycle setting.

3 secIt is dangerous to open the door mid-cycle, as hot steam may scald you. Forget To Add A Dish?

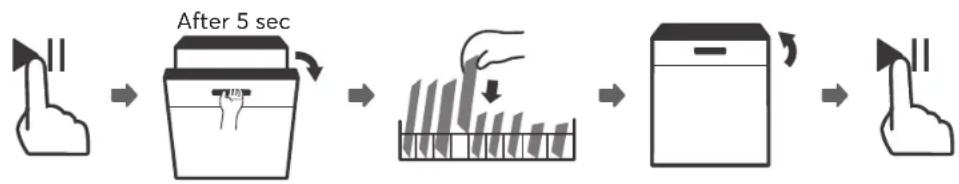

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Pause button to pause the washing.

2. Wait 5 seconds then open the door.

3. Add the forgotten dishes.

5. Press the Start/ Pause button, after 10 seconds, the dishwasher will start.

After 5 sec WARNING- 37- TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't start Fuse blown, or the circuit break tripped. Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher. Power supply is not turned on. Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket. Check that the water supply is connected properly and the water is turned on. Door of dishwasher not properly closed. Make sure to close the door properly and latch it. Water not pumped form dishwasher Twisted or trapped drain hose. Filter clogged. Kitchen sink clogged. Check the drain hose. Check .the filter system Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers. Foam in the tub Wrong detergent. Water pressure is low Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary. liter- 38- Spilled .rinse aid Always wipe up spills immediately. rinse aid Stained tub interior Detergent with colourant may have been used. Make sure that the detergent has no colourant. White film on inside surface Hard water minerals. To clean the interior, use with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds. the damp soft cloth There are rust stains on cutlery The affected items are not corrosion resistant. A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle. Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt. The lid of the softer is loose. Check the softener lid is secure. Problem Possible Causes What To Do Avoid washing items that are not corrosion resistant in the dishwasher. Knocking noise in the dishwasher A spray arm is knocking against an item in a basket Interrupt the program and rearrange the items which are obstructing the spray arm. Rattling noise in the dishwasher Items of crockery are loose in the dishwasher. Interrupt the program and rearrange the items of crockery. Knocking noise in the water pipes This may be caused by on-site installation or the cross-section of the piping. This has no influence on the dishwasher function. If in doubt, contact a qualified plumber. The dishes are not clean The dishes were not loaded correctly. See Section “Preparing And Loading Dishes”. The program was not powerful enough. Select a more intensive program.- 39- Not enough detergent was dispensed. Use more detergent, or change your detergent. Items are blocking the movement of the spray arms. Rearrange the items so that the spray can rotate freely. The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked. Clean and/or fit the filter correctly. Clean the spray arm jets. Cloudiness on glassware. Combination of soft water and too much detergent. Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean. Problem Possible Causes What To Do The dishes are not clean. White spots appear on dishes and glasses. Check water softener settings or fill status of salt container. Black or grey marks on dishes Aluminium utensils have rubbed against dishes Use a mild abrasive cleaner to eliminate those marks. Hard water area can cause limescale deposits. Improper loading Use gloves if detergent residue can be found on dishes to avoid skin irritations. Dishes are removed too soon Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket. Detergent left in dispenser Dishes block detergent dispenser Re-loading the dishes properly. The dishes aren't dryingSelf-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty.

• Seven years after placing the last unit of the model on the market: Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software.

• Ten years after placing the last unit of the model on the market: Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids. NOTE Reviewing the section on Troubleshooting Tips will help you solve some common problems by yourself.If you cannot solve the problems by yourself, please ask for help from a professional technician.The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor. Availability Of Spare Parts

Problem Wrong program has been selected.With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time.Use of cutlery with a low-quality coating.Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher. Possible Causes What To Do The dishes aren't drying WARNING- 41-

• If overflow occurs, turn off the main water supply before calling a service.

• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

• If there is an error code that cannot be solved, please request professional assistance. If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes. ERROR CODES MeaningsLonger inlet time. Overflow. Possible CausesSome element of dishwasher leaks .Faucets is not opened, or water intake is restricted,or water pressure is too low. Codes

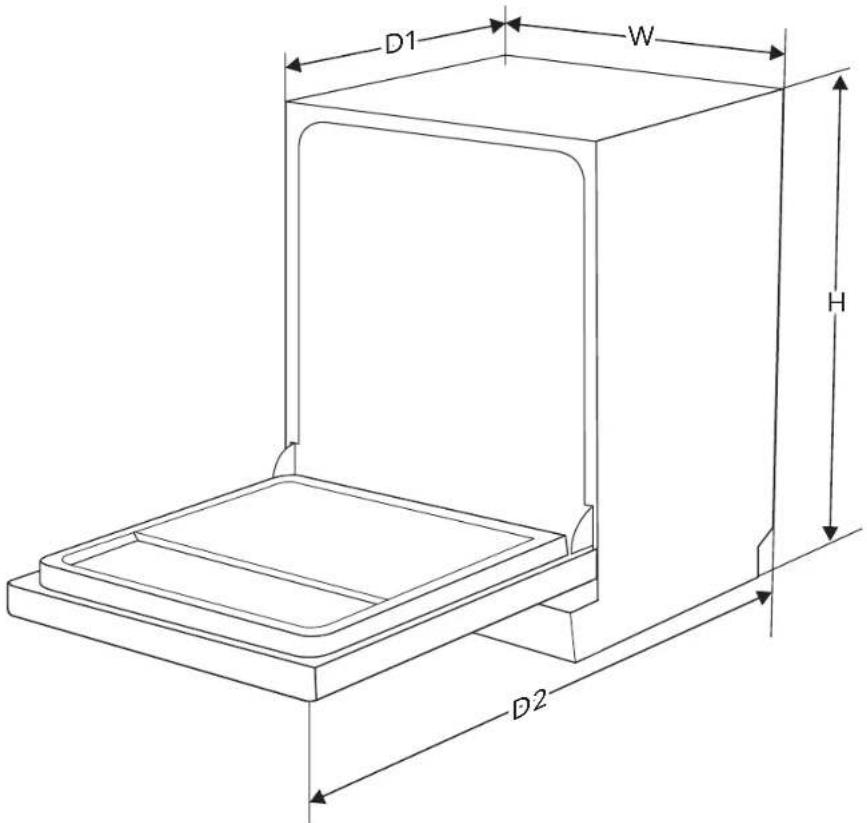

Not reaching required temperature. Malfunction of heating element. Open circuit or break wiring for the communication Failure of communication between main with display .circuit boardcircuit board WARNING When the power cord is connected, but the dishwasher is not turned on, press and hold the Delay button for 5 seconds, the dishwasher display will show the usage count. for 5 Sec. Example: 632:Show “000” for two seconds, then show “632” for two seconds, at last it will be off. 9080:Show “009” for two seconds, then show “080” for two seconds, at last it will be off. 2 Sec. for 632 2 Sec. for 9080 USAGE COUNTER + +- 42- TECHNICAL INFORMATION 845mm 598mm 610mm (with the door closed) 1175mm (with the door opened 90° )

Cleaning performance index (a) 1,125 Drying performance index (a) 1,065 Energy consumption in kWh [per cycle], based on the eco programme using cold water fill. Actual en- ergy consumption will depend on how the appliance is used. 0,849 Water consumption in litres [per cycle], based on the eco pro- gramme. Actual water consumption will de- pend on how the ap- pliance is used and on the hardness of the water. 11,0 Programme duration (a) (h:min) 3:18 Type Free-standing Airborne acoustical noise emissions (a) (dB(A) re 1 pW)

Airborne acoustical noise emission class (a)

Minimum duration of the guarantee offered by the supplier: 24 months Additional information: Weblink to the supplier’s website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 is found: www.but.fr (a) for the eco programme.CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection. Note: We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet. If you need access to the list of spare parts and technical documentation for your product, please go to https://pieces-detachees- butelectro.sfg.fr There you will be able to buy spare parts for repairing your product or having it repaired. Duration of availability of spare parts: 10 years. In accordance with Article L.217 of the Consumer Code, your porduct has 2 year legal guarantee of conformity. To contact our After-Sales Service before going to BUT store.

Monday to Friday from 09:00 to 19:00, and Saturday 09:00 to 18:00 Price of a local callBUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville France
