Type	Food processor
Brand	Bosch
Model	MUM5XC4E
Power	1000 W
Bowl capacity	3.9 L
Weight	8 kg
Power supply	220-240 V, 50-60 Hz
Main functions	Kneading, whipping, mixing, integrated scale, timer
Bowl material	Stainless steel
Delivery contents	Mixing bowl, lid with filling opening, Pro Flexi whisk, professional whisk, dough hook, protective cover
Safety	Anti-start, anti-restart, overload protection
Cleaning and maintenance	Removable parts dishwasher-safe, base wipe with damp cloth
Optional accessories	Meat grinder, grater, citrus press, blender bowl, multi-grinder kit
Speeds	7 speeds + pulse (M)
Scale	Range -990 g to 5000 g, precision 5 g
Timer	0 to 59 min 59 s
After-sales service	Spare parts available, warranty according to conditions

Frequently Asked Questions - MUM5XC4E BOSCH

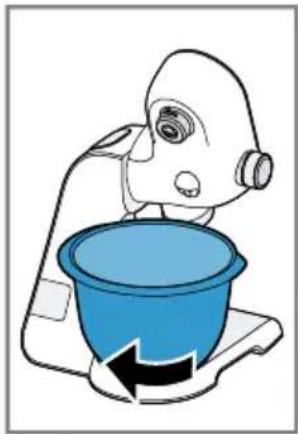

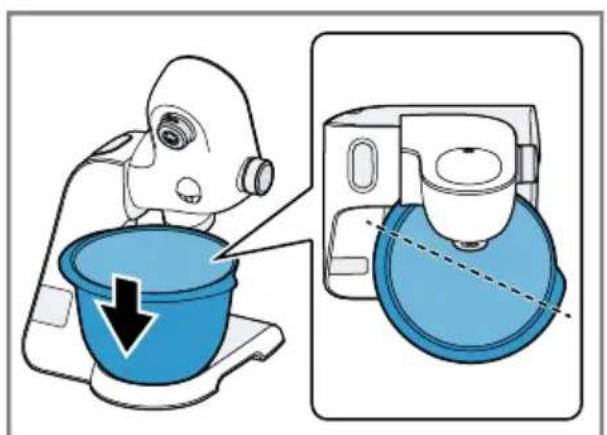

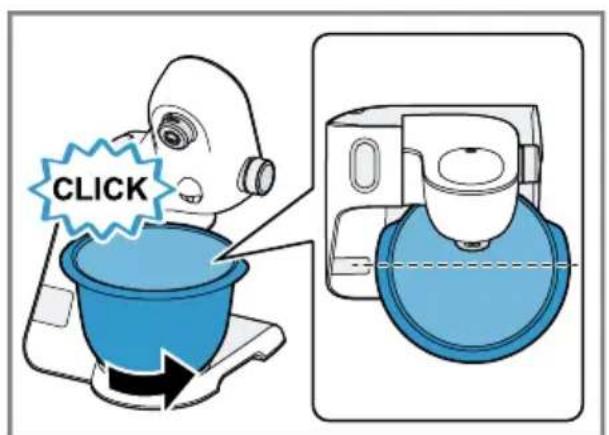

How to install the mixing bowl?

Place the bowl on the appliance aligning the recesses, then turn it counterclockwise until it locks into place. Refer to chapter 7.3 of the manual.

How to use the integrated scale?

Make sure the bowl is in place and the switch is on O/off. Press the scale button, wait for calibration ("----"), then add ingredients. The display shows the weight. Use the reset button to zero. See chapter 8.

What accessories are compatible?

You can use original Bosch accessories such as the meat grinder, grater, citrus press, blender bowl or the multigrinder kit. Refer to chapter 11 or the website www.bosch-home.com.

What to do if the appliance does not start?

Check that the plug is connected, the fuse has not blown, and the rotary switch is set correctly (O/off position before starting). If the problem persists, refer to chapter 13 (troubleshooting).

How to clean the different parts?

Wash removable parts (bowl, lid, whisks) in the dishwasher or by hand with soapy water. Never immerse the motor base. Clean the control panel with a damp cloth. Refer to chapter 10.

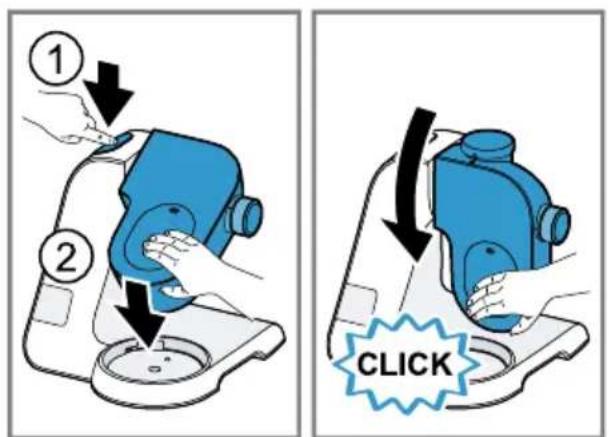

The swivel arm does not close, what to do?

Ensure the drive is in rest position. If a safety system has stopped the appliance, set the switch to O/off then briefly to 1 before setting it back to O/off. See chapters 5.11 and 13.

The scale does not display weight correctly.

Check that the appliance is on a flat and stable surface, free of vibrations. Make sure there is no object under the appliance. The quantity must be at least 5 g. If the screen shows ERROR, restart the scale (chapter 13).

Can I use the food processor for heavy doughs?

Yes, the dough hook is designed for leavened doughs, bread dough, pizza dough. Do not exceed the maximum recommended quantities (see recipe example, chapter 12). If the motor stops, reduce the quantity and let it cool down.

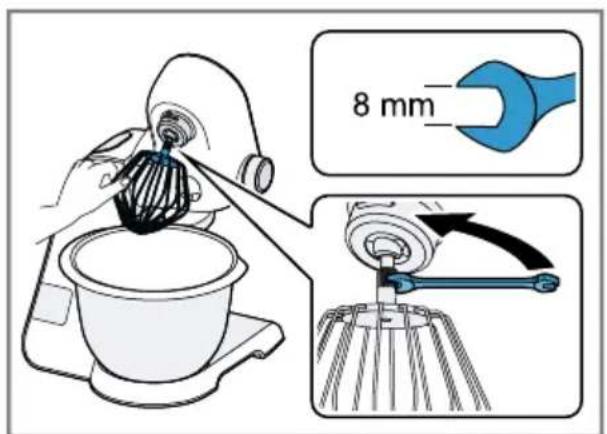

How to adjust the professional whisk?

If the whisk touches the bowl, loosen the lock nut with a wrench, turn the tool to adjust the clearance to 3 mm, then retighten. Refer to chapter 5.9.

What is the warranty and how to contact after-sales service?

The warranty complies with the conditions of the country of purchase (free within the conditions). For after-sales service, have the product number (E-Nr) and the manufacturing number (FD) from the rating plate ready. The contact details are in the manual or on www.bosch-home.com.

USER MANUAL MUM5XC4E BOSCH

3 250 g 0 1 lb g m:s 4 5 6

3

8 mm

4

Illustration of a hand holding a wire mesh head with arrows indicating rotation, showing two views of the mesh structure (no text or symbols)

5

① ② CLICK

6

① ② CLICK

7

Diagram illustrating a mouse feeding a blue bowl while using a camera to adjust the lid, with a downward arrow indicating the drop.

8

CLICK

9

Illustration of a robotic arm holding a blue bowl with a black arrow indicating rotation (no text or symbols)

Illustration of a kitchen mixer blending blue liquid with an upward arrow (no text or symbols)

CLICK

10

CLICK a

Illustration of a kitchen mixer blending liquid into a bowl, showing the process with arrows indicating the mixing step (no text or symbols present)

12

Diagram showing a blue gas stove being heated by hands, with numbered instructions indicating process steps.

Illustration of a hand washing a blue cloth over a bowl (no text or symbols)

Diagram illustrating a kitchen appliance cooling process with labeled steps 1 and 2 showing step 1 and step 2.

14

CLICK

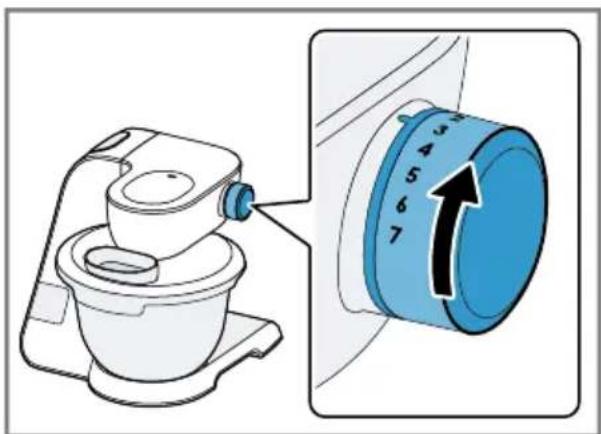

Diagram showing a kitchen mixer and its blue rotary dial with numbered labels from 3 to 7

16

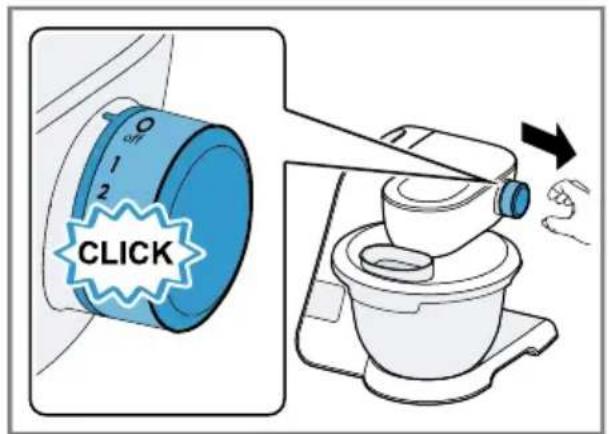

Diagram showing a kitchen mixer and its rotary dial with label 'O off'

18

Line drawing of a kitchen mixer with blue handle and bowl (no text or symbols)

The image is too blurry to recognize any text content.

M O off 1 2 3 A- 1 2 3 A- 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3

20

CLICK

The image is too blurry to recognize any text content.

CLICK

22

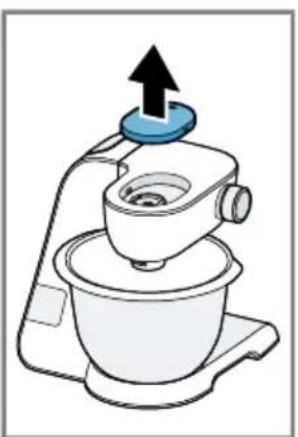

Illustration of a kitchen mixer with an upward arrow indicating the component (no text or symbols present)

Illustration of a kitchen mixer with an upward arrow indicating the component (no text or symbols present)

Diagram illustrating a mechanical assembly process with blue components and directional arrows indicating motion or force.

The image is too blurry to recognize any text content.

CLICK

24

CLICK

The image is too blurry to recognize any text content.

26

				00071	00000	0000
			100-600 ml		7	1-6 min
	00040		1-8 x 0		7	4-6 min
					1	30 s
					5	4-6 min
		00000	[T2XX]		1	30 s
					3	3-6 min
		00000			1	30 s
					3	5-6 min
	00010	00000			1	30 s
					3	6-7 min
		00000			1	30 s
					3	4-5 min

QR code image containing encoded data, no visible human-readable text

Inhaltsverzeichnis

1 Sicherheit 8

Futher information and explanations are available online:

QR code image containing encoded data, no visible human-readable text

Table of contents

1 Safety.... 29

1.1 General information...... 29
1.2 Intended use.... 29
1.3 Restriction on user group...... 30
1.4 Safety instructions 30

2 Avoiding material damage...... 33

3 Environmental protection and saving energy.... 33

3.1 Disposing of packaging ..... 33

4 Unpacking and checking...... 33

4.1 Unpacking the appliance and parts 33
4.2 Contents of package...... 33
4.3 Setting up appliance 34

5 Familiarising yourself with your appliance.... 34

5.1 Appliance 34
5.2 Rotary switch.... 34
5.3 Illuminated ring.... 34
5.4 Control panel.... 35
5.5 Function buttons.... 35
5.6 Display.... 35
5.7 Swivel arm 35
5.8 Drives 36
5.9 Tools.... 36
5.10 Symbols.... 37
5.11 Parked position 37
5.12 Safety systems 37

6 Before using for the first time ... 38

6.1 Preparing the appliance...... 38

7 Basic operation 38

7.1 Cable length 38

7.2 Moving the swivel arm 38
7.3 Inserting bowl 39
7.4 Removing bowl...... 39

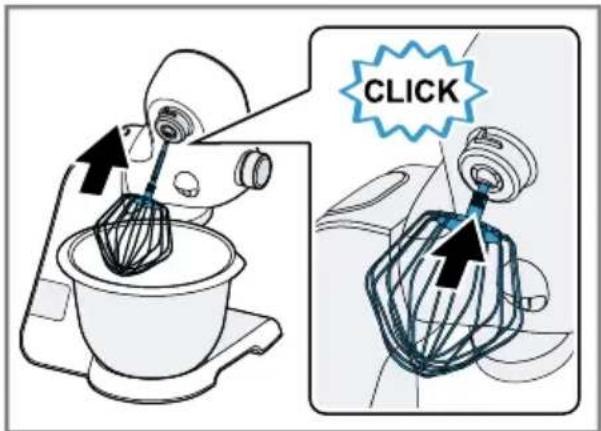

7.5 Inserting tools.... 39
7.6 Removing tools 39
7.7 Attaching bowl lid.... 39
7.8 Removing bowl lid.... 39
7.9 Processing.... 39

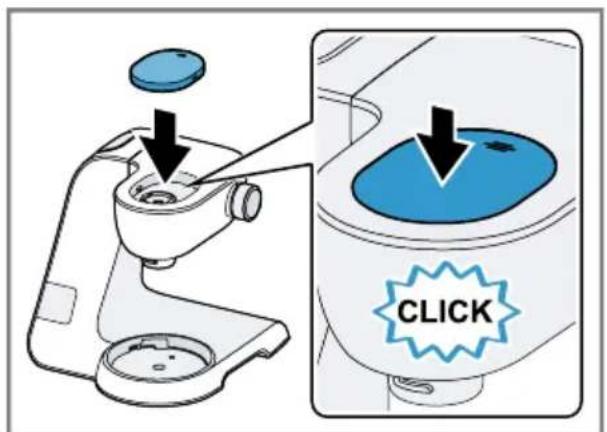

7.10 Drive cover 41

8 Scales 41

8.1 Display values of scales...... 41
8.2 Weighing ingredients...... 41
8.3 Changing the display units of the scales.... 42

9 Timer.... 42

9.1 Display values of timer...... 42
9.2 Reading off and resetting the processing time.... 42

10 Cleaning and servicing...... 42

10.1 Cleaning products...... 42
10.2 Overview of cleaning...... 43

11 Special accessories...... 43

12 Application examples 43

12.1 Sample recipe 43

13 Troubleshooting...... 44

14 Disposal.... 47

14.1 Disposing of old appliance .... 47

15 Customer Service.... 47

15.1 Product number (E-Nr.) and production number (FD)...... 47

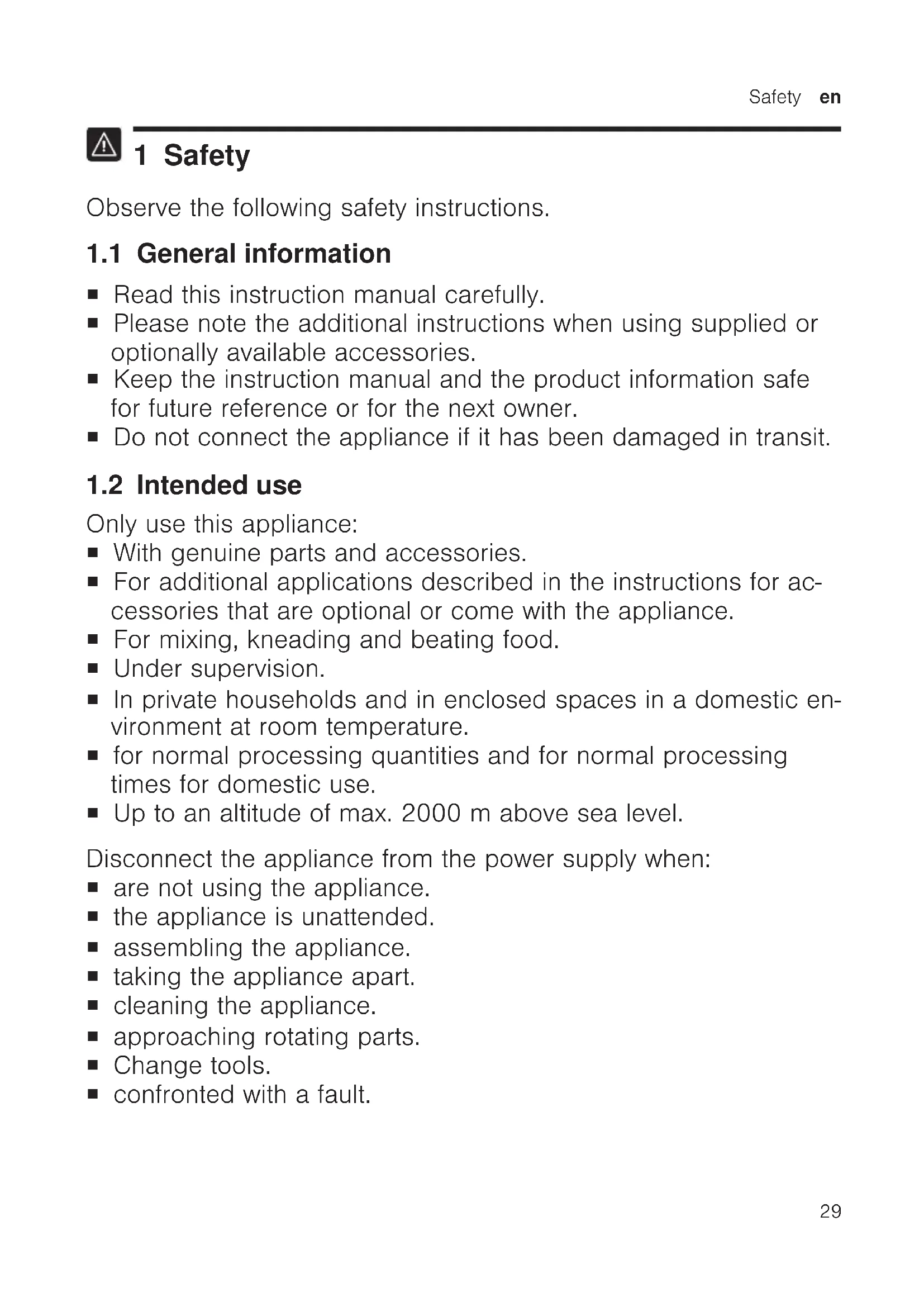

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
  ■ Please note the additional instructions when using supplied or optionally available accessories.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ With genuine parts and accessories.
■ For additional applications described in the instructions for accessories that are optional or come with the appliance.
■ For mixing, kneading and beating food.
■ Under supervision.
■ In private households and in enclosed spaces in a domestic environment at room temperature.
■ for normal processing quantities and for normal processing times for domestic use.
■ Up to an altitude of max. 2000 m above sea level.

Disconnect the appliance from the power supply when:

■ are not using the appliance.
■ the appliance is unattended.
■ assembling the appliance.
■ taking the appliance apart.
■ cleaning the appliance.
■ approaching rotating parts.
■ Change tools.
■ confronted with a fault.

1.3 Restriction on user group

This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children.

The appliance must not be used by children. Keep children away from the appliance and power cable.

1.4 Safety instructions

Observe the safety instructions.

⚠ WARNING – Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

▶ Call customer services. → Page 47

Incorrect installation is dangerous.

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

Incorrect repairs are dangerous.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

- If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
- Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.

WARNING – Risk of fire!

Intense heat may cause the appliance and other parts to catch fire.

▶ Never place the appliance on or near hot surfaces.

WARNING – Risk of injury!

Rotating drives, tools or accessory parts may cause injury.

• Keep hands, hair, clothing and utensils away from rotating parts.
  ▶ Only attach and remove tools and accessories once the drive has stopped and you have unplugged the appliance.
  Before changing tools or cleaning the appliance, switch off and disconnect it from the mains.
• Only use the tools when the bowl is inserted, the lid is fitted and the drive covers are in place.
  ▶ Never open the swivel arm during processing.
  Operating the appliance with damaged parts may result in injury.
• Parts which show cracks or other damage or do not fit correctly must be replaced with genuine spare parts.

WARNING – Risk of crushing!

Your hands and fingers could get caught.

- Do not reach into the bowl when lowering the swivel arm.

en Safety

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of harm to health!

Soiling on surfaces may be harmful to health.

▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.

2 Avoiding material damage

ATTENTION!

Improper use may cause material damage.

▶ Never use different drives at the same time.
▶ Never operate the appliance longer than necessary.
- Do not operate the appliance at no-load.
▶ Never use genuine parts and accessories for other appliances.
- Observe the maximum processing quantities.
- Do not use the bowl to store objects which do not belong to it.
During operation warm exhaust air escapes from the vent grille at the rear. If this is blocked, it may cause the appliance to overheat.

- Set up the appliance at a sufficient distance from walls, easily damaged surfaces and other appliances.

Vibrations may impair functioning of the appliance.

- Do not place the appliance on moving or vibrating surfaces.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

4 Unpacking and checking

Find out here what you need to note when unpacking the appliance.

4.1 Unpacking the appliance and parts

1. Take the appliance out of the packaging.
2. Take all other parts and the accompanying documents out of the packaging and place them to hand.
3. Remove any packaging material.
4. Remove any stickers or film.

4.2 Contents of package

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: The appliance comes with additional accessories depending on its features. See the instructions for the accessories to discover the further contents of the package.

→ Fig. 1

A	Main unit with mixing bowl
B	Lid with integrated filling shaft
C	Professional flexible stirrer
D	Professional beating whisk
E	Kneading hook
F	Storage pouch
G	Accompanying documents

4.3 Setting up appliance

WARNING

Risk of fire!

Intense heat may cause the appli- ance and other parts to catch fire.

▶ Never place the appliance on or near hot surfaces.

ATTENTION!

During operation warm exhaust air escapes from the vent grille at the rear. If this is blocked, it may cause the appliance to overheat.

- Set up the appliance at a sufficient distance from walls, easily damaged surfaces and other appliances.

Vibrations may impair functioning of the appliance.

- Do not place the appliance on moving or vibrating surfaces.

1. Place the appliance on a stable, level, clean and flat work surface.

2. Pull the power cable out to the required length.

→ "Cable length", Page 38

Do not insert the mains plug.

5 Familiarising yourself with your appliance

5.1 Appliance

You can find an overview of the parts of your appliance here.

→ Fig. 2

1	Stainless steel mixing bowl
2	Control panel
3	Lid with integrated filling shaft
4	Release button for swivel arm

5	Swivel arm
6	Rotary switch
7	Illuminated ring
8	Protective cover for drive 2
9	Drive 2
10	Protective cover for drive 3
11	Drive 3
12	Vent grille
13	Main drive
14	Cord store

5.2 Rotary switch

The rotary switch is used to start and stop processing and select the speed.

Symbol Function

O/off Stop processing.

1 Process ingredients at low speed.

7 Process ingredients at maximum speed.

M Process ingredients briefly at maximum speed. → "Using instantaneous switching", Page 40

5.3 Illuminated ring

The illuminated ring on the rotary switch informs you about the operating status of your appliance.

Display Status
The illuminated ring lights up and processing is underway.	The appliance is functioning perfectly.

©

Posi-tion	Use
Posi-tion 2	Swivel arm is open.■ Insert or remove bowl.■ Insert or remove tool.■ Add the ingredients to the bowl.
Posi-tion 3	■ Use accessory on main drive, e.g. Meat mincer.■ Use accessory on drive 3, e.g. Blender attach-ment.

5.8 Drives

Your appliance is equipped with different drives, which are specially designed for its tools and accessories.

Note: Drives 2 and 3 come with protective covers.

→ "Drive cover", Page 41

Overview of drives

You can find an overview of the drives and their purposes here.

Drive Use
Main drive	For the tools and accessories, e.g.■ Meat mincer■ Pasta press■ Ice maker
Drive 2 For accessories, e.g.■ Continuous feed shredder■ Citrus press

Drive 3 For accessories, e.g.

■ Glass blender attachment
■ Plastic blender attachment

Drive Use
	■ Multi-chopper set

5.9 Tools

You can find out everything you need to know about the different tools here.

The kneading hook is equipped with a removable protective cap to protect the drive from soiling.

Overview of tools

Use the appropriate tool depending on use.

Tool Use

	Kneading hook■ Knead dough, e.g. yeast dough, bread dough, pizza dough, pasta dough, pastry dough.■ Fold ingredients into the dough, e.g. seeds.
	Professional flexible stirrer■ Mix dough, e.g. cake mixture, fruit flan.■ Fold ingredients into the dough, e.g. raisins, chocolate chips.
	Professional beating whisk■ Beat whipped egg whites and cream (at least 30% fat).■ Mix light dough, e.g. sponge mixture.

Fine adjustment of the professional whisk

Use the fine adjustment system to correct the distance between the bowl and the professional beating whisk.

Note: The professional beating whisk is factory-set so that ingredients are mixed together perfectly.

Correcting tool adjustment

ATTENTION!

The appliance and tools can be damaged if a wrong tool setting is used.

▶ Never operate a tool that touches the bowl.

Requirements

■ The mains plug is not inserted.
■ The swivel arm is open.
■ The professional beating whisk is inserted.
■ The bowl has been inserted.

1. Hold the beating whisk at the bottom with one hand and release the lock nut clockwise using a spanner wrench.

$$ \rightarrow \text { Fig. } 4 $$

1. To change the distance, turn the tool.

$$ \rightarrow \text { Fig. } 5 $$

Observe the values in the table:

Setting Distance

Optimum setting	3 mm
One turn clockwise	1 mm more
One turn anti-clockwise	1 mm less

1. Press the release button and push the swivel arm down until it engages.
2. Check the setting.
3. Press the release button and raise the swivel arm until it engages.
4. Hold the beating whisk at the bottom with one hand and tighten the lock nut anticlockwise using a spanner wrench.

5.10 Symbols

You can find an overview of the symbols used on your appliance here.

Symbol	Description
	Marking on the protective cover for drive 2.
	Attachment marking on the protective cover for drive 3.
	Position marking on drive 3.

5.11 Parked position

Your appliance is equipped with an automatic parked position.

After the appliance has switched off, the drives will continue moving for a few seconds until the correct parked position is reached.

Note: The swivel arm will only open or close with the inserted tool when the drive is located in the correct parked position.

The following causes result in an incorrect parked position:

■ The power supply was interrupted during processing.
■ A safety system terminated processing.
■ During processing the swivel arm disengaged or the release button for the swivel arm was pressed.

Tip: You can easily adjust an incorrect parking position yourself.

→ "Troubleshooting", Page 44

5.12 Safety systems

You can find an overview of your appliance's safety systems here.

Start lock-out

Start lock-out prevents your appli- ance from being switched on acci- dentally.

The appliance can only be switched on and operated if

■ the swivel arm is engaged in position 1 and the bowl or an accessory is inserted, e.g. Ice maker.
■ the swivel arm is engaged in position 3 and the protective cover or an accessory is fitted on drive 3.

Restart lock-out

Restart lock-out prevents your appliance from automatically restarting processing after a power failure. The appliance is switched on again after a power failure. Processing cannot start again until the rotary switch has been set to O/off.

Overload protection

The overload protection system prevents the motor and other components from being damaged through being overloaded.

The motor will switch off if

■ too large a quantity is processed.
■ a tool or accessory is blocked.

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing the appliance

1. Press the release button and raise the swivel arm until it engages.
   → "Moving the swivel arm", Page 38

2. Turn the bowl clockwise and remove.

→ "Removing bowl", Page 39

1. Clean all parts that come into contact with food before using for the first time.

→ "Cleaning and servicing", Page 42

1. Put the cleaned and dried parts out ready for use.

7 Basic operation

7.1 Cable length

Adjust the length of the power cable to your needs.

Adjusting cable length via cable rewinder

1. Pull the power cable out to the required length and slowly let go.
2. To shorten the cable,

- pull the cable,

- allow the cable to wind up,

- pull the cable out again.

Note: Do not push the cable in by hand. If the cable jams, pull right out and let it wind up again.

7.2 Moving the swivel arm

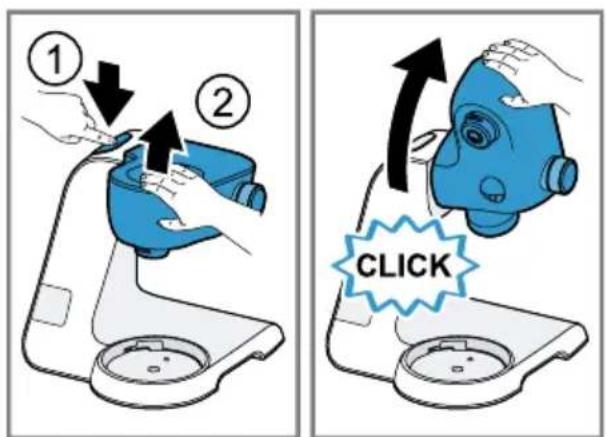

1. Press the release button and raise the swivel arm until it engages.

Fig. 6

√ The swivel arm is fixed in position 2.

1. Press the release button and move the swivel arm down until it engages in the vertical position.

→ Fig. 7

√ The swivel arm is fixed in position 3.

7.3 Inserting bowl

1. Place the bowl in the main unit.

→ Fig. 8

Use the recesses on the main unit.

1. Turn the bowl anticlockwise until it engages.

→ Fig. 9

7.4 Removing bowl

- Turn the bowl clockwise and remove.

→ Fig. 10

7.5 Inserting tools

1. Select the tool required.

→ "Overview of tools", Page 36

1. Press the tool into the main drive until it engages.

→ Fig. 11

1. To insert the kneading hook:

- Insert the kneading hook with the protective cap fitted in the main drive.

- Turn the protective cap until the kneading hook engages fully.

→ Fig. 12

The protective cap a must cover the main drive completely.

7.6 Removing tools

- Pull the tool completely out of the drive.

→ Fig. 13

7.7 Attaching bowl lid

Requirements

■ The required tool is used here.

■ The bowl has been inserted.

■ The swivel arm is closed.

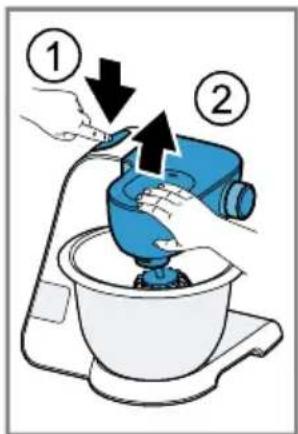

1. Press the release button, raise the swivel arm slightly and hold in place.

→ Fig. 14

1. Lift the lid slightly at the front, slide fully onto the bowl and set down.

→ Fig. 15

The filling shaft must face towards the front.

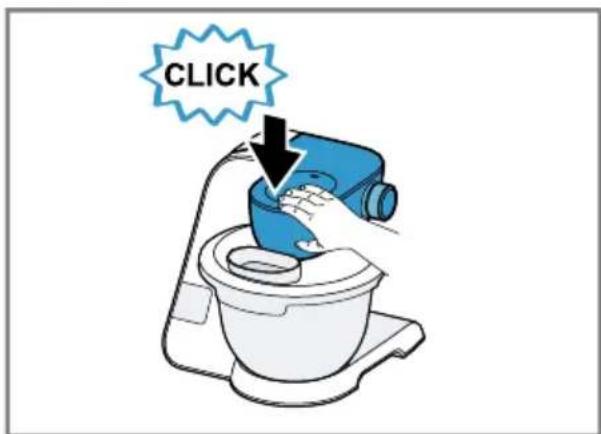

1. Push the swivel arm down until it engages.

→ Fig. 16

7.8 Removing bowl lid

1. Press the release button, raise the swivel arm slightly and hold in place.

2. Lift the lid slightly at the front and pull it out towards the front.

3. Push the swivel arm up until it engages.

7.9 Processing

You can find out everything you need to know about processing food here.

Recommended speeds

Observe the recommended speeds for optimum results.

Tool or accessory	Setting
	1-7
	1-5
	1-3
	1
	3-5
	3-7
	3-7
	3-5
	7
	5-7
	3-7
	M
	M
	5-7

Processing ingredients with tools

WARNING

Risk of injury!

Rotating drives, tools or accessory parts may cause injury.

• Keep hands, hair, clothing and utensils away from rotating parts.
• Only attach and remove tools and accessories once the drive has stopped and you have unplugged the appliance.
  ▶ Before changing tools or cleaning the appliance, switch off and disconnect it from the mains.
  ▶ Only use the tools when the bowl is inserted, the lid is fitted and the drive covers are in place.
  ▶ Never open the swivel arm during processing.

Requirements

■ The bowl has been inserted.
■ The required tool is inserted.
1. Add the ingredients to the bowl.

1. Press the release button and push the swivel arm down until it engages.

2. Attach the bowl lid. → "Attaching bowl lid", Page 39

3. Insert mains plug.

4. Set the rotary switch to the required speed.
5. Process the ingredients until you achieve the required result.
6. Set the rotary switch to O/off → Fig. 18
   Wait until the appliance stops.
7. Unplug the mains plug.

$$ \rightarrow \text { Fig. } 1 7 $$

Tips

■ You can change the speed at any time during processing or interrupt processing.
■ Clean all parts immediately after use so that residues do not dry on.

Adding more ingredients

$$ \rightarrow \text { Fig. } 1 9 $$

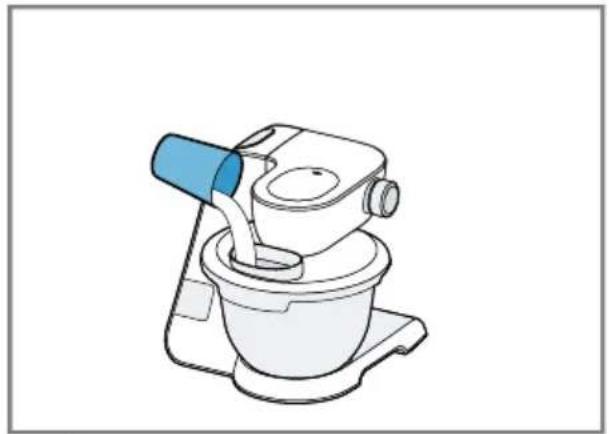

1. To add ingredients during processing, use the filling shaft in the lid.
2. To add large quantities, set the rotary switch to Q/off Wait until the appliance stops.
3. Remove the bowl lid. → "Removing bowl lid", Page 39
4. Add the ingredients to the bowl.
5. Attach the bowl lid. → "Attaching bowl lid", Page 39
6. Process the ingredients until you achieve the required result.

Using instantaneous switching

1. Set the rotary switch to M and hold.
   √ The ingredients are processed at maximum speed.
2. Release the rotary switch.
   √ The rotary switch springs to / off
   √ Processing stops and the drives move to the parked position.

$$ \rightarrow \text { Fig. } \boxed {2 0} $$

$$ \rightarrow \text { Fig. } \boxed {2 1} $$

Tip

Instantaneous switching is especially suitable when using the following accessories:

■ Glass blender attachment
■ Multi-chopper set
■ Multi-blender attachment

7.10 Drive cover

Remove the protective cover to use accessories on drive 2 or 3.

Removing drive cover

1. Press down the protective cover for drive 2 at the marking and remove.

$$ \rightarrow \text { Fig. } \boxed {2 2} $$

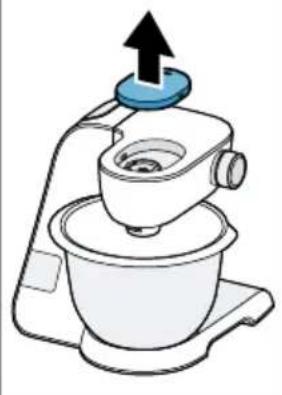

1. Pull up the protective cover for drive 3 and remove.

$$ \rightarrow \text { Fig. } \boxed {2 3} $$

Fitting drive cover

1. Align the protective cover for the drive 2 with the marking ≡ towards the back, position and press in place firmly.

$$ \rightarrow \text {Fig.} \boxed {2 4} $$

1. Position the protective cover for the drive 3 and press in place firmly.

$$ \rightarrow \text { Fig. } \boxed {2 5} $$

Markings ▲ and must match up.

Note: Always close unused drives with the protective covers.

8 Scales

Your appliance is equipped with a set of scales. You can weigh ingredients individually.

The main unit has 4 weight sensors in its feet.

The following factors can falsify the measuring result:

■ Feet not standing on the work surface properly
■ Work surface vibrating
■ Objects underneath the main unit
■ Ingredient quantities less than 5 g or 0.01 lb
■ Main unit slipped
■ Main unit touched
■ Objects on the main unit

8.1 Display values of scales

Observe the following values when using the scales.

Display unit in grams

Display range -990 g to 5000 g

Display steps 5 g

Display unit in pounds

Display range -2.20 lb to 11.00 lb

Display steps 0.01 lb

Tip: You can change the display units of the scales at any time.

→ "Changing the display units of the scales", Page 42

8.2 Weighing ingredients

Requirements

■ The bowl is inserted or an accessory is fitted.
■ The rotary switch is set to O/off.

1. Press 📋 and do not touch the appliance again.

√ The scales will be calibrated.
√ The display shows "----".

1. Wait for calibration to finish.

√ The display shows "0 g" or "0.00 lb".

1. Add the required ingredient.

√ The display shows the weight.

en Timer

1. To weigh further ingredients, select one of the following options:

2. Add further ingredients and read off the total weight.

3. Press ⚙ and wait until the display shows "0 g" or "0.00 lb".

4. To switch off the scales, press 📋 or start processing.

Tip: Also use the scales together with the accessory. Weigh the ingredients directly when adding them, e.g. to the blender attachment or the ice maker.

Note: The scales switch off automatically after approx. 3 minutes of inactivity.

8.3 Changing the display units of the scales

Requirements

■ The rotary switch is set to O/off.
■ The scales are switched on.

1. Press and hold ⚙ and ⏰ The display unit for the scales changes.

Symbol Unit
g	Display in grammes
lb	Display in pounds

1. Release both buttons.

√ The scales will calibrate themselves and restart with the changed setting.
√ The setting is saved.

9 Timer

You can read off the processing time that has elapsed or reset it.

9.1 Display values of timer

Observe the following values when using the timer.

Display range 0 seconds to59 minutes and59 seconds

Display steps 1 second

9.2 Reading off and resetting the processing time

1. Set the rotary switch to the required speed.
   √ The display shows the processing time.
2. To reset the display to "00:00" press 😊.

Notes

■ If you interrupt processing for less than 30 seconds, the last values displayed are saved and will resume if processing starts again.
■ If you interrupt processing for more than 30 seconds, the appliance will switch on the scales and perform calibration.

10 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

10.1 Cleaning products

Find out here which cleaning products are suitable for your appli-ance.

ATTENTION!

Using unsuitable cleaning agents or incorrect cleaning may damage the appliance.

• Do not use cleaning agents containing alcohol or spirits.
• Do not use sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.
  ▶ Only clean the control panel and the display using a damp microfibre cloth.

10.2 Overview of cleaning

You can find an overview of how to best clean the appliance and the other parts here.

→ Fig. 26

Tip: When processing food such as carrots, plastic parts may become discoloured. Remove discolouration with a soft cloth and a few drops of cooking oil.

11 Special accessories

You can buy accessories from the after-sales service, from specialist retailers or online. Only use genuine accessories as these have been specifically designed for your appliance. Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance. → Page 47

You can find out which accessories are available for your appliance in our catalogue, in the online shop or from our after-sales service.

www.bosch-home.com

12 Application examples

Observe the comments and figures in the table.

→ Fig. 27

12.1 Sample recipe

You can find a sample recipe that has been specially developed for your appliance here.

Recipe Ingredients Processing

Heavy fruit cake ■ 3 eggs■ 135 g sugar■ 135 g margarine■ 255 g flour■ 10 g baking powder■ 150 g currants■ 150 g mixed dried fruitNote: Process max. 2 times the quantity at the same time.

■ Insert stirring whisk.■ Add all ingredients ex-cept the dried fruit.■ Process for 30 seconds at set-ting 1.■ Then process for 3-5 minutes at set-ting 5.■ Select setting 2.■ Add the dried fruit within the next 30-60 seconds.

13 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

The appliance is not working.	The mains plug of the power cord is not plugged in. ► Connect the appliance to the power supply.
	The circuit breaker in the fuse box has tripped. ► Check the circuit breaker in the fuse box.
	There has been a power cut. ► Check whether the lighting in your kitchen or other appliances are working.
Appliance does not start processing.	Rotary switch is set incorrectly. ► Set the rotary switch to O/offre processing.
Appliance does not start processing or switches off during processing.	Processing quantity is too great or processing time was too long. ► Set the rotary switch to O/off ► Reduce the quantity of ingredients. ► Allow the appliance to cool down to room temperature.
	Appliance or accessory is blocked. ► Set the rotary switch to O/off ► Remove the blockage.
Scales show no change in weight despite ingredients being added.	Quantity of ingredients outside measuring range of scales. ► Add at least 5 g or 0.01 lb so the scales show correct values.

Fault Cause and troubleshooting

The swivel arm cannot be opened or closed because the tool is jammed in the bowl.	Drive is not in the parked position after a safety system has stopped processing or the power supply has been interrupted.1. Set the rotary switch to O/off2. Eliminate the problem that caused the appliance to stop.→ "Safety systems", Page 373. When the swivel arm is open, remove the tool and close the swivel arm.4. Set the rotary switch briefly to 1 and then back to O/off.√ The drive remains on for a short time until the parked position is reached.
"5000 g" or "11.00 lb" is flashing on the display.	Display values of the scales have been exceeded.▶ Observe the display values of the scales.→ "Display values of scales", Page 41
"-990 g" or "-2.20 lb" is flashing on the display.	Display values of scales have not been attained.▶ Observe the display values of the scales.→ "Display values of scales", Page 41
"59:59 m:s" is flashing on the display.	Display range of the timer has been exceeded.▶ Process food for not longer than 59 minutes and 59 seconds or reset the processing time within this time.→ "Reading off and resetting the processing time", Page 42
The display shows "ERROR"	Scales are exposed to excessive vibrations.▶ Do not use the appliance on worktops exposed to vibrations, e.g. with a dishwasher running underneath.
	Base is uneven.1. Set up the appliance on a stable, level, clean and flat work surface.2. Check whether all 4 feet are in contact with the work surface.
	The feet are soiled.▶ Wipe the feet down with a damp cloth.
	The scales have to be restarted.1. To restart the scales:- Press 📄.- Wait 30-60 seconds.- Press 📄 again and wait for calibration.
Fault Cause and troubleshooting
The display shows "ERROR"	2. If the fault is still displayed, disconnect the appliance from the power supply for a while and then try to switch the scales back on.Note: Please perform the troubleshooting procedure several times before contacting customer service.

14 Disposal

14.1 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

15 Customer Service

Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

15.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

fr

QR code image containing encoded data, no visible human-readable text

Table des matières

1 Sécurité.... 50

Sécurité anti-surcharge

QR code image containing encoded data, no visible human-readable text

Indice

1 Sicurezza 73

QR code image containing encoded data, no visible human-readable text

Inhoudsopgave

1 Veiligheid.... 95

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

⚠ WAARSCHUWING – Kans op verstikking!

Stand 2 Draaiarm is geopend.

7 De Bediening in essen- tie

7.1 Snoerlengte

QR code image containing encoded data, no visible human-readable text

Indholdsfortegnelse

ADVARSEL – Brandfare!

⚠️ ADVARSEL – Fare for klemning!

QR code image containing encoded data, no visible human-readable text

Innholdsfortegnelse

1 Sikkerhet.... 138

1.1 Generelle merknader.... 138
1.2 Korrekt bruk 138
1.3 Begrensning av brukerkretsen.... 139
1.4 Sikkerhetsinstrukser 139

2 Unngå materielle skader...... 142

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Sisällysluettelo
